Хорошая обратная связь оригинальный программист CGdi FC200 ECU полная версия поддержка 4200 ECUs и 3 рабочих режимов чтения/записи данных на скамейке

CGDI FC200 CG FC200 ECU Programmer Full Version with AT200 & MPC5XX Adapters for BOSCH MPC5xx Read/Write Data on Bench

FC200 Highlights:



1. Protect Original Car Parts

More than 98% of ECUs support BENCH mode and OBD mode, no need to open the cover and punch holes to protect the original car.



2. Intelligent Recognition

The "identification" function can help users better diagnose whether the ECU module is communicating and check whether the wiring is wrong. If the ECU module can communicate without damage and the wiring is correct, the recognition can be successful, and the chip information, hardware information and firmware information can be read out.



3.Module Clone

Supports ECU data reading and writing and module cloning, no synchronization matching, no online programming, data sub-regional burning, automatic verification, and maximum protection of chips and modules.



4. ISN Read and Write

Supports engine computer ISN code acquisition for all BMW series (including Mini), which is convenient for key matching and anti-theft maintenance.



5.VIN modification

Solve the problem of double VIN or VIN mismatch of vehicles, which is convenient for vehicle maintenance.



6. Data Processing

Support engine computer data analysis and modification for Audi/Seat/Skoda/Volkswagen models;



Support the shutdown of Bosch MED/EDC17 series engine computer anti-theft system;



Support the TPROT off function of Bosch VAG MEDC17 series, for BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.



7. FC200 not only support for BMW ECU but also support over 3000 ECUs.



Please contact us to get FC200 Support ECU List



8. Multi-Language: English, French and Simplified Chinese

For Spanish, Polish Turkish and Traditional Chinese, will need to pay $130 to get authorized seperately with serial number.



9. Full Version with All License Activated.

Free Update Online for One Year. Annual Fee will be $250/year after the first year.



10. With New Adapters Set No Need Disassembly in Package:

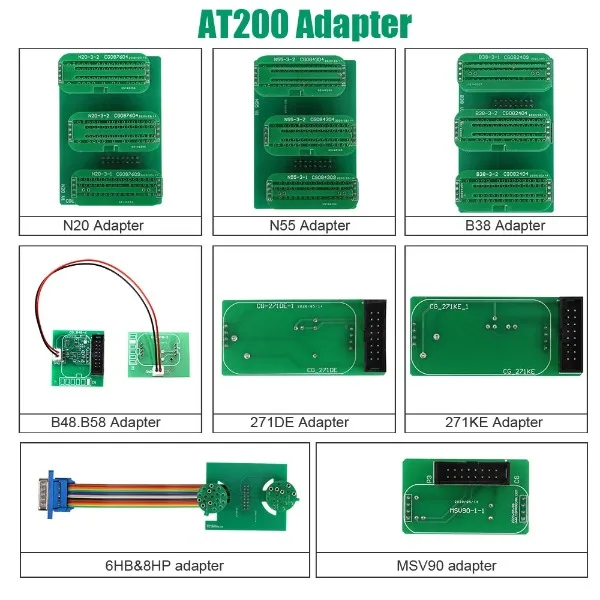

Adapters Including: 6HP & 8HP, MSV90, N55, N20, B48/B58, B38, 271KE Adaper, 271DE Adapter.



(With this adapter set, you won't need the old B48/B58 cable anymore).

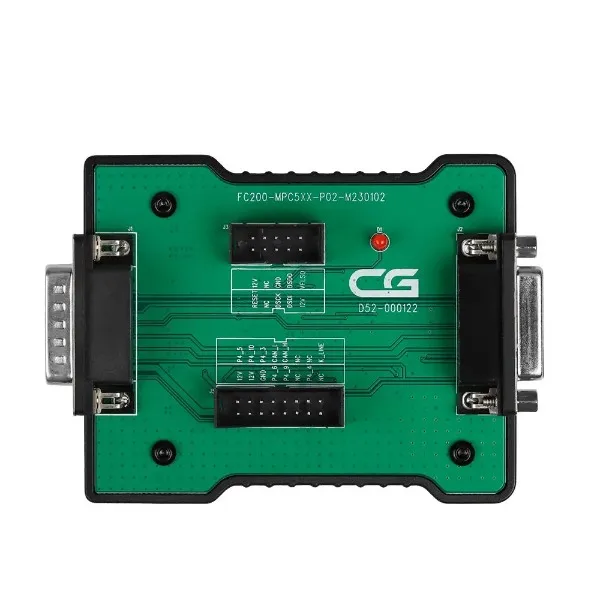

CG FC200-MPC5XX-P02-M230102 adapter can be used for MPC5X series clone without opening cover.



CG FC200 Latest Updae Information:



V1.1.3.0 Registered Version (2023.05.24)

1. Newly added CONNECTAL TC17 platform mode ECU: PCR2.1, SDI7, DPS6

2. Add for BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8

3. New for Volkswagen TCU mileage repair function: DQ200 TC1766, DQ250, VL381, DL382

4. Add for Hyundai/Kia/Ssangyong KEFICO CPEGD2.20. x ECU functions: platform mode data read and write, modify VIN functions

5. Add for Mercedes Benz CRD2. x MPC556x engine platform mode

6. For DELPHI TC17 chip ECU adds PFLASH verification function

7. ECU with PFLASH verification function added to BOSCH ST10F chip: ME7.4.5

8. For GM 6T30, 6T80, 6L80 TCU added PFLASH verification function

9. Diesel ECU EDC17C53, EDC17C63, EDC17C81 and other newly added anti-theft system shutdown



Software V1.1.2.0 (2023.04.03)

1. Add new models

（A）General engine computer: E37, E39A, E78, E80, E83

（B）ST10 engine computer: M7.4.4, ME7.3.2, ME7.4.4

2. Add new checksum

（A）Benz gearbox computer: VGS-FDCT, VGS2-FDCT, VGS-FCVT

（B）VW transmission computer: DL382, DL501 Gen2

（C）General engine computer: E38, E39, E39A, E67

3. Add new functions

（A）Lovol Engine Computer: "Time Repair" of EDC17CV53



Software V1.1.0.0 (2022.12.13)

1. Added DELPHI platform and BOOT engine: CRD3.10, CRD3.E1, CRD3.F1, CRD3E.1, CRD3P.B0, CRD3P.C0, CRD3P.D1, CRD3P.G0, and CRD3xx

2. Added B-OSCH BOOT engines: ME7.5.20, M7.9.5, ME7.9.51, and ME7.9.52

3. Add PFLASH check function for MG1C, MD1C SPC5777 and TC298TP engines of B-OSCH

4. Added password reading function in the platform mode of G-M engine E39

5. Optimize the PFLASH verification algorithm of BOECH's TC17 series engines

6. Added B-OSCH platform engine: EDC17CV53

7. Fix some bugs and optimize software performance



Software V1.0.9.0 Registered Version (2022.10.19)

1. Added GM ECU: E38, E39, E67 (ECU Note: please update the authorization for the first time, and then restart the software)

2. New gearbox computer: ZF_9HP

3. Added Bosch engine (platform mode) : MD1CS018, MG1CS032, MG1CS026, MG1CA920, MG1CA007, MG1CA811

4. Added engine with modified VIN function: EDC17C42, EDC17CP27, MED17.8.2, MEVD17.2.7

5. Added the American version of B-MW 28A0 and 101F fault code shutdown function

6. Fix the abnormal display of software service time

7. Fix some bugs and optimize software performance



CG FC200 Software V1.0.8.0 (2022.09.07)

1.Added for BMW 28A0, 101F fault code closing function

2.Added Bosxch series engines: EDC17CP05 TC1797, EDC17C61, MED17.6.9, MG1CS019, MD1CS012, EDC17CV45, MG1CP002, ME17.U.6, MEV17.4.2 TC1766, MEV17.4.2 TC1767

3.New Bosxch platform mode engines: ME17.8.8, MED17 and MED17.8.10

4.New Bosxch boot mode engines: ME7.7.0, M7.9.8, MEG17.9.2, MEG17.9.21

5.Fix some bugs and optimize software performance

6.Add service renewal function
