DC 12V 24V AC 110V 220V Programmable Digital Time Delay Switch Relay T2310 Open Timer Control Module 0-999s/min/hour


Feature:

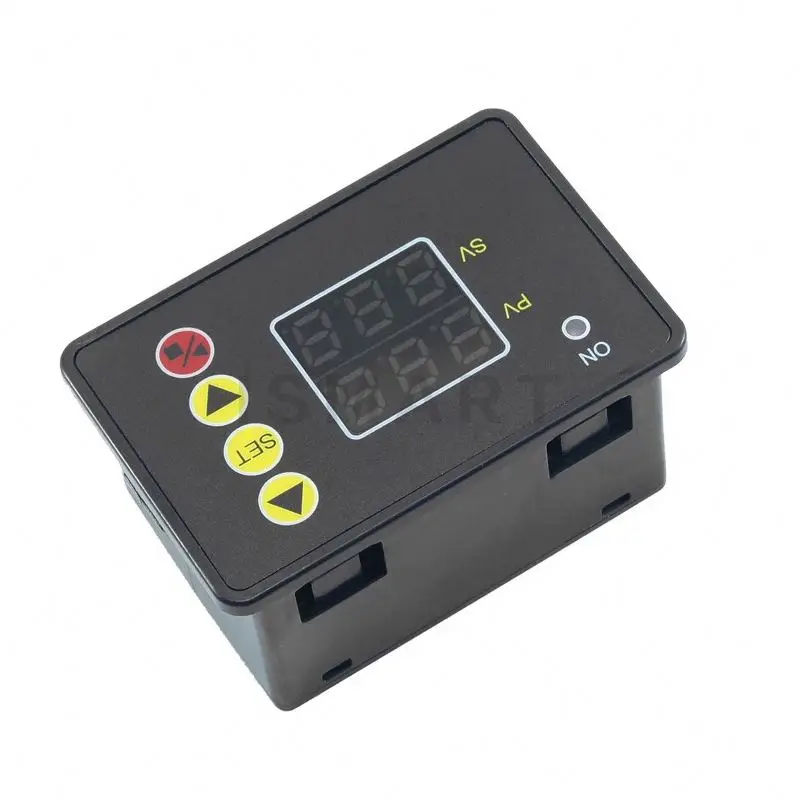

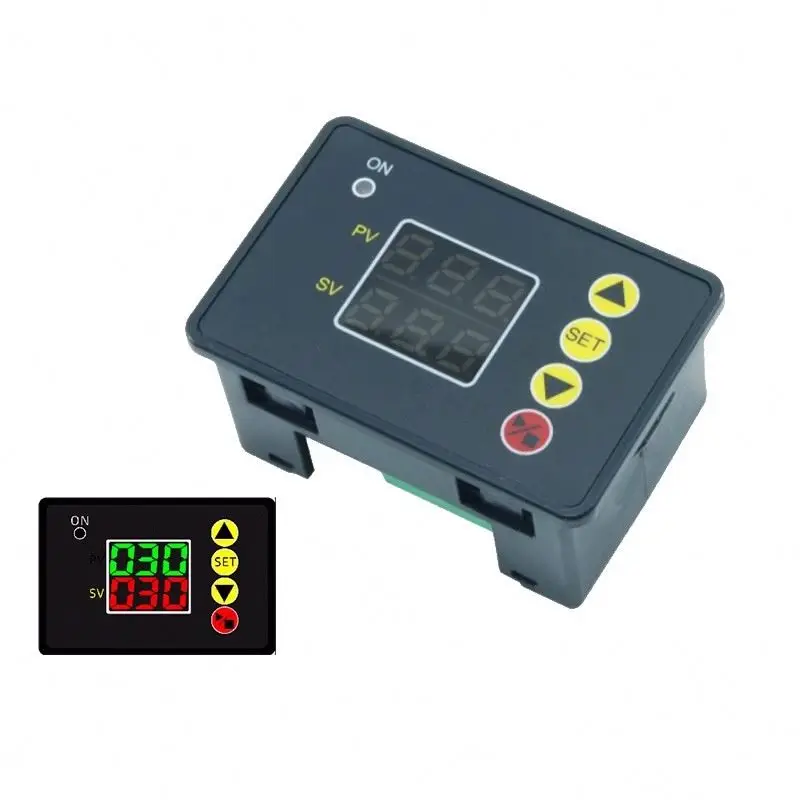

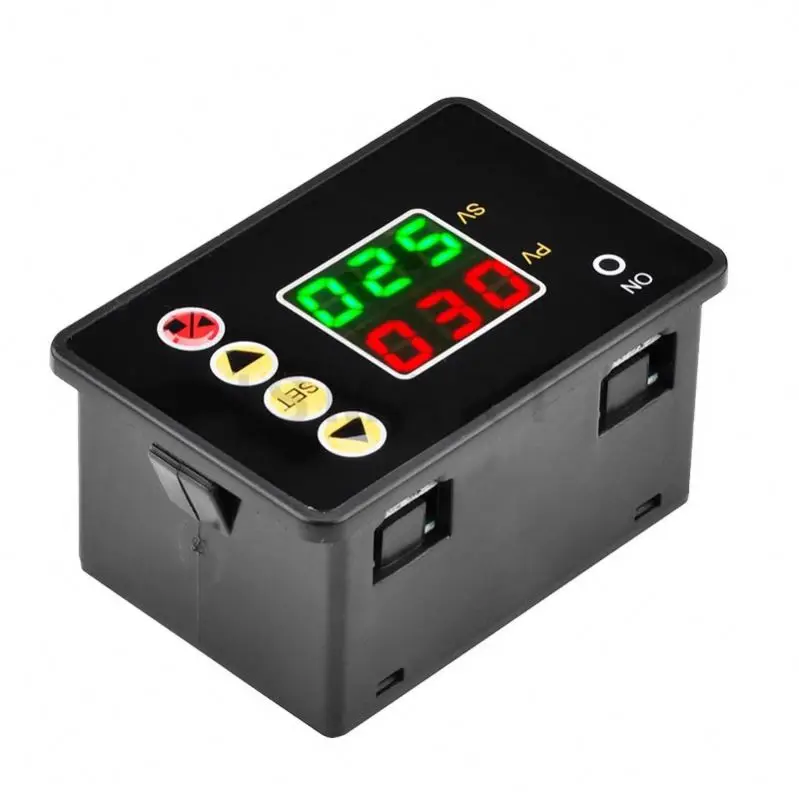

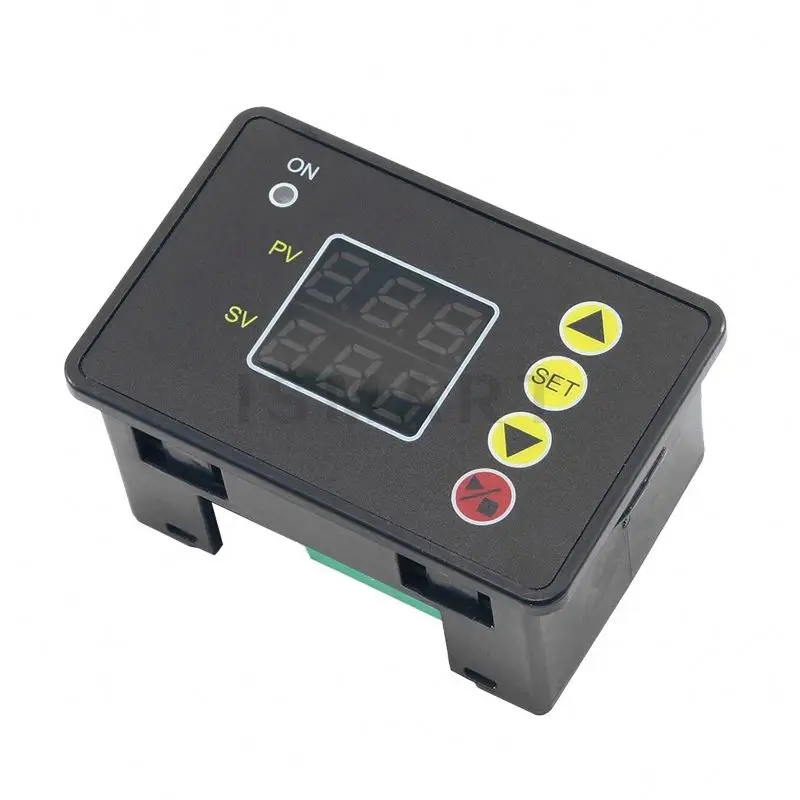

T2310 is a time-controlled relay with 1 normally open relay


It can be divided into three specifications: DC12V, DC24V and ACA110~220V according to different working voltages


Fixed bit pass, off timing display Settings, independent timing unit, so that large time span can be realized


Optimized setting operation, timing on, timing off, infinite cycle switch setting more convenient, more intuitive


1~999 times alternate work and infinite cycle work independent setting, the maximum extent to meet the needs of use



Basic parameters:


Operating voltage: DC12V, DC24V, AC110~220V


Load power: 240W, 480W, 2200W (the load power marked on the label shall prevail)


Timing range: 0~999 (seconds, minutes, hours)


Minimum unit: 1 second Error: 20ppn


Timing type: non - clock countdown


Timed startup: Supported


Timed shutdown: Supported


Infinite loop: Supports infinite switching loop


Quantitative cycle: Support 1~999 cycle switch


Case material: ABS


Independent timing unit: Supported


Program trigger: Support automatic trigger and manual trigger switch, factory default automatic trigger


Setting Lock: Supported


Power-off save: Only the latest Settings are automatically saved.


Relay type: 1 channel normally open relay


Output type: contact live, active output


Product size: 67×45×34mm


Installation hole size: 63×42mm (embedded installation)


Operating voltage = Input voltage = Output voltage = label voltage



Product instruction: https://www.banber.com/gather/635897aaf242b10009e8a8c8.html



Package Include :


Time control relay X1


DC 12V 24V AC 110V 220V Programmable Digital Time Delay Switch Relay T2310 Open Timer Control Module 0-999s/min/hour
