Product Introduction
◆ Wet Drum Magnetic Separator Introduction
The wet drum magnetic separator is a commonly used iron ore processing equipment (iron ore magnetic separator) and manganese ore equipment (manganese ore magnetic separator) and is a mainstream strong magnetic separator ore dressing equipment.
magnetic intensity can be from 800 to 9000 gauss as per requested, drum quantity can be one , or two or three.
Wet drum magnetic separation is suitable for wet magnetic separation of magnetite, pyrrhotite, roasting ore, ilmenite and other materials with a particle size of 3mm or less. It is also used for iron removal of coal, non-metallic minerals, building materials, etc.
magnetic intensity can be from 800 to 9000 gauss as per requested, drum quantity can be one , or two or three.
Wet drum magnetic separation is suitable for wet magnetic separation of magnetite, pyrrhotite, roasting ore, ilmenite and other materials with a particle size of 3mm or less. It is also used for iron removal of coal, non-metallic minerals, building materials, etc.
◆ Magnetic Separator Conveyor Working Principle
When the raw materials flow into the tank body of the dry magnetic separator, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.
◆ Wet Drum Magnetic Separators Types
According to the needs of users, it can provide magnetic separation of many different surface strengths such as downstream, semi-reverse flow and counterflow.
◆ We can provide various kinds of magnetic separator, including:
Drum Type magnetic separator
mostly used for separating strong magnetic minerals, such as Iron , magnetite, hematite , ilmenite,ect.
Features of this kind magnetic separator :
1.Magnetic intensity: usually low to middle intensity, from 800 gauss to 9500 gauss (on the condition of drum dia -500mm), if drum dia +500mm, instensity can be only 5000 gauss.
2.Process method : wet or dry process available
3.Drum quantity : 1 pc or 2 pc or 3 pcs
4.Feeding position: for wet process feeding material from side of drum, for dry process feeding material from top of drum
5.Adjustable intenstity: NO
6.Magnetic block : 1/3, 2/3,1/4 of the drum, fixed on the machine, not moving when drum rotating.
7.Maxi feeding size: 2 mm
8.Process capacity: Depends on drum size and feeding size.
Features of this kind magnetic separator :
1.Magnetic intensity: usually low to middle intensity, from 800 gauss to 9500 gauss (on the condition of drum dia -500mm), if drum dia +500mm, instensity can be only 5000 gauss.
2.Process method : wet or dry process available
3.Drum quantity : 1 pc or 2 pc or 3 pcs
4.Feeding position: for wet process feeding material from side of drum, for dry process feeding material from top of drum
5.Adjustable intenstity: NO
6.Magnetic block : 1/3, 2/3,1/4 of the drum, fixed on the machine, not moving when drum rotating.
7.Maxi feeding size: 2 mm
8.Process capacity: Depends on drum size and feeding size.
Roller type magnetic separator
Mostly used for separating out weak magnetic minerals, such as Manganese ore, chromite ore, tin ore, wolframite ore, coltan ore,ect.
Features of this kind magnetic separator :
1.Magnetic intensity: usually high intensity from 11000gauss to 16000gauss, if with belt, the intensity will be weaken a bit reaching 11000 gauss to 13000 gauss, if with brush, maxi intensity can reach 13000 gauss to 16000 gauss.
2. Process method : wet or dry process available
3. Roller quantity : 1 pc or 2 pc or 3 pcs or more
4. Two types: with brush type or with belt type, brush is for help the magnetic minerals to leave the roller more easyly.
5. Feeding position: for wet process, feeding material is from side of machine and with brush, for dry process , feeding material is from top of machine, with belt or brush.
6. Adjustable intenstity: NO
7. Magnetic block: the whole roller is magnetic
8.Roller Diameter: 100-600 mm, most often used diameters are (100-140-160-180-220-240-300-320-380mm), roller length can be (600-800-1000-1200-1500-1800mm)
9. Maxi feeding size: 2 mm
10. Process capacity: Depends on Roller size and feeding size.
Features of this kind magnetic separator :
1.Magnetic intensity: usually high intensity from 11000gauss to 16000gauss, if with belt, the intensity will be weaken a bit reaching 11000 gauss to 13000 gauss, if with brush, maxi intensity can reach 13000 gauss to 16000 gauss.
2. Process method : wet or dry process available
3. Roller quantity : 1 pc or 2 pc or 3 pcs or more
4. Two types: with brush type or with belt type, brush is for help the magnetic minerals to leave the roller more easyly.
5. Feeding position: for wet process, feeding material is from side of machine and with brush, for dry process , feeding material is from top of machine, with belt or brush.
6. Adjustable intenstity: NO
7. Magnetic block: the whole roller is magnetic
8.Roller Diameter: 100-600 mm, most often used diameters are (100-140-160-180-220-240-300-320-380mm), roller length can be (600-800-1000-1200-1500-1800mm)
9. Maxi feeding size: 2 mm
10. Process capacity: Depends on Roller size and feeding size.

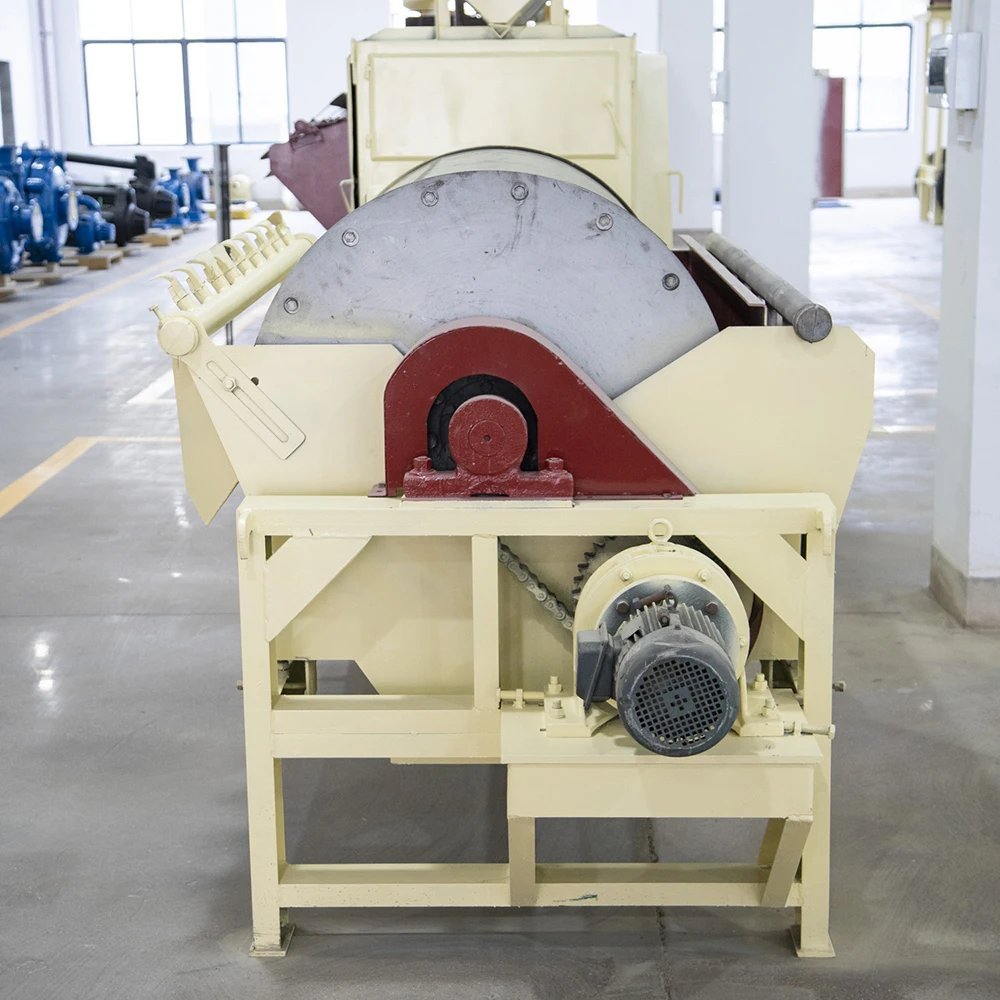

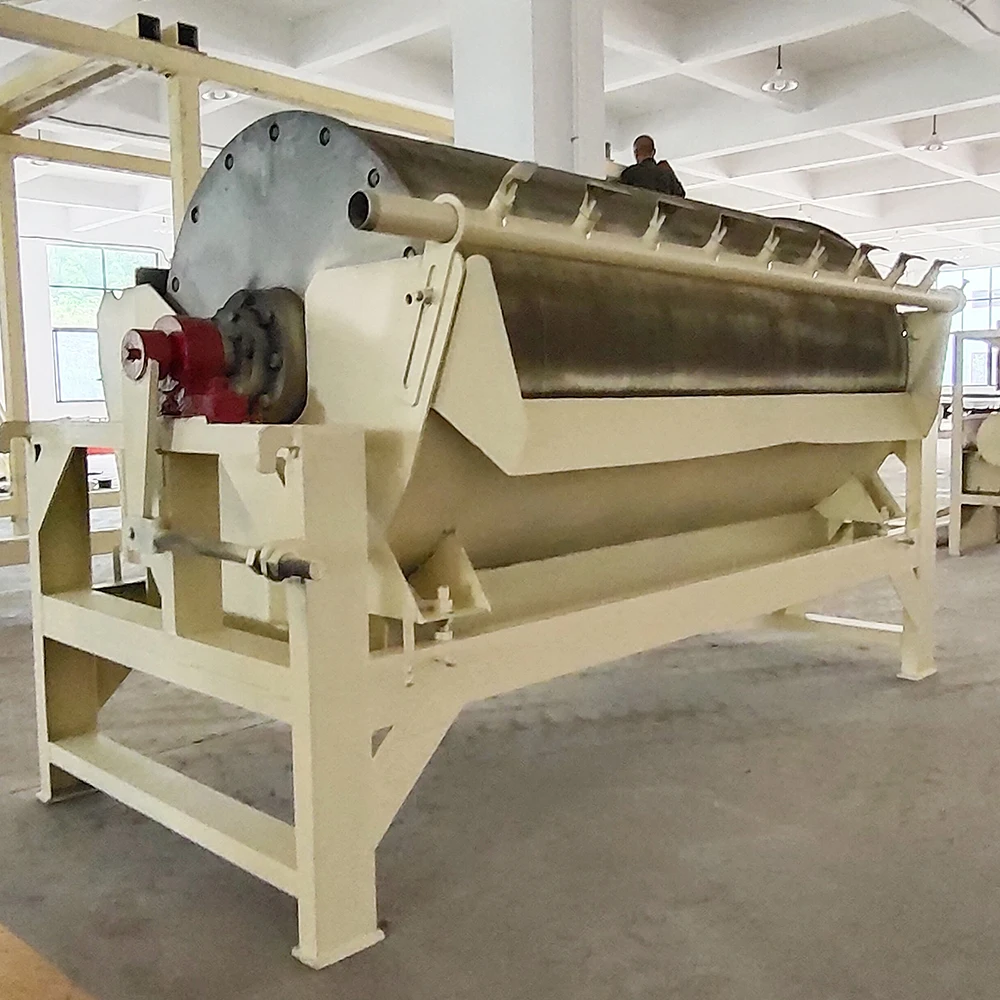

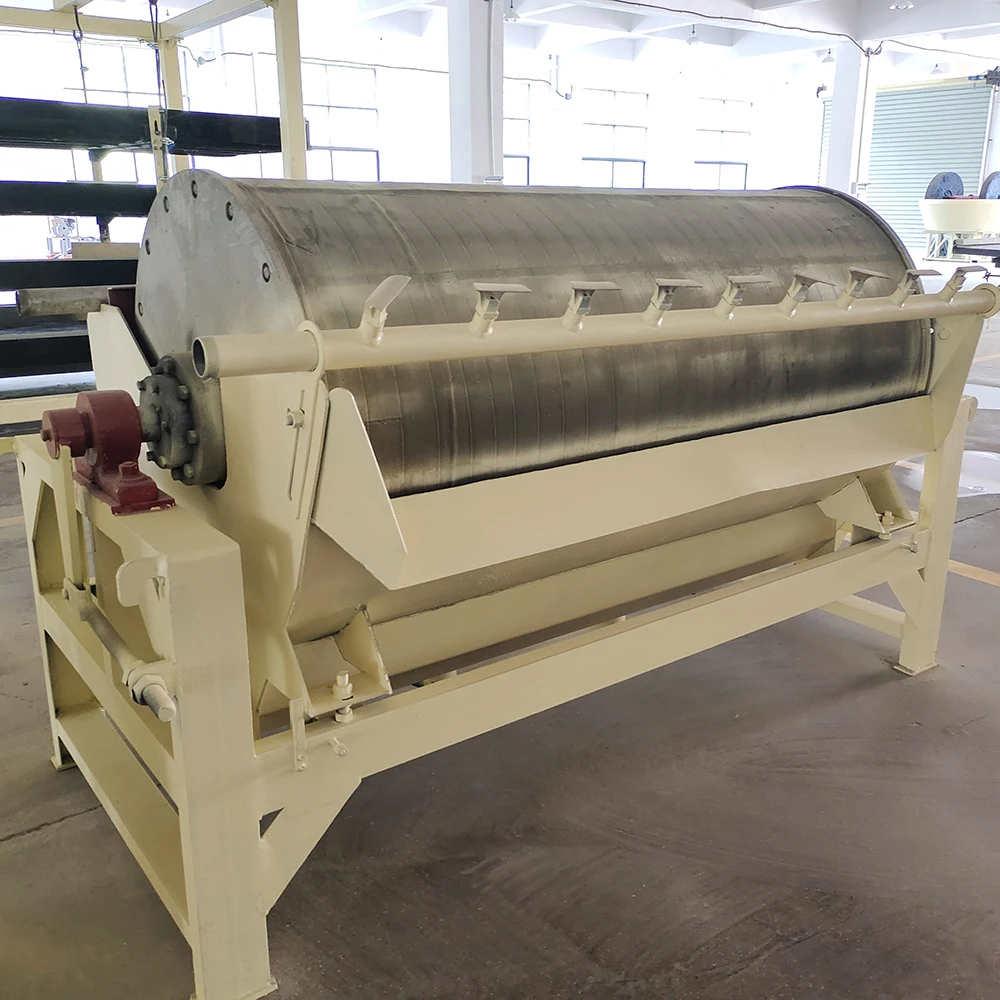

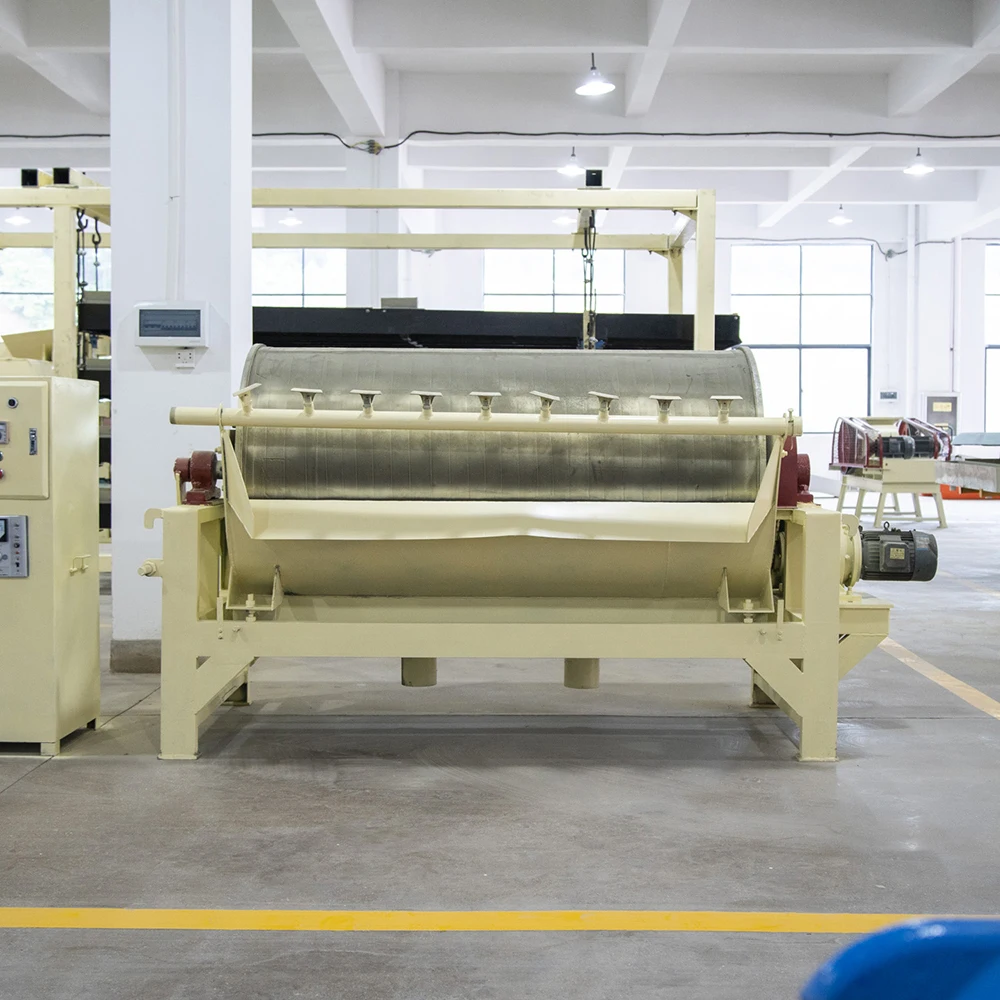

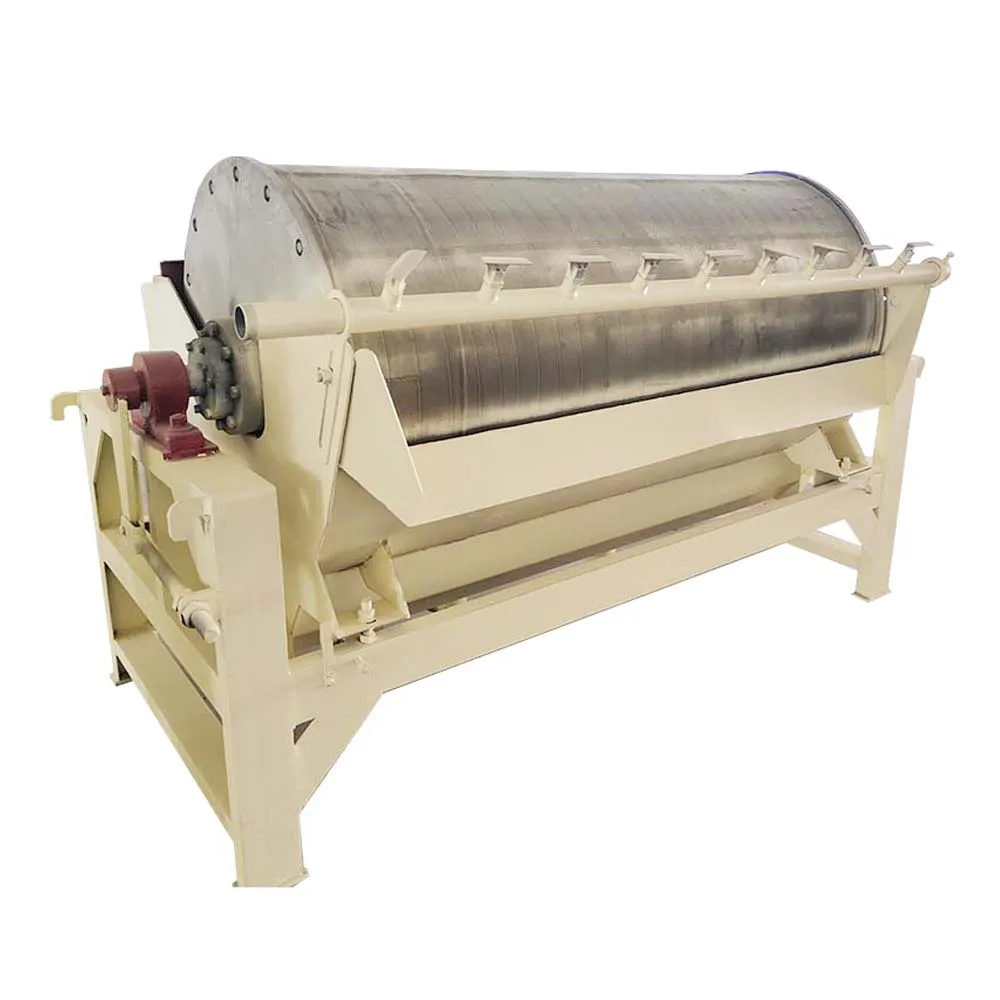

◆ Product Display
Specifications
Model | Shell Diameter(mm) | Shell Length(mm) | Shell Rotation Speed(r/min) | Feeding Size (mm) | Processing Capacity(t/h) | Power(kw) |
CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
Successful cases
We have provided the magnetic separator for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa,Uganda, Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant,diamond washing plant, Iron ore washing plant,ect.
Product packaging
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
● Shiping by sea/air freight
or any way the customer requires.
Our Company
7*24 hours online consulting service, we provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
