TD8620 Handheld Digital TeslaMeter

1.GENERAL DESCRIPTION

	The TD8620 Handheld Digital Teslameter is a field-portable unit that measures DC magnetic fields with direct digital readout in mT or G. The unit is designed for wide range, auto-range, high accuracy, and ease of use .
	TD8620 includes three grades of meters: Accuracy of TD8620-1 is ±1% of reading Accuracy of TD8620-2 is ± 2% of reading Accuracy of TD8620-5 is ±5% of reading

2.SPECIFICATIONS

2.1.TD8620-1

2.2.TD8620-2

2.3.TD8620-5

3.DETAIL

3.1 Main Body

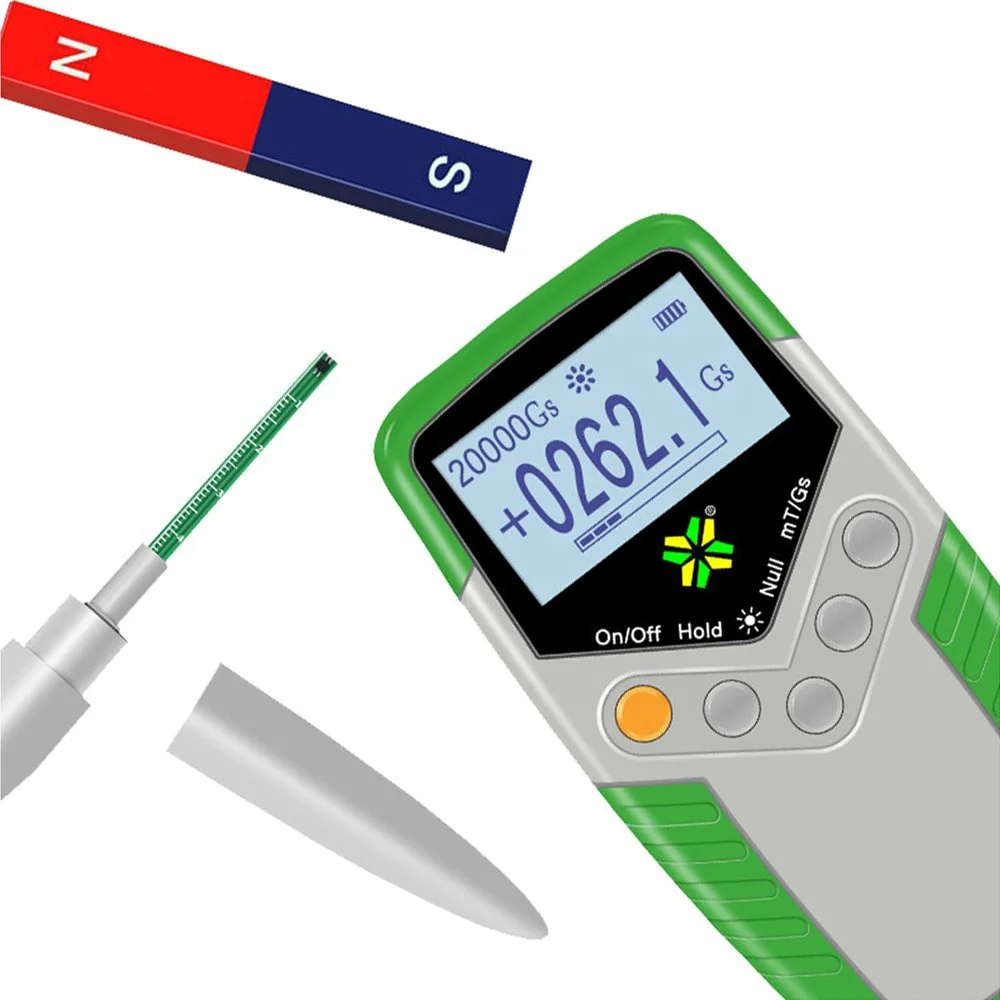

TD 8620 front panel key are defined as follows:

1)ON/OFF: Turns power to the unit on/off.
Hold: Turn Max Hold feature on and off. Max Hold captures and displays the highest field reading.
2)Blacklight: Turn backlight feature on and off. Backlight lighten up the LCD for reading.
3) NULL: Used to zero or null effects of ambient low level fields from the probe. When user pushes the NULL key ,0000.0 G or 000.00 mTdisplayed. The unit then automatically accepts whatever residual field it reads as a zero offset .
4)mT/G : Changes units from mT to gauss .Gauss is used in the cgs system :1 G=0.1 mT,mT is used in the SI system :1 mT =10 G

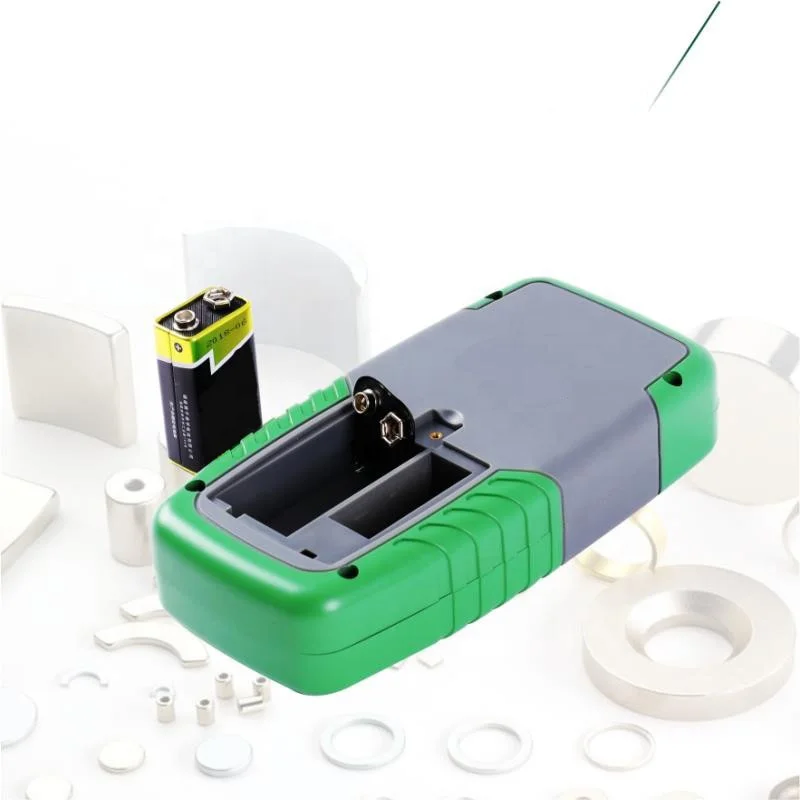

When the stud-snap battery is used up, you should take the follow steps to replace it. Firstly, use a long-stemmed driver to remove off the screw which on the hole shown in the fig 3. Secondly, unfasten the snap of the battery, then take a new battery replace of the old ,fasten the snap , screw on. Finally replace the battery door.

3.2 Probes

4.APPLICATION

1) Permanent magnet surface magnetic measurement;

2) Remanent magnetization measurement of mechanical parts;

3) DC magnetic field source measurement;

4) Magnetic field measurement of magnetic separator;

5) Speaker quality control;

6) Working magnetic field measurement of permanent magnet iron remover;

7) Working magnetic field measurement of DC generator;

8) Leakage magnetic field of strong magnetic shielding;
