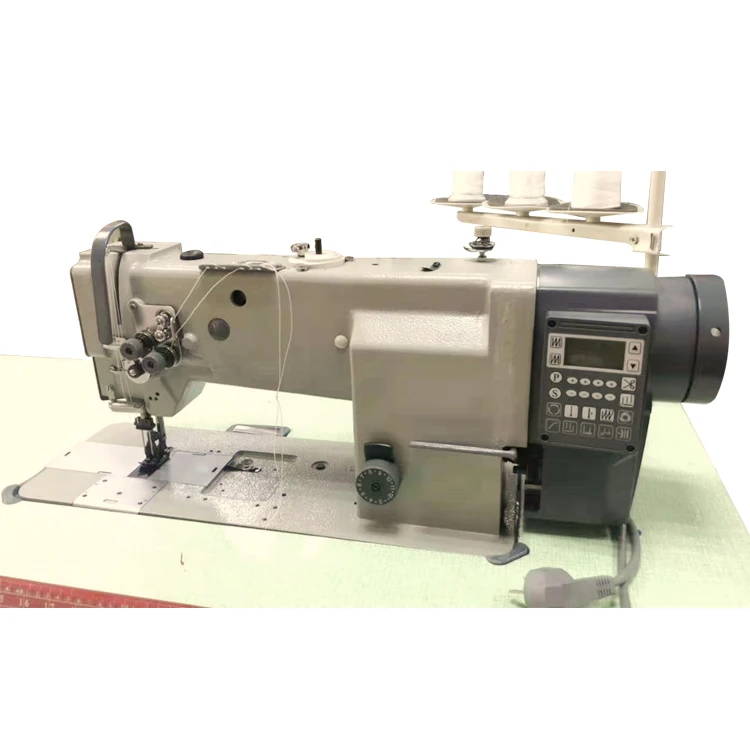

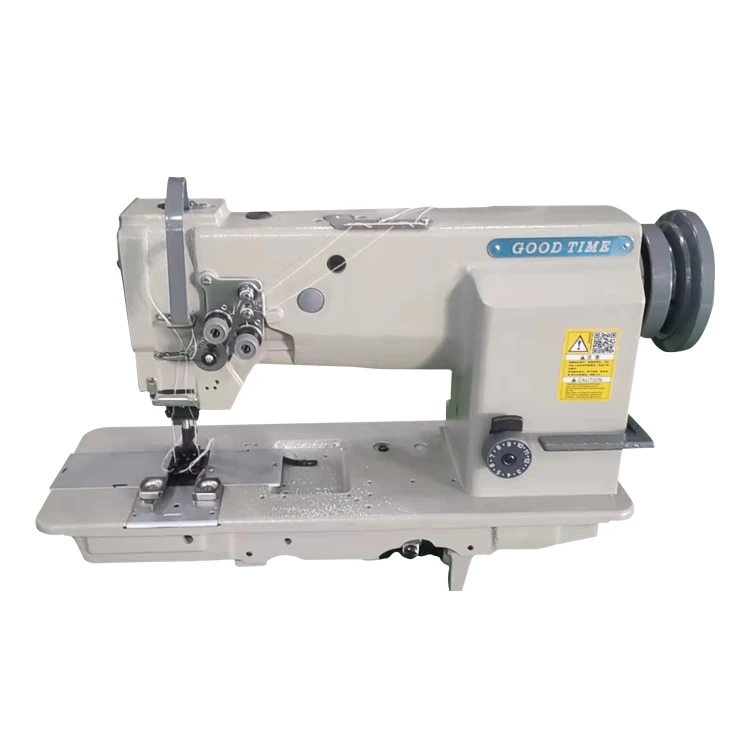

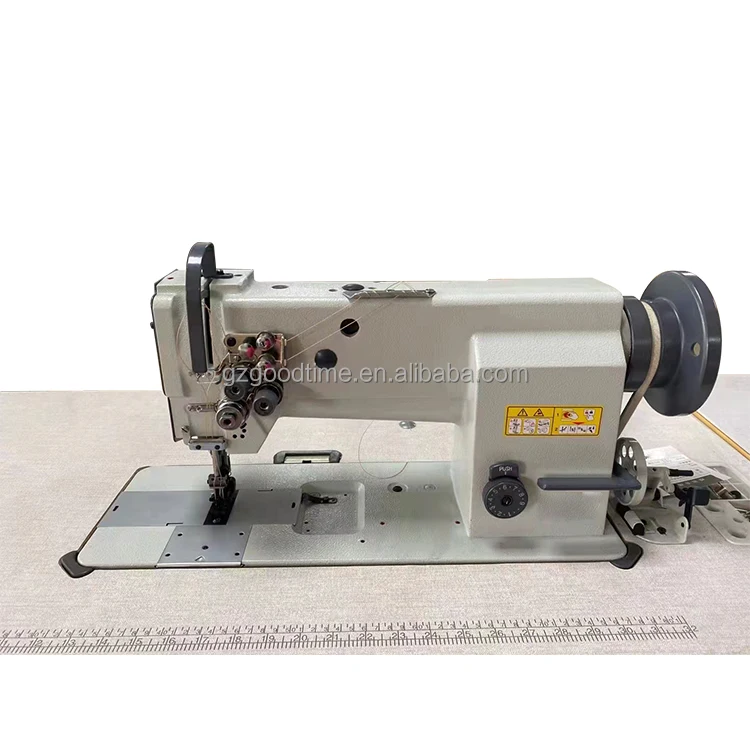

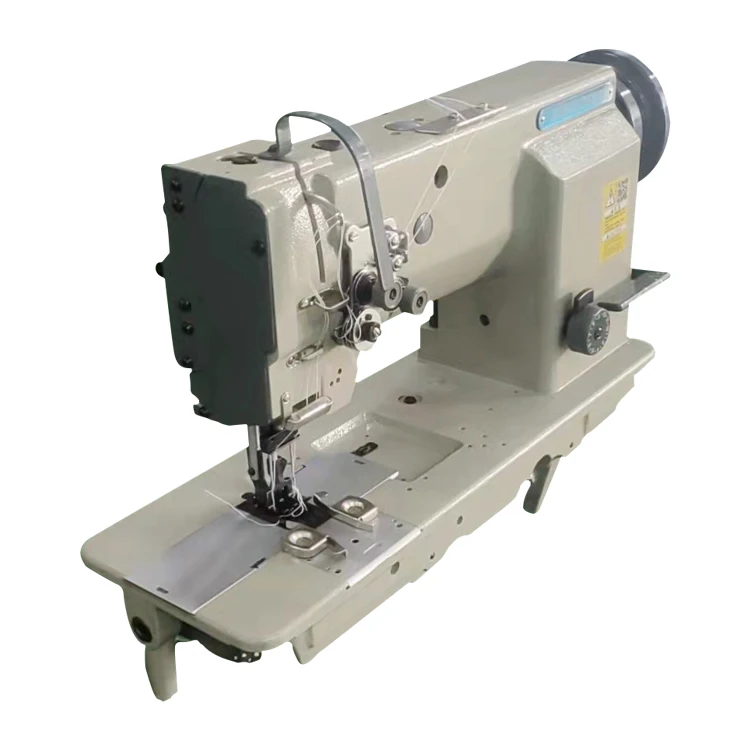

Циклонная швейная 4420 с двумя иглами Толстая кожаная машина Тройная синхронная для дивана Подушка багажный коврик ног

Сохранить в закладки 1601277516965:


Цена:1 030,00-1 150,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


CYCLONE SEWING 4420 Double Needle Thick Leather Sewing Machine Triple Synchronous DU Car For Sofa Cushion Luggage Foot Mat.






Product Character





1. It adopts large-scale vertical rotary hook and sliding rod to take up the thread.

2. The lubricating system of plunger type oil pump with synchronous toothed belt.

3. The transmission is light and smooth, with low noise and high durability.





Technical data













































































Condition



New



Brand Name



Good Time



Type



Industrial sewing machine



Model



GT-4420DU



Place of Origin



Guangzhou, China (Mainland)



Stitch Formation



Lock stitch



Mechanical Configuration



flat-bed



Max Sewing Speed



2000r.p.m



Height of Presser Foot



16mm



Stitch Length



0-9mm



Needle bar stroke



36mm



Power



900W Energy saving motor



table working size



250mm(width) x 100mm(high)



Feed Mechanism



Compound feed



Color



White



Needle



DP x 17 single needle / double needle for optional



Gross Weight



100KG






Detail Image


 4420 double needle 5








Replaceable presser foot function: the corresponding presser foot can be replaced for different sewing processes, which is convenient for sewing.





1-





The needle position group has 3 / 16, 3 / 18, 1 / 2. The width can be up to 2 inches, and customers can choose freely.





4420 double needle 4











Vertical rotary hook: hook the thread ring at the tip of the hook, expand the thread ring at the same time, and guide the thread ring around the hook center to form a trivial thread trace.





4420 double needle 14





Inverted needle assembly: this assembly has differential feeding adjustment function, which is not easy to misplace when sewing double-layer materials.


4420 double needle 3


2-

















Vertical rotary hook: hook the thread ring at the tip of the hook, expand the thread ring at the same time, and guide the thread ring around the hook center to form a trivial thread trace.





2





It can be matched with many kinds of the motor, 4P 400W clutch motor, 750W computer direct servo motor, 750W & 900W electronic servo motor for option.


4420 double needle 6Oil pump: the oil pump of this machine can draw the oil stored in the oil pan to all key parts of the machine head, so as to reduce friction.





4420 double needle 1





Stitching show pictures:





needle distance





Needle distance size for option.


6620-181





Factory directly sale, good price, high quality.


6620-187





Welcome to contact with us for more orders.



























Recommended Products








































Application display


This machine is suitable for: luggage, sofa, tent, cushion, car interior, leather sewing.


Heavy Duty Application








Company Information





1_07 1





Production--Line-4








FAQ




-1_03




Q1. Are you a factory?
  Re. Yes.  we are both a trading company an
d a factory, and we only focus on excellence sewing machine.


Q2.How about your machine quality?


  Re. I cannot answer to you from our side. But our customer said to us our machine quality is good and high, use it about two years no change voice and vibration. After you use it, you will more understand our quality.


Q3. How about your price?


  Re. Our price not expensive, but also not very cheap, in general, quality is better than price


Q4. How long could your sewing machine be used?
  Re. Generally, more than 6 years.


Q5. What is the shipping port?
  Re. We ship the goods via Guangzhou port or as you like


Q6. How about payment ?


  Re. At beginning cooperation, 100% TT in advance, or LC at sight for big amount order , after we have good cooperation, we will try to accept DP OR DA payment


Q7. Can you do OEM or ODM for us?


  Re. Yes, of course, and we also can do all kinds of the sewing machine by customized.


Q8. Can you supply spare parts?


  Re. Yes, of course we can.


Q9.  What guarantee you can supply ?


Re: Limited spare parts one-year guarantee, not including quick-wear parts, like needle, hook, needle plate.











Packaging & Shipping
