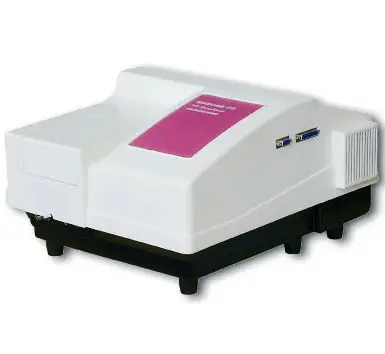

L8 double beam UV-VIS spectrophotometers

The equipment is designed with sophisticated power protection system. With high capacity of internal memory, it can store testing results, scanned images, regression equations and correction data. Therefore, it follows a fast initialization when power on.
The instrument can be connected with dedicated printer, which can print testing results, or draw curve from spectral scanning, fixed wavelength time-based scanning, and linear regression.
With USB COM port the device can be connected to a PC, which can not only enhance theperformance in data testing and spectrum scanning, but also expand the memory to save more testing results.

Main Features

Double beam optical system
8-inch color touch-screen
Automatic zero and full scale adjustment
Automatic wavelength settings
Equipped with USB COM port
UV WIN8 Spectrum Data Processing Software optional
Thermal plotter optional

Specificatons

Photometry:     Double Beam

Monochromator Type:    Czerny-Turner

Focal Length:    200mm

Grating:    1600 lines/mm

Detector:     Silicon Photocell

Spectrum Bandwidth:    2nm 1nm

Wavelength Setting:     8-inch color touch-screen

Wavelength Range:    190-1100nm

Wavelength Accuracy:    ±0.3nm

Wavelength Repeatability:    ≤0.1nm

Scanning Speed:    Fast-Medium-Slow

Stray Light  :     ≤0.03%T( at 220nm NaI, 360nm NaNo2 )

Photometric Range:     0.0-200.0% T

-0.301-4.000 A

0.000-9999 C

Photometric Accuracy:    ±0.3% T

  ±0.002 Abs (0-0.5A)

  ±0.004 Abs (0.5-1A)

Photometric Repeatability:    ≤0.15% T

0.001 Abs (0-0.5A)

0.002 Abs (0.5-1A)

Baseline:     ≤±0.002 A(200-1090nm)

Noise:    100%(T)noise≤0.15%(T) , 0%(T)noise≤0.1%(T)

Drifting:    ≤0.0009 Abs/h (250nm and 500nm after 2h warm up)

Power:    AC220V±22V 50Hz±1Hz, 200W

Packaging Size:    710mm X 590mm X 505mm 0.21M³ 36kg

Standrad Accessories

Operation manual 1
Glass cuvette 1cm 4pcs
Quartz cuvette 1cm 2pcs
Power cable 1
Fuse 2pcs
Cuvette holder 10mm

Optional Accessories

UV WIN8 Spectrum data processing software
Thermal Plotter
