Низкая цена ткань из скрученного NN100-NN125
348 681,92 ₽ - 354 164,34 ₽
Низкая цена ткань из ткани EE400
- Категория: >>>
- Поставщик: Shandong Xinhao Tire Materials Co. Ltd.
Сохранить в закладки 1601277725133:
Описание и отзывы
Характеристики

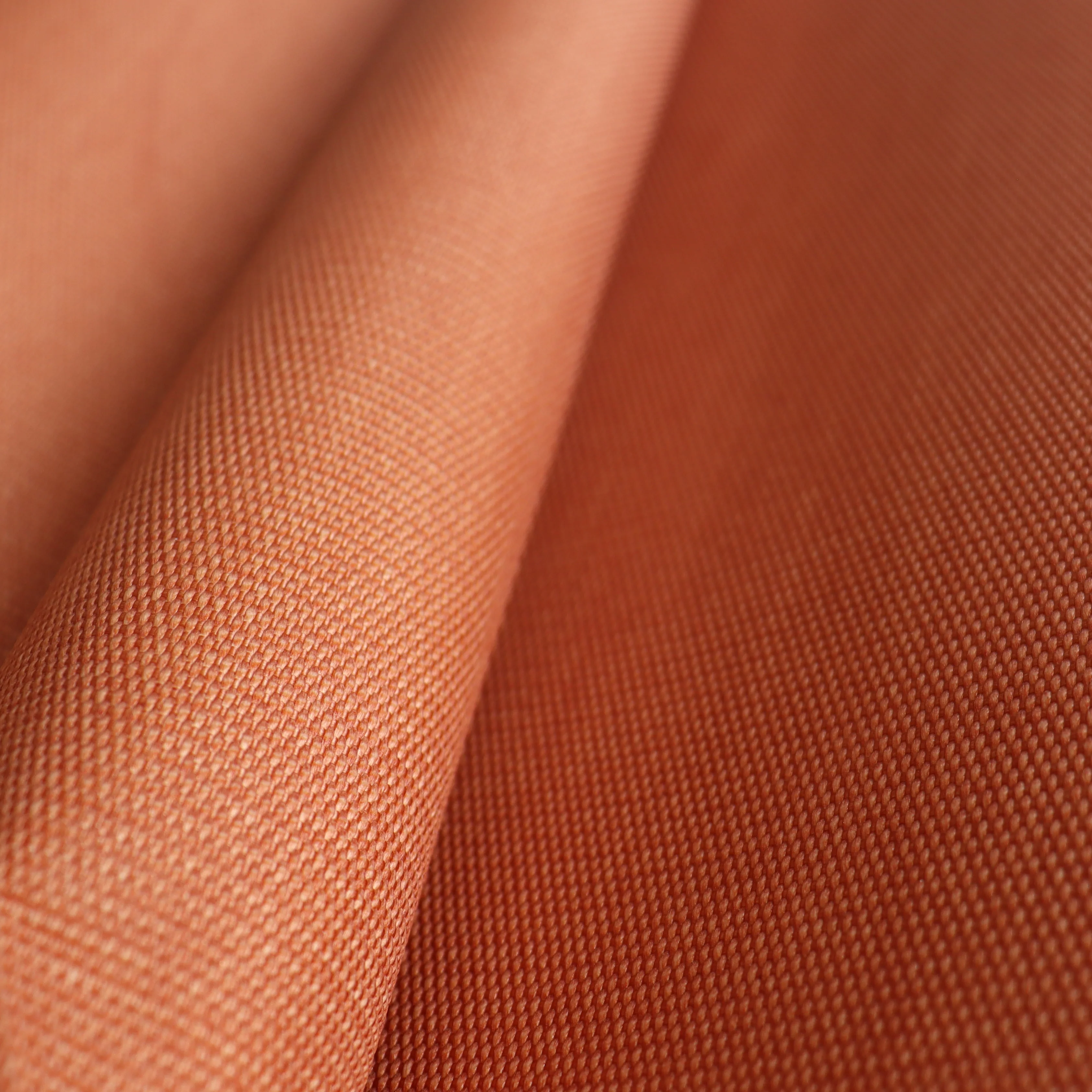

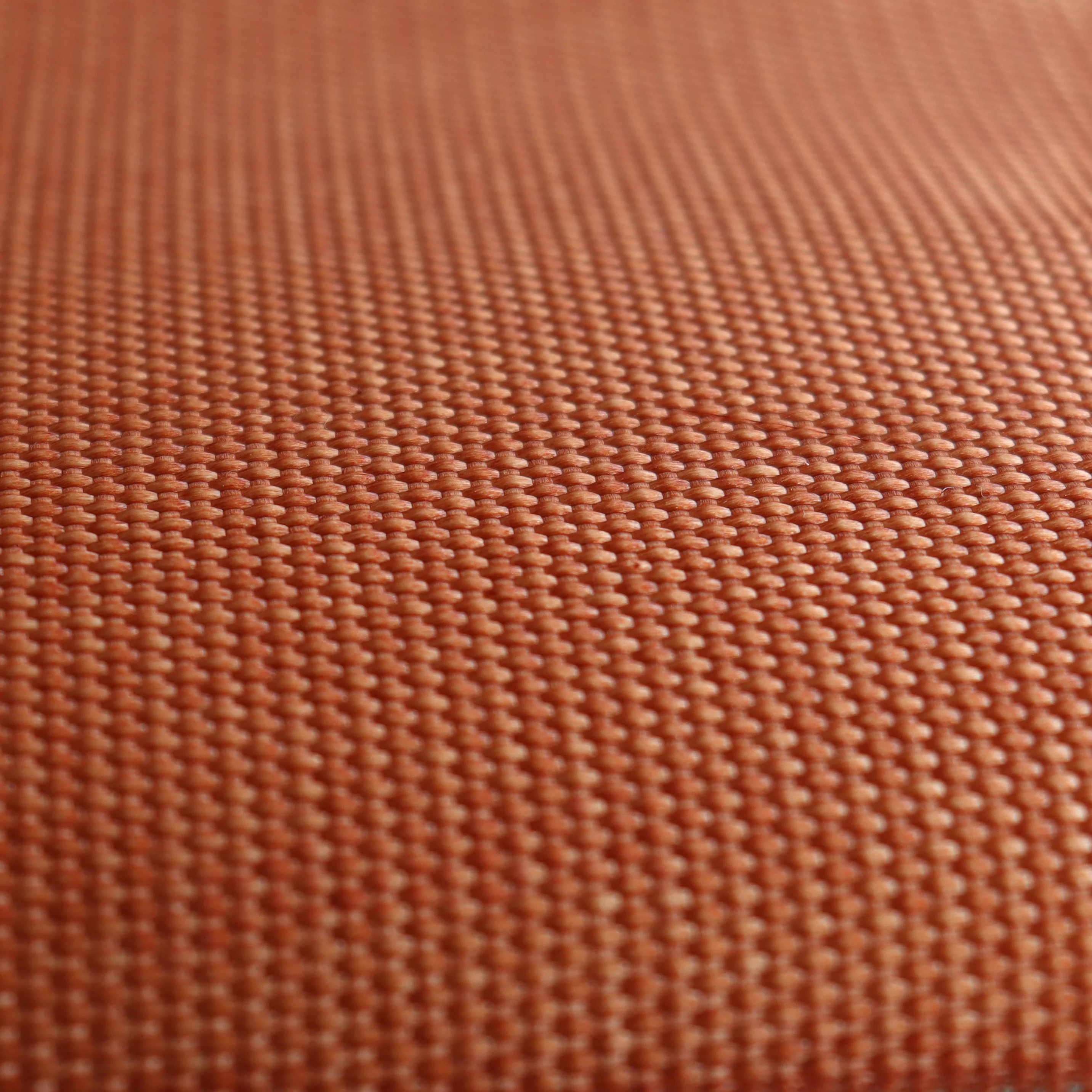

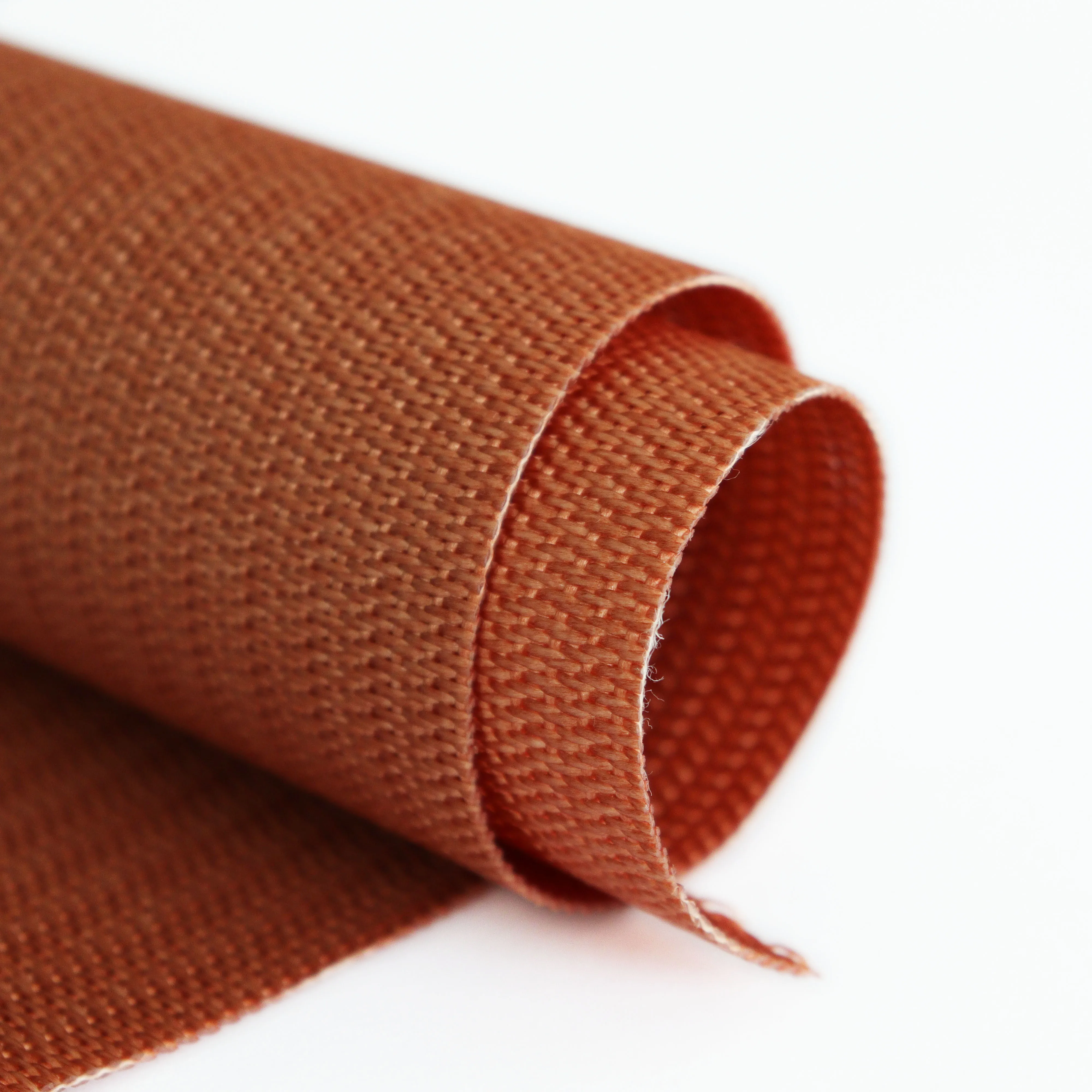

Product Description
Dipped canvas is widely used in various conveyor belts and other industrial applications. According to customer requirements, the company can use different fibers such as polyester, nylon, aramid and other raw materials to produce products that meet customer needs, Product features: high strength, soft, anticrimp.
The annual production capacity of rubber-impregnated canvas is 12,000 tons. It is a leading and backbone enterprise in the rubber-impregnated frame material industry.
Main types: EP, EE, NN (PP), SW (EPP), EM, DPP, special type
Main specifications: EP80-EP800,NN80-NN800,SW300-SW1200
Width: up to 2500mm
Canvas Fabric Type
EE canvas: polyester fiber is used in the warp direction and polyester fiber is used in the weft direction.
EP canvas: polyester fiber is used in the warp direction and nylon fiber is used in the weft direction.
NN canvas: nylon fiber is used in both warp and weft directions.
SW canvas: polyester fiber + nylon fiber in the warp direction, and nylon fiber in the weft direction.
DPP canvas: aramid fiber + nylon fiber in the warp direction, and nylon fiber in the weft direction.
NN canvas: nylon fiber is used in both warp and weft directions.
SW canvas: polyester fiber + nylon fiber in the warp direction, and nylon fiber in the weft direction.
DPP canvas: aramid fiber + nylon fiber in the warp direction, and nylon fiber in the weft direction.
APPLICATION
Canvas Fabric
The impregnated canvas produced by our company can be used for various conveyor belts, such as those with long distance, heavy load, strong chemical corrosion and other harsh conditions; lt can also be used for medium distance, high speed, strong wear and heavy load conveyor belt.
Such as NN, EP, and EE fabric are mainly used as skeleton material for standard conveyor belts, heat-resistant conveyor belts, tubular conveyor belts and other special conveyor belts.
Such as NN, EP, and EE fabric are mainly used as skeleton material for standard conveyor belts, heat-resistant conveyor belts, tubular conveyor belts and other special conveyor belts.
SPECIFICATION
Dipped EE Fabric for Conveyor Belt-Heat | ||||||||||||||
Item | Unit | EE100H | EE125H | EE150H | ||||||||||
Warp | Weft | Warp | Weft | Warp | Weft | |||||||||
Breaking Strength | N/mm | ≥130 | ≥50 | ≥150 | ≥55 | ≥190 | ≥65 | |||||||
Elongation@Break | % | ≥14 | ≤45 | ≥14 | ≤45 | ≥14 | ≤45 | |||||||
Elongation@10%Load | % | ≤2.0 | ≤2.0 | ≤2.0 | ||||||||||
Peel adhesion | N/mm | ≥8.0 | ≥8.0 | ≥8.0 | ||||||||||
Hot Air Shrinkage (150℃,30min) | % | ≤2.0 | ≤0.5 | ≤2.0 | ≤0.5 | ≤2.0 | ≤0.5 | |||||||
Crimp | % | 3.5±1.0 | 3.5±1.0 | 3.5±1.0 | ||||||||||
Weight | g/㎡ | 370±20 | 430±20 | 540±20 | ||||||||||
Gauge | mm | 0.53±0.05 | 0.60±0.05 | 0.75±0.05 | ||||||||||
Width | cm | 60-240 | ||||||||||||
Item | Unit | EE200H | EE250H | EE300H | ||||||||||
Warp | Weft | Warp | Weft | Warp | Weft | |||||||||
Breaking Strength | N/mm | ≥230 | ≥75 | ≥290 | ≥80 | ≥340 | ≥80 | |||||||
Elongation@Break | % | ≥14 | ≤45 | ≥14 | ≤45 | ≥14 | ≤45 | |||||||
Elongation@10%Load | % | ≤2.0 | ≤2.5 | ≤2.5 | ||||||||||
Peel adhesion | N/mm | ≥8.0 | ≥8.0 | ≥8.0 | ||||||||||
Hot Air Shrinkage (150℃,30min) | % | ≤2.0 | ≤0.5 | ≤2.0 | ≤0.5 | ≤2.0 | ≤0.5 | |||||||
Crimp | % | 4.0±1.0 | 4.0±1.0 | 4.0±1.0 | ||||||||||
Weight | g/㎡ | 670±20 | 860±20 | 940±20 | ||||||||||
Gauge | mm | 0.88±0.10 | 1.05±0.10 | 1.15±0.10 | ||||||||||
60-240 | ||||||||||||||
Dipped EE Fabric for Conveyor Belt | ||||||||||||||
Item | Unit | EE80 | EE100 | EE125 | ||||||||||
Warp | Weft | Warp | Weft | Warp | Weft | |||||||||
Breaking Strength | N/mm | ≥105 | ≥40 | ≥130 | ≥50 | ≥160 | ≥55 | |||||||
Elongation@Break | % | ≥14 | ≤45 | ≥14 | ≤45 | ≥14 | ≤45 | |||||||
Elongation@10%Load | % | ≤1.5 | ≤1.5 | ≤1.5 | ||||||||||
Peel adhesion | N/mm | ≥8.0 | ≥8.0 | ≥8.0 | ||||||||||
Hot Air Shrinkage (150℃,30min) | % | ≤4.0 | ≤0.5 | ≤4.0 | ≤0.5 | ≤4.0 | ≤0.5 | |||||||
Crimp | % | 3.0±1.0 | 3.5±1.0 | 3.5±1.0 | ||||||||||
Weight | g/㎡ | 320±20 | 360±20 | 425±20 | ||||||||||
Gauge | mm | 0.47±0.05 | 0.50±0.05 | 0.58±0.05 | ||||||||||
Width | cm | 60-240 | ||||||||||||
Item | Unit | EE150 | EE200 | EE250 | ||||||||||
Warp | Weft | Warp | Weft | Warp | Weft | |||||||||
Breaking Strength | N/mm | ≥200 | ≥70 | ≥240 | ≥80 | ≥300 | ≥85 | |||||||
Elongation@Break | % | ≥14 | ≤45 | ≥14 | ≤45 | ≥14 | ≤45 | |||||||
Elongation@10%Load | % | ≤1.5 | ≤1.5 | ≤1.5 | ||||||||||
Peel adhesion | N/mm | ≥8.0 | ≥8.0 | ≥8.0 | ||||||||||
Hot Air Shrinkage (150℃,30min) | % | ≤4.0 | ≤0.5 | ≤4.0 | ≤0.5 | ≤4.0 | ≤0.5 | |||||||
Crimp | % | 4.0±1.0 | 4.0±1.0 | 4.0±1.0 | ||||||||||
Weight | g/㎡ | 520±20 | 630±20 | 790±30 | ||||||||||
Gauge | mm | 0.72±0.05 | 0.85±0.10 | 1.05±0.10 | ||||||||||
Width | cm | 60-240 | ||||||||||||
Item | Unit | EE300 | EE350 | EE400 | EE500 | |||||||||||
Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft | |||||||||
Breaking Strength | N/mm | ≥340 | ≥85 | ≥390 | ≥90 | ≥450 | ≥90 | ≥560 | ≥100 | |||||||
Elongation@Break | % | ≥14 | ≤45 | ≥14 | ≤45 | ≥14 | ≤45 | ≥14 | ≤45 | |||||||
Elongation@10%Load | % | ≤1.5 | ≤2.0 | ≤2.0 | ≤2.5 | |||||||||||
Peel adhesion | N/mm | ≥8.0 | ≥8.0 | ≥8.0 | ≥8.0 | |||||||||||
Hot Air Shrinkage (150℃,30min) | % | ≤4.0 | ≤0.5 | ≤4.0 | ≤0.5 | ≤4.0 | ≤0.5 | ≤4.0 | ≤0.5 | |||||||
Crimp | % | 4.0±1.0 | 4.0±1.0 | 4.0±1.0 | 5.0±1.0 | |||||||||||
Weight | g/㎡ | 870±30 | 1000±50 | 1200±50 | 1500±50 | |||||||||||
Gauge | mm | 1.10±0.10 | 1.25±0.15 | 1.50±0.15 | 1.95±0.10 | |||||||||||
Width | cm | 60-240 | ||||||||||||||
Dipped EP fabric for Conveyor Belt - Regular | ||||||||||||||
Item | Unit | EP100 | EP125 | EP150 | ||||||||||
Warp | Weft | Warp | Weft | Warp | Weft | |||||||||
Breaking Strength | N/mm | ≥140 | ≥55 | ≥160 | ≥65 | ≥200 | ≥70 | |||||||
Elongation@Break | % | ≥14 | ≤45 | ≥14 | ≤45 | ≥14 | ≤45 | |||||||
Elongation@10%Load | % | ≤1.5 | ≤1.5 | ≤1.5 | ||||||||||
Peel adhesion | N/mm | ≥8.0 | ≥8.0 | ≥8.0 | ||||||||||
Hot Air Shrinkage (150℃,30min) | % | ≤4.0 | ≤0.5 | ≤4.0 | ≤0.5 | ≤4.0 | ≤0.5 | |||||||
Crimp | % | 3.5±1.0 | 4.0±1.0 | 4.0±1.0 | ||||||||||
Weight | g/㎡ | 355±20 | 425±20 | 520±20 | ||||||||||
Gauge | mm | 0.50±0.05 | 0.60±0.05 | 0.70±0.05 | ||||||||||
Width | cm | 60-240 | ||||||||||||
Item | Unit | EP200 | EP250 | EP300 | ||||||||||
Warp | Weft | Warp | Weft | Warp | Weft | |||||||||
Breaking Strength | N/mm | ≥240 | ≥80 | ≥310 | ≥90 | ≥340 | ≥85 | |||||||
Elongation@Break | % | ≥14 | ≤45 | ≥14 | ≤45 | ≥14 | ≤45 | |||||||
Elongation@10%Load | % | ≤1.5 | ≤1.5 | ≤1.5 | ||||||||||
Peel adhesion | N/mm | ≥8.0 | ≥8.0 | ≥8.0 | ||||||||||
Hot Air Shrinkage (150℃,30min) | % | ≤4.0 | ≤0.5 | ≤4.0 | ≤0.5 | ≤4.0 | ≤0.5 | |||||||
Crimp | % | 4.5±1.0 | 4.5±1.0 | 4.5±1.0 | ||||||||||
Weight | g/㎡ | 620±20 | 760±30 | 860±30 | ||||||||||
Gauge | mm | 0.85±0.05 | 1.05±0.10 | 1.10±0.12 | ||||||||||
Item | Unit | EP350 | EP400 | EP500 | EP600 | |||||||||||
Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft | |||||||||
Breaking Strength | N/mm | ≥390 | ≥85 | ≥450 | ≥90 | ≥550 | ≥90 | ≥650 | ≥110 | |||||||
Elongation@Break | % | ≥14 | ≤45 | ≥14 | ≤45 | ≥14 | ≤45 | ≥14 | ≤45 | |||||||
Elongation@10%Load | % | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | |||||||||||
Peel adhesion | N/mm | ≥8.0 | ≥8.0 | ≥8.0 | ≥8.0 | |||||||||||
Hot Air Shrinkage (150℃,30min) | % | ≤4.0 | ≤0.5 | ≤4.0 | ≤0.5 | ≤4.0 | ≤0.5 | ≤4.0 | ≤0.5 | |||||||
Crimp | % | 4.5±1.0 | 4.5±1.0 | 5.0±1.0 | 5.0±1.0 | |||||||||||
Weight | g/㎡ | 1030±40 | 1180±50 | 1480±50 | 1970±50 | |||||||||||
Gauge | mm | 1.25±0.12 | 1.50±0.15 | 1.80±0.15 | 2.45±0.15 | |||||||||||
Width | cm | 60-240 | ||||||||||||||
Dipped NN Fabric for Conveyor Belt | ||||||||||||||
Item | Unit | NN100 | NN125 | NN150 | ||||||||||
Warp | Weft | Warp | Weft | Warp | Weft | |||||||||
Breaking Strength | N/mm | ≥125 | ≥50 | ≥150 | ≥55 | ≥175 | ≥65 | |||||||
Elongation@Break | % | ≤25 | ≤55 | ≤25 | ≤55 | ≤25 | ≤50 | |||||||
Elongation@10%Load | % | ≤2.5 | ≤2.5 | ≤2.5 | ||||||||||
Peel adhesion | N/mm | ≥8.0 | ≥8.0 | ≥8.0 | ||||||||||
Hot Air Shrinkage (150℃,30min) | % | ≤5.5 | ≤0.5 | ≤5.5 | ≤0.5 | ≤5.5 | ≤0.5 | |||||||
Weight | g/㎡ | 310±15 | 340±20 | 390±20 | ||||||||||
Gauge | mm | 0.50±0.05 | 0.55±0.05 | 0.60±0.08 | ||||||||||
Width | cm | 60-240 | ||||||||||||
Item | Unit | NN200 | NN250 | NN300 | ||||||||||
Warp | Weft | Warp | Weft | Warp | Weft | |||||||||
Breaking Strength | N/mm | ≥230 | ≥80 | ≥280 | ≥75 | ≥345 | ≥80 | |||||||
Elongation@Break | % | ≤27 | ≤50 | ≤27 | ≤50 | ≤29 | ≤50 | |||||||
Elongation@10%Load | % | ≤2.5 | ≤3.0 | ≤3.0 | ||||||||||
Peel adhesion | N/mm | ≥8.0 | ≥8.0 | ≥8.0 | ||||||||||
Hot Air Shrinkage (150℃,30min) | % | ≤5.5 | ≤0.5 | ≤6.0 | ≤0.5 | ≤6.0 | ≤0.5 | |||||||
Weight | g/㎡ | 500±20 | 590±20 | 700±30 | ||||||||||
Gauge | mm | 0.75±0.10 | 0.85±0.10 | 1.10±0.15 | ||||||||||
Width | cm | 60-240 | ||||||||||||
OUR CERTIFICATE

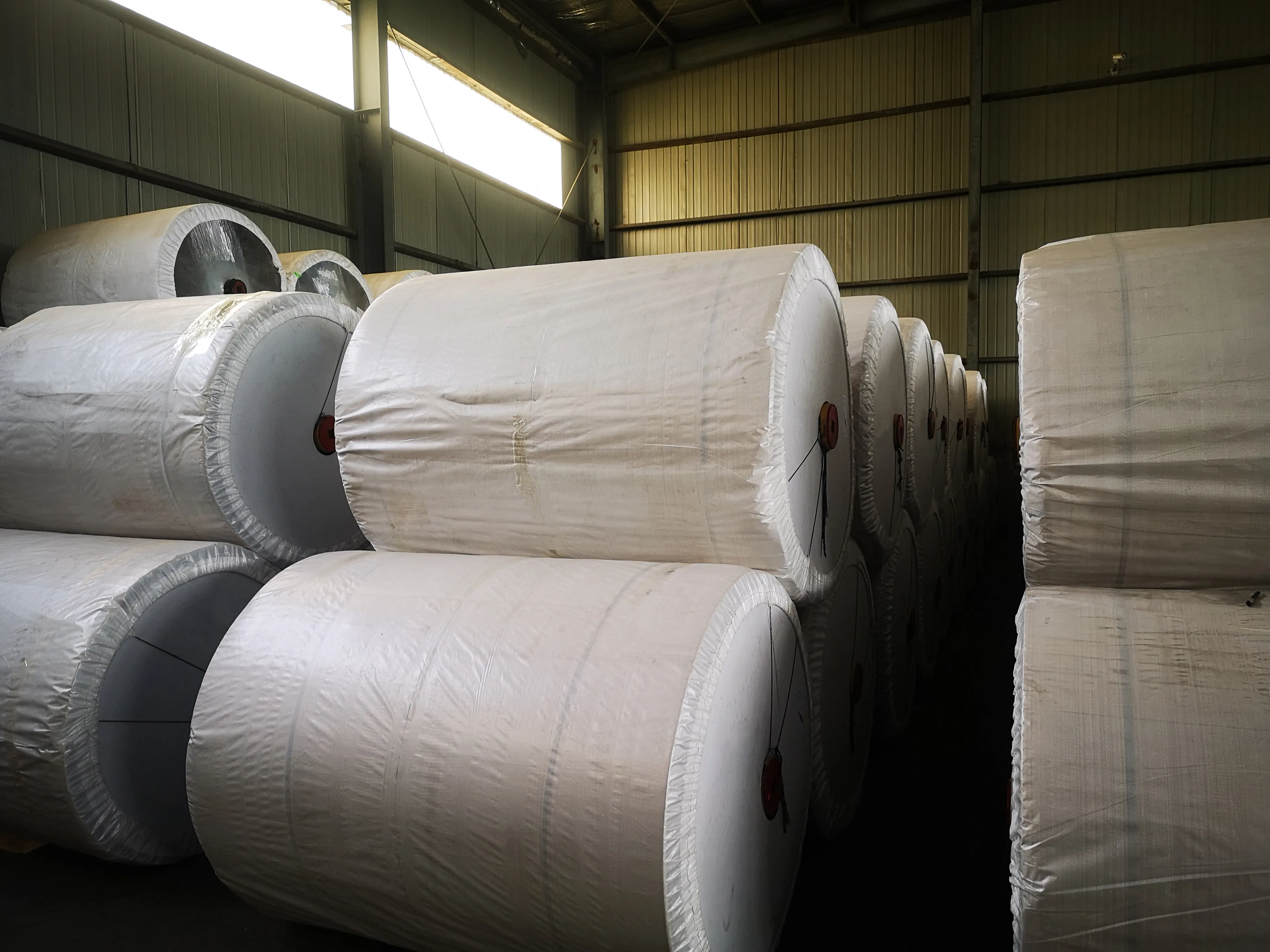

Delivery
1. Steel shell/paper shell 6.Corrugated cardboard/pearl wool
2. Fabrics 7.Stretch film
3. Cylinder paper tube/drier 8.PE film
4. Black PE tube 9.PET wrapping strap
5. Cylinder paper tube 10.Product Label
3. Cylinder paper tube/drier 8.PE film
4. Black PE tube 9.PET wrapping strap
5. Cylinder paper tube 10.Product Label
Company Profile
Shandong Xinhao Tire Materials co., Ltd primitive name is "Shandong Kangrui Tire Materials Co.,ltd". Because the requirement of business development, we changed the name on 7th April, 2020. Shandong Xinhao Tire Materials Co.,ltd was established in 2016, located in Dongying, a beautiful coastal city and source of SLOF, the registered capital 10 million RMB and ever belong to Shandong Kangrui Group,with the total assets of 420 million RMB and covering an area of more than 200000 ㎡, more than 380 existing employees. We are a large enterprise specialized in tyre materials production, sell and international business (export and import).
1.Steel Cord: Annual output is 100 thousand tons
2.Bead Wire: Annual output is 200 thousand tons
3.Cord Fabrics: Annual output 50 thousand tons
4. Tire:The annual sale is about 900 thousand sets
5. Other tire material: rubber, hose wire, carbon black annual sales of 30 thousand tons
CUSTOMER VISIT
Receive customers from all countries to visit
FAQ
1. Who are we?
We are based in Shandong, China, start from 2016,sell to Domestic Market(65.00%),Southeast Asia(15.00%),South America(8.00%),Mid East(7.00%),Eastern Asia(5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Steel Cord, Hose Wire,Tyre cord fabric,Tyre bead wire...
4. Why should you buy from us not from other suppliers?
RMB 420 millions assets;strong operation capacity with own factory; advanced products equipments and technology;senior researchers;independent logistics system;high quality,timely delivery;high reputation with our customer;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Russian
We are based in Shandong, China, start from 2016,sell to Domestic Market(65.00%),Southeast Asia(15.00%),South America(8.00%),Mid East(7.00%),Eastern Asia(5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Steel Cord, Hose Wire,Tyre cord fabric,Tyre bead wire...
4. Why should you buy from us not from other suppliers?
RMB 420 millions assets;strong operation capacity with own factory; advanced products equipments and technology;senior researchers;independent logistics system;high quality,timely delivery;high reputation with our customer;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Russian
