3 в 1 ручной лазерный сварочный аппарат многофункциональный промышленный пригодный для рекламы компании двигатель corepart
3 300,00-3 600,00 $
Китайский завод 4 в 1 алюминиевый сварочный лазерный станок 1500 Ватт 2000 Вт 3000 ручной для очистки и резки продажи
- Категория: >>>
- Поставщик: Jinan Changtai CNC Technology Co. Ltd.Jinan Ltd.
Сохранить в закладки 1601277799599:
Описание и отзывы
Характеристики
New arrivals 1500w 2000w 3000w 4 in 1 laser cleaning welding cutting machine weld cleaning metal rust paint oil removal
MACHINE DESCRIPTION
This 4-in-1 laser machine integrates four functions: laser cleaning, laser welding, laser cutting and weld cleaning. With an industrial-grade wire feeder and cleaning kit, the handheld laser processing method has more functions and better processing results. It is equipped with a variety of nozzles to meet the common functions of welding, cutting and cleaning.
Integrates multiple functions such as welding, cleaning, cutting and weld cleaning
Ergonomic appearance design, simple single-line communication.
Gun-mounted control unit quickly adjusts parameters on the gun head to control wire feeding and wire retraction.
Multiple safety protections, high safety.
Double protection window design, dust and slag prevention design, reduce the chance of contamination in the cavity.
Anti-vibration and anti-fall design to protect the gun head
The motor controller integrated on the gun head has strong anti-interference ability
Ergonomic appearance design, simple single-line communication.
Gun-mounted control unit quickly adjusts parameters on the gun head to control wire feeding and wire retraction.
Multiple safety protections, high safety.
Double protection window design, dust and slag prevention design, reduce the chance of contamination in the cavity.
Anti-vibration and anti-fall design to protect the gun head
The motor controller integrated on the gun head has strong anti-interference ability
No. | ITEM | DESCRIPTION |
01 | Power | 1500W, 2000W, 3000W optional |
02 | Laser Source | Reci |
03 | Laser head | Raytools |
04 | Wavelength | 1064nm±5 |
05 | Voltage | 220/380V±10% |
06 | Fiber optic cable | 10M/20M |
07 | Cooling system | S&A |
08 | Machine application | Suitable for welding metal plates, metal pipes, weld cleaning, cleaning paint and rust on metal surfaces, cutting 0-6mm thin metal |
09 | Operating system language | Support English, Chinese, Russian, German, Spanish, Portuguese, etc., can be customized. |
RELATED PRODUCTS
WIDE APPLICATION
Four-in-one handheld laser process -- laser welding | weld cleaning | laser cleaning | laser cutting.
For welding: It can weld various forms of metal pipes and metal plates (such as stainless steel, carbon steel, aluminum, iron, galvanized sheet, etc.). Can be widely used in cabinets, kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home and other industries complex and irregular welding procedur.
For weld cleaning: It is specially used to treat the surface after welding, which is efficient and fast.
For cleaning: It can be used to clean paint, rust, oil stains, etc. on metal surfaces. It is mainly suitable for cleaning large machinery (such as ships, trucks, trailers, etc.) and heavy steel structures.
For cutting: mainly used for cutting 1-5mm thin metal plate.
For weld cleaning: It is specially used to treat the surface after welding, which is efficient and fast.
For cleaning: It can be used to clean paint, rust, oil stains, etc. on metal surfaces. It is mainly suitable for cleaning large machinery (such as ships, trucks, trailers, etc.) and heavy steel structures.
For cutting: mainly used for cutting 1-5mm thin metal plate.
MACHINE CONFIGURATION

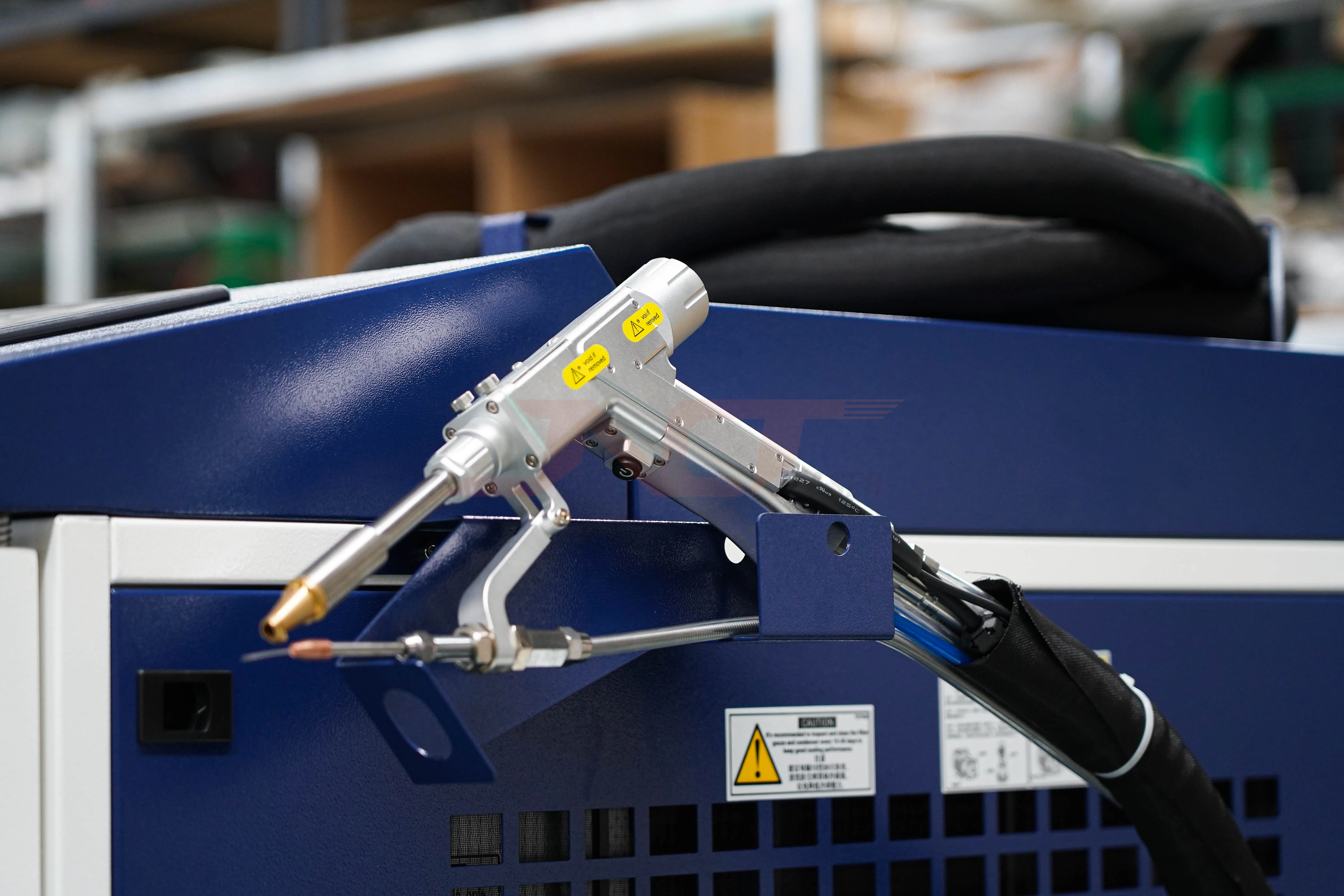

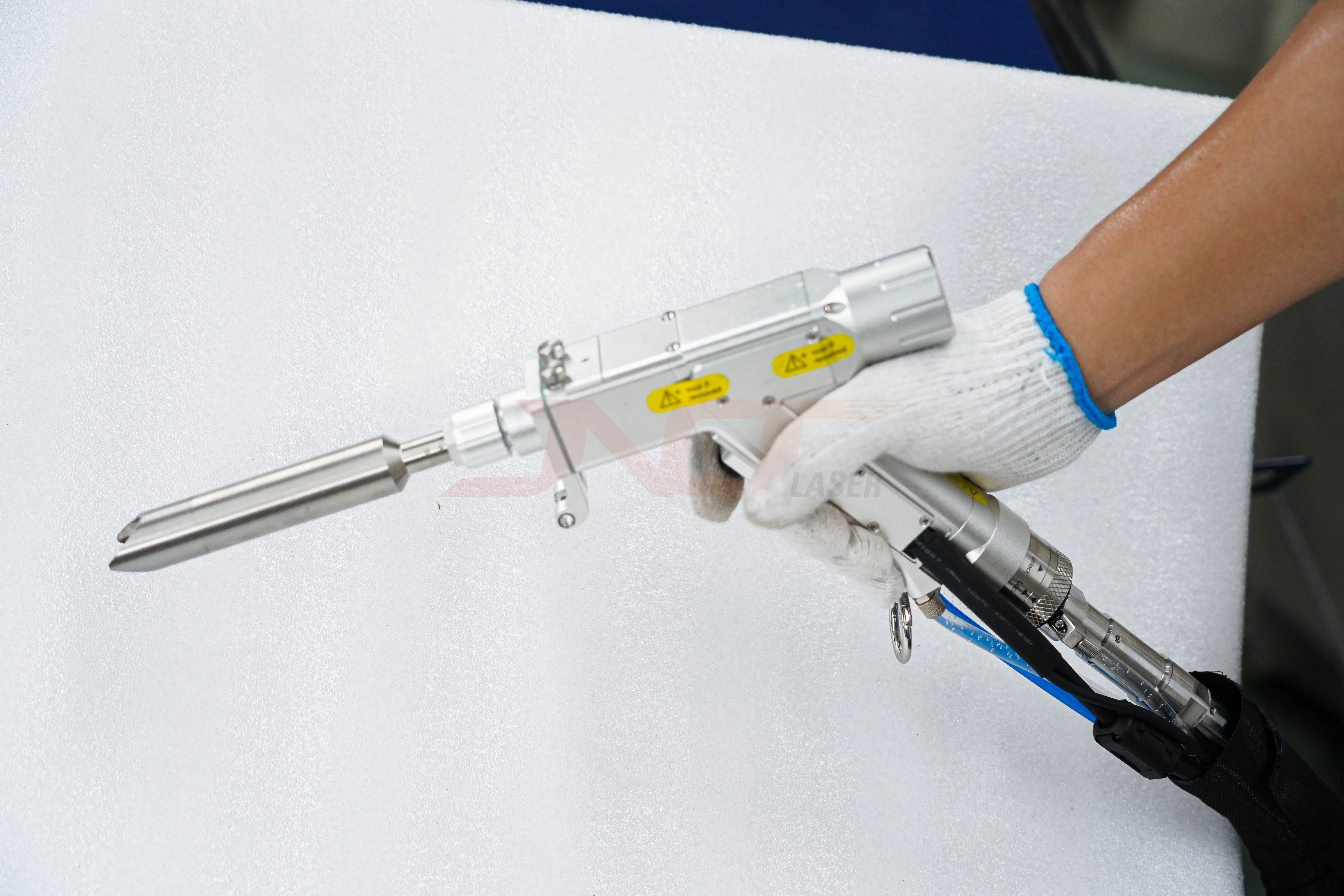

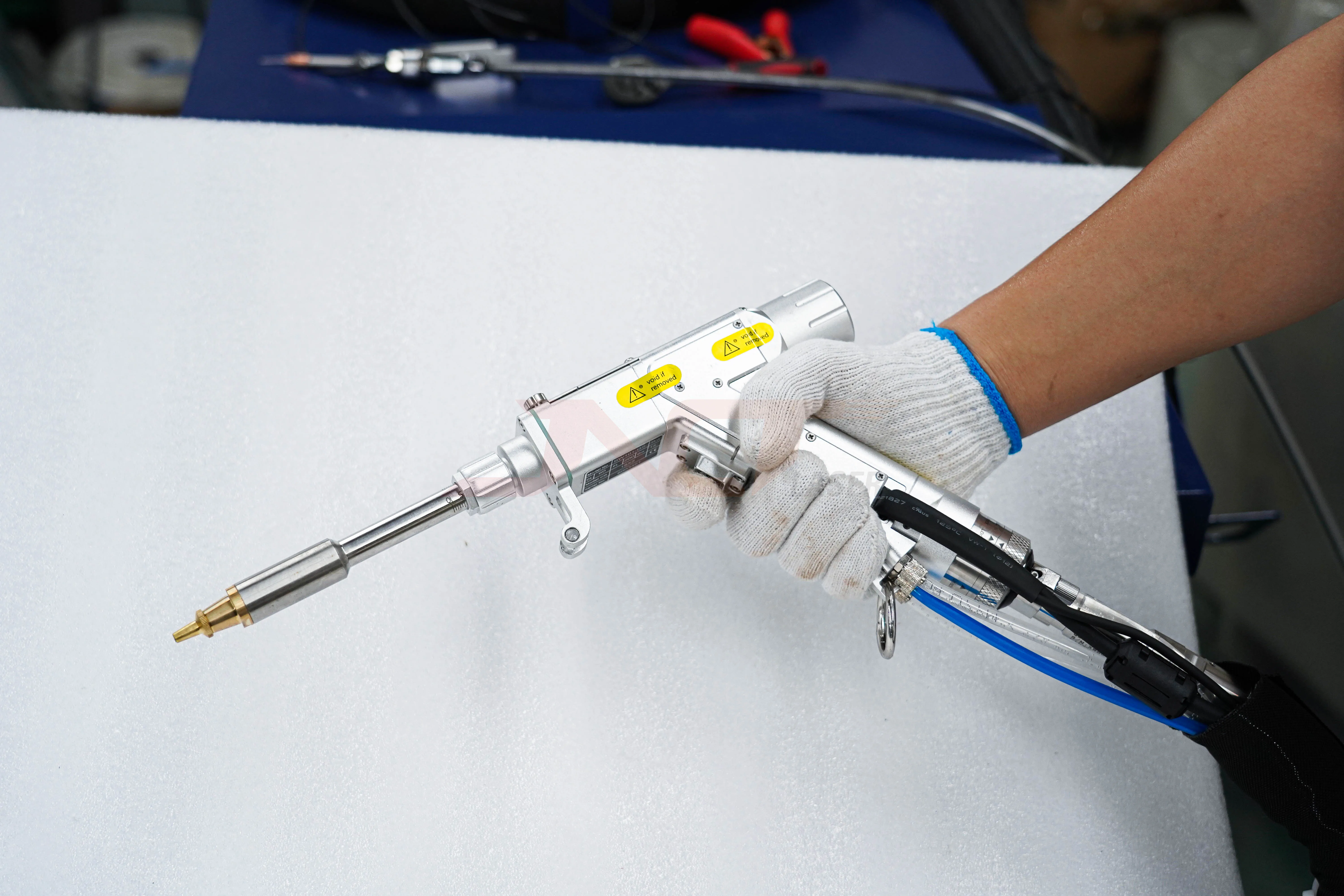

Laser Gun Head
Raytools 4 in 1 laser gun head is a handheld laser head that integrates welding, cleaning, cutting, weld cleaning and other functions. It has a shockproof and drop-proof design, strong anti-interference ability, and a double protective lens design to reduce the chance of contamination in the cavity. Handheld operation is ergonomic and suitable for long-term work. No direct contact with the workpiece is required, and it is simple and flexible to use.
Water Chiller
The best S&A chiller in China. Used to cool the laser source and laser gun head to ensure a safe operating environment for the machine. Dual temperature and dual control, the cooling effect is very good.
High performance, high reliability, high energy efficiency and excellent quality!
PACKANGE AND DELIVERY
1. We can send the goods to you by sea, air, land and international express.
The freight company that our company has cooperated with for a long time has very rich experience in import and export, which can ensure the safety of the machine transportation process.
2. Fumigation-free wooden box: Standard plywood shell with very good compressive strength and bearing quality.
3. Packaged dimensions and weight: 1530*600*1150mm | 150kg.
The freight company that our company has cooperated with for a long time has very rich experience in import and export, which can ensure the safety of the machine transportation process.
2. Fumigation-free wooden box: Standard plywood shell with very good compressive strength and bearing quality.
3. Packaged dimensions and weight: 1530*600*1150mm | 150kg.
Positive feedback from customers
FAQ
Q1: I am not sure if this machine is suitable for my job? |
A1: Don't worry, tell me the material you need to weld and the thickness of the welding, and then I will recommend the most suitable machine and power for you. |
Q2: What should I do if I cannot operate the machine after receiving it? |
A2: Our machine comes with English manual and installation video to you, and the technicians can provide you with professional operation training. |
Q3: What materials can this machine weld? |
A3: Almost all metal sheet tubes, such as stainless steel, carbon steel, aluminum, iron, alloy, etc. |
Q4: What is the average lead time? |
A4: The lead time is about 7 working days. |
Q5: Can we sell your machine in our country as a local agent? |
A5: Yes, we will provide training, installation, after-sales, technical support services to our agents to ensure that every machine at the end user's site can be used normally. |
COMPANY PROFILE
