Фабричный межсетевой экран pfsense intel J4125 J6412 DDR3 MSATA VGA win7 10 linux ubuntu Mini PCIE 6 LAN 1u серверный брандмауэр маршрутизатор ПК

Фабричный межсетевой экран pfsense intel J4125 J6412 DDR3 MSATA VGA win7 10 linux ubuntu Mini PCIE 6 LAN 1u серверный брандмауэр маршрутизатор ПК

Категория: >>>
Поставщик: Yentek (shenzhen) Technology Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Order information

Products Description

Model	R19SLZ
Chassis	Material/Structure	1U standard chassis, high quality galvanized steel
		color	Asian silver black
		Size (length, width and height)	430mm281mm45mm
		Install	1U standard rack
motherboard	CPU	Integrated Intel® Celeron® J1900 2.0GHz quad-core processor, TDP10W
		system chip	Based on Intel® Bay trail SOC platform
		Display	Integrated Intel® HD Graphics Core Graphics
		Memory	1* SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB

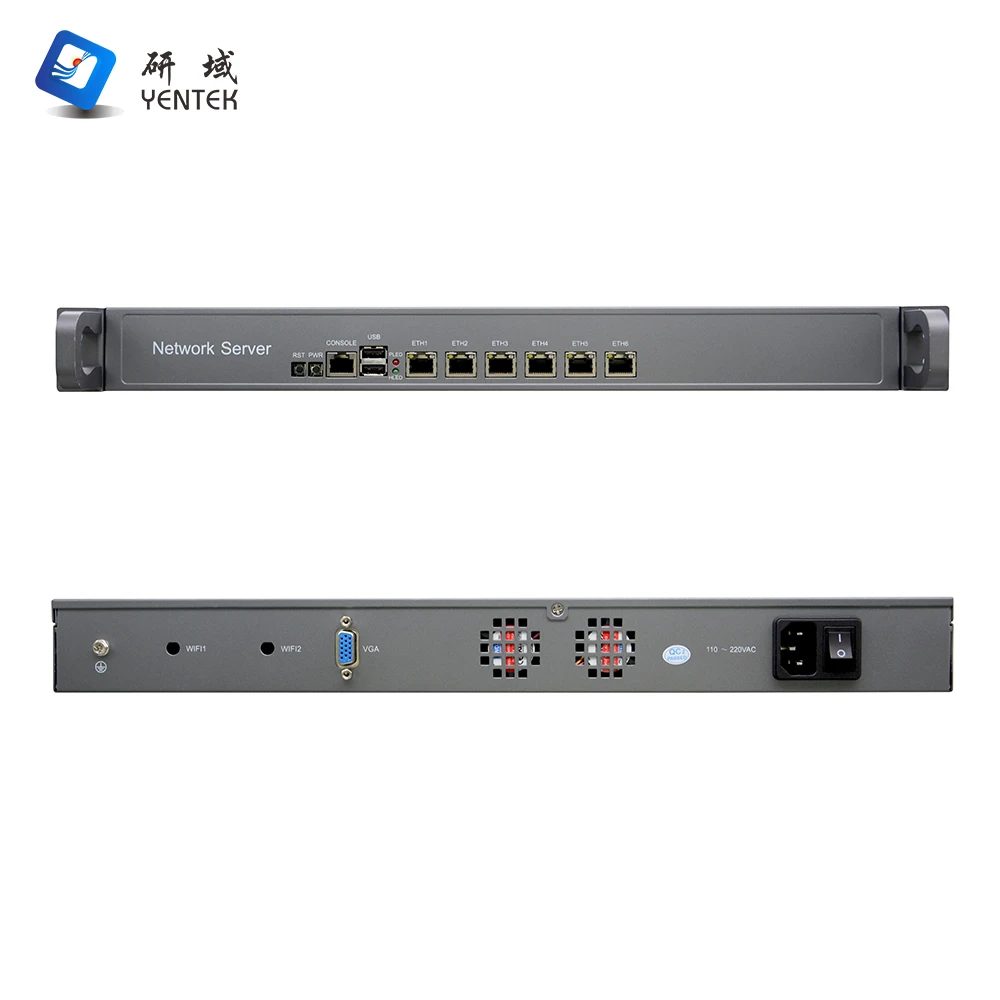

Front panel interface	POWER	1Power switch, 1Reset switch
		USB	2* USB2.0 interface
		COM	1* standard RS232 serial interface
		LAN	6* Intel WGI211AT Gigabit LAN, support Wake-on-LAN, PXE function,
		led	1* power indicator, 1* hard disk indicator

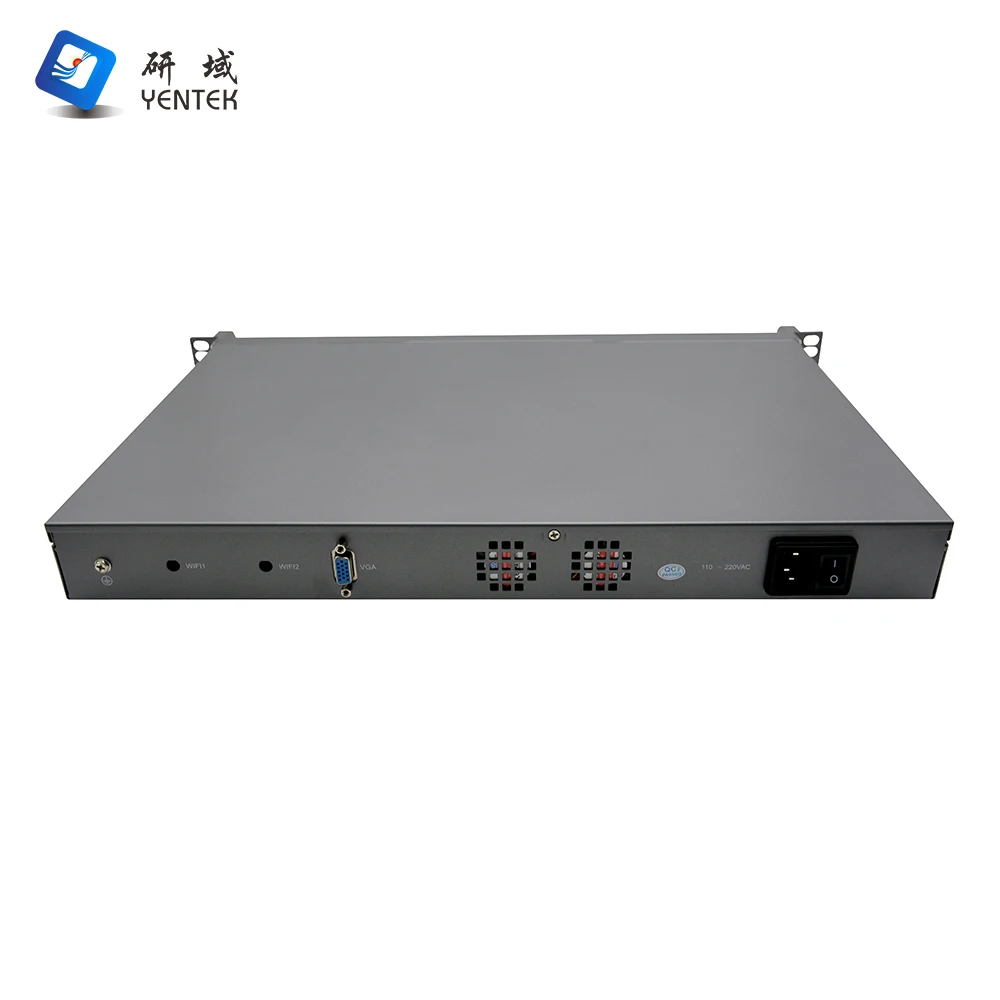

rear panel interface	display interface	1*VGA interface
rear panel interface		power supply	1*AC power input interface
storage	SATA	1* SATA2.0 2.5-inch notebook hard drive bay, you can directly install the hard drive
storage		SSD	1* MSATA SSD solid state drive expansion, SSD transfer speed up to 3Gbps
expand	Mini PCIE	2* Mini PCIE slot, support WIFI/3G/4G module
software support	Microsoft Windows	Windows 7/10, 64bit (without key)
		Linux	Ubuntu
		Watch Dog	Support hardware reset function (256 levels, 0~255 seconds)
power requirements	Power Type	External open power supply
		Voltage input	AC 110~220V
		power output	AC TO DC, 60W
surroundings	Operating temperature	-10℃～60℃
		storage temperature	-20℃～70℃
		Relative humidity	5%-95% relative humidity, no condensation
		work vibration	0.5g rms/5-500HZ/random/operating

Recommend Products

Company Profile

FAQ

Q1: Can you put my brand name (logo) on these products or provide customized solutions?
A: Yes, we can support OEM/ODM service, the process of customization is following:
* Provide your specific requirement.
* Our engineer draws the design draft.
* You confirm the design draft.
* We start produce it.

Q2: What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece of sample for your test.

Q3: What is the lead time of your products?
A: 3 working days for few samples, 15 working days for a large quantity.

Q4: Will it be ok to run the device 24 hours a day and 7 days a week, just like a desktop PC? Will it be overheated?
A: There's no problem with running the device 24/7. l've done it for about a month and have had no problems. Just set your monitor
to sleep when you're not using the computer.

Q5: What is the quality control in your factory?
A: Quality is our top priority. We have IQC (Incoming Quality Control), production inspection, reliability testing, out-going
inspection and after sales data analysis etc..

Q6: What's the warranty of your products?
A: Non-artificial damage, 1 years warranty. The second year and the third year, we can repair it free, but we will only charge the
actual costs of the parts that needs to be replaced.

Q7: Are you a factory or trading company?
A: We are a professional consumer electronics manufacturer which located in Shenzhen, China.

Q8: If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
