Высоковольтный трехфазный Гибридный коммерческий инвертор 50 кВт 100 солнечный Goodwe фотоэлектрические инверторы для хранения энергии
323 462,78 ₽ - 328 945,20 ₽
Инвертор инвертора PV с контроллером MPPT
- Категория: >>>
- Поставщик: Hefei Pinergy Solar Technology Co. Ltd.
Сохранить в закладки 1601277956872:
Описание и отзывы
Характеристики
Product Description

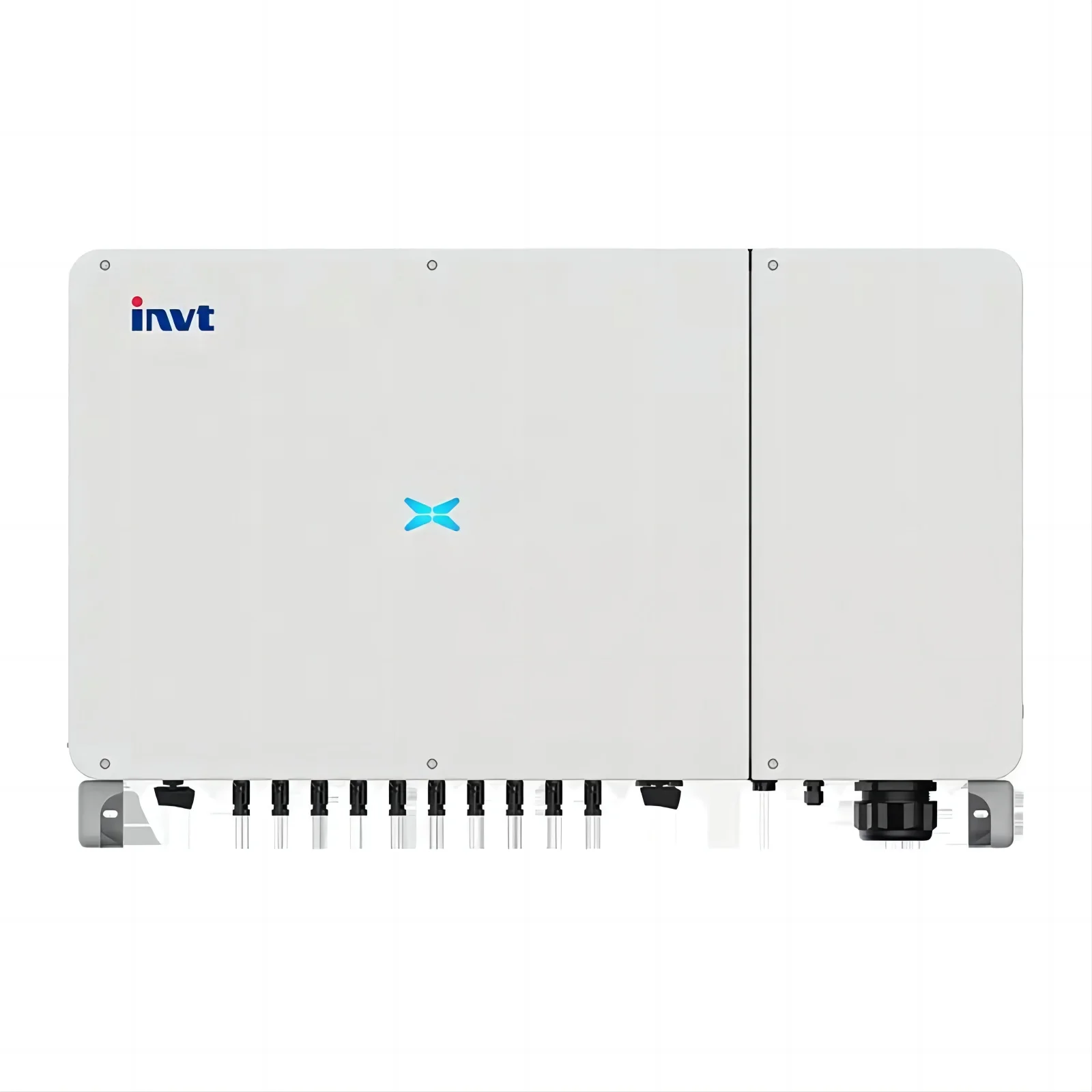

XG100-136KW 3 phase on grid INVT solar inverters
tracking accuracy, fast dynamic response
˙160% DC Input Oversizing
˙Maximum effiffifficiency of 98.6%. Wide MPPT voltage range: 200V-1000V
˙Compatible with high power modules
˙160% DC Input Oversizing
˙Maximum effiffifficiency of 98.6%. Wide MPPT voltage range: 200V-1000V
˙Compatible with high power modules
Intelligent Simple O&M
˙Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
˙Intelligent Fault Detection: ac-side voltage and current waveforms real-time recorded, fast fault location
˙Support RS485/USB (WiFi/GPRS/Ethernet optional): remote monitoring and operation via PC or mobile phones
˙Intelligent Fault Detection: ac-side voltage and current waveforms real-time recorded, fast fault location
˙Support RS485/USB (WiFi/GPRS/Ethernet optional): remote monitoring and operation via PC or mobile phones
˙IP66 Protection degree: support outdoor installation
˙DC & AC Type II SPD: prevent lightning damage
˙AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation
˙DC & AC Type II SPD: prevent lightning damage
˙AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation
Specification
XG100KTR | XG100KTRF | XG110KTR | XG110KTR-F | XG136KTR-L | XG136KR-LF | XG136KrR-X | XG136KTR-XF | |||||||||
Input (DC) | ||||||||||||||||
Max. Input Power | 1 50kW | 160kW | ||||||||||||||
Max. Input Voltage | 1100V | |||||||||||||||
Start Voltage / Min. Operating Voltage | 250V / 180V | |||||||||||||||
MPPT Voltage Range | 180V ~ 1000V | |||||||||||||||
Number of MPP Trackers /的 String per MPPT | 9/2 | 10/2 | 12/2 | |||||||||||||
Max. Current per MPPT | 26A | 30A | 26A | 30A | 26A | 30A | 26A | 30A | ||||||||
Output (AC) | ||||||||||||||||
Max. Output Current | 158.8A | 174.6A | 174.6A | 160.4A | ||||||||||||
Rated Output Current | 144.3A | 1 58.8A | 163.5A | 145.4A | ||||||||||||
Rated Output Power | 100kW | 110kW | 136kW | |||||||||||||
Max. Apparent Power | 110kVA | 121 kVA | 1 50kVA | |||||||||||||
Rated Grid Frequency | 50Hz / 60Hz ( adjustable ) | |||||||||||||||
Rated Grid Voltage | 230V / 400V, 3L+N+PE/3L+PE | 277V / 480V, 3L+N+PE/3L+PE | 311V / 540V, 3L+N+PE/3L+PE | |||||||||||||
Power Factor | -0.8 ~ +0.8 (adjustable) | |||||||||||||||
THDi | < 3% (at rated power) | |||||||||||||||
Efficiency | ||||||||||||||||
Max. Efficiency | 99.00% | |||||||||||||||
European Efficiency | 98.50% | |||||||||||||||
MPPT fficicncy | 99.90% | |||||||||||||||
Protection | ||||||||||||||||
Protection | DC switch, Anti-islanding protection, Input over current proteciton, Output over current protection, DC reverse connection protection, String fault protection, Surge protection, Insulation resistance detection, AC leakage current detection, PID repair, Low voltage ride through, Arc fault detection, Night SVG function, etc. | |||||||||||||||
Communication | ||||||||||||||||
Display | LED/LCD / Bluetooth+ App | |||||||||||||||
Communication | standard: RS485 / USB optional: WiFi / DRM / Bluetooth | |||||||||||||||
Standard Compliance | ||||||||||||||||
Grid Connection Standards | IEC61727,IEC 62116, IEC 60068, IEC 61683, VDE-AR-N 4110:2018, VDE-AR-N 4105:2018, VDE-AR-N 41 20:2018, EN 50549; AS/NZS 4777.2:2015, CEI0-21, VDE0126-1-1/A1 VFR 2014, UTE C15-712-1:2013, DEWA DRRG, NRS 097-2-1, MEA/PEA, C10/11, G98/G99 | |||||||||||||||
Safety / EMC | IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011 | |||||||||||||||
General Data | ||||||||||||||||
Dimensions (W xH x D) | 1050x 660x 330 mm | |||||||||||||||
Weight | 95kg | 98kg | 101kg | |||||||||||||
Operating Temperature Range | -30°C ~ +60*C (derating above 45"C) | |||||||||||||||
Cooling Method | Smart Cooling | |||||||||||||||
Protection Degree | IP66 | |||||||||||||||
Noise | s 70dB | |||||||||||||||
Max. Operating Altitude | 4000m (derating above 3000m) | |||||||||||||||
Relative Humidity | 0~ 100% | |||||||||||||||
Topology | Transformerless | |||||||||||||||
Night Power Consumption | < 1W | |||||||||||||||
Warranty | 5 years (standard)/ 10 years (optional) | |||||||||||||||
Product Details

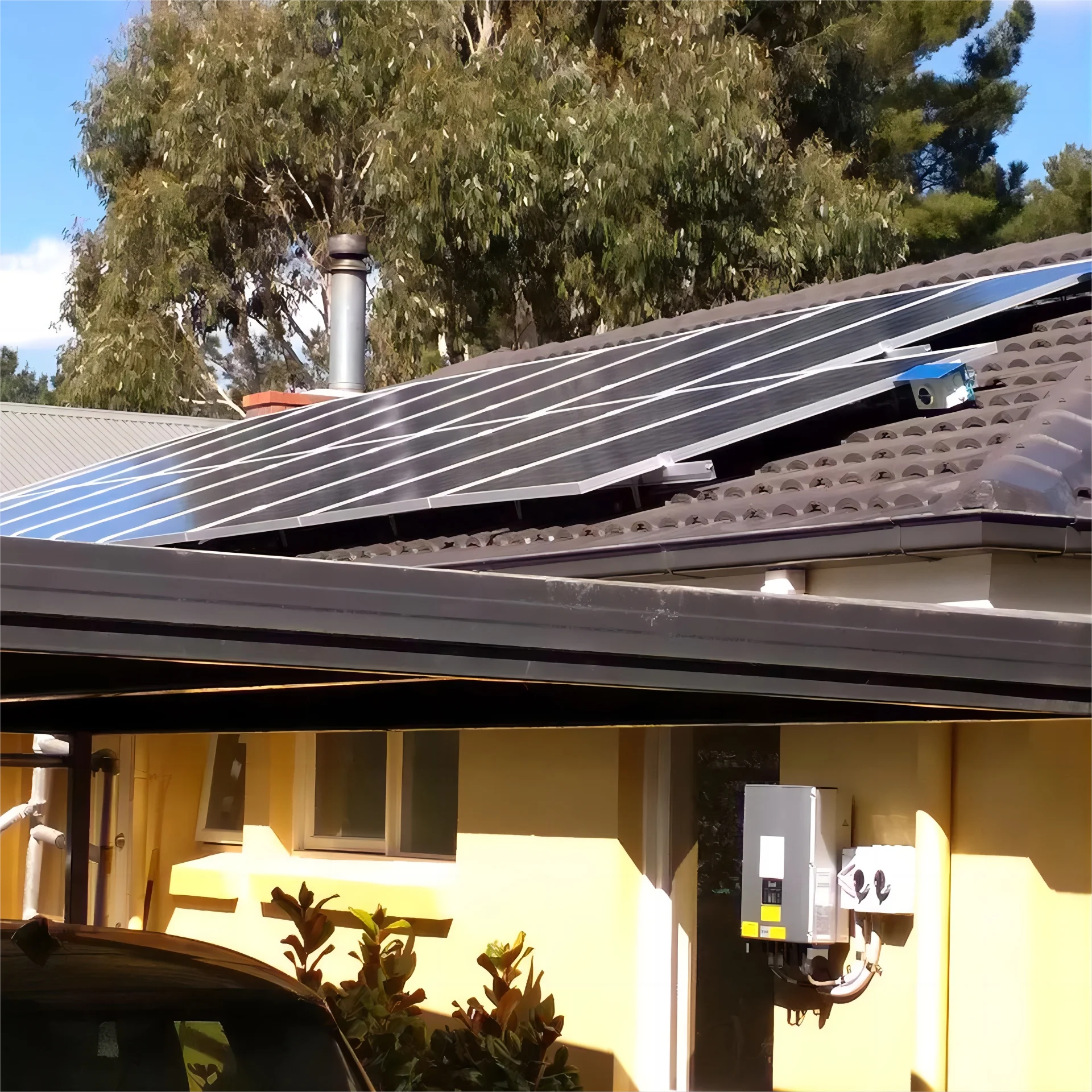

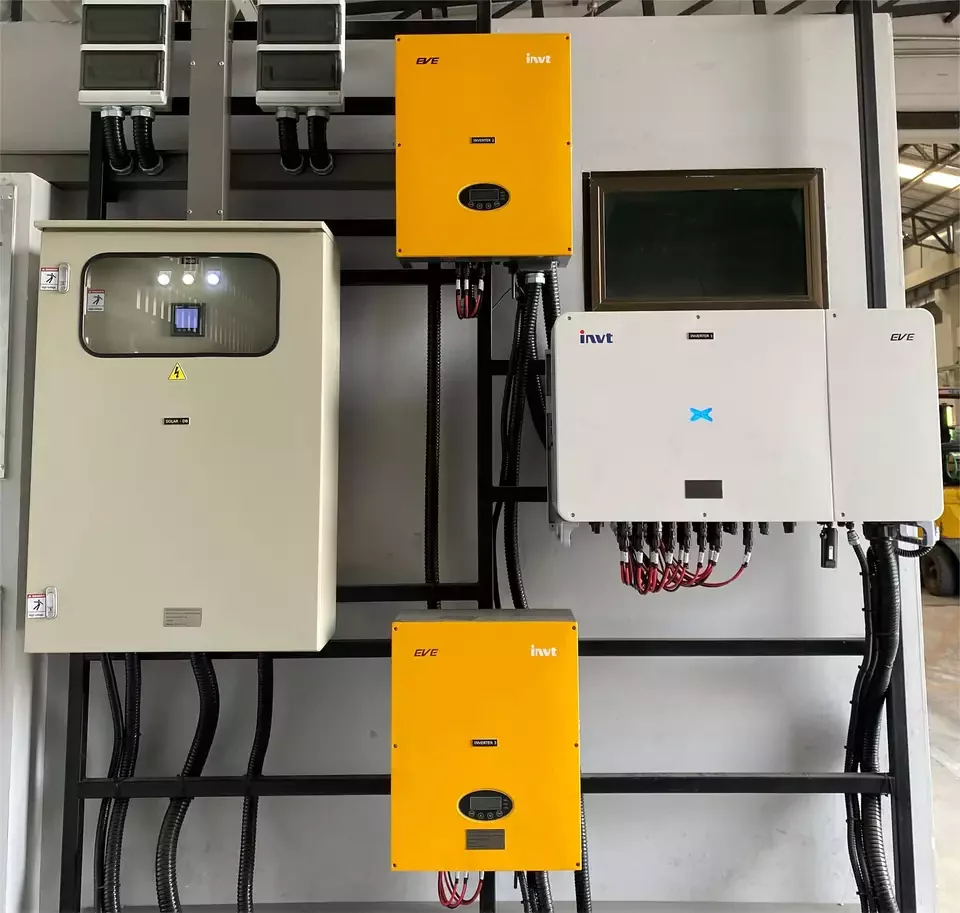

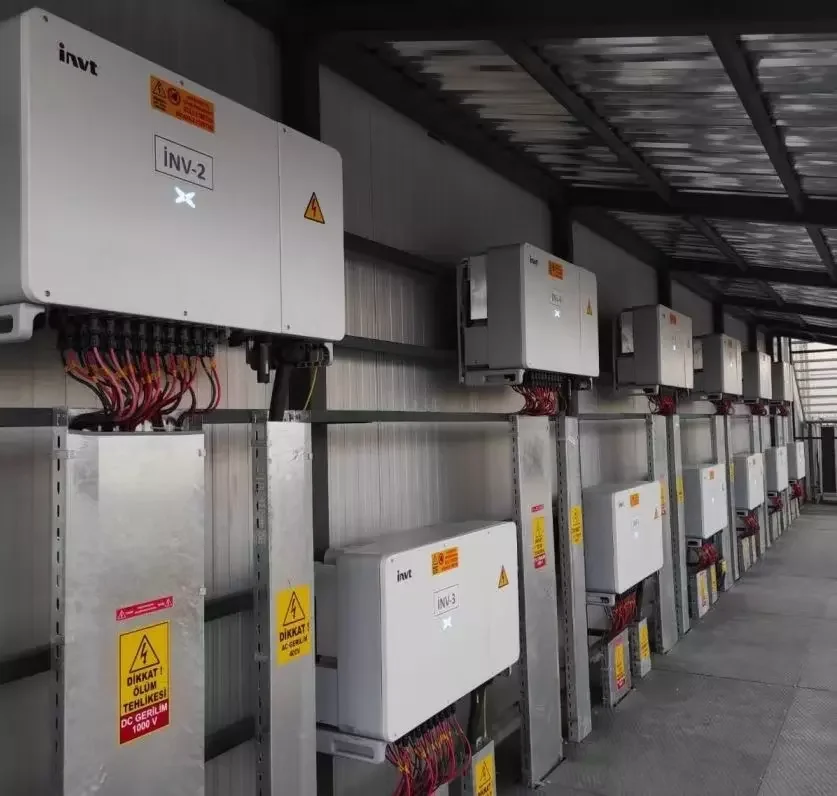

Project Cases
Packing & Delivery
Company Profile
Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing company.The business covers the R&D, production and sales of PV modules.Power station and PV system products, power generation and operation and maintenance services,etc.The company is located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world.We are world-renowned manufacturer and supplier of solar cells, solar PV modules and solar systems.
Covering an area of 46000 square meters,we have more than 200 employees now,which makes annual production capacity of 800MW and 90% were exported all over the world. The advanced production system and excellent quality control have enabled us to win the trust and support of our customers.We have got certificates of TUV,CE,etc.At present, PINERGY has established a global sales network covering 70 countries/regions.Mainly covering Europe, Asia and South America, customers all over the world.
PINERGY has a complete PV product system: solar cells, PV modules and PV systems, etc.The goal of PINERGY is to create a new first-class PV product brand, provide clean energy to the world, and assume future responsibility.
Excellent quality, PINERGY manufacturing!
Covering an area of 46000 square meters,we have more than 200 employees now,which makes annual production capacity of 800MW and 90% were exported all over the world. The advanced production system and excellent quality control have enabled us to win the trust and support of our customers.We have got certificates of TUV,CE,etc.At present, PINERGY has established a global sales network covering 70 countries/regions.Mainly covering Europe, Asia and South America, customers all over the world.
PINERGY has a complete PV product system: solar cells, PV modules and PV systems, etc.The goal of PINERGY is to create a new first-class PV product brand, provide clean energy to the world, and assume future responsibility.
Excellent quality, PINERGY manufacturing!
FAQ
1. who are we?
We are based in Anhui, China, start from 2017,sell to Southern Europe(40.00%),Southeast Asia(20.00%),Africa(18.00%),South Asia(2.00%),Eastern Asia(2.00%),North America(2.00%),South America(2.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Eastern Europe(2.00%),Domestic Market(2.00%),Mid East(2.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panel, Solar System, Battery, Solar Inverter, Solar Cell
4. why should you buy from us not from other suppliers?
Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing
company.The business covers the R&D, production and sales of PV
modules.Power station and PV system products, power generation and operation
and maintenance services,etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,German,Russian
We are based in Anhui, China, start from 2017,sell to Southern Europe(40.00%),Southeast Asia(20.00%),Africa(18.00%),South Asia(2.00%),Eastern Asia(2.00%),North America(2.00%),South America(2.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Eastern Europe(2.00%),Domestic Market(2.00%),Mid East(2.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panel, Solar System, Battery, Solar Inverter, Solar Cell
4. why should you buy from us not from other suppliers?
Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing
company.The business covers the R&D, production and sales of PV
modules.Power station and PV system products, power generation and operation
and maintenance services,etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,German,Russian
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Contact Us
Похожие товары
США напряжение 120/240 В сплит-фазный инвертор 8 кВт 12 Гибридный солнечный
95 942,35 ₽ - 106 907,19 ₽
Megarevo 3-фазный гибридный солнечный инвертор 8/10/12/15 кВт 380 В на сетке солнечной системы с MPPT высоковольтной батареей
Солнечный Growatt MIN7000TL-X(E) MIN8000TL-X(E) MIN9000TL-X MIN10000TL-X 220/240 на сетке инвертор с поддержкой Wi-Fi
86 622,24 ₽ - 87 170,48 ₽

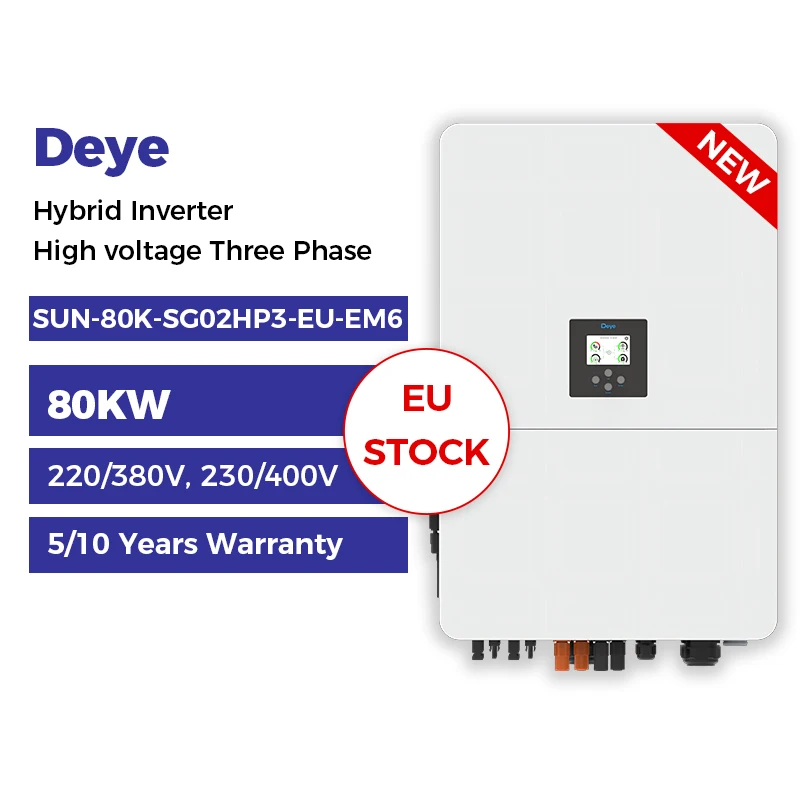

SUN-80K-SG02HP3-EU-EM6 литий-ионный аккумулятор Deye 6 MPPT трехфазный высоковольтный 80 кВт солнечный гибридный инвертор
564 689,26 ₽

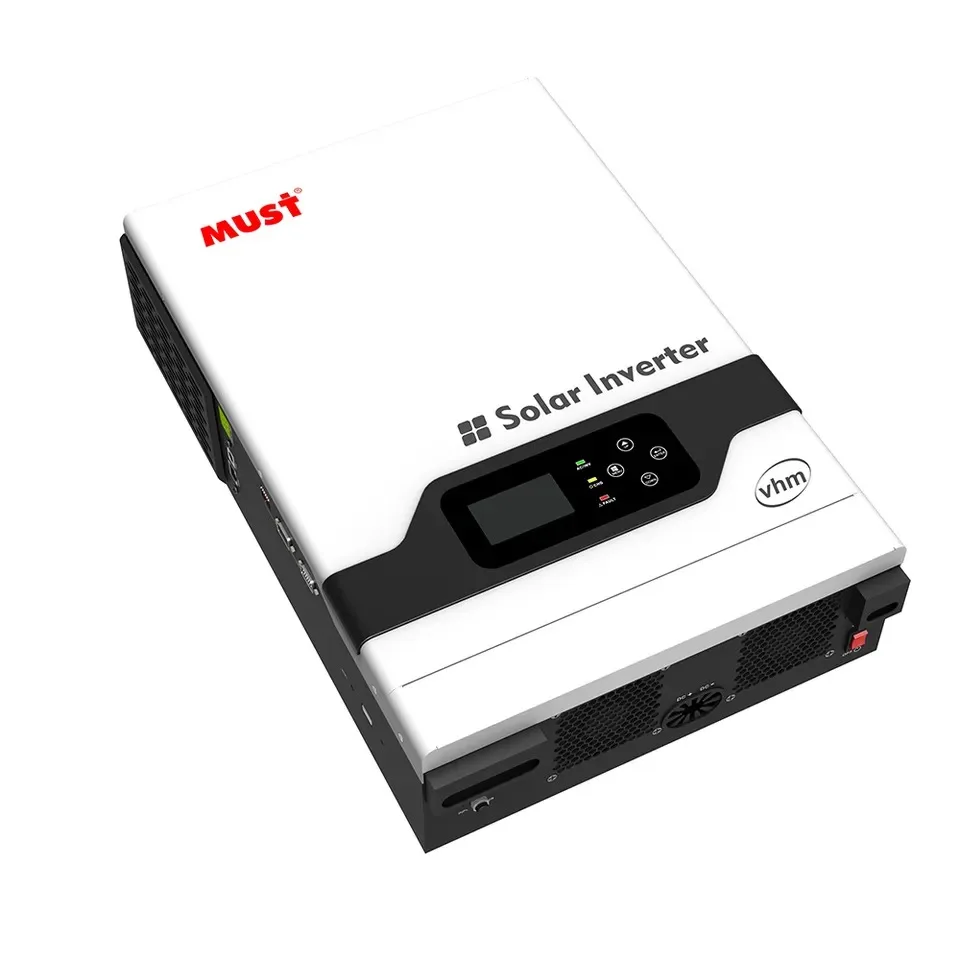

Вне сети 24 В высокочастотный Гибридный солнечный инвертор 110 3 6 кВт чистые синусоидальные солнечные инверторы встроенные 120 А MPPT
