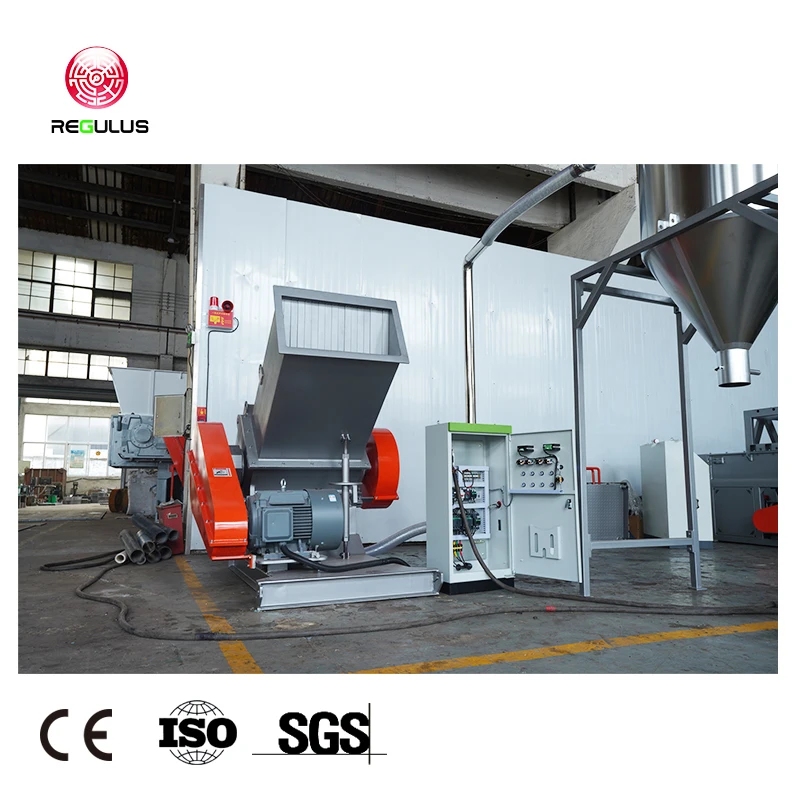

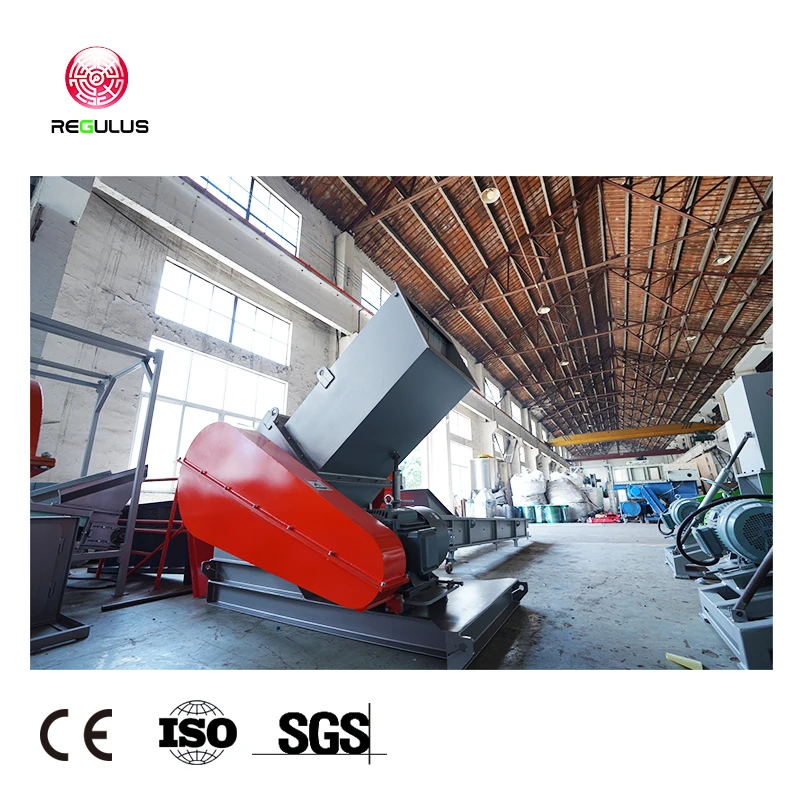

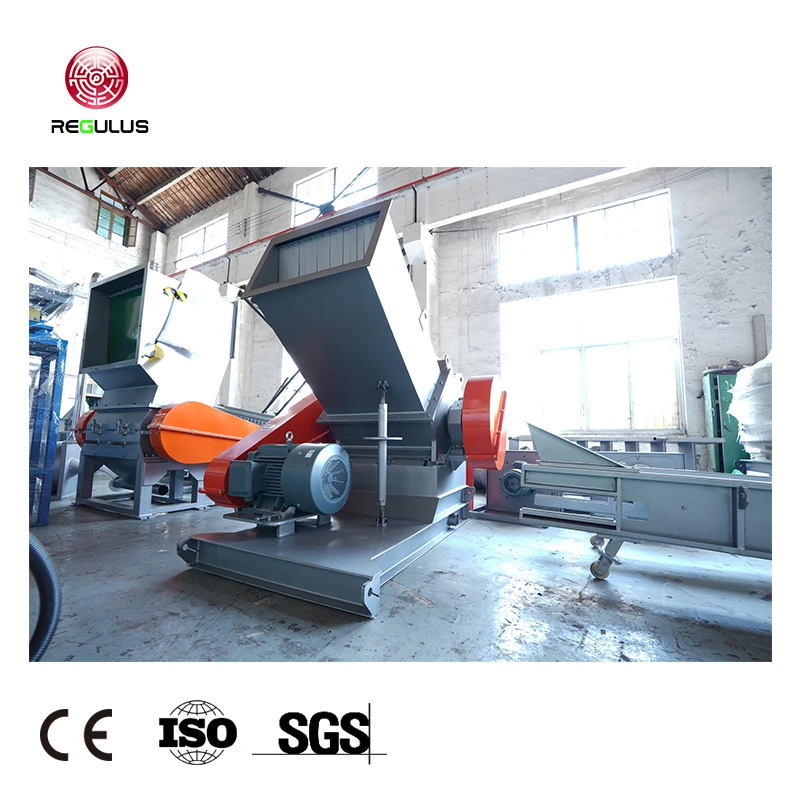

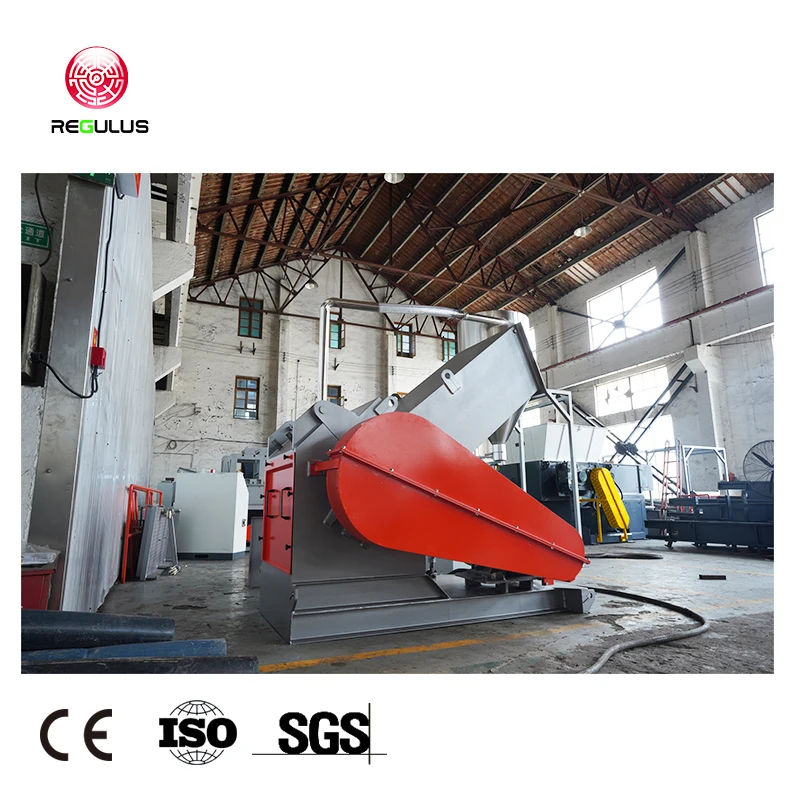

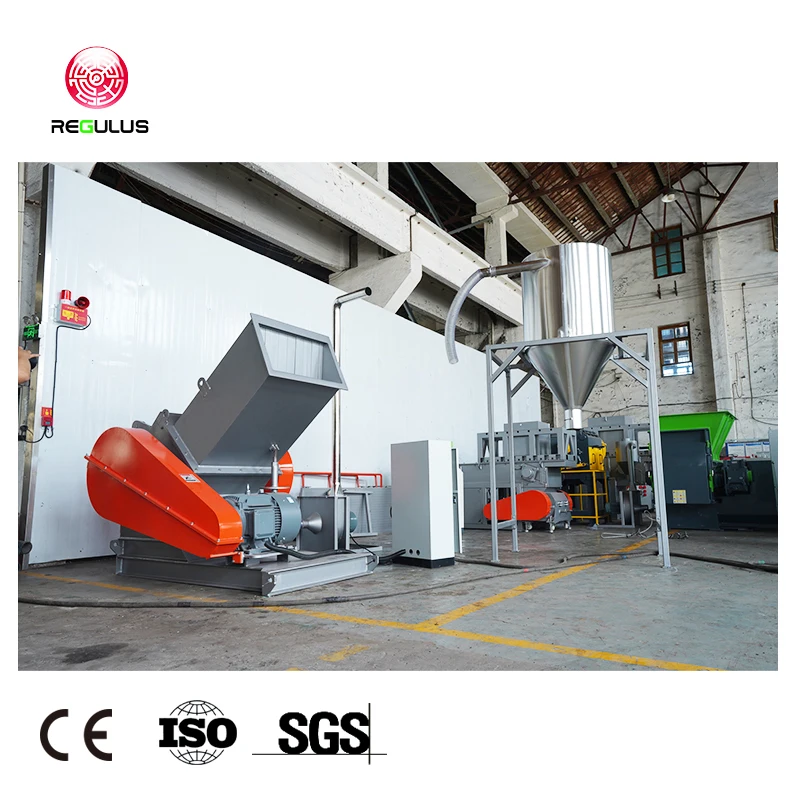

Автоматическая машина для переработки труб HDPE дробилка промышленных жестких пластиковых кабелей гранулятор
- Категория: >>>
- Поставщик: Zhangjiagang Regulus Machinery Co. Ltd.
Сохранить в закладки 1601277961434:
Описание и отзывы
Характеристики
Product Description
Function
In order to improve the efficiency, recycling diferent material adopt different rotor for the machine. The material is cut cleanly between the rotor and stator knives, and cut down to a homogenous regrind size determined by the screen holes on the fitted screen. At the same time, it could equip with bagging off unitand sound proof cover for the machine based on the customer' s requirements. It is split structure for the cutting chamber, so it is easy for cleaning. replacing blade, maintaining and repairing.
Application
a.Plastics - molding, profiles, films,etc.
b.Ton bags ,woven bag
c.Paper and paperboard -confidential documents, production waste, packaging materials, etc.
d.plastic bottle ,sheet stock
e.Rubber - tire, rubber, rubber products, etc.
f.Copper cables - household, telecommunication and industrial cables, including s.w.a.
g.Textiles - carpets (rolls and tiles),etc.
h.Foam - production waste, etc.
c.Paper and paperboard -confidential documents, production waste, packaging materials, etc.
d.plastic bottle ,sheet stock
e.Rubber - tire, rubber, rubber products, etc.
f.Copper cables - household, telecommunication and industrial cables, including s.w.a.
g.Textiles - carpets (rolls and tiles),etc.
h.Foam - production waste, etc.
Features:
a. The suitable structure of cutter roller can be selected according to broken materials required by customers.
b. High safety factor bearing, reduce the probability of bearing damage.
b. High safety factor bearing, reduce the probability of bearing damage.
c.According to the demand, it can be equipped with
pneumatic aggregate device and sound insulation structure device.
d. Independent control box, Siemens PLC system.
e. The whole system meets the CE safety standard
f. It has the characteristics of economy, practicability, simple operation and long service life.
pneumatic aggregate device and sound insulation structure device.
d. Independent control box, Siemens PLC system.
e. The whole system meets the CE safety standard
f. It has the characteristics of economy, practicability, simple operation and long service life.
Packing & Delivery
Crusher blades structure picture Crusher blades structure picture
Specification
PC26-52 series are small and medium-sized crushers, which are used for the shredded pipes, small pipes, profiles, circuit boards
Model | PC 3260 | PC 3280 | PC4280 | PC 42100 | PC 52100 |
Dimension (mm) | 1600*1450 *1790 | 1600*1650 *1790 | 1800*1750 *2450 | 1800*1950 *2450 | 2000*2150 *3200 |
Cutting Chamber (mm) | 600*320 | 800*320 | 800*420 | 1000*420 | 1000*520 |
Feeding port height (mm) | 1450 | 1450 | 1800 | 1800 | 2200 |
Rotor Diameter(mm) | φ320 | φ320 | φ420 | φ420 | φ520 |
Main shaft Speed(r/min) | 580 | 580 | 530 | 530 | 462 |
Screen Mesh(mm) | φ14 | φ14 | φ14 | φ14 | φ14 |
Rotor-knives | 18 | 24 | 24/6 | 30/6 | 30/6 |
Stator-knives | 4 | 4 | 4 | 4 | 4 |
Main Motor Power(kw) | 22 | 30 | 37 | 45 | 55 |
Weight(kg) | 1480 | 1680 | 2880 | 3550 | 4650 |
PC52-80 series are used to crush shredded machine head materials and pipes, plastic films, PET bottles, basket frames, profiles, oil barrels, blue barrels, plastic objects with a wall thickness of less than 5 mm
Model | PC 52120 | PC 66120 | PC 66160 | PC 80160 |
Dimension (mm) | 2000*2350 *3200 | 2450*2250 *3750 | 2450*2750 *3750 | 2800*2950 *4100 |
Cutting Chamber(mm) | 1000*520 | 1200*660 | 1600*660 | 1600*800 |
Feeding port height(mm) | 2200 | 2650 | 2650 | 2800 |
Rotor Diameter(mm) | φ520 | φ660 | φ660 | φ800 |
Main shaft Speed | 462 | 415 | 415 | 415 |
Screen Mesh | φ14 | φ14 | φ14 | φ14 |
Rotor-knives | 6 | 6/10 | 12/20 | 12/20 |
Stator-knives | 4/6 | 6 | 8 | 8 |
Main motor Power(kw) | 55/75 | 90/110 | 132 | 132/160 |
Weight(kg) | 5120 | 7650 | 9650 | 11500 |
SWP-SERIES is used to crush shredded machine head materials and pipes, plastic objects with a wall thickness of less than 10mm
Model | SWP400 | SWP500 | SWP600 |
Dimension（mm） | 2200*900*1800 | 2200*1050*2100 | 2400*1300*2300 |
Cutting Chamber(mm) | 400*400 | 500*500 | 600*660 |
Feeding port height(mm) | 1500 | 1600 | 1800 |
Rotor Diameter | φ400 | φ500 | φ660 |
Main shaft Speed(r/min) | 462 | 415 | 415 |
Screen Mesh(mm） | φ14 | φ14 | φ14 |
Rotor-knives | 12 | 15 | 18/6 |
Stator-knives | 2 | 2 | 2/4 |
Main motor Power(kw) | 15/22 | 22/30 | 45/55 |
Weight(kg) | 1500 | 1900 | 2800 |
Our REGULUS company is professional manufacturer of plastic crusher, shredder machine. Every year, we produce more than 200 sets crushing shredding machine.
Company Profile
ZHANG JIAGAN GRE GULUS MACHINERY Co., Ltd. is a group company. We are a professional manufacturer of plastic recycling machines and plastic extrusion lines.
We devote ourselves to the development, research and production of plastic machinery in China. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Our Main machinery including: Waste Plastic washing and granulating recycling line, Plastic crusher, Plastic Shredder, Plastic agglomerator, And plastic pipe ,profile extrusion machine, Plastic mixer, Plastic Pulverizer and other auxiliary machines.
We devote ourselves to the development, research and production of plastic machinery in China. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Our Main machinery including: Waste Plastic washing and granulating recycling line, Plastic crusher, Plastic Shredder, Plastic agglomerator, And plastic pipe ,profile extrusion machine, Plastic mixer, Plastic Pulverizer and other auxiliary machines.
Turn-key projects
Our machines are well sold in China and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
Please feel free to contact us for further details. We are looking forward to forming a profitable business relationship with your company in the near future. We welcome you to visit our company at any time. Thank you!
Our machines are well sold in China and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
Please feel free to contact us for further details. We are looking forward to forming a profitable business relationship with your company in the near future. We welcome you to visit our company at any time. Thank you!
Packing and Delivery
SALES AND SERVICE NETWORK
Certifications
COOPERATION BRAND
Other Products from our REGULUS company:
FAQ
1.Who are we?
We are based in Jiangsu, China, start from 2015,sell to Domestic Market(20.00%),Africa(15.00%),Southeast Asia(10.00%),North America(10.00%),South America(9.00%),Eastern Asia(8.00%),Mid East(6.00%),Northern Europe(6.00%),Eastern Europe(6.00%),South Asia(4.00%),Oceania(2.00%),Central America(2.00%),Western Europe(1.00%),Southern Europe(1.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
waste plastic recycling machine,plastic extruder,plastic pipe profile extrusion machine,plastic agglomerator,plastic shredder
4.Why should you buy from us not from other suppliers?
ZHANGJIAGANG REGULUS MACHINERY Co., Ltd. is a group company. We are a professional manufacturer of plastic recycling machines and plastic extrusion lines. We devote ourselves to the development, research and production of plastic machinery in China.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Russian
We are based in Jiangsu, China, start from 2015,sell to Domestic Market(20.00%),Africa(15.00%),Southeast Asia(10.00%),North America(10.00%),South America(9.00%),Eastern Asia(8.00%),Mid East(6.00%),Northern Europe(6.00%),Eastern Europe(6.00%),South Asia(4.00%),Oceania(2.00%),Central America(2.00%),Western Europe(1.00%),Southern Europe(1.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
waste plastic recycling machine,plastic extruder,plastic pipe profile extrusion machine,plastic agglomerator,plastic shredder
4.Why should you buy from us not from other suppliers?
ZHANGJIAGANG REGULUS MACHINERY Co., Ltd. is a group company. We are a professional manufacturer of plastic recycling machines and plastic extrusion lines. We devote ourselves to the development, research and production of plastic machinery in China.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Russian
Похожие товары
переработка звукоизоляционных пластиковых дробилок
231 437,64 ₽ - 275 521,00 ₽
Высокая производительность 18 5 кВт 37 45 55 75 машина для измельчения отходов трубы пластиковых бутылок полипропиленовый/полиэтиленовый блок одновальный измельчитель
220 416,80 ₽ - 462 875,28 ₽

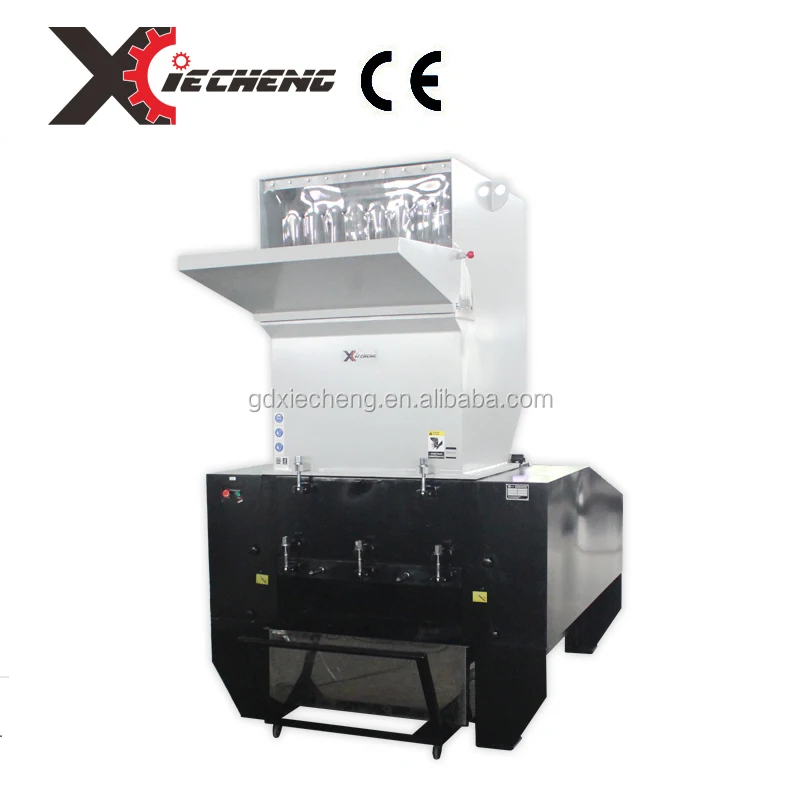

700 Пластиковая дробилка PP500 pet pp
