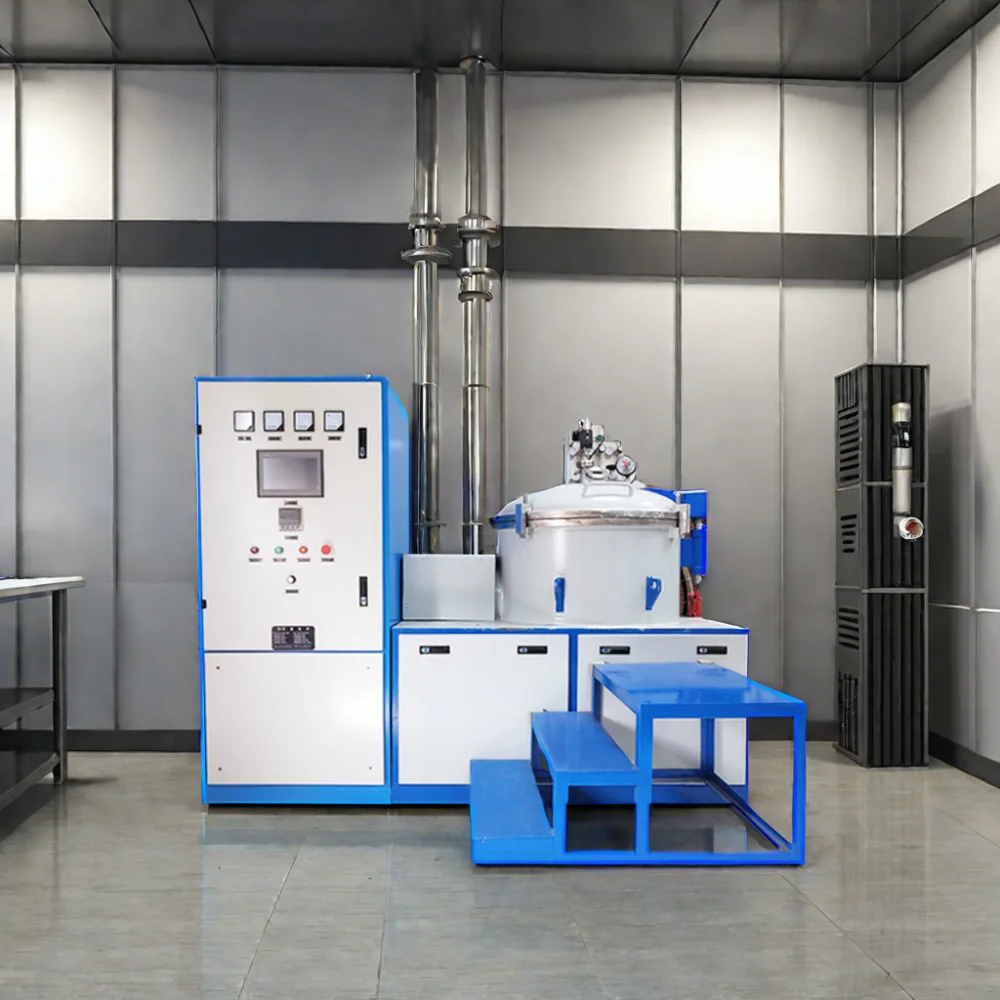

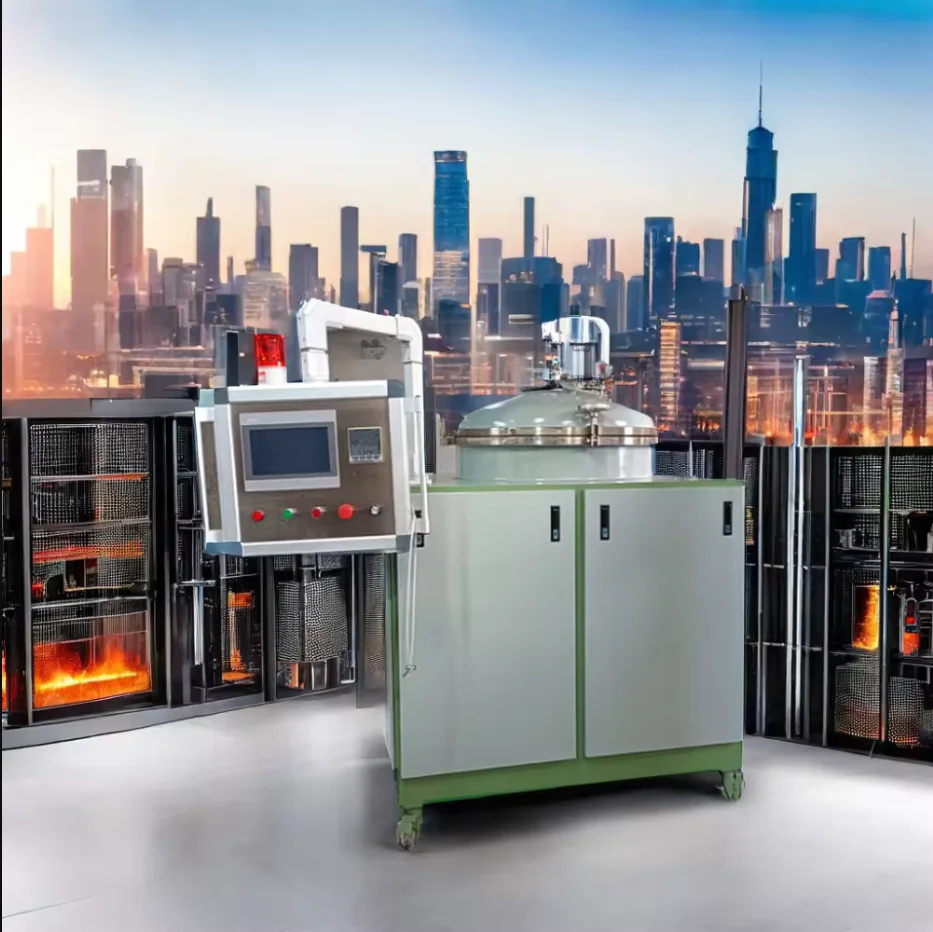

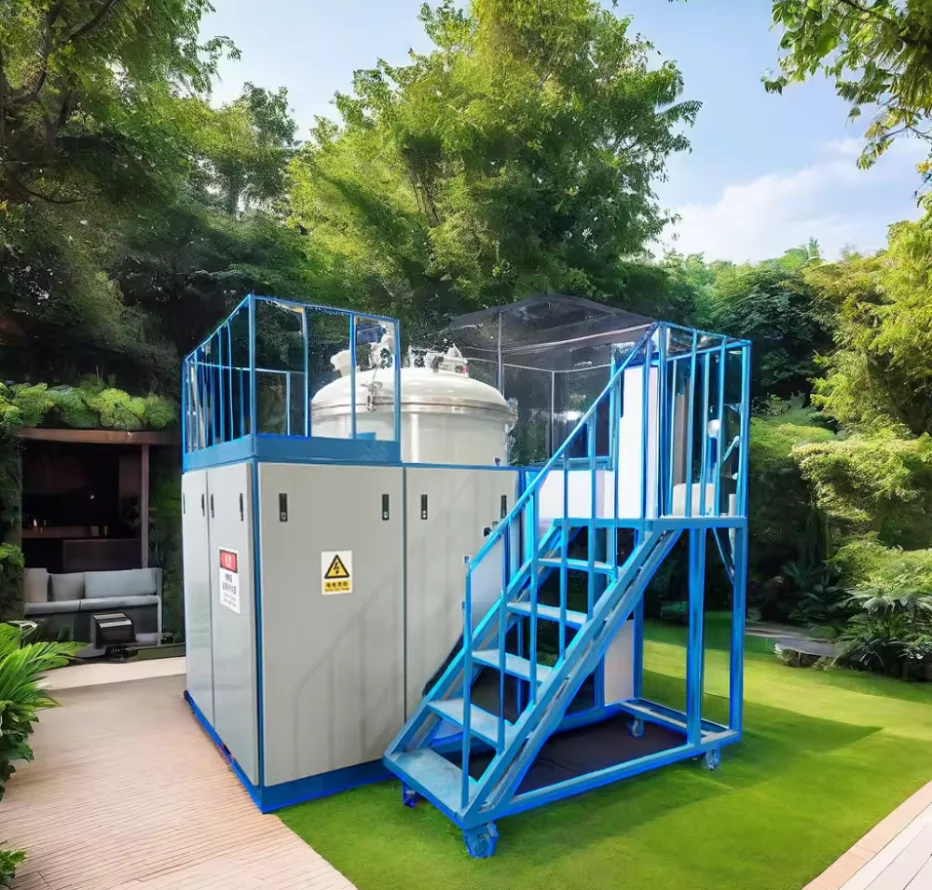

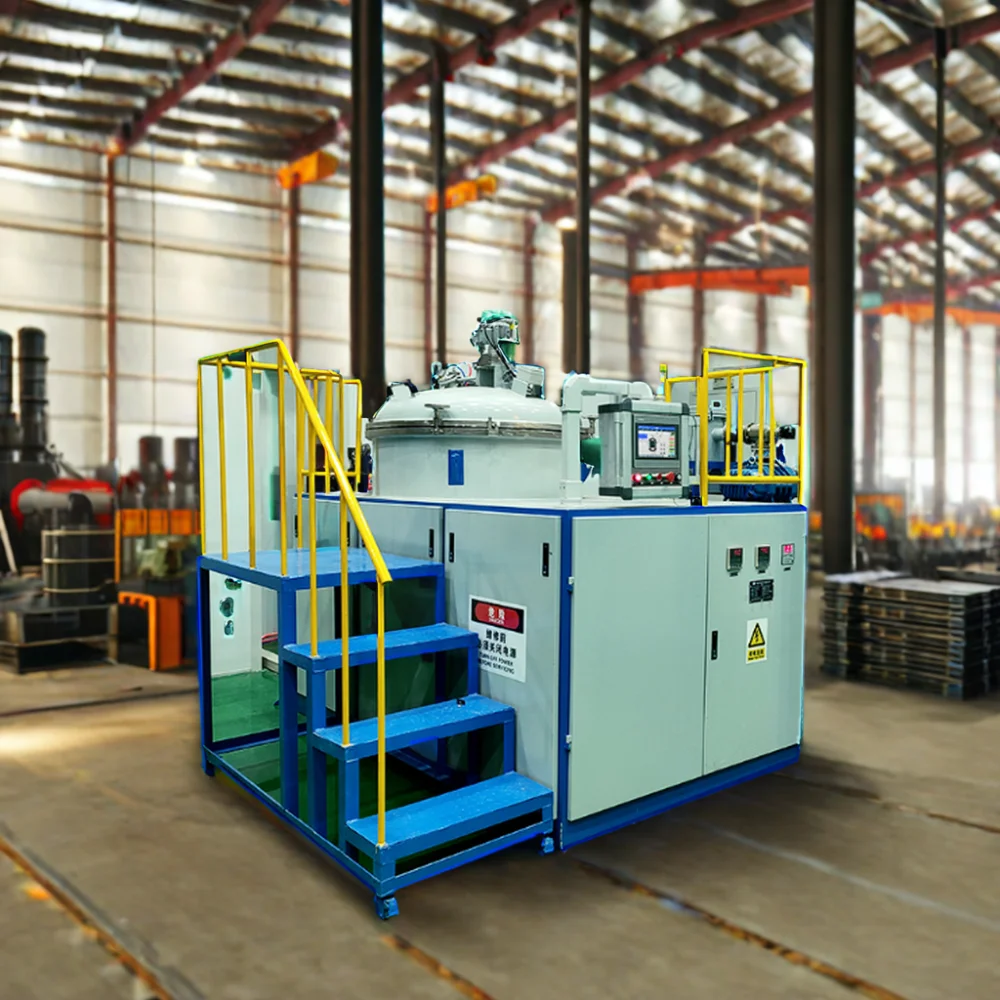

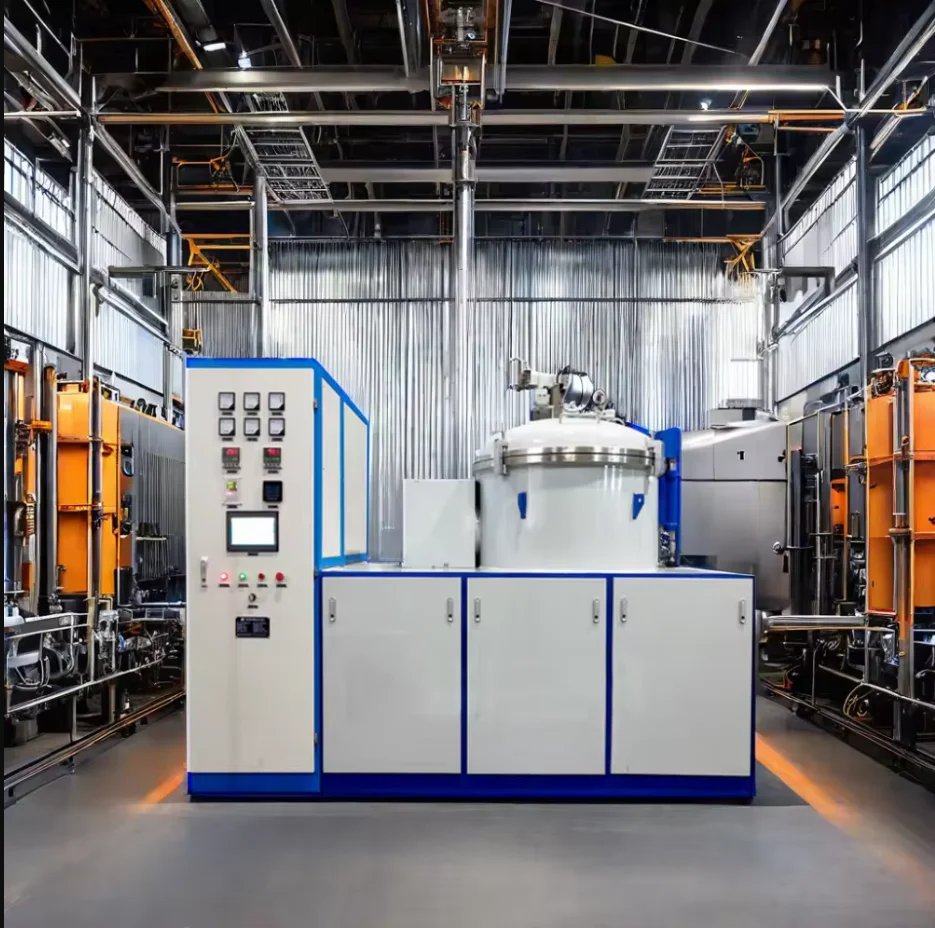

3000 градусов высокая температура Вертикальная графитовая печь/духовка для удовлетворения спекания и графитизации различных материалов
- Категория: >>>
- Поставщик: Hunan Jingtan Automation Equipment Co. Ltd.
Сохранить в закладки 1601277997611:
Описание и отзывы
Характеристики
Products Description
Vertical Laboratory graphitization furnace application:
3150 degrees vertical graphitization furnace is mainly used for graphitization of cathode materials and graphene film, so that it
becomes a graphite film with high thermal conductivity.
becomes a graphite film with high thermal conductivity.
Used in the sintering and graphitization of cathode materials, carbon materials and carbon carbon, carbon ceramic composite
materials, but also can be used in the high temperature treatment of industrial ceramics, powder metallurgy materials and other
products
materials, but also can be used in the high temperature treatment of industrial ceramics, powder metallurgy materials and other
products
The operating temperature of the equipment reaches 3150℃.
Ultimate temperature | 3200℃ |
Working Temperature | Normal Temperature -3150℃ |
Furnace body shape | Vertical structure |
Volume of furnace（mm） | φ500X1000 φ600X1200 φ700X1500 |
φ800X1600 φ900X1800 φ1000X2000 | |
Can also be customized according to user needs of various sizes of the furnace body | |
Working Atmosphere in furnace | Vacuum, hydrogen, nitrogen, inert gas, etc |
Temperature Uniformity | ≤±10℃ |
Temperature Measurement | Far infrared optical temperature measurement (double connector automatic switch) |
Temperature Measuring Range | 1000~3200℃ or 250~1200℃ |
Temperature Measurement Accuracy | 0.2~0.75% |
Temperature Control Accuracy | ±1℃ |
Pressure Rising Rate | 2Pa/h |
Limit Heating Rate | 80℃/ min (empty furnace, depending on the volume of high temperature zone and furnace structure) |
Power supply | IGBT control, thyristor control |
Characteristic:
The use of thermal insulation materials and domestic furnace structure, he temperature can reach 3150℃, adopt integrated belt furnace body to increase production, sa the large graphitization furnace cooling time is long, use the cooling time for other furnace heating.
The digital display intelligent temperature control system is adopted to complete the temperature measurement and temperature control process with full automatic precision. The system can heat up according to the given heating curve or call the previous process curve, and can store 20 pieces of 400 different process heating curves.
Comprehensive PLC water, electricity, gas automatic control and protection system. Electrical part, touch screen intuitive display of parameter data, water and electric automatic protection device, simple operation.
Can be a machine multi - furnace, using PLC intelligent conversion.
Characteristic 1:
The use of thermal insulation materials and domestic furnace structure, he temperature can reach 3150℃, adopt integrated belt furnace body to increase production, sa the large graphitization furnace cooling time is long, use the cooling time for other furnace heating.
Can be a machine with multi - furnace, using PLC intelligent conversion.
Characteristic 2:
The digital display intelligent temperature control system is adopted to complete the temperature measurement and temperature control process with full automatic precision. The system can heat up according to the given heating curve or call the previous process curve, and can store 20 pieces of 400 different process heating curves.
Comprehensive PLC water, electricity, gas automatic control and protection system. Electrical part, touch screen intuitive display of parameter data, water and electric automatic protection device, simple operation.
Comprehensive PLC water, electricity, gas automatic control and protection system. Electrical part, touch screen intuitive display of parameter data, water and electric automatic protection device, simple operation.
Company Profile
We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team、stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
Patent for high temperature graphitization furnace:
Patent for high temperature vacuum hot pressure furnace:
Patent for high temperature continuous furifing graphitization furnace:
Patent for carbonization sintering furnace:
Patent for bottom discharge graphitization furnace:
Patent for carbon fiber continuous furnace
Application
Production process
Customer Photos
Customer cooperation cases:
Pre-sales and after-sales service
Our logistics system is all around the world.
FAQ
Are you a factory or trading company?
Q: Are you a factory or trading company?
A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.
Do you have customization or OEM service?
Q: Do you have customization or OEM service??
A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.
What's your advantages?
Q:What's your advantages?
A:Quick response to your enquiry
High quality control
Stable supply chain in the domestic maket
Timely delivery
Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
Contact me as follow:
