Небольшой Ультрафиолетовый принтер 9060S может быть добавлен цилиндрический зажим для печати бутылки вина Бутылка губной помады цилиндр ювелирные изделия
- Категория: >>>
- Поставщик: Guangzhou Maishengli Technology Co. Ltd.
Сохранить в закладки 1601278014725:
Описание и отзывы
Характеристики
Video Demo
https://youtu.be/xCsUxATOvD8 ( Play in 1080P HD)
Video Introduction
Product Description
MSERIN M-9060S UV flatbed Printer
The MSERIN M-9060S is a true industrial UV flatbed printer with a wide range of features and the ability to directly print flat substrates and circular materials. Using VDT(Variable point technology), it covers drops of 3-12pl, enabling it to print complex images with huge color gradients. The MSERIN M-9060S-UV printer has the option of negative pressure system or ink CUP system with white and color ink, making maintenance easy and hassle-free.
Free Sample
Printing Service
If you are not sure whether your product can be printed with the result you want, or you want to see it with your own eyes, feel
it in your hands, feel free to let us know and we will arrange the sample printing and get it done in 1-2 business days, all with
no cost.
it in your hands, feel free to let us know and we will arrange the sample printing and get it done in 1-2 business days, all with
no cost.
Equipment Parameters
Model | M-9060S UV flatbed printer | ||||||
Appearance | Black grey or Medium grey | ||||||
Ink | UV Ink:CMYK,LC,LM,White,varnish | ||||||
Printing Speed | 720*600dpi(4PASS) | 10㎡/h | |||||
720*900dpi(6PASS) | 8㎡/h | ||||||
720*1200dpi(8PASS) | 6㎡/h | ||||||
Print Size | 920mm*620mm | ||||||
Print Thickness | 0.1mm-175mm(or customized) | ||||||
Curing System | UV LED Lamp | ||||||
Image Format | TIFF/JPG/EPS/PDF/BMP | ||||||
RPI Sofeware | FlexiPRINT/HOSON-RIIN/Maintop | ||||||
Material Type | All kind of advertising materials,decoration related series materials,metal plate,glass,ceramics,wood board,textile,plastic,mobile phone case,acrylic,etc | ||||||
Power Supply | AC220v 50HZ±10% | ||||||
Temperature | 20-35℃/68-95°F | ||||||
Humidity | 40-75% | ||||||
Power | 1600W | ||||||
Equipment Size | L/W/H:1850/1600/1450 | ||||||
Package Size | L/W/H:1900/1650/1500 | ||||||
Data Transmission | TCP/IP network interface | ||||||
Net Weight | 400kg | ||||||
Product Description Details
1. Double linear guideways
There are 2 linear guides on the x axis of the beam, 2 on the y axis.
In contrast, most other uv printers only have a total of 2-4 PCS of rails, and they are not necessarily linear. Our installation allows the printer to operate more stably, resulting in better printing accuracy and longer machine life.
In contrast, most other uv printers only have a total of 2-4 PCS of rails, and they are not necessarily linear. Our installation allows the printer to operate more stably, resulting in better printing accuracy and longer machine life.
2. Thick aluminum vacuum suction table
All MSERIN models are equipped with a vacuum aluminum suction platform, matched with a powerful suction fan to ensure that soft media such as UV DTF AB film, leather or flat substrates such as acrylic, wood, corrugated plastic, etc., can be attached to the platform. Aluminum surface is specially treated to prevent corrosion and scratches.
3. Steel beam, annealed at high temperature, 20 years without deformation
The steel beam, after high temperature annealing treatment, is processed on the upper gantry milling machine. This will make the car structure very strong, no matter how fast the printing speed will not shake, so that your printer will not decline in printing accuracy for 10 years
4. Steel bottom frame, after high temperature annealing treatment, 20 years without deformation
Steel bottom frame, after high temperature annealing treatment, in the upper gantry milling machine processing. The whole chassis is very strong, and no matter how fast the printing speed is, it will not shake, so that the printing accuracy of your printer will not decline in 10 years
5. Low Ink alarm system
You need to equip several colors of ink, there will be several alarm lights, and the ink level sensor is placed inside the bottle, so it can accurately detect the ink remaining, ensuring that you will notice the ink shortage.
6. colors+White+Varnish
CMYKLcLm+W+V ink system now has Lc and Lm 2 extra colors to improve the color accuracy, making the printed result even sharper.
Feel free to ask for the color test print from our sales to examine the result.
Feel free to ask for the color test print from our sales to examine the result.
7. Front panel
The front panel has the basic control functions, like on/off switch, making the platform up and down, moving the carriage right and left and doing test print, etc. You can operate here even without the computer.
8. Carraige plate temperature controler
It's a compact device inside the printer carriage that serves to 1)heat the metal carriage bottom plate and 2)display the real time temperature of the carriage bottom plate.
9. UV LED lamp power knobs
MSERIN's printer can match the UV lamp according to the number and color of the print head you choose.
With them, you can adjust the wattage of the lamps according to your jobs' requirement.
For example, if you need to print heat-sensitive materials like film A&B(for stickers), you might want to turn down the lamp wattage to prevent it from altering its shape because of the heat.
With them, you can adjust the wattage of the lamps according to your jobs' requirement.
For example, if you need to print heat-sensitive materials like film A&B(for stickers), you might want to turn down the lamp wattage to prevent it from altering its shape because of the heat.
10. Rotary device
All UV flat bed printed models from MSERIN can be matched to cylindrical fixtures. It can handle three kinds of rotating products: a bottle with a handle like a mug, a bottle without a handle like a regular water bottle, and a bottle that is tapered like a non-tipping spoon (additional gadgets are required).
The 9060S matched cylinder fixture is directly installed at the rear of the platform, which has no impact on the printing of other products, and does not need to be disassembled, avoiding the trouble of spending time debugging after often disassembling the cylinder fixture. Switch the print mode directly to rotation mode when needed, so that we can print the cylinder.
The 9060S matched cylinder fixture is directly installed at the rear of the platform, which has no impact on the printing of other products, and does not need to be disassembled, avoiding the trouble of spending time debugging after often disassembling the cylinder fixture. Switch the print mode directly to rotation mode when needed, so that we can print the cylinder.
APPLICATIONS AND SAMPLES
Nano 9 is capable of realizing the above special prints: embossing, varnish/glossy. And we have the respective video tutorials to show you step by step.
Company and factory introduction
ABOUT US
MSERIN company has a strong strength, adhering to the "create value for users concept, with "integrity and pragmatism" for the purpose of efforts to meet customer needs. We thank you for your attention and support to our company all the time, we will, as always, follow the principle of customer first, and constantly improve and perfect our work level, to provide each customer with satisfactory and timely service, so as to keep pace with the Times, harmonious and win-win.
FAQ
Q: What’s technicial support can you offer?
Q: What’s the warranty time?
A: 1 year warranty for all machine parts excluding the printer head and other consumable parts.
A: Mserin has its own R&D and after sales department,they will give you 24 hours online professional support on the equipment to fit all your need of the product.
Q: What’s the warranty time?
A: 1 year warranty for all machine parts excluding the printer head and other consumable parts.
Q: The printed products could be placed or used outdoor?
A: Yes, UV printed products is Ultraviolet-proof.
Q: The white and color ink could be printed at the same time?
A: Yes.
Q: What’s the warranty time?
A: 1 year warranty for all machine parts excluding the printer head and other consumable parts.
A: Yes, UV printed products is Ultraviolet-proof.
Q: The white and color ink could be printed at the same time?
A: Yes.
Q: What’s the warranty time?
A: 1 year warranty for all machine parts excluding the printer head and other consumable parts.
Q: Can you make your machine to CMYK+CMYK?
A: Yes.
A: Yes.
Q: Can your machine print texture effects?
A: Yes, our software has the spot white option,can realize the texture effects.
A: Yes, our software has the spot white option,can realize the texture effects.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары

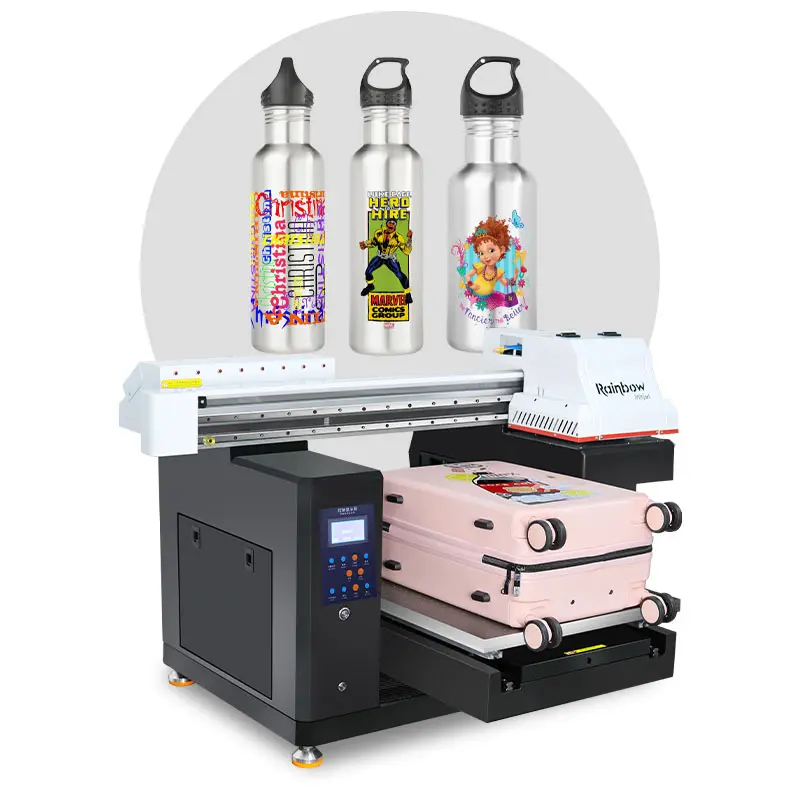

Быстрый Ультрафиолетовый Настольный планшетный принтер цилиндр Рождественский деревянный акриловый подарок на заказ ультрафиолетовая печатная машина

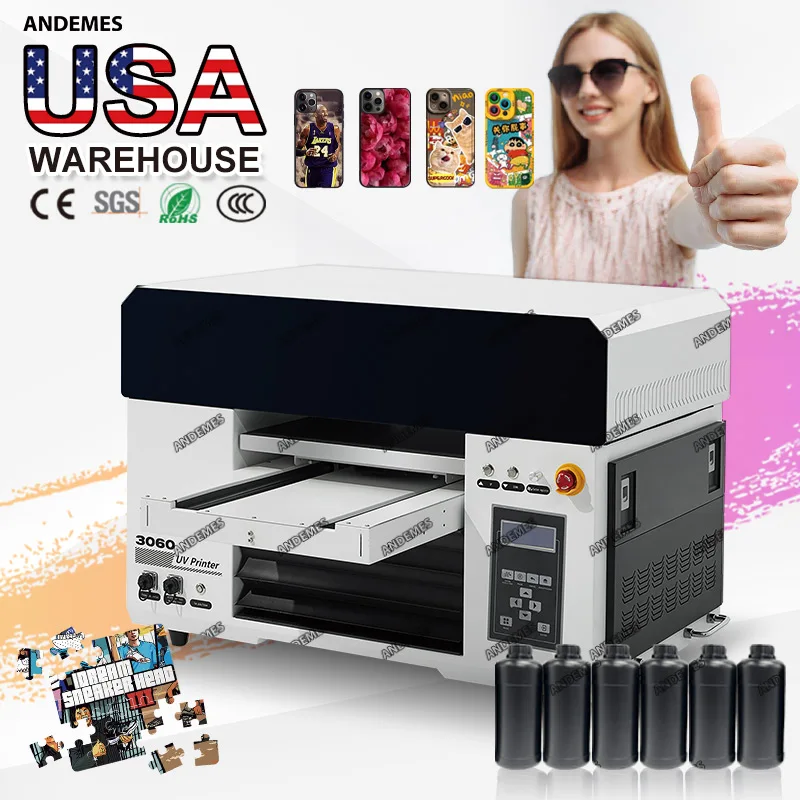

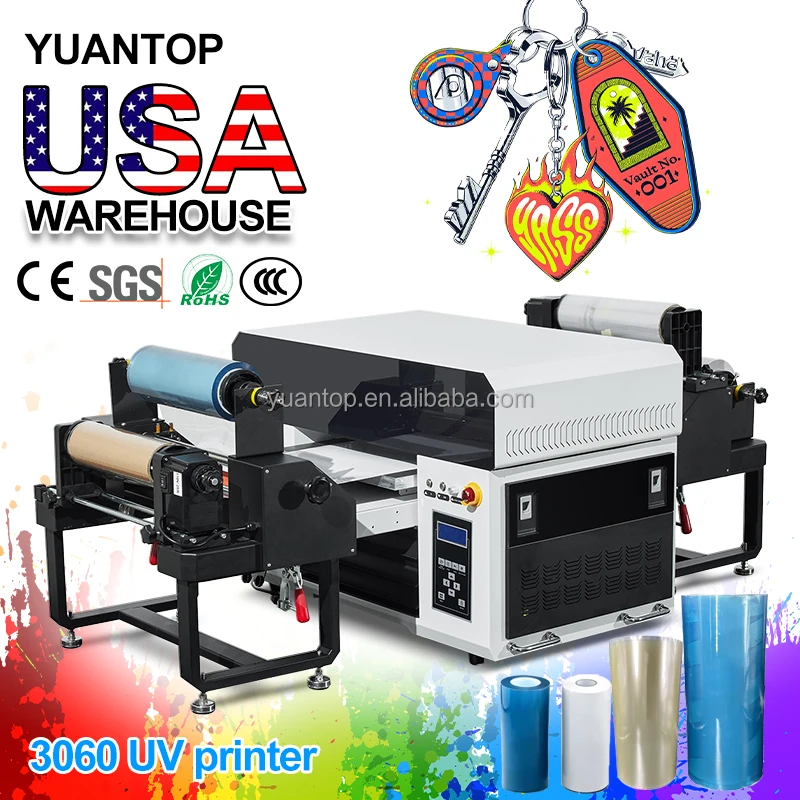

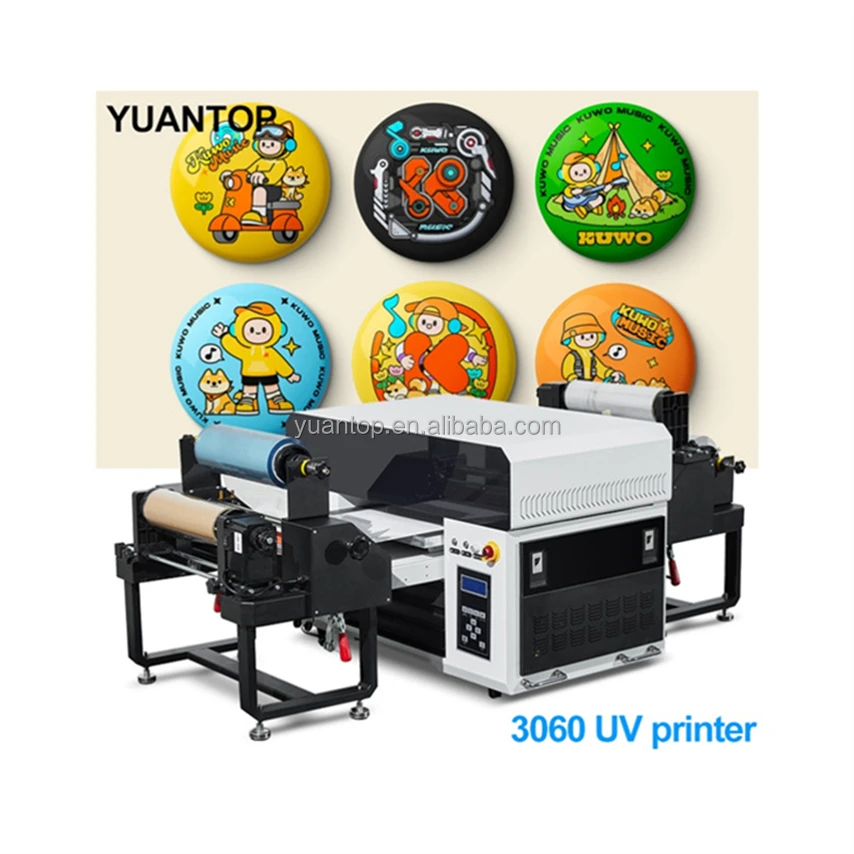

3060 УФ-принтер DTF цилиндр ультрафиолетовая печатная машина A B пленка делая логотип принтер UV переводные наклейки
Входное напряжение 220 В/110 В 50 Гц-60 Гц цилиндрическая печать со светодиодным ультрафиолетовым светом Ультрафиолетовый планшетный принтер A3 UV светодиодный для игрушек ПВХ

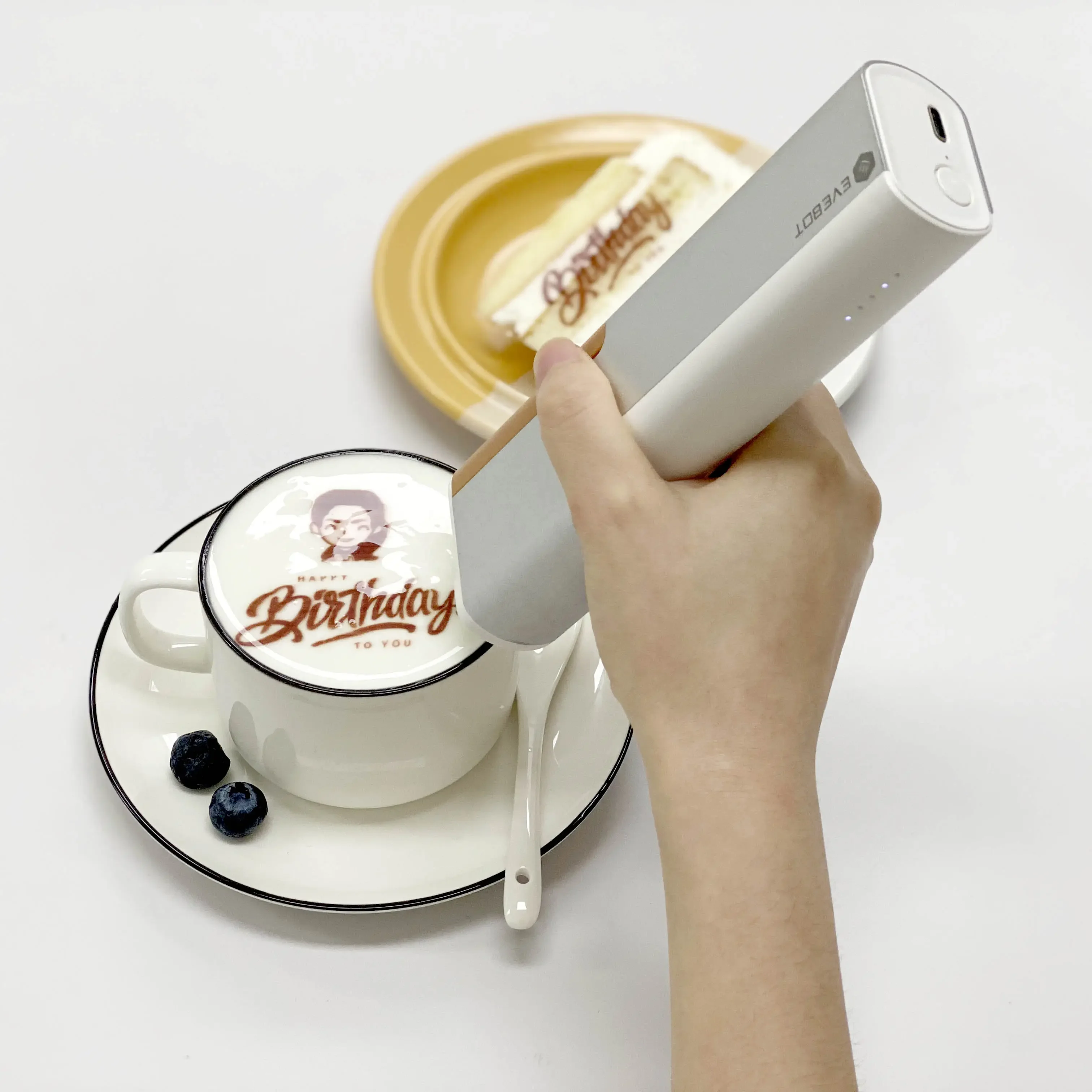

Портативные маленькие портативные печатные устройства для мобильного телефона EVEBOT DIY pattern printer могут печатать обувь чашки столы и книги
25 238,39 ₽ - 27 442,62 ₽
Sunthinks оборудование для производства чехлов мобильных телефонов 3d Печатающая машина футболок УФ-принтер SGH1513

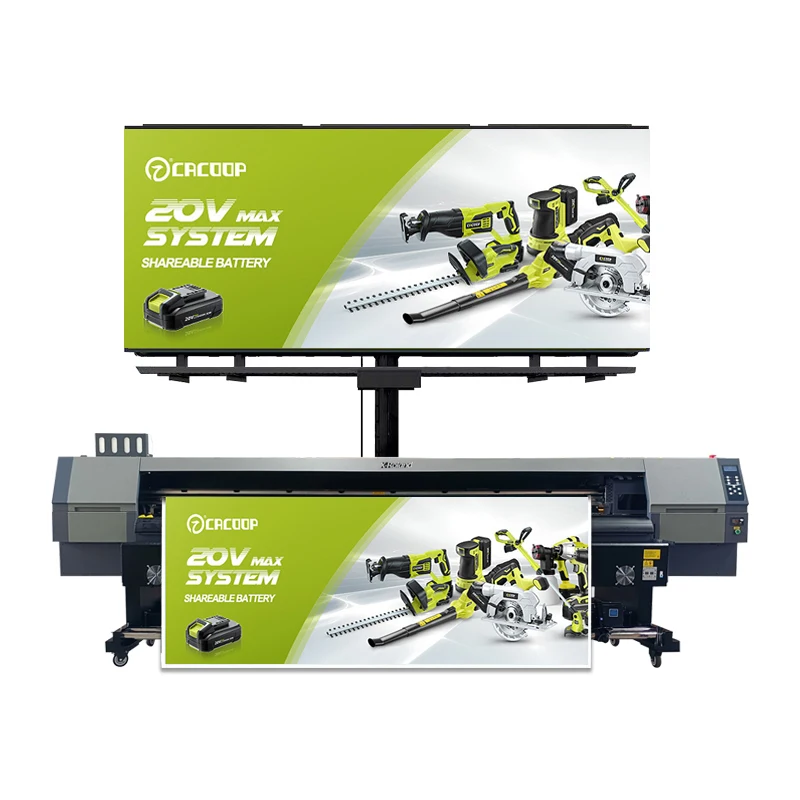

I512 эко-растворитель принтер 3 20 м цветной 4 головки автоматический растворитель
1 002 922,83 ₽ - 1 058 028,48 ₽

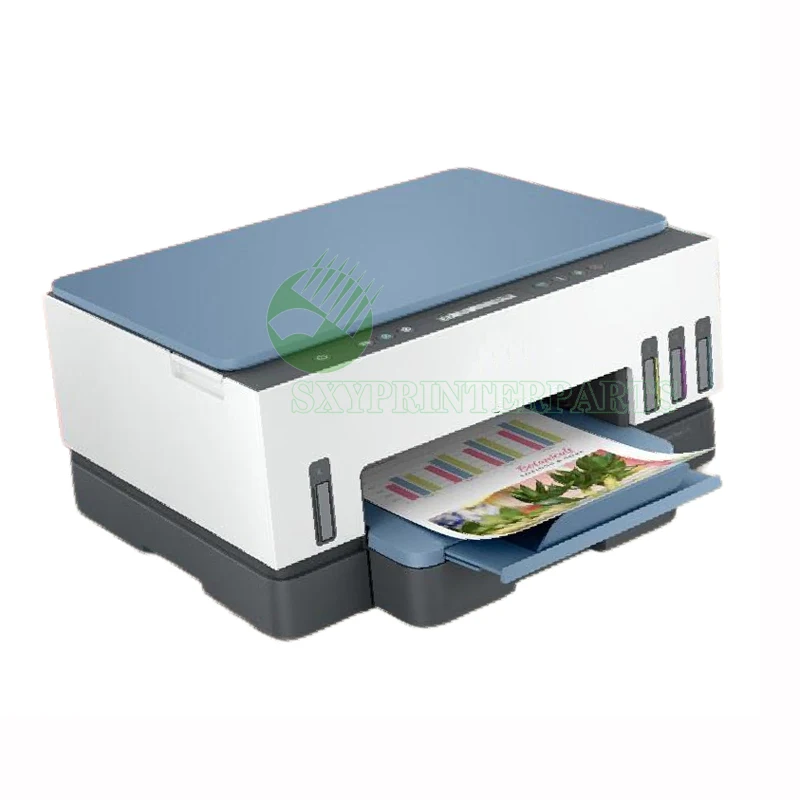

Для HP Smart Tank 720 Wi-Fi дуплексный принтер с Умной управляемой кнопкой печать сканирование C opy и беспроводной
