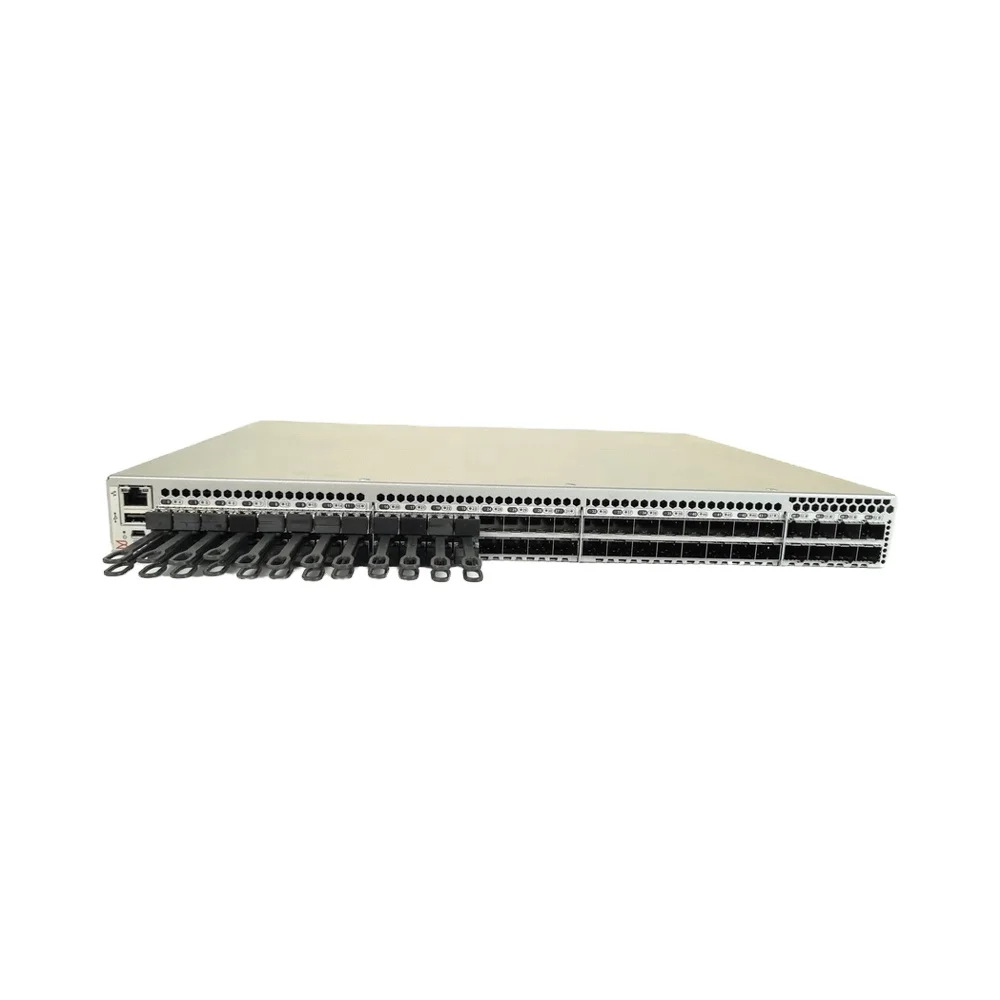

LENOVO DB720 высокопроизводительный сетевой коммутатор 8/10/16/32/64 ГБ/с порт скорости Адаптивное волоконно-оптическое оборудование lenovo DB720S
2 038 855,40 ₽ - 2 755 210,00 ₽

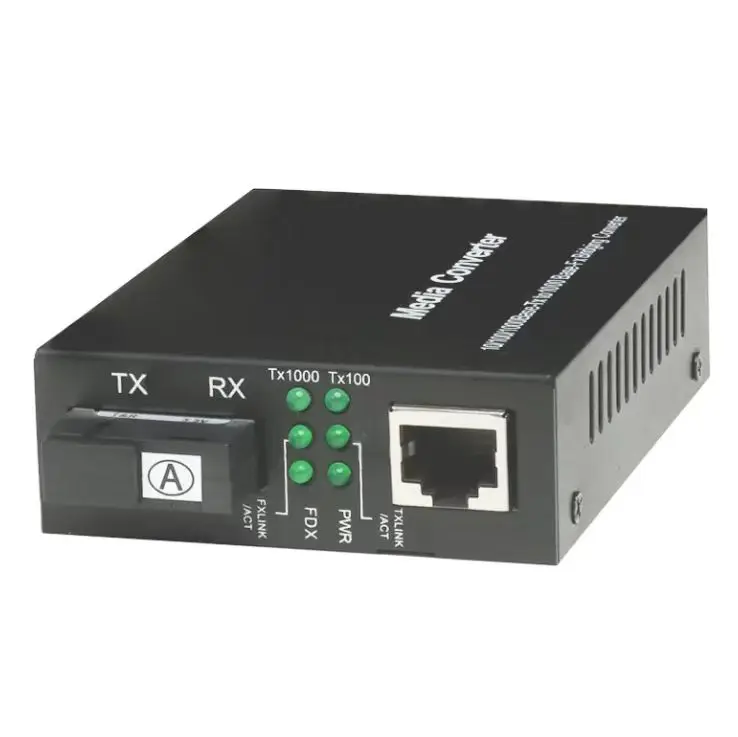

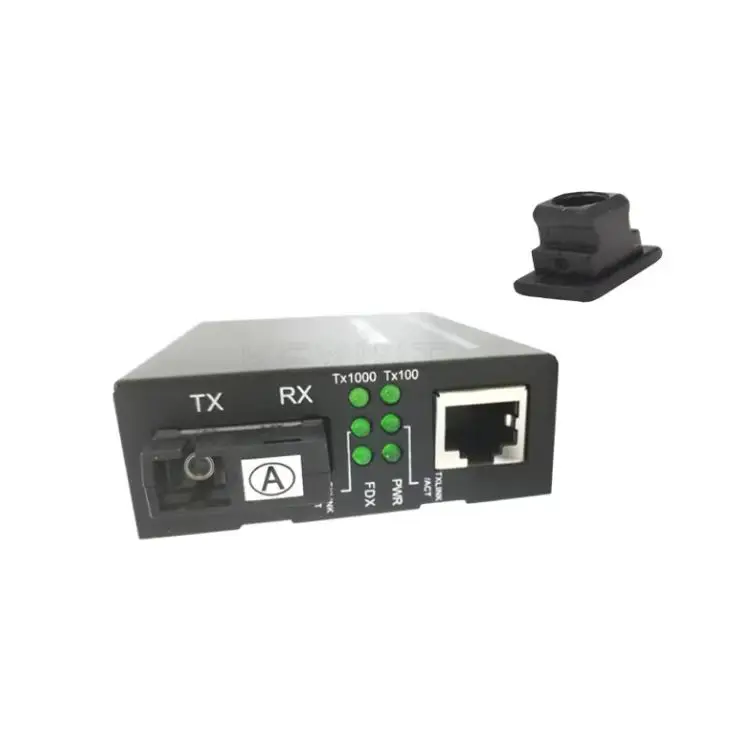

Высококачественный многопортовый гигабитный оптоволоконный медиаконвертер KEXINT по заводской цене
- Категория: >>>
- Поставщик: Shenzhen Kexint Technology Co. Ltd.
Сохранить в закладки 1601278115553:
Описание и отзывы
Характеристики
Product Description
Features
Adaptive
◆KXT-100D provides the adaptive function of 10/100M rate and full/half duplex, significantly protects the existing network
investment during network upgrade
Mass buffer
◆Unique buffer technology ensures the excellence of your network in data transmission and multimedia application; the buffer is
2M.
Performance
Main features
In conformity with the following
◆ IEEE802.3 10Base-T standard
◆ IEEE802.3U 100Base-TX/FX standard
◆ IEEE802.3X standard
Interface transmission rate
◆ Optical interface: 155Mbps
◆ Electrical interface: 10/100Mbps
◆ Automatic identification with cross line and through line
◆ KXT-100D can use either cross line or through line for connection with the devices such as switch or server.
◆ TX LINK/ACT lamp "On" indicates the correct interconnected link
Duplex supportive
◆ KXT-100D Series supports full/half duplex adaptive and 10/100M adaptive
Network cable
10/100Base-TX UTP 5
◆ 100Base-FX: single mode fiber 8.3/125,8.7/125,9/125 or 10/125μm
◆ Multimode fiber 50/125, 62.5/125 or 100/140μm
Transmission range
◆ 10/100Base-TX:100 m
◆ 100Base-FX:2km (multimode)
◆ 25/40/60/80/100 km (single mode)
Optical interface feature
Avelength
◆ 1310nm(single mode 25km,40km,60km)
◆ 1550nm (single mode 80km, 100km)
◆ 1310/850nm (multimode 2km)
LED display
◆ PWR: power indicator lamp
◆ FX LINK/ACT: optical link connecting/ active status indicator lamp
◆ TX LINK/ACT: electrical link connecting/ active status indicator lamp
◆ FX100: optical interface rate indicator lamp
◆ TX100: electrical interface rate indicator lamp
◆ FDX: full/half duplex indicator lamp

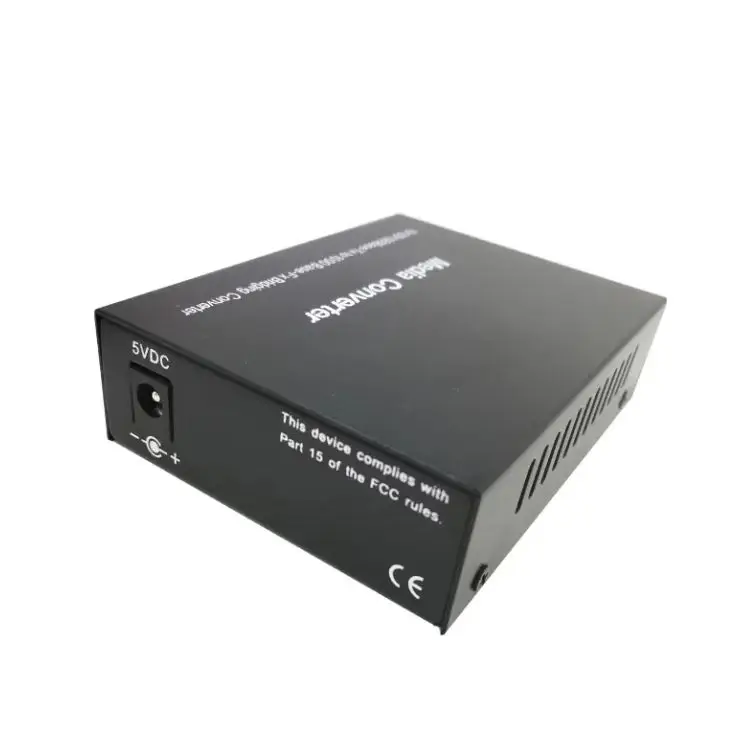

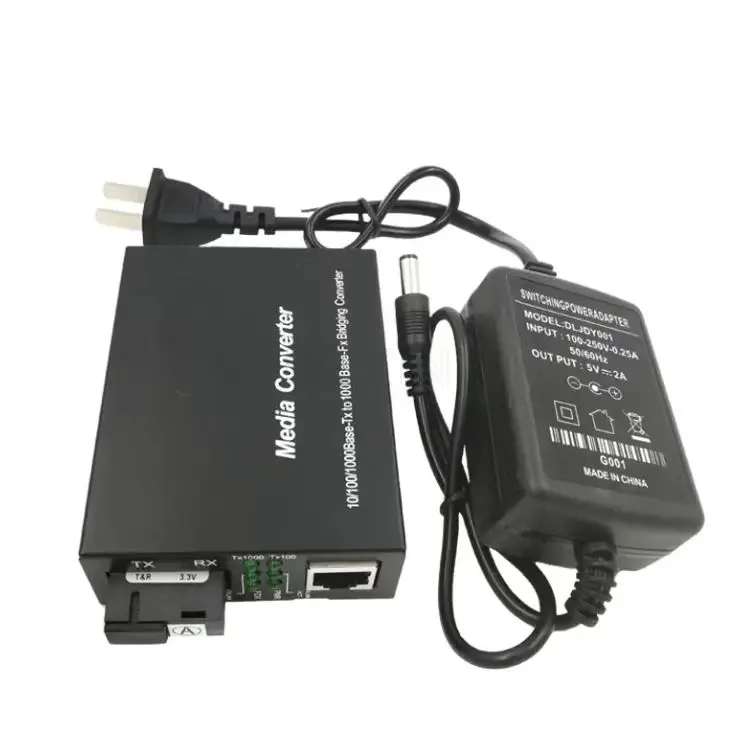

Power requirement
◆ Outside power suppl5VDC 1A
◆ Power consumption: <5W
◆ Built-in power supply: 220VAC, -48VDC
◆ Power consumption: <5W
Interface configuration
◆ One RJ45 10/100Base-TX interface
◆ One SC/ST/FC single/multi mode duplex connector
Dimensions
◆ Outside power supply: 26mm×71mm×94mm
◆ Inside power supply: 30mm×115mm×175mm
Environmental requirement
◆ Operating temperature range :0℃~60℃
◆ Storage temperature range: -40℃~85℃
◆ Relative humidity: 5%~90%
Adaptive
◆KXT-100D provides the adaptive function of 10/100M rate and full/half duplex, significantly protects the existing network
investment during network upgrade
Mass buffer
◆Unique buffer technology ensures the excellence of your network in data transmission and multimedia application; the buffer is
2M.
Performance
Main features
In conformity with the following
◆ IEEE802.3 10Base-T standard
◆ IEEE802.3U 100Base-TX/FX standard
◆ IEEE802.3X standard
Interface transmission rate
◆ Optical interface: 155Mbps
◆ Electrical interface: 10/100Mbps
◆ Automatic identification with cross line and through line
◆ KXT-100D can use either cross line or through line for connection with the devices such as switch or server.
◆ TX LINK/ACT lamp "On" indicates the correct interconnected link
Duplex supportive
◆ KXT-100D Series supports full/half duplex adaptive and 10/100M adaptive
Network cable
10/100Base-TX UTP 5
◆ 100Base-FX: single mode fiber 8.3/125,8.7/125,9/125 or 10/125μm
◆ Multimode fiber 50/125, 62.5/125 or 100/140μm
Transmission range
◆ 10/100Base-TX:100 m
◆ 100Base-FX:2km (multimode)
◆ 25/40/60/80/100 km (single mode)
Optical interface feature
Avelength
◆ 1310nm(single mode 25km,40km,60km)
◆ 1550nm (single mode 80km, 100km)
◆ 1310/850nm (multimode 2km)
LED display
◆ PWR: power indicator lamp
◆ FX LINK/ACT: optical link connecting/ active status indicator lamp
◆ TX LINK/ACT: electrical link connecting/ active status indicator lamp
◆ FX100: optical interface rate indicator lamp
◆ TX100: electrical interface rate indicator lamp
◆ FDX: full/half duplex indicator lamp
Power requirement
◆ Outside power suppl5VDC 1A
◆ Power consumption: <5W
◆ Built-in power supply: 220VAC, -48VDC
◆ Power consumption: <5W
Interface configuration
◆ One RJ45 10/100Base-TX interface
◆ One SC/ST/FC single/multi mode duplex connector
Dimensions
◆ Outside power supply: 26mm×71mm×94mm
◆ Inside power supply: 30mm×115mm×175mm
Environmental requirement
◆ Operating temperature range :0℃~60℃
◆ Storage temperature range: -40℃~85℃
◆ Relative humidity: 5%~90%
Adaptive
◆KXT-100D provides the adaptive function of 10/100M rate and full/half duplex, significantly protects the existing network
investment during network upgrade
investment during network upgrade
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
If you have another question, pls feel free to contact us as below:
Похожие товары

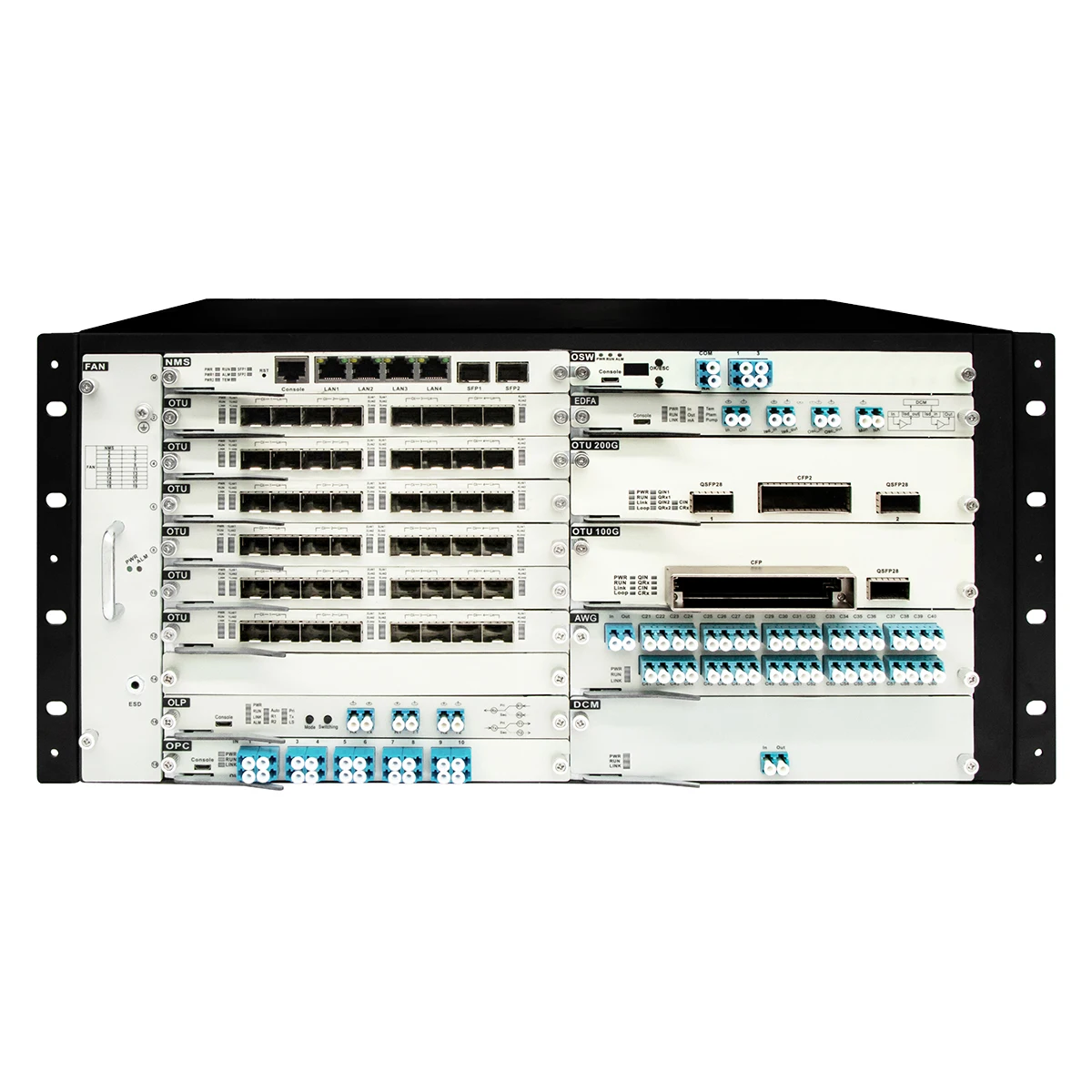

5U DWDM оптическая система передачи оборудования

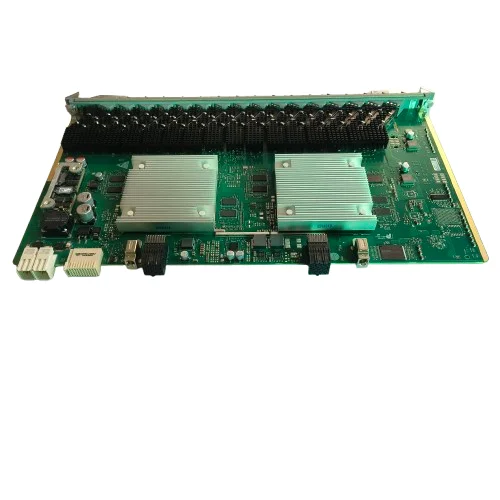

HW CSHF оптоволоконная карта для H-u-a-w-e-i MA5800 серии OLT сети FTTH используется 4G Gpon с разъемом SC
358 408,74 ₽ - 388 275,22 ₽

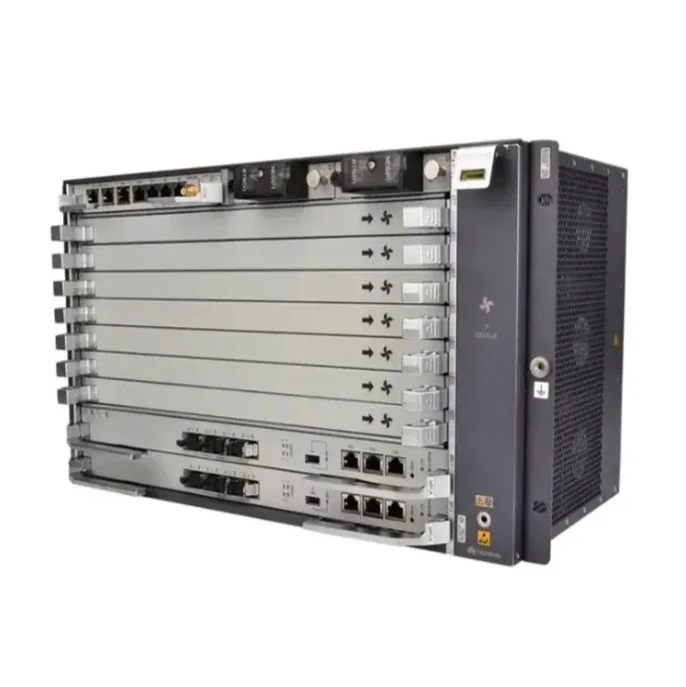

Оригинальный MA5800 Smartax GPON OLT x7 x15 x17 MA5800-x7 linvink карта MPLB CIUA H901PISB H901CSHF fttth FTTB FTTX сеть

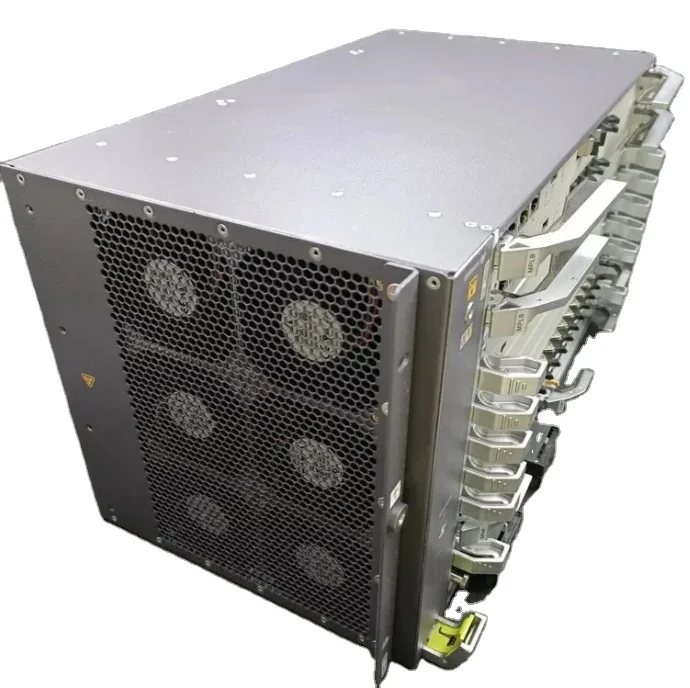

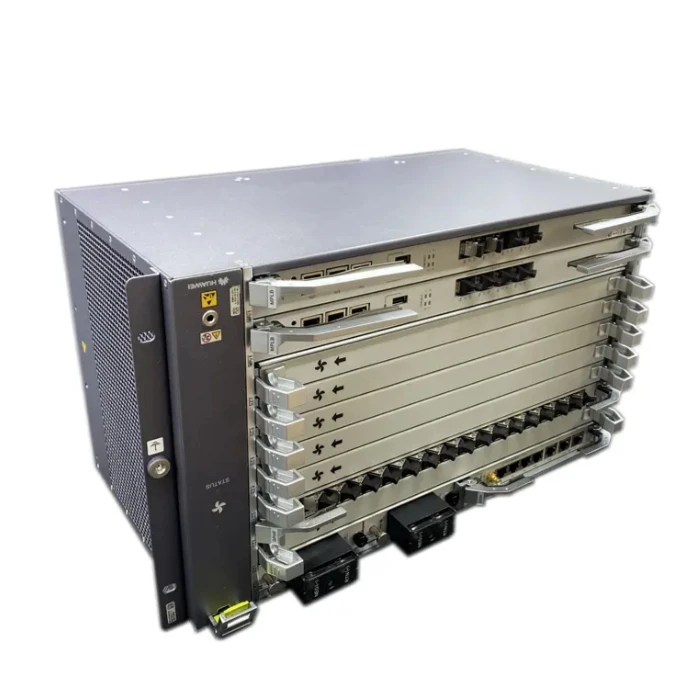

Оборудование связи базовой станции smartax GPON OLT ma5800 x7 x2 x15 x17 ma5800-x7 с коммутационным модулем для карт по восходящей линии ONU RRU
165 312,60 ₽ - 220 416,80 ₽
Оригинальный GPON OLT ma5800 x7 x2 x15 x17 ma5800x7 с карточкой mplb ciua h901pisb h901cshf блок питания волоконный умный
165 312,60 ₽ - 220 416,80 ₽
HW CSHF для Huawei MA5800 серии OLT 4G/Fiber/Gpon FTTH сети 10G переключатель скорости передачи данных оптических волокон используется
358 408,74 ₽ - 388 275,22 ₽

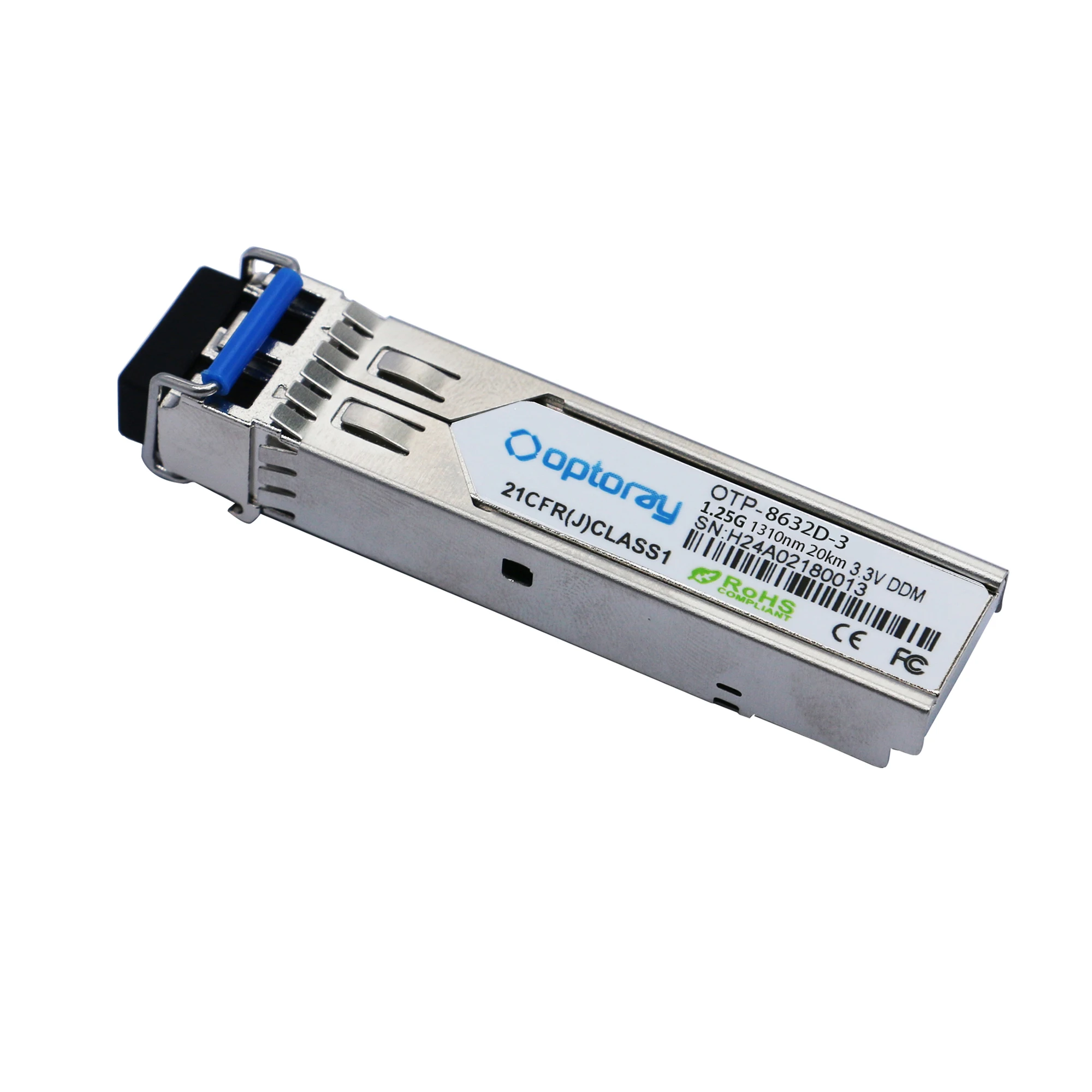

1 25G SFP дуплексный оптический приемопередатчик 20 км 1310 нм LC DDM 1000base-LX/LH 1G Оптический FTTH GLC LH SMD сеть
