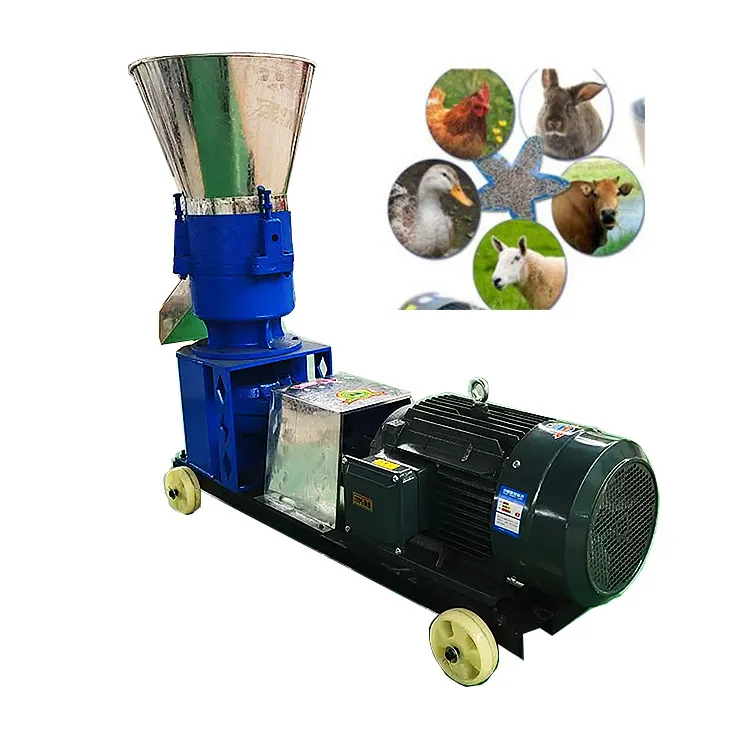

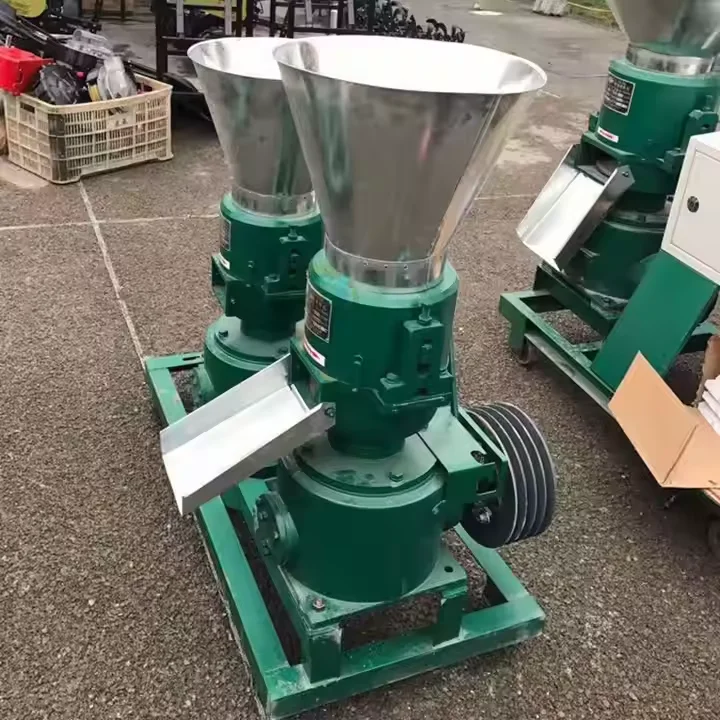

Оптовая цена низкая стоимость домашняя плоская мельница для гранул мини-машина производства кормов животных
22 703,53 ₽ - 26 109,06 ₽
Автоматическая промышленная линия по производству кормов для сома машина производства гранул двухшнековый экструдер
- Категория: >>>
- Поставщик: Jinan Himax Machinery Co. Ltd
Сохранить в закладки 1601278261387:
Описание и отзывы
Характеристики
Production Description

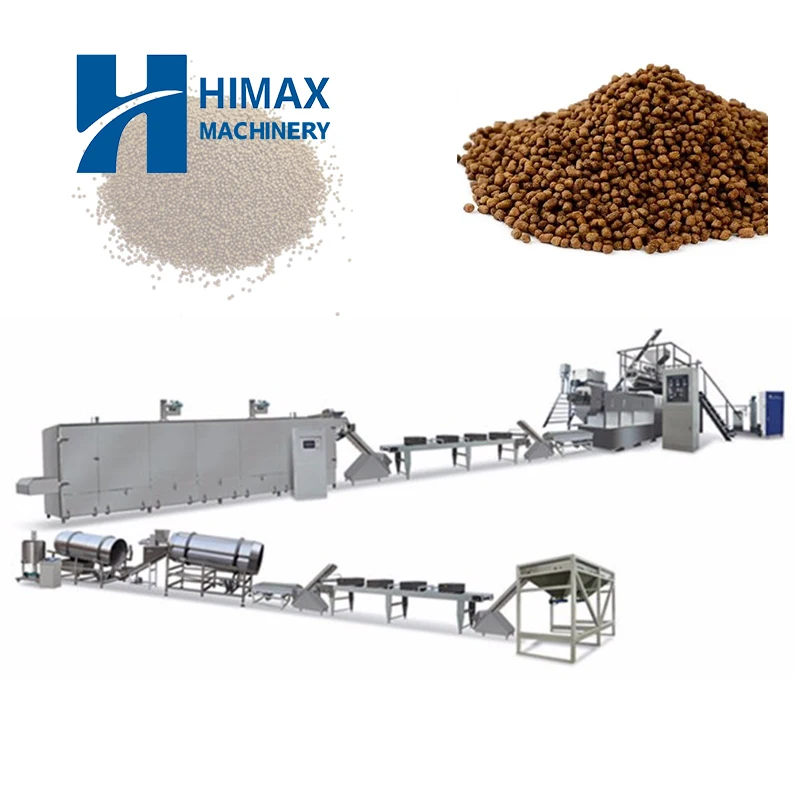

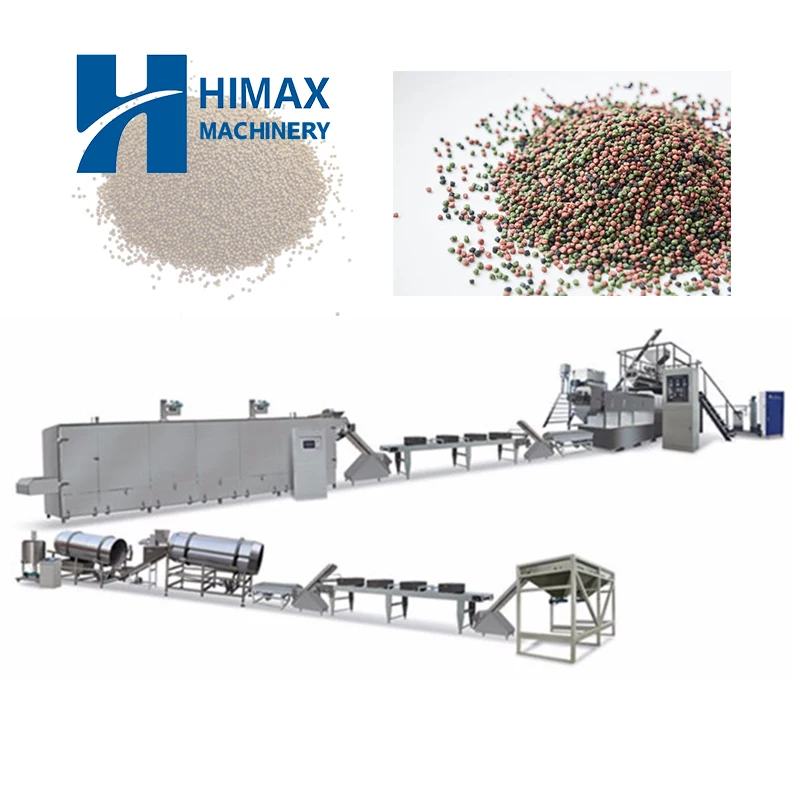

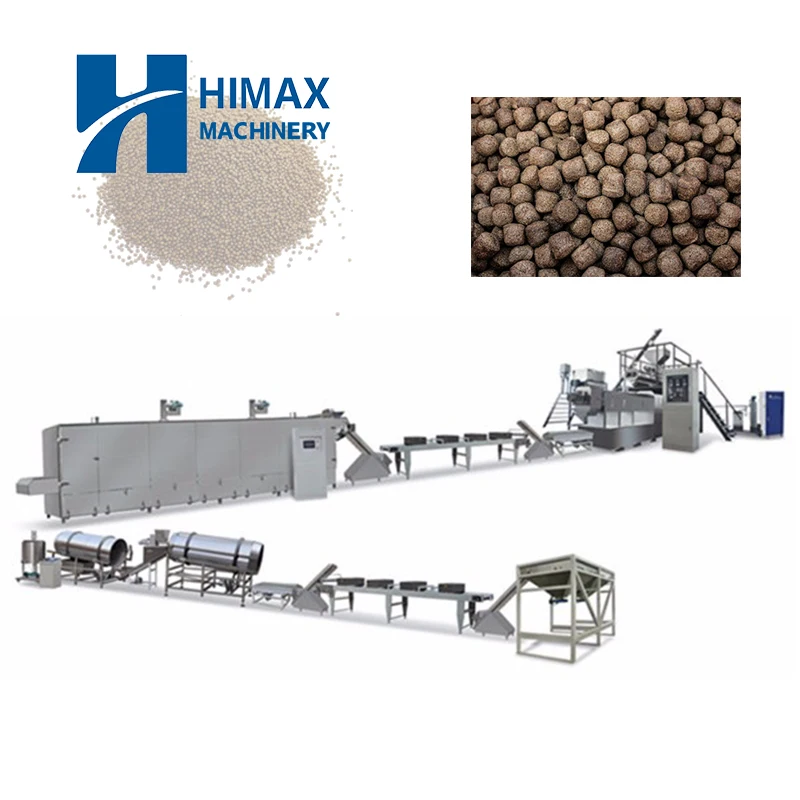

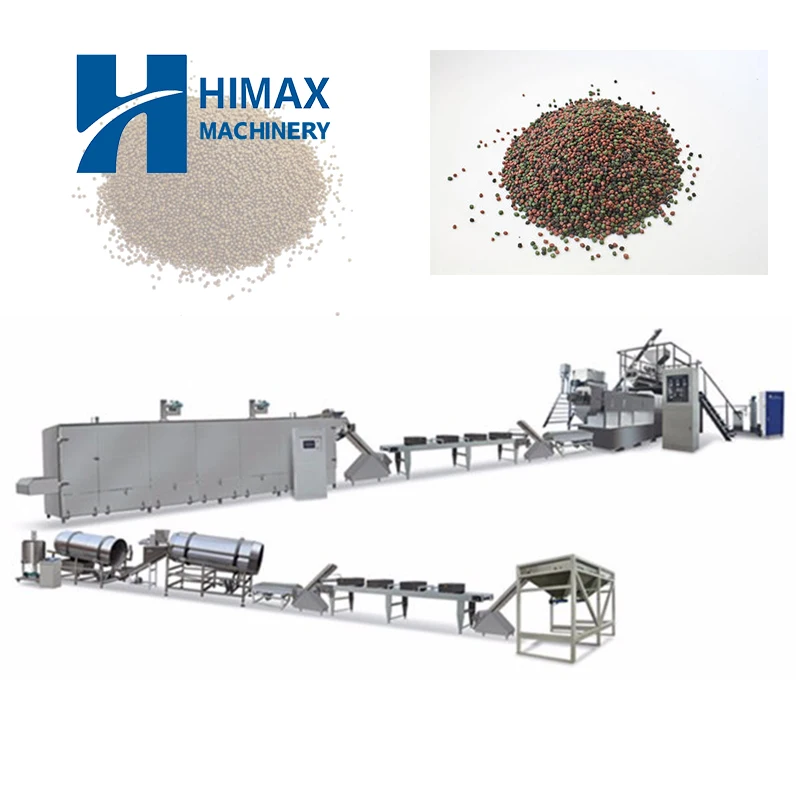

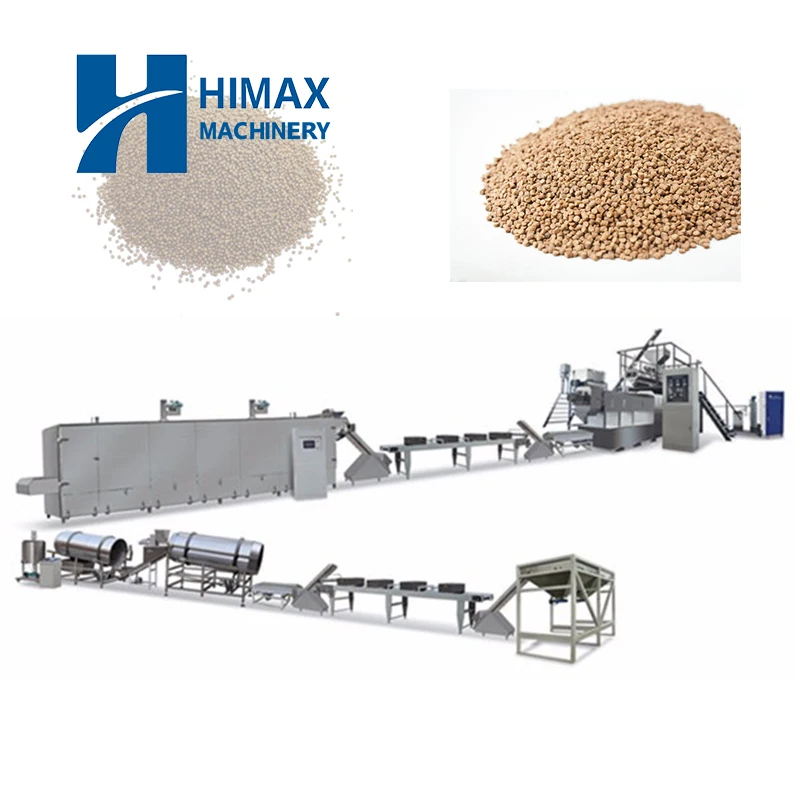

HIMAX Automatic Industrial Animal Feed Pellet Making Machine Fish Food Machine Fish Pellet Machinery
1. Extruder for fish feed production process is deliberately made for special feed, which needs high in-shape rate and good-looking appearance. fish feed production process is mainly used for sinking/floating/slow sinking fish feed. Effectively protect the aquaculture water body from pollution to improve the quality of life.
2. Products: fish feed process line can be used to produce fish pellets,meanwhile it can produce dog food, cat food and so on.
4.Floating and sinking fish feed machine used the raw material by mixing, extruding, forming, cutting, drying, flavoring, cooling.
5.The material of machines is all stainless steel food grade,high quality and high efficiency.
Flow Chart

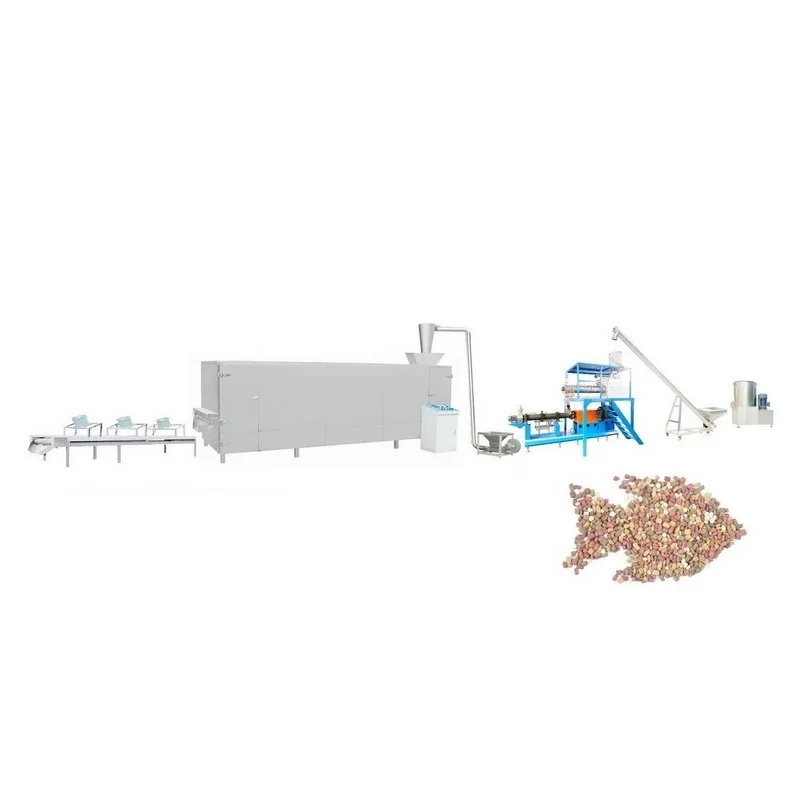

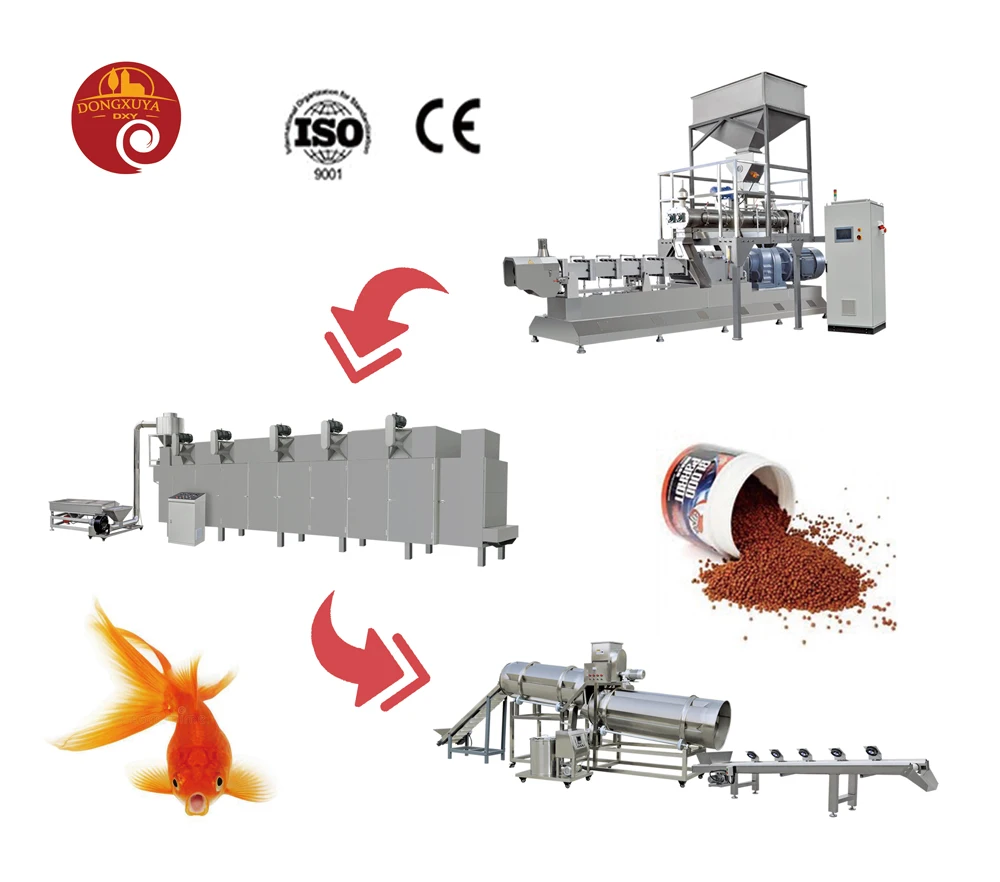

Mixer-->Screw Conveying-->Twin-screw extruder-->Air conveyor-->Dryer-->Hoister-->Flavoring machine-->Hoister-->Cooler
Capacity
100~200kg/h, 200~260 kg/h, 300~500kg/h, 600~800 kg/h, 800-1000kg/h, etc.
Finished product
Pets food for fish, dog, cat, etc.
Mixer-->Screw Conveying-->Twin-screw extruder-->Air conveyor-->Dryer-->Hoister-->Flavoring machine-->Hoister-->Cooler
Capacity
100~200kg/h, 200~260 kg/h, 300~500kg/h, 600~800 kg/h, 800-1000kg/h, etc.
Finished product
Pets food for fish, dog, cat, etc.
*Our engineer could design machine layout and processing flowchart drawing according to your factory for the fish feed production line.
Model | Power(kw) | Output(kg/h) |
HM65 | 22 | 100-200 |
HM75 | 37 | 200-260 |
HM85 | 55/75 | 55kw: 300-500 75kw: 600-800 |
HM90 | 75 | 800-1000 |
Samples
1. Raw materials: adopts corn flour, fish meal or others as raw materials
2. The fish feed making machine could make various size of fish feed from 0.8-14mm and various shapes.
3. We not only have the basic fish feed formula , but also the professional formula based on different kinds of fish.
Detailed Parts
mixer
mixer makes the raw material adding to water and liquid chemical additive fully mixed
Features:
1.This part that touches mixer to material adopts the stainless steel material.
2. The discharge hole adopts the new handle-opened design. It has the good seal so that the materials.
Features:
1.This part that touches mixer to material adopts the stainless steel material.
2. The discharge hole adopts the new handle-opened design. It has the good seal so that the materials.
Screw Conveyor
The mixed materials can be conveyed in the stainless steel roller to the feeding machine (feeder) of extruder without any leaking,
dusting and pollution; Feed quantity and speed is even and stable.
dusting and pollution; Feed quantity and speed is even and stable.
Extruder
The twin -screw extruder is made of the feeding system, extruding system, cutting system, heating system, conditioner and
controlling system.
1. The screws are made of the alloy steel;
2. The forced lubrication system ;
3. Auto-temperature control system;
4, Auto-speed control system
5. Self-cleaning.
6.With the bearing is NSK which made from japan.
controlling system.
1. The screws are made of the alloy steel;
2. The forced lubrication system ;
3. Auto-temperature control system;
4, Auto-speed control system
5. Self-cleaning.
6.With the bearing is NSK which made from japan.
Air Conveyor
1. Air conveyor conveys the food relying on the wind-force from the blower.
2. Low energy-consumption, high efficiency.
3. It has not the features of leaking material and pollution when the food is conveyed in the sealed stainless steel pipeline.
2. Low energy-consumption, high efficiency.
3. It has not the features of leaking material and pollution when the food is conveyed in the sealed stainless steel pipeline.
Dryer
The heating way is gas/furel oil heating.
The net belt running speed can be controlled to change the food drying time in the dryer.
The temperature also can be controlled.
Multi-layer dryer is with compact size than other type dryers.
The net belt running speed can be controlled to change the food drying time in the dryer.
The temperature also can be controlled.
Multi-layer dryer is with compact size than other type dryers.
Hoister.
Hoister conveys the food from the low to high, according to the craft; decide the hoister height and the level distance.
Hoister can be classified into big and small according to the hoister height and the level distance.
Hoister can be classified into big and small according to the hoister height and the level distance.
Rollers with flavor
The stainless steel flavor feeder is used to spray powder flavor to the drum. We can control the spraying quantity via the
different speed which controlled by the soft start.
With the two drums, the food can be flavored well.
different speed which controlled by the soft start.
With the two drums, the food can be flavored well.
Air conveyor
1. Air conveyor conveys the food relying on the wind-force from the blower.
2. Low energy-consumption, high efficiency.
3. It has not the features of leaking material and pollution when the food is conveyed in the sealed stainless steel pipeline.
2. Low energy-consumption, high efficiency.
3. It has not the features of leaking material and pollution when the food is conveyed in the sealed stainless steel pipeline.
Automatic plastic Packing machine
Packing speed: 5-8 bags/min
Weight range:5-20kg/bag
Function:Pack food. Seal the plastic bag.
Can pack from 5kg to 25kg per bag
Weight range:5-20kg/bag
Function:Pack food. Seal the plastic bag.
Can pack from 5kg to 25kg per bag
Packing and Delivery
About Us
Jinan Himax Machinery Co., Ltd. is a professional supplier of food processing machines.We offer our customers for mutual and beneficial development. All Inquiries are welcome. We have many kinds of machines and production line, such as food extrusion machine, soya meat production line, industrial microwave oven, packaging machine, pet food production.importantly, we also provide formulas, technology supports, machine inspection service, etc. Cooperating with different manufacturers and research centers, we provide the food processing machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service ,delivery and installation. Based on the clients specific requirement, we also OEM machines for each clients. We have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill. Whatever food processing machine you need from China, please contact with Jinan Himax Machinery Co.,Ltd.
Certifications
Our service
-- Before sale service
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
--Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout
2.Welcome to visit our factory or the domestic clients' factory.
3.Inspect the machine before leaving the factory.
--After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula.
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. 1-2 engineers will be arranged for customer
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
--Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout
2.Welcome to visit our factory or the domestic clients' factory.
3.Inspect the machine before leaving the factory.
--After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula.
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. 1-2 engineers will be arranged for customer
Q: What kinds of products can be made?
A: Floating & Sinking fish, shrimp etc aquatic feed.
Q: What's the delivery time?
A: We usually need 40-45 days for large sizes, depends on thefinished product, so machine wash-change.
Q:Are you manufacturer or trade?A:Yes,we are manufacturer of food extruder machine and we have exported to many countries all over
the world for many years.
Q:What about your payment methods that you can accept?
A:Normally our payment terms is 30% T/T as down payment, 70% by T/T before delivering
We are allowed to accept other payments by negotiation with us.
Q:What about your shipping methods?
A:Normally is shipping by sea,we allowed to accept other shipments by negotiation with us.
Q:What's your Guarantee?
A:We provide 1 year complete Guarantee and life-time maintenance service
Q:How about the installation?
A:We will dispatch our engineers to your factory to guide you installation and commissioning work and training your operator.
Похожие товары
YUDA оптовая цена карбида вольфрама молотковая мельница лезвия для молотковой мельницы
220,43 ₽ - 275,53 ₽
Высокопроизводительный автоматический экструдер для производства кормов домашних животных
1 047 007,35 ₽ - 1 102 113,00 ₽

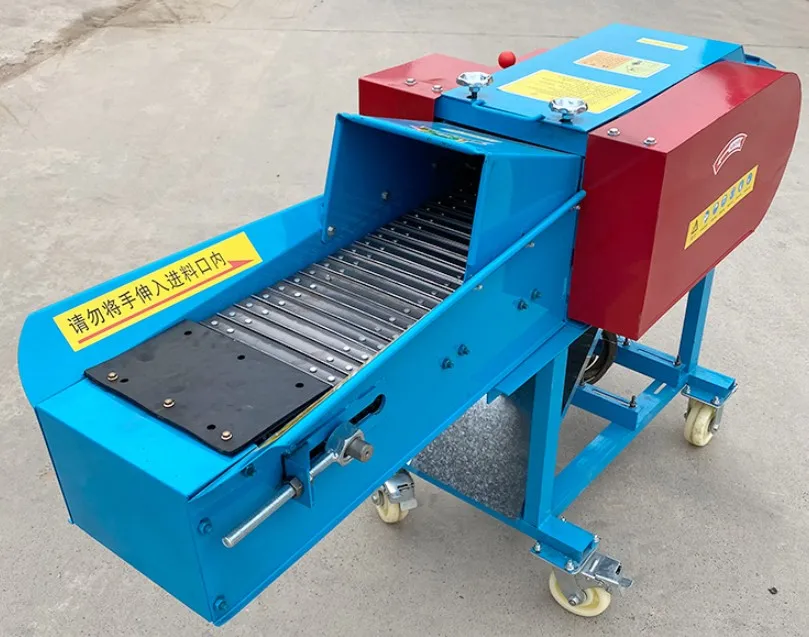

Высокое качество корм электрическая травяная дробилка машина для продажи
64 302,79 ₽ - 75 995,10 ₽
Машина для производства гранул кур
25 899,66 ₽ - 27 001,77 ₽

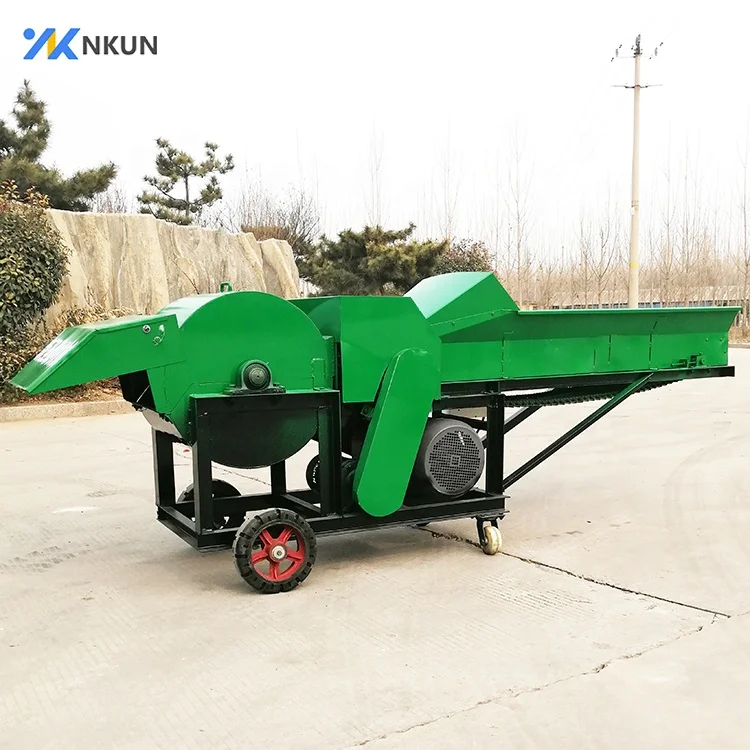

Прямая поставка с завода Электрический измельчитель и комбинированная машина для производства корма скота травы сена
