Материнская плата Piesia POS 1 LAN 6 Com J4125 DDR4 LVDS VGA X86 безвентиляторная Встроенная промышленная мини плата ITX
- Категория: >>>
- Поставщик: Shenzhen Piesia Electronic Technology Co. Ltd.
Сохранить в закладки 1601278266089:
Описание и отзывы
Характеристики
Products Description
◆Onboard Intel Gemini Lake/ Gemini Lake-R Series Processor
◆1 x DDR4 SO-DIMM, total maximum 32GB
◆Intel i226-V network, single or dual network for option;
◆2 x LVDS/eDP, mSATA, Mini PCIe (PCIe+USB2.0)
◆6 x COM
◆DC 12-19V;
◆Size: 170x170m
◆1 x DDR4 SO-DIMM, total maximum 32GB
◆Intel i226-V network, single or dual network for option;
◆2 x LVDS/eDP, mSATA, Mini PCIe (PCIe+USB2.0)
◆6 x COM
◆DC 12-19V;
◆Size: 170x170m
Processor system | Onboard Intel Gemini Lake/Gemini Lake-R series processor J4125 |
EFI BIOS | |
Memory | 1 x DDR4 SO-DIMM, maximum 32GB |
Storage | 1 x mSATA |
1 x SATA3.0 interface, 4 Pin power supply | |
Display | 1x VGA/DP interface |
2xLVDS/eDP | |

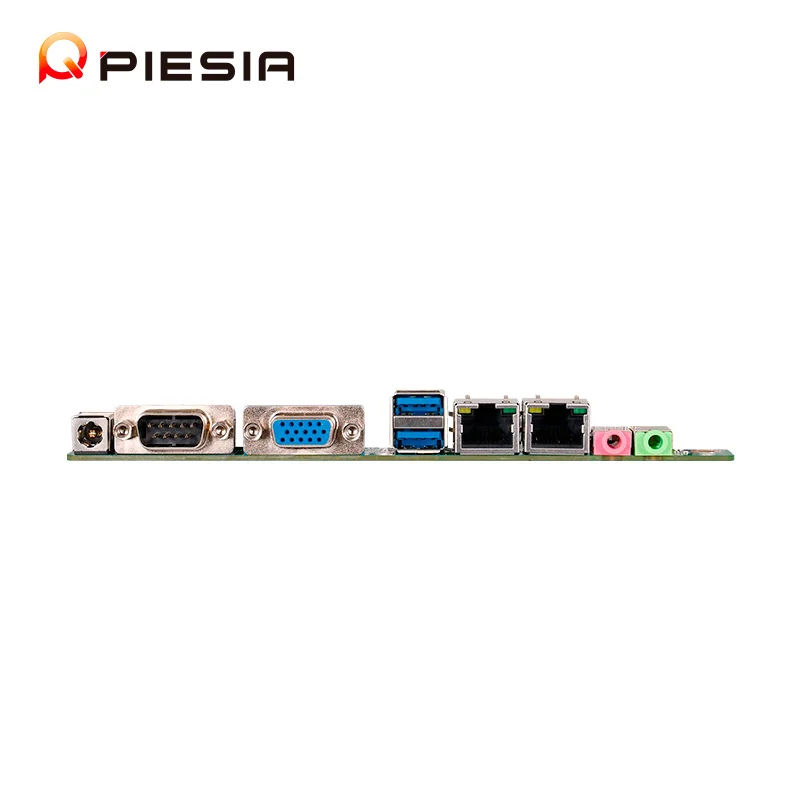

Board edge l/0interface | DC JACK, COM, VGADP USB3.2, LAN, LAN /USB2.0, Line out, Mic in |
Single and dual network optional: When dual network, the USB2.0 of LAY isthe pin | |
Expansioninterface/function | ExternalTPM2.0 is optional, not available by default |
1 xMini PCle (PCle+uSB2.0 protocol, WIFl/BT module) | |
COM1/2 is RS2321485,jumper selection; COM3/4/5/6 is RS232 | |
2 xUSB2.0 pin headers,2x5Pin, pitch 2.54 mm | |
1 xJUSB3.0 pin header | |
1 x LPT pin, 1 xPS2 pin | |
1x 4Pin PWM CPU FAN, 1 x 4Pin PWM SYS FAN | |
Power supply | DC12,60W(TDP 10W,fanless,fan option) |
Environment | work temperature: -20℃ ~ +60℃；work humidity: 5% ~ 90% |
storage temperature: -40℃ ~ +85℃；storage humidity: 5% ~ 90% | |
OS | Win10,Win11,Linux |
Dimension | 170x170mm |
Weight | 220g(Heat sink not included) |

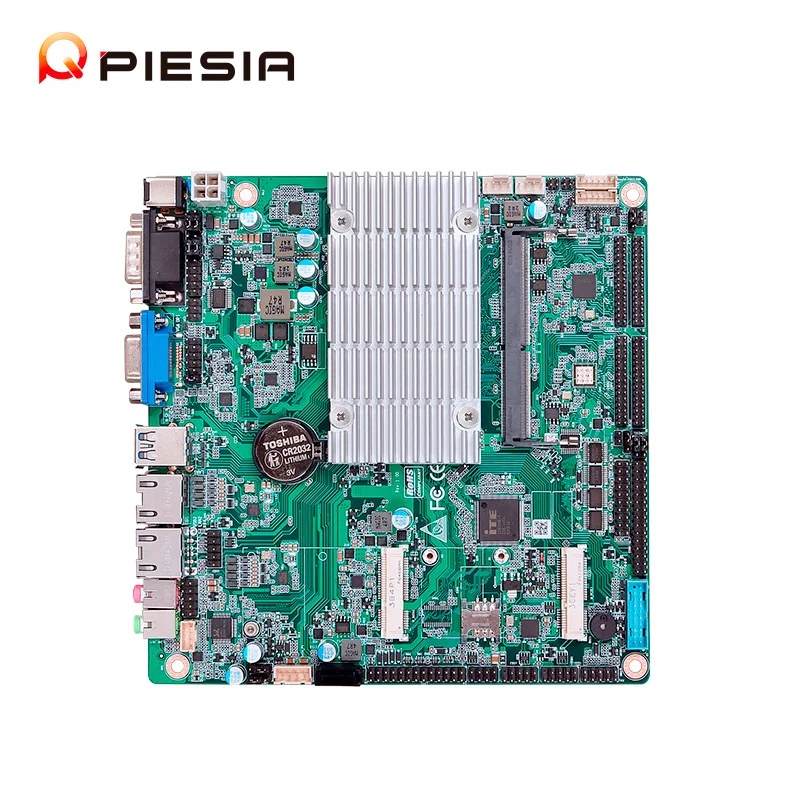

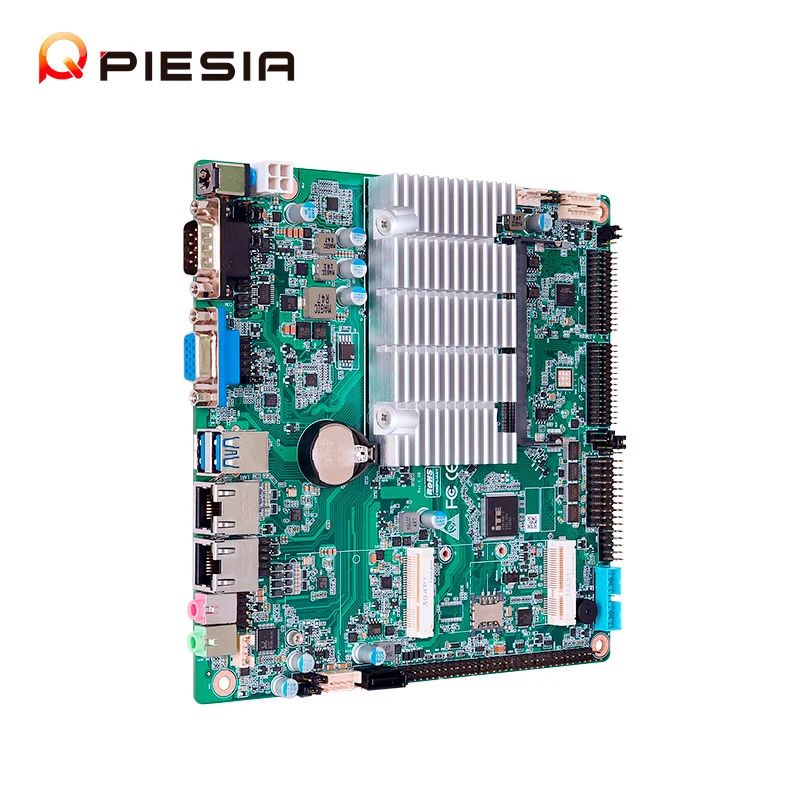

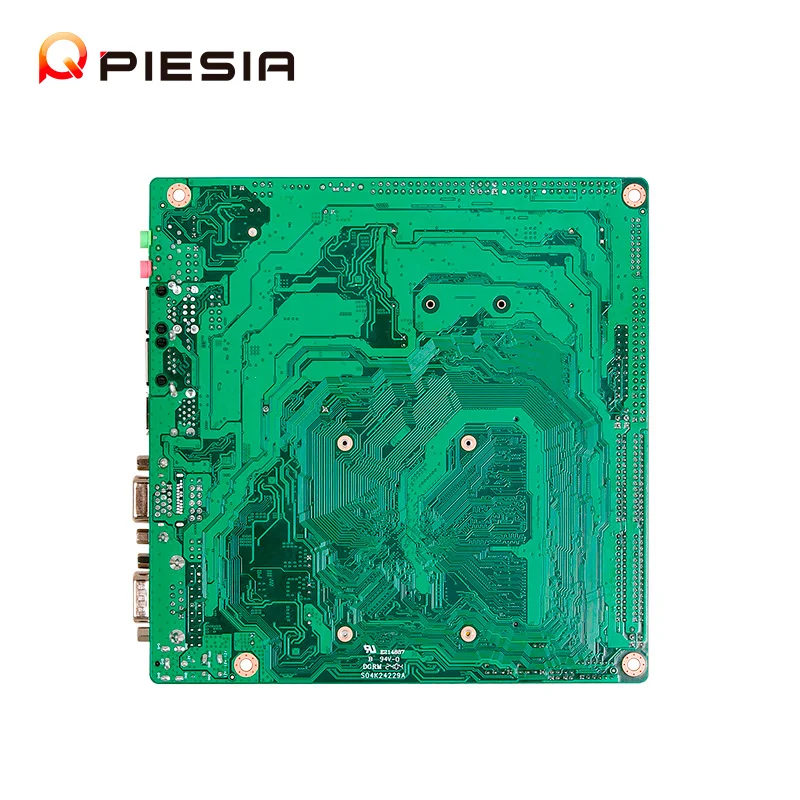

Details Images
Our Services
1.Quality: we check every product carefully before the delivery, and provide 2 years warranty time, if you find problems please contact us in time.
2.Design: we could do design as customer requirement.
3.Packages: the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer
2.Design: we could do design as customer requirement.
3.Packages: the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer
About Piesia
Packing & Delivery
Exhibition
FAQ
Q1: What is the Warranty for your pc?
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster
Express: DHL TNT UPS by air for samples and middle order
Reasonable Express: delivery by sea for large order
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster
Express: DHL TNT UPS by air for samples and middle order
Reasonable Express: delivery by sea for large order
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
Похожие товары
TUF Gaming B550M-PLUS AM4 PCIe 4.0 2.5Gb LAN 3rd Gen Micro ATX Motherboard
H610 материнская плата LGA 1200 High End компьютерная DDR4 3 0 игровой компьютер основная для ПК
4 103,06 ₽ - 4 352,13 ₽
Материнские платы B75 PC поддерживают DDR3 Memory SATA 3 0 VGA M.2 интерфейс настольная материнская плата LGA1155 Для ПК
1 146,17 ₽ - 1 212,30 ₽
Пьезия 1LAN 6Com J4125 IPC SBC Встроенная Материнская плата DDR4 VGA LVDS X86 Linux промышленный кассовый аппарат Mini ITX материнская
11 571,89 ₽ - 13 445,43 ₽
Новый Gi gabyte ATX плата B650 GAMING X AX DDR5 R y z e n 7800 8000 9000 процессор ПК настольный компьютер материнская
6 612,51 ₽ - 9 918,76 ₽
Материнская плата B760 ITX 12th/13th/14th In-tel LGA1700 CPU 4 * LAN 8 SATA Linux Wins серверное решение материнская
3 343,73 ₽ - 3 546,51 ₽

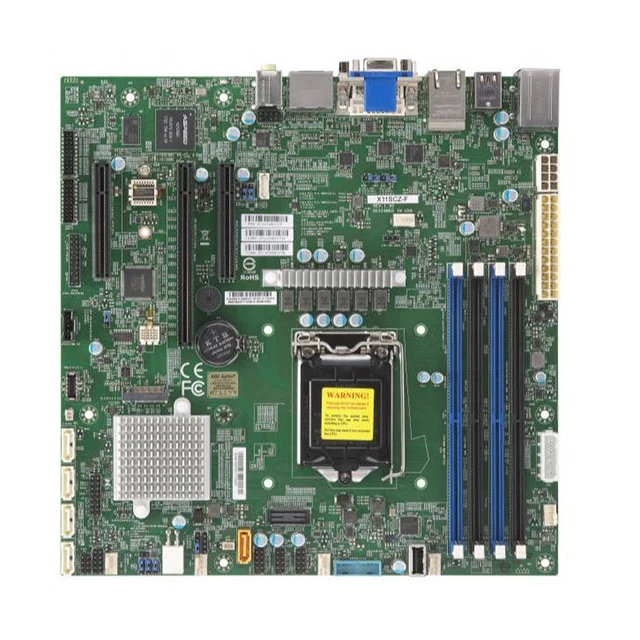

Оригинальная X11SCZ-F 8/9-го поколения Core i3/i5/i7/i9 Xeon E-2100/E-2200 серии LGA-1151 DDR4 Серверная материнская плата
