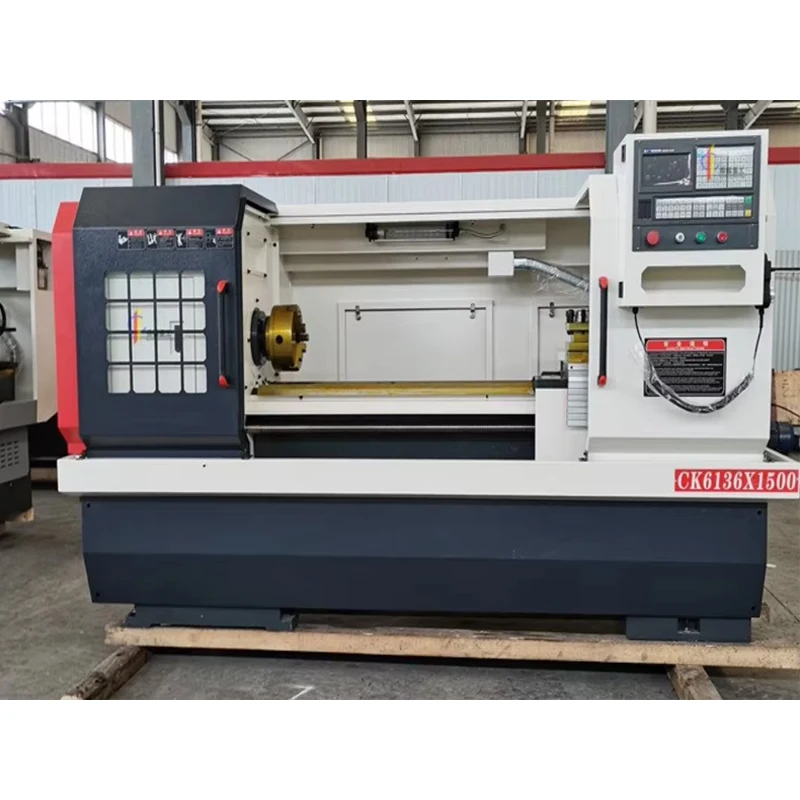

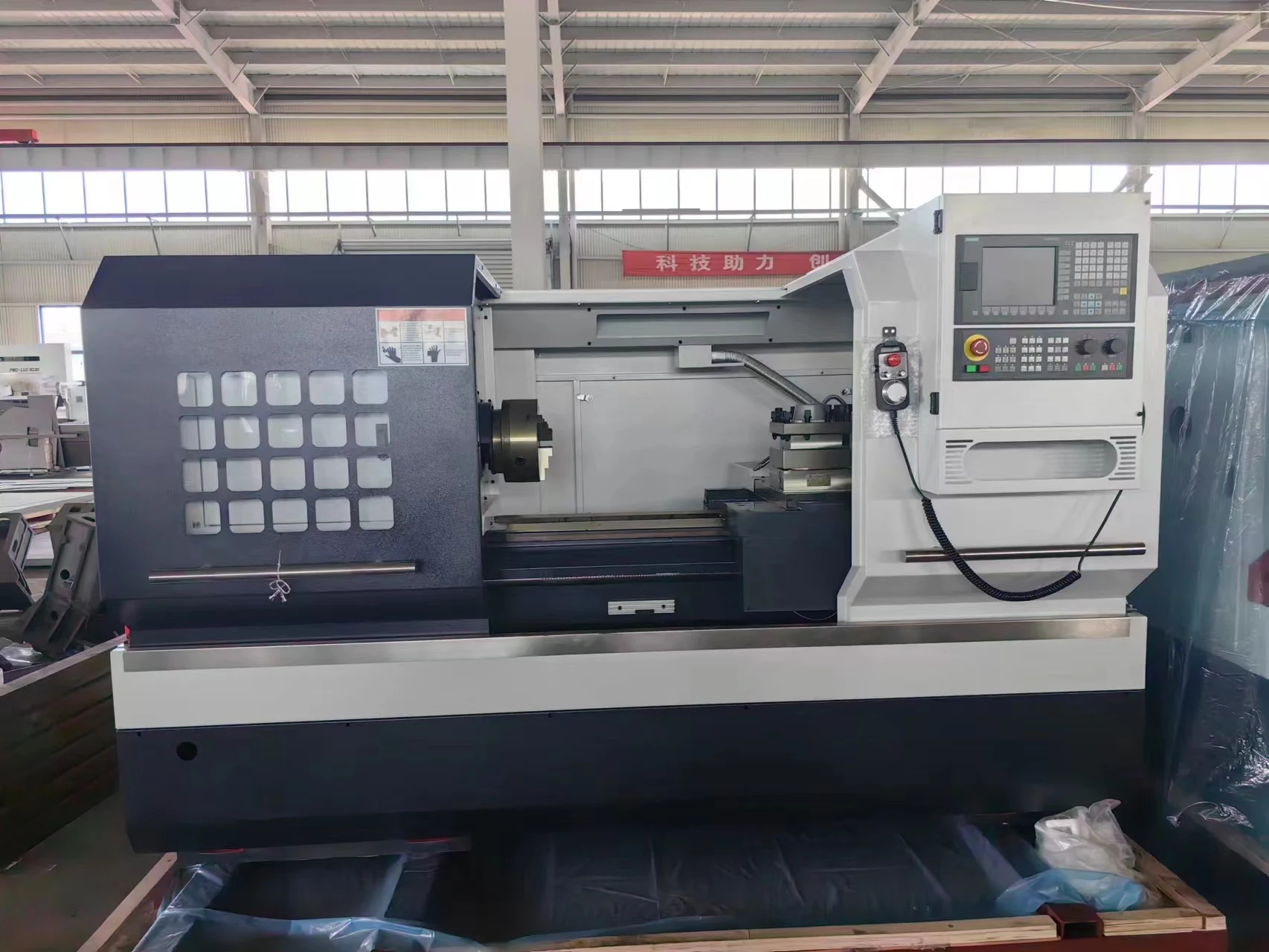

Сверхмощный универсальный плоский токарный станок с ЧПУ CK6136 металлический маленький горизонтальный бесступенчатая переменная скорость
- Категория: >>>
- Поставщик: Shandong Yijin Cnc Machine Tool Co. Ltd.
Сохранить в закладки 1601278317644:
Описание и отзывы
Характеристики
CK6136 CNC lathe for metal processing
High Quality hot sell ck6136 horizontal mini cnc lathe machines for metal guide rail by the super audio quenching and fine
grinding, high precision, main shaft adopts frequency conversion stepless speed regulation control, can automatically complete the parts of the inner and outer cylinder, end face, arbitrary conical surface, circular arc surface, male inch thread cutting process continuous processing, etc.
grinding, high precision, main shaft adopts frequency conversion stepless speed regulation control, can automatically complete the parts of the inner and outer cylinder, end face, arbitrary conical surface, circular arc surface, male inch thread cutting process continuous processing, etc.
CK6136
1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw
transmission, good dynamic performance, precision positioning.

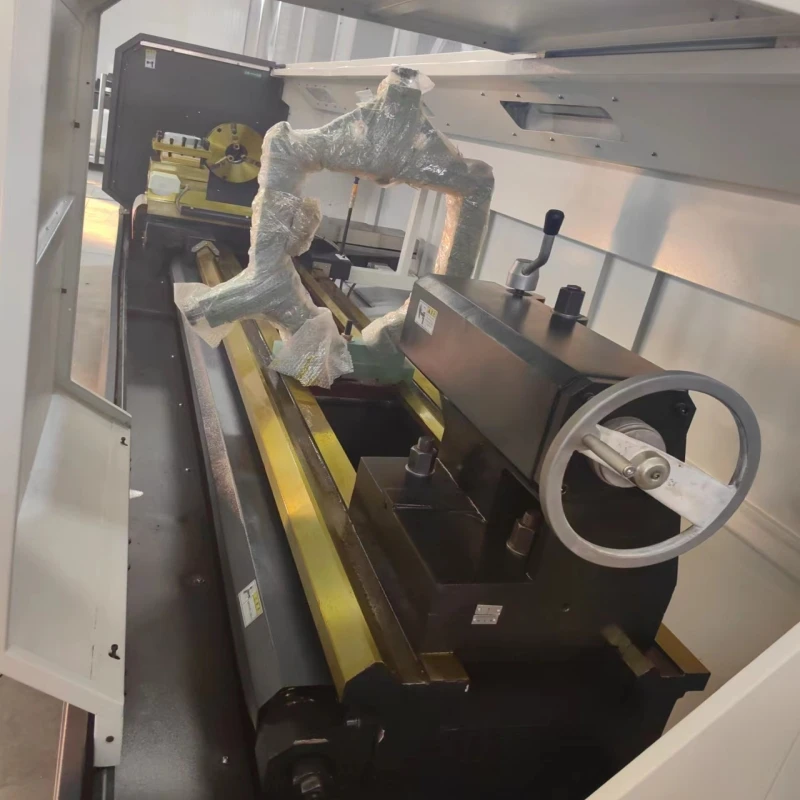

2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure
the long-term stability of processing accuracy.
transmission, good dynamic performance, precision positioning.
2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure
the long-term stability of processing accuracy.
High Quality hot sell ck6136 horizontal mini cnc lathe machines for metal High precision tool, the main shaft adopts Harbin bearing HRB high precision double ball bearing support, low noise, high precision and good stability.
Product Presentation
This machine is widely used in processing and manufacturing the electrical appliance, instrume ntation industry,automobile, motorcycle, fastener bearings, photographic and film machinery.hardwa re tools watches, glasses, stationery motors, valves and gas and other high precise and complex components lt is the ideal high eficient equipment in the hardware machining industry.
item | value |
Type | Horizontal |
Flat Bed Lathe | |
Max. Length of Workpiece (mm) | 1500 |
Machining Capacity | Heavy Duty |
Max. Weight of Workpiece(kg) | 1800 |
No. of Spindles | Single |
Number of Axes | 2 |
Travel (X Axis)(mm) | 280mm |
Travel (Z Axis)(mm) | 550mm |
Positioning Accuracy (mm) | ±0.001 |
Repeatability (X/Y/Z) (mm) | ±0.003 |
Place of Origin | China |
Shandong | |
Tool Post Stations | 4, 6 |
Weight (KG) | 1560 |
Warranty | 3 years |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 3 years |
Range of Spindle Speed(r.p.m) | 120r.p.m - 2600r.p.m |
Cutting torque | 44N.m |
Width of bed (mm) | 400 |
Dimension(L*W*H) | 2000*1200*1620 |
Brand Name | yijincnc |
Model Number | CK6136 |
CNC Control System | FANUC |
Key Selling Points | Multifunctional, Automatic, Competitive Price, High Safety Level, High-accuracy, Energy saving, Sustainable, High Productivity, Long Service Life, Easy to Operate, Flexible Manufacturing, High Rigidity, Low Maintenance Cost, Digital, Remote Monitoring, IoT |
quill taper | MT6 |
CNC or Not | CNC Lathe Machine |
spindle nose | A2-6 |
chuck size | 200 |
quill traverse | 100 |
Max. spindle speed/rpm | 150-2000 |
Spindle Bore(mm) | 48 |
Machine Type | Flat Bed CNC Lathe |
Product name | Cnc Slant Lathe Machine |
Function | Machining Metal |
1. The CK136 guide is refined by ultrasonic quenching, high hardness and good rigidity.

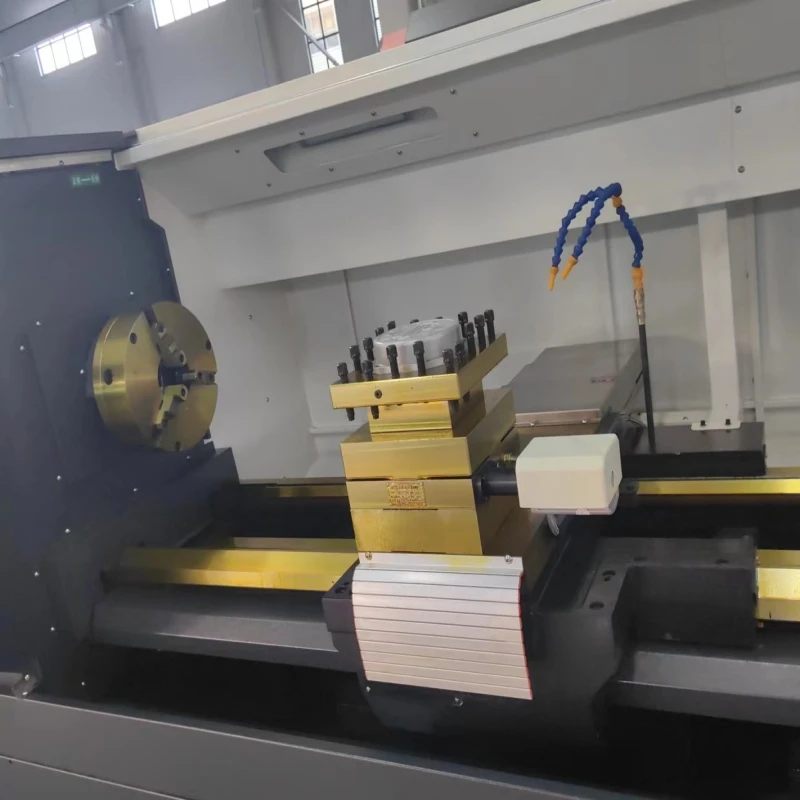

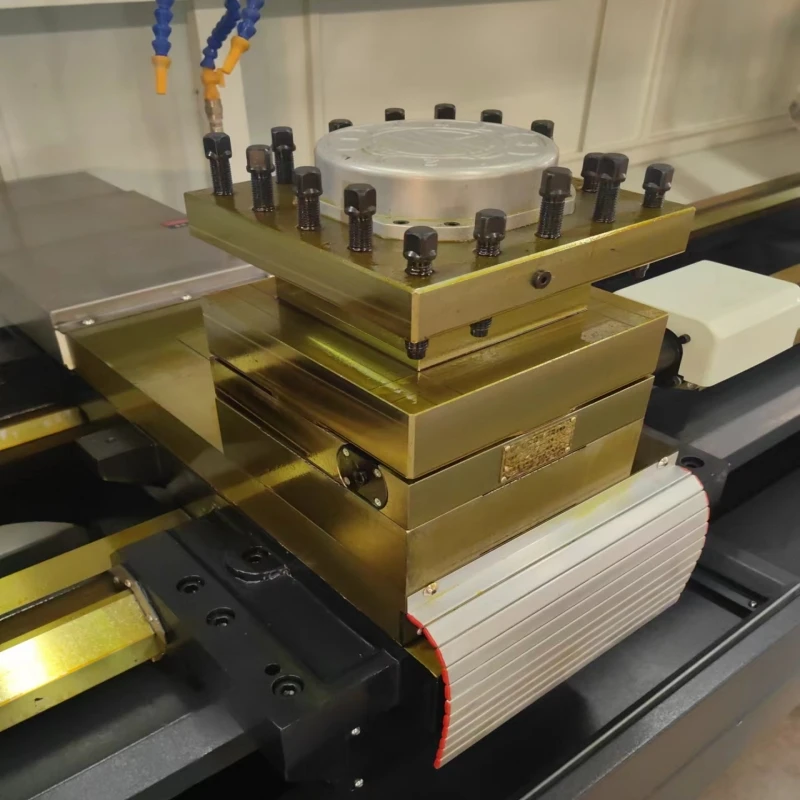

2. The electric four-position tool holder is positioned with precise gear positioning, and the positioning accuracy is high.
3. The tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.
4. High Quality hot sell ck6136 horizontal mini cnc lathe machines for metal the hybrid stepping motor driver or optional ac servo motor drive, can also according to user's request matching other systems.
5. Easy to operate, especially suitable for complex parts or high precision machining of high-volume parts, which is also the first choice for numerical control teaching
2. The electric four-position tool holder is positioned with precise gear positioning, and the positioning accuracy is high.
3. The tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.
4. High Quality hot sell ck6136 horizontal mini cnc lathe machines for metal the hybrid stepping motor driver or optional ac servo motor drive, can also according to user's request matching other systems.
5. Easy to operate, especially suitable for complex parts or high precision machining of high-volume parts, which is also the first choice for numerical control teaching
Quality is the lifeblood of the enterprise, grasp the details, open innovation. The company invites to join and agent, willing to
work with our customers and strategic partners to create a better future together.

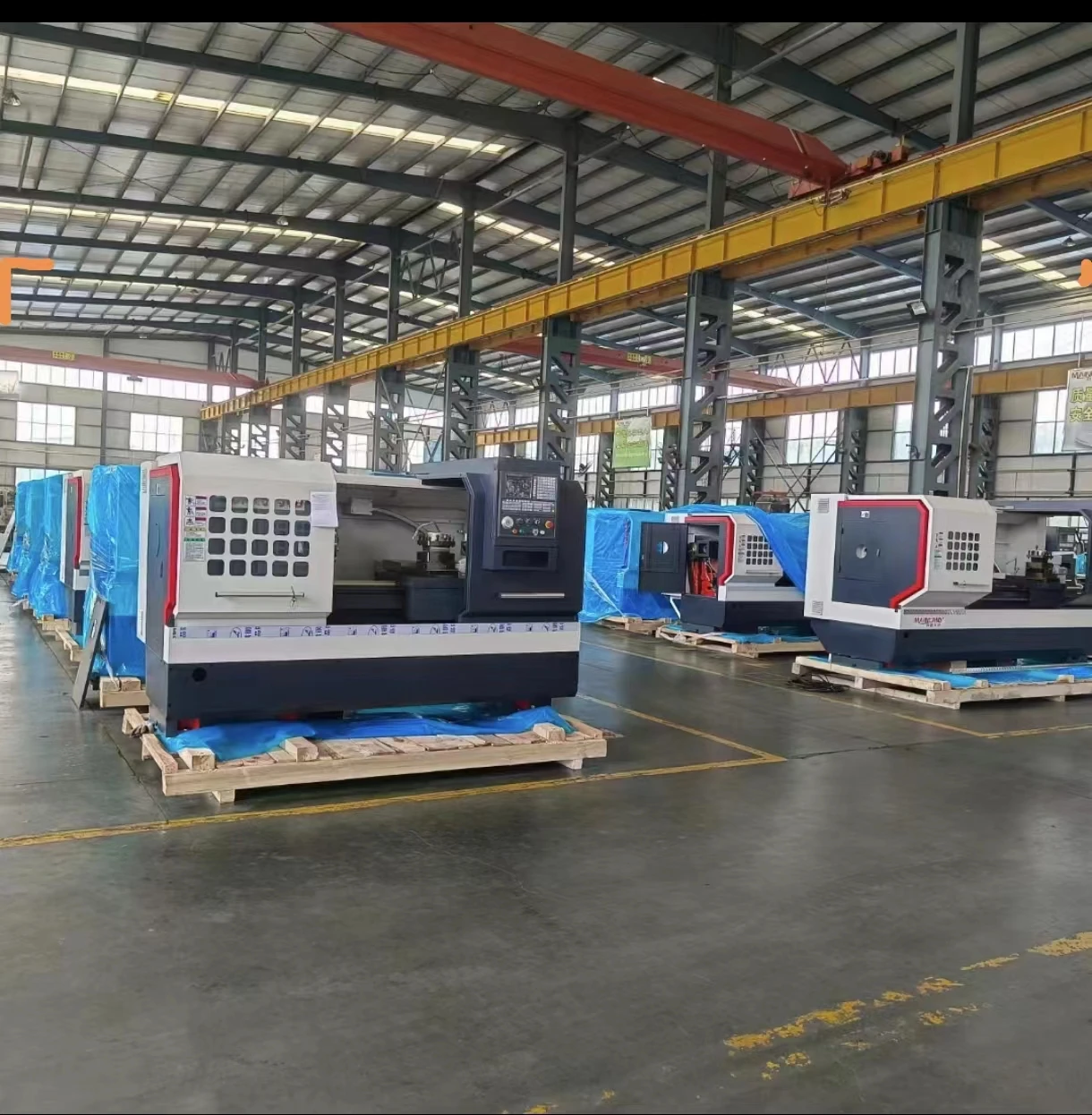

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
FAQ
1. who are we?
We are based in Shandong, China, start from 2022,sell to Domestic Market(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Machining Center, CNC Lathe, CNC Milling Machine
4. why should you buy from us not from other suppliers?
Our main products include 5 series, including CNC machining centers, horizontal CNC machining centers, CNC inclined test lathes, CNC gantry machining centers, CNC vertical lathes, and more than 50 specifications
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
Похожие товары
TCK36 Дешевые Малый косые кровать мини токарный станок с ЧПУ поворотный центр

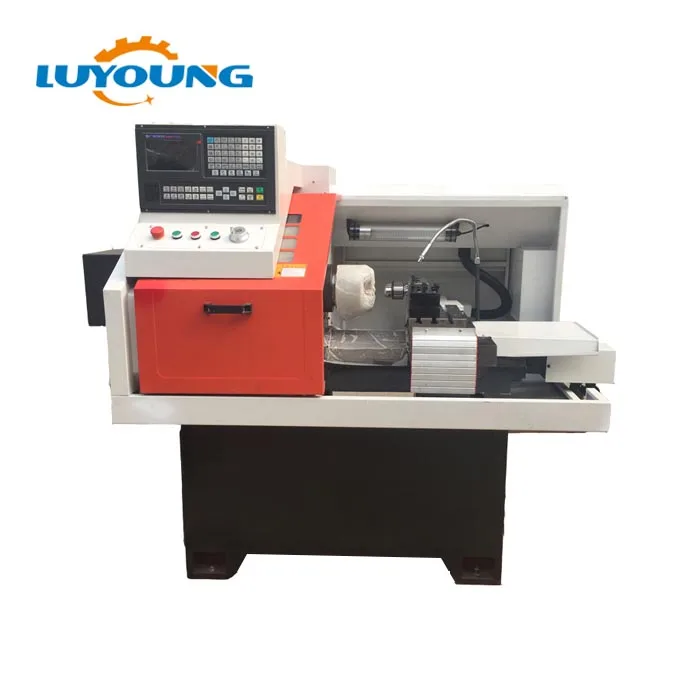

Китайские Производители Новый Дешевые CK0640a ЧПУ мини-токарный станок

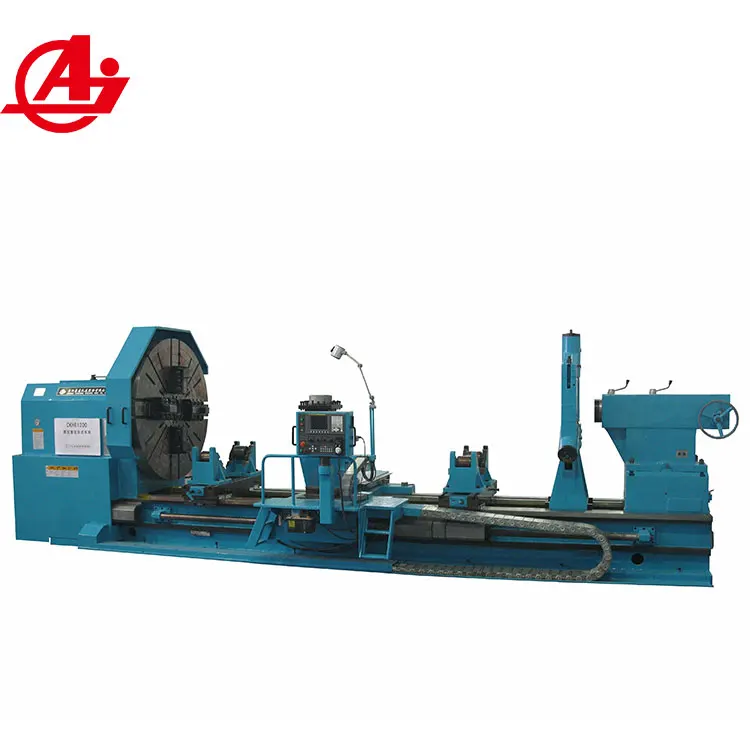

ANYANG CK61200 16 т дешевые ЧПУ плоский кровать тяжелых мини токарный станок
Дешевые CK0640A Мини токарный станок китай с чпу цена в индии

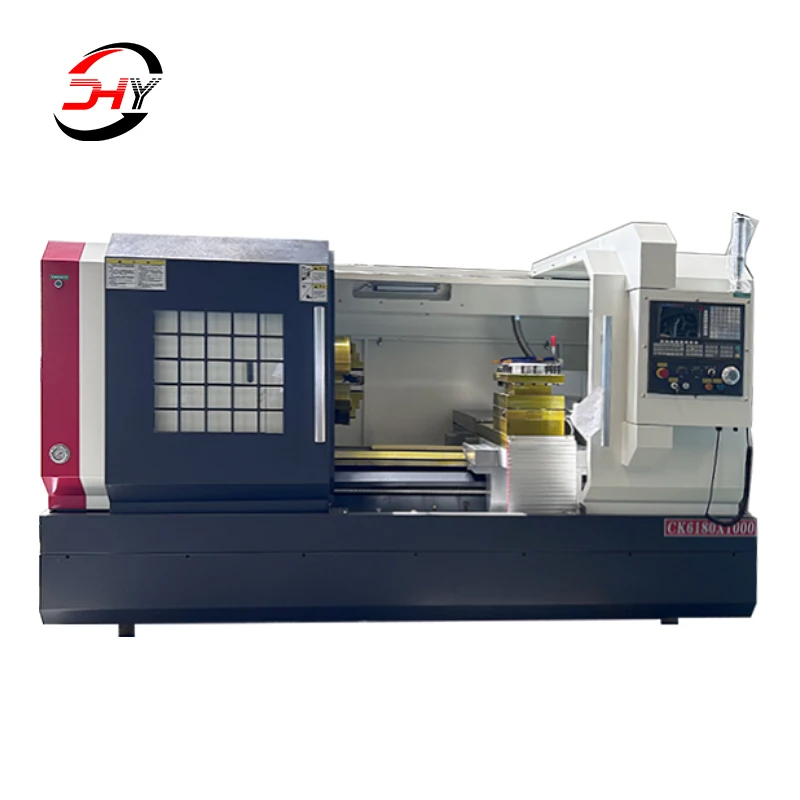

CK6180 сверхмощный токарный станок с ЧПУ 5 осевой контроллер Fanuc/Siemens/Syntec/GSK
