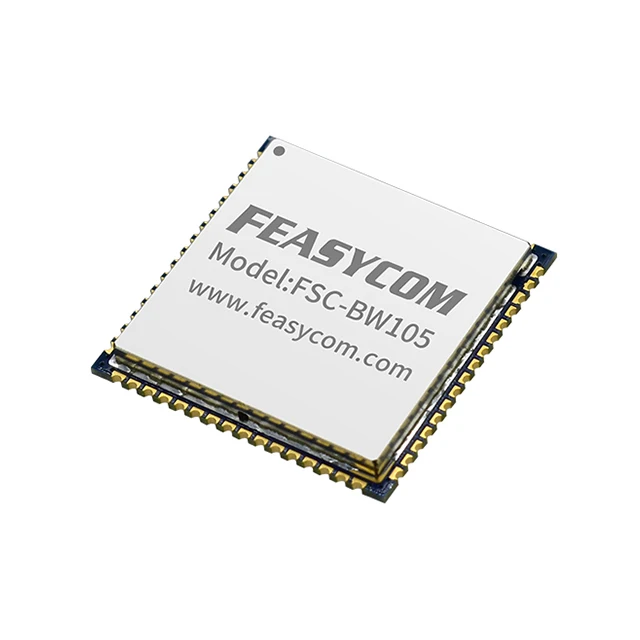

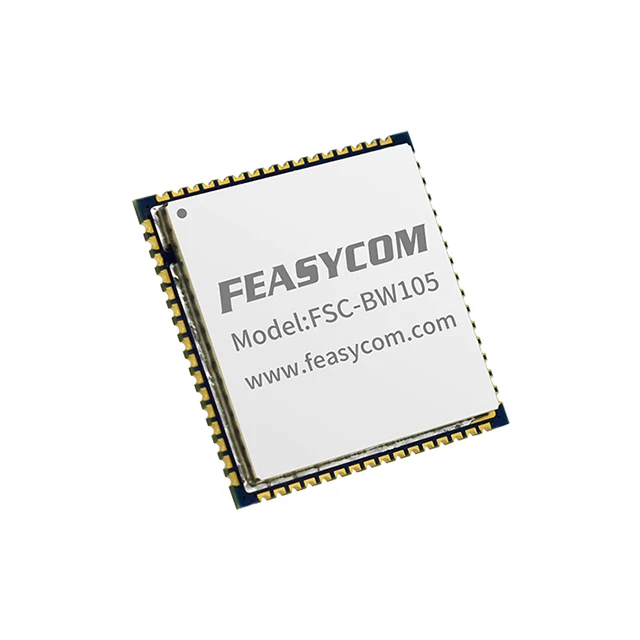

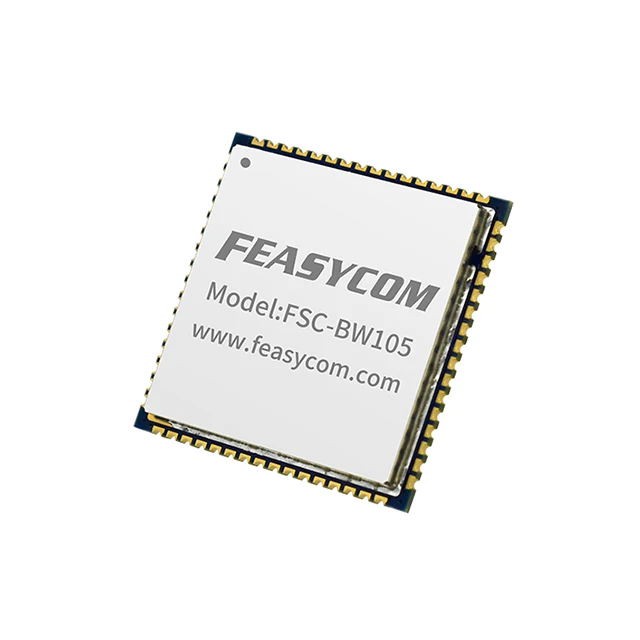

FSC BW105 внешняя антенна Feasycom QCA6574A Wi Fi 5 & BT 0 2 4 г/5 г автомобильный Android Linux Soc модуль Wifi Bluetooth
- Категория: >>>
- Поставщик: Shenzhen Feasycom Co. Ltd.
Сохранить в закладки 1601278529942:
Описание и отзывы
Характеристики
Products Description

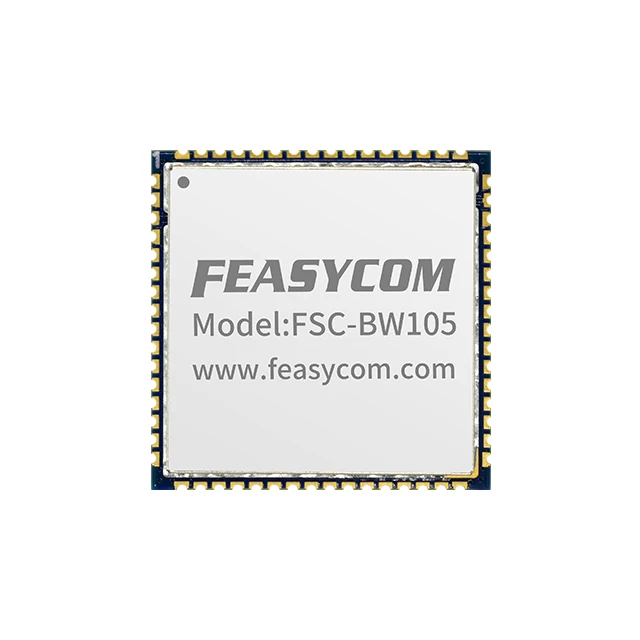

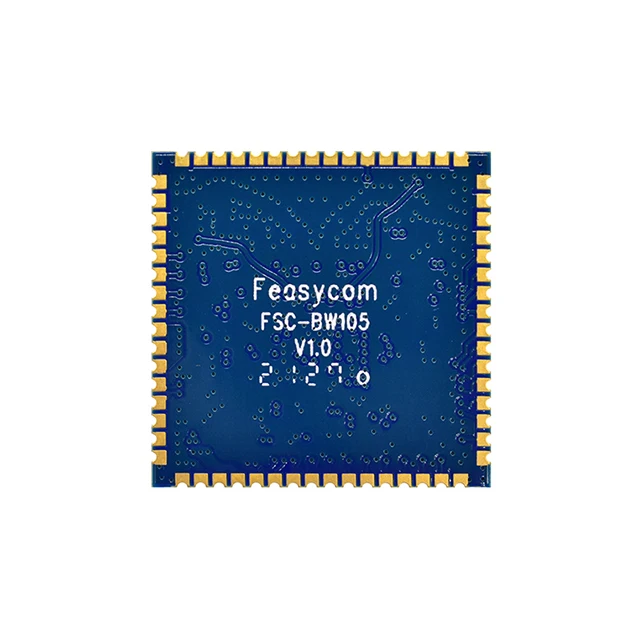

FSC-BW105 module integrates the QCA6574A gauge level IC, combining WLAN and Bluetooth technologies to support IEEE 802.11 a/b/g/n/ac standards and BT 5.0. It features 2×2 MIMO with two spatial streams, ensuring robust wireless performance.
Enhanced collaborative coexistence hardware and algorithms optimize WLAN and Bluetooth interaction, facilitating simultaneous voice, video, and data transmission with high quality. Ideal for designers seeking wireless integration, FSC-BW105 offers flexibility, short development cycles, and rapid time-to-market capabilities.
Features
* Highly integrated wireless local area network (WLAN) system-on-chip (SoC) for 5GHz 802.11ac, or 2.4GHz/5GHz 802.11n WLAN
applications
* Supports BT 5.0, ANT+ and is backward-compatible with previous BT versions from v1.2
* Maximal Likelihood (ML) decoding, Low-Density Parity Check (LDPC), Rx Space Time Block Code (STBC)
* Supports 20/40MHz at 2.4 GHz and supports 20/40/80MHz at 5GHz
* Supports BT-WLAN coexistence and ISM-LTE coexistence
* Supports BT for Class 1 and Class 2 power-level transmissions without requiring an external PA (power amplifier)
* Enhanced qualification based on selective AEC Q100 and JEDEC test cases
* Single-stream spatial multiplexing up to 433.3 Mbps data rate. (Under dual-antenna status, 802.11ac: Up to 867 Mbps)
* PCIe interface for WLAN and UART/PCM interface for BT
* UART (Max Baud Rate 3.2 Mbps)
* Stamp module suitable for Surface Mounted Technology (SMT)
* Iron Shielding case
* Stamp-64 package
* Dimensions (Iron Shielding Case): 22mm (L) × 22mm (W) × 2.4mm (H)
* Operating Voltage:
applications
* Supports BT 5.0, ANT+ and is backward-compatible with previous BT versions from v1.2
* Maximal Likelihood (ML) decoding, Low-Density Parity Check (LDPC), Rx Space Time Block Code (STBC)
* Supports 20/40MHz at 2.4 GHz and supports 20/40/80MHz at 5GHz
* Supports BT-WLAN coexistence and ISM-LTE coexistence
* Supports BT for Class 1 and Class 2 power-level transmissions without requiring an external PA (power amplifier)
* Enhanced qualification based on selective AEC Q100 and JEDEC test cases
* Single-stream spatial multiplexing up to 433.3 Mbps data rate. (Under dual-antenna status, 802.11ac: Up to 867 Mbps)
* PCIe interface for WLAN and UART/PCM interface for BT
* UART (Max Baud Rate 3.2 Mbps)
* Stamp module suitable for Surface Mounted Technology (SMT)
* Iron Shielding case
* Stamp-64 package
* Dimensions (Iron Shielding Case): 22mm (L) × 22mm (W) × 2.4mm (H)
* Operating Voltage:
- VBAT: 3.14V ~ 3.46V
- VIO: 1.71V ~ 3.46V
* RoHS / REACH Compliant
* External Antenna
* BT profiles: HFP, A2DP, AVRCP, PBAP, SPP, IAP2, GATT, HID, DUN, FTP, ANCS
* Supports Android / Linux
- VIO: 1.71V ~ 3.46V
* RoHS / REACH Compliant
* External Antenna
* BT profiles: HFP, A2DP, AVRCP, PBAP, SPP, IAP2, GATT, HID, DUN, FTP, ANCS
* Supports Android / Linux
Applications
* Car audio and video systems
* Measurement systems
* STB/OTT/IPTV
* Measurement systems
* STB/OTT/IPTV
Specification
Categories | Implementation | |
Bluetooth Module | ||
Bluetooth Standard | Bluetooth V5.0+EDR | |
Frequency Band | 2402MHz~2480MHz | |
Bluetooth class | Class 1 and Class 2 | |
Range, line of sight | Up to 10m for audio, up to 50m for data | |
Transmit power | 9dBm Max | |
Receiver sensitivity | -89dBm | |
Support mode | Slave and Master | |
Profiles | HFP, A2DP, AVRCP, SPP, PBAP, HID, DUN, FTP, GATT, IAP2, ANCS | |
Maximum throughput | 3Mbps | |
Interface | UART/PCM | |
WIFI | ||
Wi-Fi standard | 2.4G: IEEE802.11 b/g/n radio 5G: IEEE802.11 a/n/ac radio | |
Range, line of sight | Up to 100m | |
Frequency Band | 2.4GHz and 5GHz frequency band | |
Transmit power | 17dBm(Maximum) 10dBm(Minimum) | |
Receiver sensitivity | -80dBm@11Mbps -71dBm@54Mbps -70dBm@HT20 MCS7 -70dBm@HT40 MCS7 -60dBm@VHT80 MCS9 | |
Mode | WIFI-AP(access point), WIFI-Station | |
Maximum throughput | 802.11b:Up to 11Mbps 802.11g:Up to 54Mbps 802.11n:Up to 300Mbps 802.11ac:Up to 867Mbps(Under dual-antenna status) | |
Security | WEP, TKIP, AES, WPA, WPA2 | |
Interface | PCIe | |
General | ||
Size | 22mm(L) x 22mm(W) x 2.4mm(H) | |
Hardware Interface | UART, GPIO, PCIe, PCM/I2S | |
Antenna | External (Dual-band antenna, supporting 2.4GHz and 5.8GHz frequencies) | |
Operating temperature | -40°C ~+85°C | |
Storage temperature | -40°C ~+85°C | |
Operating voltage (VBAT) | 3.14 to 3.46V | |
VIO | 1.71 to 3.46V | |
Miscellaneous | Lead-free and RoHS compliant | |
Humidity | One Year | |
MSL grade: | 10% ~ 90% non-condensing | |
ESD grade: | MSL 3 | |
Human Body Model: Pass ±2000 V, all pins Charge device model: Pass ±250 V, all pins | ||
Company Profile
Feasycom focuses on the researching and developing of IoT (internet of things) products, including Bluetooth Modules,Bluetooth&Wi-Fi modules and beacons. With more than 10-year experiences in the wireless connectivity, which ensure us have the ability of R&D, manufacturing, QC and shortening product customization cycle to thousands of diverse customer worldwide.
Feasycom's engineering and design services include:
Feasycom's engineering and design services include:
* SDK
* APP Support
* PCB Design
* Development Board
* Firmware Development
*Depth Customization
* Certification Request
* Turn-Key Production Testing & Manufacturing
Our products and services mainly apply to Automotive, Point of Sale, Home Automation, Healthcare and Engineering, Banking, Computing, Vending Business, Location,
Lighting and more. Aiming at "Make Communication Easy and Freely", Feasycom is dedicated to design and develop high-quality products, efficient services to customers, for today, and all days to come.
Certifications
Exhibition
Customer Evaluation
Packing & Delivery
FAQ
Q1.Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2.Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.
Q3.What is Bluetooth 5.0?
A3:Two times transmission speed compare with Bluetooth V4.2,Max Trans Speed can reach to 24Mbps.
Effective work distance can be 300m, 4 times of Bluetooth V4.2.
Q4.What is Bluetooth Dual Mode Module?
A4:Bluetooth Dual Mode Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Basic Rate (BR)/Enhanced Data Rate(EDR)/Low Energy (LE) Functions.
Q5.What payment mothods do you accept?
A5:Paypal,T/T,W/U,Bank Transfering,Credit Card,Trade Assurance Payment,etc.
Q6.Lead time for sample orders/mass production orders?
A6:Samples,within 3 working days; Mass production,within 15 working days usually.
Q7.What shipping methods do you use?
A7:For samples,DHL/UPS/FEDEX/TNT,etc; For bulk orders,Air shipping and others.
A1: We are a manufacturer.
Q2.Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.
Q3.What is Bluetooth 5.0?
A3:Two times transmission speed compare with Bluetooth V4.2,Max Trans Speed can reach to 24Mbps.
Effective work distance can be 300m, 4 times of Bluetooth V4.2.
Q4.What is Bluetooth Dual Mode Module?
A4:Bluetooth Dual Mode Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Basic Rate (BR)/Enhanced Data Rate(EDR)/Low Energy (LE) Functions.
Q5.What payment mothods do you accept?
A5:Paypal,T/T,W/U,Bank Transfering,Credit Card,Trade Assurance Payment,etc.
Q6.Lead time for sample orders/mass production orders?
A6:Samples,within 3 working days; Mass production,within 15 working days usually.
Q7.What shipping methods do you use?
A7:For samples,DHL/UPS/FEDEX/TNT,etc; For bulk orders,Air shipping and others.
Похожие товары
DX-SMART WF24 BLE5.2 + WIFI Модуль Uart последовательный порт передачи данных Поддержка дальнего STA,AP, AP + STA Connect FCC CE ROHS Wifi модуль
172,42 ₽ - 183,26 ₽
DX-WF24 модуль WIFI Bluetooth, набор для разработки, дальность 350 м, расстояние передачи, несколько режимов подключения, беспроводной модуль IoT
324,23 ₽ - 432,66 ₽
WiFi 4 BLE 5.0 Combo LAN RF Module BK7238 Chip 2MB AT Command Wireless 2.4GH 32-bit MCU WIFI Module Support AP/STA/AP+STA Mode
141,12 ₽ - 164,10 ₽
Ebyte ODM E103-W01 UART I/O интерфейс последовательный порт по команде прозрачный модуль передачи ESP8266EX чип 2,4 ГГц Wifi модуль
161,91 ₽ - 173,94 ₽
Хорошее качество wifi 6 N X P 88w8987 чип двухдиапазонный беспроводной и радиочастотный модуль sdio интерфейс wifi модули
634,49 ₽ - 809,52 ₽
2024 новый чип N X P88w8987 wifi модуль двухдиапазонный sdio/uart 433 Мбит/с Wi-Fi модули
634,49 ₽ - 809,52 ₽

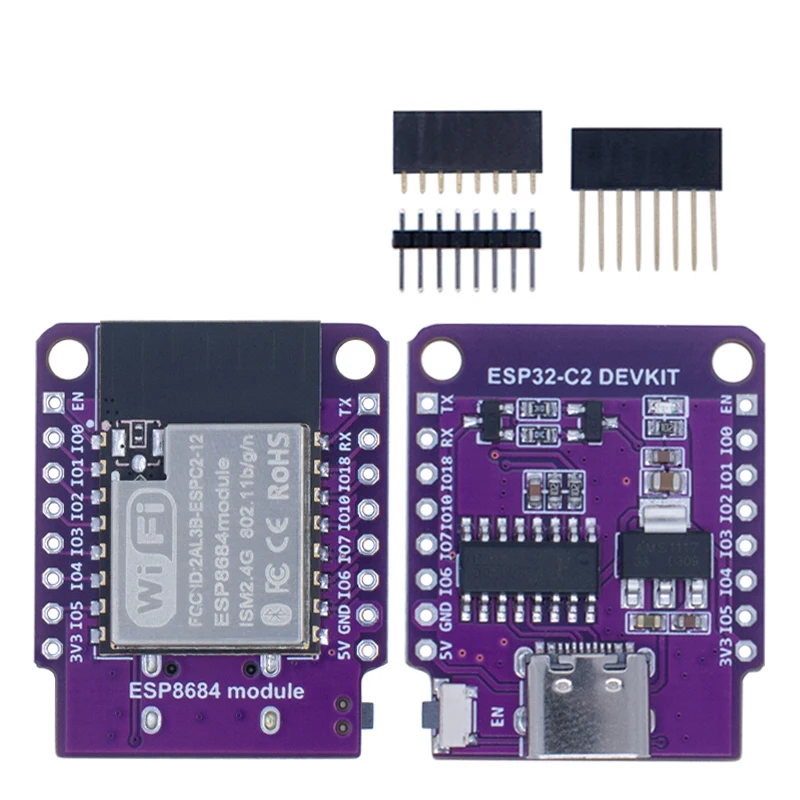

WGZX Wemos D1 Mini ESP8266 32 -C2 C2-12 DevKit последовательный WIFI + Bt CH340G 8684 модуль для разработки для Arduinos
