Профиль aluzinc ibr металлические кровельные панели изогнутые гофрированные алюминиевые листы гибочный станок

Сохранить в закладки 1601278605099:


Цена:603 066,20 ₽ - 1 014 247,70 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

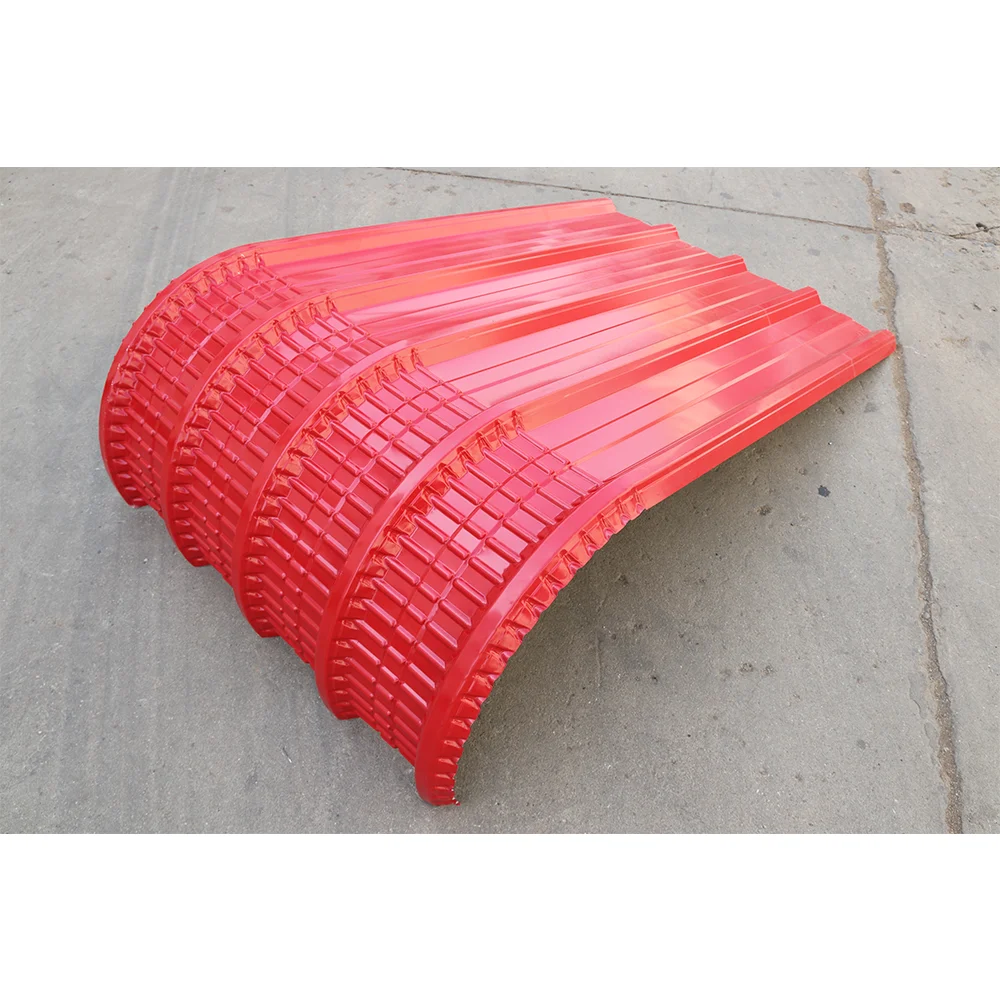

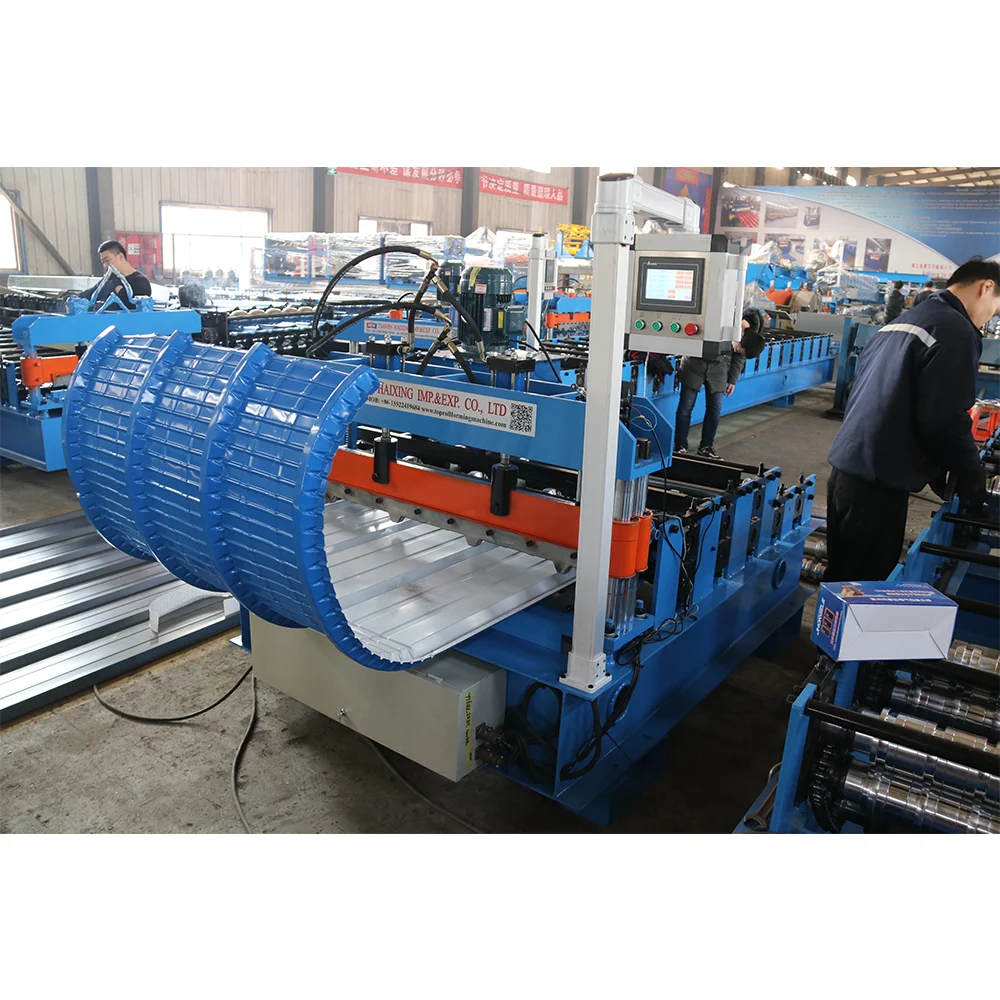

corrugated aluminium roofing sheet bending machine has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet.The roofing tile sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.












No.
                                            corrugated aluminium roofing sheet bending machine
1
Suitable to process
Color alu-zinc steel coil
2
Roller
3Rows
3
Dimensions
2.6*1.5*1.6m
4
Motor Power
3Kw
5
Pump Station Motor
3Kw.Lichao Brand
6
Thickness of the plate
0.3-0.8mm
7
Productivity
3-5m/min
8
Material of the cutting blade
Cr12,Quenched treatment 58℃-60℃
9
Diameter of the roller
Φ70mm
10
Weight
About 2500kgs
11
Main structure of the machine
350H beams
12
Processing precision
Within 1.0mm
13
Side panel of machine
16mm
14
Chain Wheel and Cycle Chain
1 Inch
15
Voltage
380V 50Hz 3phases or as customer's need
16
Control system
PLC control (Delta)
17
Frequency system
Delta
18
Drive mode
Motor driver
19
Touch screen
Delta
20
Rolling materials
45# forging steel with chromium plate
21
Length Tolerance
±2mm







Name:Manual decoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading
capacity:5T,Inner diameter: 500-508mm




Name:Feeding table

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.

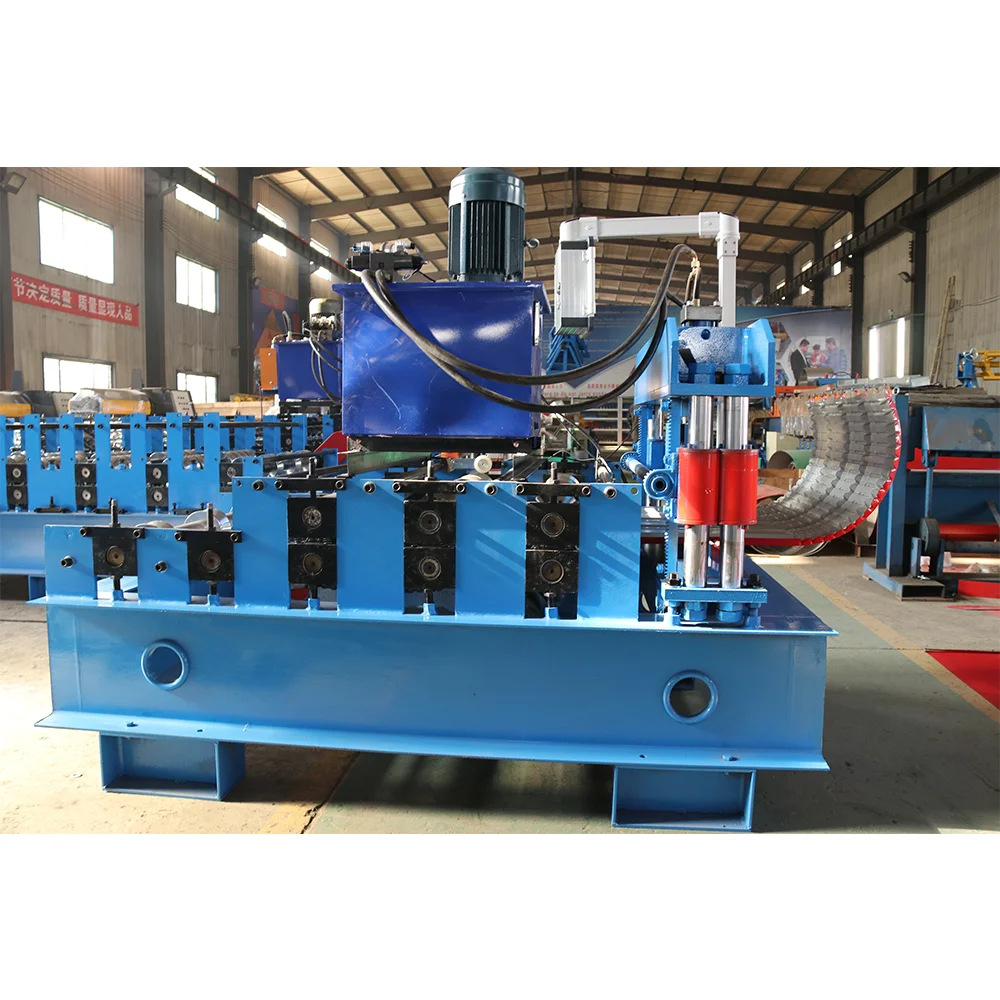

Name: Main rollers

Material of rollers:High grade 45# Forging Steel ,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.





Name:Computer Control Cabinet

PLC:Delta PLC(or according to customer's inquirement)
Touch Screen:Delta
Frequency system:Delta
Chinese/English and Russian Or Spanish





Name: Motor driver

Main motor size :3Kw
Brand: The famous brand from Jermany or according to customer's need

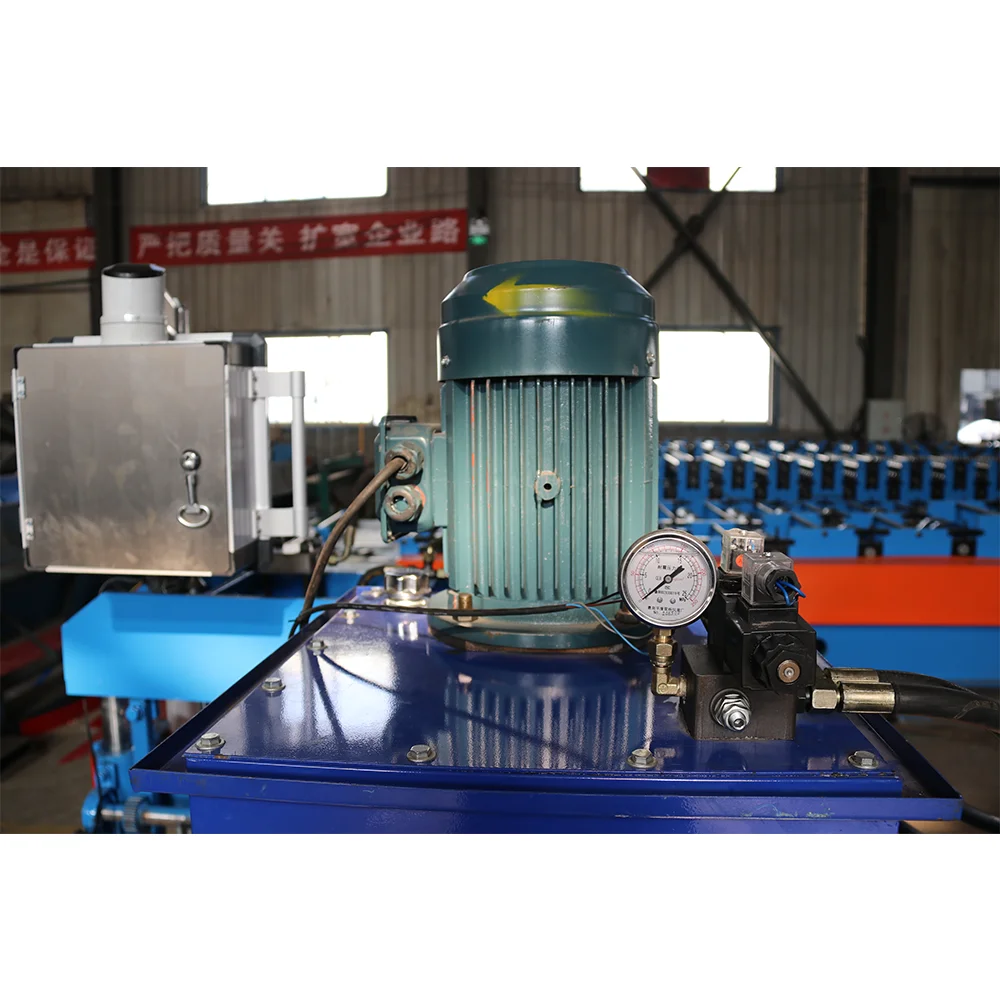

Name :Hydraulic station power

Hydraulic station power: 3Kw, the brand is Lichao, Shanghai

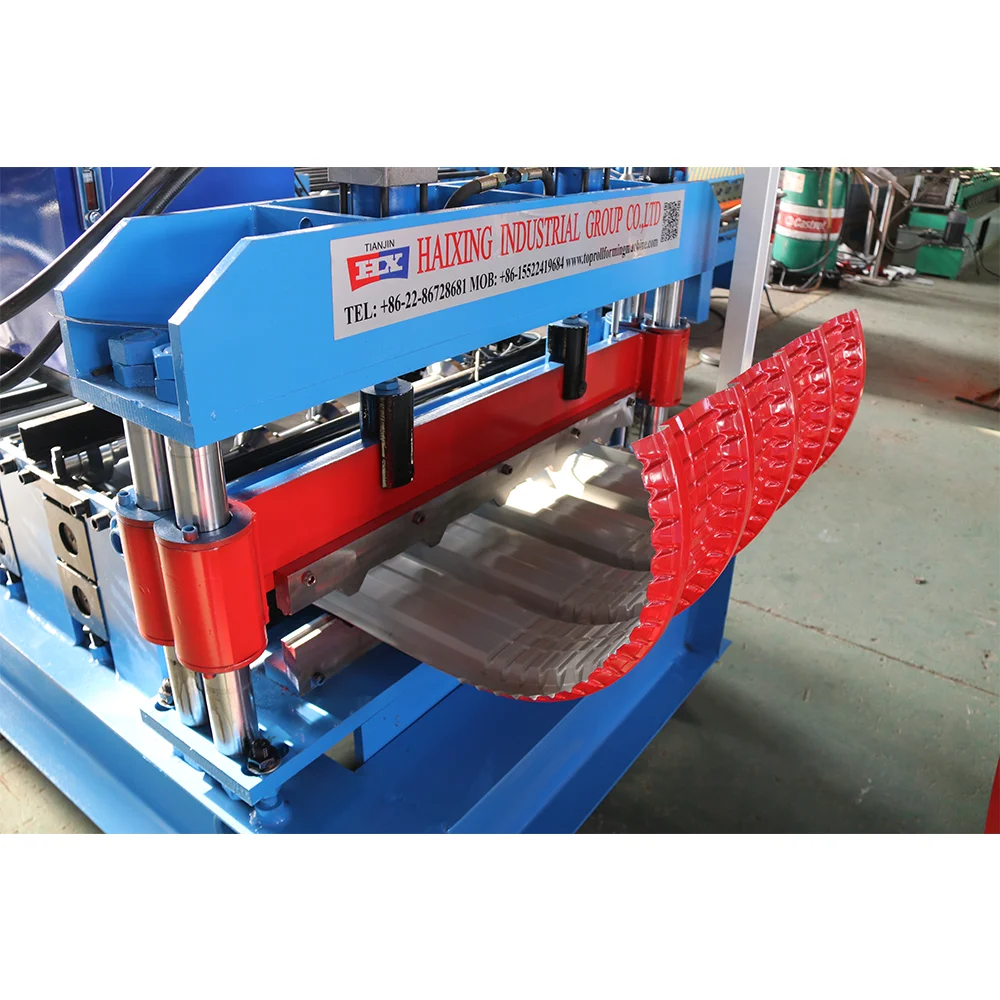

Name: Cutting head

It adopts the Motor drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment




Name: Received goods table

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
2 pieces 3meters


Production Flow


corrugated aluminium roofing sheet bending machine working flows as follow :




Passive Decoiler
1Set
Feeding Platform with Pre-cutter
1Set
Roll Forming Machine
1Set
PLC Control System
1Set
Hydraulic Cutting System
1Set
Exit Rack for roofing production
2Pieces 3Meters
Spare parts
One carton box




Packing&Shipping


corrugated aluminium roofing sheet bending machine export standard packages details

- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

- 2.This producing line is maintained free of charge for 24 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

- 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.

- 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.








1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.




We, Haixing Tianjin is a professional cold roll forming machine manufacturer, We are Alibaba golden supplier, also got approved by CE and lSO certificate authority. We have been focusing on this field more than 28 years. Customers are all over the world, such as Germany, the United States, Mexico, Peru, Chile, Guatemala, Colombia, Bolivia, Brazil, Kuwait, Indonesia, South Africa, and other different regions. Main machine includes roof roll forming machine,light keel roll forming machine, floor deck roll forming machine, purlin machine, leveling and slitting machine, metal fence roll forming machine, gutter roll forming machine, downspout roll forming machine, door frame machine, shutter door roll forming machine, highway guardrail roll forming machine, and other related construction equipment. We have extensive experience in the needs of different countries, such as profile drawing, operation languages, thickness range, instruction manual, installation, after-sales online support. Our equipment is mainly of medium and high configuration, such as famous brand PLC and Motor, Frequency converter, Long Service Life, Remote Control, Multifunctional, Energy saving. Company tenet: Technological innovation, Customer center, Win-Win situation. We owned professional design team, professional export team and professional after-sales team. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.
Looking forward to more cooperation with new and old friends from all over the world. Join between of us, do our best for each other!








Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.

Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.

Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.

Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
