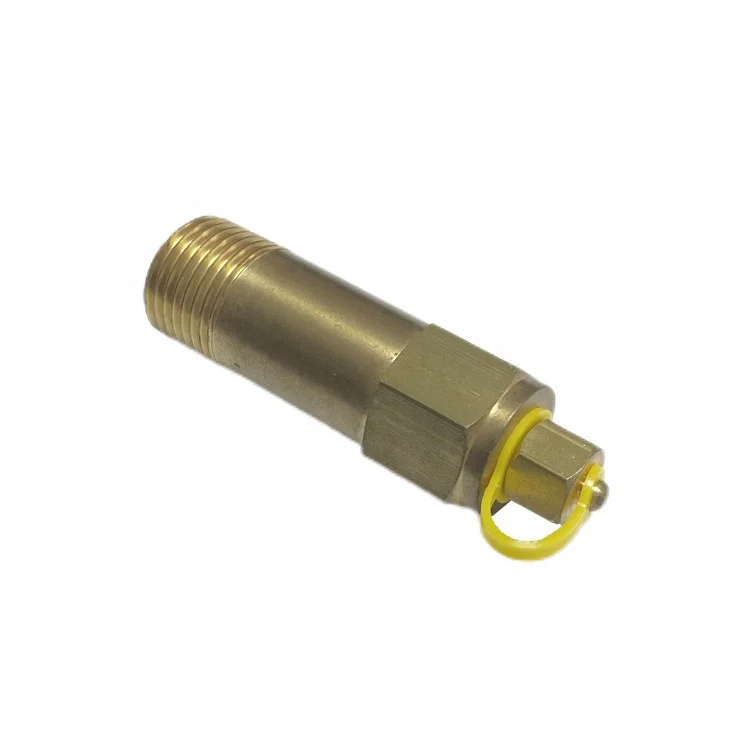

Латунный удлиненный пробка с винтовым соединением и резиновой самоуплотняющей вставкой
- Категория: >>>
- Поставщик: Hubei Hi-Tek Valve And Fitting Co. Ltd.
Сохранить в закладки 1601278705256:
Описание и отзывы
Характеристики
Various Products
Product Description
Product name | Binder Style Brass Extended Test Plug with Screw Connection and Rubber Self-sealing insert |
Thread size | 1/2" NPT |
Body and cap material | Brass |
Valve core material | Nordel |
Type | Extended |
HI-TEK TEST PLUG, Pressure & Temperature Test Plugs
Valve Core Material | Composition | Resistant to: | Applications | |||
Neoprene (Blue Strap) | Chloroprene based synthetic rubber | Waxes, fats, oils, grease, petroleum products, refrigerants | 500 PSIG at 200°F （93°C）maxi-mum or 1000psig at 140°F( 60°C)—20°F(-6.7°C) | |||
Nordel (EPDM)* (Yellow Strap) | Ethylene-Propylene synthetic rubber | Hot or cold water, esters, Ketones,alcohols, glycols, detergent, phosphate | 500 PSIG at 275°F (135°C)maxi-mum or 1000psig at 140°F( 60°C)—20°F (-6.7°C) | |||
Nordel (EPDM)* (Red Strap) | Ethylene-Propylene synthetic rubber | Chilled Water circuits, Coil Units, Pumps, Heating Water, Heating Water, Heat Exchanger, Air Conditioning | 500 PSIG at 275°F (135°C) maxi-mum or 1000psig at 140°F( 60°C)—20°F(-6.7°C) | |||
*Note: Nordel is not suitable for petroleum products | ||||||

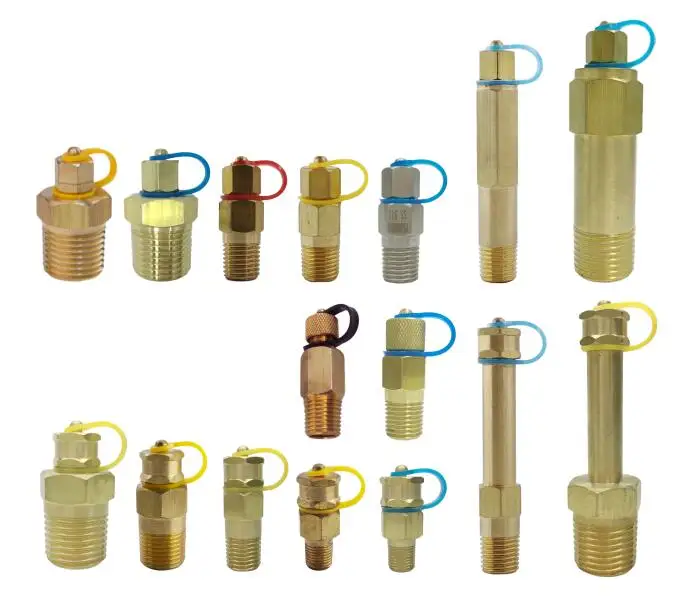

HI-TEK TEST PLUG SPECIFICATION TABLE
Part # | Valve Core Material | Thread Size (Inches) | Body and cap material | Length (Inches) | ||||
HK-12500 | Neoprene | 1/8”NPT | Brass | 1-1/4" | ||||
HK-100 | Neoprene | 1/4”NPT | Brass | 1-1/2" | ||||
HK-110 | Nordel | 1/4”NPT | Brass | 1-1/2" | ||||
HK-100XL | Neoprene | 1/4”NPT | Brass | 3" | ||||
HK-110XL | Nordel | 1/4”NPT | Brass | 3" | ||||
HK-100XL-P | Neoprene | 1/4”NPT | Brass | 3" | ||||
HK-110XL-P | Nordel | 1/4”NPT | Brass | 3" | ||||
HK-300 | Neoprene | 3/8”NPT | Brass | 1-1/2" | ||||
HK-310 | Nordel | 3/8”NPT | Brass | 1-1/2" | ||||
HK-400 | Neoprene | 1/4”NPT | 316 SS | 1-1/2" | ||||
HK-410 | Nordel | 1/4”NPT | 316 SS | 1-1/2" | ||||
HK-700 | Neoprene | 1/2”NPT | Brass | 1-1/2" | ||||
HK-710 | Nordel | 1/2”NPT | Brass | 1-1/2" | ||||
HK-700XL | Neoprene | 1/2”NPT | Brass | 3" | ||||
HK-710XL | Nordel | 1/2”NPT | Brass | 3" | ||||
HK-700XL-P | Neoprene | 1/2”NPT | Brass | 3" | ||||
HK-710XL-P | Nordel | 1/2”NPT | Brass | 3" | ||||
HK-910 | Nordel | 1"NPT | Brass | 45mm | ||||
Note: Accept customization, BSPT and other threads | ||||||||

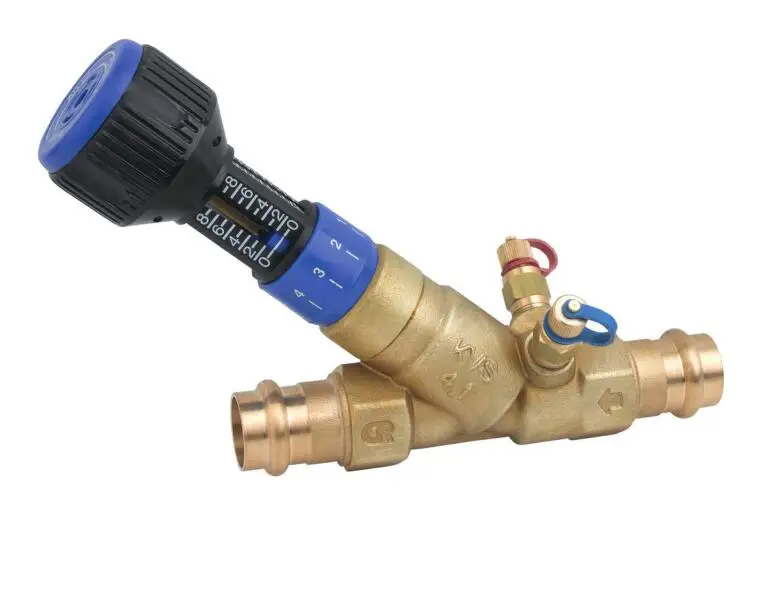

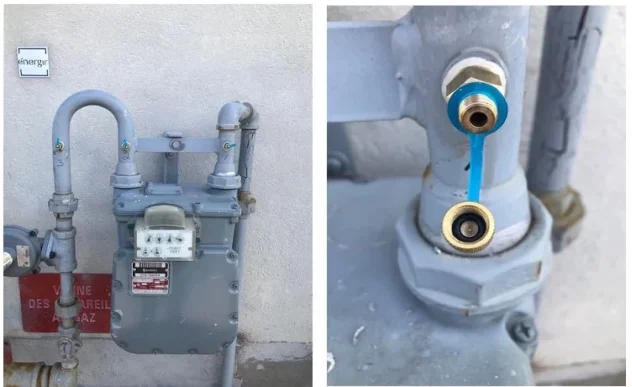

Pictures of Application
Note:
Test plugs are designed for initial startup and testing, not continuous or frequent use. If continuous or frequent use is desired or expected, a test well should be installed for temperature applications and a needle valve installed for pressure applications.
Tests should be made as quickly as possible because the inner plug resealing time is dependent upon the length of time the probe remains inserted, as well as the temperature and pressure of the system. The test plug may take longer to reseal at lower temperatures or pressures. The probe used for testing should never exceed a diameter of 0.156" (4 mm). The pressure gauge used for testing should always have a range of twice the system pressure.

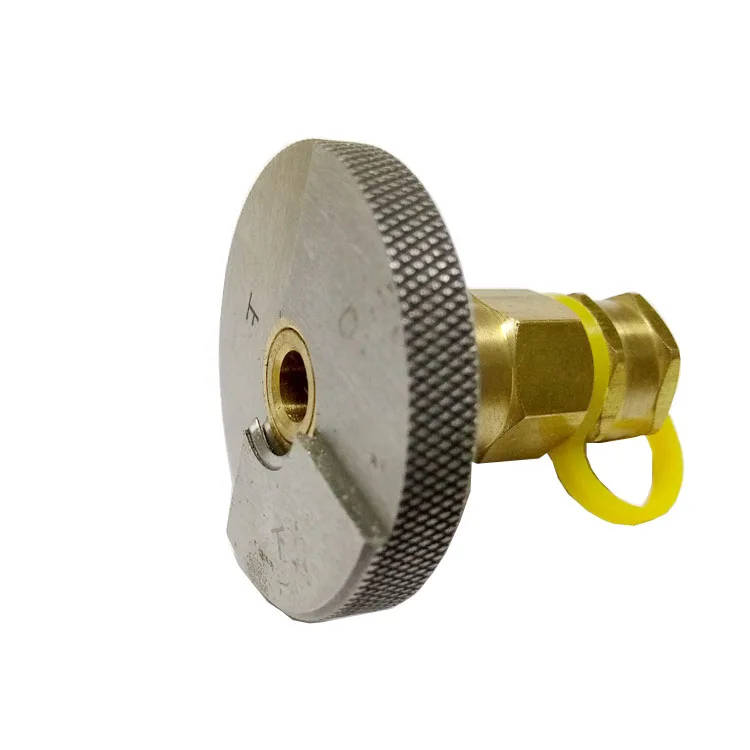

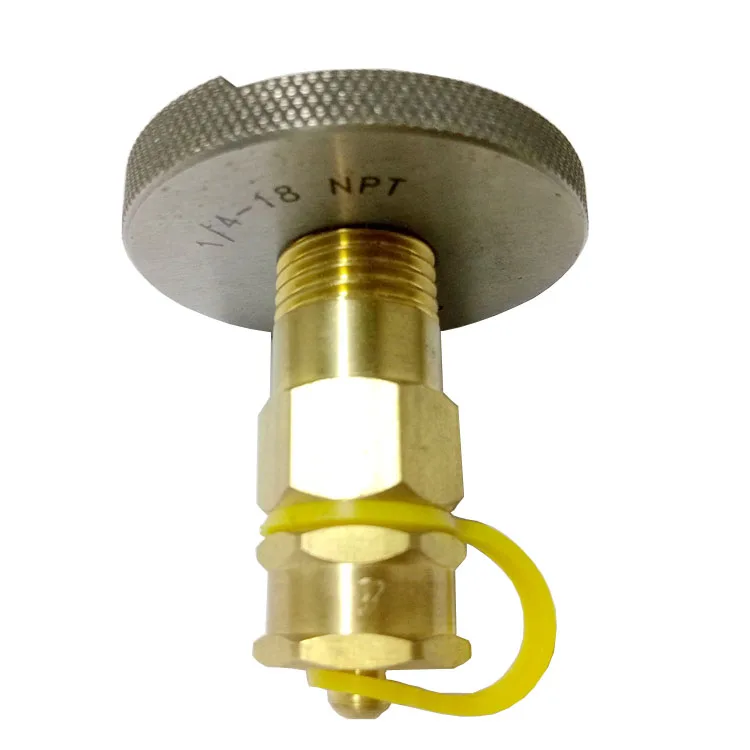

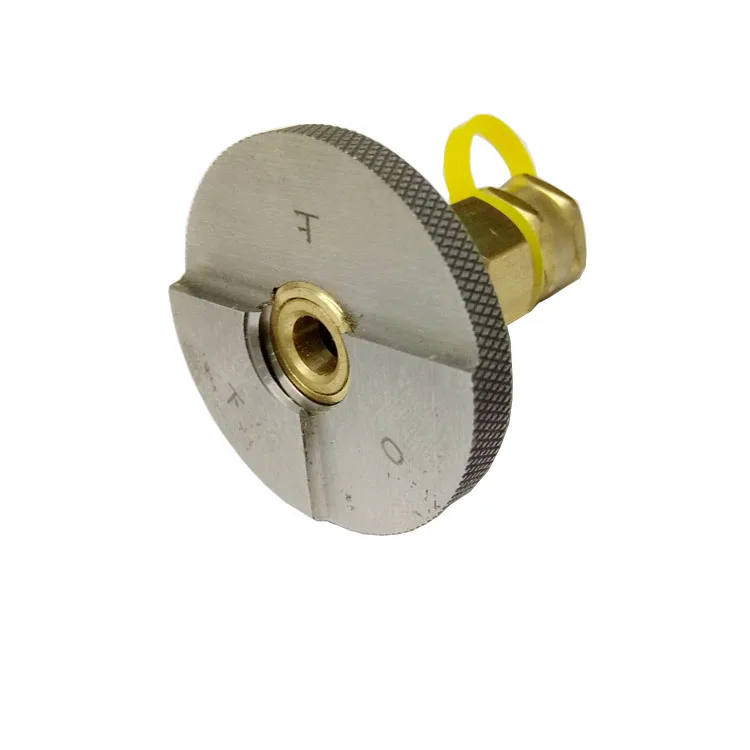

QC check the thread .
Our Services
HI-TEK is professional manufacturer in instrumentation valves and fittings, with a professional engineering team, efficient sales team, and competitive price advantage for a variety of high quality products for customers worldwide, committed to creating a win-win situation and establishing long-term partnerships with customers.
1. Component selection | ||||||||
2. Customization service | ||||||||
3. Drawings | ||||||||
4. MTC | ||||||||
5. Professional packaging | ||||||||
6. Flexible shipment options | ||||||||
Packing & Shipping
Related Products
Our Company
Hubei Hi-tek Valve and Fitting Co., Ltd
Hubei Hi-tek Valve and Fitting Co., Ltd is a fully integrated company that specializes in product design, development, and manufacturing.
We are proud to offer a wide range of metal products, including tank cleaning nozzles, ball valves, needle valves, check valves, valve manifolds, block and bleed valves, monoflange valves, valve fittings and wellhead components, tube fittings, pipe fittings, and pressure gauge accessories such as brass gauge cocks, pressure gauge siphons, pressure snubbers, and test plugs.
Our products are made from a variety of materials, including carbon steel, stainless steel, brass and other special materials like inconel, monel, hastelloy, duplex,super duplex,etc.
Our products are used in a wide range of applications, including petroleum and gas fields, pharmaceutical engineering, food engineering, biochemical engineering, chemical engineering, brewing, water treatment, and other fields.
We have a professional engineering team, a highly efficient sales team, and a competitive pricing advantage, which has helped us attract customers from all over the world. We export to over 80 countries, including North America, South America, Europe, Australia, East Asia, and the Middle East. Our company values quality and integrity above all else.
We have obtained ISO9001 quality control certification, and our enterprise credit evaluation is AAA credit enterprise. All our orders can be processed through Alibaba trade assurance to ensure our customers' business is safe. We are committed to creating a win-win situation and establishing long-term cooperation with our customers.
We are proud to offer a wide range of metal products, including tank cleaning nozzles, ball valves, needle valves, check valves, valve manifolds, block and bleed valves, monoflange valves, valve fittings and wellhead components, tube fittings, pipe fittings, and pressure gauge accessories such as brass gauge cocks, pressure gauge siphons, pressure snubbers, and test plugs.
Our products are made from a variety of materials, including carbon steel, stainless steel, brass and other special materials like inconel, monel, hastelloy, duplex,super duplex,etc.
Our products are used in a wide range of applications, including petroleum and gas fields, pharmaceutical engineering, food engineering, biochemical engineering, chemical engineering, brewing, water treatment, and other fields.
We have a professional engineering team, a highly efficient sales team, and a competitive pricing advantage, which has helped us attract customers from all over the world. We export to over 80 countries, including North America, South America, Europe, Australia, East Asia, and the Middle East. Our company values quality and integrity above all else.
We have obtained ISO9001 quality control certification, and our enterprise credit evaluation is AAA credit enterprise. All our orders can be processed through Alibaba trade assurance to ensure our customers' business is safe. We are committed to creating a win-win situation and establishing long-term cooperation with our customers.
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and trading company . We have specialized in manufacturing fittings and valves for more than 14 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample. You need to pay for it and the freight cost.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us as below:
A: We are manufacturer and trading company . We have specialized in manufacturing fittings and valves for more than 14 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample. You need to pay for it and the freight cost.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us as below:
Похожие товары
Полиэтиленовая труба PE roll pipe/для сельскохозяйственного орошения
23,30 ₽ - 25,52 ₽

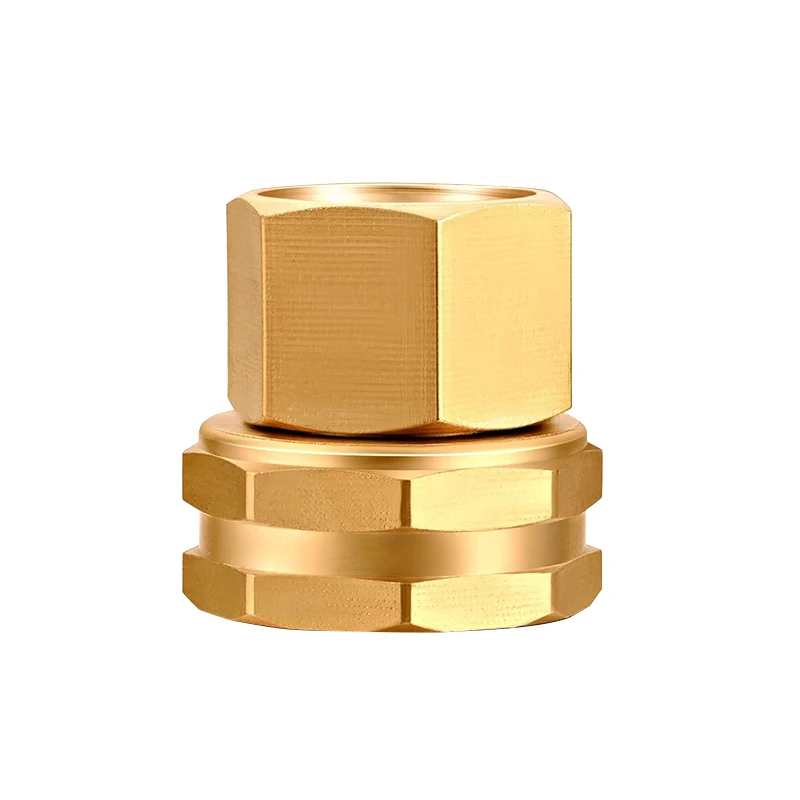

Источник от производителя 3/4 Гт Женский 1/2 разъем для садового шланга
55,47 ₽

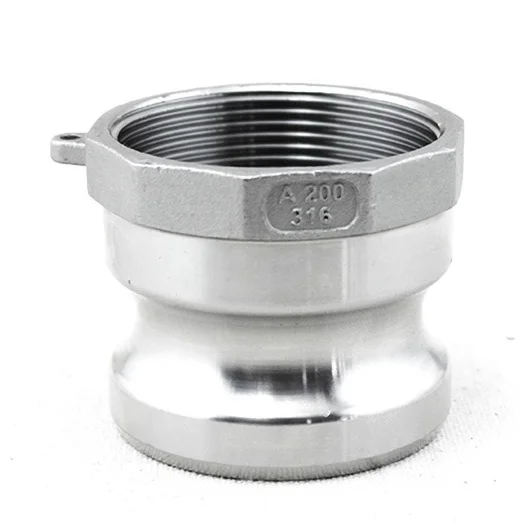

БЫСТРОРАЗЪЕМНАЯ муфта из нержавеющей стали типа A
