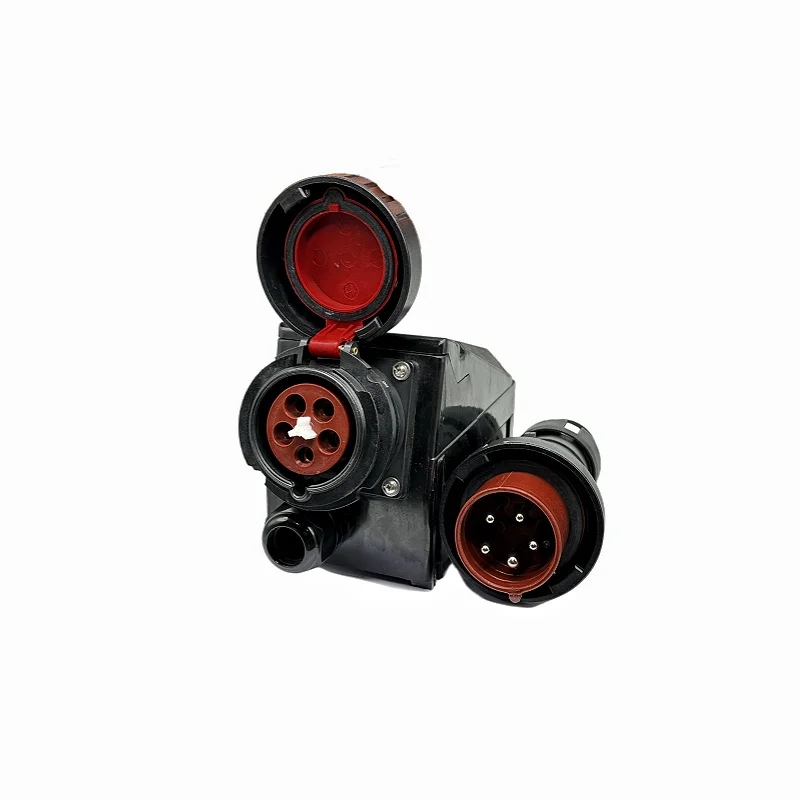

Датчик промышленные разъемы Atex plug and socket для нефтехимических предприятий 16A 36A
2 107,63 ₽ - 2 329,48 ₽
ATEX IP65 3 ядра 4 5 ядер AC110V 220V 380V настраиваемый металлический 1 фазовый 3 фазный взрывозащищенный штекер и розетка P PE
- Категория: >>>
- Поставщик: Changzhou Maxtree Technology Co. Ltd.
Сохранить в закладки 1601278730111:
Описание и отзывы
Характеристики
Product Parameters
ITEM | Product Name | ||||||
BCZ8060 | Explosion Proof Plug And Socket | ||||||
OTHERS | More information about this product please contact us！IP66 requirements must be marked. | ||||||
COMMON | Rated Current： | 16A/32A/ 63A Customizable | Rated Voltage： | AC220-380V Customizable | |||
IP Grade： | IP65/IP66 | Lifespan： | 100000Hours | ||||
Anti Corrosion Grade： | WF2 | Warranty： | 5 Years | ||||
Installation： | Wall Mount/Plug/Panel Type Mount | ||||||
Ex-mark： | ExdeIICT6 Gb / II2G ExdeIICT6 DIP A20 TA, T6/ II1D Ex tD A20 T6 | ||||||
Cable Entry/Outer Dia.： | 16A: M25x1.5/Ф18~17mm/32A: M40x1.5/Ф13-27mm | ||||||
Plug Cable Outer Dia.： | 16A:Φ8~Φ19mm/32A:Φ12~Φ28mm | ||||||
CERT | ATEX,CE,IP65,IP66 | ||||||
FEATURES | ●The enclosure is pressed by glass fibre unsaturated polyester resin with high intensity, erosion-proof and perfect thermal stability properties, fine outline. ●Reliable interlock funetion, the plug can be pulled out onlyafter the switch inside the socket chamber is off, the switch ison only after the plug had inserted. ●Contact of plug is reliable, long life,there is a spring pin with shutters inside the socket,so it is easy to clean the plug,and ensures the small resistance and low temperature rise,at the same time, it can deduces the plug force into min one.This design ensures the normal working and constant cleaning functions, avoid the effect of environments( such as temperature,humidity). ●The socket with padlock can be locked not used. | ||||||
APPL | ●Hazardous: division l&2 or zone 20、21、22. ●Explosive gas or steam atmosphere: class l A, l B, ll C or flam-mable dust atmospheres. ●Serious erosive gas environment. ●lndoor or outdoor(lP65,1P66*). ●Temperature class:Tl~T6. | ||||||

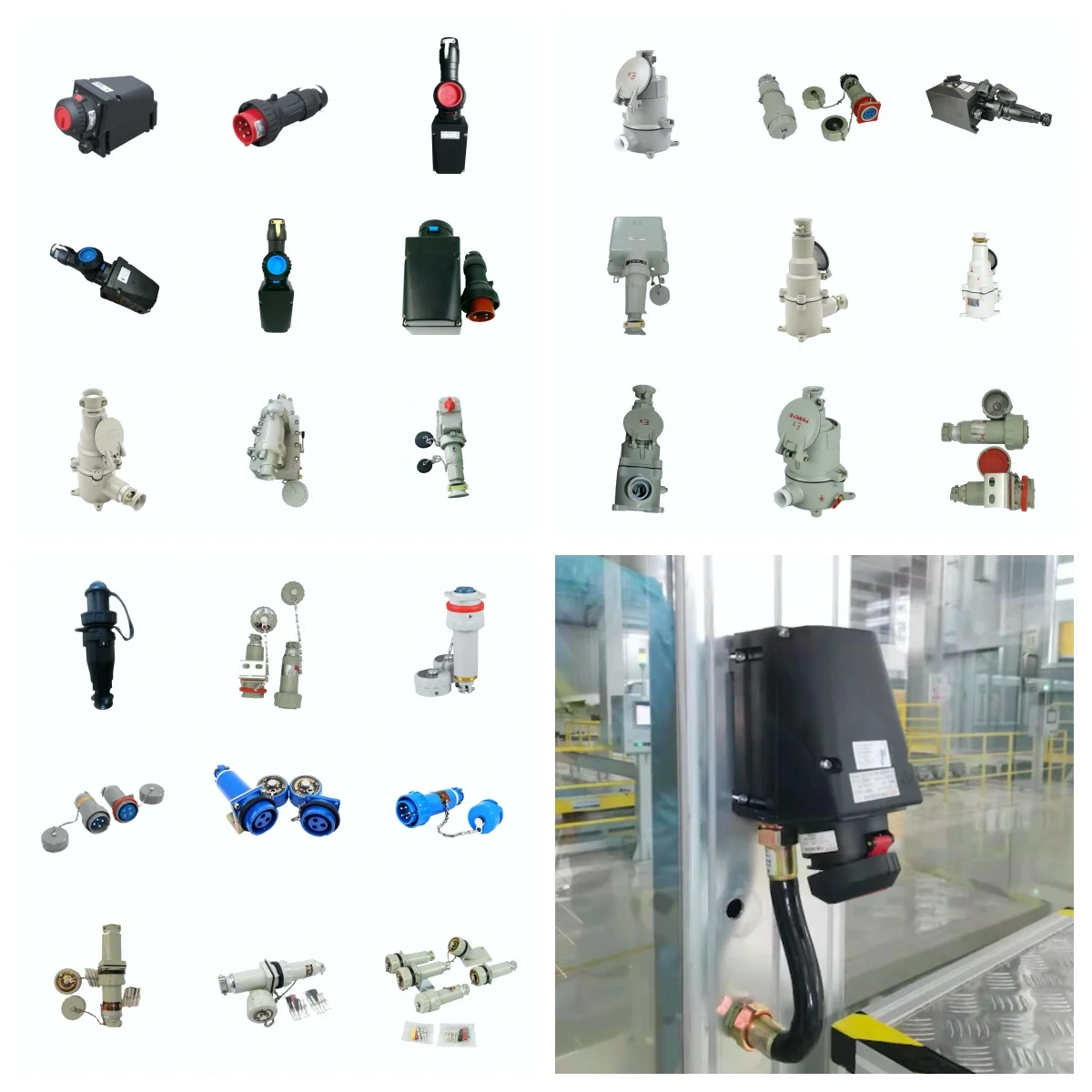

Please contact us for more styles and information of explosion-proof plugs and sockets

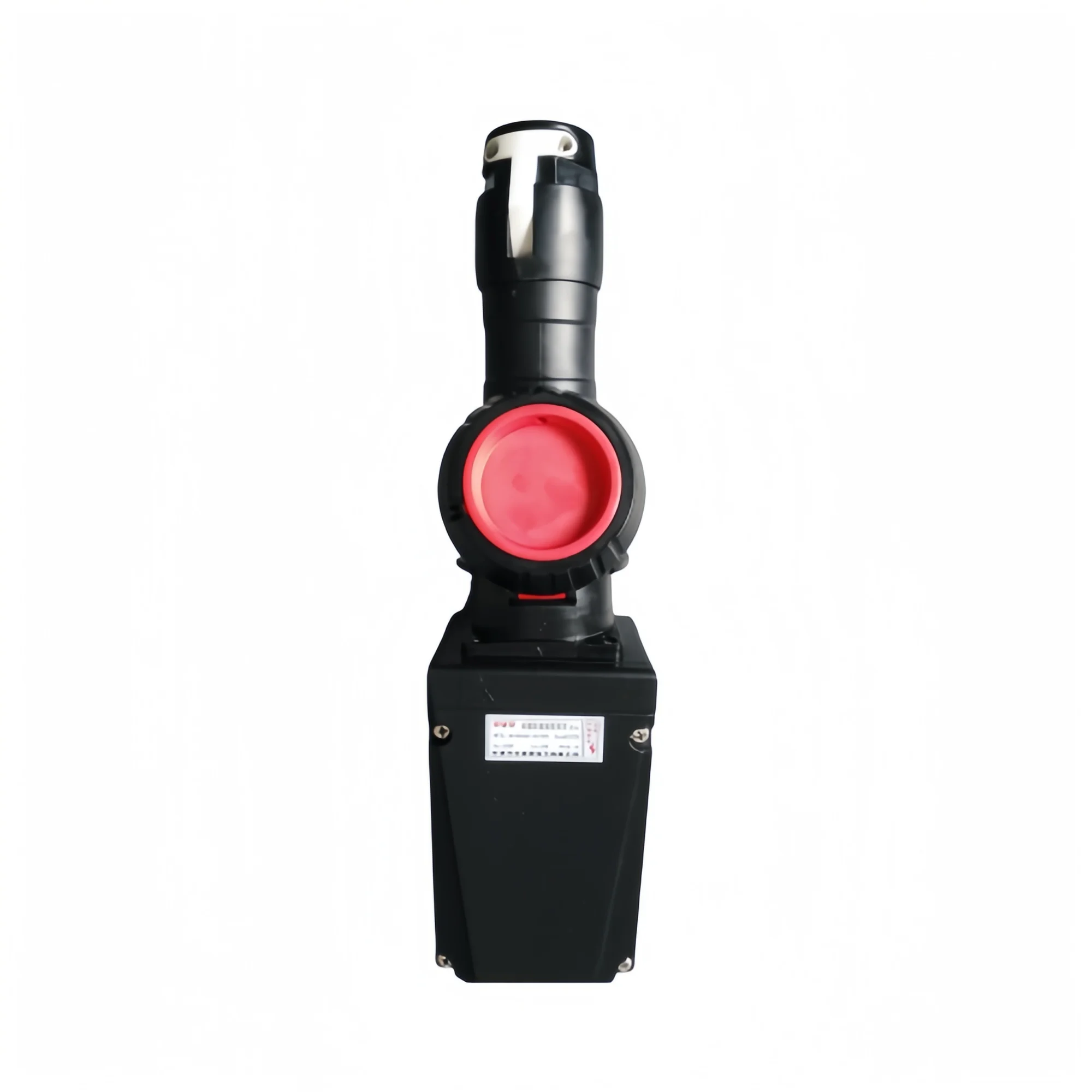

Product Description

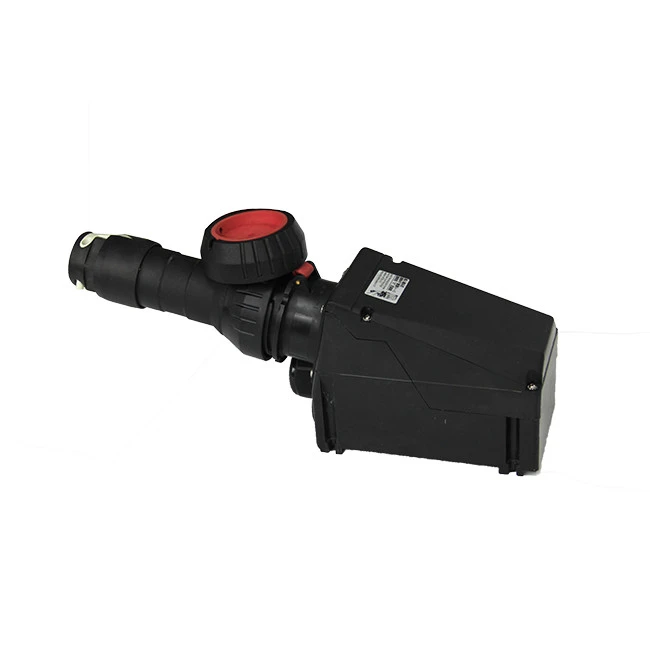

Explosion proof plug is composed of plug and socket. The shell is made of die-cast aluminum alloy. The socket is connected to the power supply end, and the plug is connected to the electrical equipment end. toggle switch. Explosion-proof plugs are divided into explosion-proof flameproof plugs and sockets and explosion-proof flowerless plugs.
Explosion-proof plugs are mainly used in chemical industry, various mines, petroleum, and places where explosion-proof is required. And subdivided into single phase. For lighting, three-phase, for machine tools and other places.
●The shell is made of glass fiber reinforced unsaturated polyester resin pressed or welded with high-quality stainless steel.
●It is corrosion-resistant, antistatic, impact-resistant and has good thermal stability.
●Stainless steel exposed fasteners, high corrosion resistance.
●Stainless steel exposed fasteners, high corrosion resistance.
●The socket is equipped with a protective cover. After the plug is pulled out, the socket is covered with a protective cover to prevent sundries from entering.
●Steel pipe or cable wiring is acceptable.
●The enclosure is Safety-increasing type with flameproof switch inside.
●Plugs are connected to electrical equipment.
●The socket is equipped with reliable mechanical interlocking device, that is, the switch can be closed only after the plua is
inserted into the socket, and the plug can be pulled out after the switch is disconnected.
inserted into the socket, and the plug can be pulled out after the switch is disconnected.
Due to the impact of ambient environmental factors (such as temperature, dust, corrosion, etc.) on the plug and socket assembly, the contact resistance between the plug and socket can vary significantly, directly affecting electrical transmission performance. Therefore, a specialized interlocking device is designed at the connection point between the plug prongs and the socket. Once the plug is inserted into the socket, the switch does not close without rotation, and when the switch is closed, the plug cannot be removed, ensuring non-live operation.
Installations&Dimensions
Real Photos
Product Application
Product Applications：
●Abrasive Blasting
●Automotive Repair Services
●Chemical Plants
●Dispensing Areas
●Industrial Process Facilities
●Rail Yard
●Drilling Rigs
●Wastewater And Sewage Plant
●Gas And Oil Refineries
●Food Processing Plants
●Paint Booths
●Automotive Repair Services
●Chemical Plants
●Dispensing Areas
●Industrial Process Facilities
●Rail Yard
●Drilling Rigs
●Wastewater And Sewage Plant
●Gas And Oil Refineries
●Food Processing Plants
●Paint Booths
Packing&Shipping
Company Introduction
About LampSuite
LampSuite was established in 2016. It is a national high-tech enterprise that intearates R&D production, sales and service. The headquarters is located in Changzhou Dianya Plaza and serves as the leader of explosion proof lighting industry.
There are more than 200 workers including the R&D team, technical engineers and other workers. We have more than 28 production lines. Monthly output can reach 10000 units. With the German OSRAM, PHILPS, Cree and other international brand enterprises to cooperate fully, the introduction of advanced technology and production testing equipment at home and abroad, the realization of machining precision automation.
Among them, LampSuite Lighting upholds strict quality management, applies new ideas, new forces, new technologies, and is committed to R&D and production various kinds of industrial lighting fixtures, and provides professional customization according to the individual needs of the market such as oil, chemical, natural gas, marine platform, coal mine, army, public security,fire,railway, highway, port and other industries.
LampSuite was established in 2016. It is a national high-tech enterprise that intearates R&D production, sales and service. The headquarters is located in Changzhou Dianya Plaza and serves as the leader of explosion proof lighting industry.
There are more than 200 workers including the R&D team, technical engineers and other workers. We have more than 28 production lines. Monthly output can reach 10000 units. With the German OSRAM, PHILPS, Cree and other international brand enterprises to cooperate fully, the introduction of advanced technology and production testing equipment at home and abroad, the realization of machining precision automation.
Among them, LampSuite Lighting upholds strict quality management, applies new ideas, new forces, new technologies, and is committed to R&D and production various kinds of industrial lighting fixtures, and provides professional customization according to the individual needs of the market such as oil, chemical, natural gas, marine platform, coal mine, army, public security,fire,railway, highway, port and other industries.
FAQ
1. Who are we? Do you have a website?
We Lampsuite, are based in Jiangsu, China, start from 2014, have been in the explosion proof lighting industry for about 10 years.
Website: www.lampsuite.com
2. How can we guarantee quality?
ATEX, CE certification5 year warranty Complete testing and after-sales mechanism
3. Is a sample available?
Yes, sample available. We can also customize for 1 pcs of sample.
4. Can I be your agent?
Yes. After being agents, we can offer you agents's price and optional service.
5. Can I get a price list?
Yes, I can offer you a price list of porpular models for your reference, please contact zoe@lampsuite.com accordingly.
We Lampsuite, are based in Jiangsu, China, start from 2014, have been in the explosion proof lighting industry for about 10 years.
Website: www.lampsuite.com
2. How can we guarantee quality?
ATEX, CE certification5 year warranty Complete testing and after-sales mechanism
3. Is a sample available?
Yes, sample available. We can also customize for 1 pcs of sample.
4. Can I be your agent?
Yes. After being agents, we can offer you agents's price and optional service.
5. Can I get a price list?
Yes, I can offer you a price list of porpular models for your reference, please contact zoe@lampsuite.com accordingly.
Похожие товары
Взрывозащищенный фонарь 120 Вт 200 взрывозащищенный прожектор 150 заводской склад уличный свет
Автозаправочная станция для нефтяных месторождений 150 лм/Вт завод IP66 уличный светодиодный прожектор 25 Вт 50 взрывозащищенный
14 975,22 ₽ - 15 418,93 ₽
Влажное расположение настенный кронштейн Ip66 Atex Exp Незащищенный взрывозащищенный знак выхода свет Взрывозащищенная лампа для Zon1 Zone2
5 568,57 ₽ - 8 164,27 ₽
Светодиодные взрывозащищенные потолочные светильники интегрированные аварийные люминесцентные лампы
IP66 Взрывозащищенная лампа IIA IIIB IIC DIP промышленная Антикоррозийная Светодиодная высокого качества
Промышленный взрывозащищенный светодиодный свет IP66 прозрачный стеклянный алюминиевый корпус Заводская заправочная станция уличный

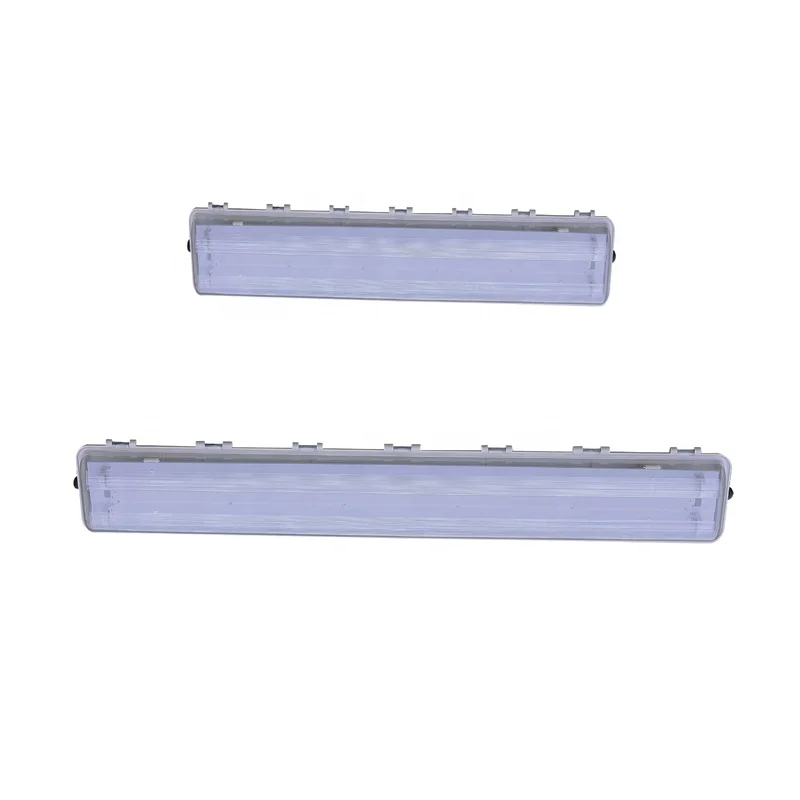

BYS Инженерная пластиковая Взрывозащищенная 2x36 Вт 4 фута флуоресцентная лампа светодиодное освещение Антикоррозийная Водонепроницаемая Пылезащитная
