5 т/д физическая машина для переработки хлопкового масла пальмового с дезодорированием от обесцвечивания
1 754 264,76 ₽
1 2 т/д оборудование для переработки растительного масла арахисового пальмового соевого
- Категория: >>>
- Поставщик: Zhengzhou Hongte Machinery Import And Export Co. Ltd.
Сохранить в закладки 1601278773499:
Описание и отзывы
Характеристики
Products Description

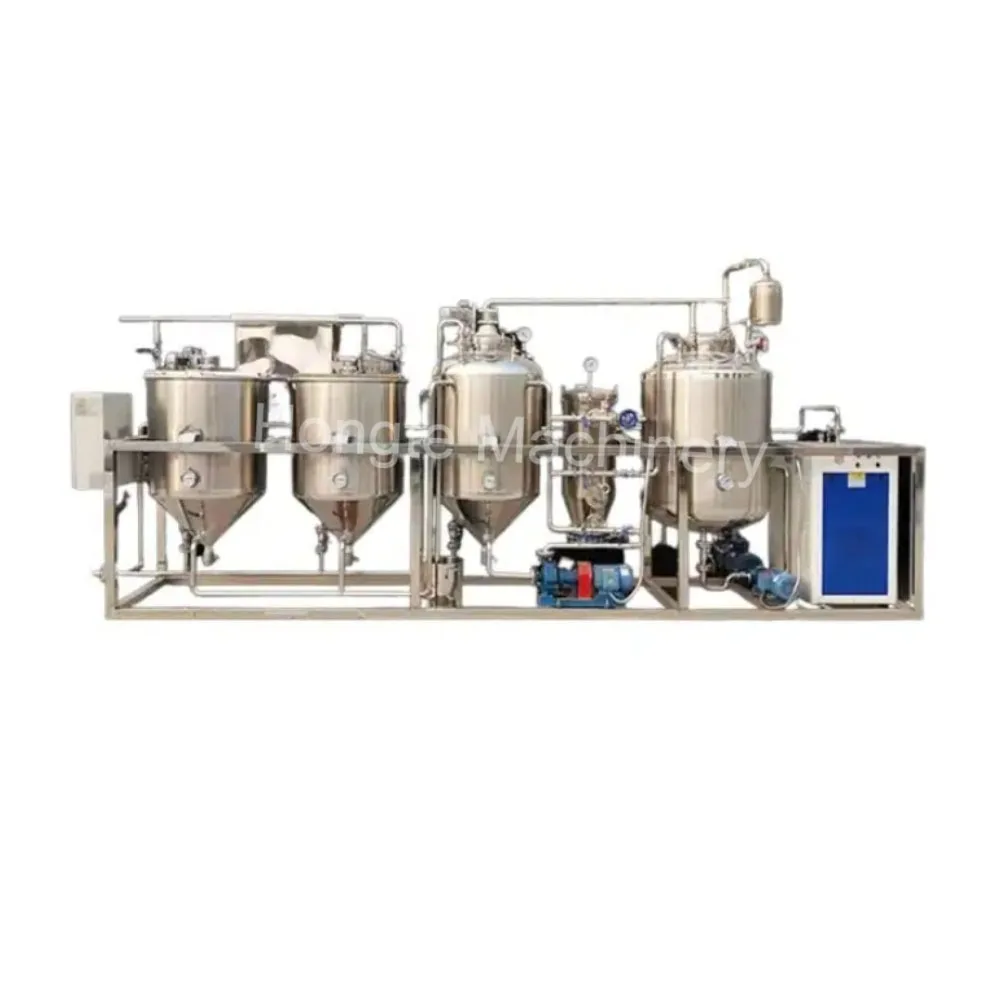

1.Small edible oil refinery machine structure:
This part is consist of mixer, deguming tank, gum outlet and transfer pipe
3.Filter de-coloring system of our small edible oil refinery machine:
This part is consist of oil inlet, a sealing cover, cover handle, fine filter bucket, oil collecting tank, filter cloth, and oil outlet.
4.Transmission system of our small edible oil refinery machine:
This part is consist of speed control motor, motor controller, governor and power module
5.Electrical control system of our small edible oil refinery machine:
This part is consist of miniature circuit breaker, motor controller, power supply module, contactor, relay, potentiometer and knob.
The machine is consist of hydration deguming&deacidification system, filter de-coloring, transmission system, oil liquid conveying system, transmission and lubrication system, electrical control system and machine frame.
2.Hydration deguming&deacidification system of our small edible oil refinery machine:
This part is consist of mixer, deguming tank, gum outlet and transfer pipe
3.Filter de-coloring system of our small edible oil refinery machine:
This part is consist of oil inlet, a sealing cover, cover handle, fine filter bucket, oil collecting tank, filter cloth, and oil outlet.
4.Transmission system of our small edible oil refinery machine:
This part is consist of speed control motor, motor controller, governor and power module
5.Electrical control system of our small edible oil refinery machine:
This part is consist of miniature circuit breaker, motor controller, power supply module, contactor, relay, potentiometer and knob.
Product Specifications
No | Parts | Parts specification | Qty | Tank capacity/work capacity (L) | Power (kw) | Measurement (L*W*H) (mm) | Weight (kg) | |||
1 | Refining tank | DN700*1300 | 2 | 330/250 | 12/0.74 | 3840*900*2140 | 750 | |||
2 | Vacuum dehydration tank | DN650*1290 | 1 | 390/250 | 12 | |||||
3 | Vacuum buffer tank | DN300*500 | 1 | 35 | / | |||||
4 | Decoloration tank | DN650*1100 | 1 | 360/300 | / | |||||
5 | Water circling vacuum pump | 2BV2061 | 1 | / | ||||||
6 | Oil Pump | / | 2 | / | ||||||
7 | Processing capacity | 0.5-2t/24h (ton per 24 hours) | ||||||||
The full refining process can be divided into neutralization, washing, vacuum drying,decolorization, deodorization, and
deparaffinization stages. Fully refined edible oil: light. Odorless, raises the point of smoke, and has a longer shelf life. Semi refining process:
neutralization stage, washing stage, vacuum drying stage.
After the semi refined edible oil: clear, the smell of the original edible oil is preserved, the smoke point is raised, and the
oil shelf life is extended.
Low temperature cold filtration: after cooling down, precipitation and other processes take off the wax in the edible oil. Heavier olid particles. Low temperature and cold filtration preserved the maximum amount of nutrients in edible oil, and the original smell, after dewaxing guaranteed clear oil.
deparaffinization stages. Fully refined edible oil: light. Odorless, raises the point of smoke, and has a longer shelf life. Semi refining process:
neutralization stage, washing stage, vacuum drying stage.
After the semi refined edible oil: clear, the smell of the original edible oil is preserved, the smoke point is raised, and the
oil shelf life is extended.
Low temperature cold filtration: after cooling down, precipitation and other processes take off the wax in the edible oil. Heavier olid particles. Low temperature and cold filtration preserved the maximum amount of nutrients in edible oil, and the original smell, after dewaxing guaranteed clear oil.
Edible oil refining is a set of processes or treatments necessary to turn vegetable raw oil into edible oil.Raw vegetable oil,
obtained from seeds by pressing, solvent extraction, contains free fatty acids and other components such as phospholipids, waxes,
peroxides, aldehydes, and ketones, which contribute to undesirable flavor, odor, and appearance; for these reasons, all the oil
has to be refined.
obtained from seeds by pressing, solvent extraction, contains free fatty acids and other components such as phospholipids, waxes,
peroxides, aldehydes, and ketones, which contribute to undesirable flavor, odor, and appearance; for these reasons, all the oil
has to be refined.
Other Refinery Equipment 1-200T/D Customized
Application
Oil Refining Machine
It is suitable for refining various crude oil, vegetable oil, such as sunflower seed oil, tea seed oil, peanut oil, soybean
oil,corn oil, groundnut oil and so on.
oil,corn oil, groundnut oil and so on.

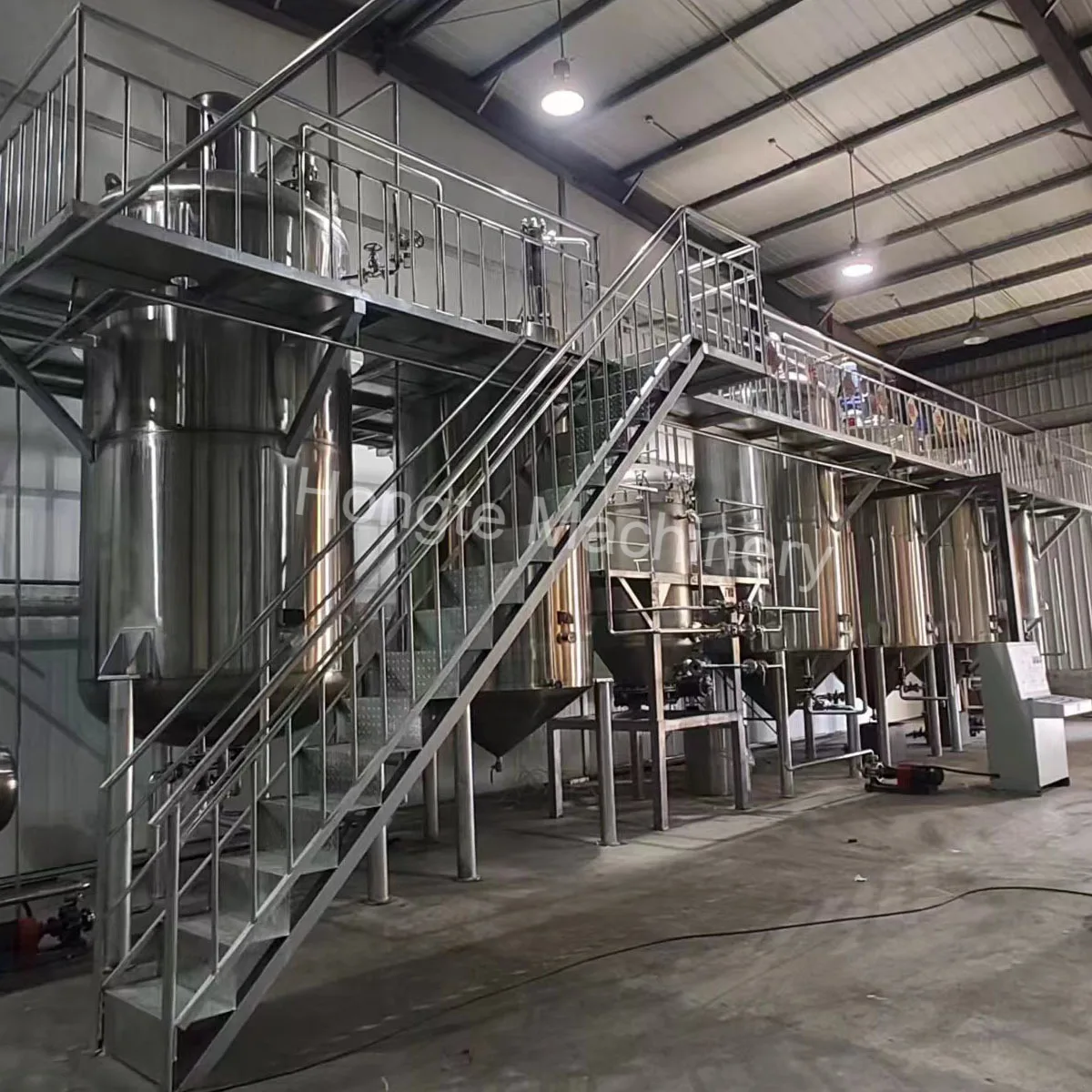

Installation case
Our Advantages
Packing and delivery
Recommend Products
FAQ
Q1.What is your terms of packing?
A: Generally, we pack our goods in wooden case with squeezed foam board . If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in wooden case with squeezed foam board . If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
