3 крыла вогнутые 6 дюймов PDC сверло для добычи угля бурения скважин
- Категория: >>>
- Поставщик: Speedmade Industries Co. Ltd.
Сохранить в закладки 1601279293843:
Описание и отзывы
Характеристики
Specification
item | Value |
Standard | ISO9001:2015 |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Construction works , Energy & Mining |
Weight (KG) | 6 |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2024 |
Place of Origin | China |
Hunan | |
Condition | New |
Brand Name | FS |
Type | DRILL BIT |
Machine Type | Drilling Tool |
Material | Carbon steel |
Processing Type | Forging |
Use | Coal Mining |

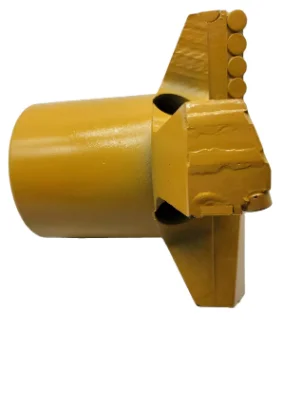

Product name | 3 Wings Concave Drill Bit |
Quality | High Quality |
MOQ | 20PCS |
Size | 153mm |
Thread | 2" API REG Thread |
Size: 153mm/ 6"inch
Cutter:12pcs 1304, 2pcs 1304
Weight: 6kg
Suitable strata: red sandstone, mudstone, coal seam, backfill, limestone, dolomite and other intact strata
Mainly use for: water well, geothermal, grouting hole, tile wire discharge hole, slope, support, anchor cable
Cutter:12pcs 1304, 2pcs 1304
Weight: 6kg
Suitable strata: red sandstone, mudstone, coal seam, backfill, limestone, dolomite and other intact strata
Mainly use for: water well, geothermal, grouting hole, tile wire discharge hole, slope, support, anchor cable
Rock and Soil Types | Degree of Weathering | fa0 | qik |
clay, silty clay | Hard plastic | 200 | 60 |
Soft plastic | 100 | 30 | |
gravelly soil | Soft-slightly less density | 350 | 120 |
cobbly soil | Slightly-middle density | 450 | 140 |
silty mudstone, sandy mudstone, mudstone, marl | Strong weathering | 350 | 120 |
Moderately weathering | 800 | ||
siltstone, sandstone | Strong weathering | 450 | 140 |
Moderately weathering | 1000 | ||
basalt | Strong weathering | 500 | 150 |
Moderately weathering | 1200 | ||
limestone, dolomite | Strong weathering | 600 | 160 |
Moderately weathering | 1200 |
Custom Process
If you need to customize the product, please specify the requirements for customization before placing an order.
Please let me know the following informations.
Customized products
The main parts that can be customized are: PDC piece, hard alloy piece, thread type, bit gauge protection, size, type, coating, drawing.
1. Custom PDC
PDC comprise diamond surface, hard alloy as the base
D: Diameter, H: Height (The total height of the PDC), t: The Height Of Diamond Layer
The main sizes are: 1005,1304, 1305, 1308,1613,etc.
2. Custom Thread
If you need to customize the thread, please measure the data of each part according to the following diagram.
There are straight and conical threads. We can also send the thread drawings as shown below directly
3. Custom bit gauge protection
About drill bit steel body gauge protection teeth insets material and position.
(1) Material
Hard Alloy
Hard alloy is a powder of one or several refractory carbides (tungsten carbide, titanium carbide, etc.) as the main component, and a metal powder (cobalt, nickel, etc.) added as a agglomerant. The main models are YG, YW, YT. According to the features of the metal, according to the features of the formation, select the corresponding corrosion resistance, heat resistance, compressive strength of good materials. It has wide range of application, flexible choice according to the actual situation.
PDC
PDC is the abbreviation of polycrystalline diamond compact. A cutters to shear rock with a continuous scraping motion. The cemented carbide substrate and diamond surface, have good compressive strength, heat-resistant capacity, performance of cemented carbide and the hardness of diamond. It has good rock cutting performance.
(2) Position
Wing Side
Prevent excessive wear of the side of steel body in the drill work, and balance drilling process through the rock and soil fomation (choose more)
Under Wing
Bear part of the pressure brought by the side of drill bit during the bit rotation to increase the cutting speed and reduce blade wear
Top
Based on the same model increases the effective cutting area, thereby increasing the drilling speed
4. Customized product display pictures

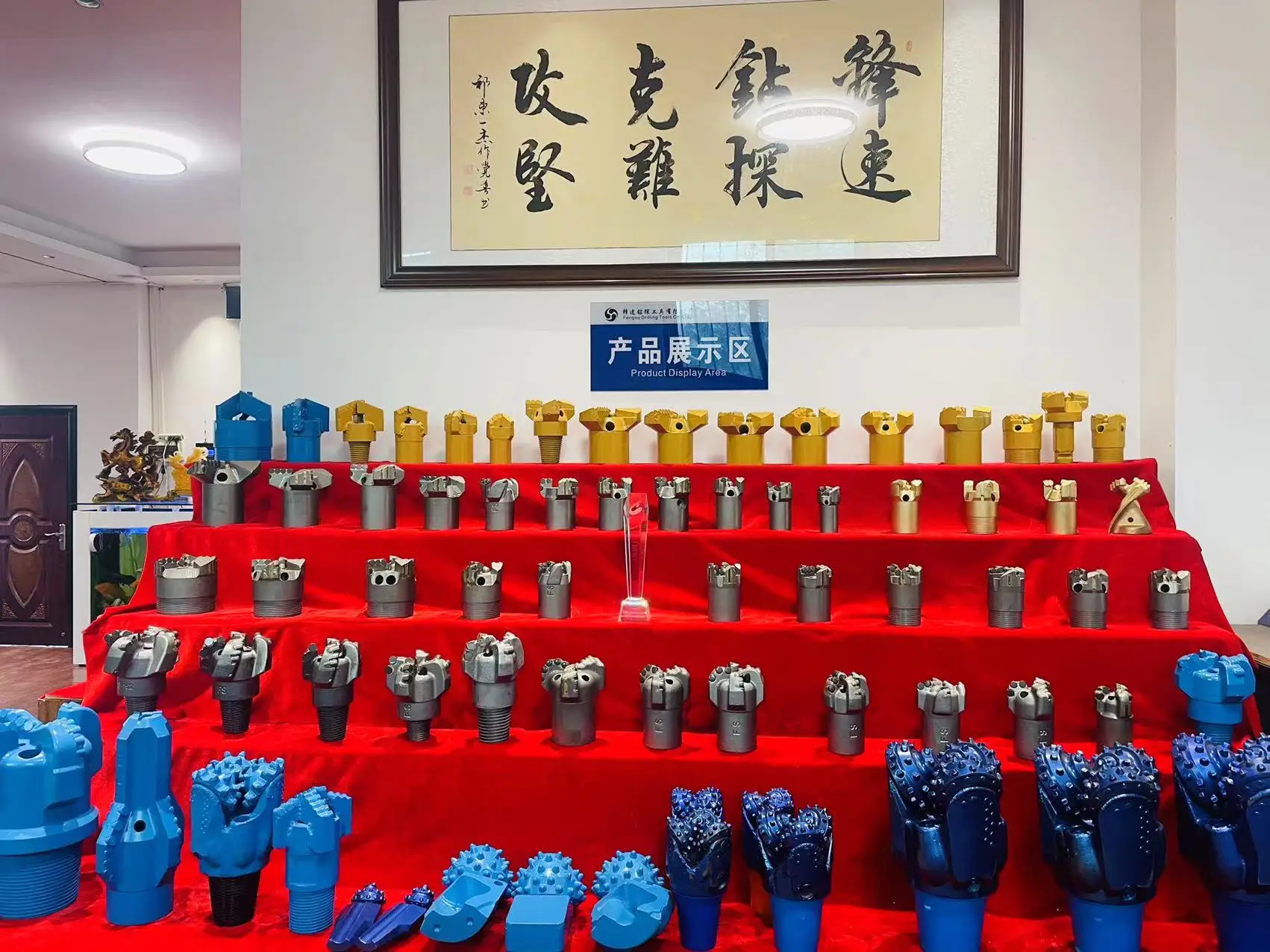

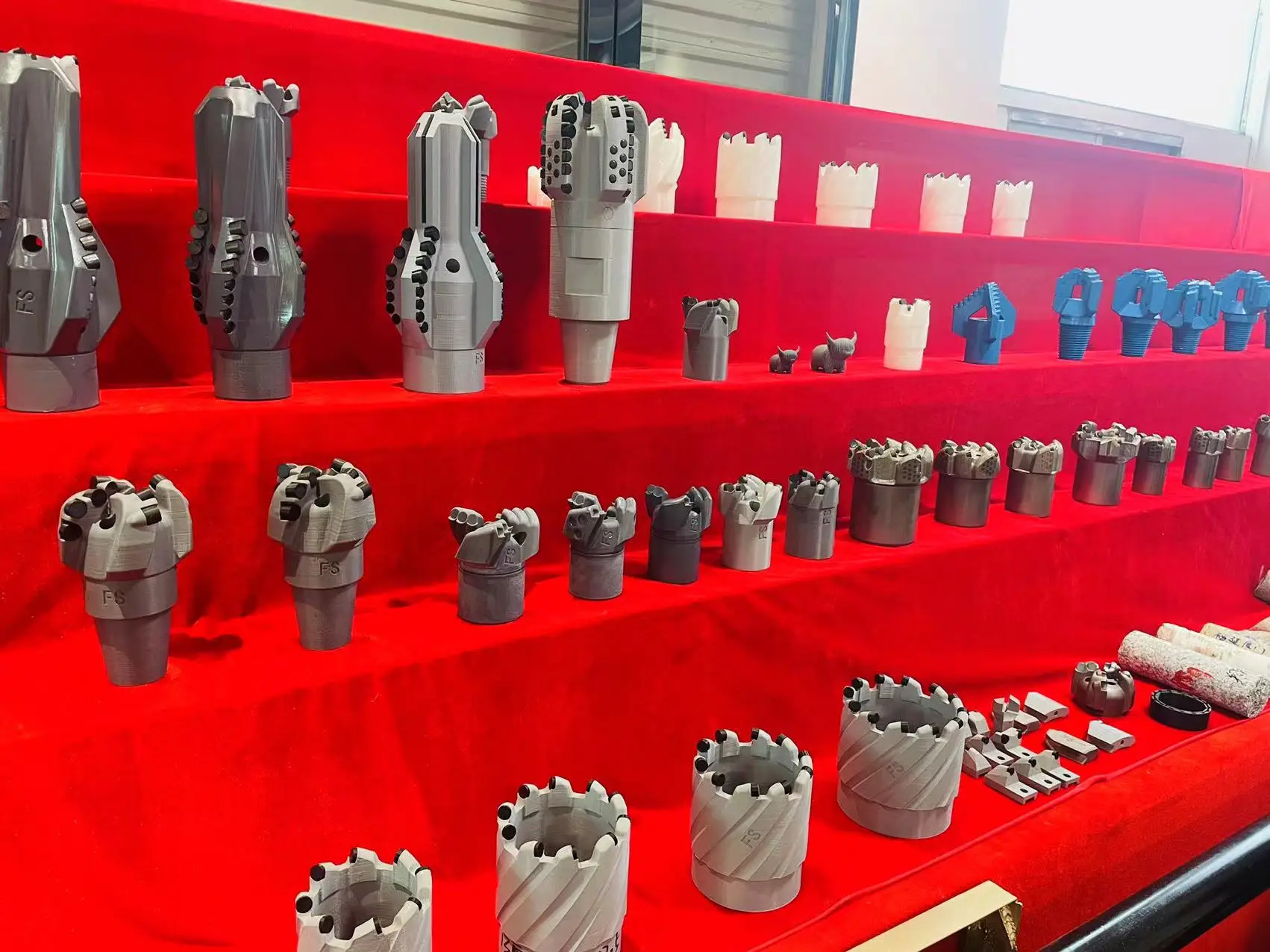

Show time
Speedmade Industries custom products
Custom all kinds of sizes, models, threads
Design drawings/ graphics can be customized
Custom Products
Custom Blades/ Cutting Board
Customer Feedback
Three-wing Drag bit.
Construction Site Product Test
Drilling Rig | Xitan 150 |
Type of Drill Bit | 75# 3" Three-wing conventional scraper bread slices 42 thread connection, one PDC piece gauge under each wing |
Stratum | Pavement concrete |
Use condition | At present, a drill bit (as shown at left side) has drilled more than 400 holes |
a hole has 3 meters, a total of about 1200 meters, the composite sheet | |
has no wear, and the steel body has a little wear on the side of each wing |
Three-wing Concave Drag bit.
Tuff Formation Product Test
Drilling Rig | Changtan 200 |
Type of Drill Bit | 133# 5-1/4" Three wing reinforced concave |
Stratum | Tuff |
Penetration Speed | 2-3m/ h |
Use condition | Fast penetration speed |
Good wear resistance | |
Smooth use | |
Unplugging | |
Drilling without blocking |
Company Profile
Speedmade Industries Co., Ltd. is referred to as FS.
The following is workshop and production equipment pictures of FS factory.
Company brief introduction
Hunan Speedmade Industries Co., Ltd. was established in 2009.
It covers an area of over 2000㎡.
We have more than 50 machines and equipments, 5 production lines.
We have independent R&D team, won more than 100 R&D patents.
Our product widely used, mainly used in Wells,ground heat sources, coal mines, geotechnical engineering, geological exploration, slope support, oil fields and other aspects.
It covers an area of over 2000㎡.
We have more than 50 machines and equipments, 5 production lines.
We have independent R&D team, won more than 100 R&D patents.
Our product widely used, mainly used in Wells,ground heat sources, coal mines, geotechnical engineering, geological exploration, slope support, oil fields and other aspects.
workshop of plant
We have cutting machine, grinding machine, polishing machine, thread cutting machine, slot milling machine, welding machine, flushing machine, heat preservation machine, laser engraving machine, wrapping machine, etc. We use these machine to process and produce customers' products.
Certifications
Our certificate of honor
All kinds of patent technical certification issued by Hunan Provincial Department of Industry and Information Technology.
Packing & Transportation
Express delivery service provided by our shop
Packaging
We mainly use carton and wooden box two packaging methods, if there are other packaging materials requirements, support customization.
Carton
Samples and lighter goods
Wooden Case
Large cargo
Four shipping options are available
Sea Freight
Air Freight
Land Transportation
Express Delivery
If there is a designated carrier, please let us know.
FAQ
1. who are we?
We are based in Hunan, China, start from 2019,sell to South Asia(16.00%),Mid East(15.00%),Africa(13.00%),Southeast
Asia(12.00%),Eastern Asia(10.00%),North America(8.00%),Central America(6.00%),South America(6.00%),Northern Europe(4.00%),Western
Europe(3.00%),Domestic Market(3.00%),Oceania(2.00%),Eastern Europe(1.00%),Southern Europe(1.00%). There are total about 51-100
people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PDC drill bit,diamond core bit,water well drill bit,alloy drill bit,core drill bits
4. why should you buy from us not from other suppliers?
The company has built a high-performance Diamond core bit, DTH hammer bits, hole opener and PDC bit and drilling tools production
line with advanced technology, complete equipment and standardized management,we are drilling bits professional manufacture.Hi
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,French,Russian
We are based in Hunan, China, start from 2019,sell to South Asia(16.00%),Mid East(15.00%),Africa(13.00%),Southeast
Asia(12.00%),Eastern Asia(10.00%),North America(8.00%),Central America(6.00%),South America(6.00%),Northern Europe(4.00%),Western
Europe(3.00%),Domestic Market(3.00%),Oceania(2.00%),Eastern Europe(1.00%),Southern Europe(1.00%). There are total about 51-100
people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PDC drill bit,diamond core bit,water well drill bit,alloy drill bit,core drill bits
4. why should you buy from us not from other suppliers?
The company has built a high-performance Diamond core bit, DTH hammer bits, hole opener and PDC bit and drilling tools production
line with advanced technology, complete equipment and standardized management,we are drilling bits professional manufacture.Hi
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,French,Russian
Похожие товары
Стандартные рыболовные инструменты API оттискной блок для бурения нефти и газа
66 040,14 ₽
API Стандартные инструменты для скважин роликовый расширитель нефтяных местностей
660 401,40 ₽ - 880 535,20 ₽
Шланги для бурильной установки высокого давления
52 832,12 ₽ - 54 923,39 ₽
Зубчатые тиски/зубчатые тиски для труб с присоской
72 102,88 ₽ - 77 649,25 ₽

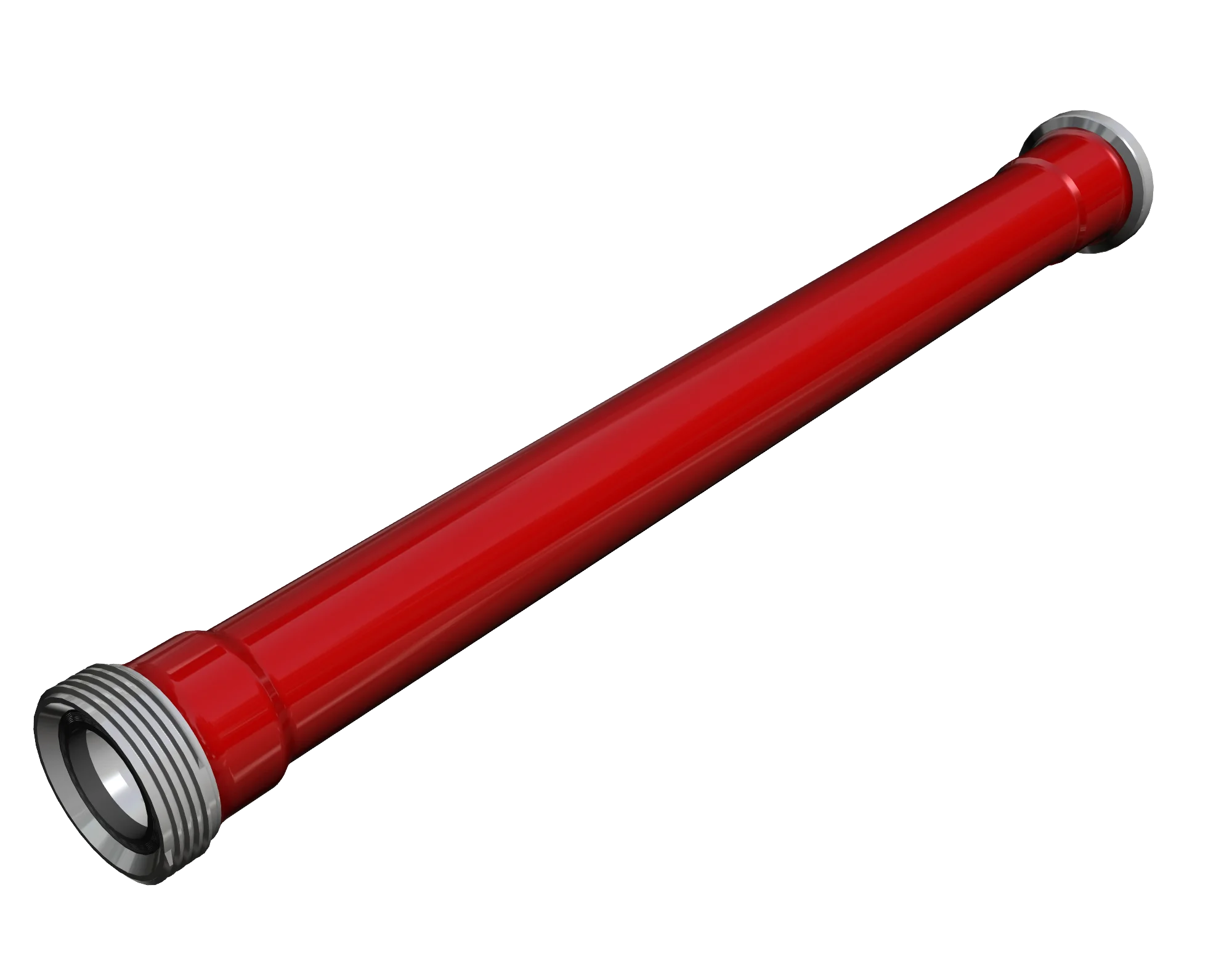

Буровая труба буровая инструменты для бурения 2 7/8 10 новый продукт 2020 1 шт. буровое долото на заказ
2 201,34 ₽ - 9 906,03 ₽
Соединение для труб/петли шланга со встроенным 1502
4 402,68 ₽ - 5 503,35 ₽

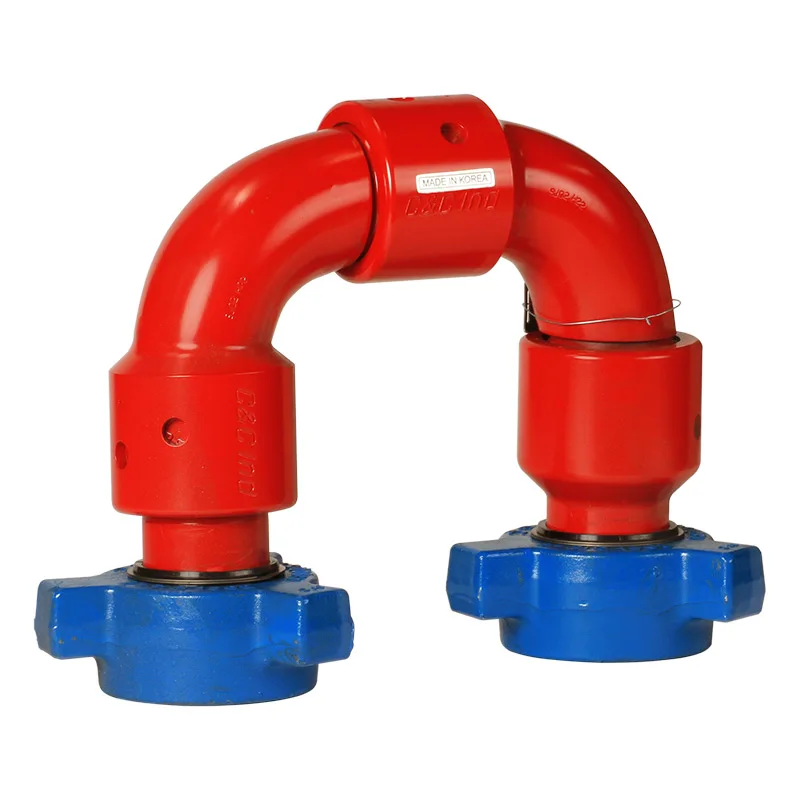

Активные коленчатые шарнирные соединения Высокого Давления API Chiksan/длинный Поворотный Шарнир Chiksan
