Небольшой Мусоровоз 4 куб. М 5

Main specification

Product model and name

Steering type

Right hand drive or Left hand drive

Drive type

4X2

Gross weight(Kg)

6000

Overall dimension(mm)

(for reference)

6100×2050×2270

Axle No.

2

Cab seats

2

Wheelbase (mm)

4500

Transmission

 5 forward gears, 1 reverse gear

Chassis specification

Brand name

Tyre No.

6+1(for spare)

Tyre specification

Front/Rear axle(T)

2/4

Fuel type

Diesel

Emission standard

Euro 2

Engine model

Engine power(Kw)

Horsepower(hp)

4HK1-TCG61

Body Performance

Body capacity(m³)

5/6/8/10

Thickness

Side:4mm, bottom:4mm

Body material

high quality Q345 manganese steel plate

Max pressure of hydraulic system

18MPa

Body shape

 curved

Hydraulic oil pump

Made in China

Multi-way valve

Made in China

Compression ratio

 ≥2.5

Hydraulic Cylinder

BoLi

Filler effective volume

≥0.8m3

Control system

Germany Siemens PLC electronic control(Imported)

Filling cycle per time

 ≤40S

Unloading garbage time

≤45S

Flip mechanism

rear hanging bucket turning mechanism

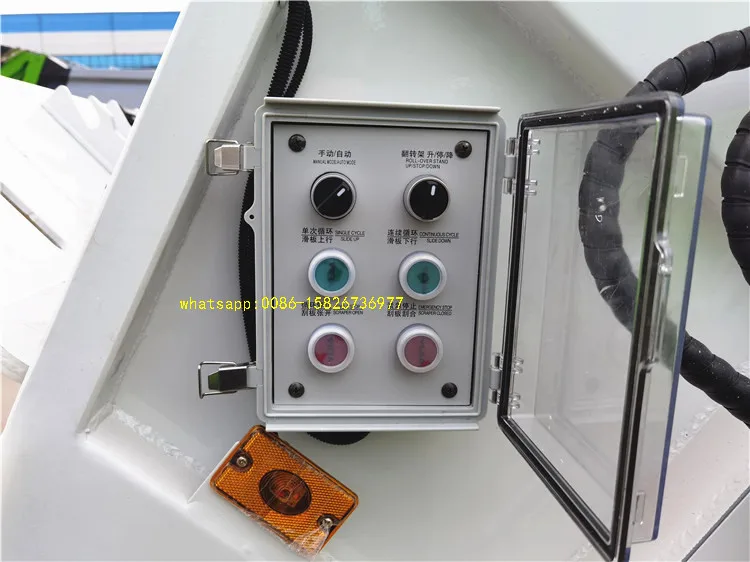

Control system

Manual + Automatic

Main Characteristic

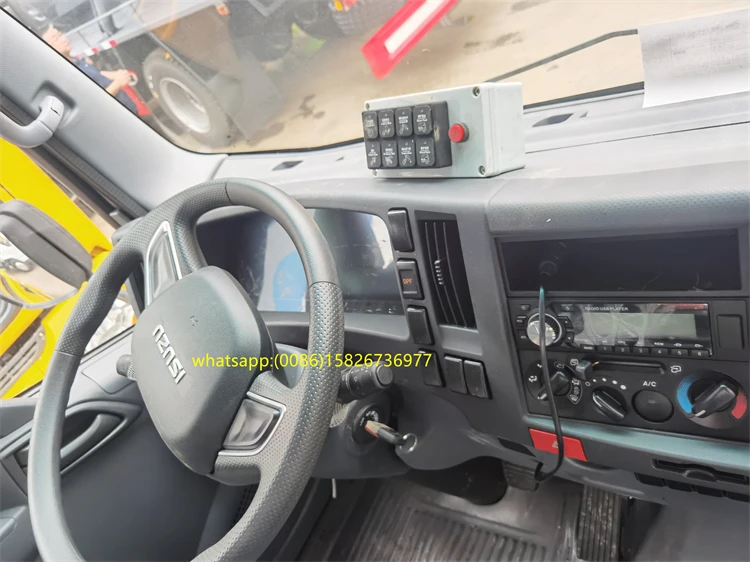

1.. With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient.

2.  With working device of emergency braking stop button.

3.  Garbage body use frame design, elegant, strong structure, large effective capacity.

5.  Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.

5.Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression.
