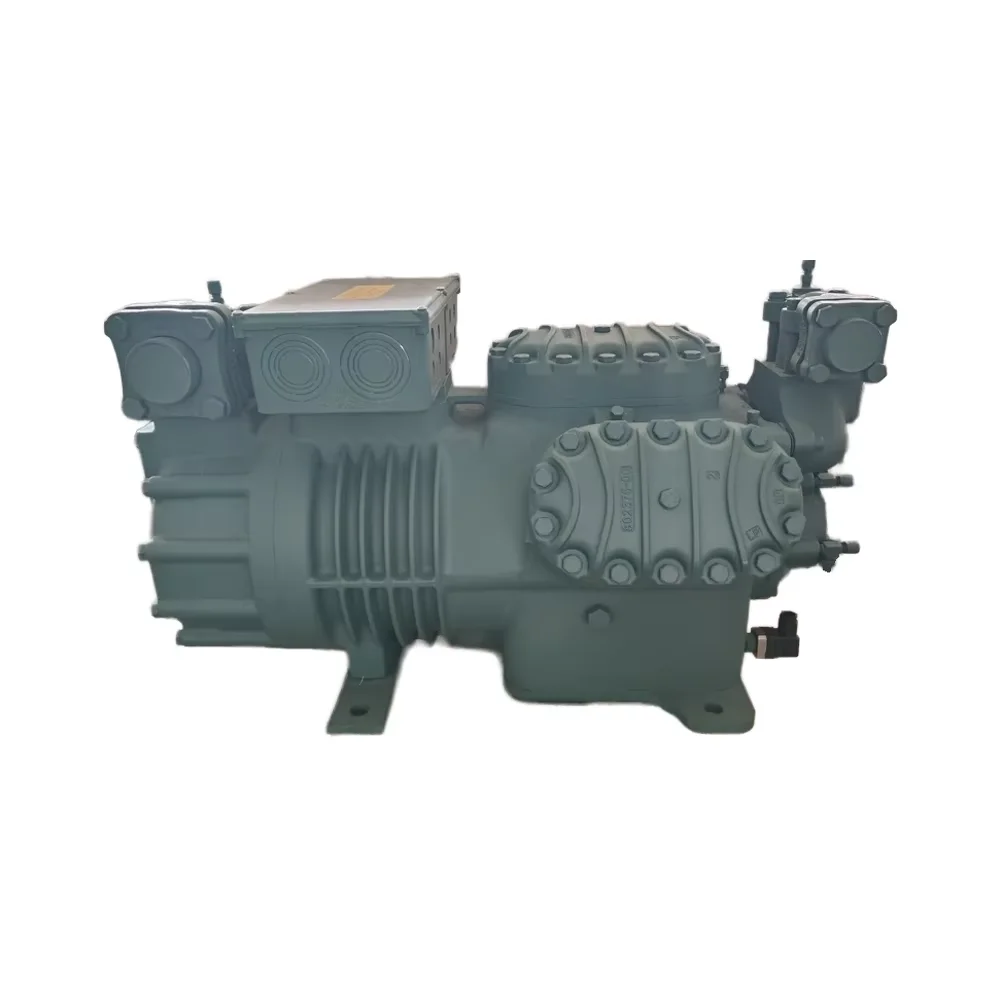

Промышленный Холодильный морозильник полузакрытый 15 л.с. бесмасляный поршневой воздушный компрессор для холодильного хранения
44 083,36 ₽ - 55 104,20 ₽

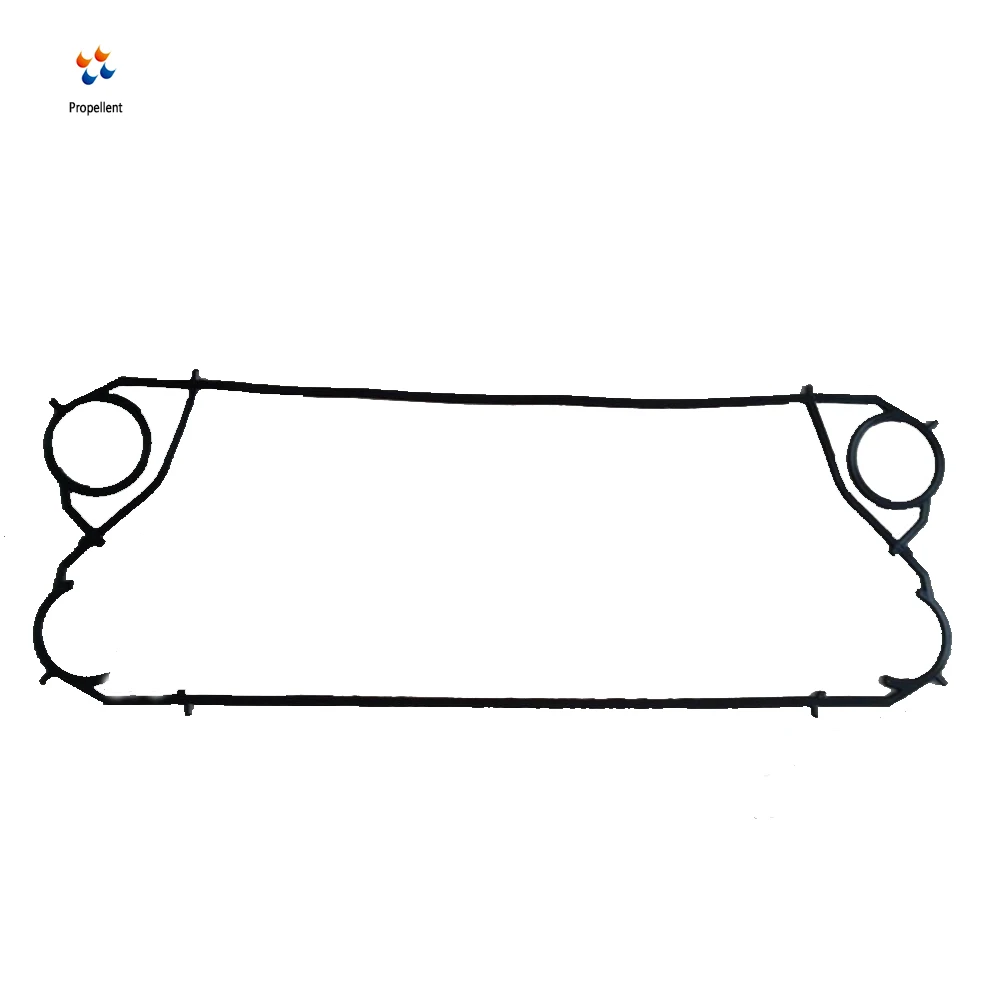

Пластинчатый теплообменник X91 X118 X140 EPDM HEPDM FKM прокладка для утилизации отработанного тепла кальцинированной соды
- Категория: >>>
- Поставщик: Shandong Propellent Energy Technology Co. Ltd.
Сохранить в закладки 1601279392353:
Описание и отзывы
Характеристики
Product Overview
Propellet provide a variety of type of gaskets that meet all requirements of the heat transfer. And the gaskets well premium for the media that being treated in the heat exchangers. The gasket fits the plate perfectly and provides tight sealing. The quality of a gasket is directly tied to the gasket design and the materials used in its production. The composition of the rubber compound not only determines the lifetime of the gasket and its ability to maintain elasticity, but also its areas of application. Some gaskets are better suited for aggressive media than others, so it is important to choose the right gasket for the right duty.
We offer abundant types of replacement parts for plate heat exchangers, these spare parts apply to international brands in all direction, such as Alfa Laval, GEA, APV, Sondex, Tranter, Vicarb, Hisaka, API etc, to meet our clients' demand all over the world.
Gasket Material | Temperature Range ( ºC ) | Hardness | Available Medium |
NBR | -20 to 110 | -75+/-3 | Water, Oil, Acid etc. |
EPDM | -30 to 150 | 80+/-5 | Steam, Ammonia, Acid, Glycoletc. |
NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil, Thermal Oil |
EPDM-HT | -30 to 180 | 85+/-5 | High Tempearture Water |
FPM | -55 to 220 | 80+/-5 | High Temperature Oil |
Brands | Plate heat exchanger models | ||||||
AlfaLaval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, 22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 | ||||||
APV | T4, SR1, SR2, SR3, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134, R5, SR9, Q series, J series, A series, H17, 35 series | ||||||
GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 | ||||||
Tranter | GC8 GX26 GC51 GX64 GX145 GL13 GX42 GX51 GX85 GL16 GCD 044 GC60 GX91 GC26 GCD 054 GX 60 GX100 | ||||||
Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 | ||||||
Vicarb | V8, V13, V20, V28, V45, V60, V85, V110 | ||||||
SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180, GX series | ||||||
FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 | ||||||
Thermowave | TL90SS, TL90PP, TL150SS, TL150PP, TL250SS, TL250PP, TL400SS, TL400PP, TL500SS, TL500PP, TL650SS, TL650PP | ||||||
API | SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 | ||||||
Propellent Plate Heat Exchanger | ||
Plate Type | Single plate | |
Flow Channel Between Plates | 3.5mm ~12.0mm (Optional depends on working condition) | |
Plate Thickness | 0.4mm ~ 1.0mm | |
Heat Transfer Plate Material | Stainless steel - 304/304L, 316/316L, 254 SMO, Titanium, Hastelloy C-276, others | |
Gasket Material | NBR, EPDM, HNBR, HEPDM, NBR-HT, FKM, Viton A, Viton G | |
Pressure Plate Material | Carbon steel, stainless steel and others on request | |
Temperature Range | -50℃ ~ +180℃ Varies with the media and gasket selection. | |
Maximum Pressure | Maximum standard pressure 10 bar / 16 bar | |
Port Connection | DN32, DN50, DN80, DN125, DN150, DN200, DN250, DN350 | |
Applications:
Alumina Beer Beverage Chemical Dairy Data center Marine Milk Oil and Gas Paper-pulp Petrochemical Pharmaceutical Power-plant Refrigeration Waste water
Company Profile
Propellent Plate heat exchanger consists of a pack of corrugated metal plates, gaskets and a fix frame. The plate pack is assembled and fixed on the frame by tightening bolts. The heat is transferred through the plate between the channels which are sealed by gaskets. Our large selection of plates, plate patterns, and pressing depths enables us to cover all thermal duties with solutions that match the requirements perfectly. Propellent can be able to offer a full range of heat exchange design calculation in full working condition. We have accumulated rich experience in heating, cooling and waste heat recovery for complex process mediums. Propellent never views separately in the selection of heat exchange equipment applications, but put it in the whole process production line, Therefore, we find the best balance to consider the whole initial investment in equipment and long-term operating costs. We optimize manufacturing processes of our clients and reduce the use of fresh energy to provide our customers maximum value when we find reasonable main points in high heat transfer efficiency and pressure loss.
Plate Heat Exchanger Producation
Shipping&Packing
If you have any problems and requirments about our products, please don't hesitiate to contact us.
Products Specfications
FAQ
1.Q: I haven't done business with you guys before,how can I trust your company?
A: Our company has been in Alibaba.com for 7 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough.
2.Q: Are there any discount for the plates for the heat exchangers?
A:Yes. Bigger quantity will enjoy lower discount!
3.Q: What information needed if I want a quotation?
A:Please tell us the type of the plate, the application medium, if not above these，please advise us the type of heat exchangers, Material , Heat Exchanger Capacity, Heat Transfer Area, Liquid Flow and Temperature in and out ,quantity, or any requirements in size.
4.Q: What is the MOQ?
A:We accept loose quantity order,mixed order,any trial orders.
5.Q: When can I get the price?
A:We usually quote within 2 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
6. Q: How to test the quality of your product?
A: Samples are available for quality test; Or you can also pay a visit to our factory to know more about our products.
7. Q: Is there after-sales service of your products?
A: Yes. If any problem about the
product, pls just feel free to contact us at any time.
product, pls just feel free to contact us at any time.
Похожие товары

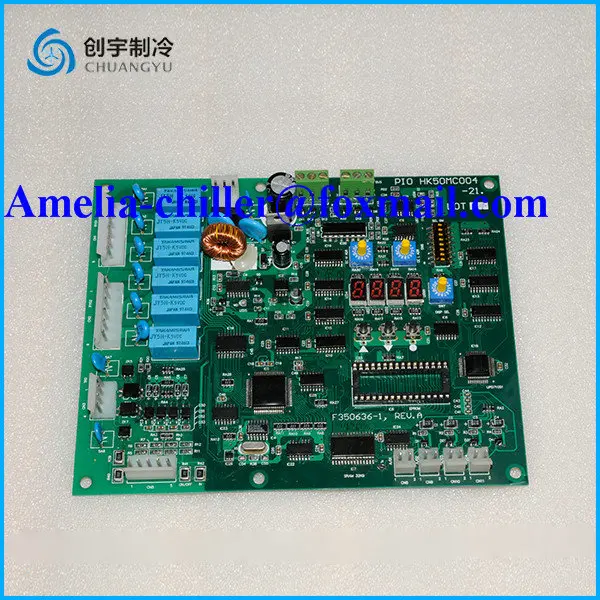

Переносной охладитель холодильники запчасти плата управления HK50MC00421
Йорк 02632839000 масляный фильтр охладитель запасные части

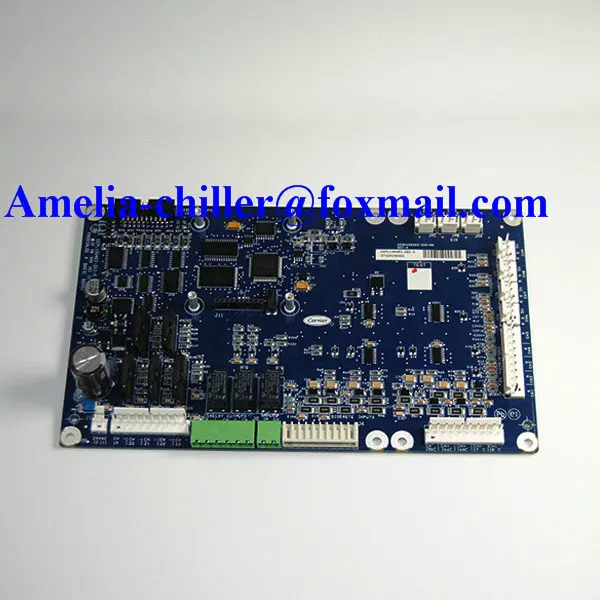

Плата управления перевозчиком 32GB500-182-EE и 32GB500-192-EE частей

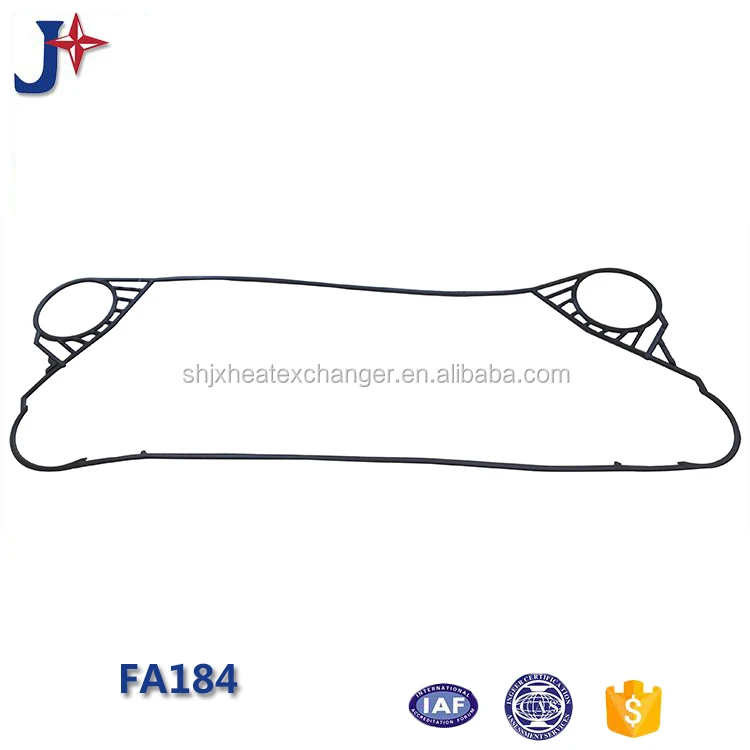

Теплообменник прокладки GEA FA184 замены

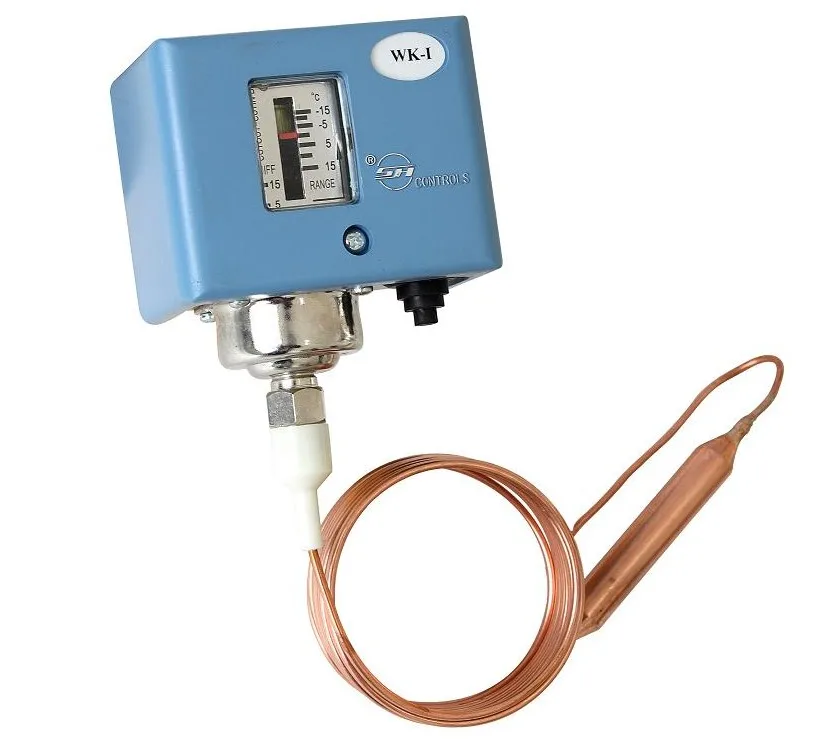

Контроль давления переключателя потока типа жидких средств массовой информации
1 487,82 ₽ - 1 653,13 ₽

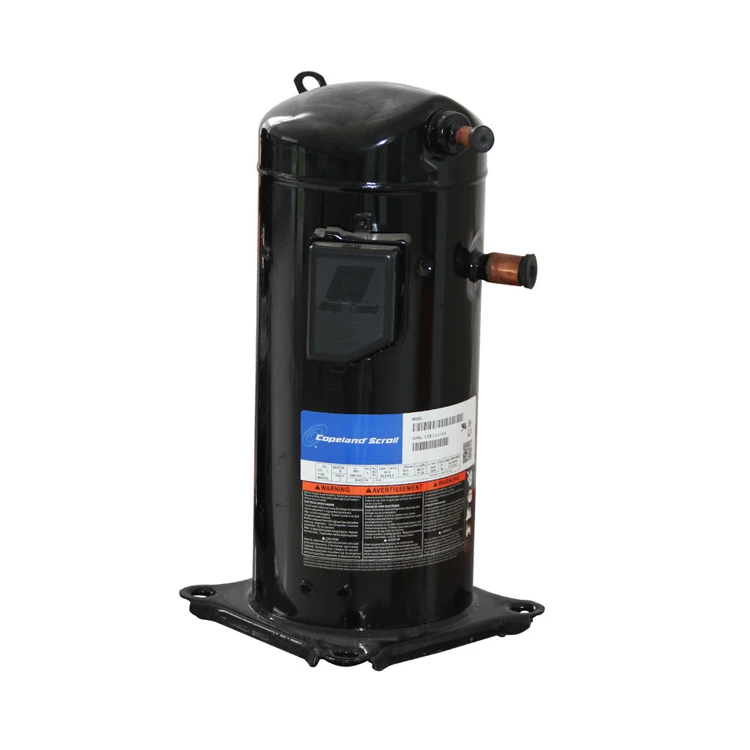

3 фазы 380 V 35HP 3HP 10HP Компрессор Copeland

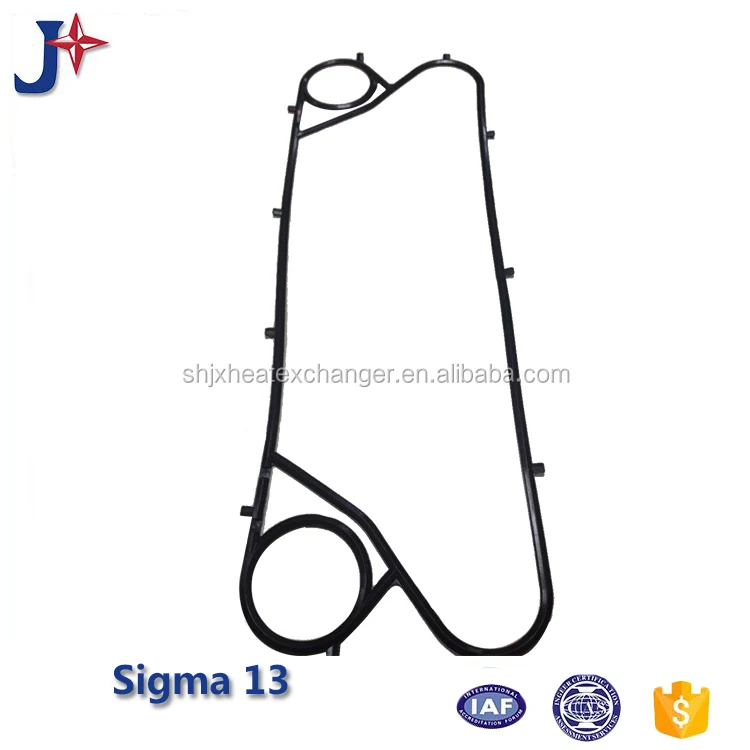

Sigma 13 теплообменник прокладка цена EPDM
