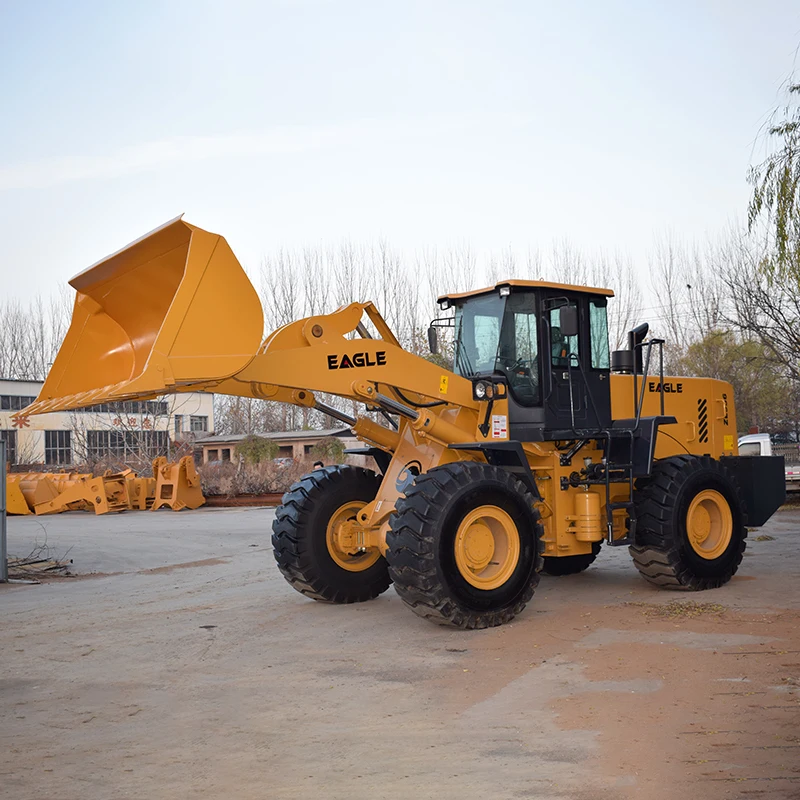

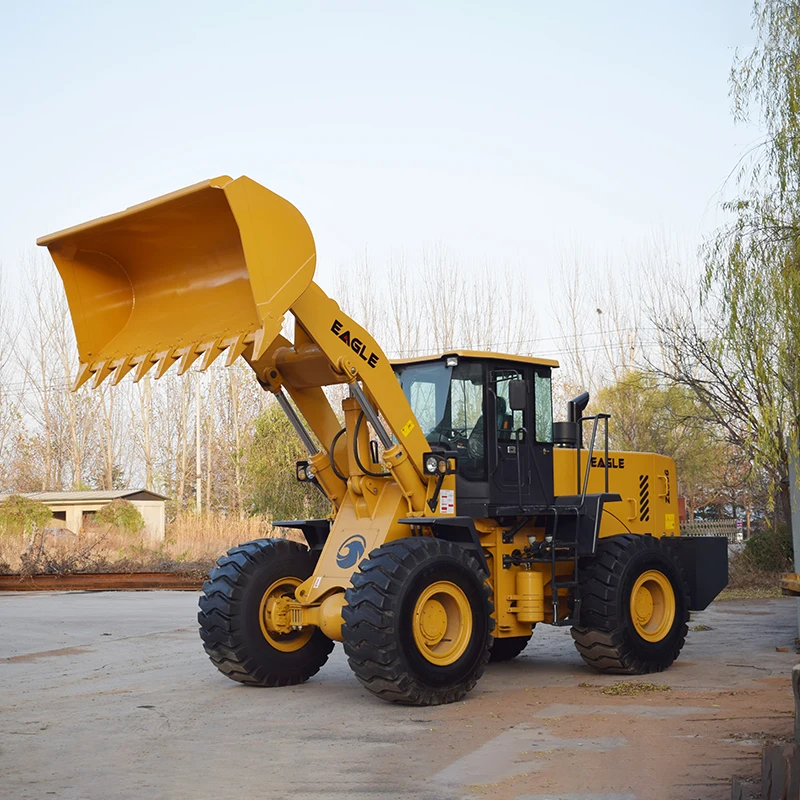

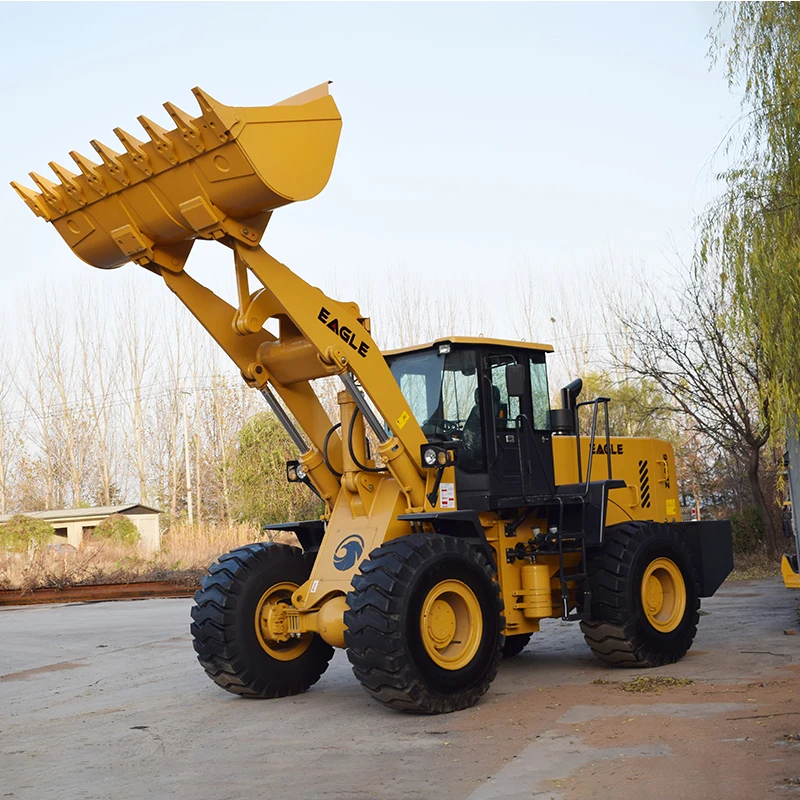

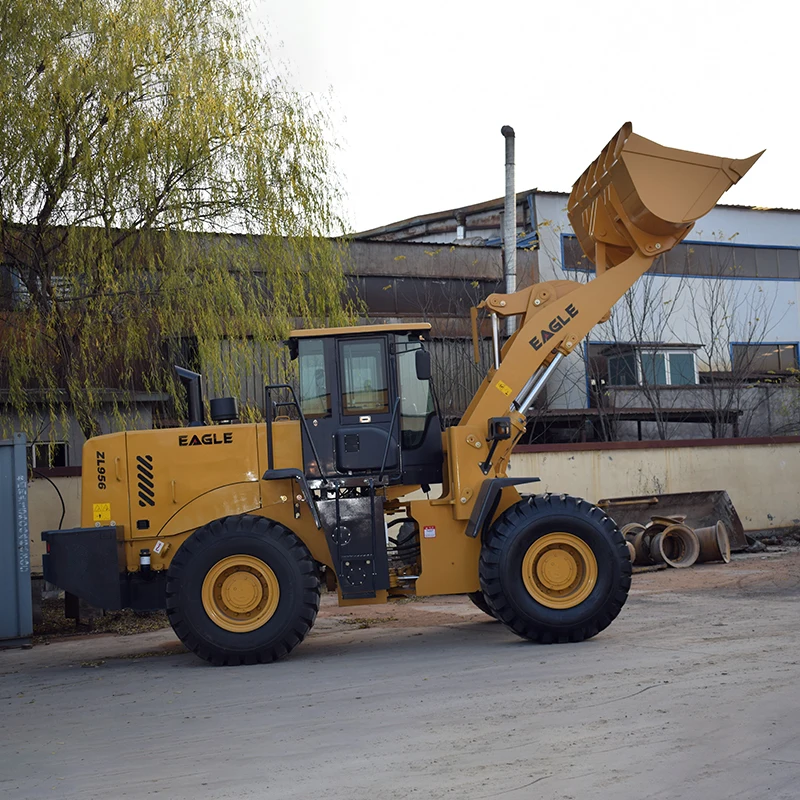

ZL956 Wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and similar structural features and advanced technology.
Specifications for ZL956 Mini Wheel Loader | ||||
Overall Performance | Rated Load | 5000 kg | ||
Operating Weight | 16500 kg | |||
Bucket Capacity | 3 m3 | |||
Bucket Width | 2930 mm | |||
Dumping Height | 3100 mm | |||
Dumping Reach | 1260 mm | |||
Max. Gradeability | 30% | |||
Dimensions | Wheelbase | 3200 mm | ||
Tread | 2230 mm | |||
Mini. Turning Radius | 6732 mm | |||
Mini. Ground Clearance | 450 mm | |||
Overall Size | 8050 x2930x3450 mm | |||
Engine Equipped | Brand | WEICHAI | ||
Model | WD10G220E23 | |||
Rated Power/Speed | 162 kW/ 2000 rpm | |||
Max. Torque/ Speed | 920 N.m /1600 rpm | |||
Borex Stroke | 126 x130 mm | |||
Displacement | 9.726 L | |||
Type | 6-Cylinder, 4-Stroke, In-line, Direct Injection, Water-cooled and Turbo-charged | |||
Emission Standard | EURO II, China State II | |||
Engine Optional | CUMMINS(6CTA8.3-C215 ) | 160 kW, EURO II, | ||
Transmission & Drive System | Torque Converter | YJ375 (Split Type) | ||
Gearbox Type | Fixed Shaft Power Shift | |||
Gear Shift | 4 Forward , 4 Reverse | |||
Max. Drive Speed | 38 km/h | |||
Drive Mode | 4 x4 | |||
Transmission Mode | Automatic Transmission | |||
Drive Axle | 50 Series Heavy Hub Reduction Axle | |||
Hydraulic System | Displacement of Work Dual Pump | 80 mL/r, 10 mL /r | ||
Displacement of Walk Pump | 40 mL/r | |||
Working Pump | 20 MPa | |||
Brake & Tyre | Service Brake | Air Over Hydraulic Disc Brake | ||
Parking Brake | Drum-type Shoe Brake | |||
Tyre Size | 23.5-25 | |||
Product Display
Transmission System:
Adopts hydraulic-mechanical transmission for automatic continuously variable transmission, avoiding engine stalling due to sudden increases in external load. It also absorbs and eliminates vibrations, protecting the transmission system and engine, and enhancing the overall service life and economic efficiency of the machine.
Control Performance:
The central articulated frame and load-sensing hydraulic steering system allow the rear wheel track to align with the front wheel track, shortening the turning radius. This makes it suitable for narrow working spaces, providing flexible and safe operation, a compact structure, and easy maintenance.
Off-Road Capability:
Features four-wheel drive, low-pressure wide-base off-road tires, and a pendular rear axle to enhance the loader’s off-road performance and traction.
Driving Comfort:
The fully enclosed glass cab includes an adjustable suspension seat for a comfortable driving experience and good visibility. An electric fan is standard, while air conditioning is optional.
Power System:
Equipped with a WEICHAI WD10G220E23 turbocharged engine, delivering 162 kW of power. This fuel-efficient and environmentally friendly engine boosts the loader's power and acceleration, significantly enhancing work efficiency.
Equipped with a WEICHAI WD10G220E23 turbocharged engine, delivering 162 kW of power. This fuel-efficient and environmentally friendly engine boosts the loader's power and acceleration, significantly enhancing work efficiency.
Diesel Engine
This loader is driven by WEICHAI, 162kW, Turbo-charged, Fuel-Efficient, Water-cooled Diesel Engine, which makes this 5Ton wheel loader have strong power and high acceleration. Engine door is connected by two sets of hydraulic pole. Main Engine Brand Optional: DONGFENG CUMMINS
Torque Converter
Double Brake Caliper
Articulated Structure make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site. Double Brake Caliper ensure stable brake performance.
The width ,depth and span of bucket is 2930 mm ,750 mm and 1450 mm respectively. The total volume of the bucket is about 3 m3 . The front of the bucket is equipped with wear-resistant removable fork and scraper, which facilitate earth-moving operation in the construction site.
The drive axle is kind of 50 Series Reduction Axle , while the drive mode is 4x4 . The loader is equipped with engineering type wide tyre. The Tyre model is 23.5-25-20 PR, and its width and diameter is 590 mm and Ø1610 mm respectively, which could ensure our loader work safe on muddy and bumpy road.
Deluxe Driver's Cab
The transmission of this wheel loader is kind of automatic transmission. And the lifting and withdrawing of bucket is all controlled by the single handle type hydraulic joystick device. It is very convenient for user to operate. The ergonomic seat has the shock absorption function and is equipped with safety Belt. The portable fire extinguisher and safety hammer are also situated inside the cab.
This compact wheel loader could be equipped with quick hitch , and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass fork, wood fork, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow plow, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.
It is widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularly applied to the narrow space for the loading operation of stone,sand and other construction materials.
Worldwide Sales, Marketing and Service Network
During the past 15 years, we have exported over 5,000 units of different kinds of construction equipment to over 50 countries in Southeast Asia, Middle East, Africa, Europe, Australia and South America. Our overseas authorized dealers and service dealers are all around the world.
Shandong Eagle Construction Machinery Co.Ltd. Is the leading enterprise specializing in sales and manufacturing of construction machinery and equipment in China. Through many years’ development, , our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.
The main products we produce include Wheel Loader with payload from 1 Ton to 6 Ton, Backhoe Loader, Concrete Mixer Truck with output capacity ranging from 1 M3 to 18 M3, Trailer Concrete Pump, Concrete Boom Pump, Site Dumper, Crawler Excavator, and Forklift etc.
With excellent and advanced production equipment such as CNC machine, plasma and laser cutting machine, robot welding machine and automatic assembly production line, we have perfect quality supervision and inspection system, obtaining the National Special Equipment Manufacturing License and passing IS09001: 2008 International Quality System and European CE Product Certification.
The main products we produce include Wheel Loader with payload from 1 Ton to 6 Ton, Backhoe Loader, Concrete Mixer Truck with output capacity ranging from 1 M3 to 18 M3, Trailer Concrete Pump, Concrete Boom Pump, Site Dumper, Crawler Excavator, and Forklift etc.
With excellent and advanced production equipment such as CNC machine, plasma and laser cutting machine, robot welding machine and automatic assembly production line, we have perfect quality supervision and inspection system, obtaining the National Special Equipment Manufacturing License and passing IS09001: 2008 International Quality System and European CE Product Certification.
FAQ
Q: What's your trade terms?
A: EXW, FOB, CFR, CIF.
Q: What's loading port?
A: Qingdao, Shanghai, Tianjin, Ningbo, Xiamen, Shenzhen, Guangzhou, Dalian.
Q: What's your MOQ?
A: 1 set.
Q: What's your delivery time?
A: We have ready stocks.
Q: What's your warranty?
A: 1 year.
Q: Do you have after-sales service?
A: Yes, we have.
Q: What's your payment terms?
A: T/T, L/C, Alibaba Trade Assurance, PayPal, Western Union, Credit Card, Sinosure.
Q: Are you manufacturer?
A: Yes, we are.
A: EXW, FOB, CFR, CIF.
Q: What's loading port?
A: Qingdao, Shanghai, Tianjin, Ningbo, Xiamen, Shenzhen, Guangzhou, Dalian.
Q: What's your MOQ?
A: 1 set.
Q: What's your delivery time?
A: We have ready stocks.
Q: What's your warranty?
A: 1 year.
Q: Do you have after-sales service?
A: Yes, we have.
Q: What's your payment terms?
A: T/T, L/C, Alibaba Trade Assurance, PayPal, Western Union, Credit Card, Sinosure.
Q: Are you manufacturer?
A: Yes, we are.
Похожие товары
Китай производитель 1470 кг ковш дизельный погрузчик фронтальные погрузчики
1 292 832,65-1 304 693,50 ₽
Погрузчик для продажи 1 2 тонн 37kw HWheel l.2Ton погрузчик высокая эффективность и хорошая цена
533 738,25 ₽
Большое колесо 150G погрузчик с мощным двигателем для продажи
246 705,68 ₽

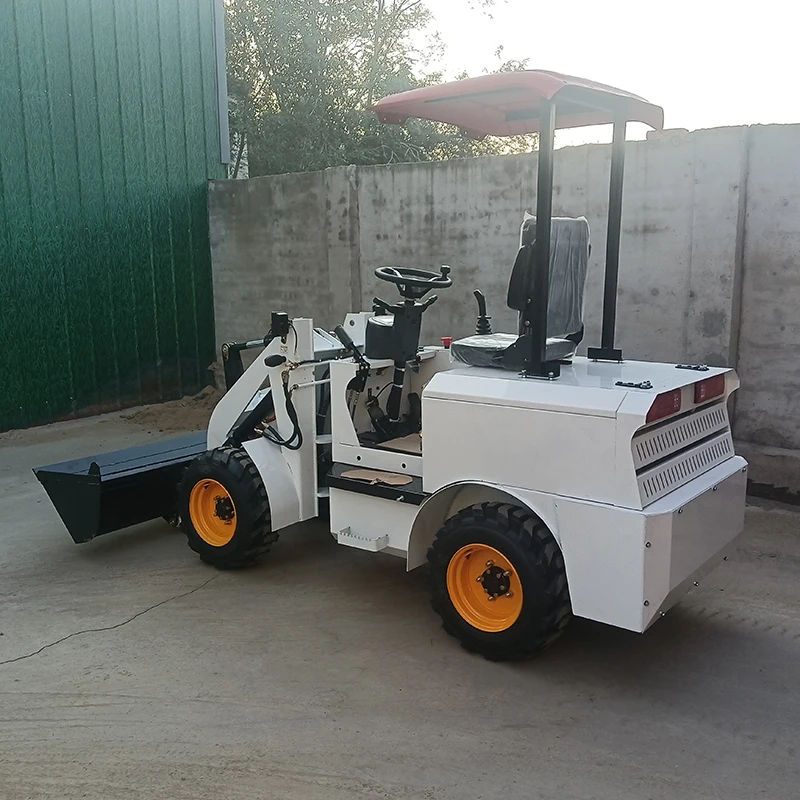

Мини-Электрический фронтальный погрузчик 400 кг 500 700 Мини-фронтальный с двигателем 1800 Вт
818 161,44 ₽
ZL50GN с 3 0 м3 ковш пилотного управления колесный погрузчик для продажи
5 278 078,25-5 313 660,80 ₽

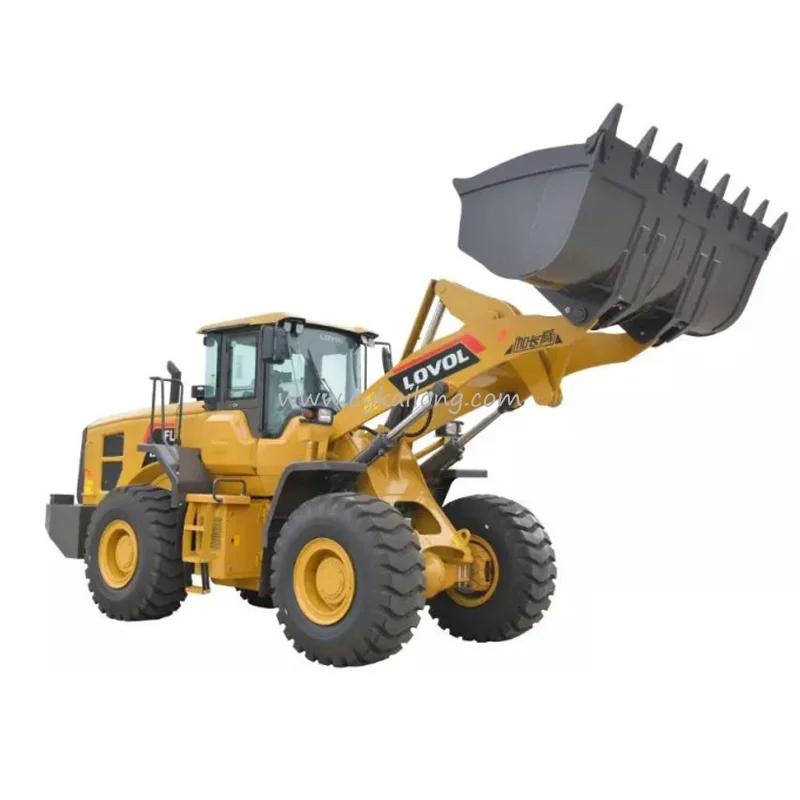

Колесный погрузчик Lovol FL956H 5 тонн продажа Weel-погрузчика
4 151 297,50-4 744 340,00 ₽

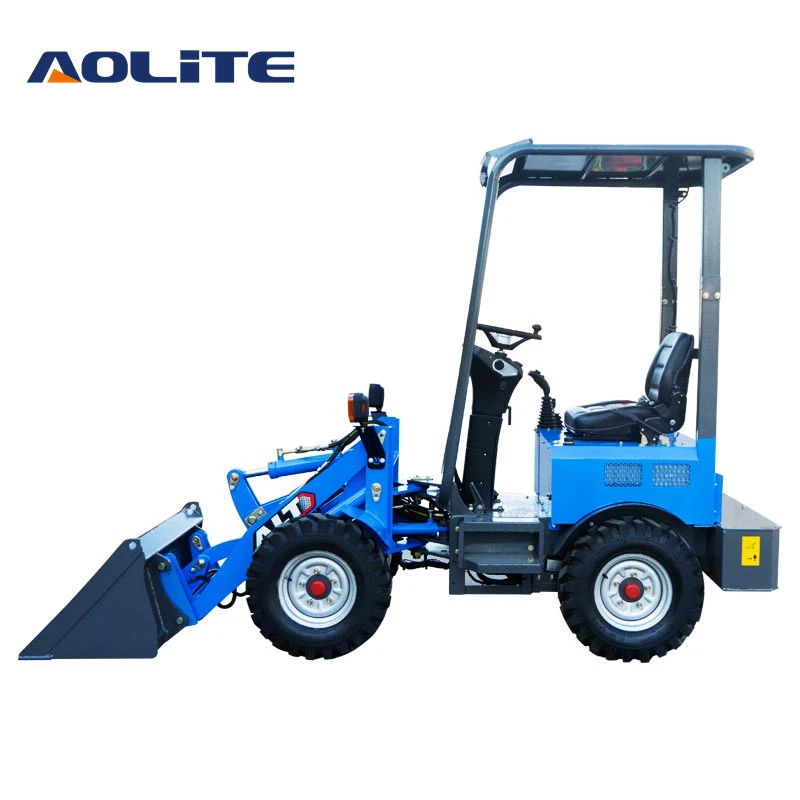

AOLITE 400 кг Номинальная нагрузка сертификация CE Электрический мини-колесный погрузчик
