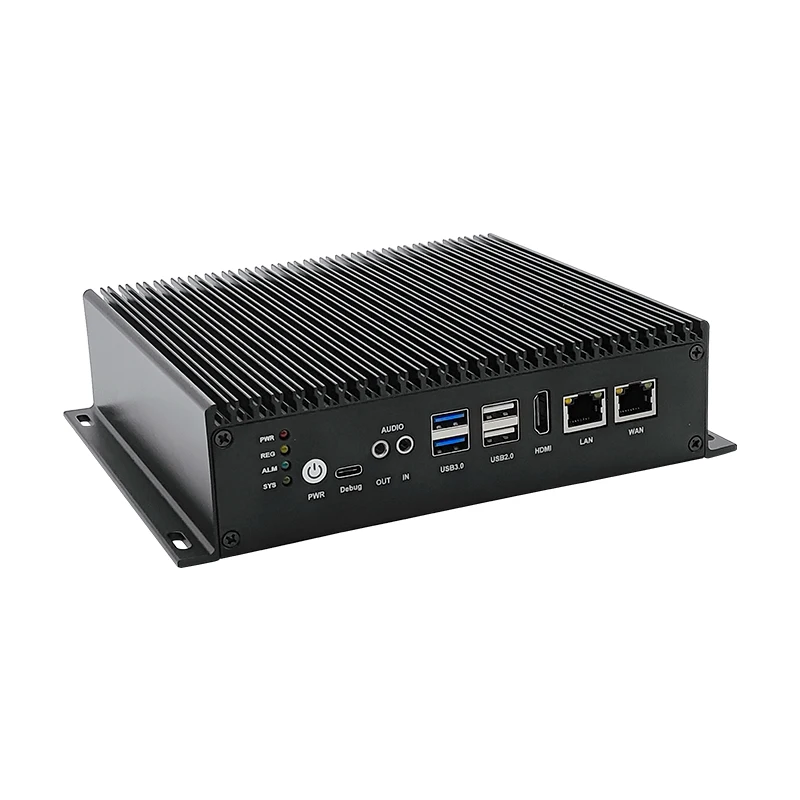

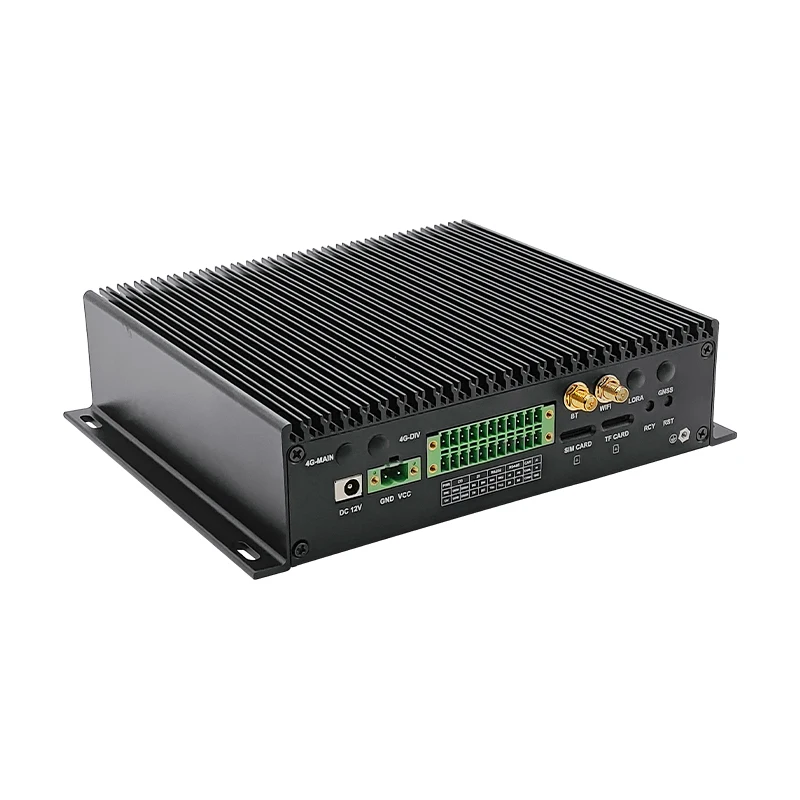

NDCOMPUTING умный AI алгоритм 4 ГБ 8 16 16 канальная камера настраиваемый Ai алгоритмы компьютера
- Категория: >>>
- Поставщик: Shenzhen ND Computing Equipment Co. Ltd.
Сохранить в закладки 1601279521910:
Описание и отзывы
Характеристики
Support camera channels | ||||||
Channels | 6-8 CH | |||||
Optional Algorithm List | ||||||
Pedestrian Detection | Android Face Unlock | Android Face Recognition | Face Detection | |||
Face Quality Score | Face Capture | Area Invasion | Crowd Statistics | |||
Staff Leaving the Post | Crowd Detection | Safety Helmet Detection | Mask Detection | |||
Chef Uniform Detection | Chef Mask Detection | Chef Hat Detection | Indoor Phone Call | |||
Mouth and Nose Occlusion Detection | Wandering Identification | Fall Detection | Smoking Detection | |||
Playing Mobile Phone Indoors | Vehicle Detection | Illegal Parking | Traffic Statistics | |||
License Plate Recognition | Electric Vehicle Identification | Electronic Fence Detection | Heavy Machinery Vehicle Inspection | |||
Fire Extinguisher Identification | Fire Smoke Detection | Trash Can Lid Detection | Rat Detection | |||
Garbage Overflowing Detection | Channel Blockage Detection | Debris Stacking Detection | Retention Detection | |||
Blacklist Identification | Personnel Enter Dangerous Waters | Illegal Fishing | Passenger Flow Statistics | |||
Pet Identification | Gesture Recognition | Weapon Detection | Store seating statistics | |||
Product Specifications | ||||
Item No. | ND-186AH | ND-1688 | ||
Processor | ND-186AH ARM A536 Core 1.6GHz, 32KB//DL1Cache, 2MBL2Cache | ND-1688 ARM A538 Core 1.6GHz,32KB//DL1Cache，2MBL2Cache | ||
Memory | DDR4/LPDDR4/LPDDR4x 2X32bit,the maximum speed is 4266 Mbps, and the maximum capacity supports 4GB/8GB/16GB | |||
AI Peak Performance | 7.2 TOPS INT8, 14.4 TOPS INT4, 1.8T FLOPS FP16/BF16 support mixed precision calculation | 16 TOPS INT8, 32 TOPS INT4, 4T FLOPS FP16/BF16, 0.5 FLOPS FP32 supports mixed precision calculation | ||
Video Decoding | H. 264&H.265:16-CH 1080P @ 30fps, maximum resolution support 7680 * 4320 | |||
Video Encoding | H. 264&H.265: 10-CH 1080P @ 30fps, maximum resolution support 7680 * 4320 | |||
Image Encoding & Decoding | JPEG: decode 480 frames per second @ 1080P; Encoding 480 frames per second @ 1080P, maximum resolution support 8192 * 8192 | |||
Video Input | Supports (8+4) Lane image sensor serial input, MIPI/Sub LVDS/HiSPI multiple interfaces, supports multiple combinations such as 3x4 Lane or 6x2 Lane, supports up to 6-CH sensor serial inputs, supports 8/10/12 bit RGB Bayer video input, supports BT.601, BT.656,BT.1120 video input | |||
Video Output | Supports HDMI 2.0 interface output, 2x4 Lane MIPI DSI interface output, up to 2.5Gbps/lane, Supports LVDS, 16/18/24 bit RGB, BT.656, BT.1120 and other digital interfaces, and supports dual screen abnormal display | |||
EMMC | 32GB/64GB/128GB | |||
Power Supply | Phoenix terminal: 9-36V, DC: 12V124V | |||
Dimension | 20.6*16*5.7cm(L*W*H) | |||

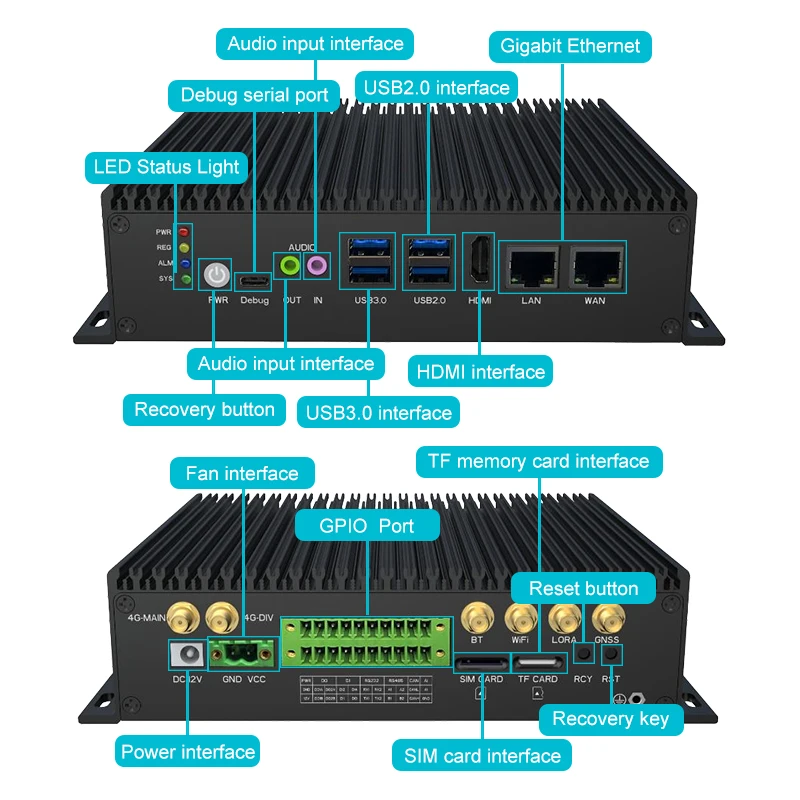

I/O | ||
Audio Interface | I2S interfaces * 3, built-in Audio codec, supports 16 bit voice input and output, supports 2 dual channel inputs and outputs | |
High-speed Interface | PCle Gen3 2x2Lane 2 Ethernet RGMI interfaces, supporting speeds of 10/100/1000Mbps, 3 SD/SDIO controllers, 1 eMMC 5.1, bus bit width of 4-bit, 2 USB 3.0, Host/Device, 2 SATA 3.0 | |
Low-speed Interface | 2 CAN BUS 2.0, 10 I2C interfaces, 4 MCLK interfaces, 20 PWM interfaces, 4 SPI interfaces, 8 UART interfaces, 6 ADC interfaces, multiple GPI0 interfaces | |
Safety | Supports AES/DES/SM4/SHA acceleration, true random number generation, and secure key storage mechanism, Support secure boot and Trustzone | |
Tool Chain | Support ONNX/Caffe/TFLite framework model formats, TensorFlow/Pytorch/Addle/TensorRT, as well as customized INT4, INT8, FP16, BF16 quantization algorithms CV186AH/BM1688/BM1684/BM1684X toolchain compatibility | |
Gigabit Ethernet Port | Default 2, expandable multi port switch board | |
HDMI 2.0 | 1-CH HDMI OUT | |
USB 3.0 | 4, dual USB 3.0 * 2 | |
User Expansion | TF Socket | |
TF Card | 1 | |
Micro SlM Card | 1 | |
RS485 | 2 | |
RS232 | 2 | |
DI/DO | 4 sets of DI, 2 sets of DO | |
CAN 2.0/FD | 1 | |
Debug Serial Port | Type C * 1 | |
Function Key | Reset button * 1, Recovery button * 1 | |
Reserved Antenna | 4 antenna ports | |
WIFI/BT | WIFI6 & BT5.0 | |
4/5G Module | 1 set of Mini PCIe interfaces | |
SATA Interface | 2-CH standard SATA and power interfaces, 1-CH M.2 SATA protocol interface | |
Lora, Zigbee | 2 sets of MiniPCIe interface extensions for Lora and Zigbee | |
Beidou Positioning | Beidou module onbroad, supporting RTK high-precision positioning | |
4G Antenna (Support customization) | Frequency: 820MHZ-960MHZ, 1710MHZ-2690MHz, VSWR standing wave ratio:20%, lmpedance impedance: 50 ± 250hm | |
WIFI Antenna (Support customization) | Frequency: 2400MHZ-2500MHz, 5150MHZ-5850MHz, VSWR standing wave ratio:50%, 5G>30% Impedance: 50 ± 25 0Hm Peak Gain Maximum gain: 2.4G: 3.60dBi, 5G: 3.38dBi | |
Environmental&Certificate | ||||
Operating Temperature | -20℃ +70℃ | |||
Steady Damp-heat | The experimental temperature is 40 ℃ ± 2 ℃, the relative humidity is 93% ± 3%, and the duration is 48 hours | |||
Vibration | The frequency range is 10Hz~55Hz, with an amplitude of 0.35mm | |||
Impact | The peak acceleration is 150m/s2, with a duration of 11ms, and the pulse waveform is a half sine waveform followed by a sawtooth trapezoid | |||
Electrostatic Discharge Reactance Interference Degree | Contact discharge level 4 (test voltage 8KV), Air discharge level 4 (test voltage 16KV) | |||
Radio Frequency Electromagnetic Field Radiation Immunity | The test level for protecting (equipment) against RF radiation from digital wireless telephones is level 3 | |||
Protection | Default IP30, supports IP50 | Micro SD card | ||
Certification | CCC, CE, FCC, RoHS, SRRC | |||
Warranty | 1 year | |||
Похожие товары
NDCOMPUTING может настраивать распознавание лица автомобиля несколько алгоритмов AI Ai производитель коробок
NDCOMPUTING настраиваемый 4 Гб 16-канальный модуль Lora для камеры опционально Ai Security Edge Computing AI

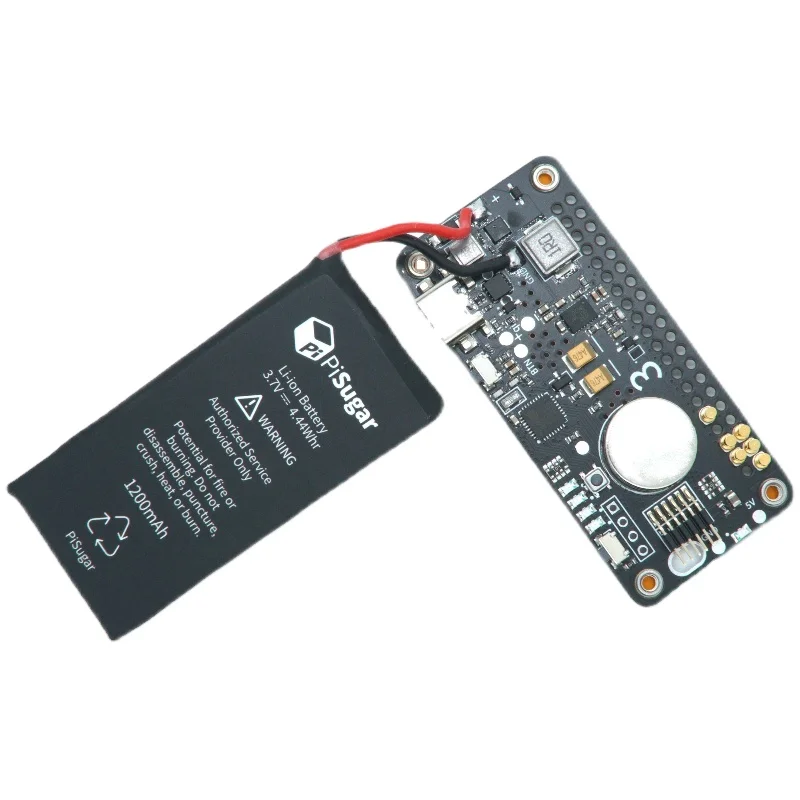

Raspberry Pi UPS PISugar 3 Модуль питания Zero литиевая батарея
Модуль NB 3G 4G модуль mini PCIE к USB-адаптеру включает слот для сим-карт SIM7600 SIM7100 ME909 EC20 EG25 SIM7000 BG96 EC25

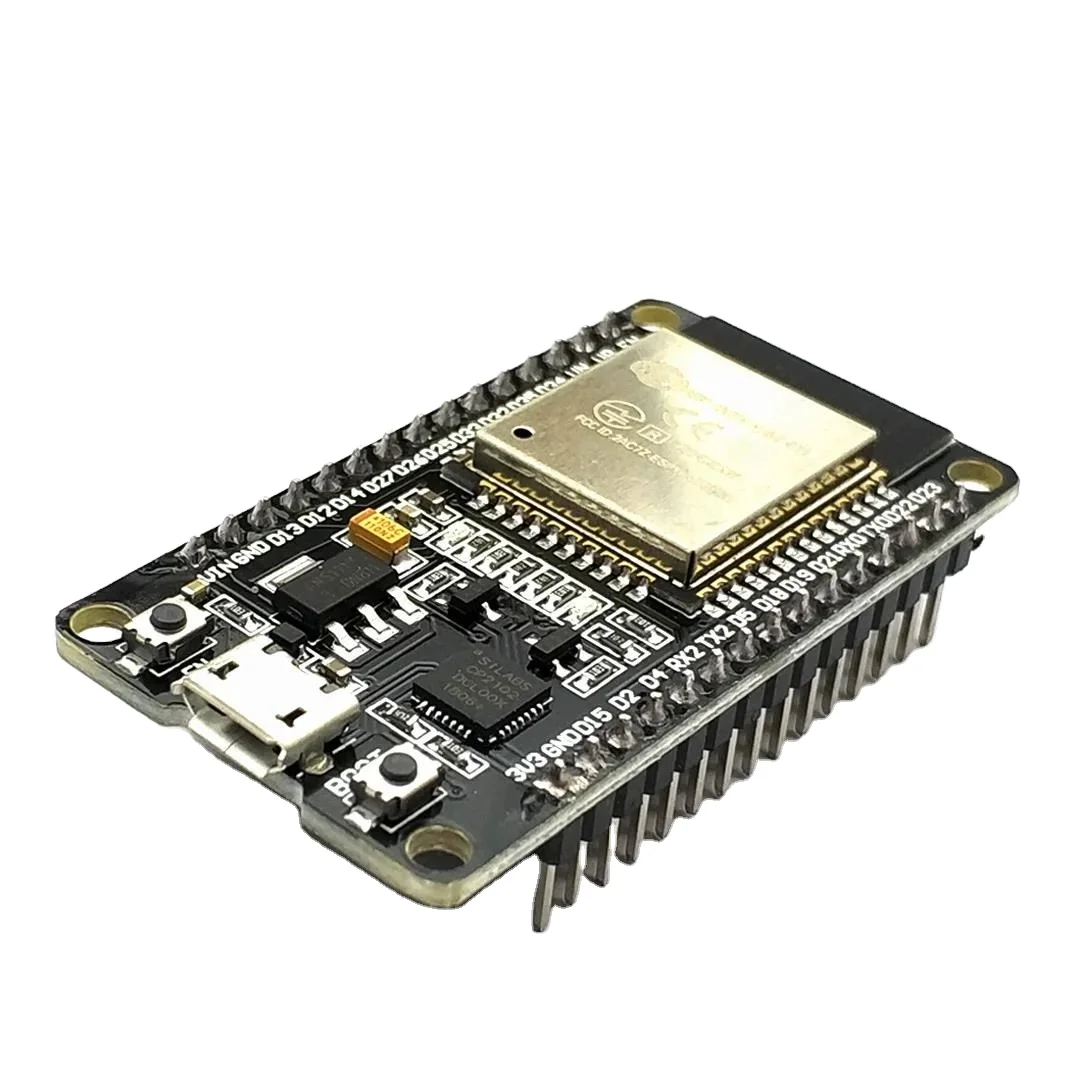

Проектная плата ESP32 NodeMCU WIFI модуль S3 ESP32-C3 ESP32-Wroom-32 ESP32-Devkitc-32e ESP32-Cam

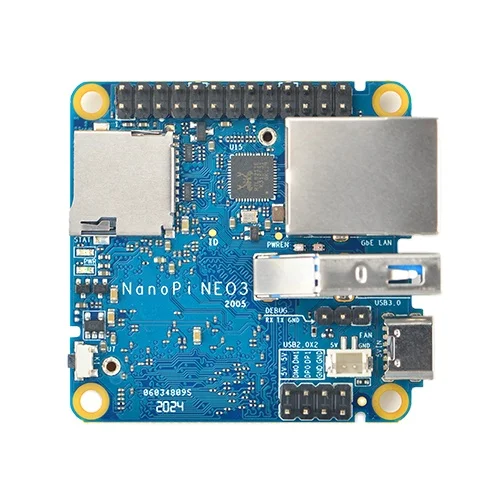

Заводская поставка плата для разработки NanoPi NEO3 RK3328 гигабитный Ethernet порт 2 ГБ памяти

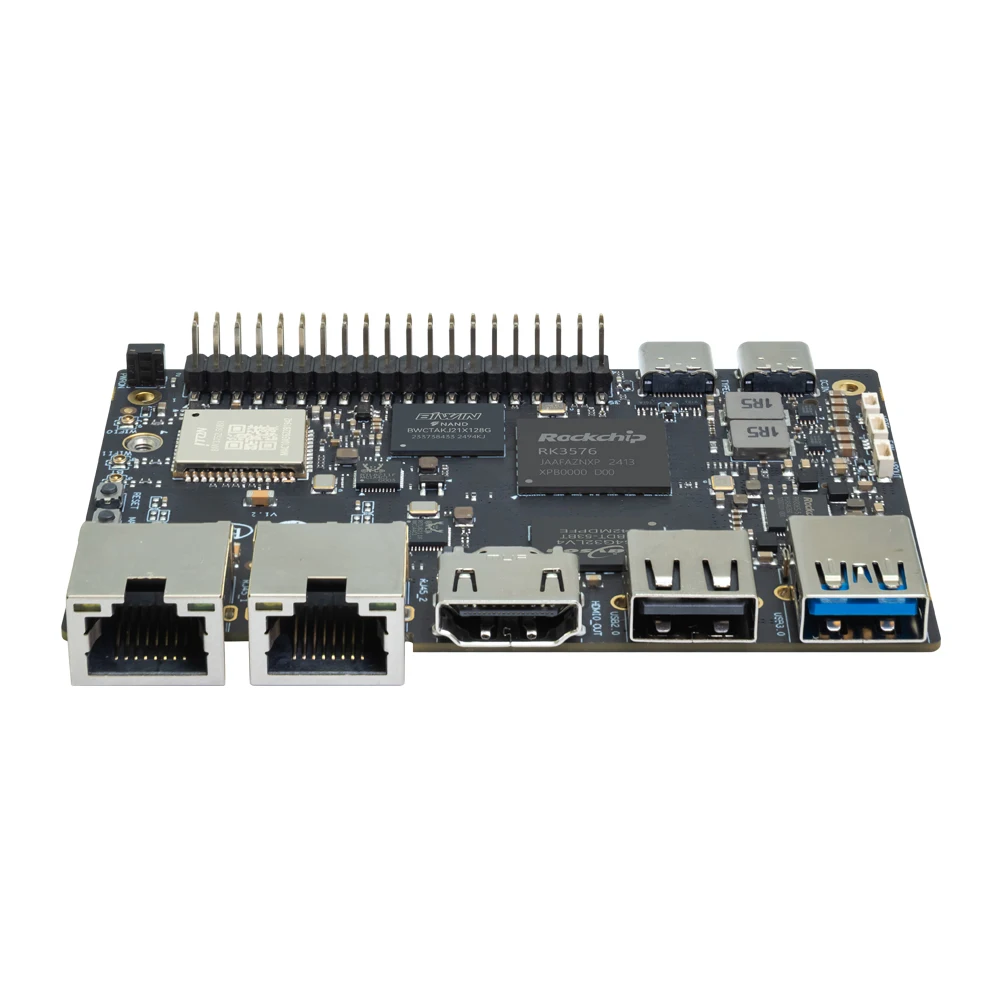

Оригинальный ассортимент Rockchip дизайн банан Pi BPI-M5 Pro RK3576 чип AIOT платформа печатная плата оборудование
