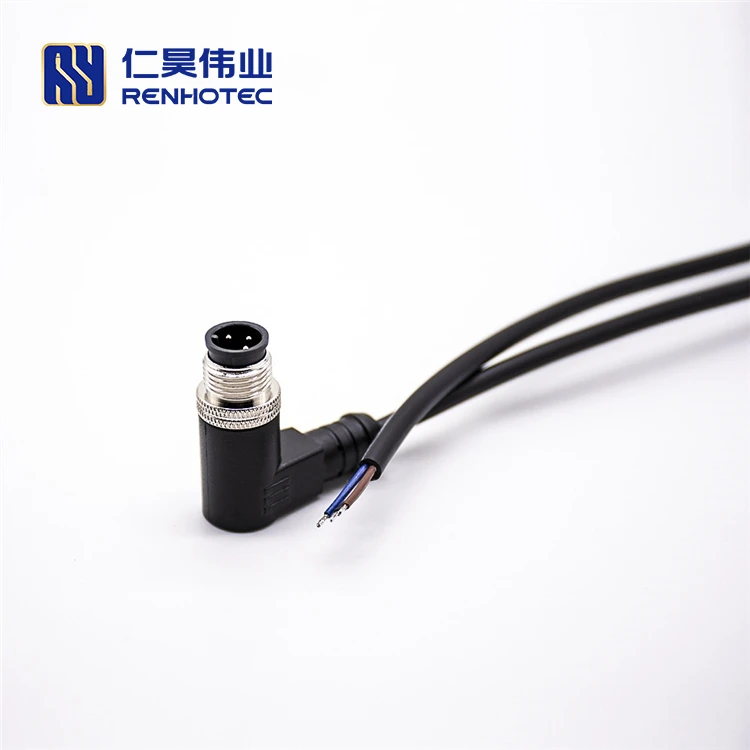

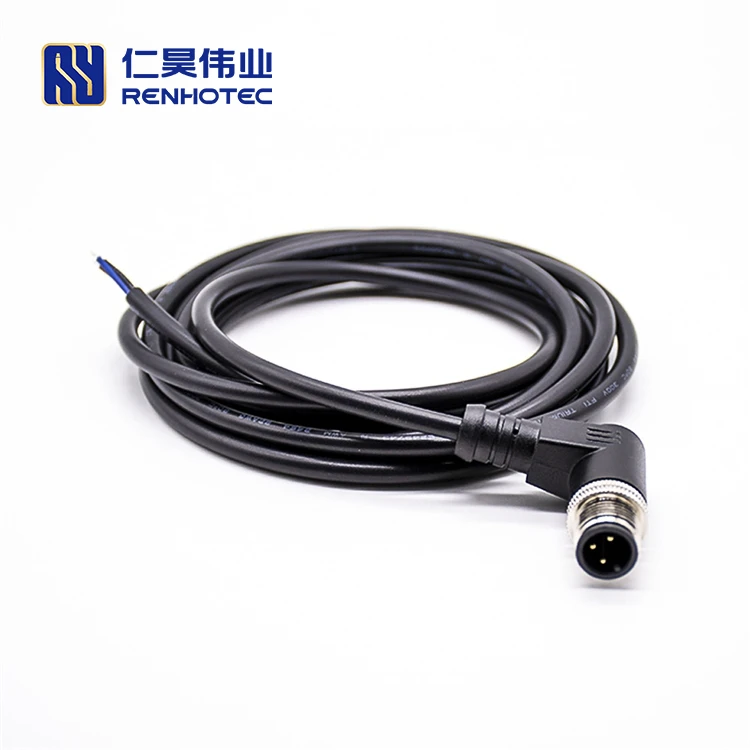

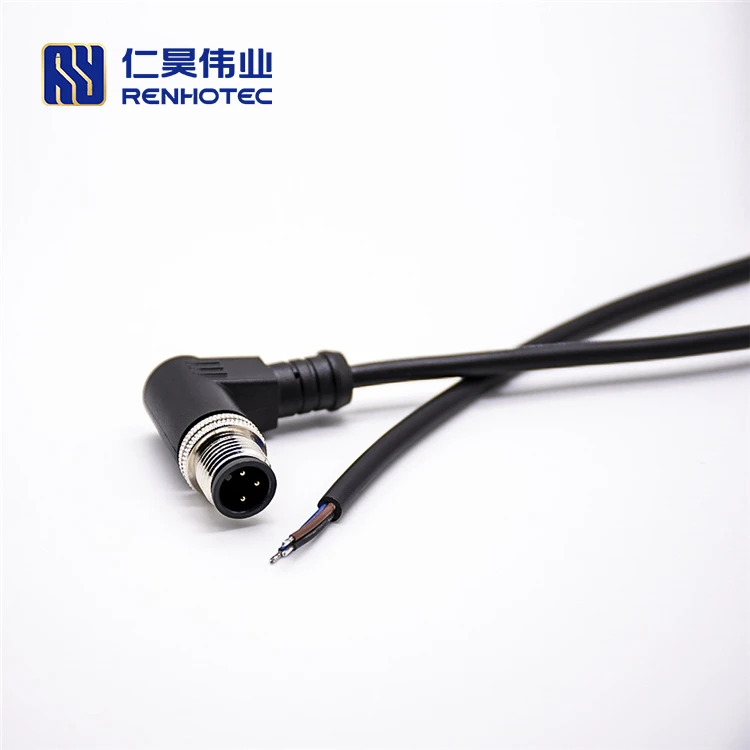

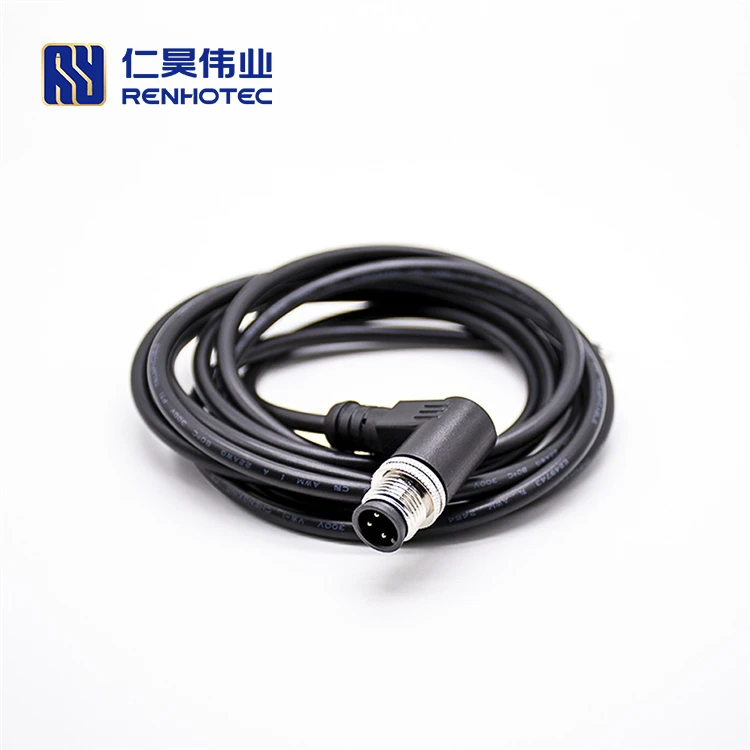

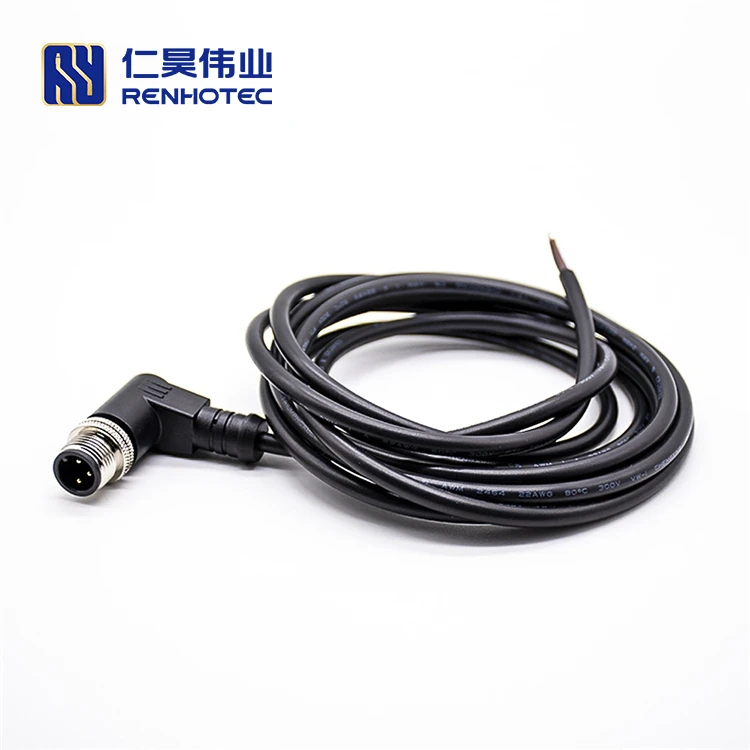

M12 3 контактный Штекерный кабель с датчиком разъем под прямым углом IP67 водонепроницаемый
- Категория: >>>
- Поставщик: Dongguan Dosin Precision Industry Co. Ltd.
Сохранить в закладки 1601279593857:
Описание и отзывы
Характеристики

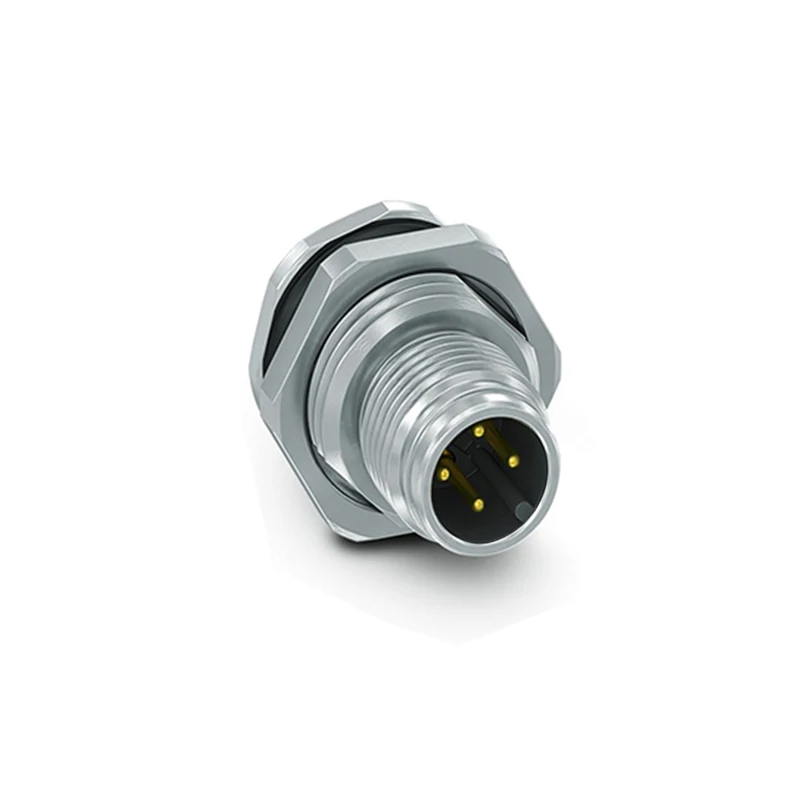

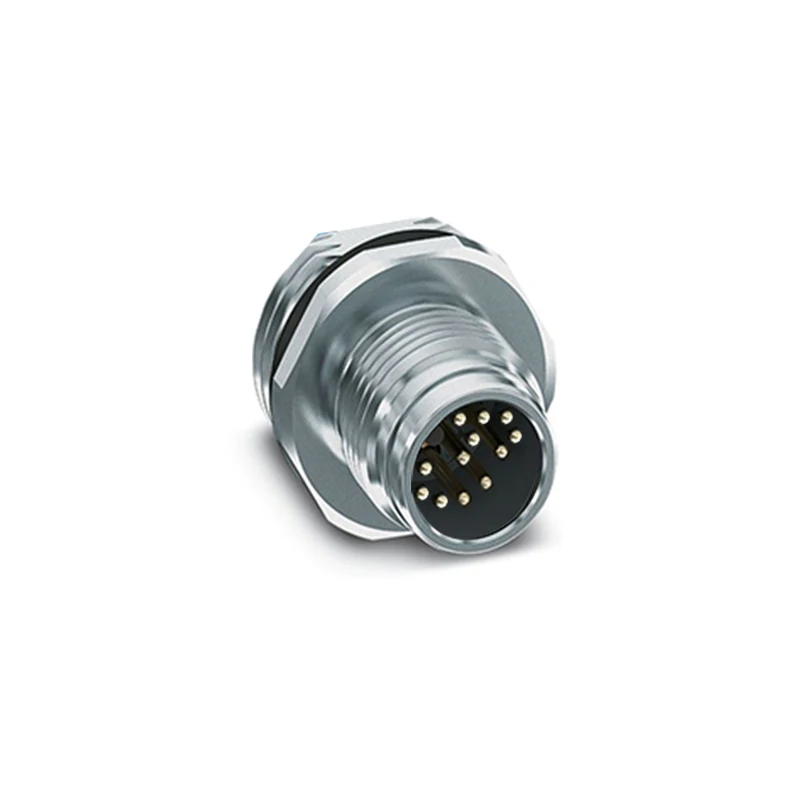

Electrical 2 3 4 5 6 Pin M6 M7 M8 5pin Panel-Mount IP65 Wire Waterproof Ebike M12 Connector For Electric Scooters
Product Description
Full Series : Industrial Sensors M Series Cable
All types of M Series Cable from OEM Manufacturer in China
The M Series Cables provide safely and reliably communication between devices and across networks within an industrial environment. A ready-to-plug solution for versatile systems to be quickly and easily established.Ideal for Ethernet & Fieldbus application with a wide selection of connector configurations and jacketed cable materials.
We supply full series of with field wireable connector, molded cable connector, panel connector,overmoled cables, wire harness and accessories. Shielded, Oil-Resistant, Hydrolysis Resistant, UV-Resistant cable available. Custom cable specification and lengths according to customer's requirement, molded with PVC or PUR cable.
Product Advantages
• Cables and Connectors Complete Variety,wide Range of Applications;
• Adopt Thread Locking Mechanism, More Secure and Reliable;
• Solid Brass Nickel Plated Screws with Anti-vibration Loose Design, 48 Hours Salt Spray Tested;
• Excellent Core Wire Cutting, Core Stripping and Welding Process;
• the Special Flexible Material Cable Meets the Requirements of Mobile Wiring Drag Chain, Such As Bending Resistance and Abrasion Resistance;
• Connector Assembly Method and Cable Length Can Be Customized.
| Execution Standard | IEC 61076-2-101 |
| Gender | Male / Female / Male to Female / Male to Male / Female to Female / Male to Dual Female / Female to Dual Male |
| Coding | A / B / C / D / K / L / M / S / T / X / Y Code |
| Number of Positions | M5:3,4 Pin; M8/M9/M16/M18:2-8Pin;M12/M40:2-17Pin; M23: 4-26Pin |
| Orientation | Straight / Right Angle / Straight to Right Angle / Right Angle to Right Angle / Y Type |
| Termination Style | Solder Cable / Screw-Joint / Crimp |
| Cable Type | Overmolded Cables / Wire Harness |
| Harness Type | Single Ended Cable / Double Ended Cable / Y-type Cable |
| Wire Gauge | AWG20 / AWG22 / AWG24 / AWG26 (0.5 / 0.34 / 0.25 / 0.14mm²) |
| Cable Length | 0.5M / 1M / 1.5M / 3M / 5M / 7M / Customizable Upon Request |
| Shell Material | Brass with Nickel-Plated / Zinc Alloy with Nickel-Plated |
| Contant Material | Brass with Gold-Plated / Phosphorus Copper with Gold-Plated |
| Molding Material | TPU / PVC |
| Cable Material | PUR / PVC / Customizable Upon Request |
| Connector1 Type | M5 / M8 / M9 / M12 / M16 / M18 / M23 / M28 / M40 |
| Connector2 Type | M Series to M Series / GX Series / D-Sub / RJ45 / USB / MINI DIN |
| Coupling Method | Threaded Connection |
| Rated Voltage | 30V / 60V / 125V / 150V / 250V / 300V / 630V |
| Rated Current | 1A / 1.5A / 2A / 3A / 4A / 8A / 9A / 20A / 30A |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤3MΩ for M5; ≤5MΩ for M8 / M9 / M12 / M16 / M23 |
| Mechanical Operation | >500 Mating Cycles |
| Ambient Temperature | -25°C ~+80°C |
| IP Rating | IP67/ IP68 |
Product Details
M12 Series Cable
M12 Electrical Parameters
Application
The M-Series Cable Assembly product offering is used in a variety of heavy-duty, demanding end-use applications within highly stressful environments.
It has a wide range of applications and is commonly used in industrial communications, semiconductor manufacturing, solenoid and sensor valve manufacturing, factory automation machines, packaging, labeling and logistics.
But this pre-assembled cable remains sealed and waterproof even when submerged in industrial sensors, food and beverage, and automotive industry applications.
Company Information
- Dongguan Dosin Hardware Electronics Co., Ltd. was established in 2005, we located in Dongguan City China, with 3000m2 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, screw and contact pin machining, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
- Dongguan Dosin Hardware Electronics Co., Ltd is a part of Renhotec Group, also including Shenzhen Renhotec, Wuhan Renhotec and Elecbee technology.
- We specialize in Research, Design, Development, Sales and Manufacture with industrial cable and connector. No matter in supply chain management or quality control, we will control strictly every link.
- Our goals is to provide high performance connectors andcables with reliable quality and reasonable price.
Packing & Shipping
Packing Details :
1. Our standard packing: Individual part with transparent PE bag with label;
2. OEM package available
Shipping Methods :
1. Samples and Small quantity order will be shipped by FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mass order.
FAQ
Q: What is the Minimum Order Quantity(MOQ)?
A: The MOQ is 1pcs, the custom-made products will have different MOQ according to the products.
Q: When can I get the quotation?
A: All of inquiries will be replied within 12 hours. If it is urgent, we can be reached at +86 027-51830420.
Q: How much do I need to pay for your OEM service?
A: It depends. Some products will have no extra cost if the quantity meet the MOQ.
Q: How do you guarantee the quality?
A: All of the raw materials we used are purchased from qualified suppliers with certification approved, we promised our connectors are strictly accoring to ROHS standards. QC will inspect goods before shipping to ensure the quality.
Q: What is your warranty?
A: Our warranty is 12 months after delivery, DOSIN pays high attention to after-sales service.
If any questions, please do not hesitate to contact with us at any time.
