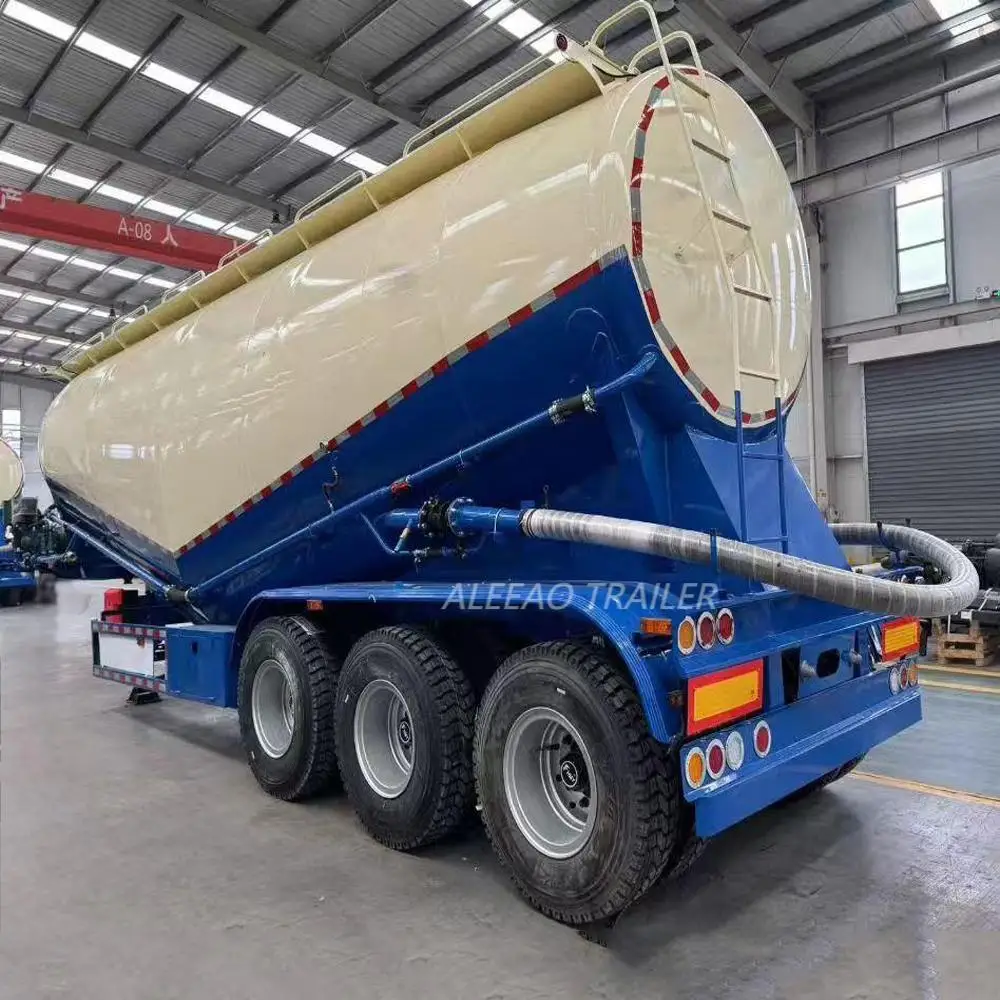

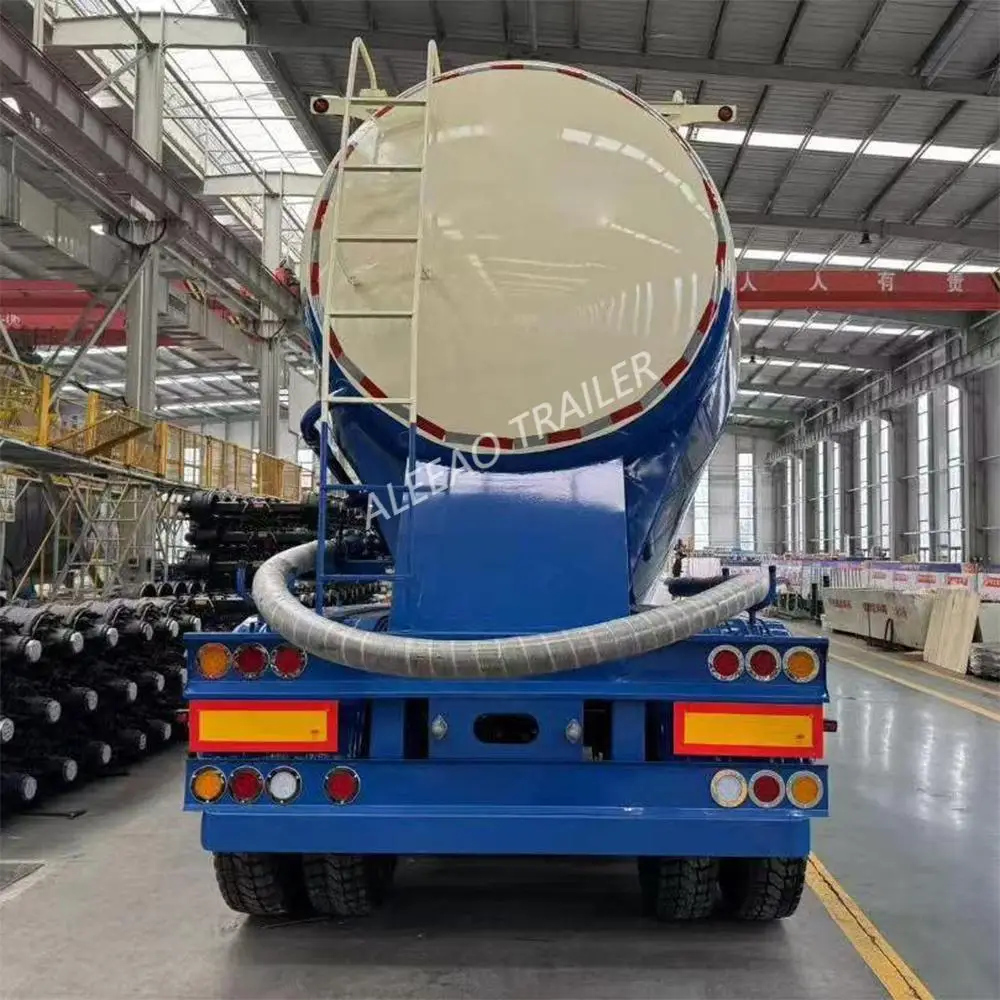

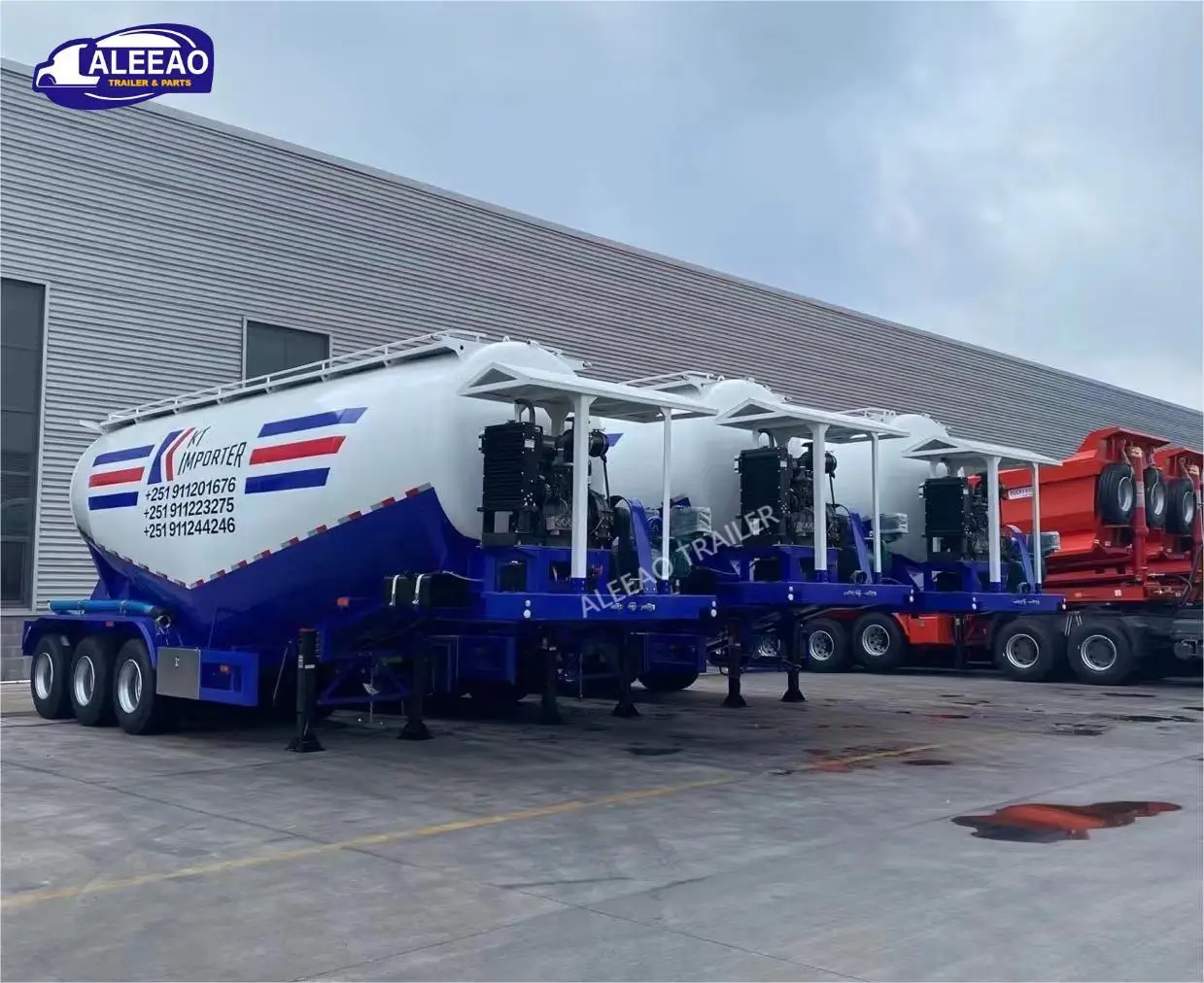

LEAO Bulk Cement Tanker Semi-trailer
Liangshan LEAO Machinery factory has more than 17 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and more efficient. We can provide high quality products and competitive prices. Please contact me if necessary.






Product Display



1. The bulk cement semi-trailer uses the engine power to drive the on-board air compressor through the power take-off, sends the compressed air into the tank, and liquefies the powdery material through the liquefaction device. Due to the pressure difference between the inside and outside of the tank, the powdery material is transported to the designated position along the discharge line along with the air.



2. External Weichai 4100 engine and Wuhu 10.00 vehicle air compressor unit ensure sufficient air pressure when the vehicle is unloading, and the exhaust speed can reach 1.6 tons per minute.



3. It is manufactured by domestic advanced technology, with novel design, strong and durable. The air bag type has large bearing capacity, fast unloading speed and small margin.



4. The LEAO integrated tank has the characteristics of high overall strength, good rigidity, good pressure bearing and good performance.



5. It has reasonable design, short discharge time, and discharge speed of 1.2-1.6 tons/minute, which improves the volumeutilization rate of the tank and reduces the residual ash rate by 0.2%.



6.The bulk cement semi-trailer tank adopts a double-cone inclined-horizontal structure, double-pipe intake, double-cylinder feeding, and its discharge speed and residual rate are in line with industry standards.


Specification


The main volume of the LEAO bulk cement trailer is 25/30/35/40/55/65 cubic meters. This trailer can load bulk cement, grain, sodium bicarbonate and any bulk powdered material. Loading capacity from 40 tons to 80 tons, V (banana) type, W type and dump type for your choice. Available in carbon steel, stainless steel and aluminum alloys, we also support custom designs, which help to get the most suitable vehicle.

Our Advantage:
1. Full load rate>98%
2. Residual rate <0.3%
3. Conveying height>15m suitable for most silos
4. Faster discharge >1.5ton/min to save fuel






Specification for LEAO Bulk Cement  Semi Trailer
                                                                                               Bulker Body
Shape
V type or W type
Dimension
10500/11000/12000mm*2490mm*3990mm ( Exact size depends on the final design)
Payload
28T - 125tons
Volume
25cbm - 100cbm
Material
Carbon Steel/ Aluminum/ Stainless Steel
Tare weight
About 7500KGS-15000KGS
Compartments
1-3
Tanker body
6mm
Manhole Cover
3 - 5 pcs
Carbon steel or Aluminum500mm
Air Compressor
Bohai 12 - 15 m3 double-cylinder or other brand
Diesel Engine
Deutz or Huafeng engine/Weichai/Tianhe 4102 4100 or other brand
Discharge Valve
3 or 4 inch disc valve (Material: Aluminum )
Discharging Pipe
3 or 4 inch rubber hose, 1pcs, 6m/each
Spry cooling system
2 Pcs Water tankers Pneumatic Power
                                                                                                Chassis
Main Beam
Q345 Carbon steel material
Tanker Body and End Plate
5mm or 6mm/ Q235 carbon steel
Axles
2 - 3 pcs 13 - 20tons BPW or Fuwa Axles
Suspenssion
Mechanical suspension/Germany or America type /Air Suspension
Leaf Spring
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
Landing Leg
JOST E100 or A400 Heavy duty type
Brake system
6pcs T30/30 Brake Chambers, WABCO relay valve
Tire
12 pcs 12R22.5 or 315/80R22.5 or 12.00R24 Triangle Brand
Rim
9.00-22.5/8.00-20/8.5-20 China Brand
King Pin
JOST 2" or 3.5 " Bolting Type
Painting
Complete Chassis sand blasting to clean rust,
1 coat of anticorrosive prime, 2 coats of final paint
Any parts fitted could according to clients request, contact us to get more.


Details Images




Axle
BPW/FUWA/LEAO Axle optional.
Because oil tankers are special to transport oil, they need high quality to ensure safety. We usually choose Fuwa axles(Chinese best axles) . If you want , we can choose other axles.





Landing Gear
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.






Featured Tire
Double Coin / LingLong/ Michelin/ Triangle/ Bridgestone and other famous brand for choice.Better Performance in wear resistance.






Efficient Fluidization system

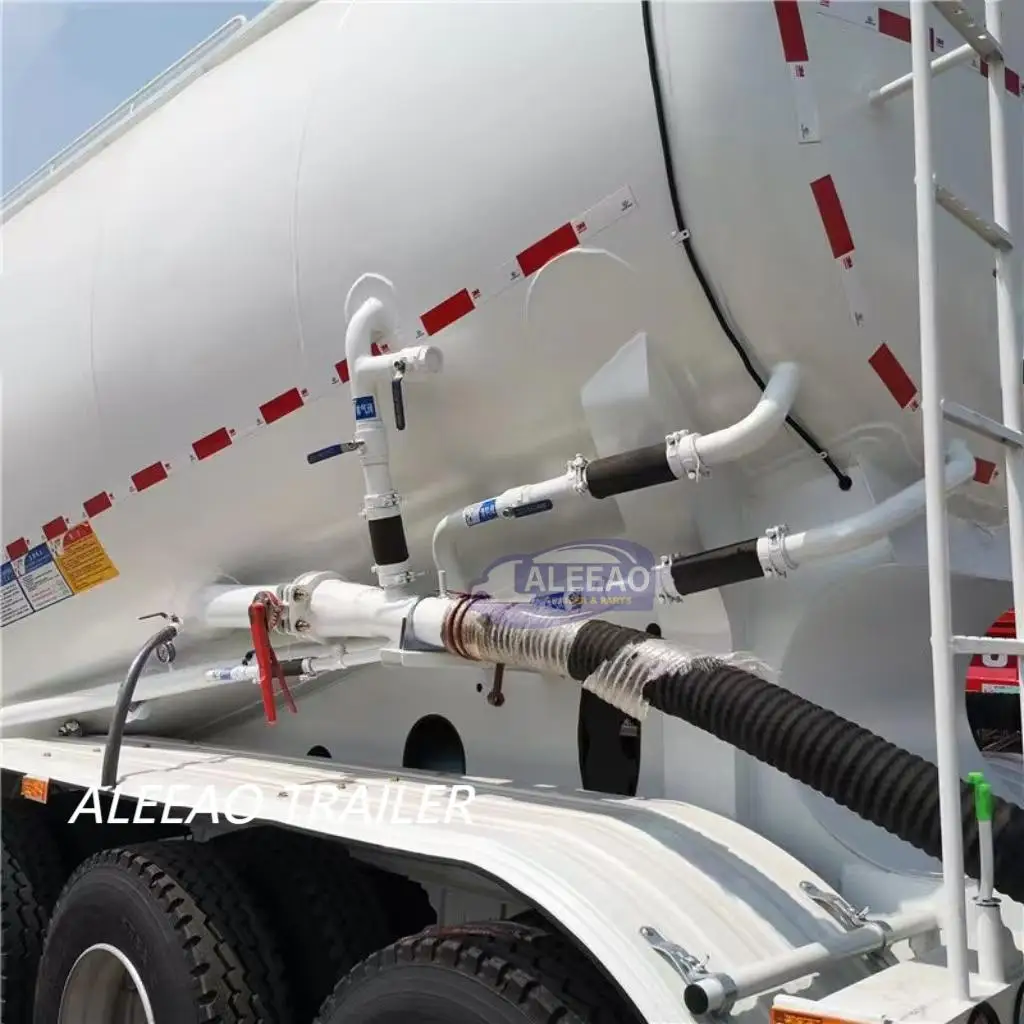

12 line fluidizing air pipes support cement trailer faster unloading and less residual powder






Strong construction design
Cement tanker construction quality is the life of the whole tanker, LEAO Cement tanker support 5 years guarantee for tank body.





Experienced Automatic welding
Automatic Submerged arc welding, and Key point reinforces and purposeful welding avoid some parts easier lose welding according experience, support vehicle longer time working without repairing.

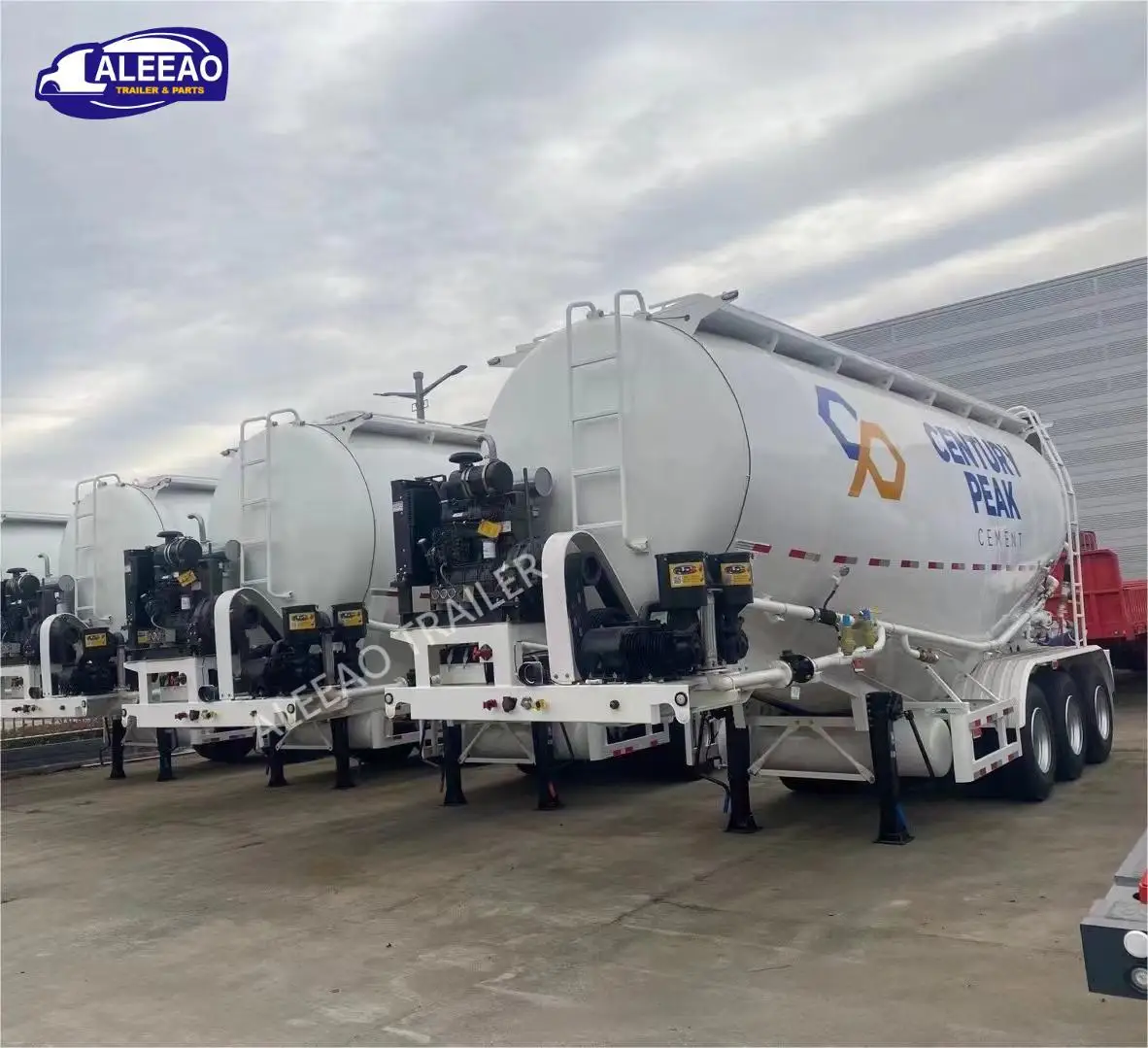

DEUTZ / WEICHAI Compressor engine
Stable, Support high attendance, Working all time never strike
Durable, 2-3 times Longer service life than poor quality engine
After-sale, Support 100+ courtiers, original guarantee.




Product Application




Production Process




Customer Photos




Packaging & Shipping




Company Profile




Liangshan LEAO Machinery Co., Ltd. has its own independent trailer factory - ALEEAO TRAILER, which is an enterprise integrating trailer manufacturing, design, trade, parts production and sales. LEAO has 15 years of experience in the production of semi-trailers and trailer parts. The company is located in Liangshan County, Shandong Province, and has passed IS09001-2000 certification and 3C certification.
LEAO's main products are flatbed trailers, low-bed trailers, cargo transport trailers, dump truck trailers, tanker trailers, car transport trailers, animal transport fence trailers and axle parts. They are exported to more than 30 countries in Africa, South America, Southeast Asian countries and the Middle East. country.
LEAO company has first-class trailer production equipment, mainly including CNC cutting machines, gantry automatic welding machines, large bending machines, shearing machines, etc. Leo has several professional engineers and more than 100 technical workers, with first-class technology, strict management and excellent team, making due contributions to the global transportation industry!
Beautiful Liangshan, Honest LEAO, we sincerely welcome customers at home and abroad to visit us for guidance.






FAQ
Q: Does your company has your own factory?
A: Yes, we have a factory ourself, which is in this business nearly 17 years in China.
Q:Why choose us?
A1. We offer a diverse range of trailer types to cater to various customer needs. From flatbed trailers to
enclosed trailers and specialized trailers, we have a comprehensive selection to accommodate different cargo requirements.
A2.While delivering top-quality trailers, we strive to maintain competitive pricing in the market.
A3. We have high-quality products,we pay attention to the quality and durability of trailers, using high-quality materials and
advanced manufacturing processes to ensure that the trailers we produce have excellent quality standards and long life.
Q:Which countries do you export to?
A:Asia: India, Thailand, Burma,Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middleeast:
Saudi Arabia, Iran, Uae. Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine.Belarus, Bulgaria, etc.Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana,Algeria, Senegal,Tunisia, etc.
Q:Whether you could make our brand on your products?
A:Yes. We can print your logo on both the products and the packages if you can meet our moq.
