3000c высокотемпературная вакуумная электродуговая печь для плавки всех типов металлов
- Категория: >>>
- Поставщик: Zhengzhou Cy Scientific Instrument Co. Ltd.
Сохранить в закладки 1601279728480:
Описание и отзывы
Характеристики

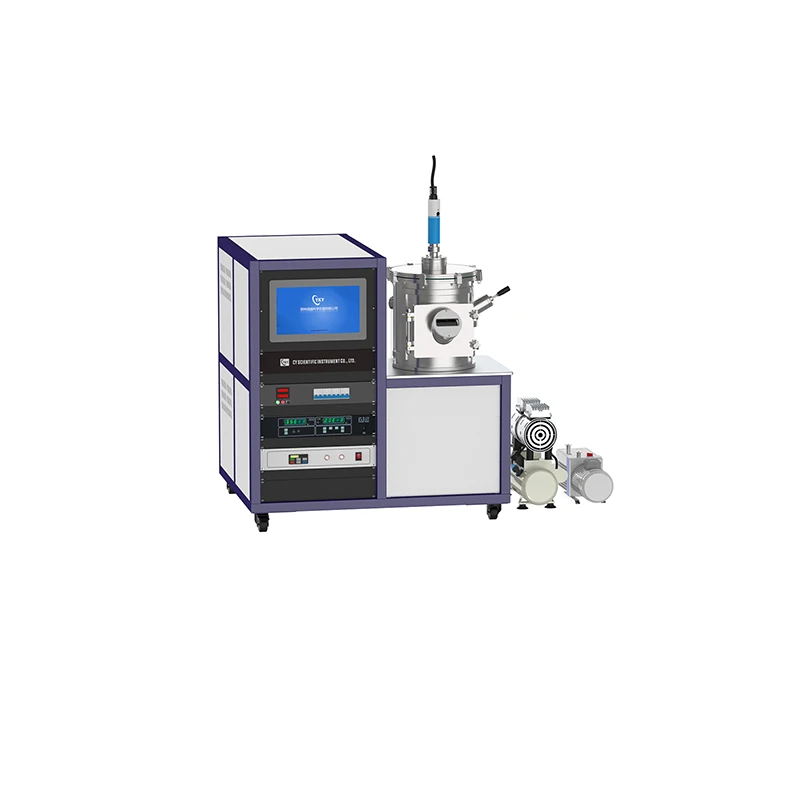

Laboratory Vacuum Electric Arc Melting Furnace for Lab Phase Diagram Research
Product Description
The feature of laboratory vacuum electric arc melting furnace
Arc Furnace Type and CE Certification metal melting furnace
1.Take turbo molecular pump system, ultimate vacuum degree ≤6X10-4Pa, individual pump
empty the arc melting chamber or arc levitation melting chamber, ultimate vacuum degree ≤2X10-4Pa.
2.The arc melting chamber can finish arc melting and suction casting process.
3.The arc melting chamber can do suction casting process for 5-10g aluminum, copper, alloys materials.
4.The arc melting electrode take international structure, electronic lifting, easy to operate.
5.Copper crucible has 7 Hemi-ball shape cave, each cave can melting 10g alloy material

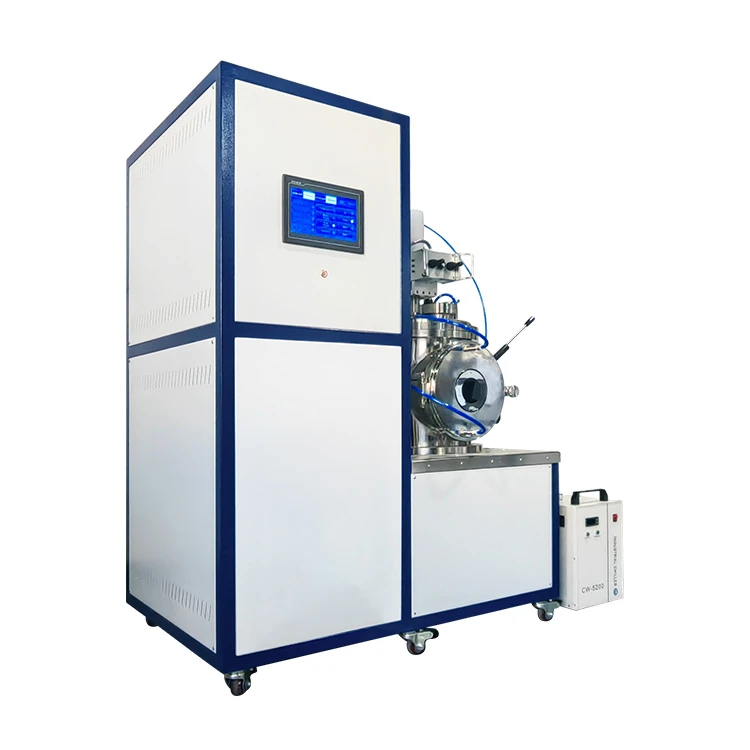

compact vacuum Arc Melting System
The specification of laboratory vacuum electric arc melting furnace
Arc Furnace Type and CE Certification metal melting furnace
Features
| Φ120mm front door for easy sample loading/unloading A tinted observation window is installed on the front for instant monitoring of the entire melting process. Water cooled vacuum chamber(φ300mm × 320mmH), cold copper Crucible and electrode Electrocution (height) adjustment via hand wheel turning Integrated mechanical manipulator made of stainless steel 1Cr13 can repeatedly tilt/rotate multiple metal ingots without breaking the vacuum Water-cooled copper hearth allows smelting multiple samples without cross- contamination up to 3000°C |
Vacuum Pressure Gauge | Please select the anti-corrosive capacitance diaphragm gauge or mechanical Vacuum pressure gauge from option bar. Digital pressure gauge is used for vacuum chamber Mechanical pressure gauge is used when continuous flow of inert gas inside the chamber |
Power supply | Input Voltage: Single phase AC 220V+/- 15% . 50/ 60Hz (Three Phase AC 380V 50Hz is available upon request) Input Power: 6.3KW, 30A Max. Output Power: DC, 56V (OVC), 10 - 190A max. adjustable Optional: larger current up to 300A is available at additional cost. |
Max. Temperature
| ~ 4000°C , almost can melt all type metal ( < 10 g ) Bottom left picture is a 4.5 g tungsten melt drop Bottom-right picture is a 10g tungsten melt drop |

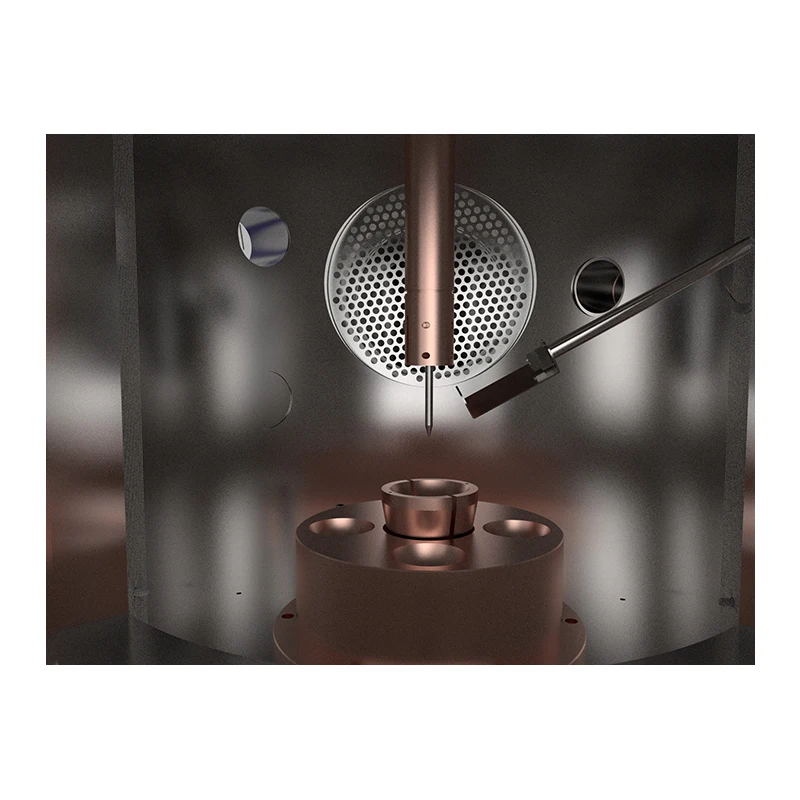

Vacuum Chamber & Copper Hearth | Vacuum chamber: Φ200mm×350mm, made of stainless steel with water cooling jacket Water cold copper hearth with 7 crucibles of 25mm Dia x 8mm depth Solidified sample is about 20 mm half-round button in max. and sample weightdepends on material density. Customized copper hearth is available upon request Sample weight for each crucible can be estimated as: W(g)= 2/3 π r3 d ( d= density, g/cm3) |
Electrode
| 4 mm Dia. Tungsten electrode with water cooling Top hand wheel can move electrode cycle, upward and downward ( max. 30 mm) to melt seven sample in one batch
|
Vacuum Pump (Optional)
| Vacuum Level is dependent on the vacuum pump used: 1E-3mbar via mechanical/roughing pump 1E-5mbar via turbo pump. We strongly recommend you consider Turbo molecular vacuum Pump Station for high-quality melting |
Water Chiller Gas (Optional)
| Water cooling is required ( not included ) for its chamber, copper mold, and an electrode. High purity Ar gas is required ( not included ). You may use 5% H2 + 95% Ar gas to better reduce oxidation |
Furnace Dimensions |
21W × 21 D × 36 H (exclude the power supply)
|
Chamber Dimensions | Φ182mm × 225mm |
Net Weight | 50Kg |
Warranty | One year limited warranty with lifetime support |

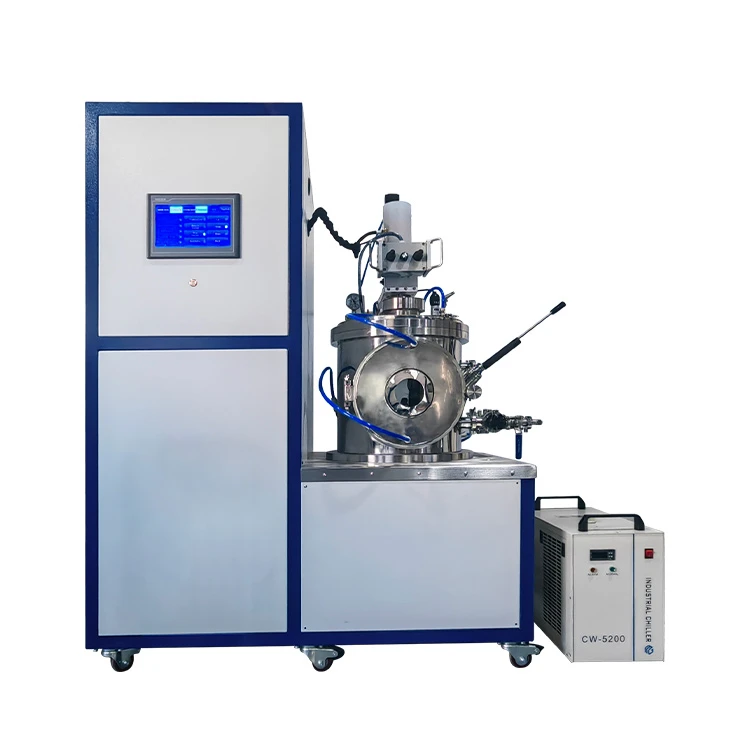

compact vacuum Arc Melting System
Arcace Type ad
CE Certification metal melting furnace
Company Information
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design,
manufacturing and sales of equipment used in scientific researches. Independence and innovation is the
company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace,
atmosphere furnace,CVD system and customized lab equipment.Welcome you come to visit us.
FAQ
1. Are you a manufacturer or trade company ?
Yes,you can assured that we are a professional manufacturer with full experience, and
doing business in domestic and oversea for many years.
2. We are not professional for operation and installation of your machine?
While this is not difficult to solve,our machine is easy to operate,no need to
professional training,and the instruction manual and vedio we make can teach you step by step.
What’s more,we have professional engineers , if needed we can send them to your side to solve the problem.
Also we supply online service at any time.
3. How about packaging ? if machine damaged,what should I do ?
Usually machine is packed with wooden case and standard export carton,
plywood carton or as your requirement. Before delivery we will also send you the packing photos of the goods to confirm with you. After agreed, we will deliver it.
Damage haven’t happened before, if happen,we will arrange replacement.
4. We haven’t do business before,how can I trust your company and machine ?
We have been GOLD supplier with no complaints on Alibaba.and our machine have exported to many countries all over the world
Our Services
1. Factory prices with the best quality.
2. One year free-of-charge maintenance for all the dental equipment
3. Customized service for special demand
4. Fast and flexible delivery, by sea, by air, by express
5. Quick response within 24 hours
How to order
1. If you are interested in our products, please tell us the model number and quantity.
2. We will make a proforma invoice for your order.
3. We will deliver the product ASAP on receipt of the payment
Guarantee
1. Guarantee for one year after shipment.
Payment
1. Western Union
2. PayPal
3. Secure Payment through Alibaba
4. Telegraphic transfer
5. L/C
