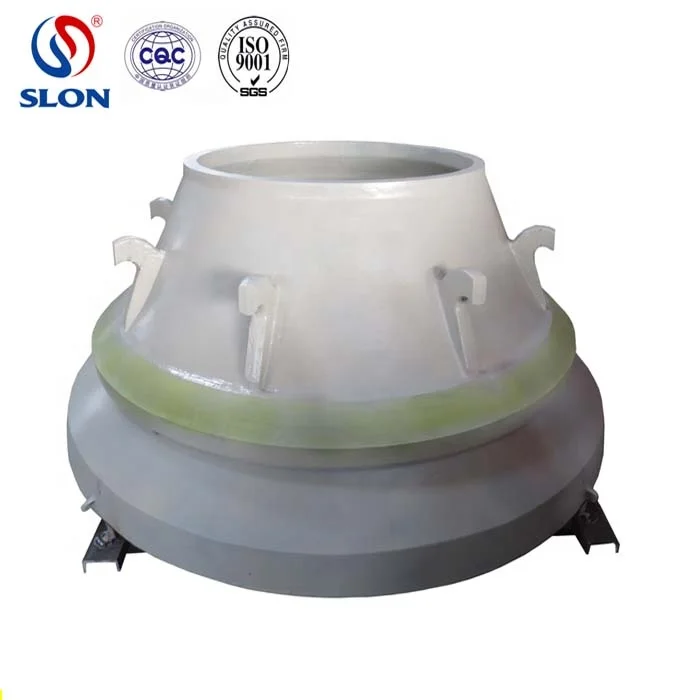

Высокое качество 5 1/2 Std конусная дробилка запасные части 4830-6501 Мантия и облицовка чаши от производителя
1,50-2,10 $
High quality 76 114mm DTH Drilling Rods Threaded Oilfield Drill Pipes by Manufacturer
- Категория: >>>
- Поставщик: Ksq Technologies (beijing) Co. Ltd.Ksq Ltd.
Сохранить в закладки 1601279861737:
Описание и отзывы
Характеристики

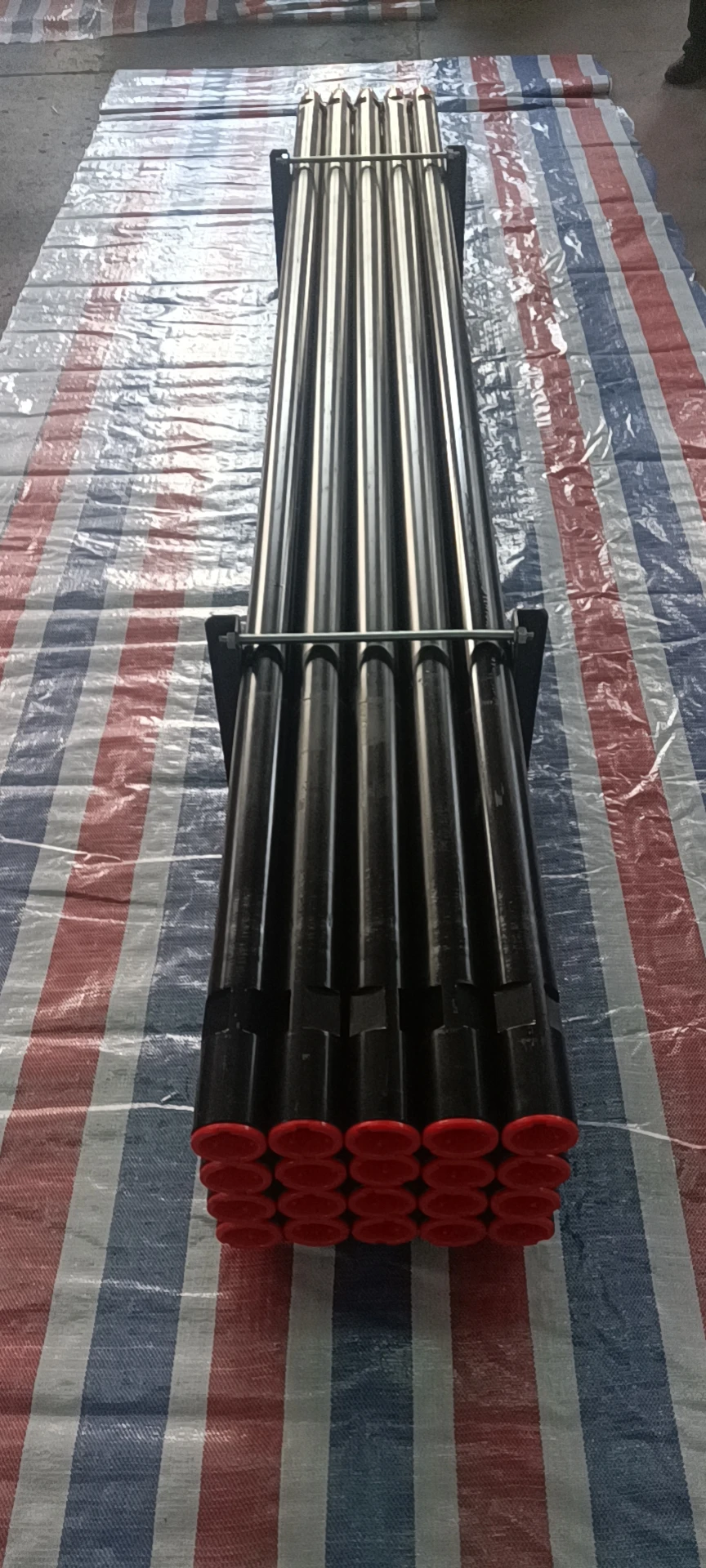

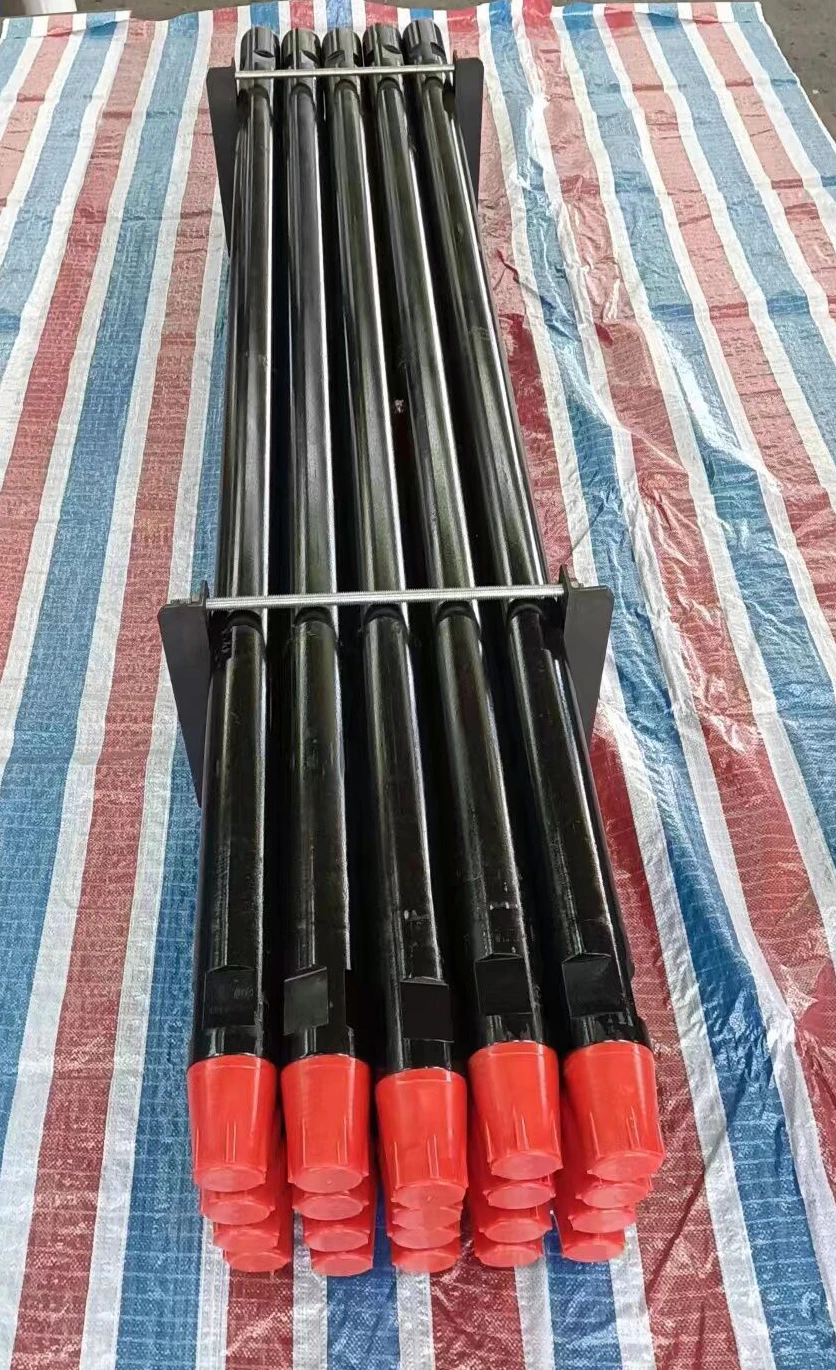

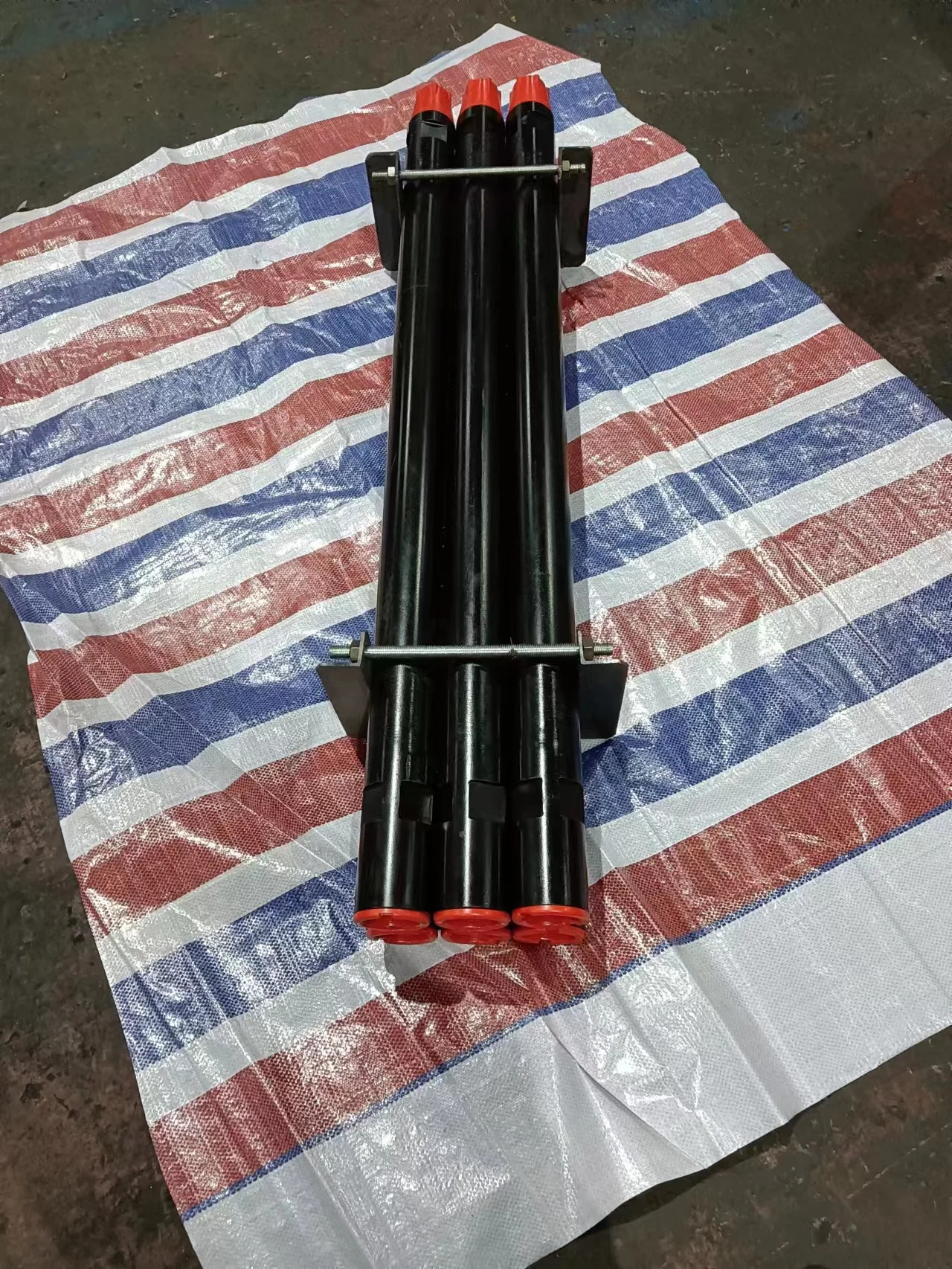

DTH Drill pipe
Drill pipes that are used in applications such as DTH/ DTHR/ DR basically comprise of a steel tube with a pin at one end and a box
on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole
drilling tools.
DTH drill tubes are used for connecting DTH hammer and DTH button bits; they are made from seamless tubes. Tubes play a
significant role in all DTH drilling, regardless of application, rock type, hole depth or drill rig. The key features of a high
quality DTH tube are durability, accuracy and manageability. According to different application, different diameters of drill
tubes are needed, basically, smaller DTH hammers need smaller DTH drill tubes, vice avers. Usually we are offering 50mm, 60mm,

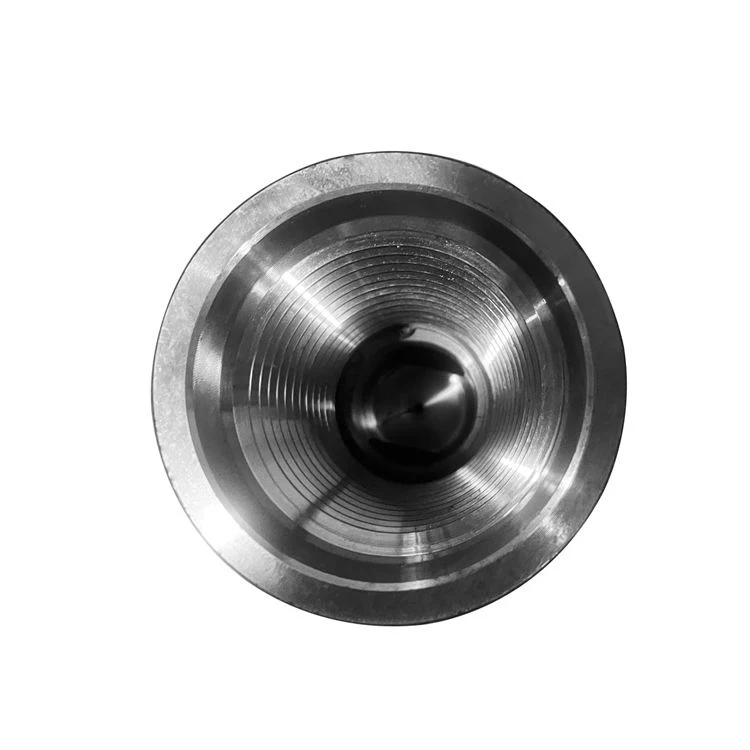

76mm, 89mm, etc. ALL DTH drill tubes are friction welded, and usually the threads are standard API connections,like23/8" API REG
thread, 3 1/2" API REG thread or API IF thread, etc. According to customers request, from 1000mm to 5000mm length of tubes are
available.
on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole
drilling tools.
DTH drill tubes are used for connecting DTH hammer and DTH button bits; they are made from seamless tubes. Tubes play a
significant role in all DTH drilling, regardless of application, rock type, hole depth or drill rig. The key features of a high
quality DTH tube are durability, accuracy and manageability. According to different application, different diameters of drill
tubes are needed, basically, smaller DTH hammers need smaller DTH drill tubes, vice avers. Usually we are offering 50mm, 60mm,
76mm, 89mm, etc. ALL DTH drill tubes are friction welded, and usually the threads are standard API connections,like23/8" API REG
thread, 3 1/2" API REG thread or API IF thread, etc. According to customers request, from 1000mm to 5000mm length of tubes are
available.
Part Number | Drill Pipe Thickness (mm) | Drill Pipe Thickness (inch) | Length (mm) | Length (ft/inch) | Wrench Flat (mm) | Wrench Flat (inch) | Weight (kg) |
4148301544 | 5.5 | 2/9 | 1000 | 3 2/7 | 57 | 2 1/4 | 17 |
4148301545 | 5.5 | 2/9 | 1500 | 5 | 57 | 2 1/4 | 22 |
4148301546 | 5.5 | 2/9 | 2000 | 6 5/9 | 57 | 2 1/4 | 26 |
4148301547 | 5.5 | 2/9 | 3000 | 9 5/6 | 57 | 2 1/4 | 35 |
4148301548 | 5.5 | 2/9 | 1000 | 3 2/7 | 65 | 2 5/9 | 17 |
4148301549 | 5.5 | 2/9 | 1500 | 5 | 65 | 2 5/9 | 22 |
4148301550 | 5.5 | 2/9 | 2000 | 6 5/9 | 65 | 2 5/9 | 26 |
4148301551 | 5.5 | 2/9 | 3000 | 9 5/6 | 65 | 2 5/9 | 35 |
4148301552 | 6.5 | 1/4 | 3000 | 9 5/6 | 65 | 2 5/9 | 46 |
4148301553 | 6.5 | 1/4 | 4500 | 14 3/4 | 65 | 2 5/9 | 56 |
4148301554 | 6.5 | 1/4 | 6000 | 19 2/3 | 65 | 2 5/9 | 73 |
4148301555 | 5.5 | 2/9 | 1000 | 3 2/7 | 65 | 2 5/9 | 20 |
4148301556 | 5.5 | 2/9 | 1500 | 5 | 65 | 2 5/9 | 25 |
4148301557 | 5.5 | 2/9 | 2000 | 6 5/9 | 65 | 2 5/9 | 30 |
4148301558 | 5.5 | 2/9 | 3000 | 9 5/6 | 65 | 2 5/9 | 40 |
4148301559 | 6.5 | 1/4 | 1000 | 3 2/7 | 65 | 2 5/9 | 21 |
4148301560 | 6.5 | 1/4 | 1500 | 5 | 65 | 2 5/9 | 26 |
4148301561 | 6.5 | 1/4 | 2000 | 6 5/9 | 65 | 2 5/9 | 32 |
4148301562 | 6.5 | 1/4 | 3000 | 9 5/6 | 65 | 2 5/9 | 45 |
4148301563 | 6.5 | 1/4 | 4500 | 14 3/4 | 65 | 2 5/9 | 65 |
4148301564 | 6.5 | 1/4 | 6000 | 19 2/3 | 65 | 2 5/9 | 84 |
About-Us
KSQ Technologies (Beijing) Co. Ltd.was established in 2010 and already has achieved a big success which can show that our company goes in right direction. We provide exceptional technica know-how in development, production and application.The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories.lt's experienced product developers can also create custom tools.Furthermore,the company's development team introduces innovative products each year- tools that are rigorously tested in the field and proven to perform beyond industry expectations
The MIROC® Rock Drilling Tools by KsQ Technologies (Beijing) Co. Ltd. is the result Rock Driming Tools of years of advanced engineering, precision manufacturing and dedication to the use of high-quality materials. MlROC® Rock Driling Tools are used by many driling professionals related to mining.construction, tunneling, and quarrying projects around the globe.
Manufacturing proces

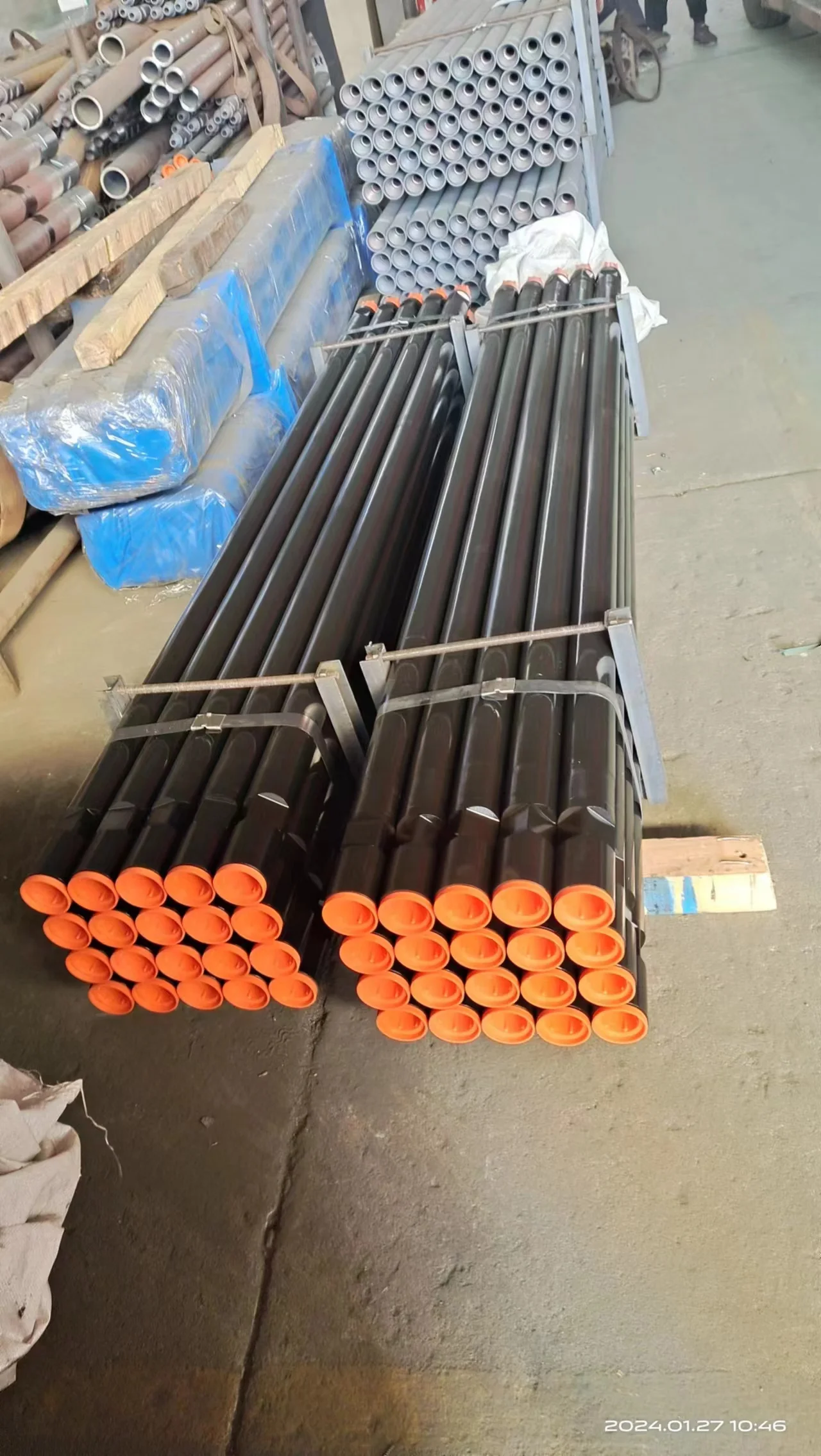

Packaging
Applications
Exhibition&Customer
FAQ
1. Q：Are you manufacturery or trade company?
A:We are manufacturer, has more than 10 years of professional production experience.Products including DTH Hammer and Bit、Drill Pipe Casing System、Tricone Bit、Top Hammer Drill Rod、 Drill Bit、Tapper Button Bit and Rod、 Integral Drill Rod etc.
2.Q: Do you offer warranty on your products?
A: Yes. For different products we offer different
warranty that cover all manufacturing defects in materials and workmanship. The longest period of warranty is 6 months after shipping date.
warranty that cover all manufacturing defects in materials and workmanship. The longest period of warranty is 6 months after shipping date.
3.Q: How is your quality control?
A: We have our own experienced quality control. There will be strict inspection and testing for every order before shipping out.
4.Q: How long is your delivery time?
A: 1-5days for the products in stock；regular order delivery in 2-3weeks.
5.Q: After Services:
A:(1) Our sales team will response for your question within 24 hours(Holidays included).
(2) Technical Support will be available in any time.
(3)Free replacement will provide once the failure confirmed caused by our product quality.
6.Q:Methods of Payment:
A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. You can choose your preferred payment methods before we shipping the goods.
7.Q: Do you offer OEM service?
A:Yes, we can offer OEM service if you have regular requirement.
8.Q: Where did you export ?
A:Till 2023 we have exported to 60+ countries.
Похожие товары

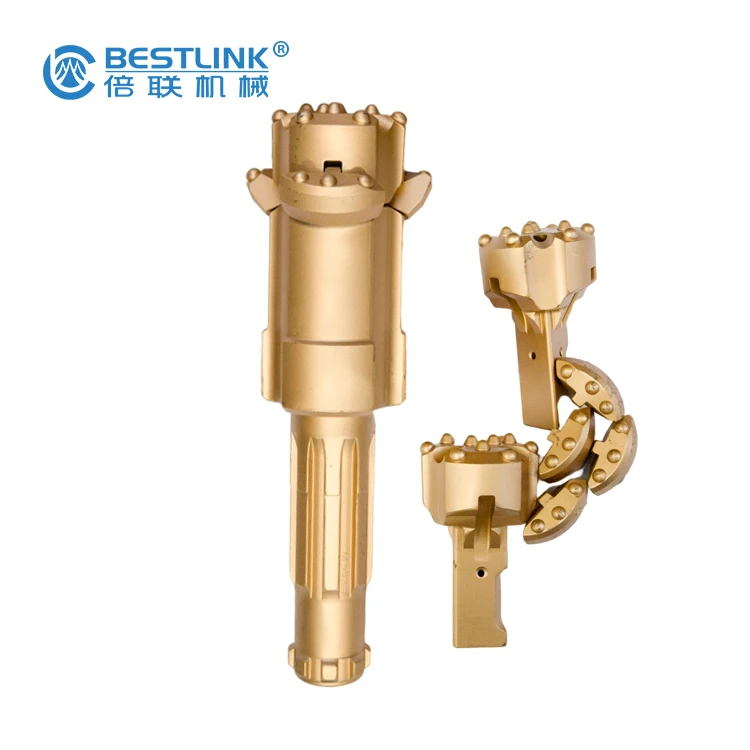

Professional Odex Drilling Symmetric Bit Discount Overburden Casing Drill System With Great Price
500,00 $
625 gpm нефтепромысловое твердое управление струйный смеситель грязи/смешивающий Хоппер/струйное смешивающее устройство
3 000,00 $
Горизонтальный направленный сверлильный станок буровой стержень/труба
100,00-500,00 $

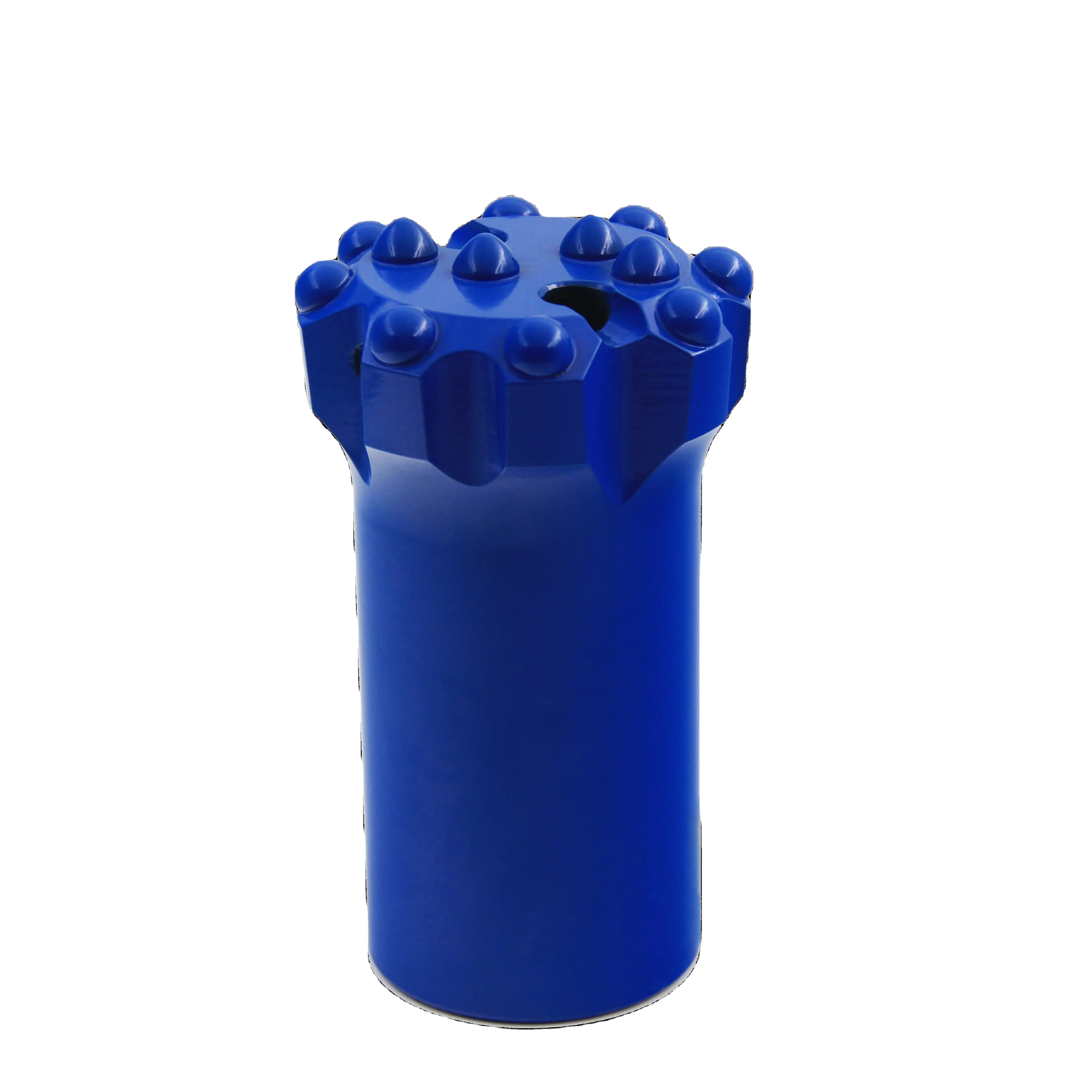

40 мм 4/6/7/8 кнопок 7 /11/12 градусов коническая кнопка бит
