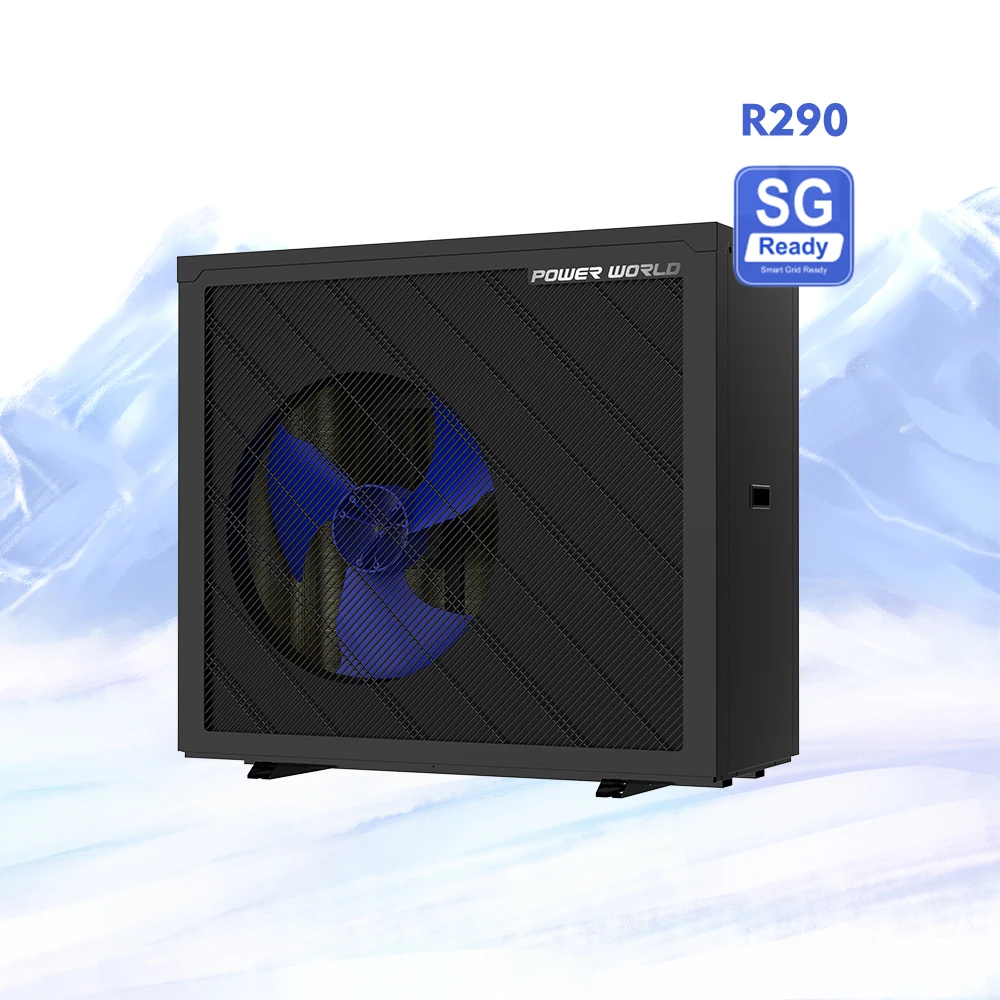

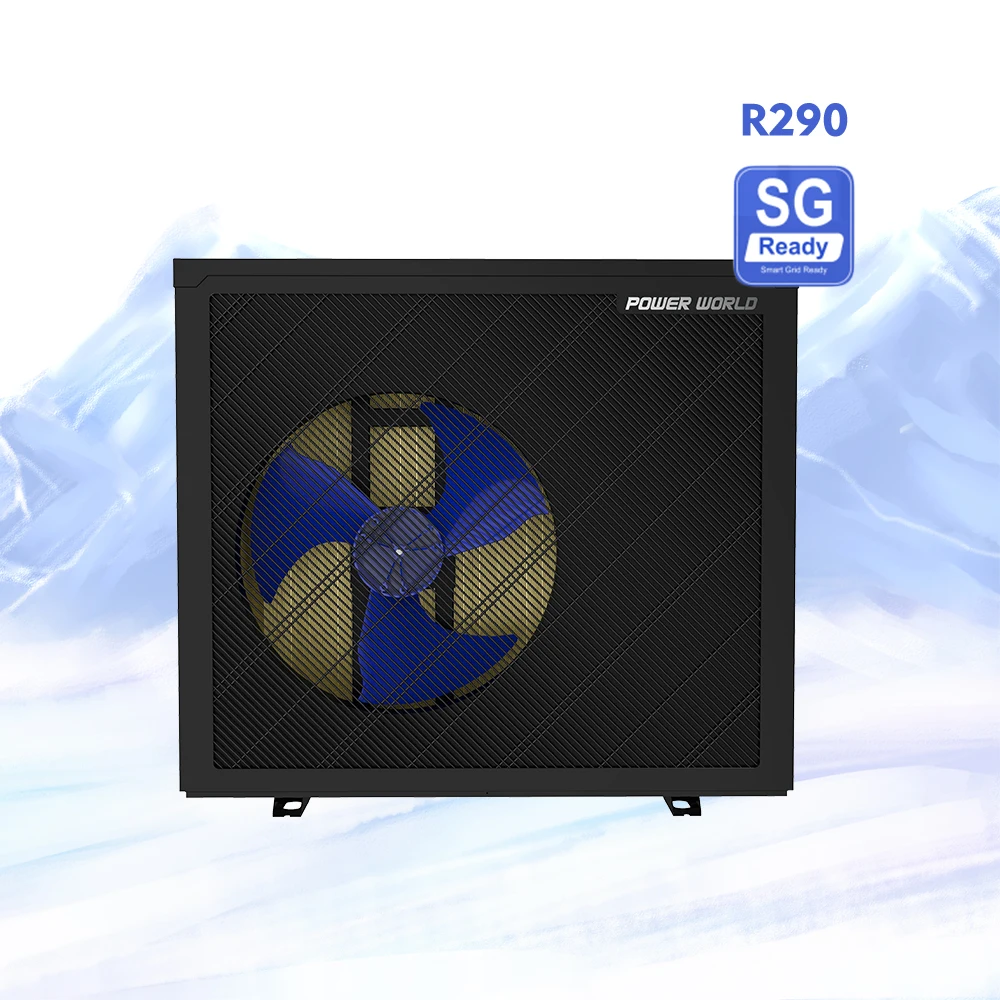

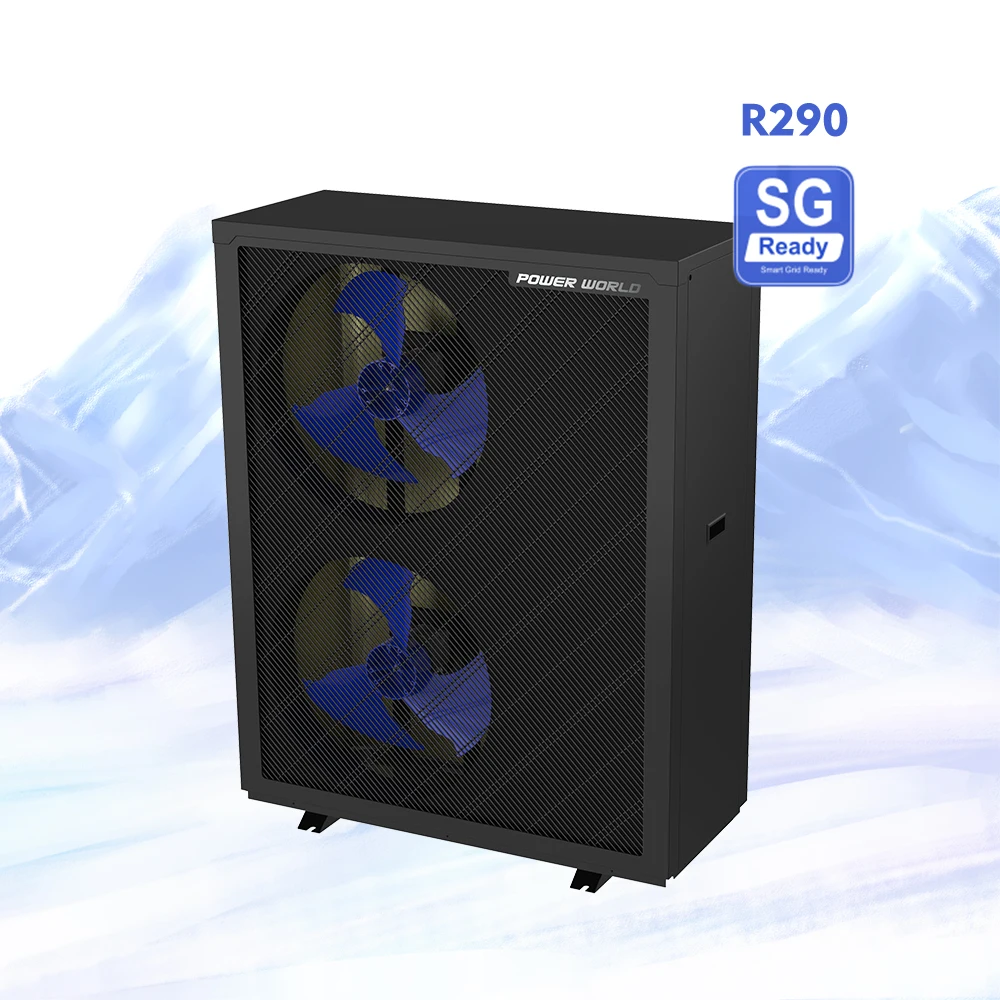

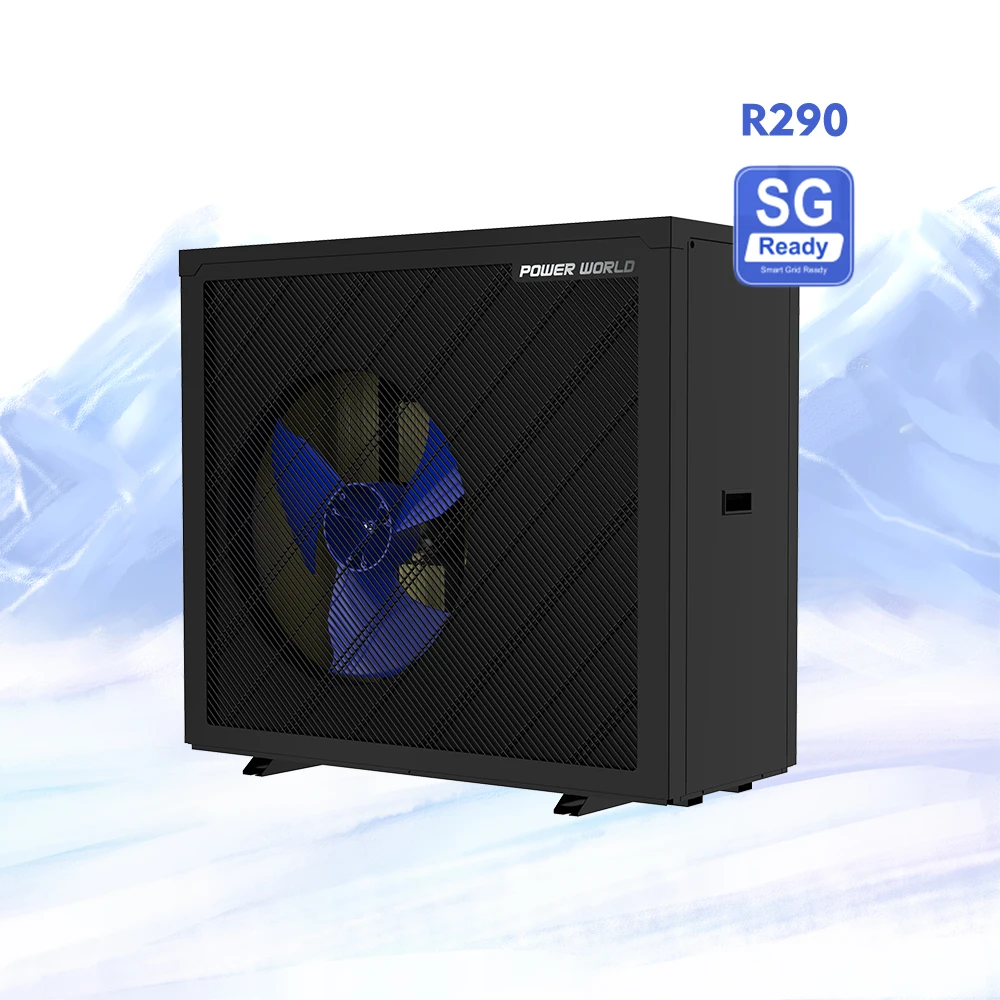

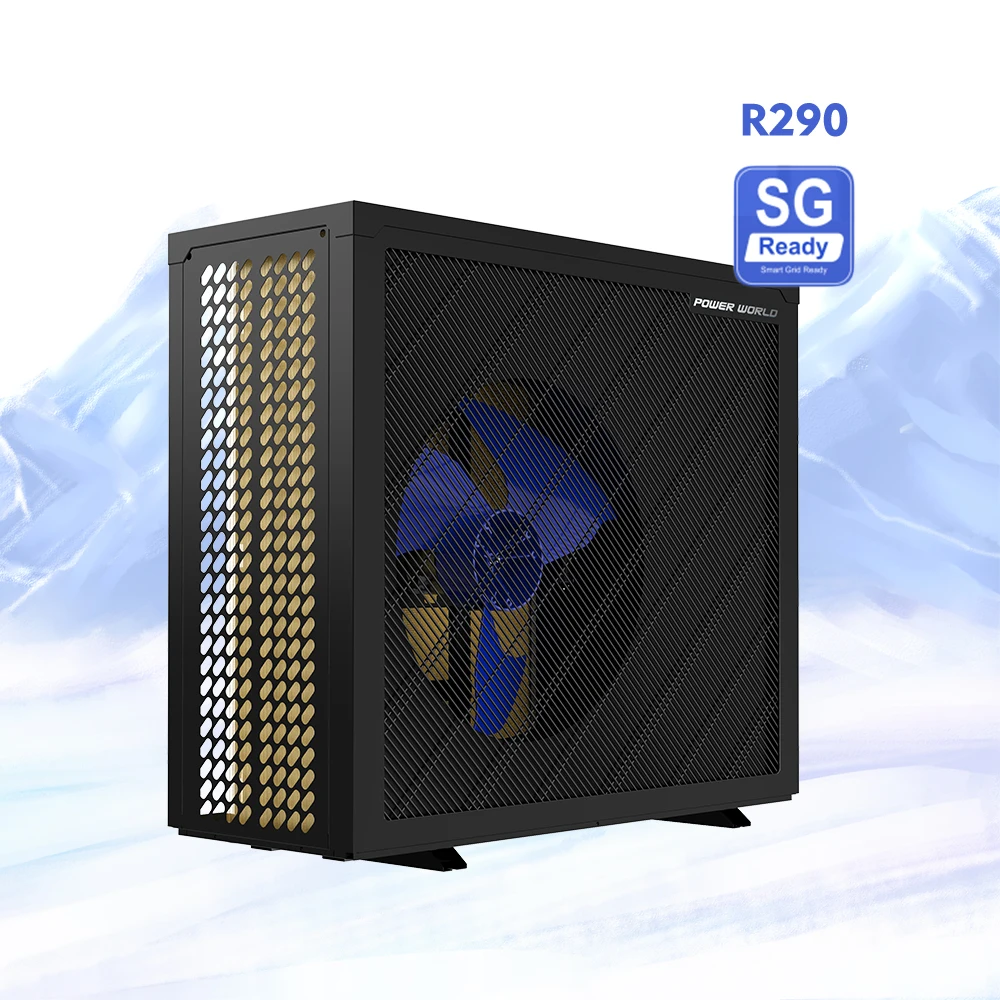

Китай Гуандун поставщики тепловых насосов оптом Erp A +++ R290 воздушный тепловой насос для воздуха и воды
231 248,03-278 489,71 ₽
Энергетический мировой тепловой насос воздух вода r290 инвертор водяной воздушный блок
- Категория: >>>
- Поставщик: Power World Machinery Equipment Co. LtdPower Ltd
Сохранить в закладки 1601279871052:
Описание и отзывы
Характеристики
Products Description
Model | PW030-DKZLRS-E/S | PW040-DKZLRS-E/S | PW050-DKZLRS-E/S | PW040-DKZLRS-E | PW050-DKZLRS-E | PW060-DKZLRS-E | ||||||||
Heating Condition - Ambient Temp.(DB/WB): 7/6℃，Water Temp.(In/Out):30/35℃ | ||||||||||||||
Heating Capacity Range (kW) | 3.3~8.3 | 4.5~11.4 | 5.9~14.8 | 4.5~11.4 | 5.9~14.8 | 8.8~22.0 | ||||||||
Heating Power Input Range(kW) | 0.64~2.18 | 0.85~2.95 | 1.13~3.83 | 0.85~2.95 | 1.13~3.83 | 1.68~5.77 | ||||||||
COP Range | 3.81~5.17 | 3.86~5.29 | 3.86~5.22 | 3.86~5.29 | 3.86~5.22 | 3.81~5.24 | ||||||||
DHW Condition-Ambient Temp.(DB/WB): 7/6℃，Water Temp.(In/Out):15/55℃ | ||||||||||||||
Heating Capacity Range (kW) | 3.7~7.4 | 5.2~10.2 | 6.6~13.2 | 5.2~10.2 | 6.6~13.2 | 7.8~17.6 | ||||||||
Heating Power Input Range(kW) | 0.79~2.10 | 1.10~2.87 | 1.41~3.73 | 1.10~2.87 | 1.41~3.73 | 1.67~5.01 | ||||||||
COP Range | 3.52~4.69 | 3.55~4.71 | 3.54~4.67 | 3.55~4.71 | 3.54~4.67 | 3.51~4.66 | ||||||||
Heated water output (L/H) | 159 | 219 | 283 | 219 | 283 | 377 | ||||||||
Cooling Condition - Ambient Temp.(DB/WB):35/24℃，Water Temp.(In/Out):12/7℃ | ||||||||||||||
Cooling Capacity Range (kW) | 2.4~5.8 | 3.3~8.2 | 4.3~10.8 | 3.3~8.2 | 4.3~10.8 | 6.2~15.3 | ||||||||
Cooling Power Input Range(kW) | 0.79~2.19 | 1.08~3.07 | 1.39~3.99 | 1.08~3.07 | 1.39~3.99 | 1.99~5.60 | ||||||||
EER Range | 2.65~3.04 | 2.67~3.06 | 2.71~3.10 | 2.67~3.06 | 2.71~3.10 | 2.73~3.12 | ||||||||
Space Heating (According to EN14825:2022) Average Climate Water Outlet 35°C | Rated heat output (kW) | 5.82 | 7.89 | 9.95 | 7.61 | 10.27 | 14.05 | |||||||
Seasonal Space Heating Energy Efficiency (ηs) | 182.7% | 181.0% | 182.9% | 181.6% | 180.8% | 184.6% | ||||||||
Seasonal Space Heating Energy Efficiency (SCOP) | 4.64 | 4.60 | 4.65 | 4.62 | 4.60 | 4.69 | ||||||||
ErP Level | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | ||||||||
Sound pressure level (dB(A)) at 1 meter | 44 | 43 | 45 | 43 | 44 | 45 | ||||||||
Sound power level (dB(A)) | 58 | 57 | 59 | 58 | 59 | 60 | ||||||||
Space Heating (According to EN14825:2022) Average Climate Water Outlet 55°C | Rated heat output (kW) | 5.59 | 8.70 | 9.23 | 8.10 | 12.17 | 13.47 | |||||||
Seasonal Space Heating Energy Efficiency (ηs) | 136.0% | 137.0% | 131.9% | 135.8% | 134.7% | 138.9% | ||||||||
Seasonal Space Heating Energy Efficiency (SCOP) | 3.48 | 3.50 | 3.37 | 3.47 | 3.44 | 3.55 | ||||||||
ErP Level | A++ | A++ | A++ | A++ | A++ | A++ | ||||||||
Sound pressure level (dB(A)) at 1 meter | 44 | 47 | 46 | 42 | 45 | 46 | ||||||||
Sound power level (dB(A)) | 58 | 61 | 60 | 57 | 59 | 62 | ||||||||
Power supply | 230V/1Ph/50Hz/60Hz | 380V/3Ph/50-60Hz | ||||||||||||
Max. power input(kW) | 3.1 | 4.1 | 5.2 | 4.1 | 5.2 | 7.6 | ||||||||
Max. current (A) | 14.2 | 18.8 | 23.8 | 7.8 | 9.8 | 14.3 | ||||||||
Fuse or circuit breaker (A) | 20 | 25 | 32 | 16 | 16 | 20 | ||||||||
Wire diameter mm² | 2.5mm² | 4mm² | 6mm² | 2.5mm² | 2.5mm² | 4mm² | ||||||||
Diameter of pipe (mm) | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | ||||||||
Water Flow(m3/h) | 1.43 | 1.96 | 2.55 | 1.96 | 2.55 | 3.78 | ||||||||
Water Pressure Drop (max) kPa | 30 | 35 | 40 | 35 | 40 | 45 | ||||||||
Net Weight (kg) | 112 | 120 | 138 | 120 | 138 | 170 | ||||||||
Body size(W*D*H) (mm) | 1080×460×820 | 1080×460×960 | 1080×480×1060 | 1080×460×960 | 1080×480×1060 | 1080×480×1372 | ||||||||
Packing size(W*D*H)(carton) | 1100×490×960 | 1100×490×1110 | 1100×500×1210 | 1100×490×1110 | 1100×500×1210 | 1100×500×1510 | ||||||||
Packing size(W*D*H)(Polywood) | 1140×520×974 | 1140×520×1120 | 1140×530×1220 | 1140×520×1120 | 1140×530×1220 | 1140×530×1520 | ||||||||
Loading quantity (carton) | 48/96 | 48/96 | 22/92 | 48/96 | 22/92 | 22/46 | ||||||||
Loading quantity (Polywood) | 44/88 | 44/88 | 22/88 | 44/88 | 22/88 | 22/44 | ||||||||
IP Grade (Level of protection) | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | ||||||||
Anti-electric shock Rate | I | I | I | I | I | I | ||||||||
Refrigerant | R290/1.0kg | R290/0.95kg | R290/1.45kg | R290/1.1kg | R290/1.45kg | R290/1.4kg | ||||||||
Compressor | Brand | HIGHLY | HIGHLY | HIGHLY | HIGHLY | HIGHLY | HIGHLY | |||||||
Model | WHP07600PSDPC9KQ | WHP10200PSDPC9KQ | WHP13300PSDPC8FQ | WHP10200PSDPC9KQ | WHP13300PSDPC8FQ | WHP32900VSKTQ9JK | ||||||||
Water pump | Brand | SHIMGE | SHIMGE | SHIMGE | SHIMGE | SHIMGE | SHIMGE | |||||||
Model | APM25-9 | APM25-9 | APM25-9 | APM25-9 | APM25-9 | APF25-12 | ||||||||
Operation Ambient Temp. (℃) | -25~43℃ | |||||||||||||
Operating water temperature (℃) | 20~65℃(DHW) | |||||||||||||
Operating water temperature (℃) | 20~70℃(Heating) | |||||||||||||
Operating water temperature (℃) | 7~35℃(Cooling) | |||||||||||||
Why Choose Us
Power World New Energy Technology Co.,Ltd.
Power World has a heat pump R&D center with a team of 20 engineersand four professional laboratories. Complying with ISO9001: 2008&ISO14001: 2004,all products get CE, CB (IEC) certificate and ERP Energy Label based on EN14825, EN14511,strictly according to latest EHPA requirement.
VR
FAQ
Q1: Are you heat pump supplier of trading company or manufacturer ?
A1: We are R&D and manufacturer factory. With 300,000 sq meters modern factory in Shenzhen City & Dongguan City. with OEM service provided, MOQ> 20 Units.
A1: We are R&D and manufacturer factory. With 300,000 sq meters modern factory in Shenzhen City & Dongguan City. with OEM service provided, MOQ> 20 Units.
Q2: How long is your Heat Pump delivery time?
A2: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q3: Do you also provide other kind of heat pump?
A3: ASHP of EVI(8KW-132KW) | SWIM POOL(2KW-150KW) I Domestic heat pump(80L-300L tank size),etc.
Q4: Wonder if you accept small orders?
A4: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q5: Can you send products to my country?
A5: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q6: Can you do OEM for me?
A6: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q7: What's your payment terms ?
A7: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q8: How can I place the order?
A8: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q9 When can I get the quotation ?
A9: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
A2: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q3: Do you also provide other kind of heat pump?
A3: ASHP of EVI(8KW-132KW) | SWIM POOL(2KW-150KW) I Domestic heat pump(80L-300L tank size),etc.
Q4: Wonder if you accept small orders?
A4: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q5: Can you send products to my country?
A5: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q6: Can you do OEM for me?
A6: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q7: What's your payment terms ?
A7: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q8: How can I place the order?
A8: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q9 When can I get the quotation ?
A9: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
Looking Forward to Your Inquiry
Power World
email:marketing@powerworld-e.com
WhatsApp:+86-13763165244
Wechat: 13763165244
TEL:+86-0769-89979297
Website: www.powerworld-e.com
Add:Headquarters Add:No.24,the fourth industrial zone,HouTing Street,ShaJing Town,BaoAn District,Shenzhen China.
Fatory Add: No.32 Luxi 2nd Road,Xixi Street,Liaobu Town,Dongguan,China.
If you are interested in this product,please fill in the below and send us,we will reply you and also send you the latest product catalog and latest quotation within 1 hour.
↓↓↓↓↓
Похожие товары
Популярный дизайн раздельные тепловые насосы новая система в Европе на солнечной энергии для центрального обогрева дома
219 437,61-278 489,71 ₽
R32 R290 8 кВт 12 полный Инвертор постоянного тока Европейский кантри CE erp воздух-вода тепловой насос для нагрева горячей воды с буферным баком
265 734,45-289 355,29 ₽
Охлаждающий и нагревательный тепловой насос промышленный с воздушным охлаждением винтовой водяной охладитель системы охлаждения
106 175,68 ₽
Sunrain R32 хладагент WIFI умное Управление полный DC инверторный компрессор нагревание и охлаждение воздуха до воды тепловой насос
92 121,28-95 664,41 ₽

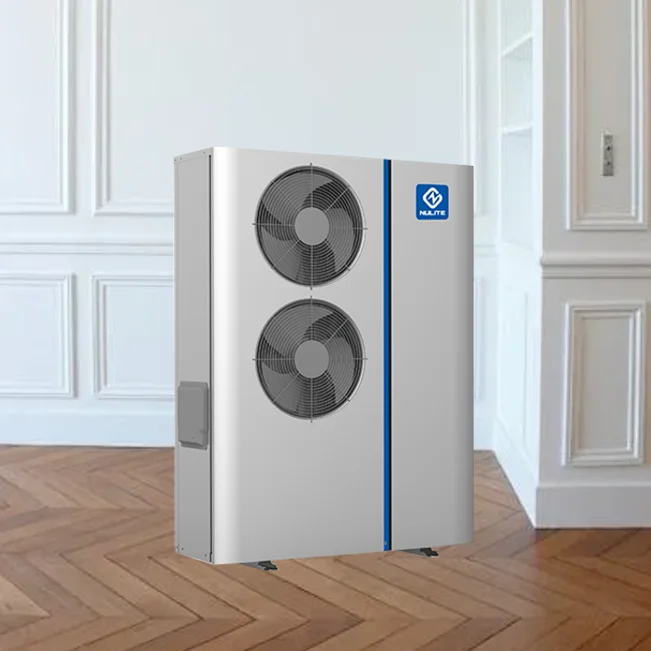

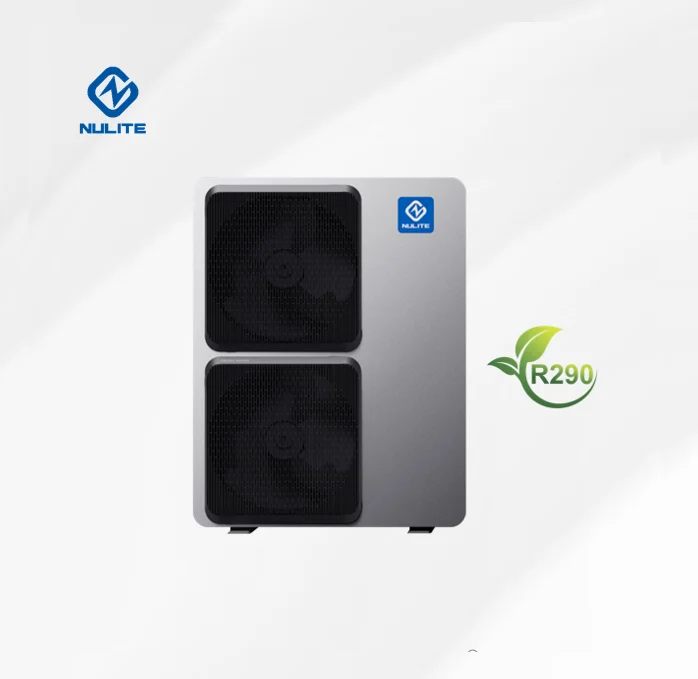

Новое поступление Nulite R290 oem odm wifi 16 19 кВт насос для охлаждения пола с воздушным и водяным подогревом моноблок EVI инверторный тепловой
279 061,60-285 926,59 ₽
AWC4P 4kw моноблочный тепловой насос Новый энергетический для горячей воды
45 766,56-57 208,20 ₽

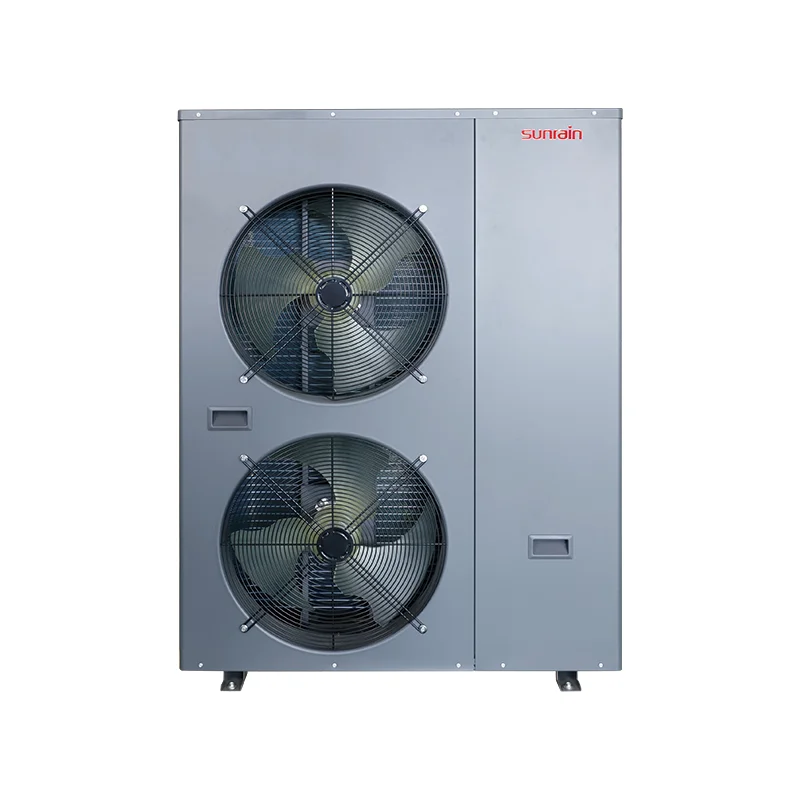

Sunrain R290 источник воздуха для воды DC инвертор pompa ciepla monoblok тепловой насос Моноблок подогрева пола
