Product Description



Model
NWS001
Printing size
1000*1000*1600mm
Frame:
60mm aluminum section
Operation Firmware:
R&D based on Klipper
Movement of X&Y axis:
High precision linear rail
Movement of bed:
4 X screw rods & 4 X roller rods
Filament feeder:
Near end max 1000g/hour
Printing bed:
6mm tempered glass
Heating bed:
With digital temperature controller
Bed temperature:
0-100°c (optional 150°c)
Nozzle size:
0.4, 0.8, 1.2, 1.6, 2.0mm
Nozzle temperature
0-420c
Operation Interface:
7" TFT full Color
Voltage:
110V/220V
Positional accuracy:
0.02mm
Layer accuracy:
0.04-0.6mm
Slicing software:
Dowell3d / Cura / or other similar software
Input format:
STL/OBJ/Gcode/JPG
Filament diameter:
2.85mm
Connection:
U disk/SD Card/ Wifi
Standard functions:
*Auto leveling  *filament sensor  *auto power off   * nozzle anti-collision*Visible Printing status  *Z-offset adjustment  *Visible temperature graph  *Accelerations  *Configuration editable  *Remote control
*External camera can be installed  *Gcode viewer
*History Record  *Emergency stop button
Customization Options:
1. Dual extruder
2. Constant temperature enclosure
3. Printing size

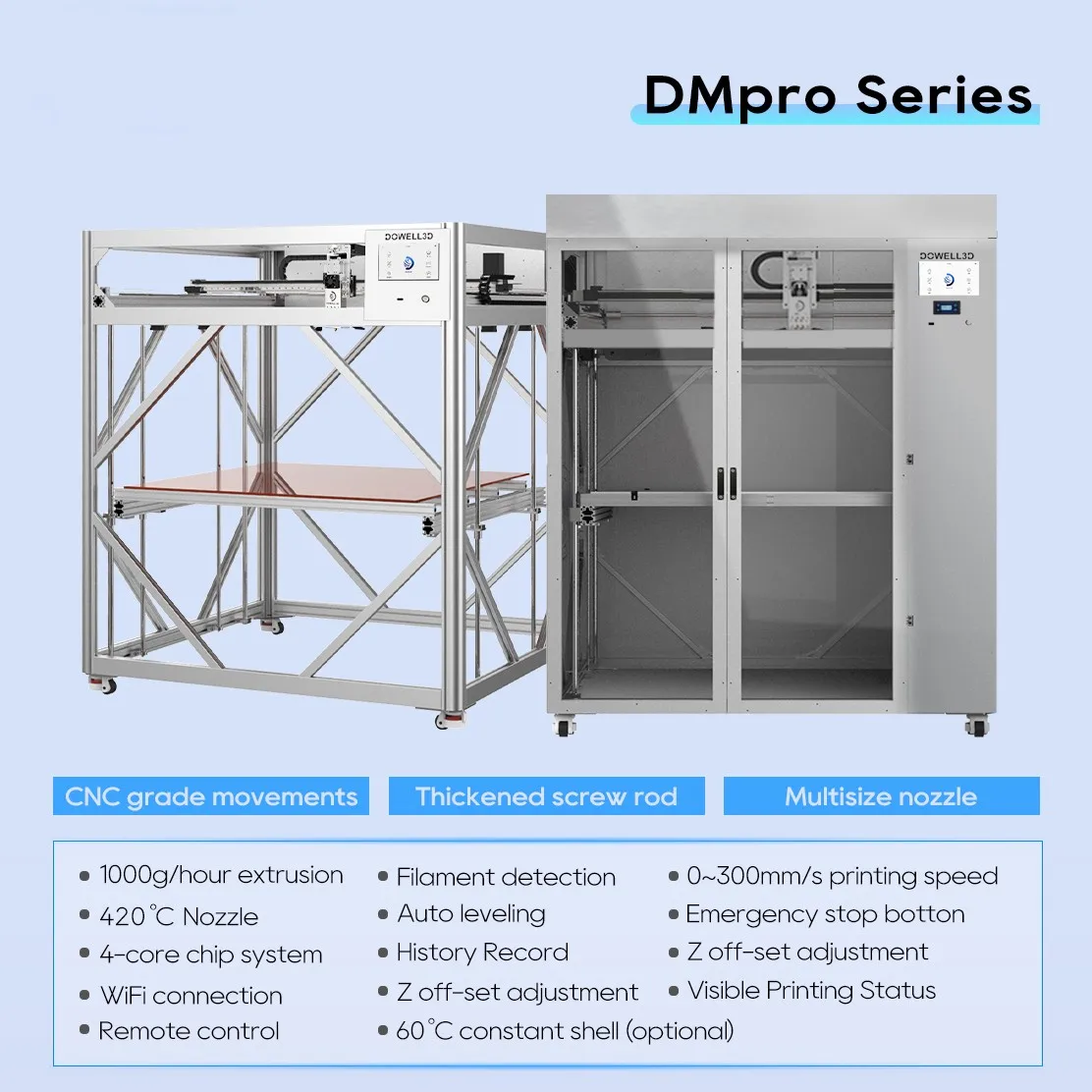

of DMPro 3d printer.

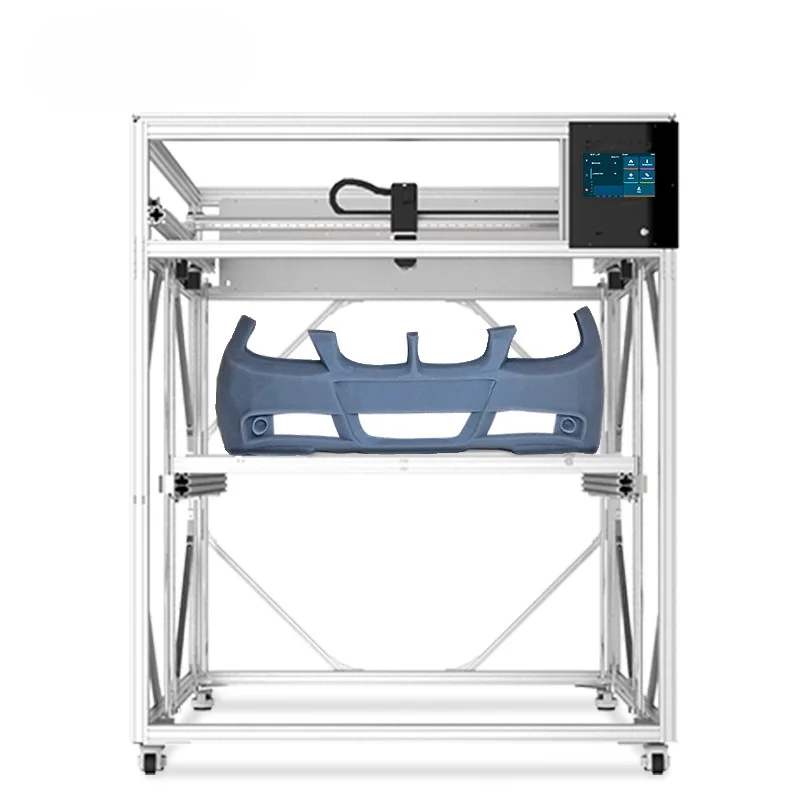

Use a Dowell 3D DMPro printer to take your designs from virtual to reality in a matter of seconds. It builds repeatable, accurate parts such as jigs, fixtures, factory tooling and production parts, as well as functional prototypes that can withstand rigorous testing. -420°c High temperature nozzle (a variety filament types printable)
-Max 1000g/hour high extrusion ( Shorten a lot of printing time on large model)
-60mm frame (Strong load-bearing ability)
-Industrial grade spare parts (precise positioning)
-Intelligent function (easy remote control, and maintance)
-64 points turely auto leveling (operation friendly)
-37 different printer sizes (Extensive Printer Sizes)
High Extrusion Rate.
The Dowell DMPro series 3D printer uses a 4-size powerful extrusion system. The maximum extrusion rate can reach 1000g/hour, which is dozens of times that of ordinary printers on the market, enabling customers to achieve rapid production.

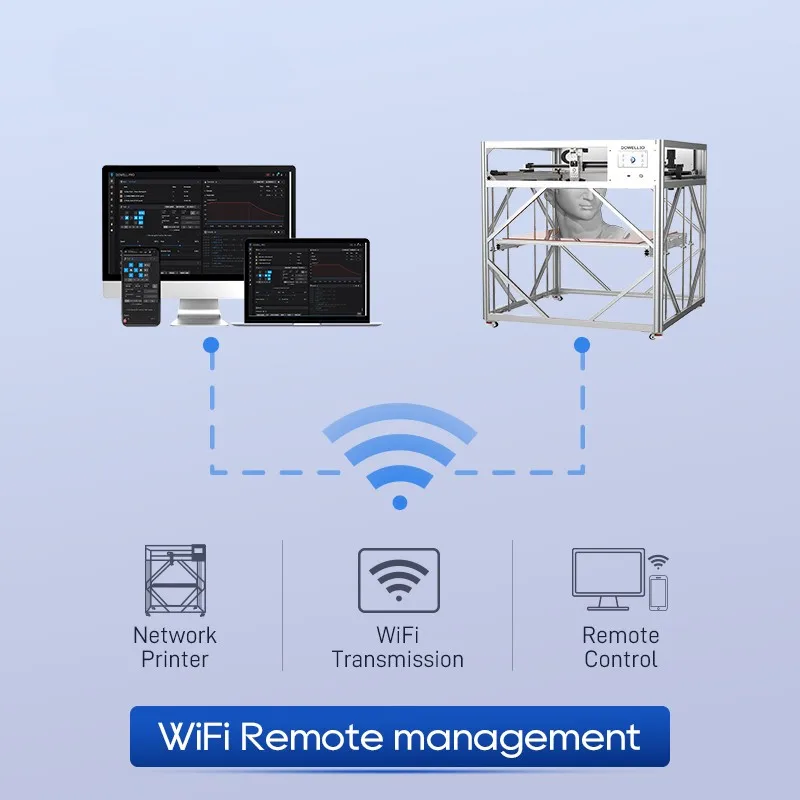

WiFi connection
The operation interface is 7 inch full color large screen, it is conveniet to operate.

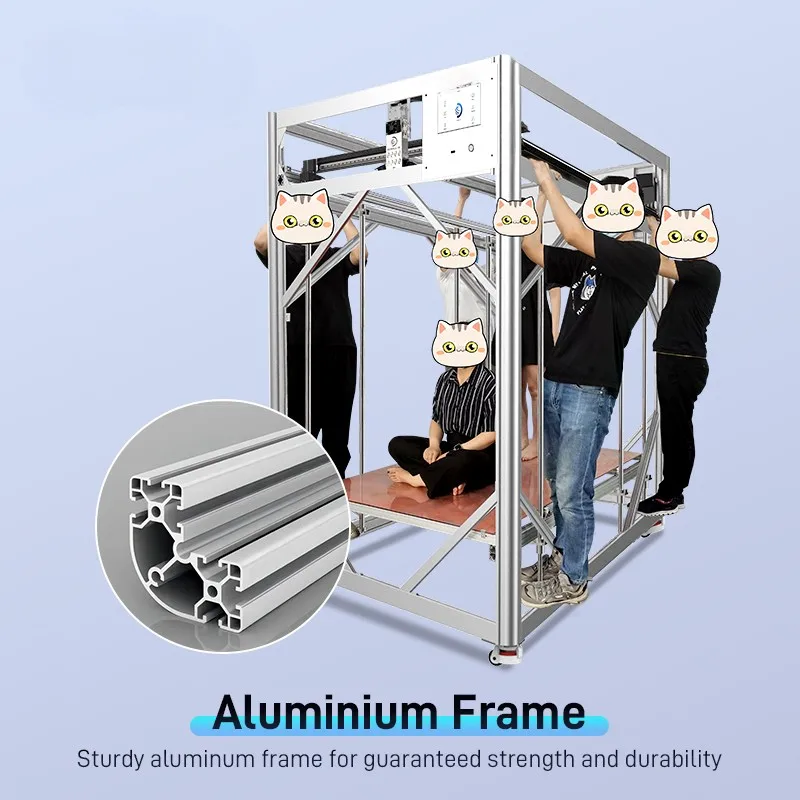

Sturdy aluminium FrameSturdy aluminum frame for guaranteed strength and durability.
6mm tempered glass platform
Whole bed heated by silicon rubber heater evenly, precise control temperature 0-100 degrees, Effective prevent warping
Super load capacity more than hundreds kilograms.
420-c high temperature nozzle
Dowell3D's self-developed 420-c high temperature nozzle is compatible with a wide range of materials
Silent drive & strong motor
At the same time with silent and efficient two s, effectively reduce work noise
Filament Runout Sensor
Installed on the X-axis. When it is detected that the filament is about to be exhausted, the machine will automatically stop until new material is replaced.
Multi-language 7'' Touchscreen
Dowell DMPro uses firmware developed based on Klipper and comes with 18 languages. In addition, we provide customization.
One key auto leveling help you easy operate
1. First, 4 corners auto-level independently.2. Then 8*8=64 points on the whole bed automatic detection platform flatness. Through the independent 4 screw automatic adjustment to achieve the true automatic leveling.
Slide Module Drive
X axis and Y axis have high accuracy and long service life. with high transmission accuracy and low friction resistance, ensuring the accuracy and stability during printing.
