Автоматическая цепная решетка 10 тонн угольная труба паровой котел цена
- Категория: >>>
- Поставщик: Henan Yuji Boiler Vessel Co. Ltd.
Сохранить в закладки 1601280042344:
Описание и отзывы
Характеристики
Product Overview

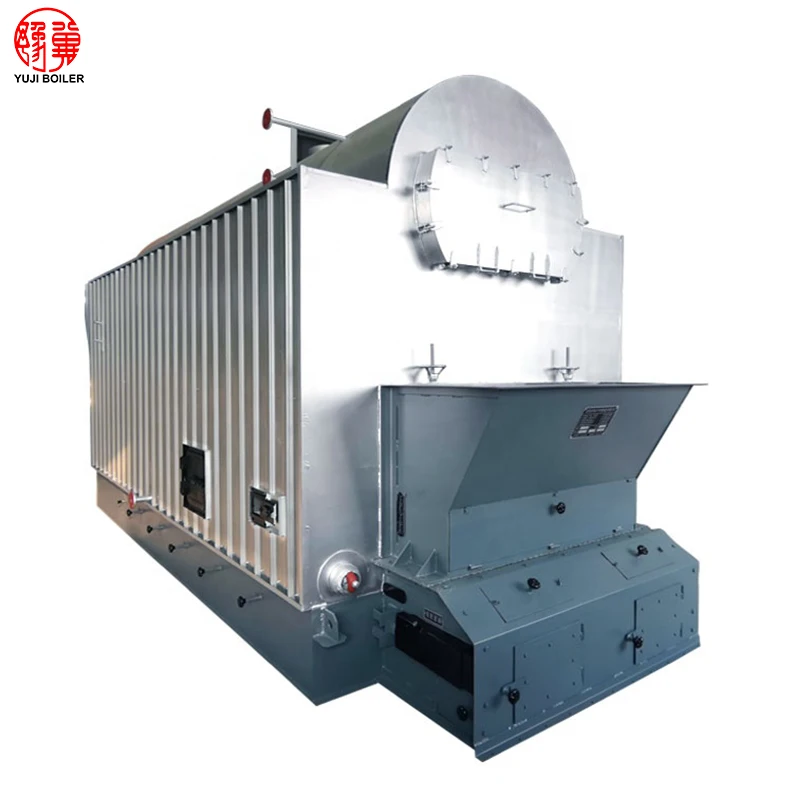

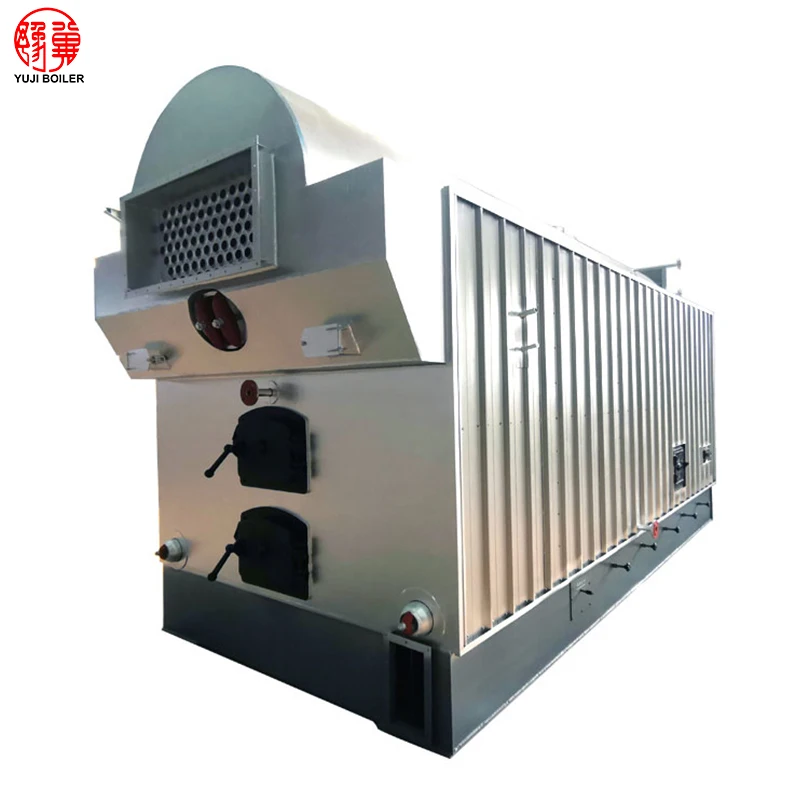

Biomass Coal Fired Steam Boiler
DZL series chain grate coal fired steam boiler is designed with single drum boiler with fire tube and water pipe.It has fast heat conduction and steam pressure rise quickly.It can adapt to various kinds of coal with compact structure and high thermal efficiency.
Feature：
1. Water and fire pipes ensure high thermal efficiency
2. Membrane wall water pipe arrangement increases heat absorption area
3. The energy saver can fully absorb the waste heat and save the cost
4. With over pressure, over temperature, water shortage, leakage, motor overload and other interlocking protection functions
5. The whole heat treatment process can eliminate the steel stress and ensure safe operation6. Assembly structure, short installation cycle, convenient hoisting and transportation
2. Membrane wall water pipe arrangement increases heat absorption area
3. The energy saver can fully absorb the waste heat and save the cost
4. With over pressure, over temperature, water shortage, leakage, motor overload and other interlocking protection functions
5. The whole heat treatment process can eliminate the steel stress and ensure safe operation6. Assembly structure, short installation cycle, convenient hoisting and transportation
PRODUCT SPECIFICATIONS
DZH Steam Boiler | ||||||||||||||
Rated evaporation(t/h) | Rated pressure(MPa) | Steam temperature(℃) | thermal efficiency (%) | Fuel consumption (kg/h) | Size L×W×H (m) | Weight(t) | ||||||||
DZH 1-1.0/1.25-AII | 1 | 1.0/1.25 | 193/204 | ≥83 | 176.6 | 5.1×2.2×2.9 | 15 | |||||||
DZH 2-1.0/1.25-AII | 2 | 1.0/1.25 | 193/204 | ≥83 | 352.3 | 6.14×2.6×3.2 | 18 | |||||||
DZH 3-1.25/1.6-AII | 3 | 1.25/1.6 | 193/204 | ≥83 | 522 | 6.33×2.7×3.3 | 24 | |||||||
DZH 4-1.25/1.6-AII | 4 | 1.25/1.6 | 193/204 | ≥83 | 571 | 6.88×2.7×3.3 | 27 | |||||||
DZH 6-1.25/1.6-AII | 6 | 1.25/1.6 | 193/204 | ≥83 | 1044 | 7.29×3.2×3.7 | 31 | |||||||
DZH 8-1.25/1.6-AII | 8 | 1.25/1.6 | 193/204 | ≥83 | 1396.5 | 7.8×3.4×3.7 | 33 | |||||||
DZH 10-1.25/1.6-AII | 10 | 1.25/1.6 | 193/204 | ≥83 | 1743.3 | 8.5×3.4×3.7 | 41 | |||||||
DZH Hot Water Boiler | ||||||||||||
Rated power(mw) | Rated pressure(MPa) | thermal efficiency (%) | Fuel consumption (kg/h) | Size LxWxH (m) | Weight(t) | |||||||
DZH0.7-0.7/95/70 | 0.7 | 0.7/1.0 | ≥83 | 174.3 | 5.1x2.2x2.9 | 15 | ||||||
DZH1.4-1.0/95/70 | 1.4 | 1 | ≥83 | 348.6 | 6.14x2.6x3.3 | 18 | ||||||
DZH2.1-0.7/95/70 | 2.1 | 1 | ≥83 | 517 | 6.33x2.7x3.3 | 24 | ||||||
DZH2.8-1.0/95/70 | 2.8 | 1 | ≥83 | 687.2 | 6.88x2.7x3.3 | 27 | ||||||
DZH4.2-0.7/95/70 | 4.2 | 1/1.25 | ≥83 | 1024 | 7.29x3.2x3.7 | 31 | ||||||
DZH5.6-1.25/95/70 | 5.6 | 1/1.25 | ≥83 | 1374.3 | 7.8x3.4x3.7 | 33 | ||||||
DZH7-1.25/95/70 | 7 | 1/1.25 | ≥83 | 1708 | 8.5x3.4x3.7 | 39 | ||||||
FAQ
Q. Are you manufacturer?
A: Yes, we are professional manufacturer of boiler and pressure vessels in Henan, China.
Q: Do you have any Certificate?
A: Yes. Our boiler have got China GB ISO certificates and CE certificate of EU. We also can provide ASME, GHOST and other necessary certificates if you need.
Q: How can I pay you?
A: T/T, Western Union, Money Gram and Ali Trade Assurance is better.
Q: What about the delivery time?
A: 5-10 working days for single machine, and 30-40 working days for bulk order and door to door delivery service is also
available.
Q. What about the warranty?
A: We provide 1 year warranty for free and life-long time maintenance
Q. What about installation?
A: We provide 1 or 2 technicians overseas services for installation, debugging and training.
Q. What about the boiler fuel?
A: We provide boiler can use coal, charcoal, wood, rice husk, straw, biomass pellet, diesel, light oil, natural gas, city gas,
liquefied gas etc.
A: Yes, we are professional manufacturer of boiler and pressure vessels in Henan, China.
Q: Do you have any Certificate?
A: Yes. Our boiler have got China GB ISO certificates and CE certificate of EU. We also can provide ASME, GHOST and other necessary certificates if you need.
Q: How can I pay you?
A: T/T, Western Union, Money Gram and Ali Trade Assurance is better.
Q: What about the delivery time?
A: 5-10 working days for single machine, and 30-40 working days for bulk order and door to door delivery service is also
available.
Q. What about the warranty?
A: We provide 1 year warranty for free and life-long time maintenance
Q. What about installation?
A: We provide 1 or 2 technicians overseas services for installation, debugging and training.
Q. What about the boiler fuel?
A: We provide boiler can use coal, charcoal, wood, rice husk, straw, biomass pellet, diesel, light oil, natural gas, city gas,
liquefied gas etc.
