Интеллектуальный гидравлический пресс для горизонтальной оси 500 тонн
- Категория: >>>
- Поставщик: Shandong Shinuo Hydraulic Equipment Co. Ltd.
Сохранить в закладки 1601280057177:
Описание и отзывы
Характеристики
Products Description
Product Display

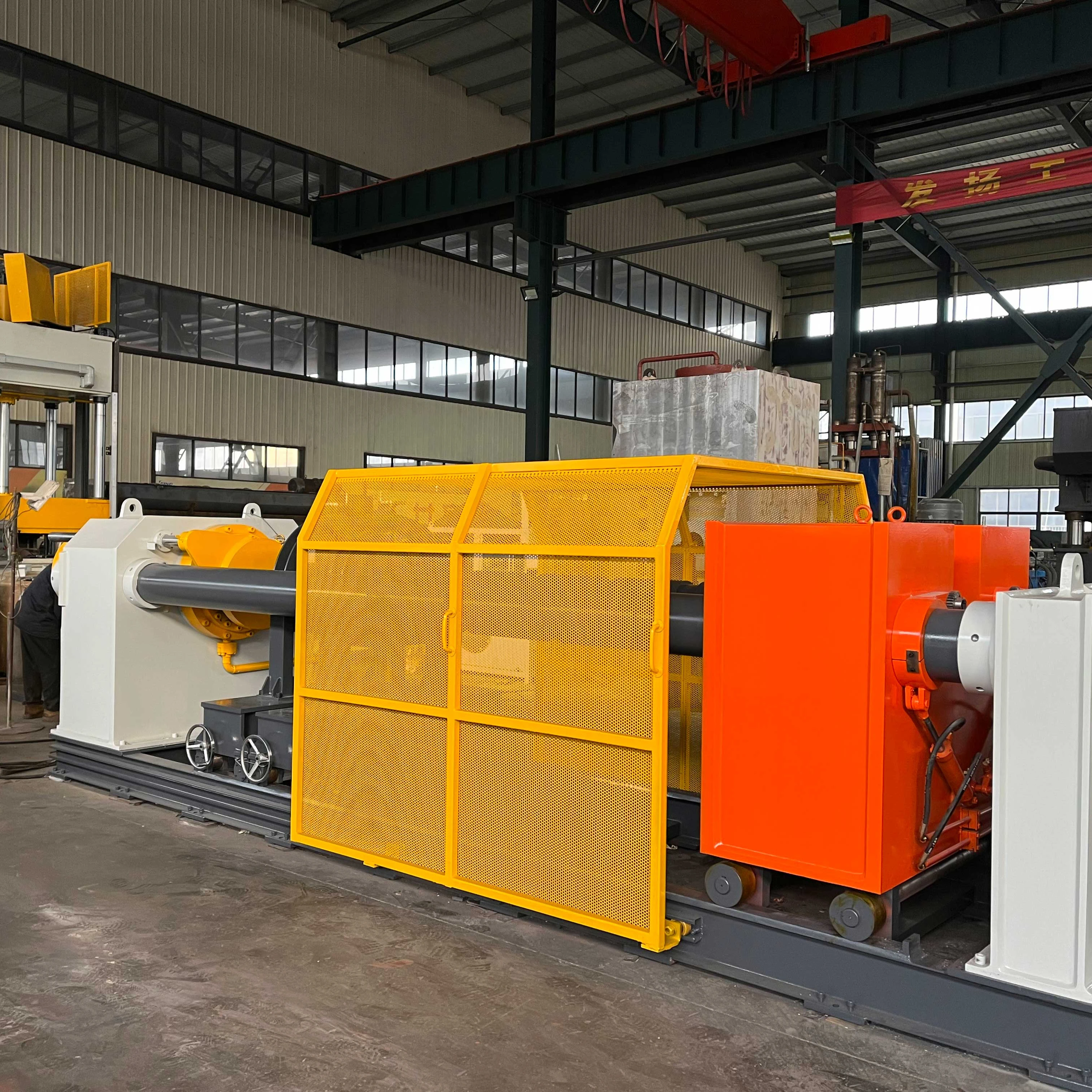

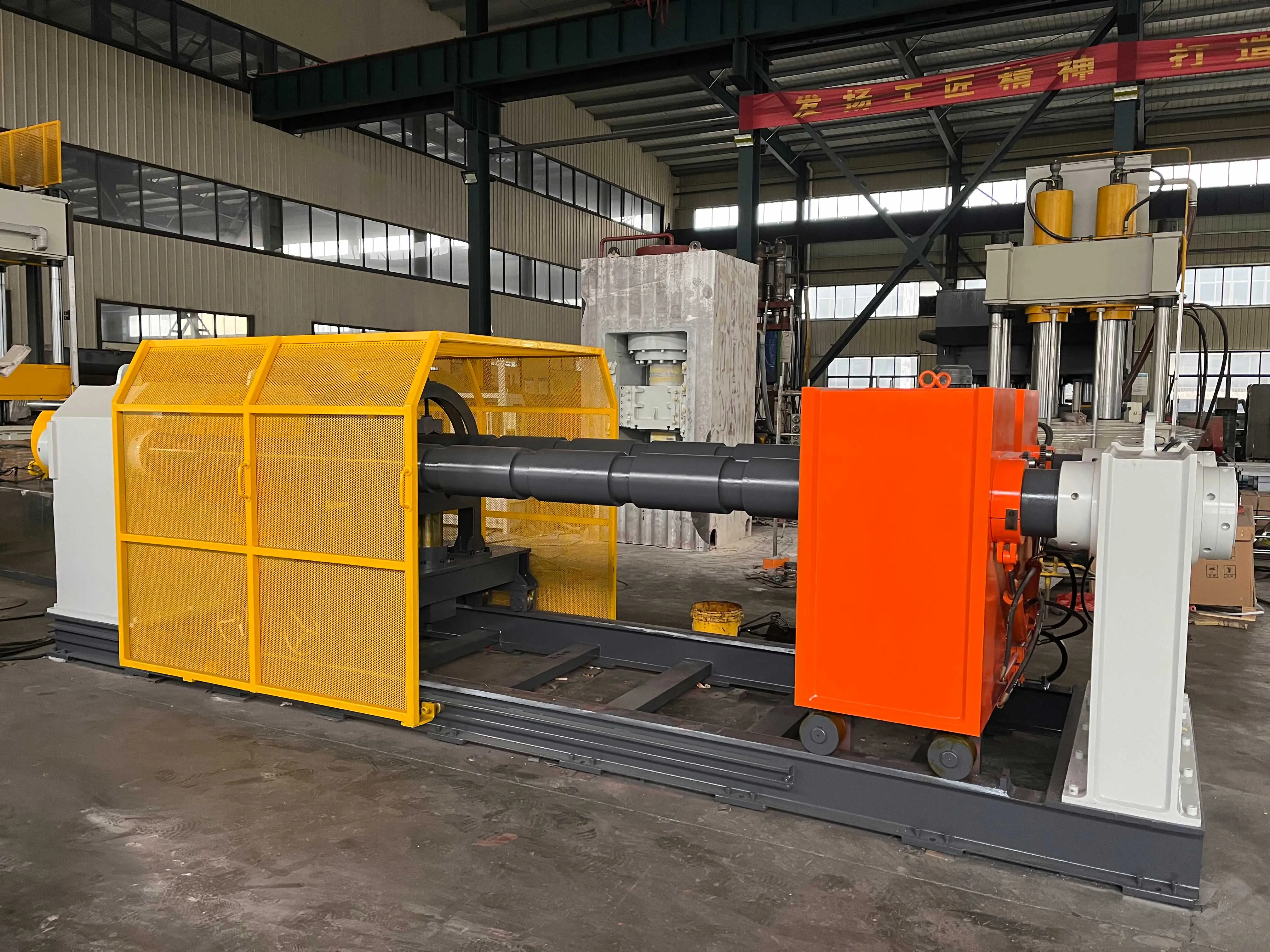

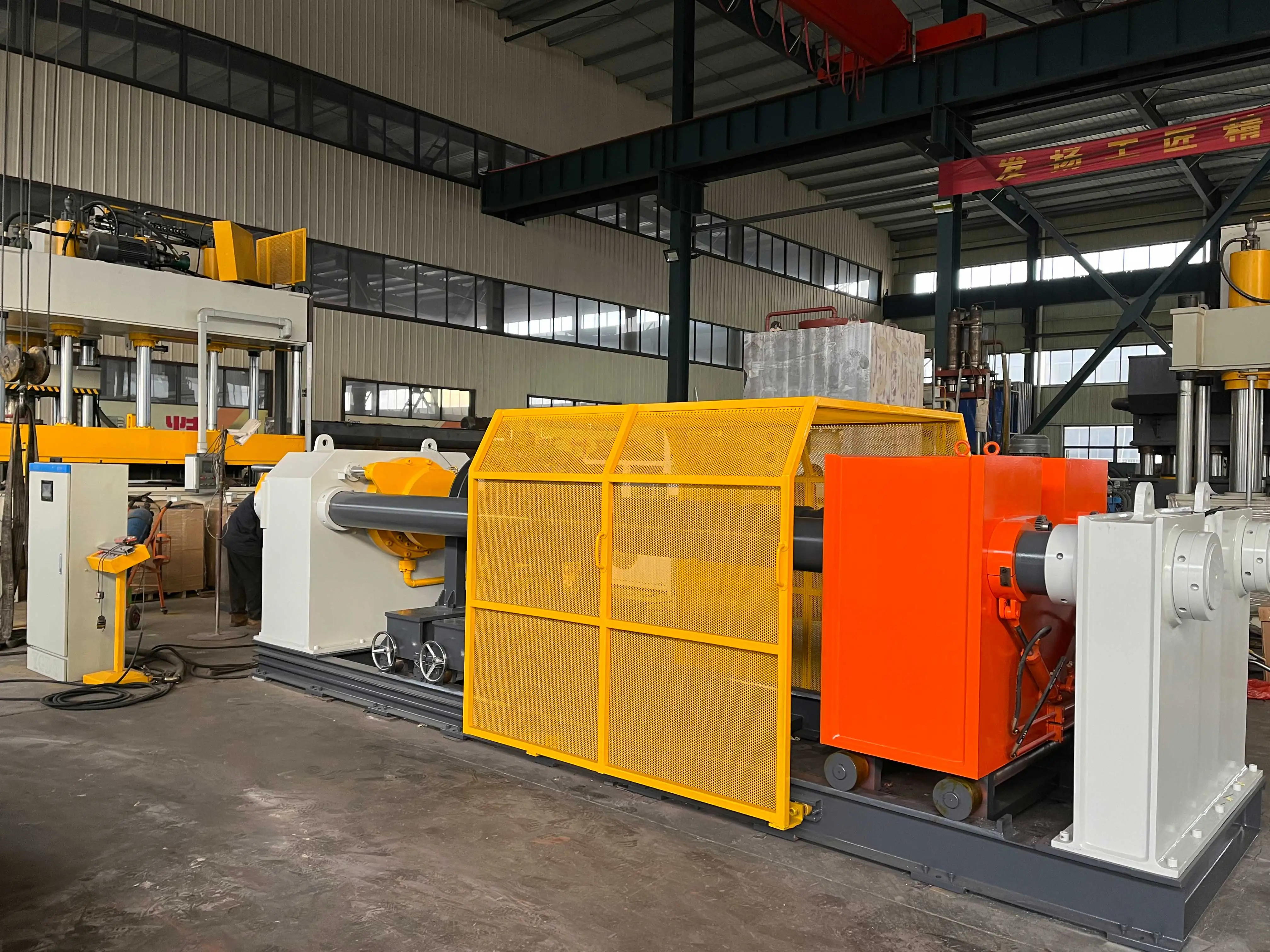

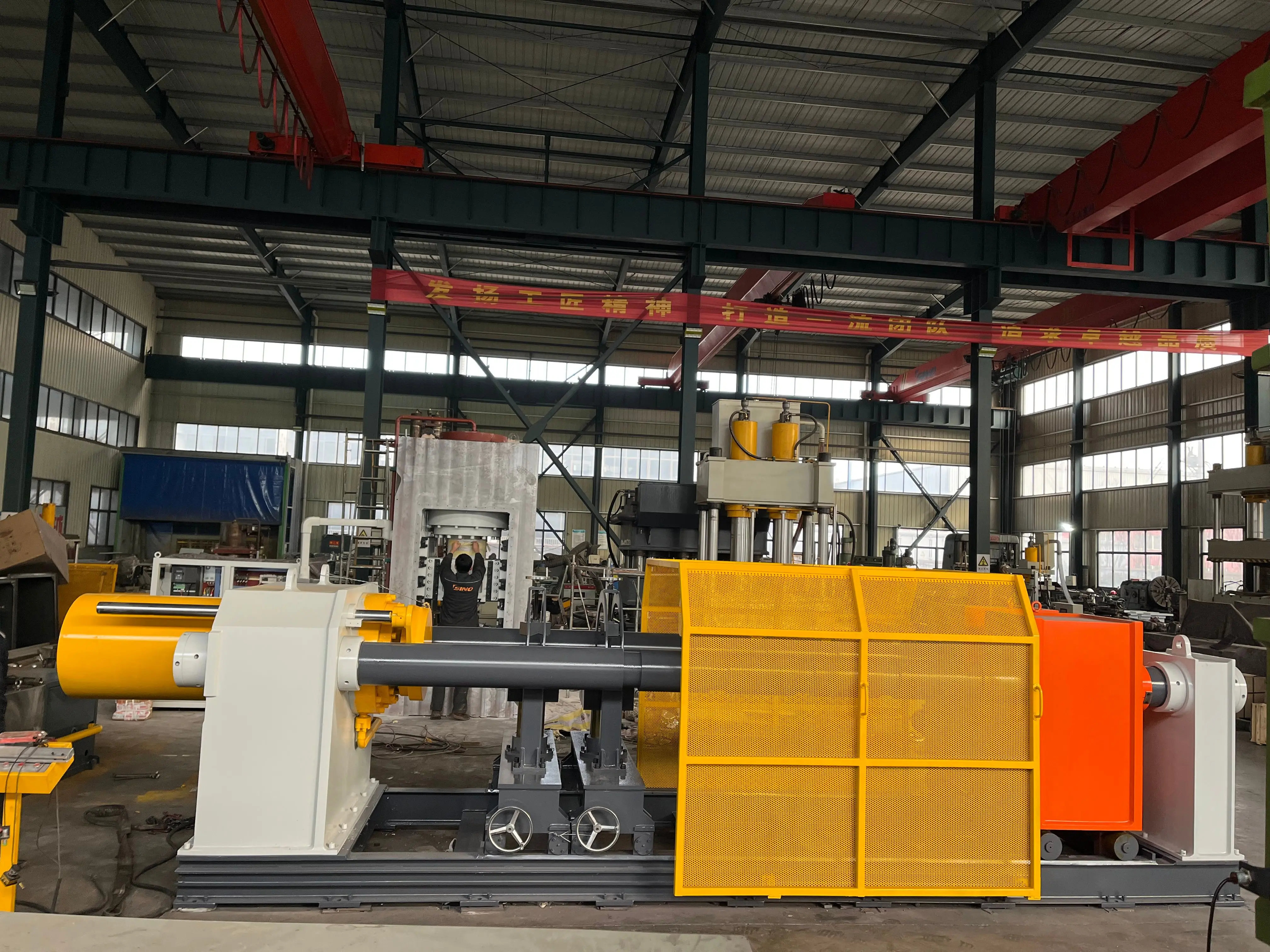

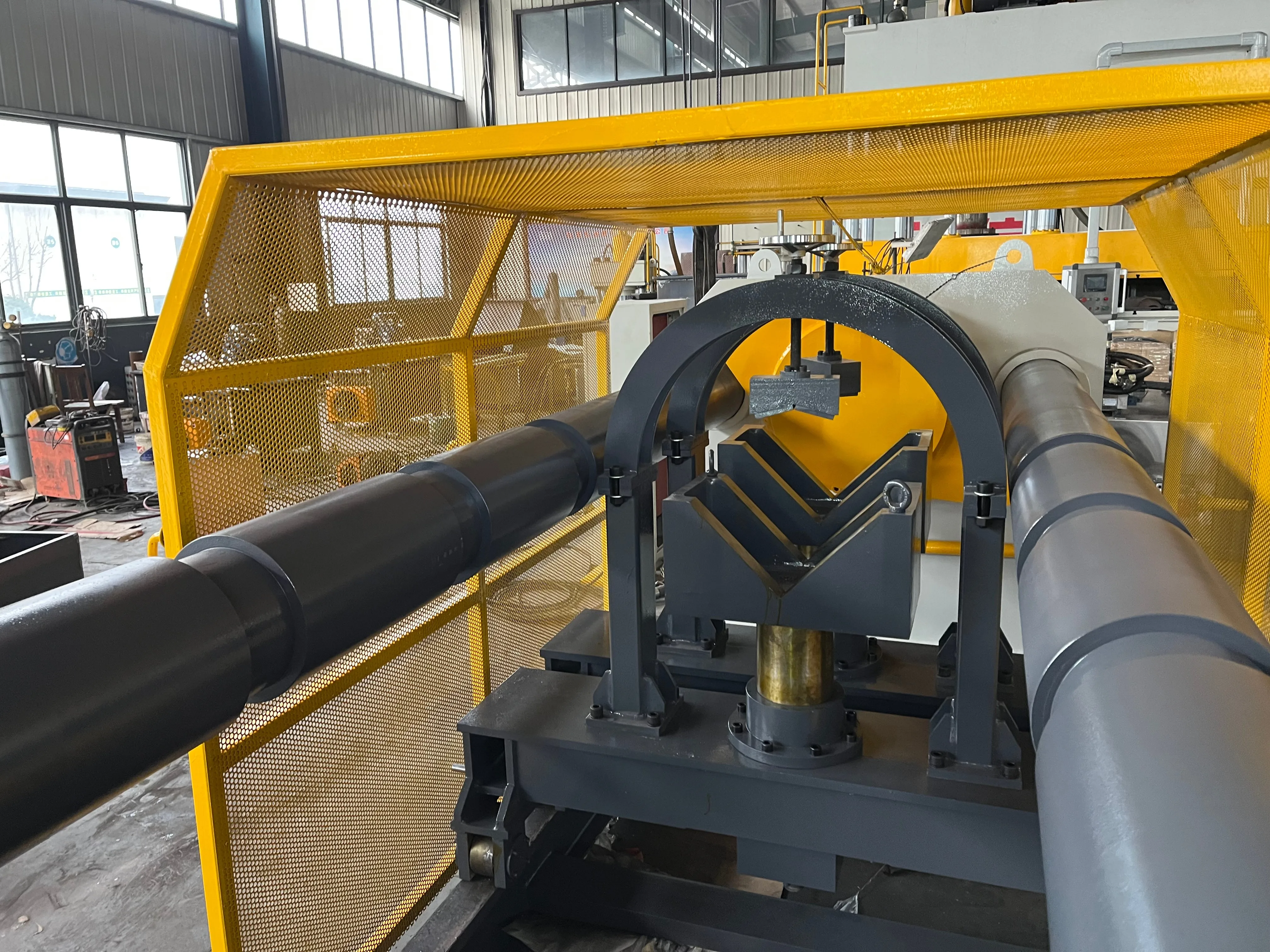

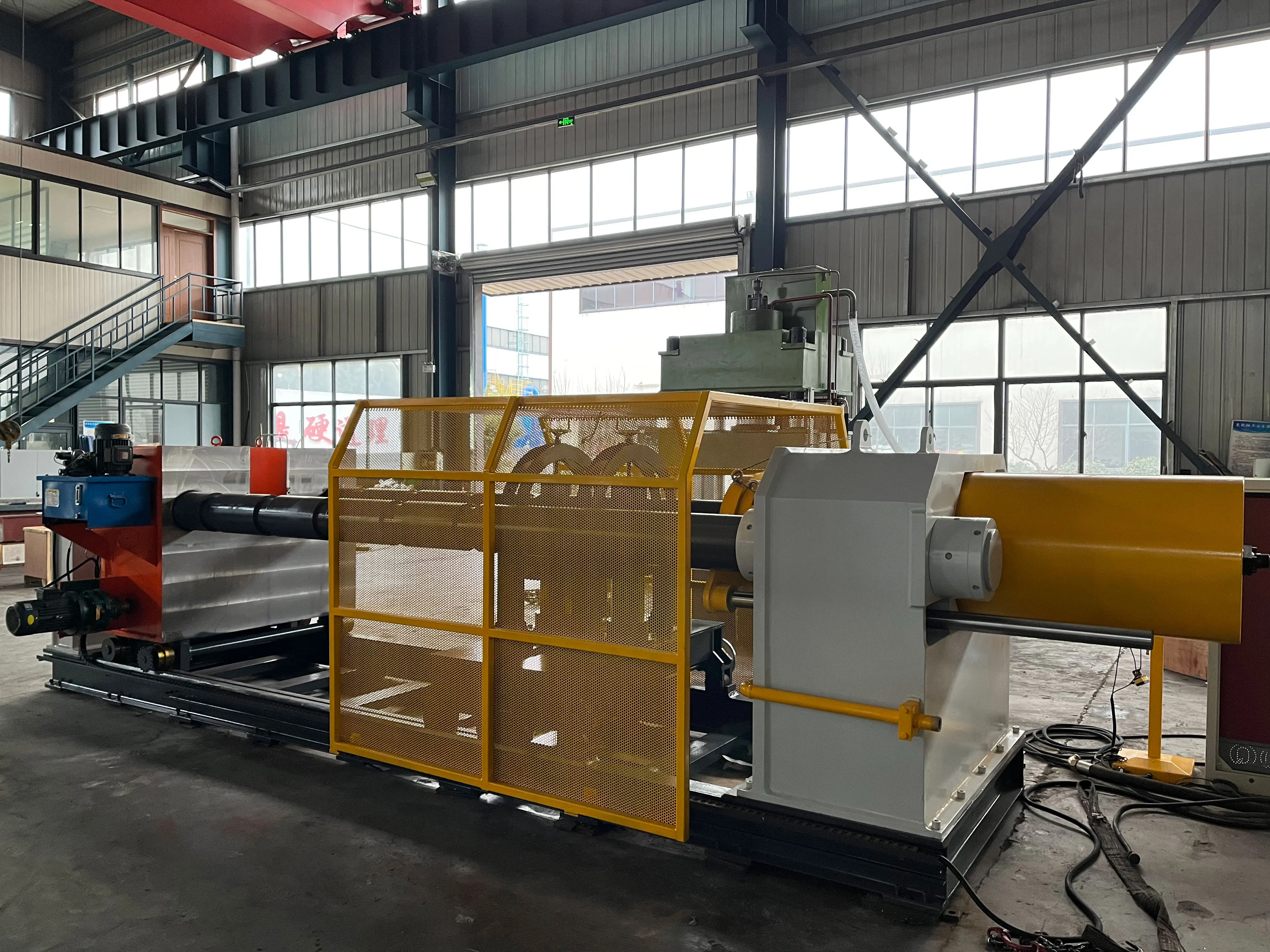

This machine is a horizontal hydraulic press with wheel axles, used for installing and disassembling wheel axles and other functions. We are a self-produced factory with guaranteed after-sales service and quality
Electric control panel
The layout of the electronic control box is arranged and installedbyprofessional electricians. It can be seen that our work isvery meticulous, and we use products with international standards for various accessories and circuits.
The control unit of the machine
The control units are all separate panels, and the operation is very simple and convenient. Each operation has computer security control, which will not exceed the scope of use of the machine.
cartridge valve
The hydraulic control adopts a plug-in valve integrated system, with adjustable pressure, stable flow, and reliable action. The valve core has sensitive movement and strong anti blocking ability. Excellent sealing, minimal leakage, structurally simple, and easy to standardize.
Product Paramenters
Model | unit | 315t | 500t | 630t |
Nominal force | KN | 3150 | 5000 | 6300 |
System pressure | MPa | 25 | 25 | 25 |
Effective stroke of indenter | mm | 700 | 700 | 700 |
Maximum embedded wheel diameter | mm | 1400 | 1400 | 1400 |
Maximum insert wheel diameter at horizontal entry | mm | 1100 | 1100 | 1100 |
Maximum embedded shaft diameter | mm | 480 | 480 | 480 |
Maximum embedded workpiece length | mm | 2700 | 2700 | 2700 |
Main motor power | KW | 15 | 30 | 30 |
Indenter empty travel speed | mm/s | 18 | 18 | 18 |
Indenter feeding speed | mm/s | 4-12 | 4-12 | 4-12 |
Indenter empty return speed | mm/s | 33 | 33 | 33 |
Motor power of Movable beam | KW | 0.75 | 0.75 | 0.75 |
Piston pump | L | 63 | 125 | 150 |
U-shaped template of universal shaft | mm | 200 | 200 | 200 |
Company Profile
Shandong Shinuo Hydraulic Machinery Co., Ltd
Shandong Shinuo Hydraulic Machinery Co., Ltd. was founded in 2005. Its predecessor was Tengzhou Hange Machinery Processing Factory, specializing in the production and manufacturing of hydraulic cylinders. In 2011, in response to the needs of market development, the hydraulic press technology department was added and began to invest in the production of single arm, gantry, and four column hydraulic presses. After 12 years, the company has developed into a new type of manufacturing enterprise with an independent hydraulic press casting, machining, assembly, production, sales, and after-sales service.
Product packaging
Marketing Campaign
Certifications
FAQ
Q:How about your machine quality?We are worry about the quality.
A:Shinuo is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
Q:Why Choose your company?
A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.
Q:How to select your machine?
A: you can tell me your specifications ,we can choose the best model for you . we also have some regular model for you to
choose.You can also provide the drawings, size , photos of the products, we can design the suitable machine for you according to your requirements. After the machine is finished, you can also provide samples and we will test it for you.
A:Shinuo is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
Q:Why Choose your company?
A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.
Q:How to select your machine?
A: you can tell me your specifications ,we can choose the best model for you . we also have some regular model for you to
choose.You can also provide the drawings, size , photos of the products, we can design the suitable machine for you according to your requirements. After the machine is finished, you can also provide samples and we will test it for you.
