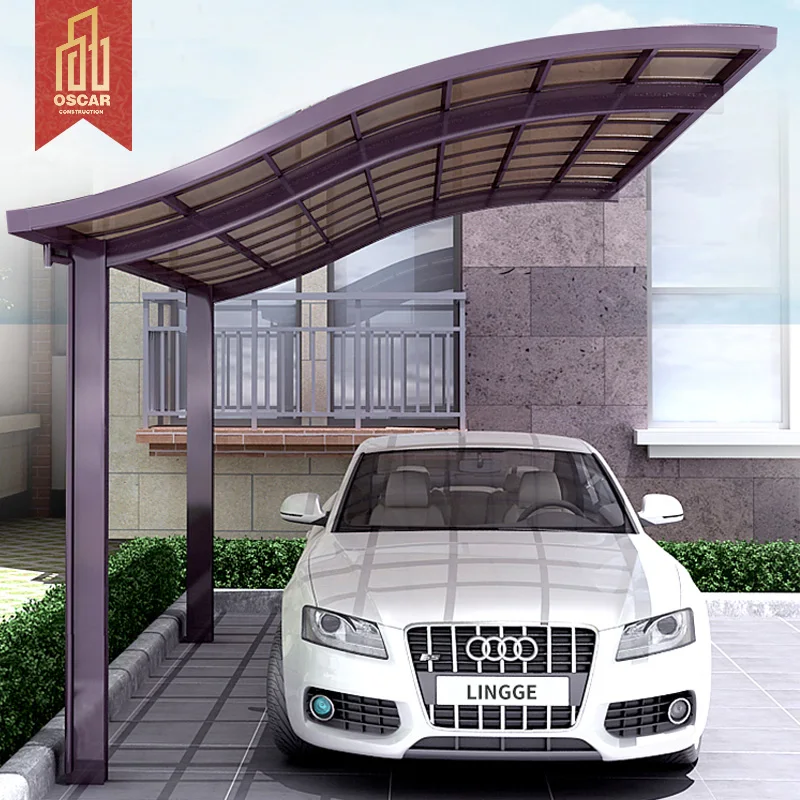

Новый стиль консольный автомобильный порт навес для автомобиля со специальной алюминиевой рамой

Описание и отзывы

Характеристики

Product Overviews:

Dimension:	5950mm x 3100mm(Length x Width)
Materials:	Roof cover is PVDF membrane
	Roof structure is Aluminium
	Column and beam is hot galvanizing steel
Weight:	320kg(350kg with package)
Package:	Wood box(2.92x0.58x0.43m)
Anti-wind:	12 grade(120km/h)
Anti-snow:	75kg/sq.m
Installation:	3 persons and 2-3 hours
Warranty:	5 years
Life span:	15-20 years
Roof colors:	Black,Grey,Yellow,Brown,Blue,White,Green,etc
Frame colors:	Black,White,Gray,etc
Container loading:	40units/20ft container 75units/20ft container without wooden case

Material Introductions:

1.Materials of roof cover

Roof cover is made of 1150g/sq.m high density polyethylene fabric coated with PVDF(Polyvinylidine Fluoride).

It is high quality at waterproof,flame retardant,UV resistant,heat insulating and will not sag,fade,rot or mildew.

The temperature resistance(℃) is from -40℃ to +120℃.

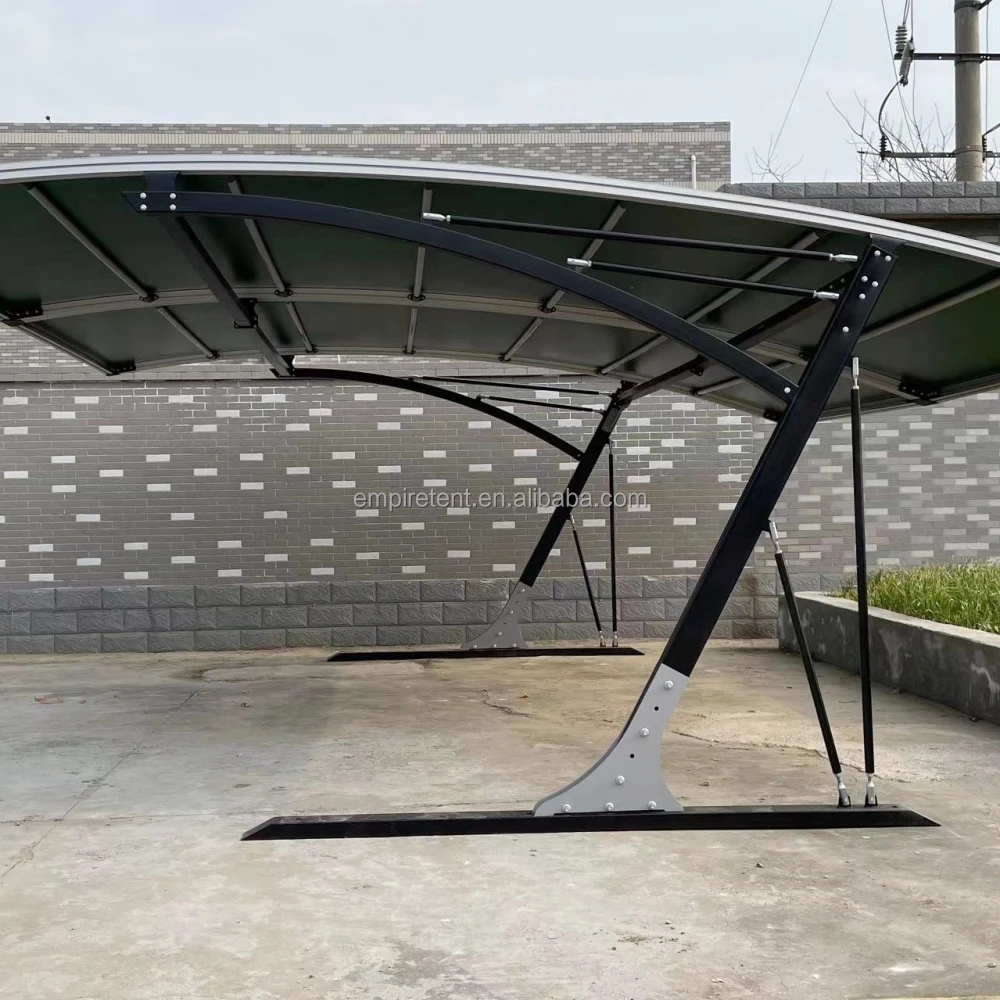

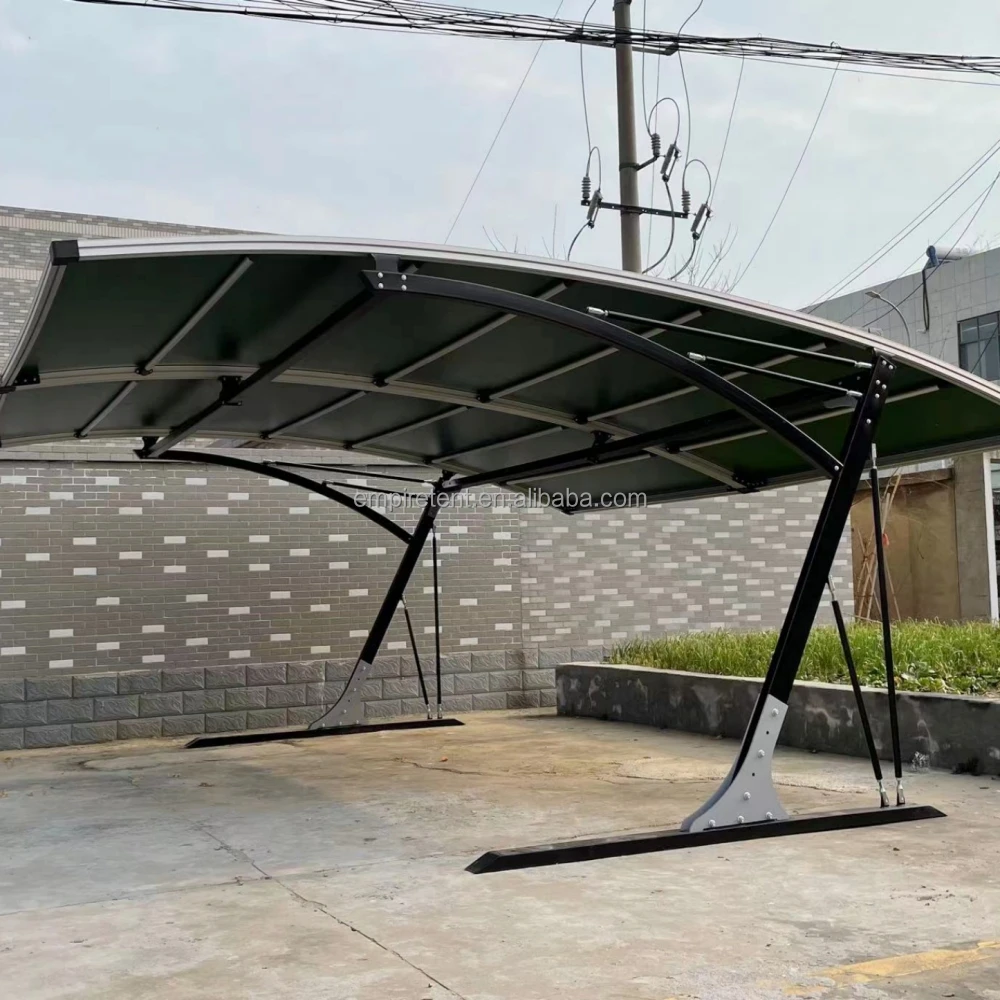

2.Materials of roof structure

The roof frame to stretch the PVDF membrane is made of aluminium(6061-T6).

3.Materials of column and beam

It is made of hot galvanizing steel,and we use the best surface treatment process for the steel---electrostatic powder spraying and hot galvanizing,it is high quality at resistance to corrosion and oxidation,also will be not fade.Color options:Black,White,Gray,Brown,etc

 Resistance to wind and snow load:

 1.Wind load

This carport is not only the beautiful apprearance,but has also been designed to withstand the extreme climate,especially is the high wind and heavy snow.It can withstand 120km/h wind speed.

 2.Snowload

This carport is well designed against the heavy snow.There are 6-8 aluminium pipes on the roof to support the heavy snow.Snow load exceed 75kg/sq.m(thickness of snow at 60-70cm).

 Packaging and Shipping:

The caports will be packed in wooden box to avoid something missing or damaging in the transport process.Please see the package size and weight as follows.
