Высокоэффективное энергетическое и минеральное оборудование Рудно-шлифовальный станок мощностью 1-10 т/ч мелкофрезерный завод 1100 модели 1200B мельница
377 153,50 ₽ - 432 617,25 ₽

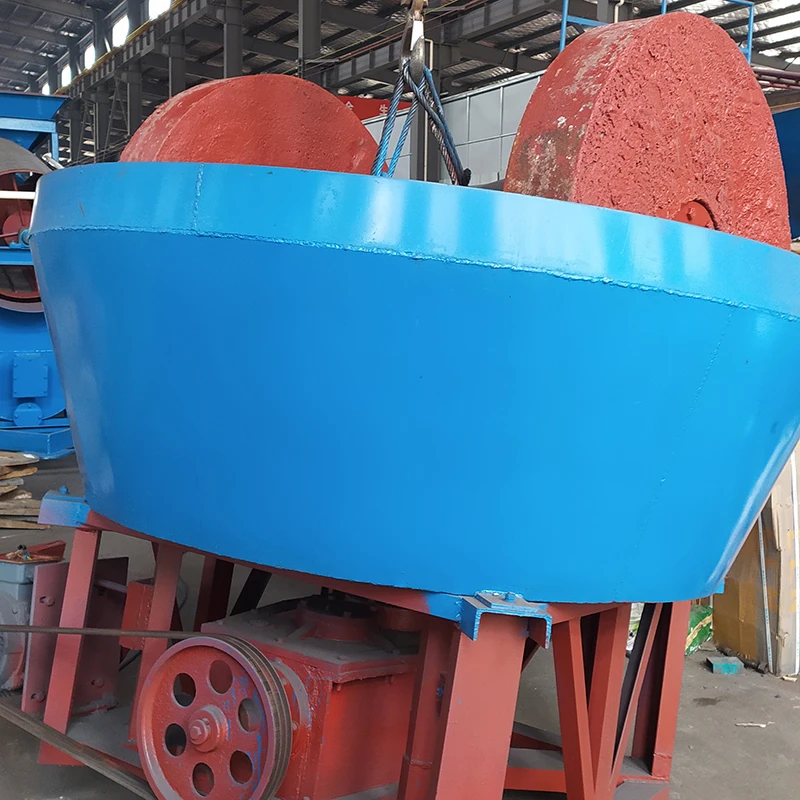

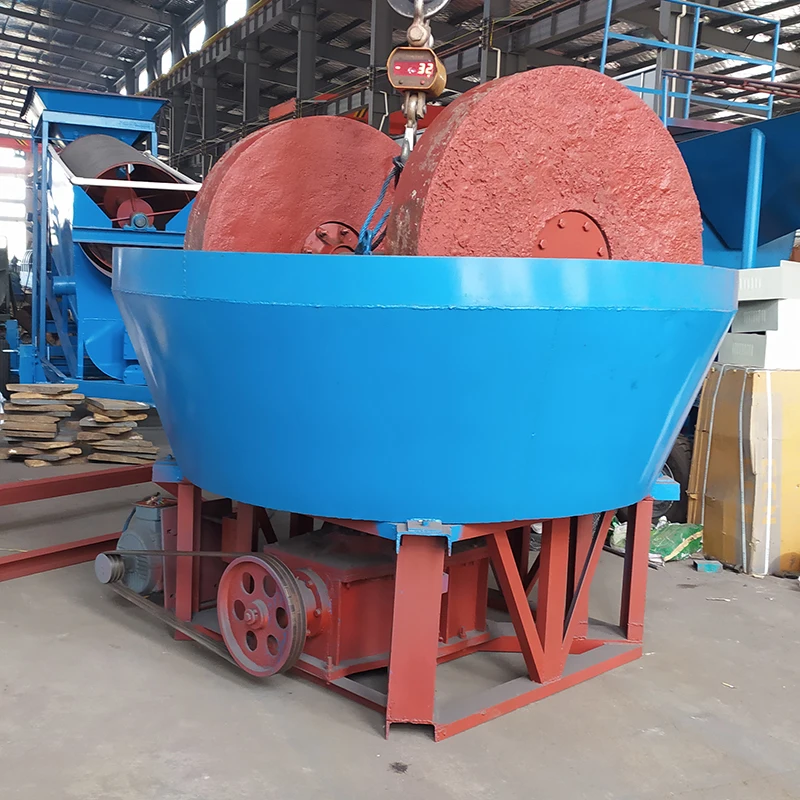

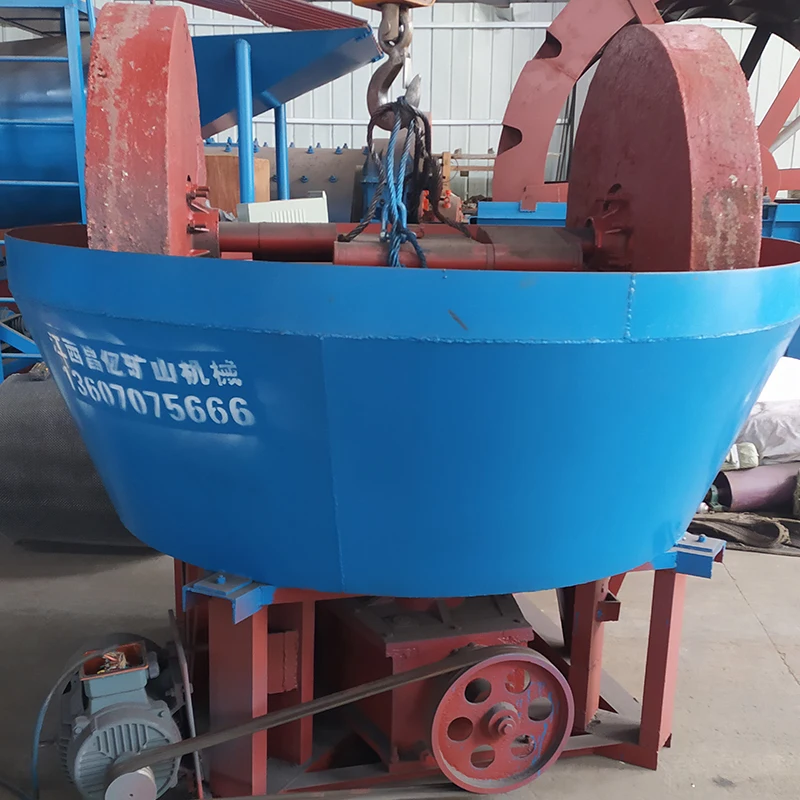

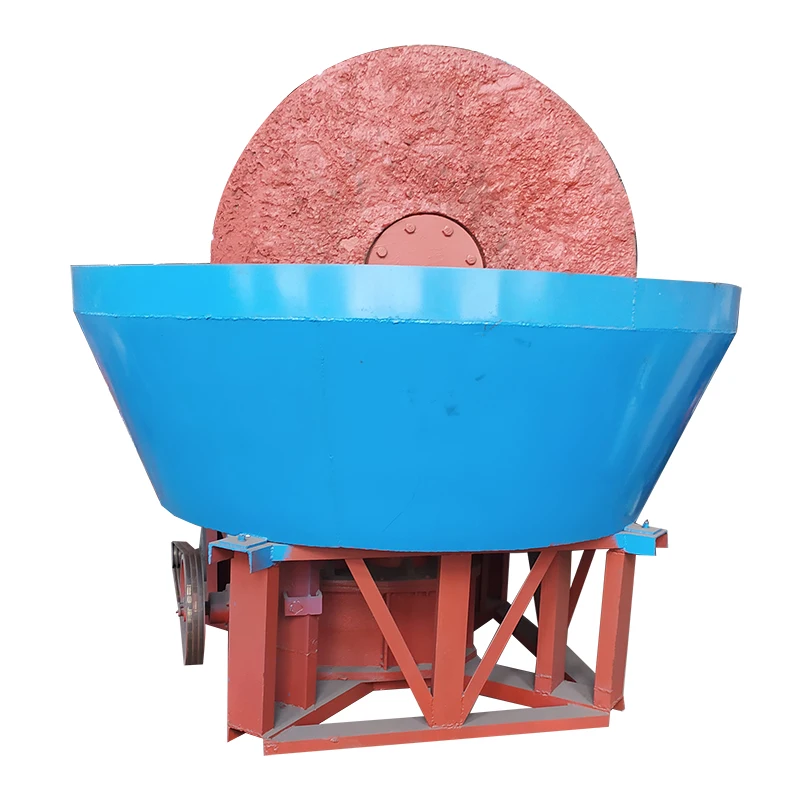

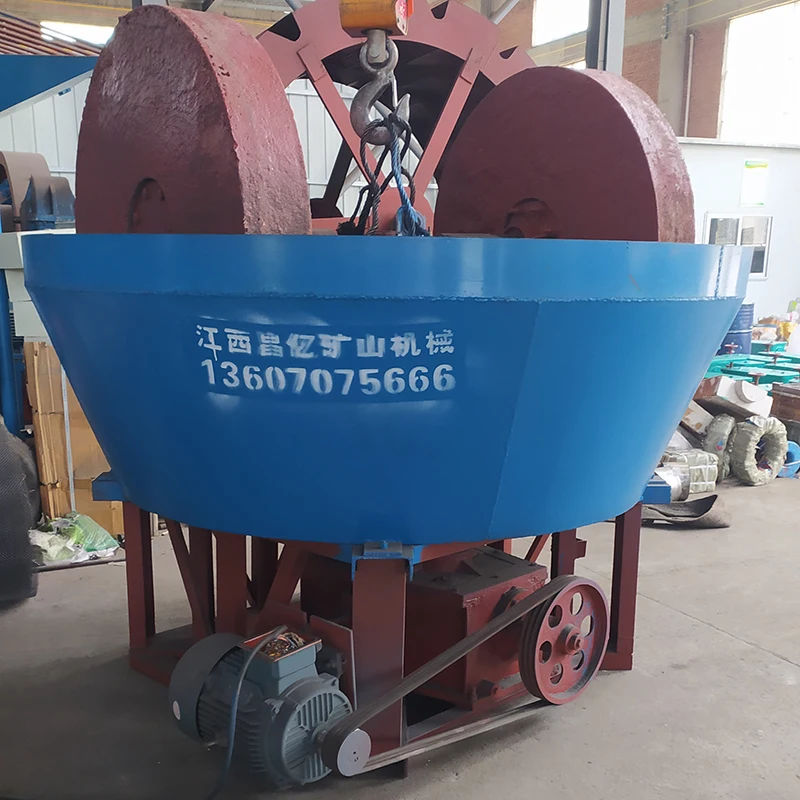

Лидер продаж мельница для влажной кастрюли модель 1200A 1200 Золотая Руда дробилка
- Категория: >>>
- Поставщик: Shicheng Gaoxuan Bearing Bush Co. Ltd.
Сохранить в закладки 1601280117440:
Описание и отзывы
Характеристики
Product Description
Gold Wet Pan Mill Application
The Gold Grinding Machine (wet pan mill), which is named by the diameter of grinding roller, is mainly applied for grinding of gold, silver, lead, zinc, iron, molybdenum, copper, antimony, and so on. Among the models, model 1200 is the most popular one.
As an excellent equipment to work replacing the ball mill, the Gold Grinding Machine (wet pan mill) has been very popular and widely applied by Small and Medium Enterprises because of its small investment, high yield, low production cost, low power, and good benefits.
Main Features
1.Wet pan mill suit for mineral processing after the installation is completed to gold grinding machine groove bottom 5 kilograms of mercury begins normal operation.
2.Each class receive once the Sands, the shift added to 1 kg of mercury to receive the grind at the end of the Sands and mercury, the mercury received gold equipment, with a relatively high density of red cloth mercury screwed out to the package, open the red cloth which left Sands. One kilogram of mercury each class started on it. Containing one is grasping the cloth of gold or grab the gold behind the blanket and put on the mercury board can receive the gold.
Technical Parameter
Model | Speed(r/min) | Power(kw) | Capacity(t/h) | Weight(t) |
850 | 13-18 | 4.5 | 0.4 | 3 |
900 | 13-18 | 5.5 | 0.6 | 3.6 |
1000 | 13-18 | 5.5 | 0.8 | 4.2 |
1100 | 13-18 | 7.5 | 1 | 4.6 |
1200 | 16-18 | 7.5 | 2 | 5.8 |
1300 | 16-18 | 11 | 3 | 8 |
1350 | 16-18 | 13 | 4 | 8.5 |
1400 | 16-18 | 15 | 5 | 9.5 |
1500 | 20-22 | 22 | 8 | 10.5 |
1600 | 20-22 | 30 | 10 | 16 |
Structure
Working Principle
1.When inputting gold sand into the rolling drum, the rollers compress the sand over and over into tiny particles.
2.Please put in 5 kg mercury at first, the mercury can absorb the gold or other metals.
3.At last, use a high-density red cloth to wrap mercury up.
4.Then squeeze it, the mercury will be pressed out and pure gold stayed.
5.As to the large capacity, we can use mercury shaking machine and mercury steamer to replace the manual work.
Detailed Images
Main Parts
Name: Grinding roller
Brand: Gaoxuan
Original: China
The diamter of model900 is 900mm
The smooth surface design will be good for the grinding efficiency.
The material could be high Mn and high Chrome.
Main Parts
Name: Grinding base
Brand: Gaoxuan
Original: China
The dismeter of model900 is 1585mm.
Main Parts
Name: Water Pan
Brand: Gaoxuan
Original: China
The edge of the water pan is specially processed with the edge protecting.
Working Site of Gold wet pan mill in Africa
In Africa, Mainly Mozambique and Sudan, at least 85% gold miners are using the Gold Grinding Machine (wet pan mill) in there gold processing system.
Packing & Delivery
FCL : |
Size: one 40GP load 5 sets 1200 |
Weight: 1200 is 6t/set |
Packing details: The machine is usually |
loaded and fixed in the container mostly assembled. |
LCL: |
Weight: 1200 is 6t/set |
LCL usually refers to the smaller models. |
The machine is packed inside in steel frame and outside in plywood |
Company Profile
Shicheng Gaoxuan Bearing Bush Co.,Ltd established in 1958 with a subsidiary corporation named Jiangxi Changyi Mining Machinery factory,located in Ganjiang River source and Wuyi mountain,is a professional supplier in producing and sale kinds of bearing bushes and mining equipments.This factory covers an area of 26000 square meters with a total fixed asset of USD3,000,000 and owns more than 200 sets of mechanical processing machines and 50 technical personnels,with an annual production ability for USD10,000,000.It's one net point of cooperation of the orginal China Equipment General Company of Ministry of Chemical Industry,as well as a fixed cooperation company of Huadong Fittings of Ministry of Metallurgy.
We produce high precise bearing bushes of master engines for hundreds of domestic and overseas companies of refrigerators or air-compressed machine,also produce mining machines,which contain re-election equipment,crushing equipment,screening equipment,grinding equipment,grading equipment,flotation equipment,transportation equipment,feeding equipment and kinds of beneficiation complete equipment.Its won the reputation of "Jiangxi High Quality Products".
Our main products include all kinds of alloy Bearing Bushes,Crushers,Shaking Tables,Ball(rod) mills,Spiral Chutes,Jigs,Flotation Separators,vibrating screen and so on,all of them
are exported to overseas with reliable quality,reasonable price and good services.
You are welcome to visiting us any time.
We produce high precise bearing bushes of master engines for hundreds of domestic and overseas companies of refrigerators or air-compressed machine,also produce mining machines,which contain re-election equipment,crushing equipment,screening equipment,grinding equipment,grading equipment,flotation equipment,transportation equipment,feeding equipment and kinds of beneficiation complete equipment.Its won the reputation of "Jiangxi High Quality Products".
Our main products include all kinds of alloy Bearing Bushes,Crushers,Shaking Tables,Ball(rod) mills,Spiral Chutes,Jigs,Flotation Separators,vibrating screen and so on,all of them
are exported to overseas with reliable quality,reasonable price and good services.
You are welcome to visiting us any time.
Customer Photos
Exhibition
FAQ
Q1. Are you factory or trade company?
A1. We are manufacturer, we also supply trade service.
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good
reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the
machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit
A1. We are manufacturer, we also supply trade service.
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good
reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the
machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit
