Мини машина для производства древесного угля гидравлическая брикетирования
1 752 359,67 ₽ - 1 815 180,12 ₽

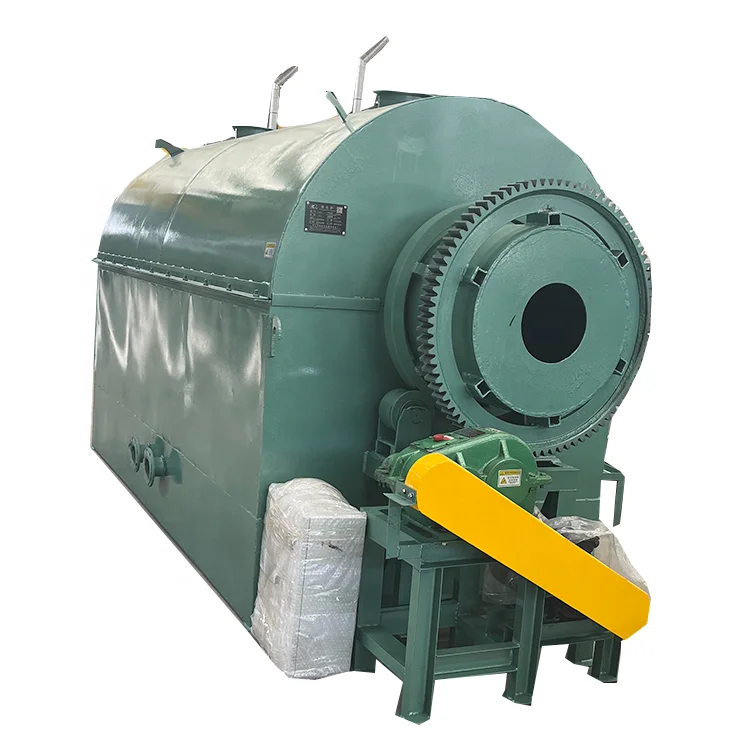

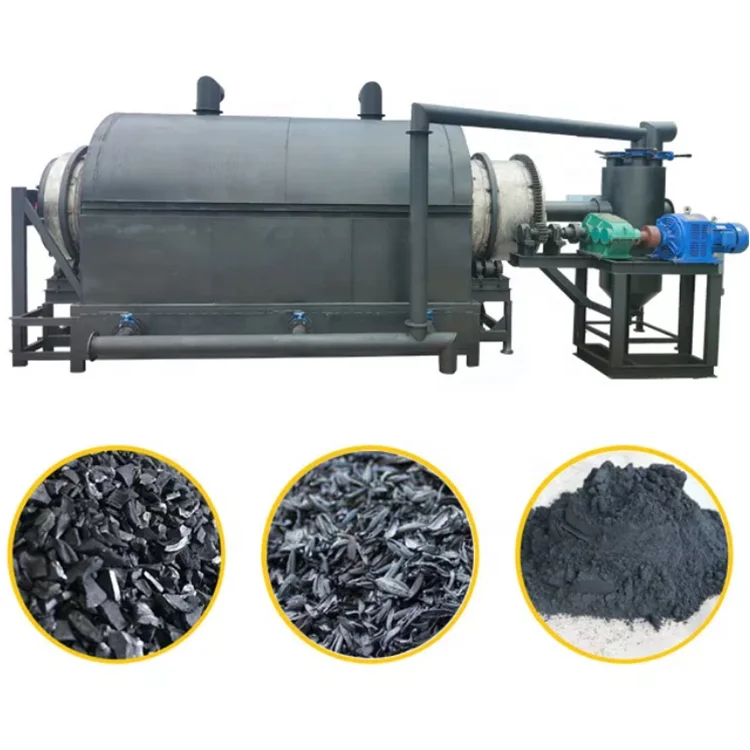

Новая высокопроизводительная печь для непрерывной карбонизации рисовой шелухи
- Категория: >>>
- Поставщик: Zhengzhou Runxiang Machinery Equipment Co. Ltd.
Сохранить в закладки 1601280122066:
Описание и отзывы
Характеристики
Product Description
The equipment uses sawdust, wood chips, coconut shells, nut shells, various biomass, capacitors, circuit boards, electronic waste,scrap metal from can paint removal, etc. as raw materials. It transports these materials into the rotary furnace for high-temperature carbonization in one go. The rotary carbonization furnace equipment dries and carbonizes the materials during operation. The flue gas generated can be recycled. The diverted flue gas is combustible gas, which can be used as fuel. The furnace bottom is recycled for its own combustion and heating. This equipment Environmentally friendly, energy-saving, pollution-free, and easy to operate.

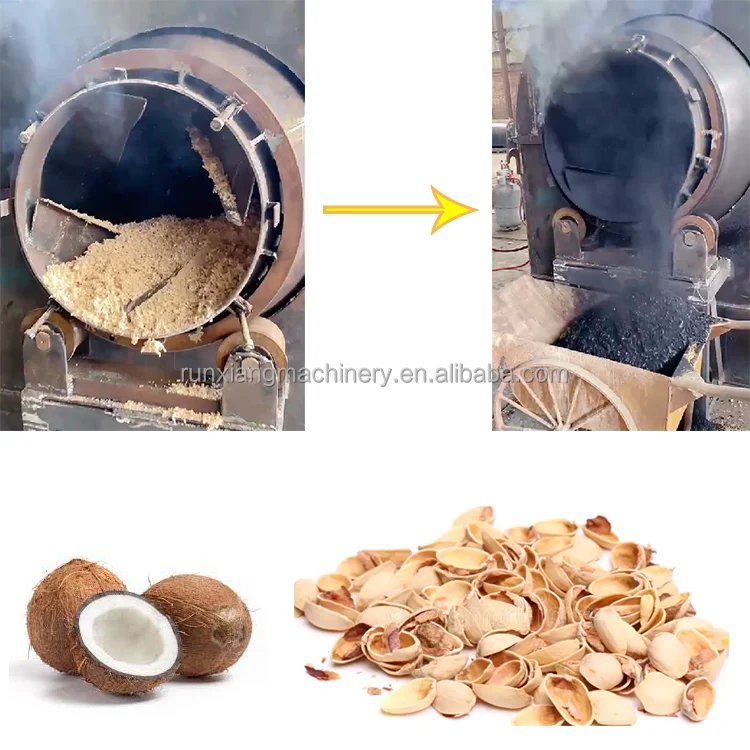

Raw material
There are a wide range of raw materials that can be used for production. All raw materials that can be used for the production of environmentally friendly charcoal machines can be used, such as sawdust, rice husks, branches, straw,bamboo, peanut shells, coconut shells, palm shells, fruit shells, etc All biomass raw materials.
Specification
Model | Capacity | Carbonization temperature | Raw material requirements | Power | Size | Weight |
MCLF-300 | 300-500kg/h | 250°-300° | moisture content within 40%, particle size: <50mm | 5.5kw | 4.4*1.5*2.1m | 2500kg |
Product Feature
The carbonization process of the carbonization furnace can generally be divided into the following three temperature segments:
First, the drying stage
First, the drying stage
From the beginning of ignition to the furnace temperature rising to 160 ° C, the water contained in the mechanism rod is mainly evaporated by external heat and heat generated by its own combustion. The chemical composition of the mechanical rod has hardly changed.
Second, the initial stage of carbonization.
This stage mainly relies on the combustion of the rod itself to generate heat, so that the furnace temperature rises to between 160 and 280 ° C. At this point, the wood material undergoes a thermal decomposition reaction, and its composition begins to change. Unstable components, such as hemicellulose decomposition to produce CO2, CO and a small amount of acetic acid and other substances.
Third, the comprehensive carbonization stage
The temperature of this stage is 300 ~ 650℃. In this stage, the wood material is rapidly decomposed by heat, and a large amount of liquid products such as acetic acid, methanol and wood tar are generated. In addition, flammable gases such as methane and ethylene are produced, which are burned in the furnace. Thermal decomposition and gas combustion produce a large amount of heat, so that the furnace temperature rises, and the wood material is dry distilled to carbon at high temperatures.

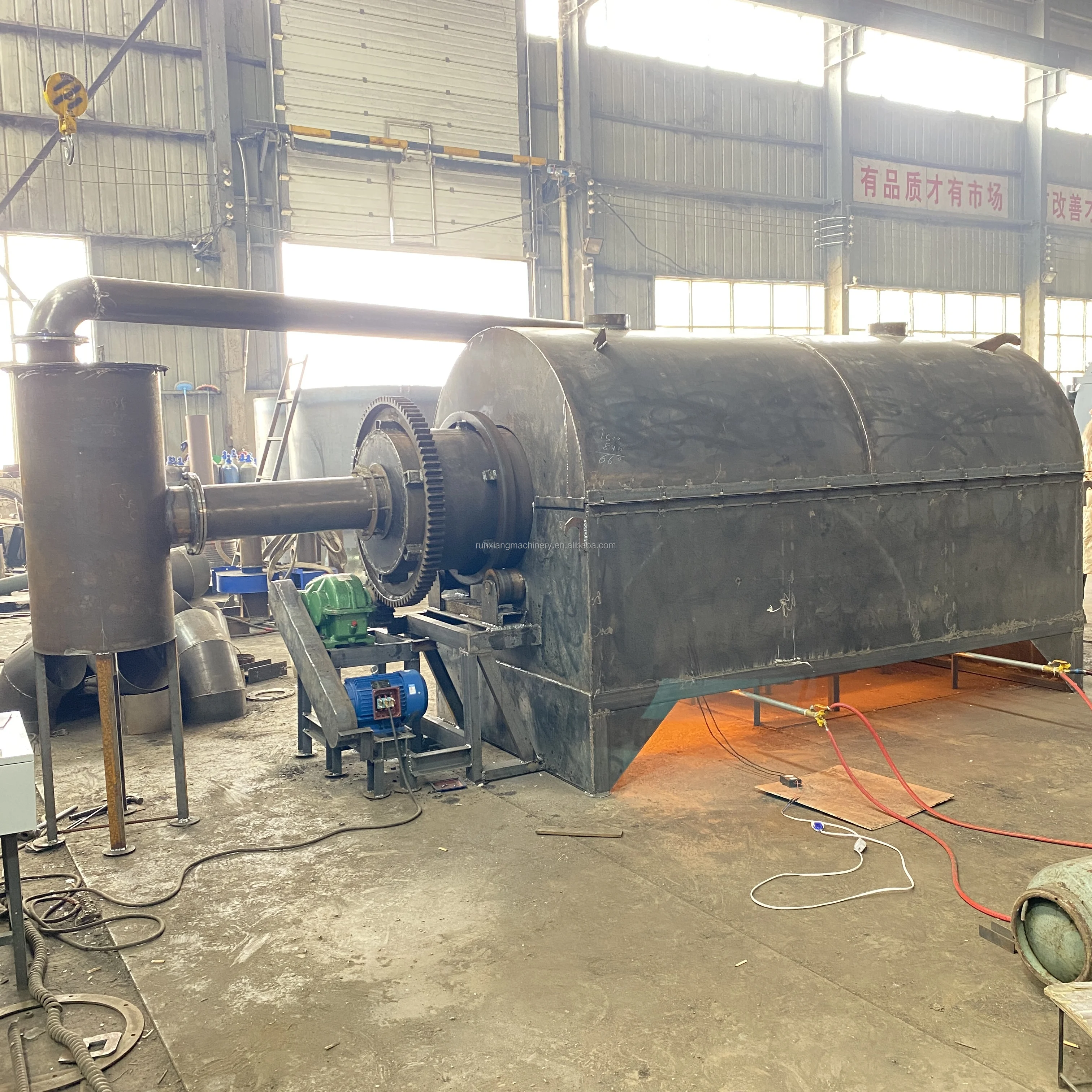

Product display
Main technical parameters:
1.Raw material requirements: moisture content within 40%, particle size: <50mm
2 Heating method: burning wood, liquefied gas or natural gas (an additional burner is required)
3. Carbonization temperature: 250°-300° Method: Oxygen-free carbonization
4. Power: 4 or 5.5kw (variable frequency) Voltage: 3-phase electricity, 380v 50hz
5. Overall machine weight: 2500kg
6. Model: 1300, host size: length 4.4*width 1.5*height 2.1 meters
7. Output: 300-500kg/h (different moisture content of raw materials affects the output)
8. Accessories include: wood tar and wood acetic acid collection system, flue gas cooling and purification system and thermometer with display
9. Working principle of the host: forward rotation (clockwise feeding for carbonization), reverse rotation (counterclockwise discharging)
1.Raw material requirements: moisture content within 40%, particle size: <50mm
2 Heating method: burning wood, liquefied gas or natural gas (an additional burner is required)
3. Carbonization temperature: 250°-300° Method: Oxygen-free carbonization
4. Power: 4 or 5.5kw (variable frequency) Voltage: 3-phase electricity, 380v 50hz
5. Overall machine weight: 2500kg
6. Model: 1300, host size: length 4.4*width 1.5*height 2.1 meters
7. Output: 300-500kg/h (different moisture content of raw materials affects the output)
8. Accessories include: wood tar and wood acetic acid collection system, flue gas cooling and purification system and thermometer with display
9. Working principle of the host: forward rotation (clockwise feeding for carbonization), reverse rotation (counterclockwise discharging)
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zhengzhou Runxiang Machinery Equipment Co., Ltd established in 2012. It is an integrated industry and trade company integrating R&D, production and sales. We are mainly engaged in fruit and vegetable processing production lines, agricultural and animal husbandry machinery and equipment production lines, and related packaging equipment, company services In more than 130 countries and regions around the world, the annual export value is more than 50 million yuan. We have a standardized workshop of 3000 square meters, more than 80 workshop workers, 15 sales team, 16 technical team, 6 after-sales service team, we Have a complete factory production, quality supervision and delivery process, as well as a complete after-sales service system.All our products are provided with a 2-year warranty and lifetime free after-sales service.
FAQ
1. who are we?
We are based in Henan, China, start from 2016,sell to Africa(36.00%),North America(12.00%),Mid East(9.00%),Northern
Europe(7.00%),South America(6.00%),Western Europe(6.00%),Oceania(5.00%),Southern Europe(5.00%),Eastern Asia(4.00%),Southeast Asia(3.00%),South Asia(3.00%),Eastern Europe(2.00%),Central America(00.00%),Domestic Market(00.00%). There are total about 11-50 people in our office.
Europe(7.00%),South America(6.00%),Western Europe(6.00%),Oceania(5.00%),Southern Europe(5.00%),Eastern Asia(4.00%),Southeast Asia(3.00%),South Asia(3.00%),Eastern Europe(2.00%),Central America(00.00%),Domestic Market(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Farm Agriculture Machines,Vegetable Fruit Processing Machines,Nuts Processing Machines,Briquette Brick Machine Line,Packing Machine Line
4. why should you buy from us not from other suppliers?
Established in 2006, Zhengzhou Runxiang Machinery Equipment Co.,ltd(Golden Machinery Equipment Co.,Limited) is one professional manufacturer integrating R&D,manufacturing and trading,Taking "Sincerity makes trust, Quality wins market"as our philosophy.
Established in 2006, Zhengzhou Runxiang Machinery Equipment Co.,ltd(Golden Machinery Equipment Co.,Limited) is one professional manufacturer integrating R&D,manufacturing and trading,Taking "Sincerity makes trust, Quality wins market"as our philosophy.
5.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,Express Delivery； Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары
Высокоточный угольный Кокс гипсовый железный концентрат порошок силикагель опилки для кальяна древесный уголь пресс брикетирования машина высокого давления
253 485,99 ₽
Новый дизайн круглый пресс для производства древесного угля барбекю
143 274,69 ₽ - 220 422,60 ₽
2024 новая машина для опилок с дизельным двигателем BBQ Древесный уголь Брикеты производственной линии
176 338,08 ₽ - 220 422,60 ₽

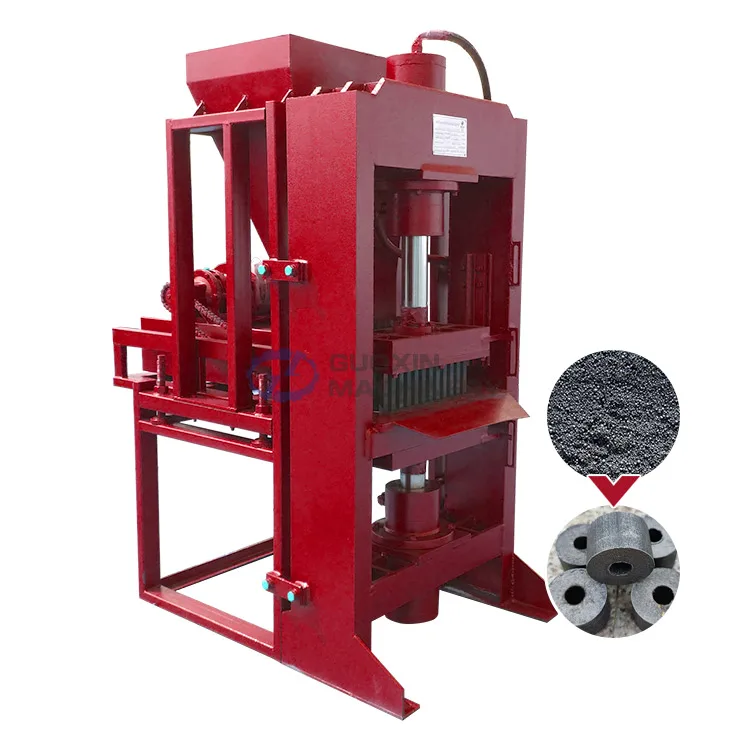

Многофункциональная гидравлическая машина для прессования брикетов древесного угля пресс-машина производства
1 752 359,67 ₽ - 1 815 180,12 ₽
Оптовая продажа премиальных гранул из шелухи подсолнечника/древесный брикет для продажи

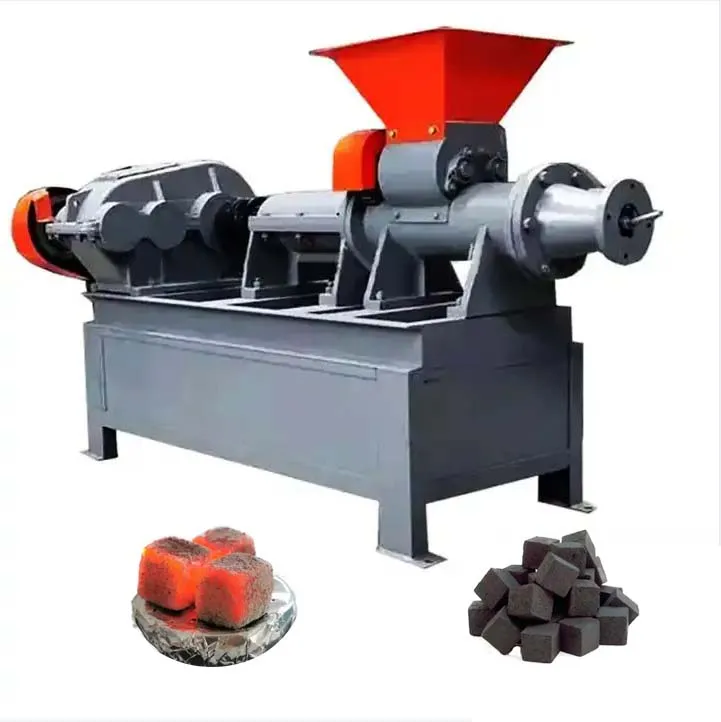

Заводская оптовая продажа угольной пыли экструдер машина
