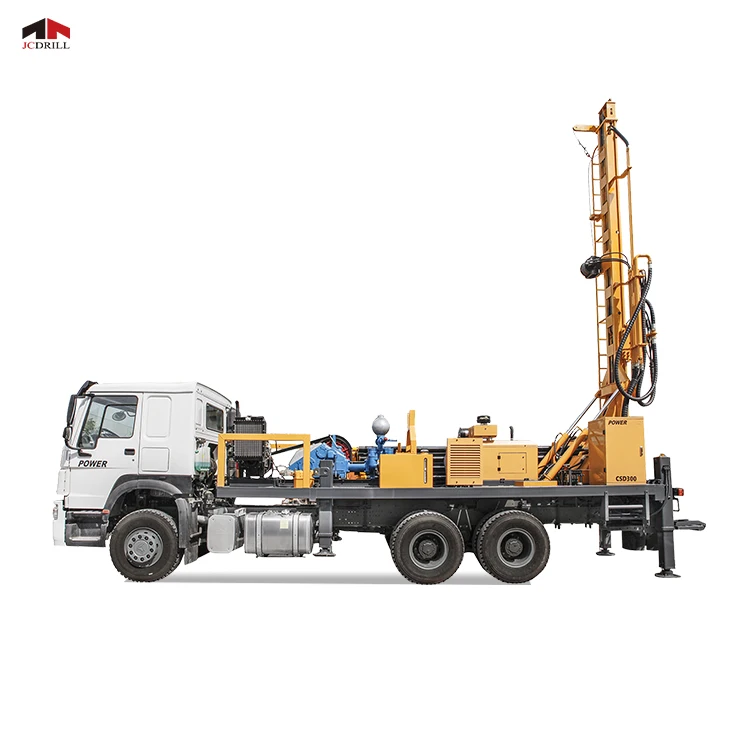

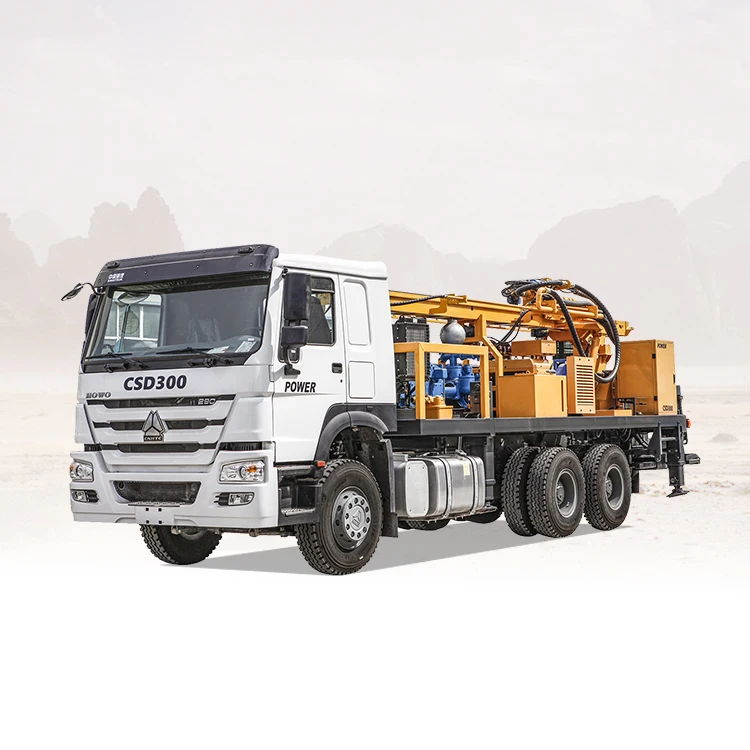

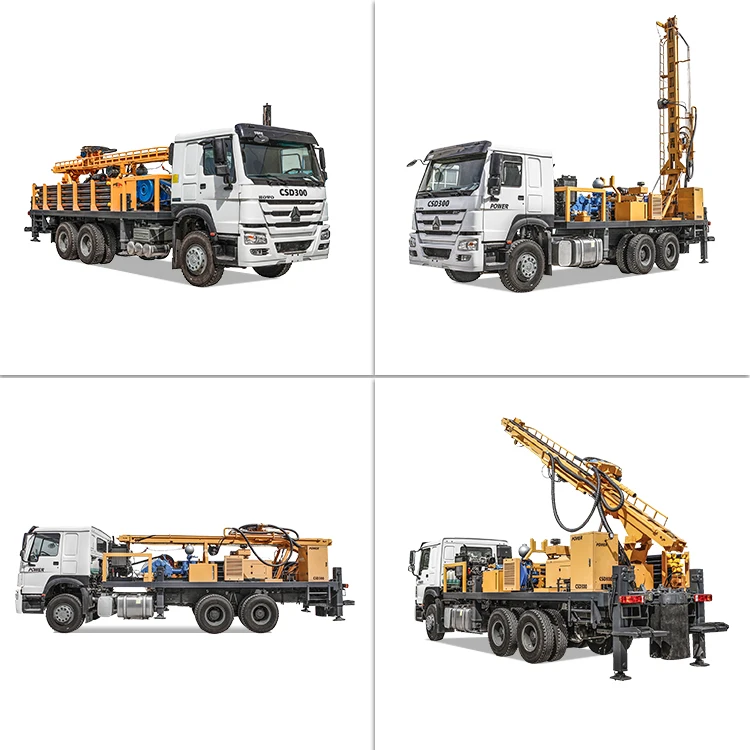

CSD300 Truck-Mounted Water Well Drilling Rig
The CSD300 mobile drilling rig is a powerhouse for drilling a variety of wells, including water, monitoring, and geothermal. It's also ideal for grouting holes in structures like dams and reinforced bases. Furthermore, it's equipped to handle drilling tasks in open-pit mining and is a go-to for anchor reinforcement and defense projects.
Item | Spec. | Unit | Parameter | |||||||
General | Chassis | 4X2 | 6X4 | 6X6 | ||||||
Geology Drilled | All kinds | All kinds | All kinds | |||||||
Drilling Method | DTH & Mud Rotary | DTH & Mud Rotary | DTH & Mud Rotary | |||||||
Hole Depth | m | 300 | 300 | 300 | ||||||
Hole Diameter | mm | Φ140—Φ450 | Φ140—Φ450 | Φ140—Φ450 | ||||||
Rotation | Rotation Torque | Nm | 4800-6500 | 4800-6500 | 4800-6500 | |||||
Rotation | Rotation Speed | rpm | 60-120 | 60-120 | 60-120 | |||||
Mast | Drill Pipe Diameter | mm | 89/102/114 | 89/102/114 | 89/102/114 | |||||
Drill Pipe Length | mm | 4000/4500 | 4000/4500/6000 | 4000/4500/6000 | ||||||
Max. Pull Back Capacity | T | 16 | 16 | 16 | ||||||
Push Down Capacity | T | 6.5 | 6.5 | 6.5 | ||||||
Winch | Lifting Force of Tool Winch | T | 1.5 | 1.5 | 1.5 | |||||
Length of Steel Wire Rope (Tool Winch) | m | 100 | 100 | 100 | ||||||
Power Unit | Diesel Engine Type | YUNNEI | YUCHAI | YUCHAI | ||||||
Rated Horse Power | Kw | 85 | 85 | 85 | ||||||
Electrical System | Volt | 24 | 24 | 24 | ||||||
Chassis | Truck Brand | SINOTRUCK | SINOTRUCK | Dongfeng | ||||||
Truck Rated Horse Power | HP | 190 | 400 | 190 | ||||||
Discharge Standard | EU-2 | EU-2 | EU-2 | |||||||
Drive Type | 4x2 | 6X4 | 6X6 | |||||||
Truck Max. Speed | Km/h | 95 | 95 | 95 | ||||||
Truck Steering Wheel | left/right(Optional) | left/right(Optional) | left/right(Optional) | |||||||
Mud Pump | Model | BW450 | BW450 | BW450 | ||||||
Stroke | mm | 110 | 110 | 110 | ||||||
Displacement | L/Min | 450 | 450 | 450 | ||||||
Discharge Pressure | Mpa | 5 | 5 | 5 | ||||||
Air Compressor | Compressor Type | Rotary Screw/Separate | Rotary Screw/Separate | Rotary Screw/Separate | ||||||
Pressure Required | Mpa | 1.2—3.0 | 1.2—3.0 | 1.2—3.0 | ||||||
Air Consumption | m³/min | 11—35 | 11—35 | 11—35 | ||||||
Weight& Dimension | Net Weight | Kgs | 12000 | 16500 | 16800 | |||||
Size | Shipping (L*W*H) | mm | 8800*2550*3400 | 10800*2550*3630 | 10000*2550*3650 | |||||
Working Size(L*W*H) | mm | 8500*2550*6200 | 10500*2550*9830 | 9700*2550*8850 | ||||||
All truck brand & Engine brand available according to your requests! | ||||||||||
High-Efficiency Hydraulic Drilling Rig
The rig is equipped with a main winch, allowing for high efficiency when drilling in mud rock and weathered formations. Its main
drive system is hydraulic, with four landing legs and the drilling tower also controlled hydraulically. Additionally, the transfer case and mud pump clutch system operate hydraulically. The hydraulic auxiliary functions enable easy and efficient guide extension, boom swing, boom lift, and guide dumping. It offers competitive pricing and low maintenance costs.
drive system is hydraulic, with four landing legs and the drilling tower also controlled hydraulically. Additionally, the transfer case and mud pump clutch system operate hydraulically. The hydraulic auxiliary functions enable easy and efficient guide extension, boom swing, boom lift, and guide dumping. It offers competitive pricing and low maintenance costs.
Versatile Drilling Rig
The drilling rig supports both air DTH hammer drilling and mud drilling. It is a hydraulic rotary drilling rig with directional circulation and can be equipped with a BW450 mud pump that uses slurry as the flushing fluid. This allows it to effectively drill through clay, sand, and rock when fitted with suitable drill bits. The rotary head features two gears, with a rotation speed of 45-140 RPM and stepless adjustment, providing a rotary torque of 5000-6500 Nm.

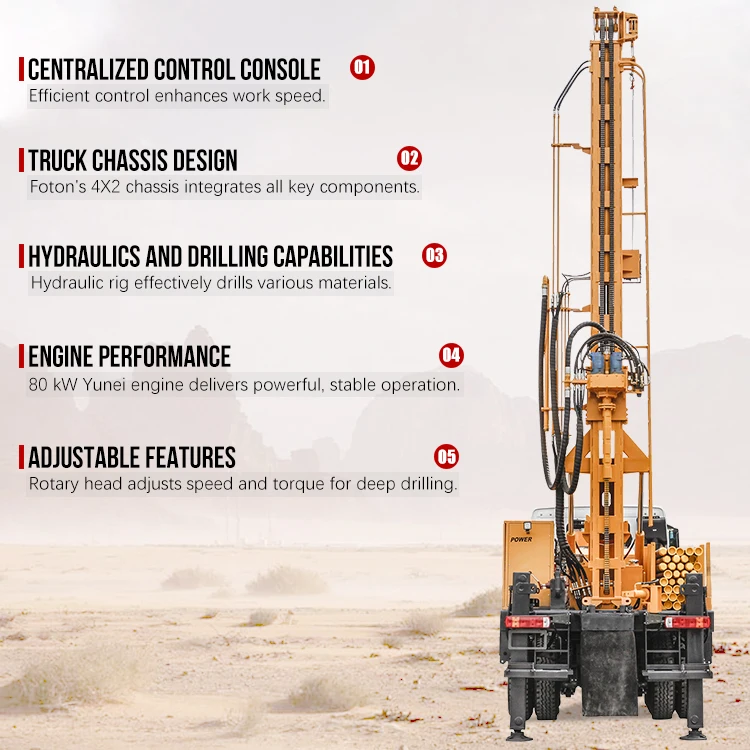

Efficient Control and Setup

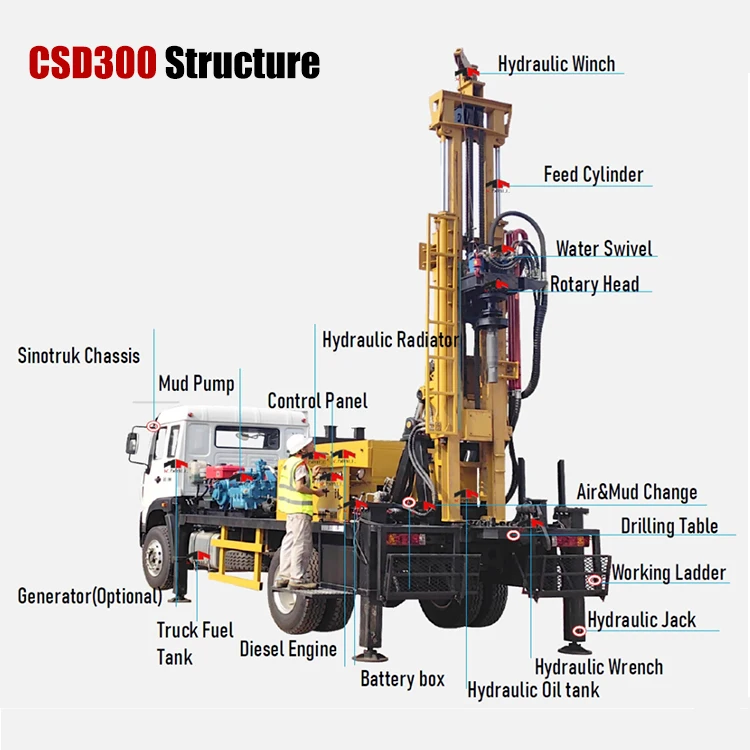

The centralized control console allows for easy manipulation and control. Rapid pulling and lifting minimize auxiliary time, enhancing work efficiency. The main drive system, transfer case gearbox, double-winch unit, mud pump, turntable, drilling tower, and feed system are all integrated into the chassis for streamlined operation.
High-Performance BW450 Mud Pump for Efficient Drilling
The BW450 mud pump is a horizontal three-cylinder single-acting reciprocating piston pump, featuring three cylinder diameters
and four-speed settings. Its discharge capacity and hole depth can be adjusted based on application needs, with a maximum depth of 1800 meters, making it suitable for drilling and cement grouting.
and four-speed settings. Its discharge capacity and hole depth can be adjusted based on application needs, with a maximum depth of 1800 meters, making it suitable for drilling and cement grouting.
Q: Are you the original manufacturer?
A: Yes, we at JCDRILL are an official leading manufacturer of drilling machinery in China, and we offer a complete series of
products you need.
Q: What payment terms are available to us?
A: We accept T/T or L/C payment terms. For T/T, a 30% down payment is required in advance, with the remaining 70% to be settled before shipment. For L/C, we can accept a 100% irrevocable L/C without "soft clauses."
Q: Which Incoterms 2010 terms can we work with?
A: At JCDRILL, we are a professional and international company that accepts all Incoterms 2010 terms. Typically, we work on FOB, CIF, CFR, and CIP.
Q: How long will the delivery time take?
A: Normally, mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can provide immediate delivery of our standard machines within 15 days.
Q: How about after-sales service?
A: We provide year-round 24-hour service, even during holidays, in line with our policy of ensuring a response within 15 minutes and job completion within 24 hours.
Q: Spare Parts – When You Need Them
A: We have spare parts centers located across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
A: Yes, we at JCDRILL are an official leading manufacturer of drilling machinery in China, and we offer a complete series of
products you need.
Q: What payment terms are available to us?
A: We accept T/T or L/C payment terms. For T/T, a 30% down payment is required in advance, with the remaining 70% to be settled before shipment. For L/C, we can accept a 100% irrevocable L/C without "soft clauses."
Q: Which Incoterms 2010 terms can we work with?
A: At JCDRILL, we are a professional and international company that accepts all Incoterms 2010 terms. Typically, we work on FOB, CIF, CFR, and CIP.
Q: How long will the delivery time take?
A: Normally, mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can provide immediate delivery of our standard machines within 15 days.
Q: How about after-sales service?
A: We provide year-round 24-hour service, even during holidays, in line with our policy of ensuring a response within 15 minutes and job completion within 24 hours.
Q: Spare Parts – When You Need Them
A: We have spare parts centers located across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
Похожие товары

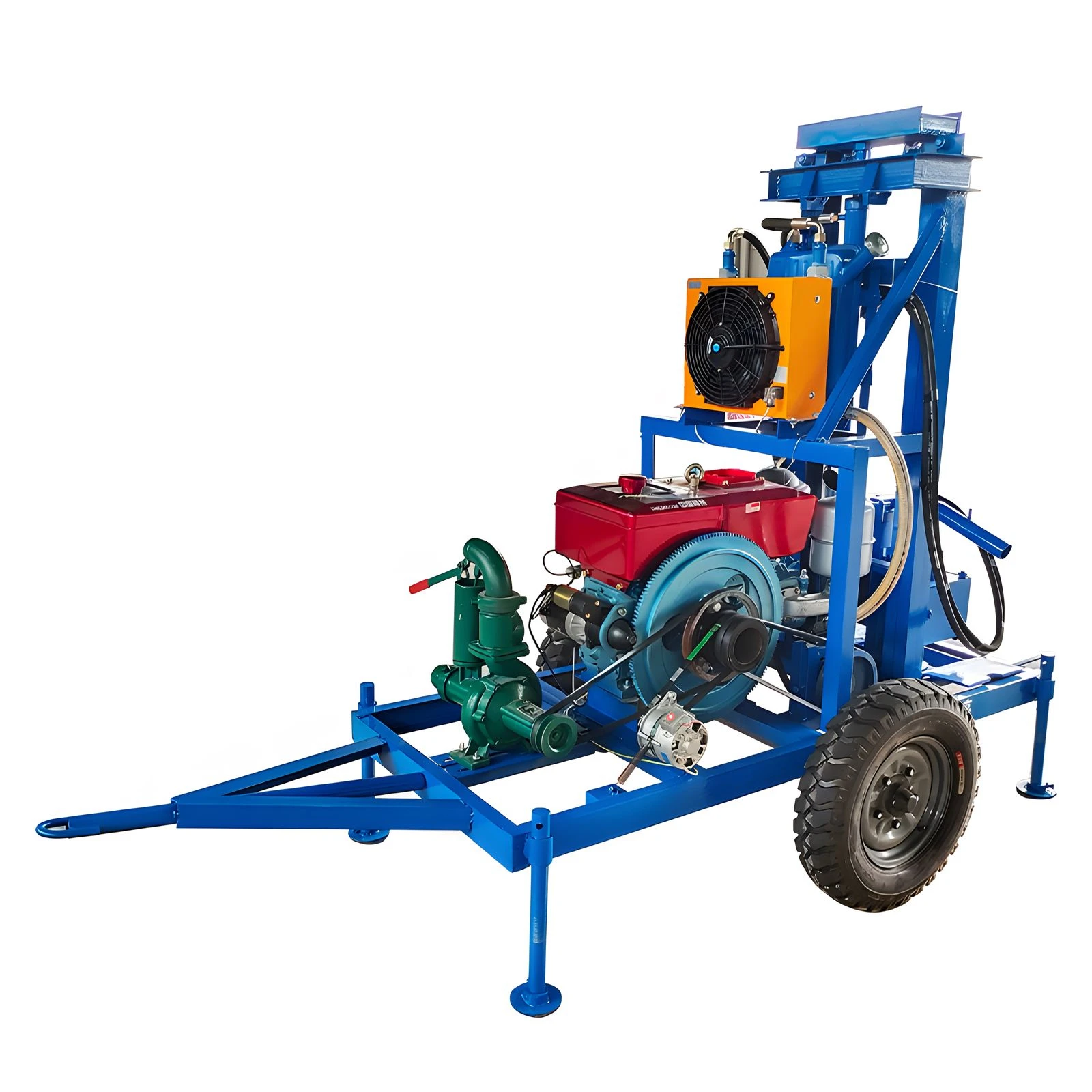

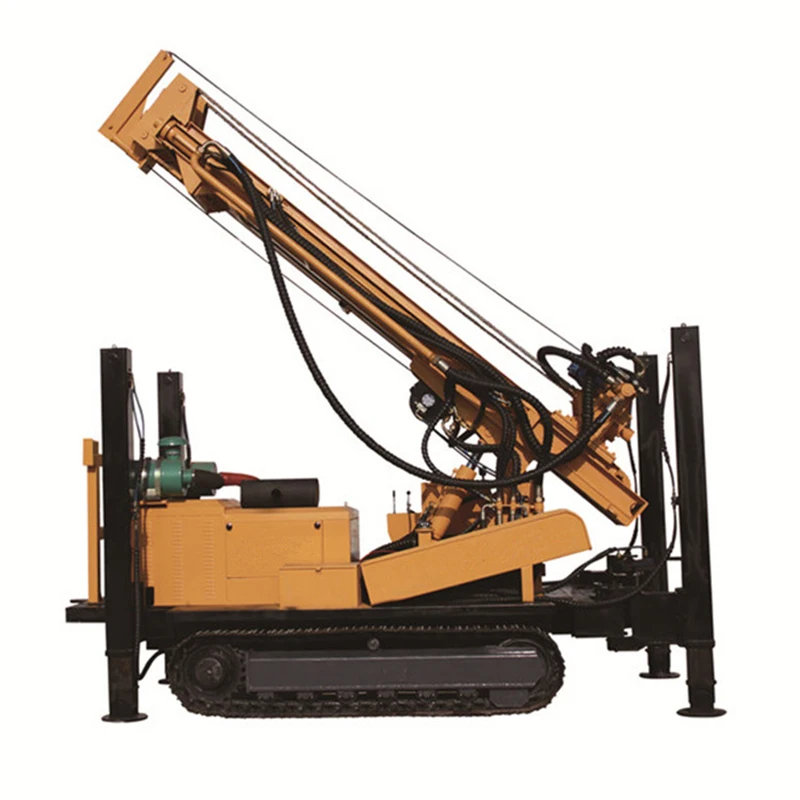

180 м буровая установка для гражданской скважины FY180 гусеничная пневматическая водяных скважин небольшая машина продажи
1 928 697,75 ₽ - 1 983 803,40 ₽
Новая система автоматической разгрузки двухступенчатой встроенной буровой установки воздушного фильтра для суровых шахт с компонентами двигателя кернового насоса
5 345 248,05 ₽
Буровая установка для воды
220 422,60 ₽ - 314 102,21 ₽

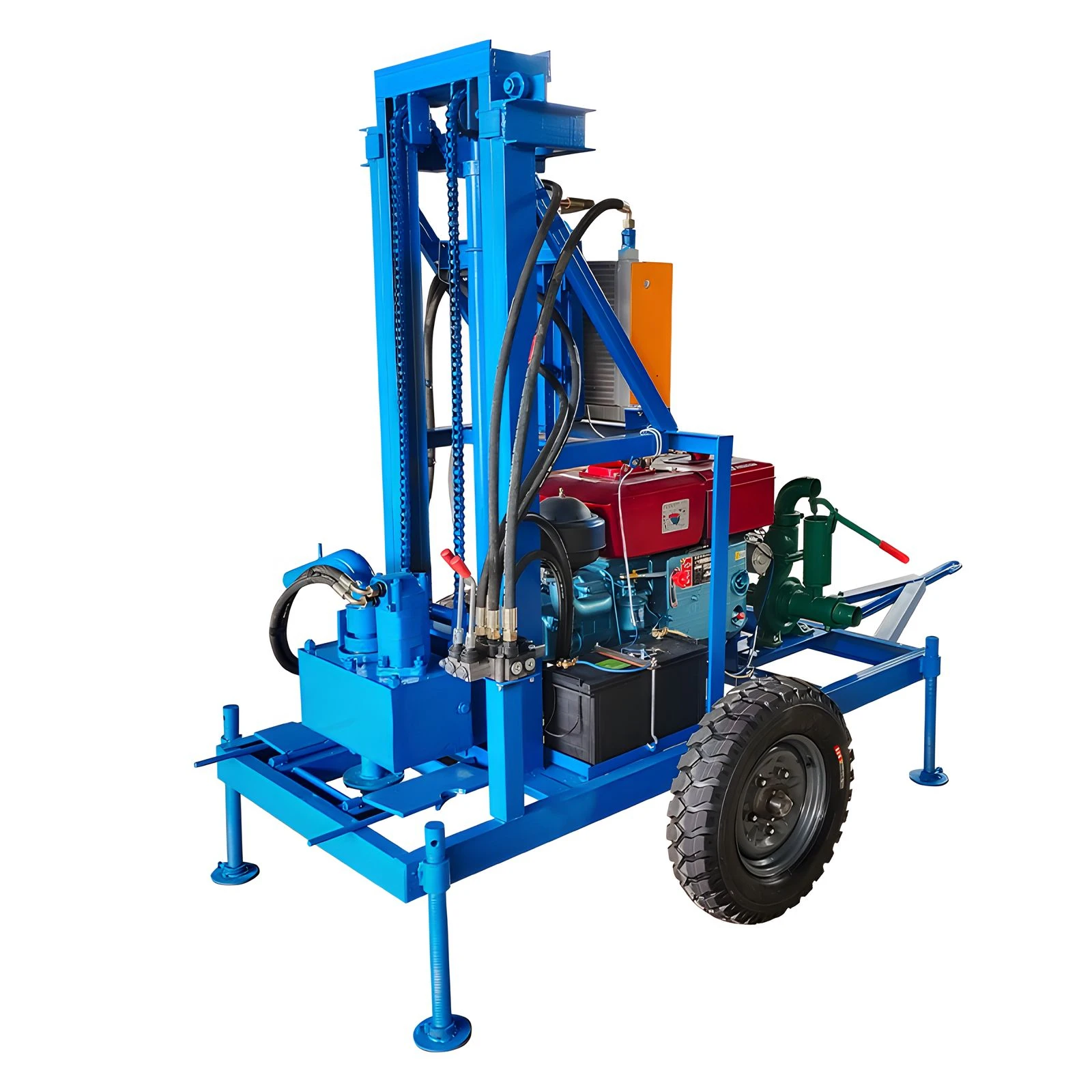

Мини-буровая установка для водяных скважин небольшие пневматические буровые установки цена
