Взрывная МОДЕЛЬ 2200 мм гидравлический роторный сверлильный станок SR275S по хорошей цене

Взрывная МОДЕЛЬ 2200 мм гидравлический роторный сверлильный станок SR275S по хорошей цене

Категория: >>>
Поставщик: Caterbe Construction Equipment (Wuhan) Co. Ltd.

Цена:4 298 240,70 ₽ - 6 061 621,50 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Our Company

Product Overview

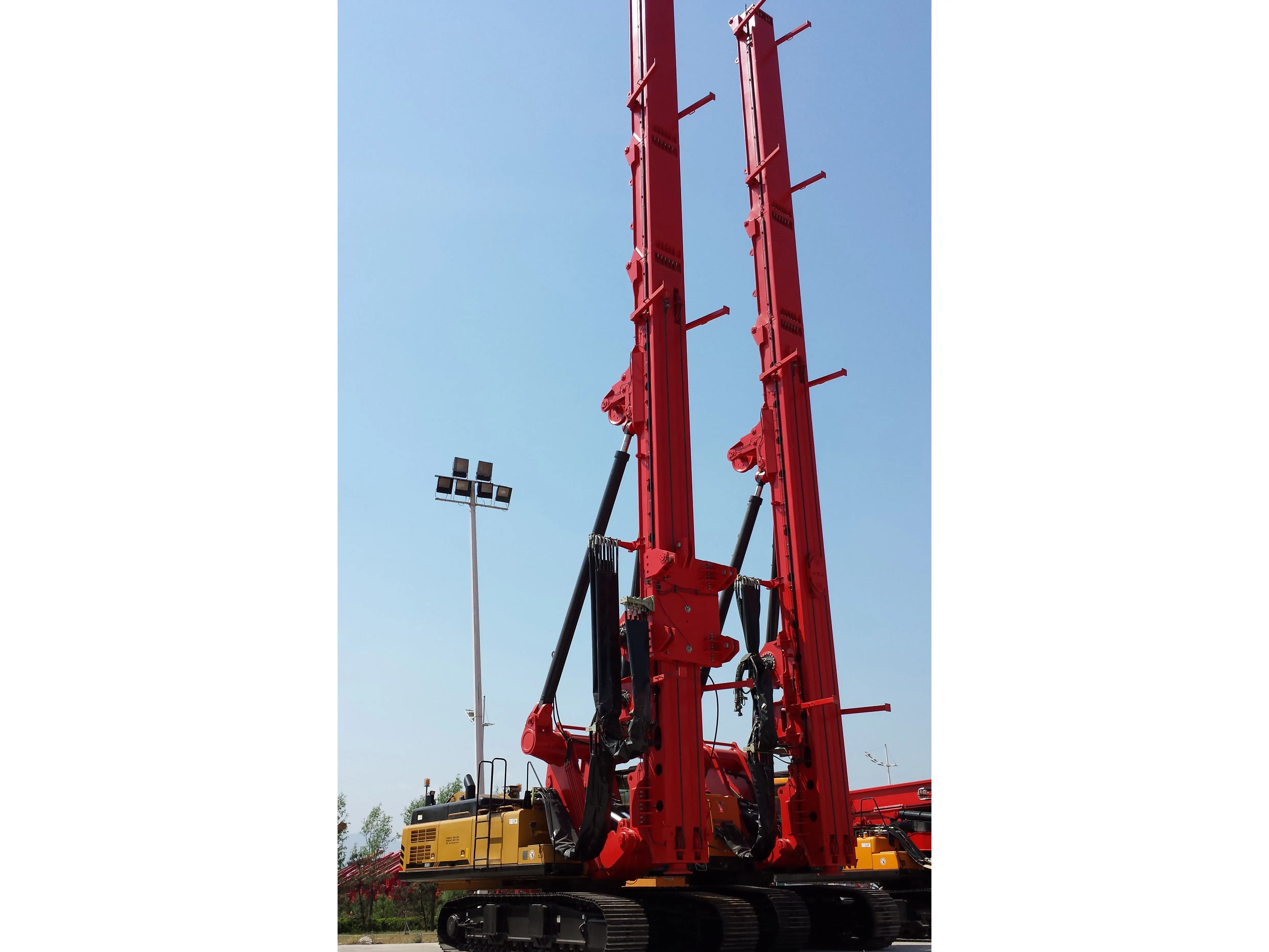

China top brand 2200mm Hydraulic Rotary Drilling Machine SR275S Best Prices

High drilling capacity

14m friction Kelly, 13-14m interlocking Kelly made of high strength steel tubes are available; Maximum output torque reaches
205kN.m, the maximum pile depth is 64m down, maximum pile diameter is 1800mm.
Isu-zu engine with rated power of 212kW@2000rpm, six gears control provides strong power to the machine, improving the drilling capacity. New design of main winch delivers faster line speed of 75m/min, bigger lifting power with 185kN line pull.

Safe and reliable

The 5th generation rotary drive adopts multi-gear control, self-adaptive techniques, and double buffering system which can
increase drilling efficiency and safety.
Intelligent operation system, advanced hydraulic system and heavy wide chassis ensure efficient, safe and stable operation.
Advanced welding robots, automatic cutting machines ensure high precision and quality of the core components.
Easy to transport&operate
Compact in transport height and weight, the drilling rig is easy to transport in cities.
The tailored chassis with larger spaces for pumps and valves is for easy maintenance during work.
Spacious cab with panorama sunroof is designed to give the operator a comfortable environment and wide visibility

Product Paramenters

Main performances	Unit	Parameter
Pile
Max. drilling diameter	mm	2200
Max. drilling depth	m	58/73
Rotary drive
Rated output torque	kN·m	275
Rotation speed	rpm	5-34
Crowd System
Crowd force	kN	240
Line pull	kN	280
Stroke	mm	5000
Main Winch
Lifting capacity	kN	280
Wire rope diameter	mm	32
Max. line speed	m/min	80
Auxiliary Winch
Lifting capacity	kN	80
Wire rope diameter	mm	20
Max. line speed	m/min	70
Mast Inclination
Forward/backward	°	5/90
Lateral	°	±3
Main Chassis
Base engine	/	L9
Engine power	kW/rpm	272/1900
Exhaust emission	/	EURO IV
Engine displacement	L	8.9
Extension width	mm	4500
Track shoe width	mm	800
Swing radius	mm	4525
Overall Machine
Overall height	mm	23870
Operating weight	t	90
Transport width	mm	3540
Transport height	mm	3845
Transport length	mm	17250
