2000 Вт 12AVDC 220VAC модифицированный синусоидальный инвертор с зарядным устройством/функцией UPS DC to AC
96,00-108,00 $
Экономичный 2 кВт 2000 Вт широкий PV вход BMS автономный солнечный инвертор поддержка Wi Fi
- Категория: >>>
- Поставщик: Guangdong Techfine Electronic Co. Ltd.Guangdong Ltd.
Сохранить в закладки 1601280327864:
Описание и отзывы
Характеристики
Strictly comply with ISO quality management system
products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
Techfine Hybrid solar Solar Inverter [ Delicate Version ]
Providing cost-effective energy solutions, this intelligent power conversion device is suitable for a variety of scenarios.
Combines intelligent design with high performance, making it an ideal choice for residential, commercial, and industrial applications.
It provides stable and efficient solutions for your power system, improving energy utilization.
Key Features:
> Cost-effective design: Delivers affordable solutions to meet diverse energy needs.

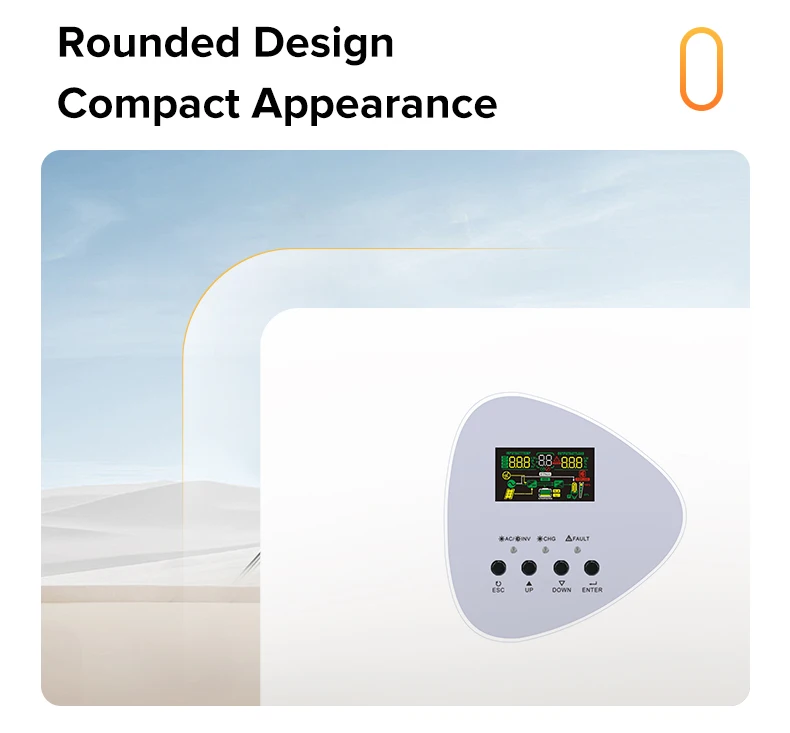

> Rounded corner design, exquisite appearance: Stylish and minimalist design, suitable for home and commercial installations, enhancing overall visual appeal.
> Adjustable parameters: Flexible adjustments based on user needs, adaptable to various application scenarios, offering a highly customizable experience.
> Supports lithium battery communication: Compatible with various lithium battery systems, ensuring efficient and intelligent battery management.

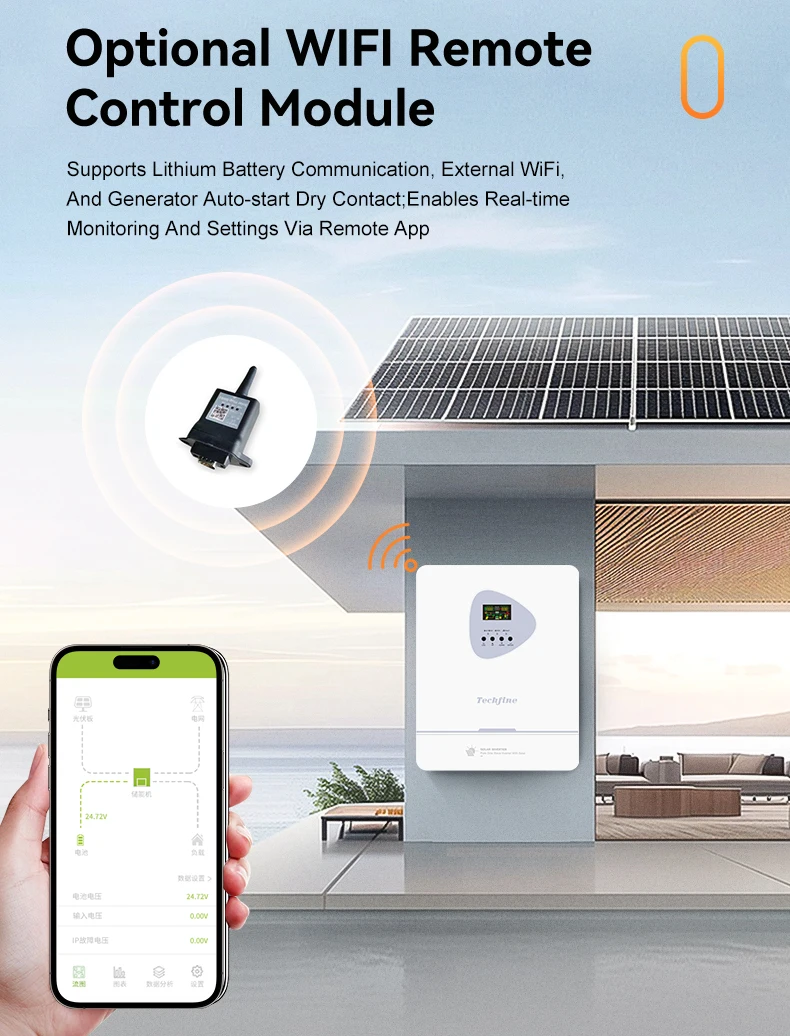

> External WiFi and generator self-start dry contact function: Facilitates remote monitoring and smart control, enhancing user experience and system reliability.
> Real-time display of load power: Accurately displays real-time load power, significantly improving user perception and control efficiency.
> Pure sine wave output: Adapts to different loads, ensuring smooth operation under all working conditions.

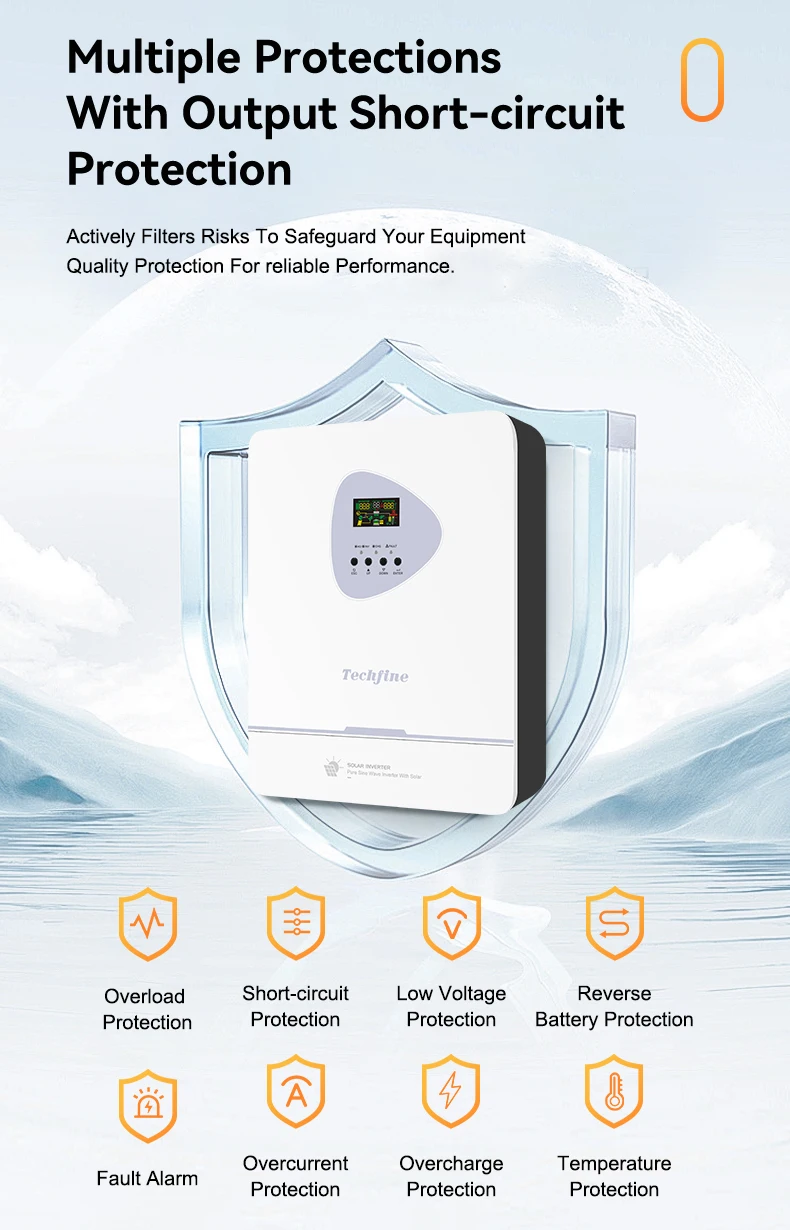

> Short-circuit protection function: Built-in short-circuit protection mechanism provides comprehensive safety, preventing
electrical system failures.
Whether for home or business, Techfine provides a one-stop solution for optimizing your energy structure, reducing electricity costs, while also enhancing the environmental friendliness of energy use.
Choose Techfine to embark on a new era of smart, efficient, and green energy.
> Rounded corner design, exquisite appearance: Stylish and minimalist design, suitable for home and commercial installations, enhancing overall visual appeal.
> Adjustable parameters: Flexible adjustments based on user needs, adaptable to various application scenarios, offering a highly customizable experience.
> Supports lithium battery communication: Compatible with various lithium battery systems, ensuring efficient and intelligent battery management.
> External WiFi and generator self-start dry contact function: Facilitates remote monitoring and smart control, enhancing user experience and system reliability.
> Real-time display of load power: Accurately displays real-time load power, significantly improving user perception and control efficiency.
> Pure sine wave output: Adapts to different loads, ensuring smooth operation under all working conditions.
> Short-circuit protection function: Built-in short-circuit protection mechanism provides comprehensive safety, preventing
electrical system failures.
Whether for home or business, Techfine provides a one-stop solution for optimizing your energy structure, reducing electricity costs, while also enhancing the environmental friendliness of energy use.
Choose Techfine to embark on a new era of smart, efficient, and green energy.
Product Parameters
Model | 2012EMH | 3024EMH | 3624EMH | 5548EMH | 6248EMH | 11048EMH | ||||||
Rated input voltage | 220/230/240VAC | |||||||||||
Voltage range | 90-280VAC±3V（normal mode) 170-280VAC±3V（UPS mode） | |||||||||||
Frequency range | 50Hz/60Hz(Adaptive) | |||||||||||
output | ||||||||||||
Battery Inverter | 1600W | 3000W | 3600W | 5500W | 6200W | 11000W | ||||||
Photovoltaic Inverter | 1600W | 3000W | 4500W | 6500W | 6500W | 11000W | ||||||
Peak Power | 3200VA | 6000VA | 7200VA | 11000VA | 12400VA | 22000VA | ||||||
Output voltage | 220/230/240VAC±5% | |||||||||||
Output frequency | 50/60Hz±0.1% | |||||||||||
Waveform | Pure sine wave | |||||||||||
Switching time (adjustable) | Computer equipment 10ms, home appliances 20ms | |||||||||||
Overload capacity | Battery Mode：11s@105%~150% Load;2s@150%~200% Load;400ms@>200% Load | |||||||||||
Grid-connected operation | ||||||||||||
Output voltage | No grid connection | 220/230/240VAC | ||||||||||
grid feeding voltage range | 195-253VA | |||||||||||
grid feeding frequency range | 49-51±1Hz/59-61±1Hz | |||||||||||
normal output current | 15.7A | 23.9A | 26.9A | 47.8A | ||||||||
power factor range | >0.99 | |||||||||||
maximum conversion efficiency (DC/AC) | 98% | |||||||||||
Battery | ||||||||||||
rated voltage | 12Vdc | 48Vdc | ||||||||||
constant voltage charging voltage (configurable) | 14.1Vdc | 28.2Vdc | 28.2Vdc | 56.4Vdc | 56.4Vdc | 56.4Vdc | ||||||
float charging voltage (configurable) | 13.5Vdc | 27Vdc | 27Vdc | 54Vdc | 54Vdc | 54Vdc | ||||||
PV charger | ||||||||||||
PV charging method | MPPT | dual MPPT | ||||||||||
maximum input power of PV | 2000W | 3000W | 5000W | 7500W | 7500W | 2×5500W | ||||||
MPPT input voltage range | 40~500Vdc | 60-500Vdc | 90~500Vdc | |||||||||
optimal Vmp operating range | 300~400Vdc | |||||||||||
maximum PV input voltage | 500Vdc | |||||||||||
maximum PV input current | 13A | 13A | 18A | 27A | 27A | 18A/18A | ||||||
maximum PV charging current | 100A | 100A | 120A | 100A | 120A | 150A | ||||||
maximum mains charging current | 60A | 60A | 100A | 100A | 100A | 150A | ||||||
maximum charging current | 100A | 100A | 120A | 100A | 120A | 150A | ||||||
display | ||||||||||||
LCD Interface | Can display operation mode/load/input/output, etc. | |||||||||||
interface | ||||||||||||
RS232 | Baud rate 2400 | |||||||||||
Expansion slot communication interface | Lithium battery BMS communication card, WIFI card, dry contact card, etc. | |||||||||||
Parallel interface | No parallel function | Parallel (network) function | ||||||||||
Environmental parameters | ||||||||||||
Operating ambient temperature | -10~50℃ | |||||||||||
Operating environment humidity | 20%~95%(No condensation) | |||||||||||
Storage temperature | -15~60℃ | |||||||||||
Altitude | The altitude should not exceed 1000m, and the rating will be reduced above 1000m, and the maximum altitude is 4000m, refer to | |||||||||||
IEC62040 | ||||||||||||
noise | ≤50db | |||||||||||
Physical parameters | ||||||||||||
Depth × width × height (mm) | 403*304*114mm | 433*330*138mm | 601*360*163.5mm | |||||||||
Standards and certifications | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | |||||||||||
Techfine is dedicated to advancing sustainability every step of the way.
Our commitment to the environment extends beyond our products to include every aspect of our operations, as highlighted by our adherence to eco-friendly packaging standards. With prestigious memberships and compliance with international environmental regulations, we are proud to contribute to a greener planet.
Our Factory
Industry-leading One-stop Customized Services
Guangdong Techfine Electronic Co., Ltd.
Professional manufacturer for solar & UPS system products in China.
Offer stable quality products with reasonable price and nice sales/after-sales service.
You can get suitable products with long time service and market sales support from us.
Of course, we also support OEM/ODM cooperation.
Techfine will be your reliable partner!
FAQ
Q1: Why you should choose us?
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pc
for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pc
for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Похожие товары
Универсальный Автомобильный 2000 Вт от постоянного тока 12 В до DC110V 24 220 100% нового инвертора мощности
5,90-7,90 $
Инвертор солнечной энергии постоянного тока 2000 Вт преобразователь чистой синусоидальной волны 12 В 24 в 220 240 110 120 переменного
69,00 $

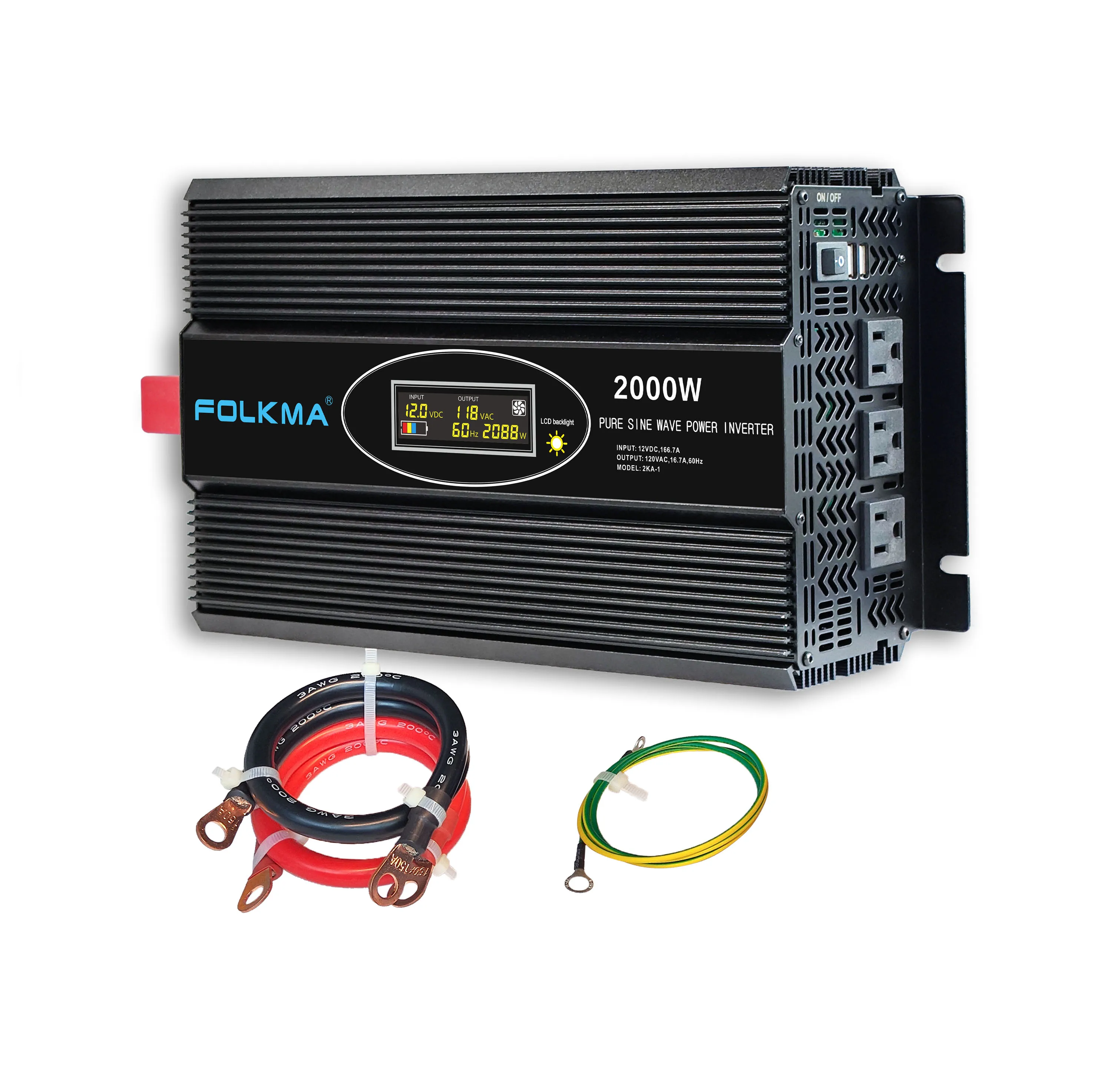

Folkma 2000 Вт чистый синусоидальный инвертор 12 В постоянного тока в 120 переменного для дома/RV/грузовика 5 В/3 4 А USB зарядное устройство порт жесткого провода сертифицированный ETL
108,00-115,00 $
KaiDeng Солнечный микроинвертор WVC 1200 Вт Сетка галстук DC В AC для PV модуля MPPT IP65 высокой частоты
165,00 $
Оригинальный вариант SUN-8/10/12K-SG04LP3 для инвертора
1 718,00-1 872,00 $
Высококачественный 300 Вт 350 400 микро-фотоэлектрический инвертор с подключением к сети безопасный Интеллектуальный для домашней энергетической системы
65,00-80,00 $

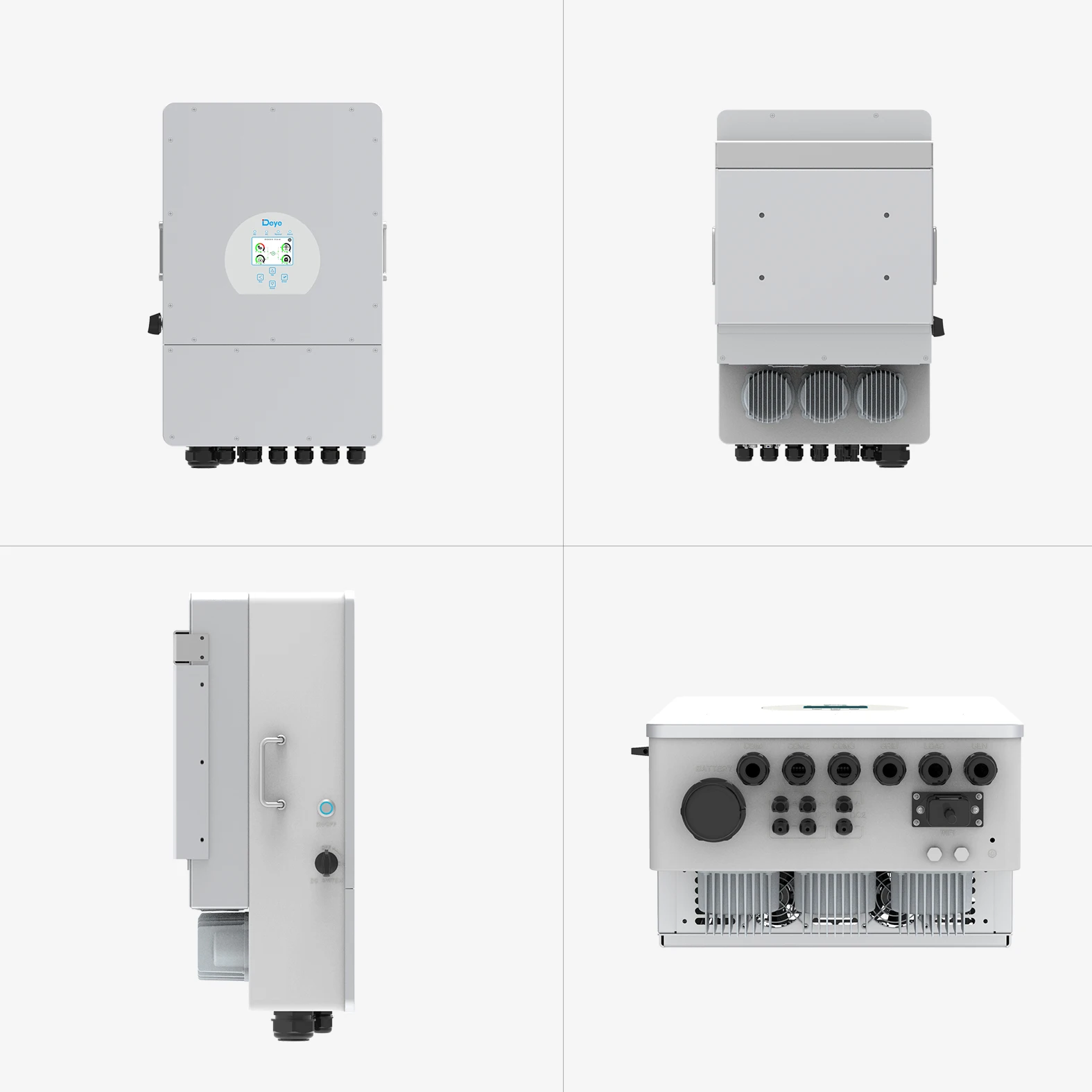

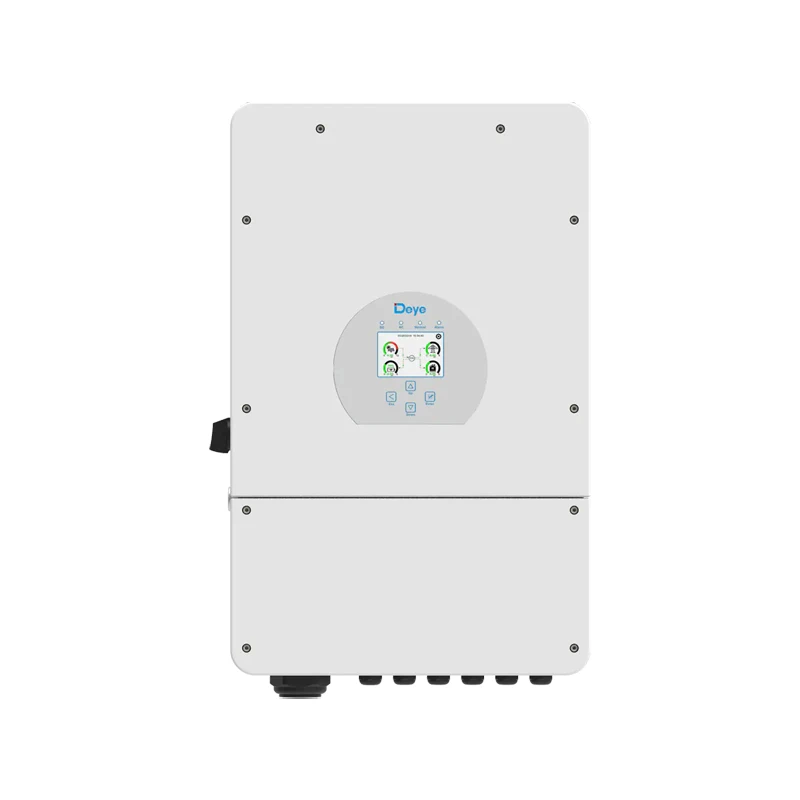

Deye 8 кВт 5 SUN-8K -SG01LP1-EU однофазный 230 В Гибридный инвертор с 2 МППт и 48 низким напряжением для домашней солнечной системы
