Молотковая машинка для макияжа BR1 бурения горных пород в горнодобывающей промышленности
- Категория: >>>
- Поставщик: Gaode Equipment Co. Ltd.
Сохранить в закладки 1601280360261:
Описание и отзывы
Характеристики
Product Overview
Our DTH hammers are purpose-matched for all rock types and applications. By using high-quality raw materials, utilizing advanced craft technologies and imposing strict quality inspection, the DTH hammers are known for their fast speed, energy-saving and reliability.
The DTH hammers are perfectly compatible with the famous brand such as Atlas Copco, Ingersoll-Rand, Sandvik and other well-known manufacturers. The hammers are useful for production drilling in blasting holes drilling, mining, earthwork, well digging, construction foundation, etc.
In addition to high air pressure DTH hammers, we also offer low and medium air pressure DTH hammers. Both the hammer with foot valve and the hammer without foot valve are provided.
DTH Hammer Types coverage: DHD/COP/IR/QL/SD/TD/BR/Mission/Numa etc.
Size Range: 3-8 inch
High Air Pressure Work Pressure: 8-30 bar
Technical Parameters
High Air Pressure DTH Hammers With Foot Valve | ||||||||||
Hammer Model | Bit Dia (mm) | Outside Diameter (mm) | Hammer Length Without Bit (mm) | Weight (kg) | Bit Shanks | |||||
TND-IR3.5 | 90~105 | 80 | 807 | 22.5 | DHD3.5 | |||||
TND-IR340 | 110~130 | 99 | 881 | 38 | DHD340A | |||||
TND-TD40 | 110~130 | 99 | 881 | 38 | TD40 | |||||
TND-QL40 | 110~130 | 99 | 952 | 39.5 | QL40 | |||||
TND-IR350 | 138~152 | 126 | 1029 | 74 | DHD350 | |||||
TND-SD5 | 138~152 | 126 | 1029 | 74 | SD5 | |||||
TND-QL50 | 138~152 | 126 | 1009 | 74 | QL50 | |||||
TND-IR360 | 152~254 | 144 | 1135 | 112 | DHD360 | |||||
TND-QL60 | 152~254 | 144 | 1080 | 110 | QL60 | |||||
TND-SD6 | 152~254 | 144 | 1150 | 113 | SD6 | |||||
TND-IR380 | 194~305 | 184 | 1228 | 180 | DHD380 | |||||
TND-QL80 | 194~305 | 184 | 1211 | 182 | QL80 | |||||
TND-SD8 | 194~305 | 184 | 1199 | 182 | SD8 | |||||
High Air Pressure DTH Hammers Without Foot Valve | ||||||||||
Hammer Model | Bit Dia (mm) | Outside Diameter (mm) | Hammer Length Without Bit (mm) | Weight (kg) | Bit Shanks | |||||
TND-2.5N | 78~80 | 70 | 806 | 17.5 | CWG76N | |||||
TND-3.5N | 90~105 | 80 | 862 | 24.5 | DHD3.5N | |||||
TND-TD40N | 110~130 | 99 | 936 | 40.5 | TD40N | |||||
TND-340N | 110~130 | 99 | 936 | 40.5 | DHD340 | |||||
TND-M40 | 110~130 | 99 | 955 | 41 | Mission40 | |||||
TND-350N | 138~152 | 126 | 1082 | 74 | DHD350 | |||||
TND-M50 | 138~152 | 126 | 1080 | 74 | Mission50 | |||||
TND-QL50N | 138~152 | 126 | 1062 | 73 | QL50N | |||||
TND-360N | 152~254 | 144 | 1187 | 106 | DHD360N | |||||
GS-M60 | 152~254 | 144 | 1038 | 100 | Mission60 | |||||
TND-QL60N | 152~254 | 144 | 1131 | 108 | QL60N | |||||
TND-380N | 194~305 | 184 | 1318 | 195 | DHD380N | |||||
TND-M80 | 194~305 | 184 | 1298 | 193 | Mission80 | |||||
TND-QL80N | 194~305 | 184 | 1300 | 193.5 | QL80N | |||||
Features of high air pressure DTH hammer for exploration drilling:
1. In order to increase working life of the piston case when drilling very abrasive rocks, the driver sub is designed to be made up of three pieces and only the wear-proof casing need to be replaced timely.
2. Heat treated piston and internal cylinder guiding system are reasonably structured to achieve the highest efficiency and the largest impacting power. The penetration speed is 10%-30% faster than other products of the same type.
3. Internal parts are tightly assembled to avoid interactive wear and hammer’s reliability is increased.
4. TND Optimized structure design: Fewer air holes on internal cylinder, higher stiffness of air slot.
5. Piston case: using superior alloy steel, even better reliability and longer life after heat treatment.
6. The multiple threads are CNC machined to achieve high accuracy, making the bit easy and smooth to get assembled. Driver sub is heat treated to achieve better abrasiveness and longer life.
7. Hammer front structure design: when pulling out the hammer, the last impact of the piston would fall on the step of piston case, ensuring the safety of the driver sub splines and the retainer ring.

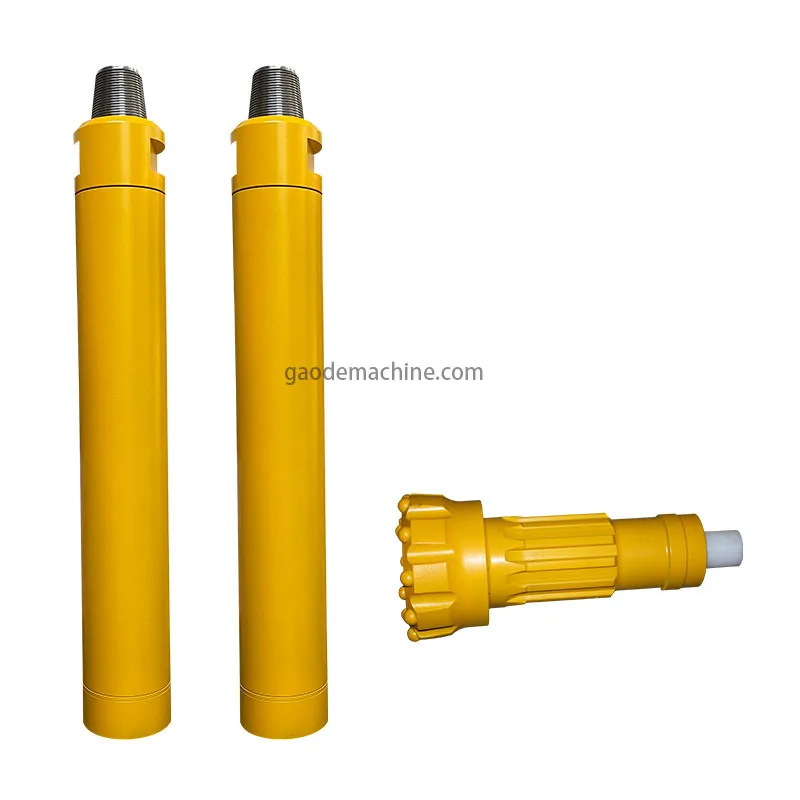

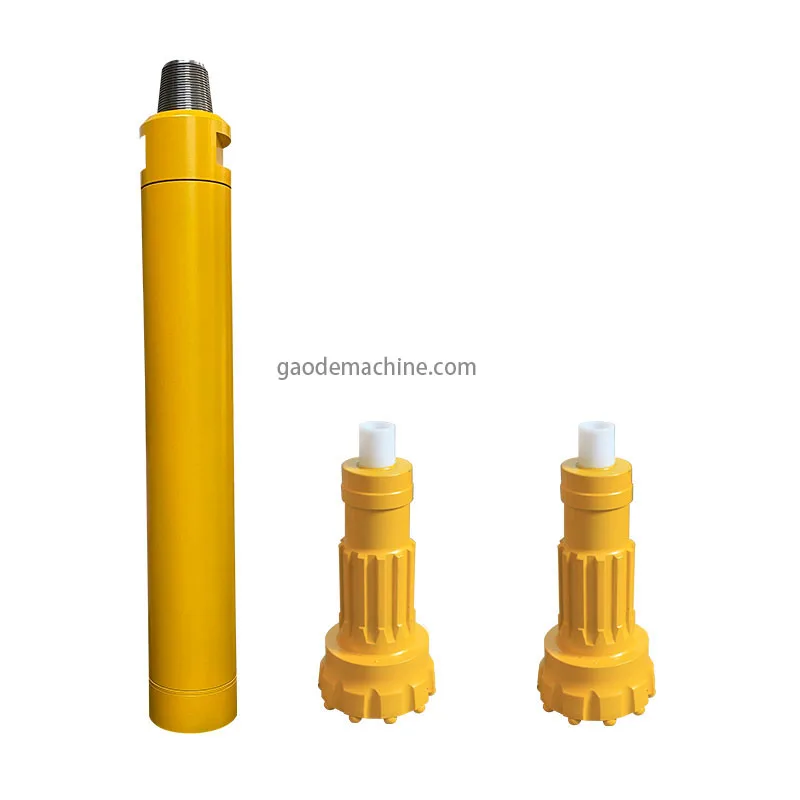

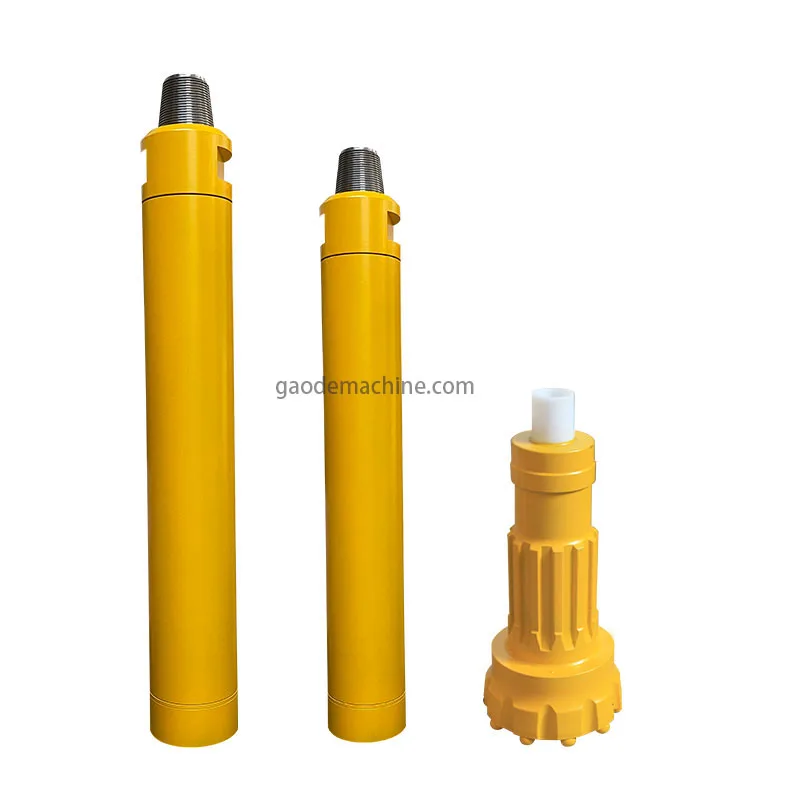

Details Images

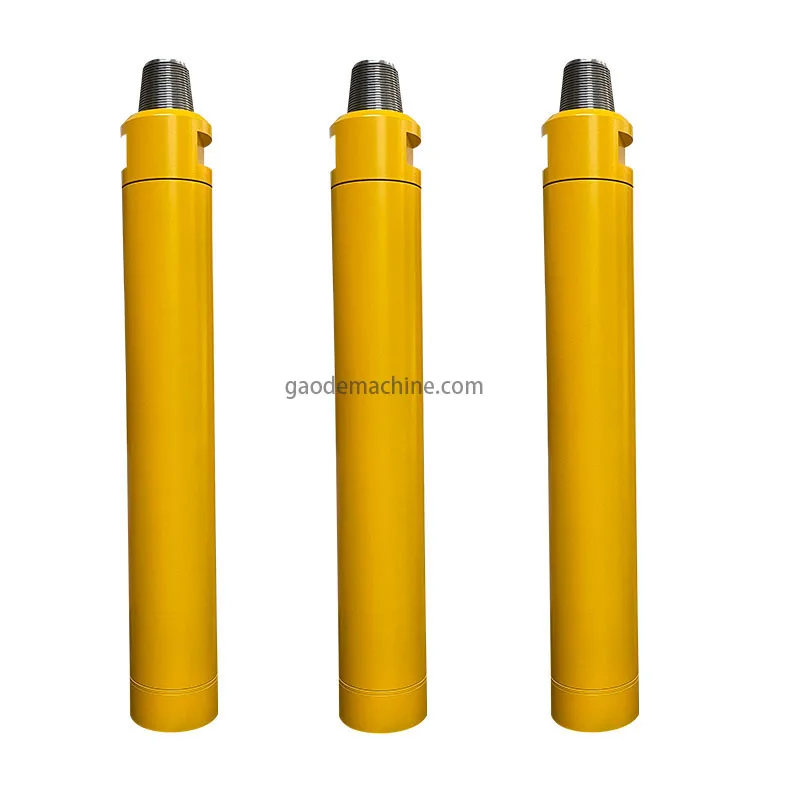

High Air Pressure DTH Hammers With Foot Valve

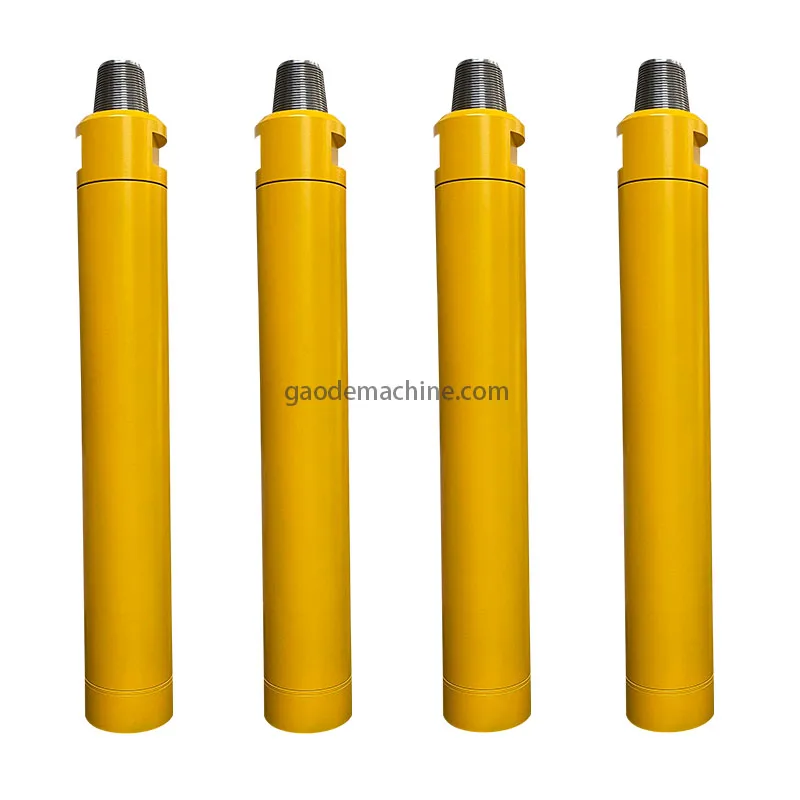

High Air Pressure DTH Hammers Without Foot Valve
Application
The DTH hammers are widely used for mine, quarry, road construction for the drilling and blasting work, water well drilling, slope protection, anchoring, etc.
Packing&Shipping
Company Profile
Gaode Equipment Co., Ltd. is one of the most specialized high-air-pressure DTH drilling equipment developers and manufacturers in China.
Manufacturing and supplying a varied range of high, medium, and low air pressure hammer and bit, API thread drill pipe, eccentric & symmetric casing system, and hydraulic top hammer products including tapered button bit, coupling sleeve, shank adapter, etc.
These products are widely used in varies industries including blasting holes drilling, mining, earthwork, well digging, construction foundation, etc.
With a high brand reputation, super quality reliability, and complete product variety, Gaode is where you can always find the best in your budget.
Contact us
Before we send quotation, please let me know the following questions:
1. What is the drilling machine model you have?
2. What is the drill bit size you require?
3. What is the drill bit shank model?
