Enterprise level Server DELL PowerEdge R660
Customer satisfaction is our eternal service tenet!!!
Products Description

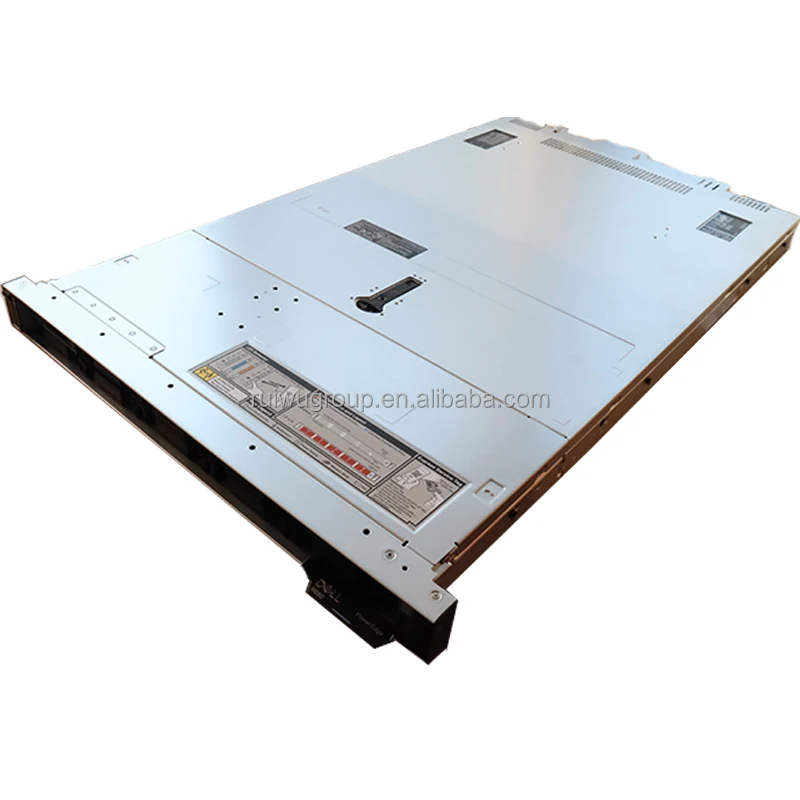

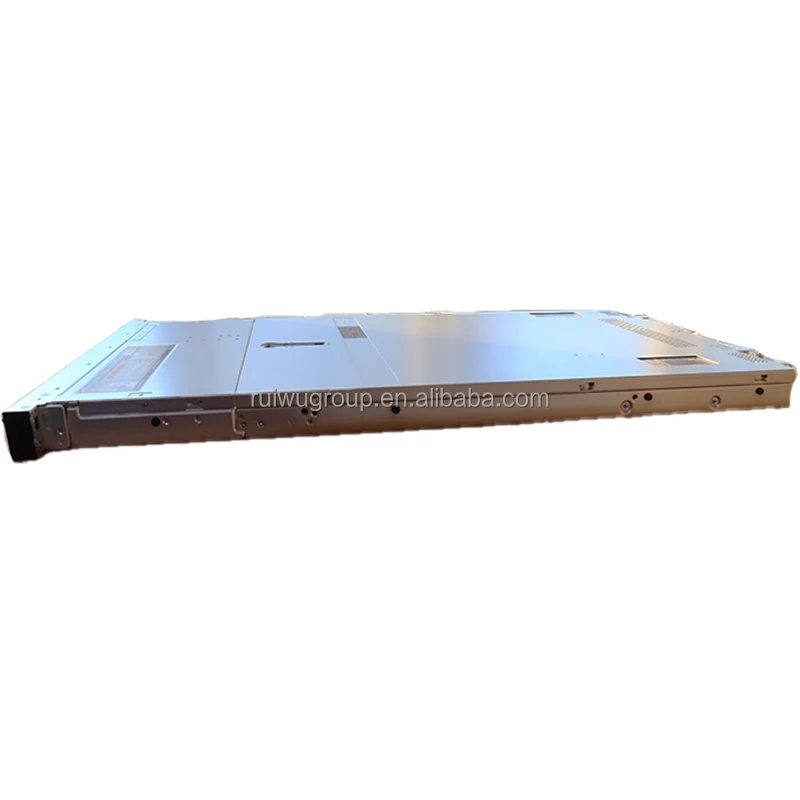

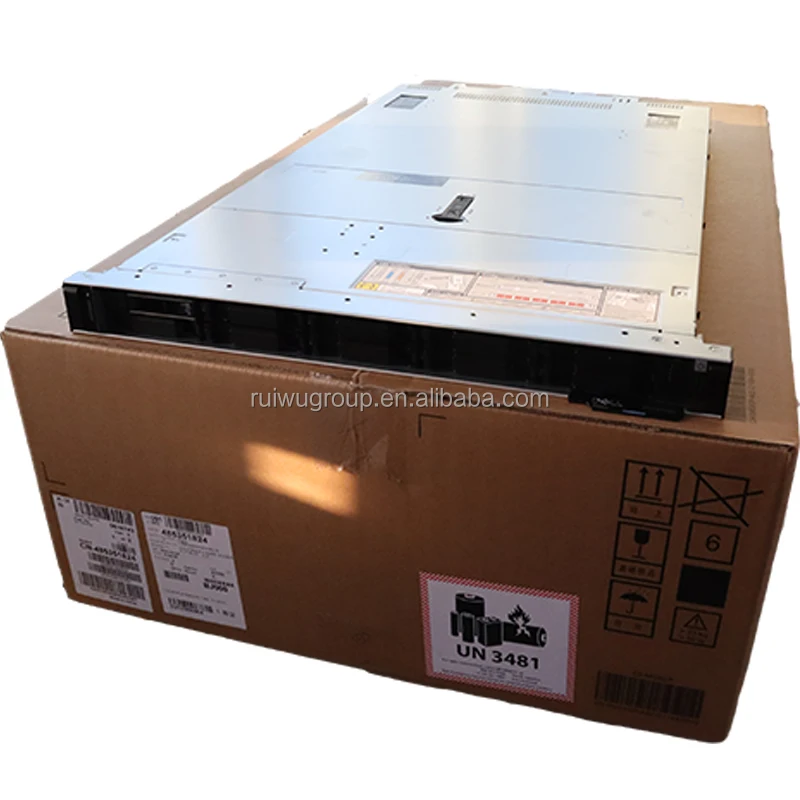

Dell PowerEdge R660
The Dell PowerEdge R660 is a 1U, dual-CPU rackmount server based on Intel’s fourth-generation Xeon Scalable “Sapphire Rapids” processors. It supports the latest in server technology, including E3.S Gen5 storage, DDR5 memory, and configurations with liquid
CPU cooling. It also accepts up to 16 SSDs despite being a 1U form factor.
CPU cooling. It also accepts up to 16 SSDs despite being a 1U form factor.
The PowerEdge R660 is an evolution of Dell’s previous generation PowerEdge R650. This 1U rackmount server is aimed at everything from general-purpose usage to HCI/HPC. Key features include support for two processors (dual sockets), 32 RDIMMs, and three graphics cards.
The R660’s biggest advancement over the R650 is that it’s based on Intel “Sapphire Rapids” fourth-generation Xeon Scalable processors. These new chips scale to 56 scores, use DDR5 memory and support Gen5 storage.
The R660’s biggest advancement over the R650 is that it’s based on Intel “Sapphire Rapids” fourth-generation Xeon Scalable processors. These new chips scale to 56 scores, use DDR5 memory and support Gen5 storage.
Storage configurations are also one of this server’s strengths. Conventional storage scales up to ten 2.5-inch SAS/SATA drives, but it can also use Gen5 NVMe SSDs. Additionally, a new backplane option includes support for up to 16x E3.S (7mm) drives. There are also rear-drive options for boot which includes the new NVMe BOSS drive.
Specification
Model | DELL R660 RACK SERVER |
CPU | Sapphire Rapid (Bronze, Silver, Gold5, Gold6, Platinum) with up to 56 cores per processor Support for up to 2x 350W processors Direct Liquid Cooling support |
Memory | Up to 32 x DDR5 RDIMMs DIMM Speed: Up to 4800 MT/s |
Storage | Up to 10 x 2.5” SAS/SATA HDD/SSD; or NVMe SSD Up to 16 x E3.S NVMe Gen5 DUAL PERC* Up to 14 x E3.S NVMe Gen5 direct attach* Up to 2 x 2.5” (rear) SAS/SATA HDD/SSD; or NVMe SSD Up to 2 x E3.S(rear) NVMe Gen5* Rear BOSS-N1 (2xM.2 NVMe) for boot Internal: USB Bandwidth: SAS4-24Gb, SAS3-12Gb, SATA-6Gb |
Storage Controller | HW RAID: PERC 11 & 12 (dual PERC option) HW SAS4/SATA/NVMe RAID (PERC12) SW RAID: Yes |
Network | Optional 2 x 1GbE LOM and/or 1 x OCP 3.0 |
PCIe Slots | Up to 3 x PCIe Slots (with up to 2 PCIe Gen5), SNAP I/O option |
GPU | 3x SW GPUs* |
Integrated Ports | Front: 1 x USB 2.0, 1 x iDRAC Direct (Micro-AB USB) port, 1 x VGA Rear: 1 x Dedicated iDRAC Ethernet port, 1 x Serial (optional), 1x USB 2.0,1 x USB 3.0, 1 x VGA (optional for Liquid Cooling configurations) Internal: 1x USB 3.0 (optional) |
System Management | iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Quick Sync 2 wireless module, OpenManage Enterprise and Plugins (Power Manager, SupportAssist, Update Manager), OpenManage Mobile |
High Availability | Hot-plug redundant hard drives, PSU. Hot-plug fans. Hot-plug BOSS |
Power Supplies | AC (Platinum): 800W, 1400W AC (Titanium): 700W, 1100W, 1800W LVDC @-48VDC Input: 1100W |
Dimensions | H x W x D: 42.8mm x 482mm x 809mm (without bezel) |
Form Factor | 1U Rack Server |
Details Images
Our PowerEdge R660 review unit is a basic configuration, with five 2.5-inch bays. The center stack is not populated for improved airflow to the dual Xeon Scalable processors.
Front connections include one USB 2.0, VGA video output, and a Micro-AB USB port for connecting to Dell iDRAC (Dell Remote Access Controller).

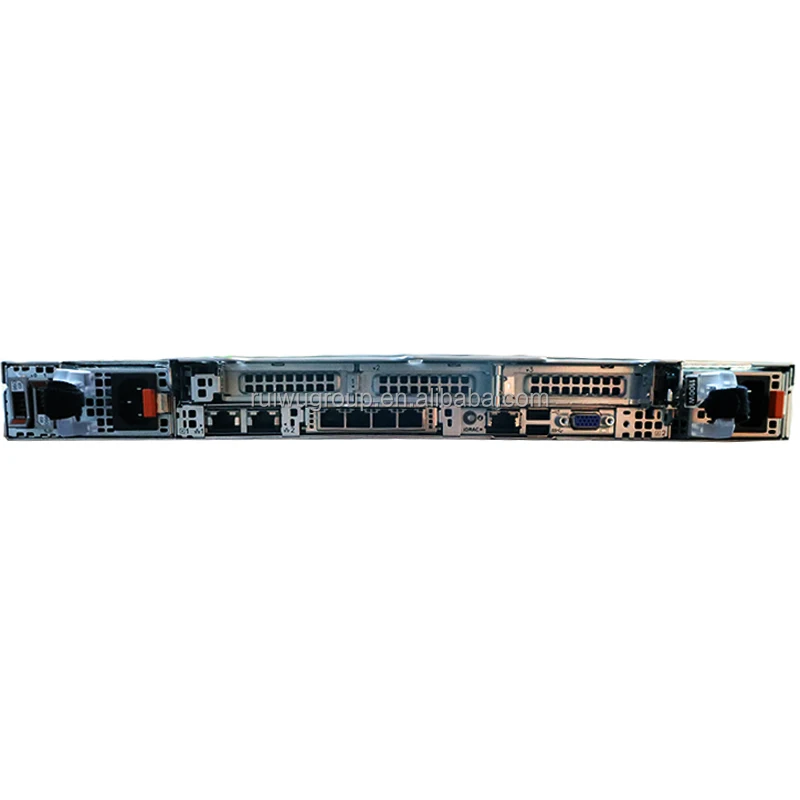

Ports along the rear of our unit include dual 1GbE, one USB 2.0, one USB 3.0, VGA out, and one more Ethernet for Dell’s iDRAC remote management. A serial port, not present on our unit, is optional. Additional networking ports can be added via the server’s OCP 3.0 slot.
Let’s go inside this beast. This front view shows the numerous cooling fans that draw air through the drive bays along the front edge. Airflow passes directly over the dual CPU heatsinks and DDR5 RDIMM slots immediately beyond. Like the PowerEdge R650, the PowerEdge R660 supports CPU liquid-cooling solutions, though our unit isn’t so equipped.
There’s plenty of room between the front drive bays and the cooling fans for RAID controllers. The PowerEdge R660 supports dual hardware RAID controllers.
Here’s a closer look at one of the CPU heatsinks. The Xeon 8452Y processors in our unit each have 36 cores/72 threads, 67.5MB of cache, and a 300-watt TDP, the highest that this server supports. These chips support up to 6TB of DDR5-4800 RAM. The PowerEdge R660’s 32 DIMM slots allow it to support up to 8TB of RAM (32x 256GB RDIMMs), which can be achieved using higher-end Xeon chips.Our unit has 512GB of RAM via 16x 16GB RDIMMs, with plastic fillers in the other slots to prevent dust buildup.
You’ll find the PowerEdge R660’s expansion slots predictably towards the rear of the server. There are up to three PCIe slots, two of which are Gen5. The riser shown here allows full-height cards to be used.
Dell PowerEdge R660 iDRAC9 Remote Management
We used Dell’s iDRAC9 Enterprise remote management software with the PowerEdge R660. The dashboard provides essential info, such as basic system health, system information, and recent logs.
The System Information section provides detail on any selected component. For instance, the Network Devices section shows all NICs and their status.
Company Profile
Contact Us
Customer satisfaction is our eternal service tenet!!!!
Похожие товары

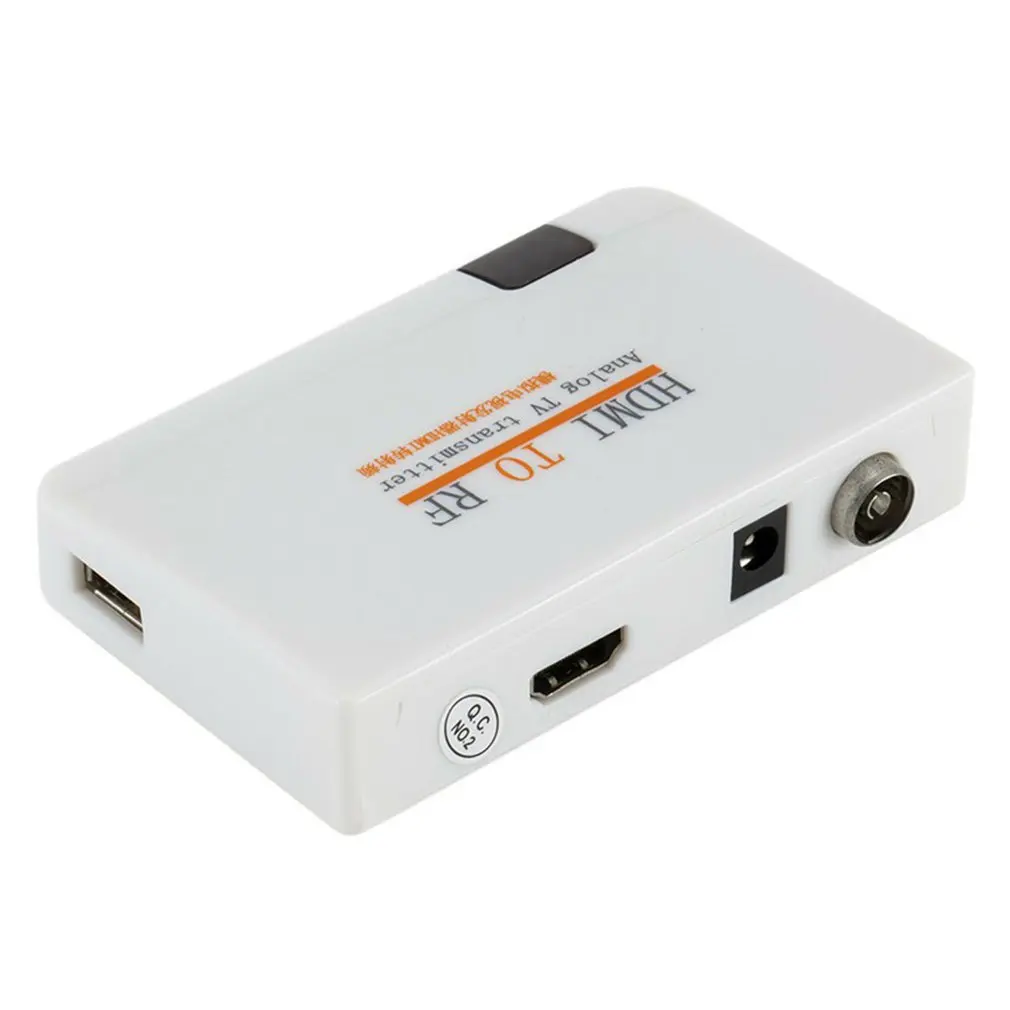

HDMI в РФ коаксиальный конвертер коробка для старого конвертировать аналоговый сигнал с дистанционным
Новый оригинальный блок фьюзера для HP Color LaserJet Pro M751 E75245 3WT88A 3WT88MC Запчасти
19 736,72 ₽ - 20 833,20 ₽

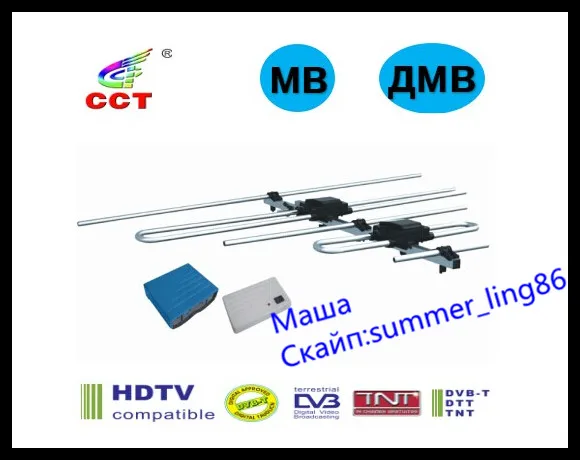

МВ+ДМВ НАРУЖНАЯ АНТЕННА ДЛЯ ЦИФРОВОГО ТЕЛЕВИДЕНИЯ DVB-T2 C УСИЛИТЕЛЕМ АКТИВНАЯ С БЛОКОМ ПИТАНИЯ
LSI LSI00292 RAID CacheCade Pro 2.0 Software Physical Key for 9260 9280 Series

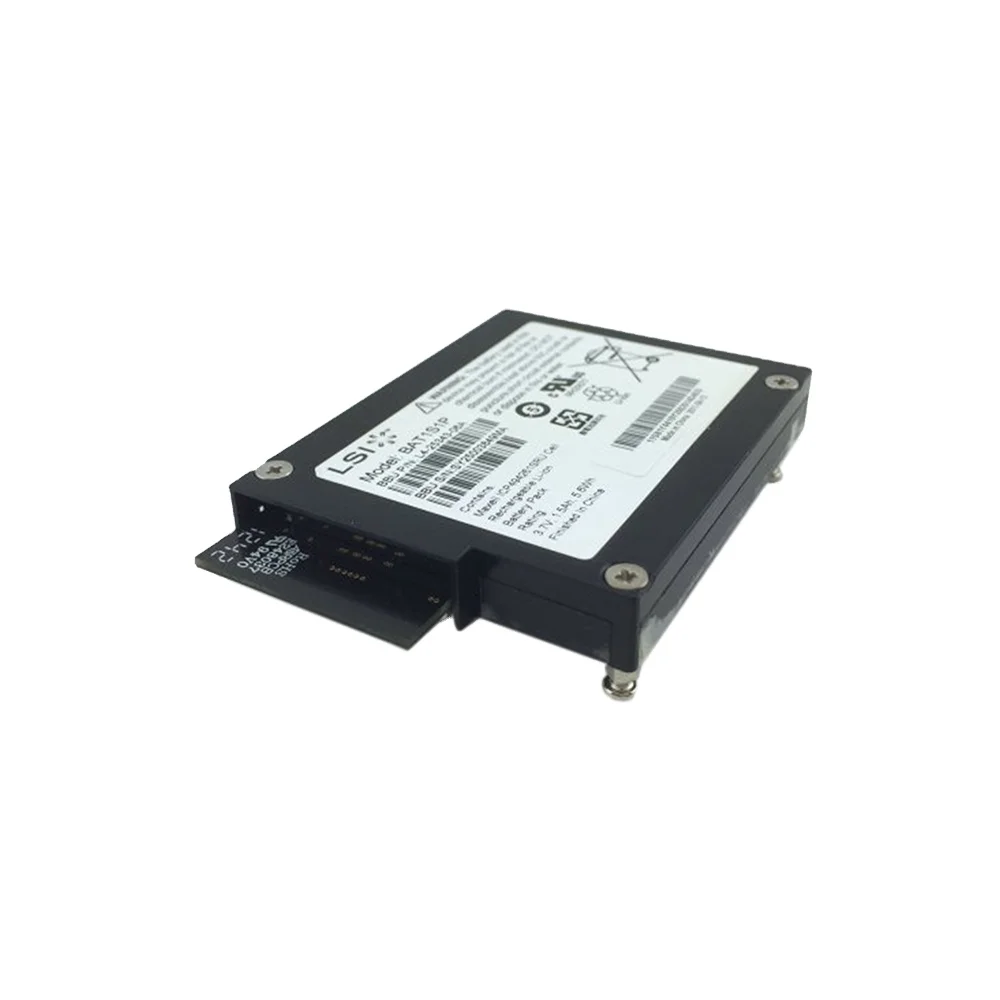

BBU08 Battery BBU For LSI 9260 9261 9280 Controller Raid Card

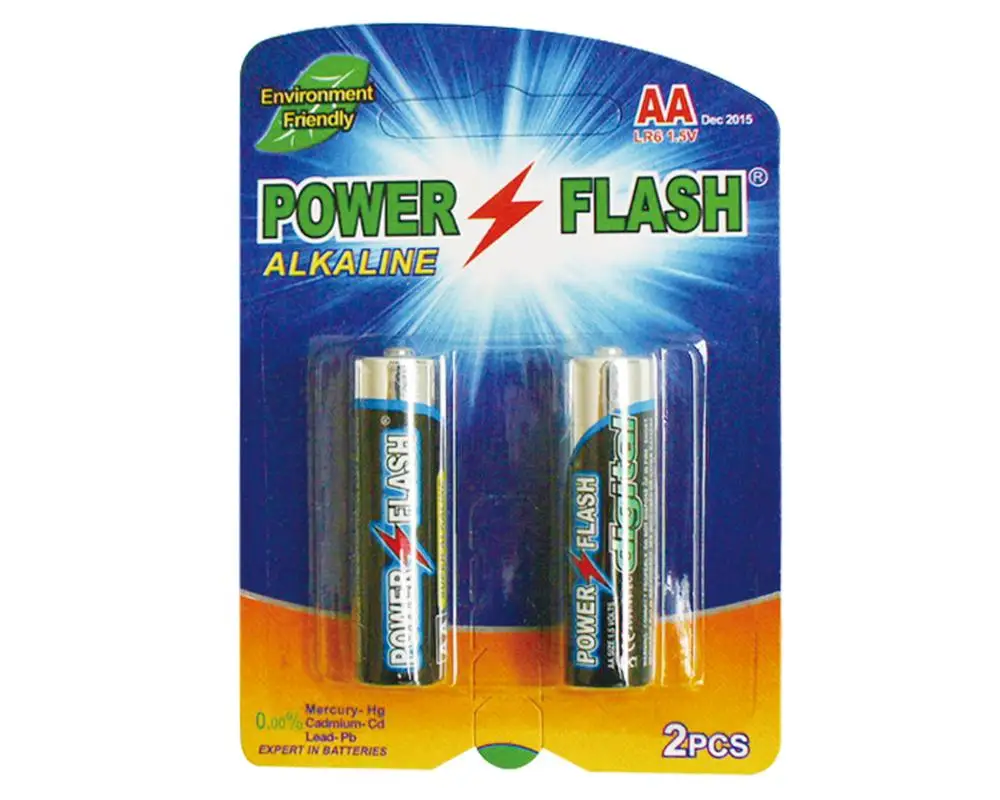

Мощная щелочная батарея LR6 AA Размер Am-3 сухая 1 5 В супер
6,62 ₽ - 11,03 ₽

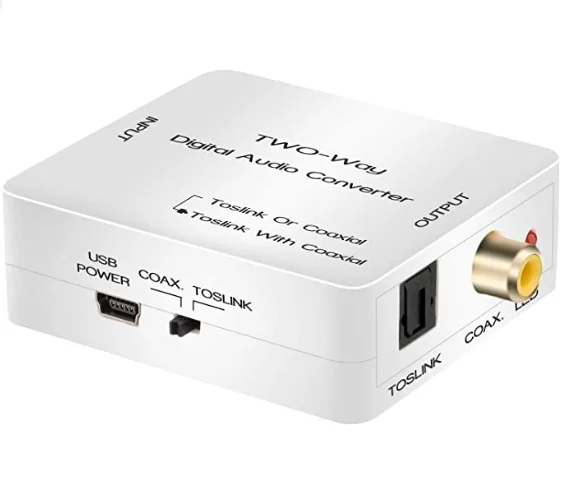

Двунаправленный цифровой аудио оптический SPDIF коаксиальный Toslink репитер звукового сигнала для динамика ТВ
