Гибридный инвертор gutu низкого напряжения 380 В Ip65 10 кВА Mppt кВт солнечный гибридный для солнечной энергетической системы
- Категория: >>>
- Поставщик: Shenzhen Jiesaiyuan Electricity Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601280466341:
Описание и отзывы
Характеристики
Details Images

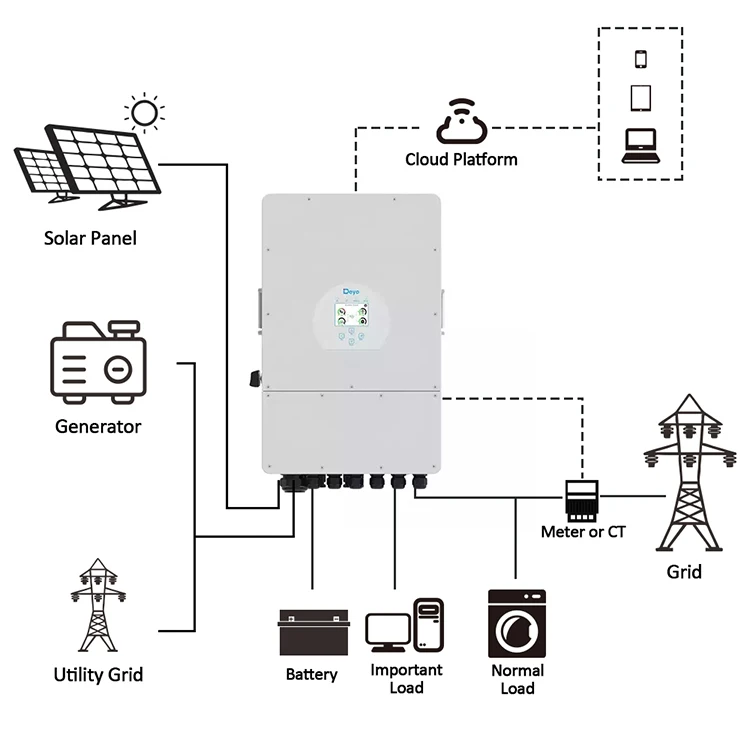

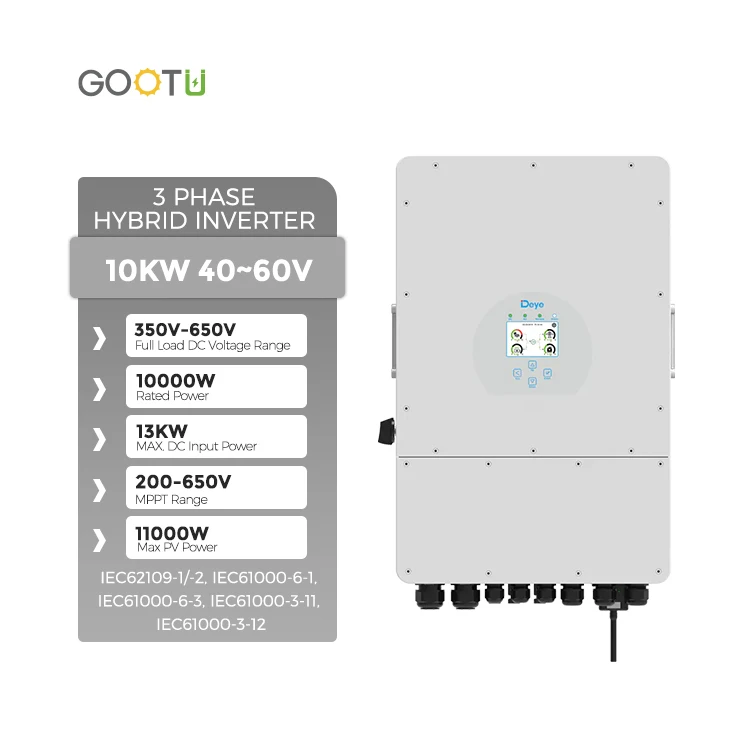

1. **High-Power Conversion**: The 3-phase 380V 10kW solar hybrid inverter efficiently transforms solar DC power to AC, suitable for various power needs in residential and commercial solar systems.

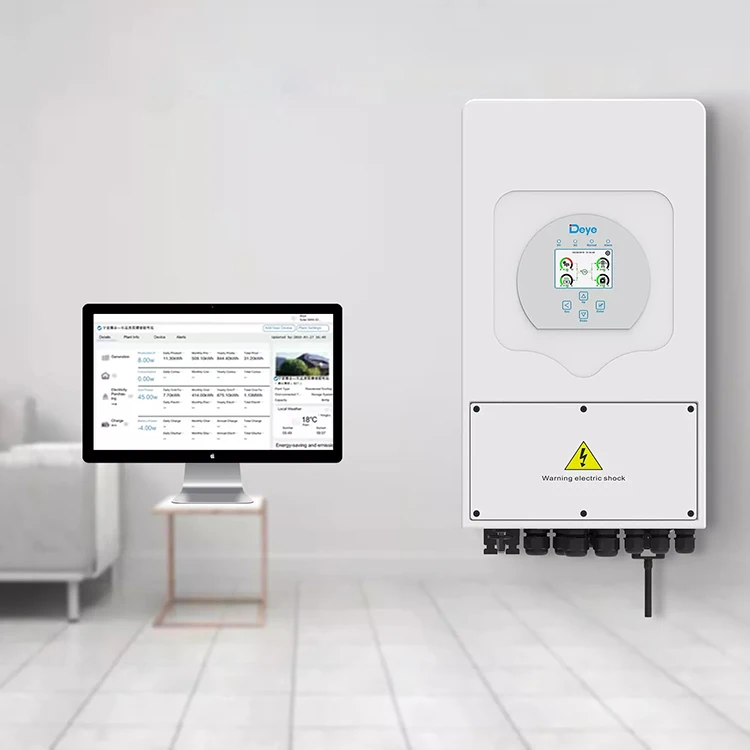

2. **Colorful Touch LCD**: Its vivid and user-friendly touch LCD screen enables easy monitoring and control of power generation, battery status, and settings.
3. **IP65 Durability**: With an IP65 rating, it resists dust and water well, suitable for harsh outdoor and industrial environments, ensuring long-term stable performance.
4. **Parallel Flexibility**: Can connect up to 10 units in parallel, providing scalability to meet different power demands and allowing system expansion.

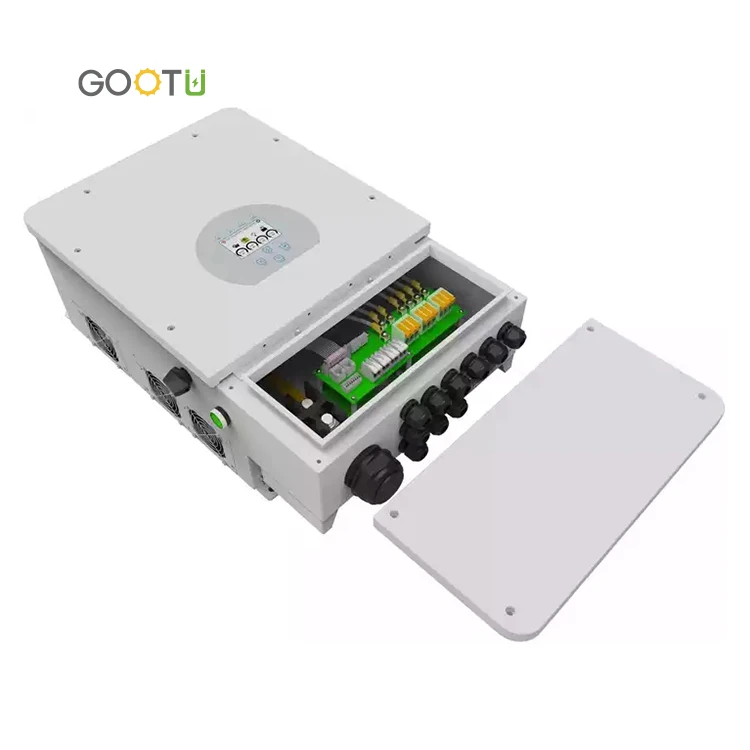

5. **Simple Installation & Use**: Easy to install with clear instructions and operate, convenient for both professionals and DIYers, promoting solar system deployment and promoting wider adoption of renewable energy solutions.
2. **Colorful Touch LCD**: Its vivid and user-friendly touch LCD screen enables easy monitoring and control of power generation, battery status, and settings.
3. **IP65 Durability**: With an IP65 rating, it resists dust and water well, suitable for harsh outdoor and industrial environments, ensuring long-term stable performance.
4. **Parallel Flexibility**: Can connect up to 10 units in parallel, providing scalability to meet different power demands and allowing system expansion.
5. **Simple Installation & Use**: Easy to install with clear instructions and operate, convenient for both professionals and DIYers, promoting solar system deployment and promoting wider adoption of renewable energy solutions.
Data Sheet
Model | GT-3PH-6K-EU | GT-3PH-8K-EU | GT-3PH-10K-EU | GT-3PH-12K-EU | |||
PV String Input | |||||||
Max. DC Input Power (W) | 7800 | 10400 | 13000 | 15600 | |||
Rated PV Input Voltage (V) | 550 (160-800) | ||||||
Start-up Voltage (V) | 160 | ||||||
MPPT Voltage Range (V) | 200-650 | ||||||
Full Load MPPT Voltage Range (V) | 350-650 | ||||||
Max. DC Input Current(A) | 13+13 | 26+13 | |||||
Max. DC Short Circuit Current(A) | 17+17 | 34+17 | |||||
No.of MPPT Trackers | 2 | ||||||
No.of Strings per MPPT Tracker | 1+1 | 2+1 | |||||
AC Output | |||||||
Rated AC Output Power (W) | 6000 | 8000 | 10000 | 12000 | |||
Max AC Output Power (W) | 6600 | 8800 | 11000 | 13200 | |||
AC Output Rated Current (A) | 9.1 | 12.1 | 16.7 | 18.2 | |||
Max AC Output Current (A) | 10 | 13.4 | 18.4 | 20 | |||
Max Output short circuit current (A) | 75 | ||||||
Max. Continuous AC Passthrough(A) | 45 | ||||||
Peak Power (off grid) | 2 times of rated power, 10 S | ||||||
Power Factor | 0.8 leading - 0.8 lagging | ||||||
Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380Vac, 230/400Vac | ||||||
Grid Type | Three Phase | ||||||
Total Harmonic Distortion (THDi) | <3% (of nominal power) | ||||||
DC Current Injection | <0.5% ln | ||||||
Battery | |||||||
Battery Type | Lead-acid or Lithium-ion | ||||||
Battery Voltage Range (V) | 40-60 | ||||||
Max. Charging Current (A) | 120 | 160 | 200 | 240 | |||
Max. Discharging Current (A) | 120 | 160 | 200 | 240 | |||
External Temperature Sensor | Yes | ||||||
Charging Curve | 3 Stages / Equalization | ||||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||||||
Efficiency | |||||||
Max. Efficiency | 97.6% | ||||||
Euro Efficiency | 97.0% | ||||||
MPPT Efficiency | 99.0% | ||||||
Protection | |||||||
Anti-islanding Protection | Yes | ||||||
PV String Input Reverse Polarity | Yes | ||||||
Insulation Resistor Detection | Yes | ||||||
Residual Current Monitoring Unit | Yes | ||||||
Output Over Current Protection | Yes | ||||||
Output Shorted Protection | Yes | ||||||
Output overvoltage protection | Yes | ||||||
Photovoltaic input lightning | Yes | ||||||
Surge Protection | DC Type III / AC Type III | ||||||
Over Voltage Category | DC Type II/AC Type III | ||||||
Certifications and Standards | |||||||
Grid Regulation | IEC61727/62116,EN50549-1 | ||||||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||
General Data | |||||||
Operating Temperature Range (℃) | -40-60℃, >45℃ Derating | ||||||
Cooling | Smart Cooling | ||||||
Noise (dB) | ≤50 dB | ||||||
Communication to BMS | RS485; CAN | ||||||
Monitoring mode | Wi-Fi+APP | ||||||
Weight (kg) | 37.5 | ||||||
Size (W x H x D mm) | 702×422×281 (Excluding Connectors and Brackets) | ||||||
Ingress Protection | Ip65 | ||||||
Installation Style | Wall-mounted | ||||||
Warranty | 5 Years (10 Years Optional) | ||||||
Customer Reviews
Project
Company Profile
Shenzhen Jiesaiyuan Electricity Co., Ltd.,
Shenzhen Jiesaiyuan Electricity Co., Ltd is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters, energy storage battery. We always sticks to the R&D investment and technology innovation, and provides customers with premium products and services through its core inverter & battery technology, rigorous quality control and continuous improvement of customer service, and enjoys a high reputation in the industry with excellent product quality, good reputation and advanced innovation consciousness. We can provide different application systems, engineering services and optimal system solutions according to our customers' requests. Our company has a professional R&D team which is composed of experienced professors, senior engineers and technical persons. We have abundant technical strength and rich experience in engineering design and construction.We always adhere to provide customers with quality products and services, and actively work with customers around the world to create a better future.
FAQ
Q: How about the warranty? What you will do if the inverter in problem during 1 or 2 years? If refund should i return the goods?
A: The inverters are of 5 years warranty, during the warranty we offer you free replacements for parts,no need to send back to
china. The warranty period has expired , we will offer support but you need to pay for the parts component cost.
Q: How long the delivery time if i order? How soon can you send out the goods?
A: Some of the inverters in stock, and to make new inverters take 1-2 weeks time, ODM OEM take 4-5 weeks time for customization.
Q: What happen if I meet problem during instalation? Will you support and how?
A: Yes that we are 24hours online to help, pls contact us by email or other way should anything need help,no matter technical service or after sale service.
Q: Does your company also provide other solar products except Pure Sine Wave Inverter?
A: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter, on grid inverter, battery, portable solar system, solar charger and other accesories related to the solar power system.
Q: What certificates do you have for your products? Can you provide sample for testing? A: Sure, please kindly contact us and we will provide sample for you. Our products have acquired RoHS, CE, FCC, UL, PSE
certificates, which is able to satisfy most country’s importing requirements. Q: How do you ship the goods and how long does it take?
A: Usually by DHL, UPS, FEDEX,TNT. It usually takes 3-6days to arrive. By air, by sea are also acceptable. EXW, DDU, DDP, FOB,CIF, DAP, etc. All terms are available.
A: The inverters are of 5 years warranty, during the warranty we offer you free replacements for parts,no need to send back to
china. The warranty period has expired , we will offer support but you need to pay for the parts component cost.
Q: How long the delivery time if i order? How soon can you send out the goods?
A: Some of the inverters in stock, and to make new inverters take 1-2 weeks time, ODM OEM take 4-5 weeks time for customization.
Q: What happen if I meet problem during instalation? Will you support and how?
A: Yes that we are 24hours online to help, pls contact us by email or other way should anything need help,no matter technical service or after sale service.
Q: Does your company also provide other solar products except Pure Sine Wave Inverter?
A: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter, on grid inverter, battery, portable solar system, solar charger and other accesories related to the solar power system.
Q: What certificates do you have for your products? Can you provide sample for testing? A: Sure, please kindly contact us and we will provide sample for you. Our products have acquired RoHS, CE, FCC, UL, PSE
certificates, which is able to satisfy most country’s importing requirements. Q: How do you ship the goods and how long does it take?
A: Usually by DHL, UPS, FEDEX,TNT. It usually takes 3-6days to arrive. By air, by sea are also acceptable. EXW, DDU, DDP, FOB,CIF, DAP, etc. All terms are available.
