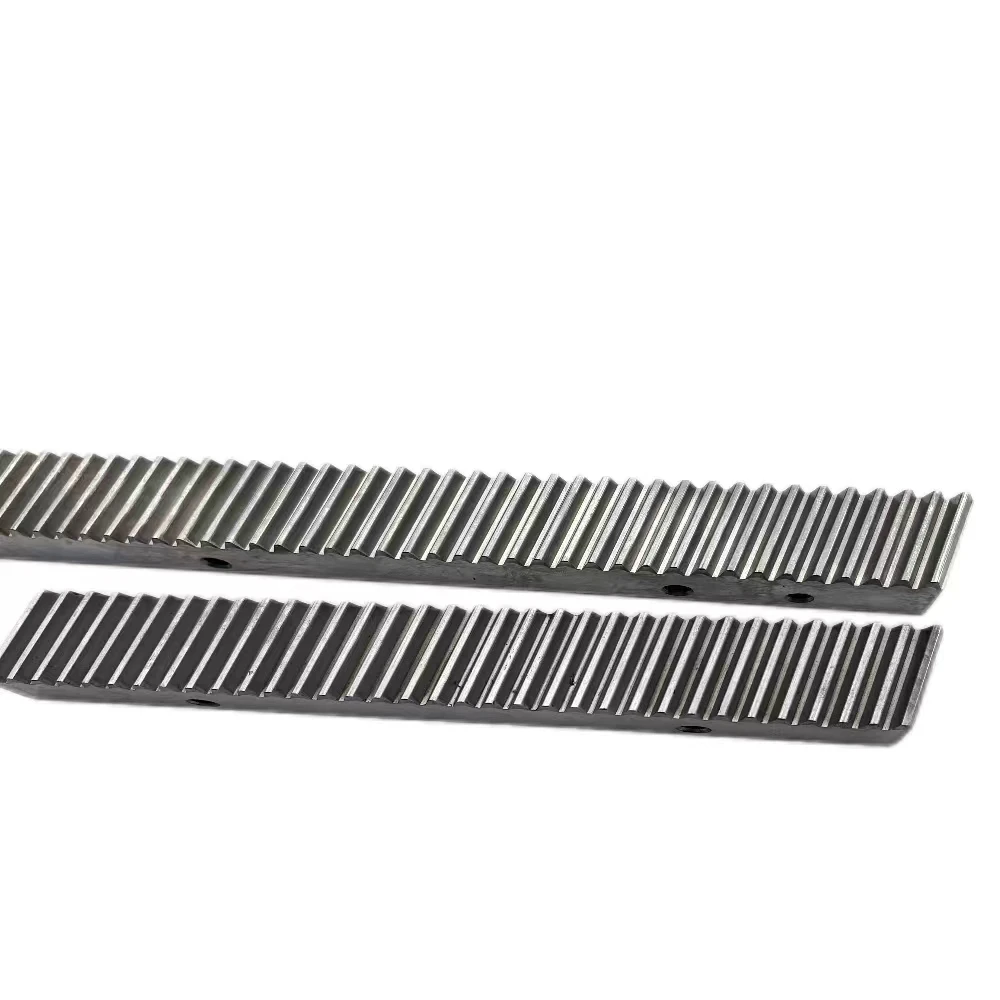

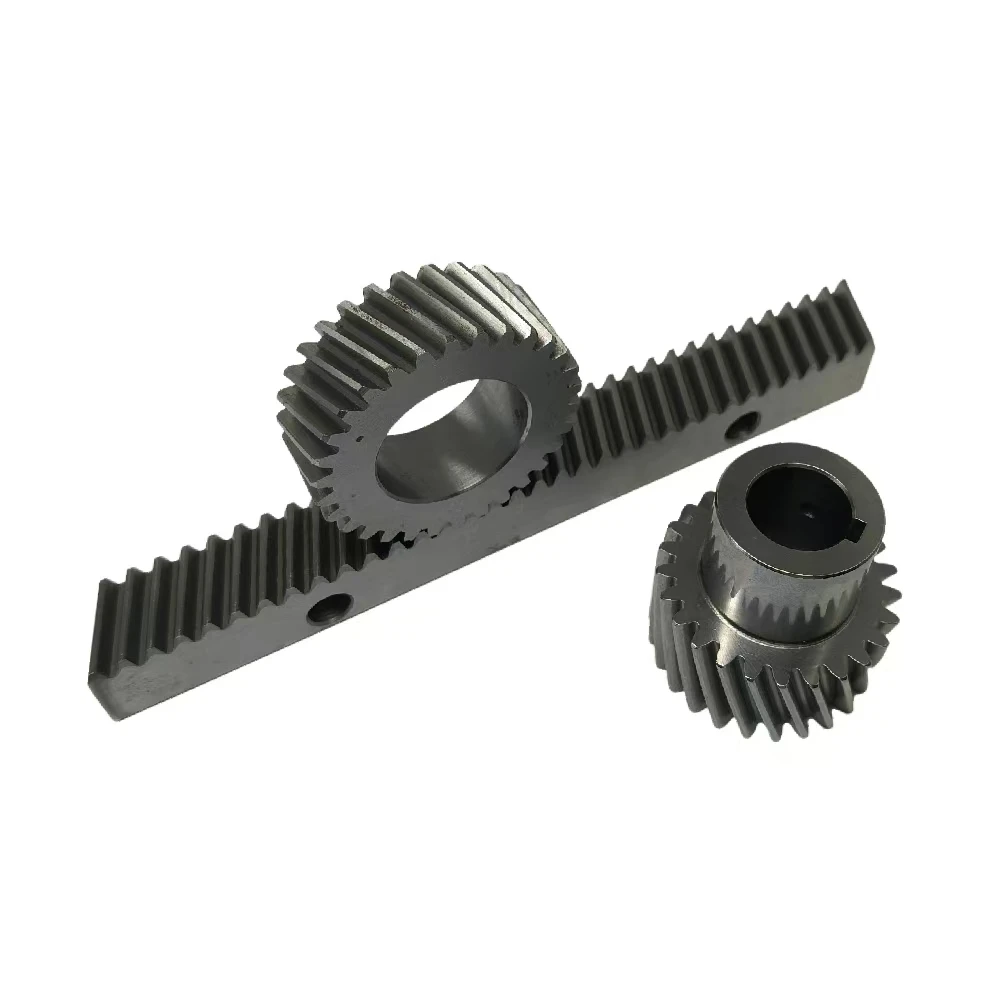

ЧПУ прецизионная деревообрабатывающая нержавеющая сталь M1 M8 направляющая винтовая зубчатая рейка шестерня
- Категория: >>>
- Поставщик: Tianjin Haorongshengye Electrical Equipment Co. Ltd.
Сохранить в закладки 1601280466367:
Описание и отзывы
Характеристики
Tianjin Haorongshengye Electrical Equipment Co.,Ltd
1. Was founded in 2008
2. Our Principle:
2. Our Principle:
"Credibility Supremacy, and Customer First"
3. Our Promise:
"High quality products, and Excellent Service"
4. Our Value:
"Being Honesty, Doing the Best, and Long-lasting Development"
5. Our Aim:
"Develop to be a leader in the power transmission parts industry in the world"
6.Our services:
3. Our Promise:
"High quality products, and Excellent Service"
4. Our Value:
"Being Honesty, Doing the Best, and Long-lasting Development"
5. Our Aim:
"Develop to be a leader in the power transmission parts industry in the world"
6.Our services:
1).Competitive price
2).High quality products
3).OEM service or can customized according to your drawings
4).Reply your inquiry in 24 hours
5).Professional technical team 24 hours online service
6).Provide sample service
2).High quality products
3).OEM service or can customized according to your drawings
4).Reply your inquiry in 24 hours
5).Professional technical team 24 hours online service
6).Provide sample service
Products | |||||||
Precision grade | DIN5, DIN6, DIN7, DIN8, DIN10 | ||||||
Material | C45 steel, 304SS, 316SS, 40CrMo, nylon, POM | ||||||
Heat treatment | High frequency,Quenching/Carburization, Teeth hardened | ||||||
Surface treatment | Zinc-plated,Nickle-plated,Chrome-plated,Black oxide or as you need | ||||||
Application Machine | Precision cutting machines. Lathes machine Milling machines Grinders machine Automated mechanical systems Automated warehousing systems. | ||||||
Produce Machine | CNC engine lathe CNC milling machine CNC drilling machine CNC grinding machine CNC cutting machines Machining center | ||||||
Workstyle | Execution is more preferred than empty talk. | ||||||
Gear Rack Type | Specification | Color |
Helical gear rack | M1 15*15*1000mm | White |
M1.5 19*19*1000mm | White | |
Helical gear rack | M2 24*24*1000mm | White |
M3 29*29*1000mm | White | |
M4 39x39x1000mm | White | |
Spur gear rak | M1 15*15*1000mm | Black |
Processing
Test & Report
Use Coordinate Measuring Machine to test the precision and hardness of gear rack and pinion
Rack drawing
Dimension Report
Material Report
Accuracy Report
Shape Report
Hardness Report
Package
Small quantity: We will use carton box.
Big quantity: We will use wooden case.
Installation
To assemble connected racks more smoothly, 2 ends of a standard rack would add half tooth which is convenient for next half tooth of next rack to be connected to a complete tooth. The following drawing shows how 2 racks connect and tooth gauge can control pitch position accurately.
With regards to connection of helical racks, it can be connected accurately by opposite tooth gauge.
1. When connecting racks, we recommend lock bores on the sides of rack first, and lock bores by the sequence of the foundation. With assembling the tooth gauge, pitch position of racks can be assembled accurately and completely.
2. Last, lock the position pins on 2 sides of rack; the assembly is completed.
With regards to connection of helical racks, it can be connected accurately by opposite tooth gauge.
1. When connecting racks, we recommend lock bores on the sides of rack first, and lock bores by the sequence of the foundation. With assembling the tooth gauge, pitch position of racks can be assembled accurately and completely.
2. Last, lock the position pins on 2 sides of rack; the assembly is completed.
