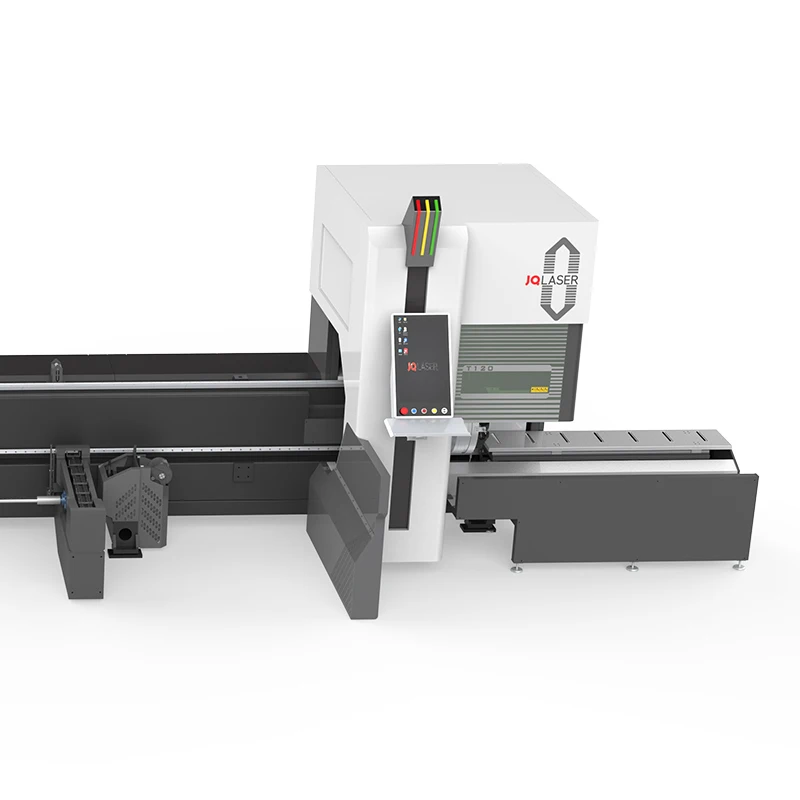

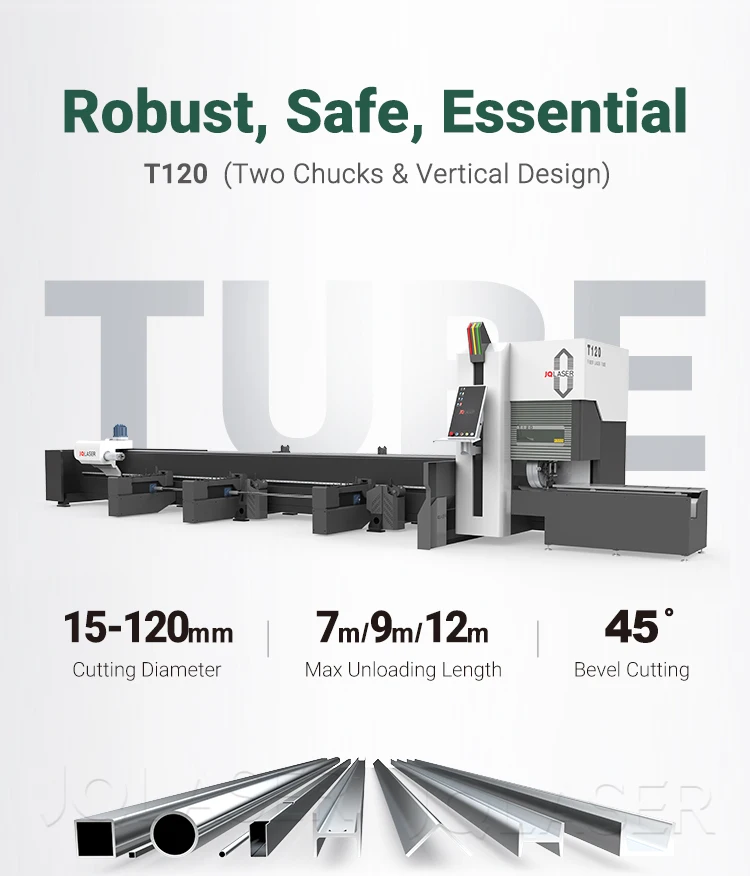

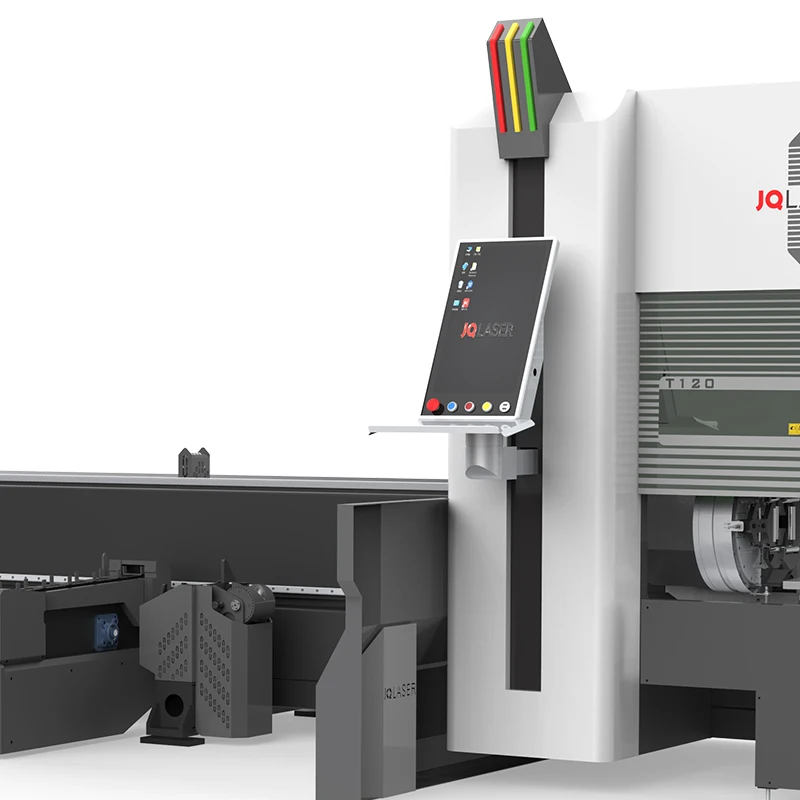

Высокоточный лазерный конический резак для труб Макс 120 мм 3 кВт волоконно лазерный станок резки металлических
- Категория: >>>
- Поставщик: Jinan Jinqiang Laser Cnc Equipment Co. Ltd.Jinan Ltd.
Сохранить в закладки 1601280663486:
Описание и отзывы
Характеристики
Product Description
Advantage：
* Two-chuck side mounted: The front chuck can be moved.
* High precision: The last piece can be cut with a two-chuck machine with high precision.
* All-in-one machine: Integrated electric control cabinet design，simple structure， reasonable line layout and saving floor area.After receiving the machine, don't need to install the electrical line and use it directly.
* Two-chuck side mounted: The front chuck can be moved.
* Short tailing: The tail material can be realized 60mm long.
* High precision: The last piece can be cut with a two-chuck machine with high precision.
* All-in-one machine: Integrated electric control cabinet design，simple structure， reasonable line layout and saving floor area.After receiving the machine, don't need to install the electrical line and use it directly.
Product Parameters

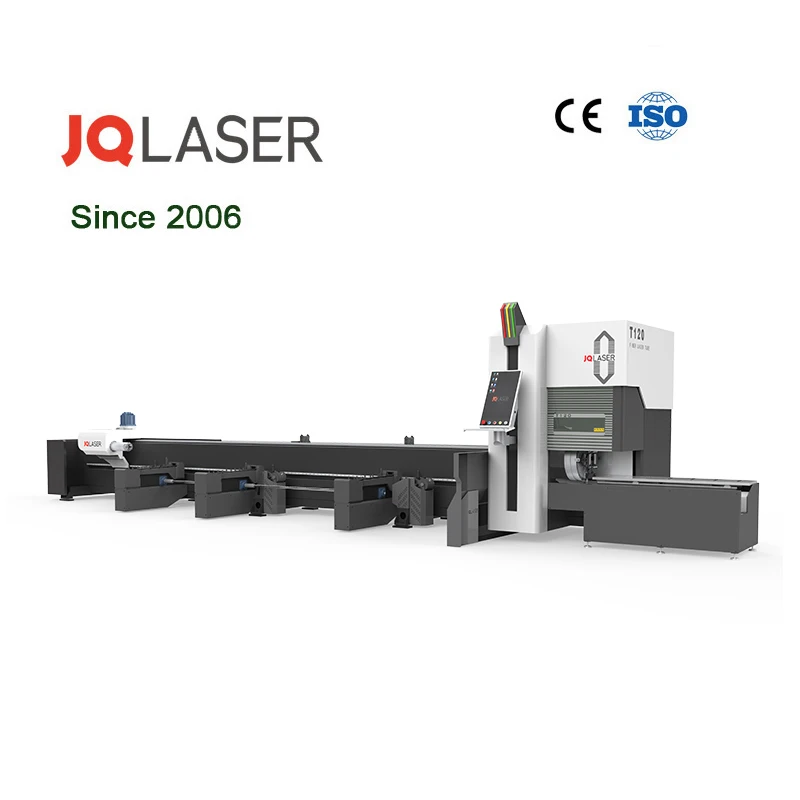

Model | T120 | ||
Maximum cut pipe length | cutting length 0~7500mm | ||
Cut pipe diameter | 15~120mm (circle of workpiece) | ||
Minimum tailings | ≥60mm | ||
X, Y axis positioning accuracy | ±0.05/1000mm | ||
X, Y axis repeat positioning accuracy | ±0.03/1000mm | ||
Acceleration | 1.0G m/s² | ||
Maximum operating speed | 90 m/min | ||
Maximum weight for each tube | ≤150Kg | ||
Chuck rated speed | 100rpm | ||
Mainframe shape | about 12500×4000×2450mm | ||
Laser power | 1000W/2000W/3000W/4000W/6000W | ||

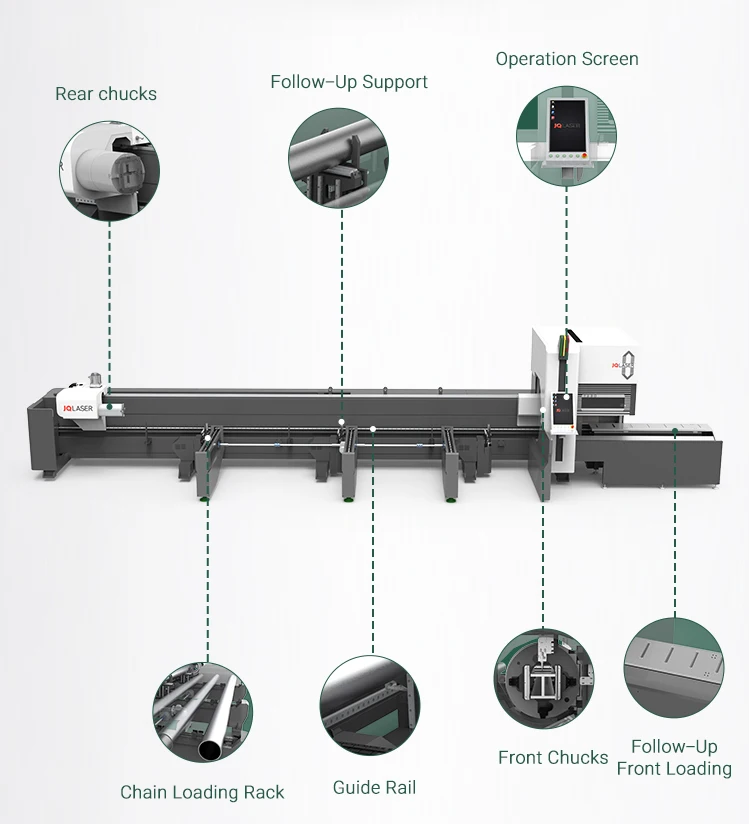

Details&Parts

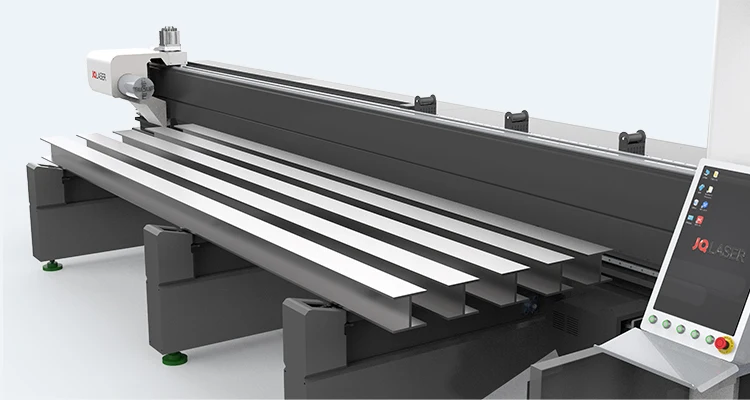

Semi-automatic Loading Device
Equipped with semi-automatic loading system, it supports a wide range of tube types for loading, just place multiple tubes on the conveyor belt to achieve automatic loading.
Ultra Short Tailstock Cutting

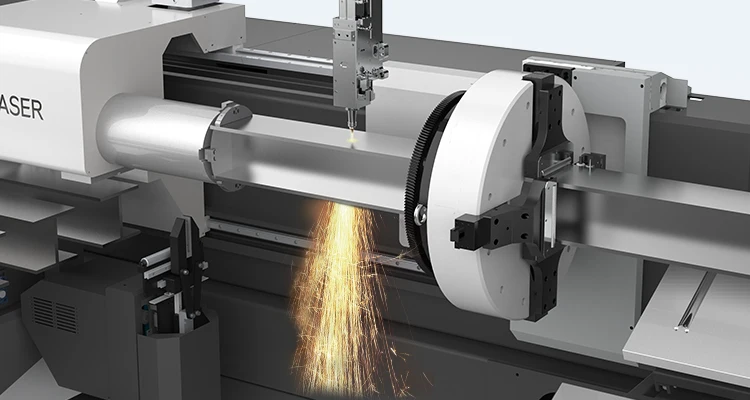

Movable front chuck for stable clamping and high clamping force automatic positioning of the center of the tube, to achieve ≥60mm ultra-short cutting tail material, with more material savings.

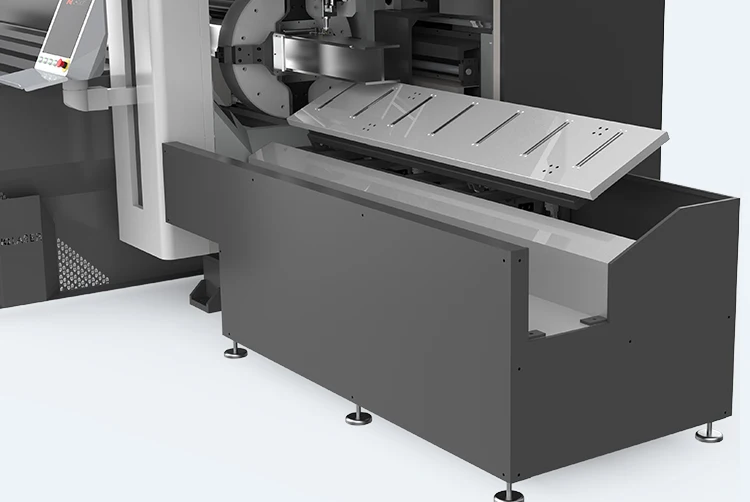

Front Loading Device
While the workpiece is being cut, the rising support cylinders hold the support plate to support the pipe and prevent it from sagging. When the workpiece is finished cutting, the rising support cylinder retracts completely and the workpiece falls onto the drop plate and slides down to the storage area. The cylinder action is automatically controlled by the system.
Samples & Applications
Related Products
CHOOSE YOUR LASERTUBE
Make Your Choice
Lasertube systems are our 2D and 3D laser cutting systems for tubes, bars and profiles, from 15 mm to 350 mm in diameter and up to 12000 mm in length.
Customer Service
Company Profile
Our History
Certifications & Exhibition
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
A:Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
A:Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
Похожие товары
1000 Вт мини-кран лазерный резак по металлу beamo
6 680,00 $
Лазерная трубчатая машина для резки орбитальной профессиональной нержавеющей стали трубы циркулярная пила медная
29 000,00-35 000,00 $

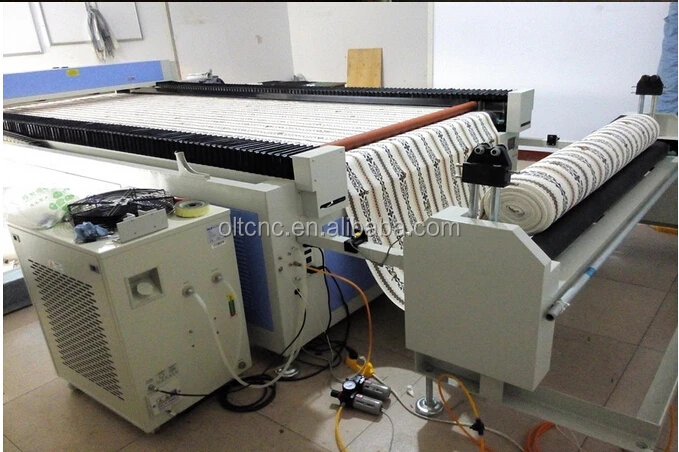

Выставлены раскрой ткани с автоматической системой подачи
