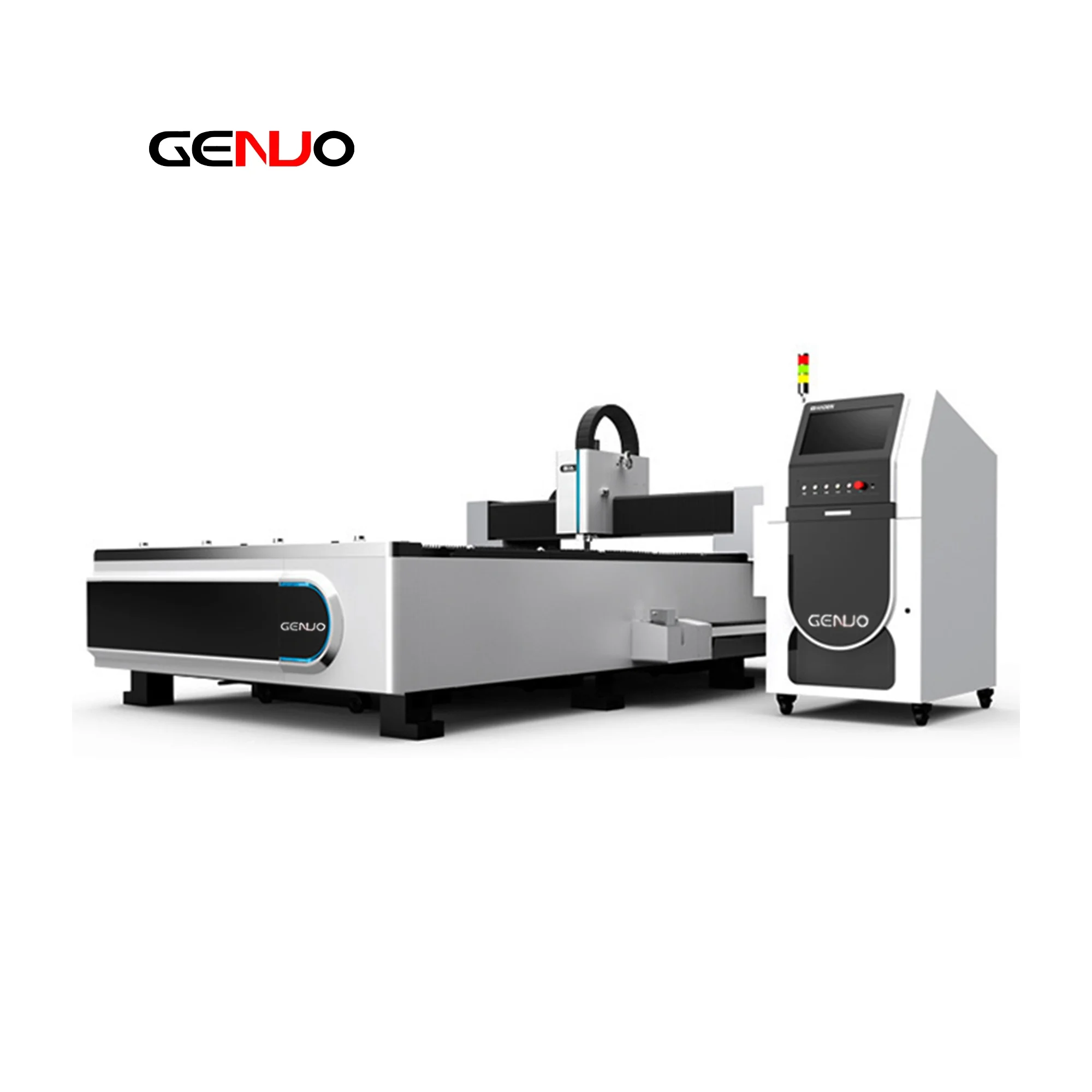

Высокая конфигурация GENUO машина для лазерной резки листового металла 2000 ватт система
2 071 972,44 ₽ - 2 116 056,96 ₽
Станок для лазерной резки с декоративными линиями из нержавеющей стали
- Категория: >>>
- Поставщик: Shandong Hoysook Laser Technology Co. Ltd.
Сохранить в закладки 1601280742692:
Описание и отзывы
Характеристики
Products Description
>>> Click here, get price
Product Applications
The machine is widely used, providing mature and reliable solutions for welding, cutting, drilling and other applications in hardware, medical care, new energy and other industries. At the same time, it can meet the demanding 3D printing needs of titanium alloys and metals in medical, aerospace, automobile and other fields.
Cut metal sheet
Engrave metal door
.
Drill hole on beam
Process accessories
Make metal signs
s.
Brass craft
Machine Characteristics
1 | Machine Model | HY3015 , HY4015 , HY4020 , HY6020 , HY8025 , HY12025 , etc | ||||
2 | Laser Power | 1000w , 1500w , 2000w , 3000w , 4000w , 6000w , 8000w , 10000w , 12000w | ||||
3 | Cut Thickness | 0.5mm-30mm according to the power | ||||
4 | Laser Generator | Raycus /MAX/Reci/IPG | ||||
5 | Transmission system | Gear +rails | ||||
8 | Max acceleration | 1.0G | ||||
9 | Voltage | 380V /240V /120V | ||||
10 | Laser wave length | 1064nm | ||||
11 | Machine color | Support custom made | ||||
Machine Parts & Details
Control system--RAYTOOLS XC3000
Control characteristics
Vibration suppression of thick plates.Edge follower to prevent collision.
Intelligent obstacle avoidance.
Intelligent obstacle avoidance.
Insensitive perforation.Batch modification of drawings.
Automatic nozzle cleaning.
zoning processing.
Intelligent head monitoring.
Laser monitoring.
Functional characteristics
Automatic nozzle cleaning.
zoning processing.
Intelligent head monitoring.
Laser monitoring.
Laser head--Raytools BM110
Excellent design:
Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency;
Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency;
Auto focus:
Automatic focusing, reducing human intervention, automatic focusing range of -12~+10mm and a focusing accuracy of 0.05mm;
Multiple protective lenses:
Add protective lenses for collimation,
effectively protecting lenses;
Drawer type mirror holder:
Quick and simple replacement of protective lenses;
High adaptability:
Equipped with multiple fiber
interfaces,it can adapt to various mainstream lasers.
interfaces,it can adapt to various mainstream lasers.
Laser source--MAX
Modular design:
Adopting photoelectric separation modular design, the structure is more compact.
High beam quality:
With higher beam quality and more stable laser power, the laser power is continuously adjustable.
Intelligent air cooling:
Efficient heat dissipation for more effective protection of the laser
Convenient integration:
Can be integrated with laser processing heads, galvanometers,robots, machine tools, etc. for system integration.
Widely applicable:
To provide mature and reliable welding, cutting, drilling and other application solutions for industries such as 3C, hardware, medical, and new energy, while meeting the demanding 3D printing needs of titanium alloys and metals in medical, aerospace, automotive, and other fields.
Motor--Delta
Power
The Y axis two servo motor power are 1.3KW, The X axis servo power is 1.3KW power, The Z axis servo motor power is 0.4KW power. Features
This series of motors has independent cooling fans and rotary encoders, and is suitable for various applications, such as ultra-low speed, high torque and overload applications, and high response speed applications.
Laser Chiller --Teyu
Main features
1.Refrigeration capacity reaches 2100W, and environmentally friendly refrigerant can be selected; 2.Temperature control accuracy can reach ±0.3℃; 3.Small size, easy to operate; 4. The intelligent thermostat has two temperature control modes. 5. It has a variety of alarm protection functions: 6. Multi-national power supply specifications
Reduction --MOTO
The gear is made of SCM4 material, which is hard rolled, carburized, heat treated to a hardness of 50-55HRC and ground, so as to ensure gear accuracy, best wear resistance, impact toughness and longer service life.
Guide rail--HIWIN
Gear--YYC
Lathe bed
Company Profile
Quality Control
Exhibition & Customer Visiting
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, provide you with a one-stop service. We would like to provide any documents for your custom.
Q: If we are interested in your machine, how to choose ?
A:Please tell us these infomation ,we will recommend the best solution to you
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Common cut thickness
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world.
Q :Our workers can't operate the machine, how to train the staff?
A:We will send you the teaching video of the machine and 24-hour online service,
we also support free training service, engineers can train your workers for free in our factory for 1-3 days
If you want door-to-door service,We can arrange local service in 48 hours .
Q :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A:We support the production visualization service. You can check our factory and machine condition by video.
A: Yes, we have CE, provide you with a one-stop service. We would like to provide any documents for your custom.
Q: If we are interested in your machine, how to choose ?
A:Please tell us these infomation ,we will recommend the best solution to you
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Common cut thickness
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world.
Q :Our workers can't operate the machine, how to train the staff?
A:We will send you the teaching video of the machine and 24-hour online service,
we also support free training service, engineers can train your workers for free in our factory for 1-3 days
If you want door-to-door service,We can arrange local service in 48 hours .
Q :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A:We support the production visualization service. You can check our factory and machine condition by video.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары
Волоконно-лазерная резка 3000x1500 мм 1500 Вт 3000 6000 12000
837 605,88 ₽
3000 Вт ЧПУ волоконно-лазерная машина для резки 25 мм углеродистая сталь листового металла
Низкая цена небольшая лазерная машина для резки листового металла 2 кВт 3 4 металлических пластин с воздушным компрессором
1 432 636,69 ₽ - 1 653 059,29 ₽
Волоконно-лазерная резка для резки листового металла Gweike Laser LF1390 Лазерная машина
3 085 916,40 ₽

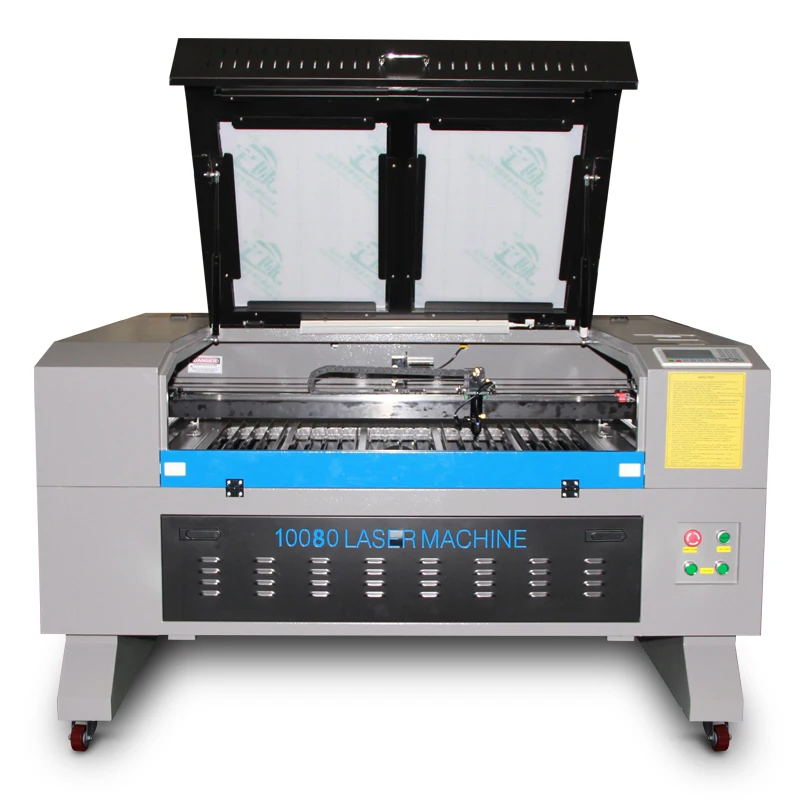

EFR Reci дерево акриловая кожа 60 Вт 80 100 130 150 6040 6090 1080 Co2 лазерная гравировка резки
137 764,13 ₽ - 143 274,69 ₽
Полностью Автоматическая кожаная акриловая рекламная Неметаллическая машина для резки лазерная резка
275 528,25 ₽ - 440 845,20 ₽

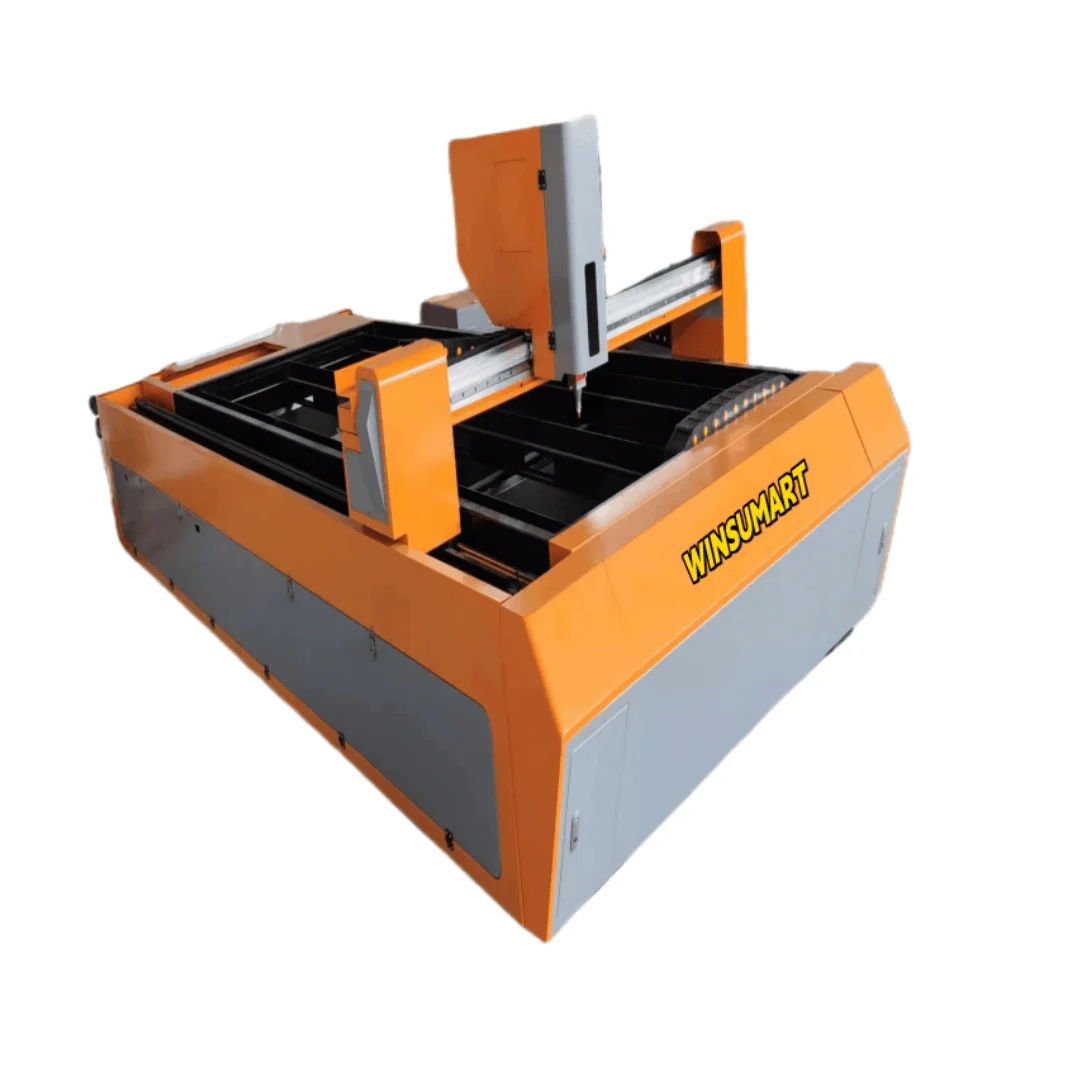

Бренд поставки Winsumart фотоническое покрытие 4 кВт волоконно-лазерная машина для резки металла цена производителя с контроллером WinCutter Заводская
