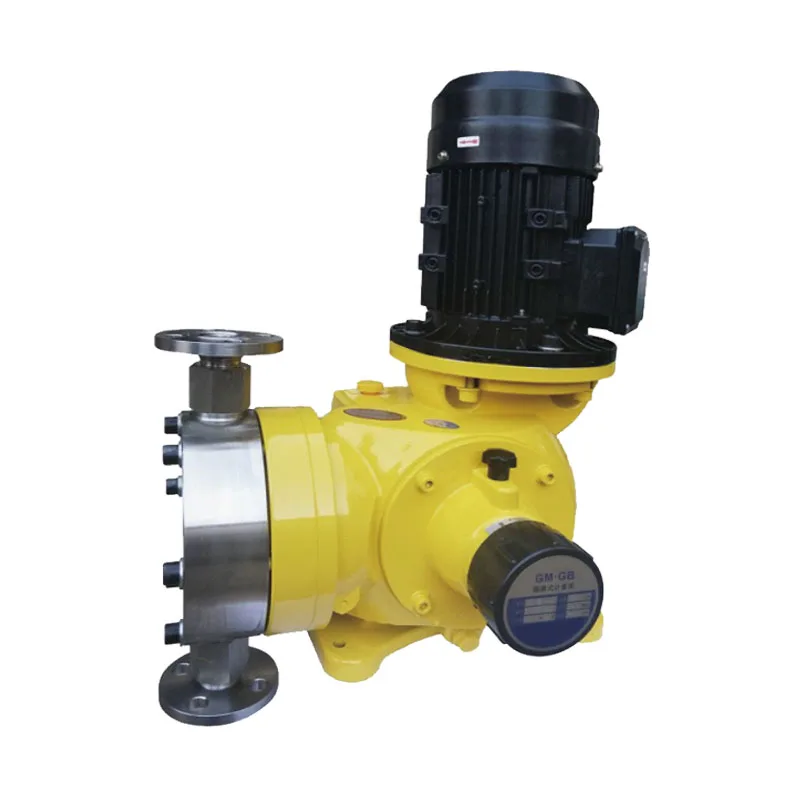

2024 High quality Automatic Chemical GB Series Hydraulic Diaphragm Dosing Pump Metering
- Категория: >>>
- Поставщик: Hebei Longkai Pump Industry Co. Ltd.Hebei Ltd.
Сохранить в закладки 1601280840344:
Описание и отзывы
Характеристики
Product Description
Definition
The hydraulic end of a pump uses a diaphragm to form a working chamber, and a pump that replaces the reciprocating motion of a piston (plunger) with periodic deformation of the diaphragm is called a mechanical diaphragm metering pump.
Flow range: 1-3600L/H; Maximum working pressure: 1.0MPa.
Flow range: 1-3600L/H; Maximum working pressure: 1.0MPa.
Features
-No dynamic seal, no leakage. Due to the static seal of the hydraulic end diaphragm replacing the dynamic seal of the piston, it can achieve absolute no leakage when conveying the medium;
-In addition to clean water, it is more suitable for transporting flammable, explosive, highly toxic, odorous, and radioactive media;
-Structurally simpler than hydraulic diaphragm pumps, but more complex than plunger pumps;
-Can be equipped with a digital controller for metering pumps to achieve digitization and enable both local and remote control;
-The diaphragm is made of a five layer composite structure pressed together (the first layer is a super tough acid resistant film, the second layer is elastic rubber, the third layer supports the iron core, the fourth layer is reinforced nylon fiber cloth, and the fifth layer is fully covered with elastic rubber), which can effectively improve the service life of the diaphragm;
-Add stainless steel reinforcement plate design behind the diaphragm to improve its service life;
-The export pressure is generally below 1.0MPa, and the applicable range of flow rate is relatively small; The measurement accuracy is lower than that of plunger pumps and hydraulic diaphragm pumps. When the pressure increases from small to large, the flow rate can change by up to 10%;
-No safety release device.
-In addition to clean water, it is more suitable for transporting flammable, explosive, highly toxic, odorous, and radioactive media;
-Structurally simpler than hydraulic diaphragm pumps, but more complex than plunger pumps;
-Can be equipped with a digital controller for metering pumps to achieve digitization and enable both local and remote control;
-The diaphragm is made of a five layer composite structure pressed together (the first layer is a super tough acid resistant film, the second layer is elastic rubber, the third layer supports the iron core, the fourth layer is reinforced nylon fiber cloth, and the fifth layer is fully covered with elastic rubber), which can effectively improve the service life of the diaphragm;
-Add stainless steel reinforcement plate design behind the diaphragm to improve its service life;
-The export pressure is generally below 1.0MPa, and the applicable range of flow rate is relatively small; The measurement accuracy is lower than that of plunger pumps and hydraulic diaphragm pumps. When the pressure increases from small to large, the flow rate can change by up to 10%;
-No safety release device.
Application
Diaphragm metering pumps have a wide range of applications, from general room temperature clean water to media that are highly corrosive, volatile, crystalline, flammable, explosive, highly toxic, odorous, heavy, medium viscosity, radioactive, and can also transport suspended liquids. To prevent accidents caused by the mixture of medium and hydraulic oil after diaphragm rupture, a double diaphragm metering pump with diaphragm rupture alarm device can be used for flammable, explosive, highly toxic, and valuable liquids.
Model | Rated flow rate (L/H) | Rated pressure (Mpa) | Pump speed (r/min) | Diaphragm specifications (mm) | Power (W) |
GB0080/1.0 | 80 | 1 | 120 | 120 | 0.75 |
GB0180/1.0 | 180 | 1 | 120 | 120 | 0.75 |
GB0250/1.0 | 250 | 1 | 120 | 120 | 0.75 |
GB0350/0.8 | 350 | 0.8 | 120 | 140 | 0.75 |
GB0450/0.8 | 450 | 0.8 | 120 | 140 | 0.75 |
GB0600/0.7 | 600 | 0.7 | 120 | 140 | 0.75 |
GB0700/0.7 | 700 | 0.7 | 180 | 140 | 0.75 |
GB1000/0.5 | 1000 | 0.5 | 180 | 160 | 1.1 |
GB1200/0.4 | 1200 | 0.4 | 180 | 160 | 1.1 |
GB1500/0.4 | 1500 | 0.4 | 180 | 180 | 1.5 |
GB1800/0.3 | 1800 | 0.3 | 180 | 180 | 1.5 |
GB2000/0.2 | 2000 | 0.2 | 180 | 180 | 1.5 |
GB2500/0.2 | 2500 | 0.2 | 180 | 200 | 1.5 |
GB2800/0.1 | 2800 | 0.1 | 180 | 200 | 1.5 |
GB3000/0.1 | 3000 | 0.1 | 180 | 200 | 1.5 |
Specification
Product name | Diaphragm dosing pump |
Theory | Reciprocating Pump |
Material | 304/316 Stainless Steel/ PTFE/ PP/ PVDF |
Max pressure | 0-1.0MPa |
Voltage | 380V50HZ/220V |
Feature | High Efficiency |
Color | Customized |
MOQ | 1 Set |

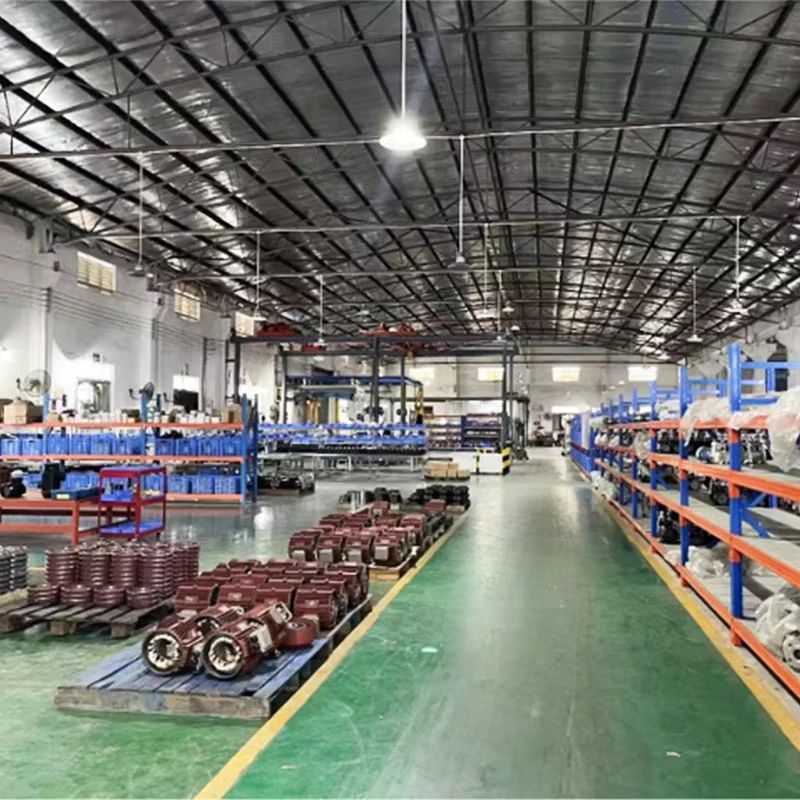

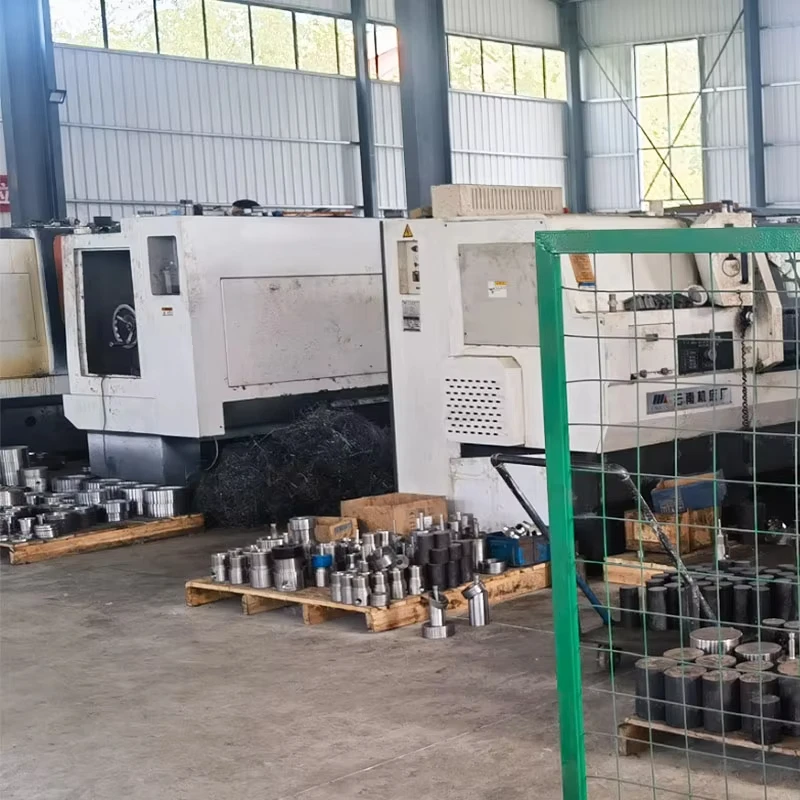

Company Profile
Certifications
Packing & Delivery
