Product Details

Continuous Casting Machine Steel Rebar Making Machine Hot Rolling Mill Plants

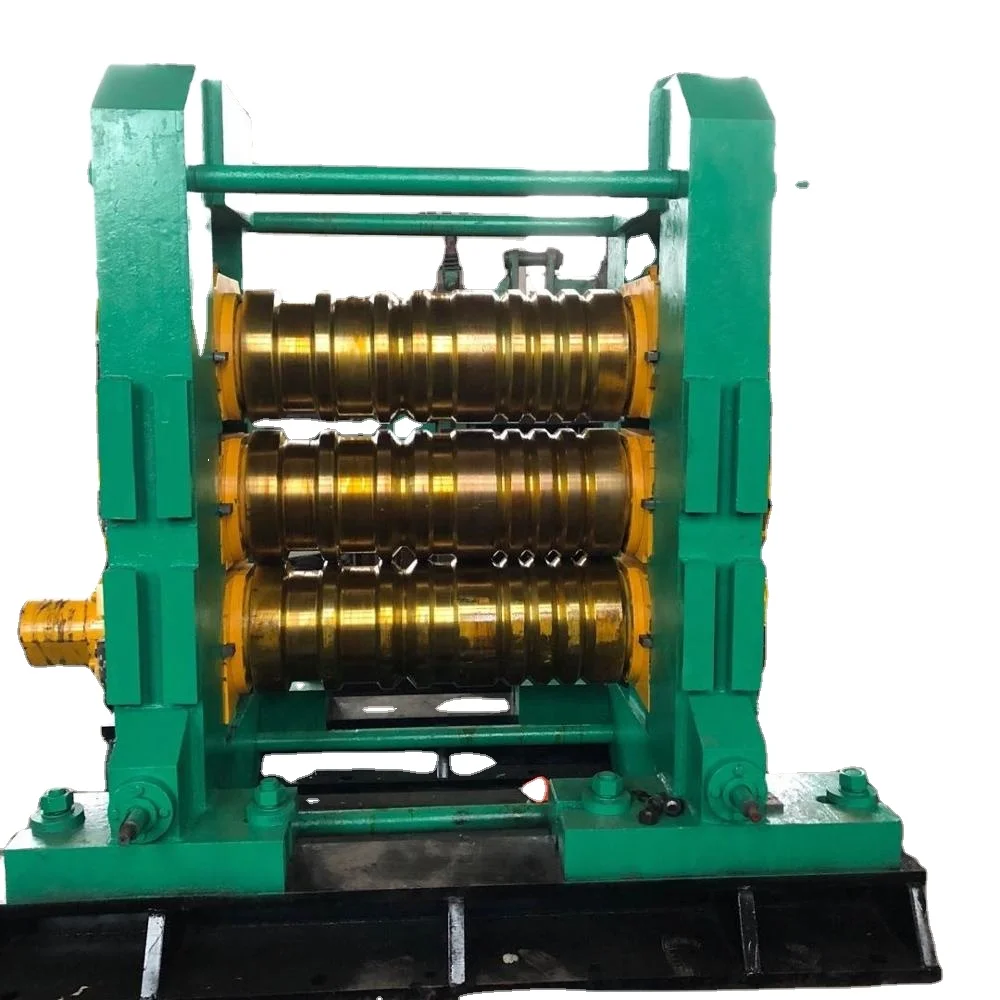

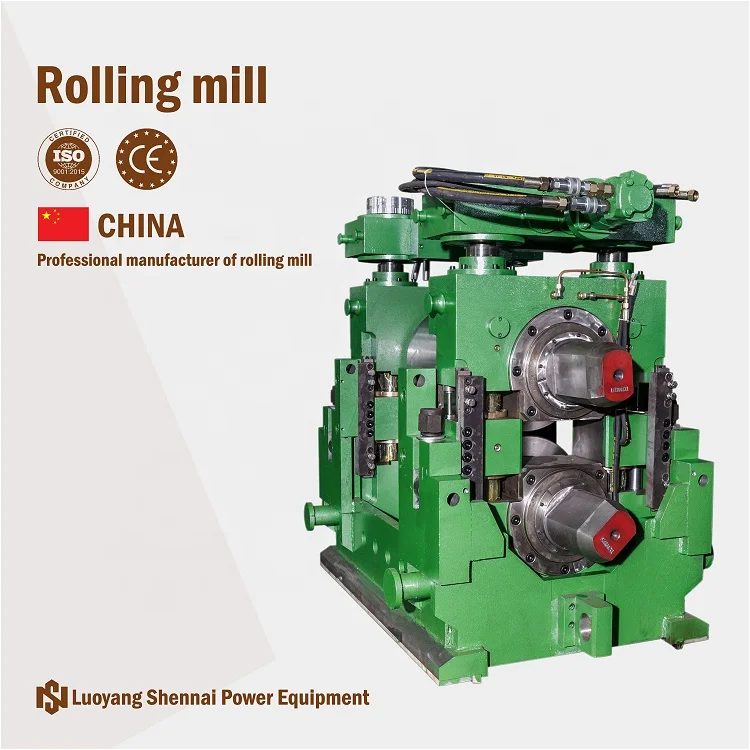

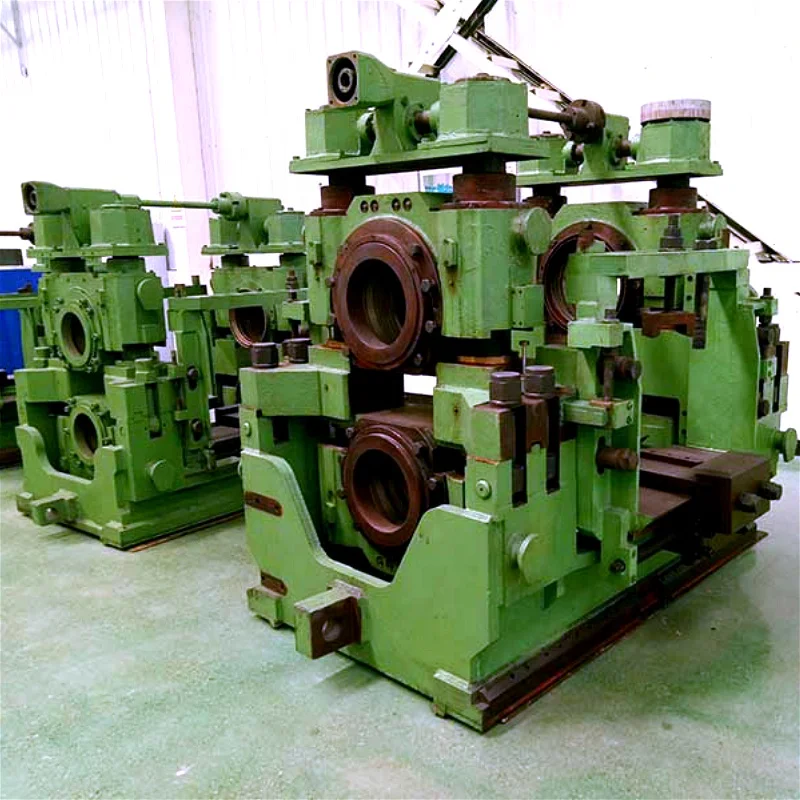

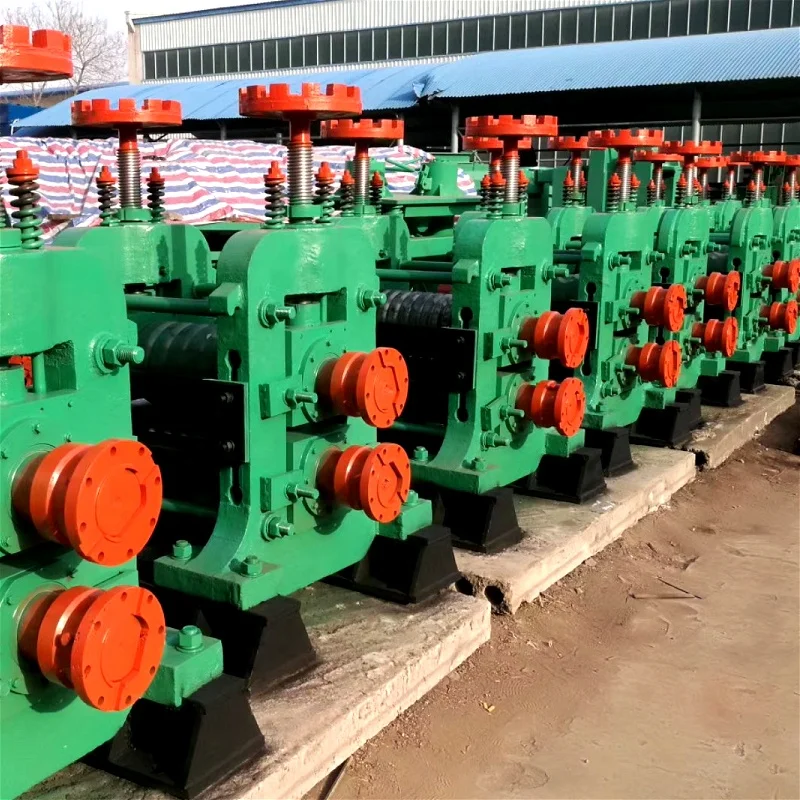

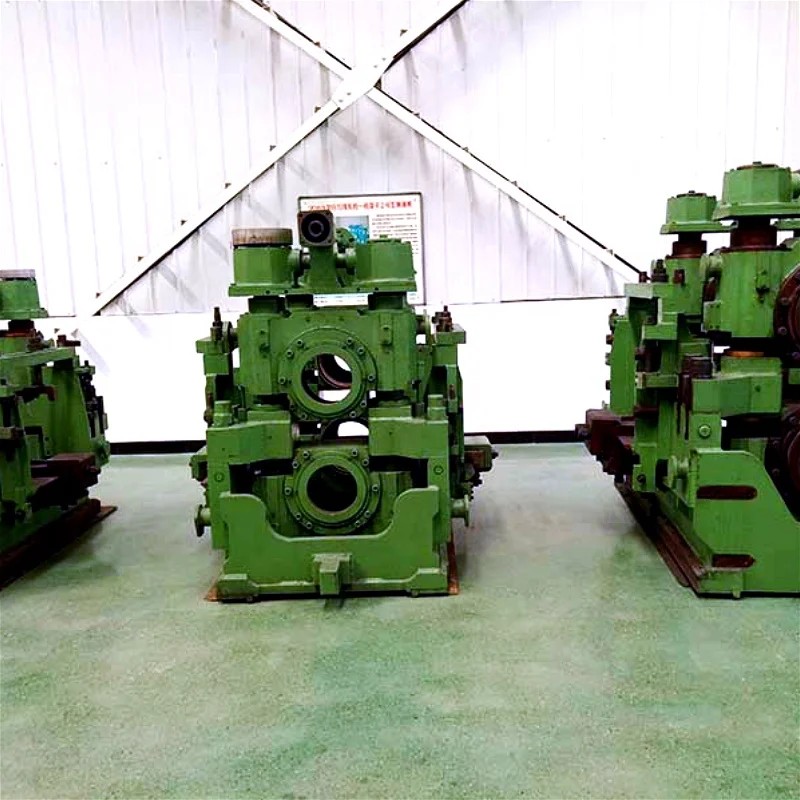

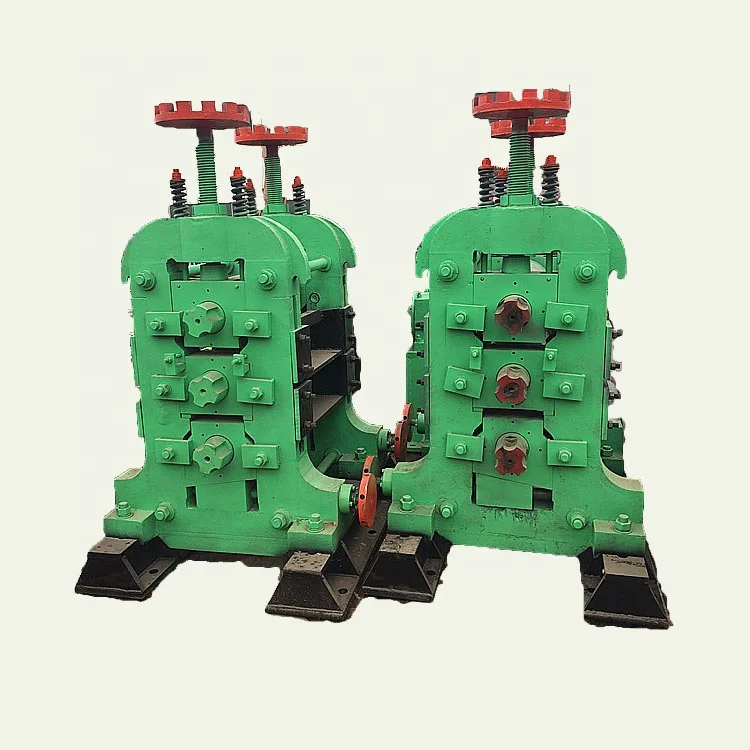

The steel roughing mill stand is used to reduce the thickness of the steel while extending the overall length. The rack of the rough rolling mill is an important part of the steel frame. The rack is equipped with a roll chock and a roll adjustment device. The rolling mill stand must have sufficient strength and rigidity to withstand the rolling force.

We can manufacture and provide complete rolling mills for rolling rebar/wire rod/structural steel (such as angle steel, I-beam, channel steel, steel plate, etc.).

Hot Rolling Mill Small Deformed Bar Production Line Steel Bar Production Line

Model	φ550	φ450	φ350
The diameter and length of barrel(mm)	φ425-φ660×80	φ320-φ485×700	φ280-φ390×600
Roller neck size(mm)	φ280	φ200	φ180
The Max rolling force (t)	200-280	150	105
Rollaxial adjustment	±3mm	±3mm	±3mm
Max Opening size(mm)	425~685	340~495	290~400
Roll gap adjustment method	Hydraulic	Hydraulic	Hydraulic

As a professional Steel Roughing Rolling Mill Stand manufacturer in China, we can supply designing, manufacturing, installation, and commission of the equipment with "turn-key" service. We can also design, manufacture and revamp other non-standard equipment according to the requirements of users.

(1)

Special Features of Steel Roughing Mill Stand:

Fully automatic operation and heavy duty

High strength and stiffness.

Durable design which is suitable enduring heavy load.

Complete stand of the Mill Stand is stress relieved and fully machined.

Very convenient to change rolls quickly and easy maintenance, avoid more downtime.

Bearing long life.

Service:

We can provide foundation layout and arrangement diagram.

Trustworthy after-sales service, we will send engineers to your factory to install and debug the machines.

Competitive price & excellent quality.

Our machines are easy operation and maintenance.

Lower investment.

Steady performance.

Products are customized for different needs.

Production capability can be adjusted according to customers' request.

Low energy consumption.

Manufacturing Proces

Melting & Casting & Rolling Process

	Steel Iron metal Scrap iron and steel are usually used as raw materials for production lines.
	Melting furnace Steel and iron metals and other scrap metal materials are mixed and melted into molten steel at high temperatures to form components in the required proportions.
	Continuous casting machine The molten steel made by the steelmaking furnace is cast by the continuous casting machine to obtain the continuous casting billet.

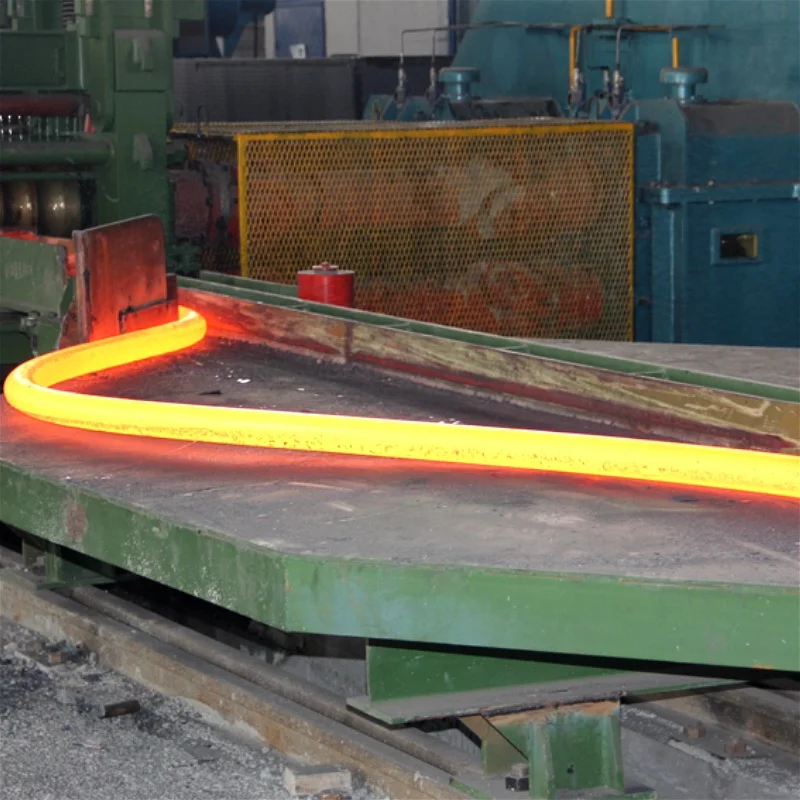

	Rolling mill The rolling mill is mainly composed of several sets of rolls. The rolls are a pair of rolls that rotate in opposite directions. A gap or hole of a certain shape is formed between the two rolls. The steel billet passes through the roll to become a steel of a certain shape.
	Final product After hot rolling, water is penetrated immediately, the surface is controlled to cool, and then the core residual heat is used to complete the tempering treatment of the finished steel bar.
