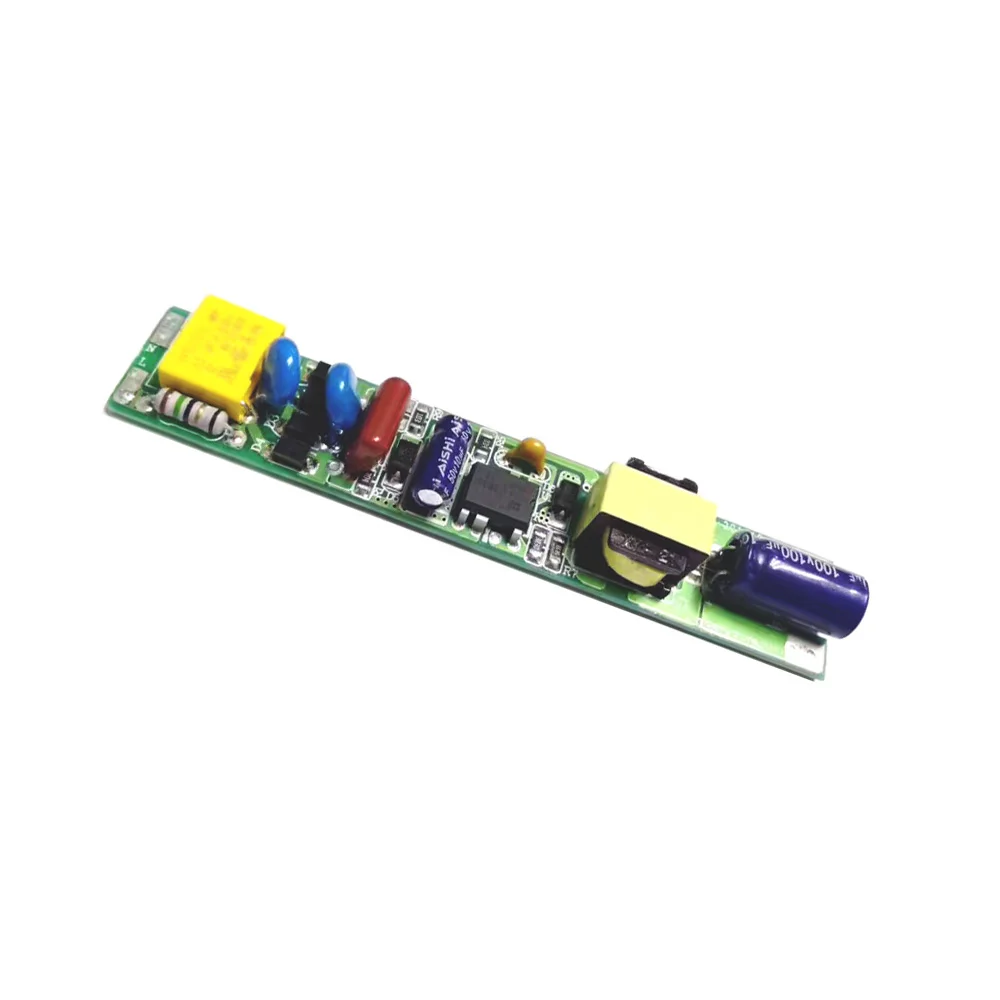

Лидер продаж светодиодный драйвер для светодиодной трубки dc 30-80 в 240 мА t8 18 Вт 20
46,37 ₽ - 48,58 ₽

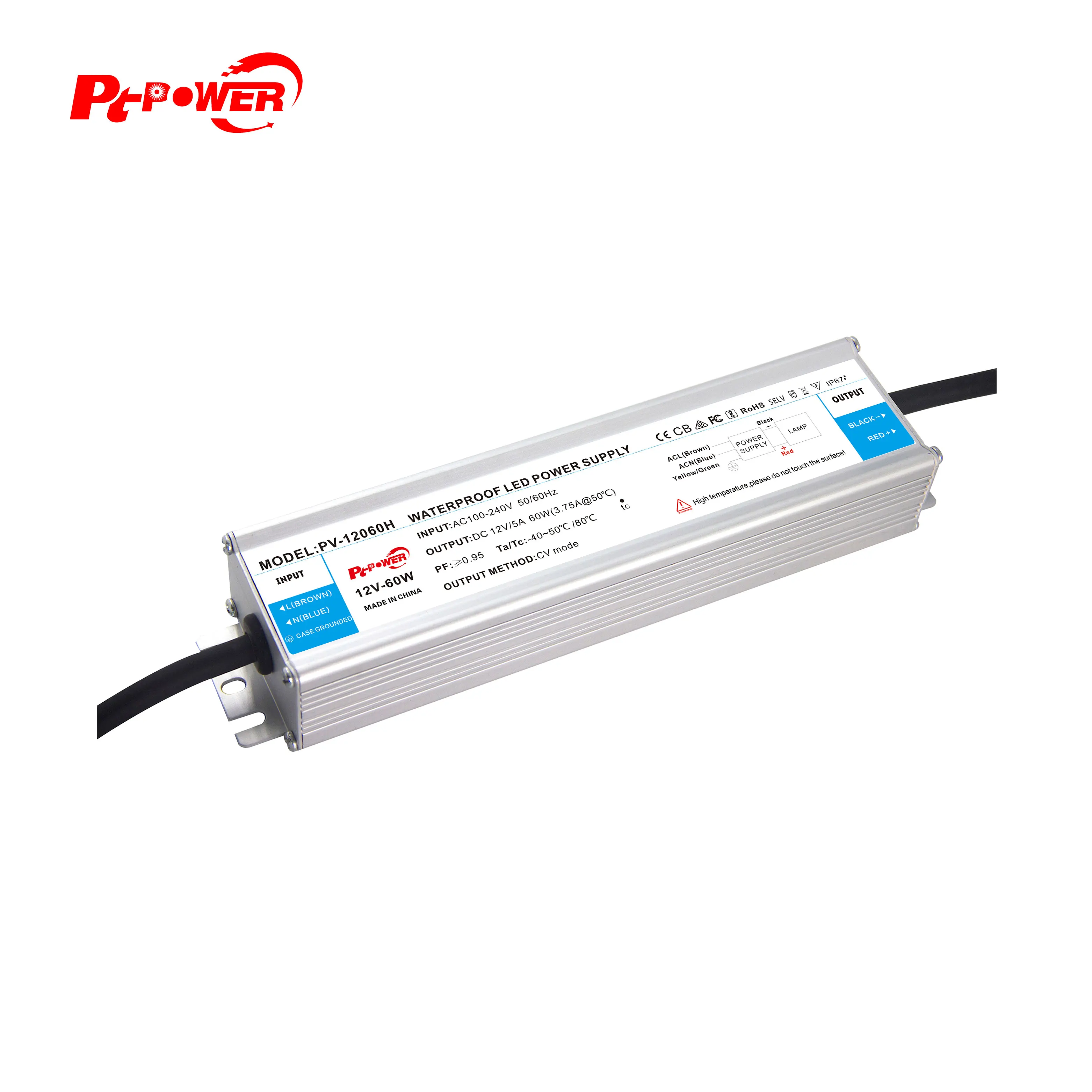

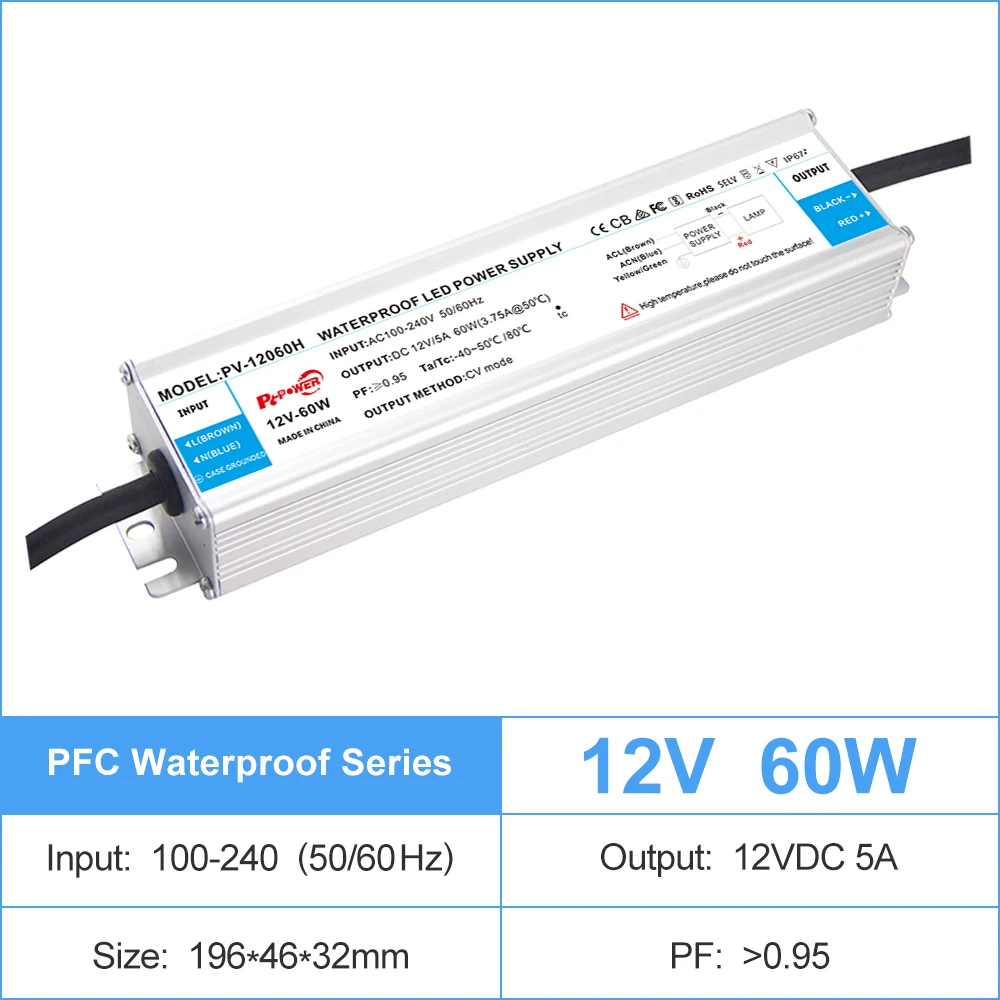

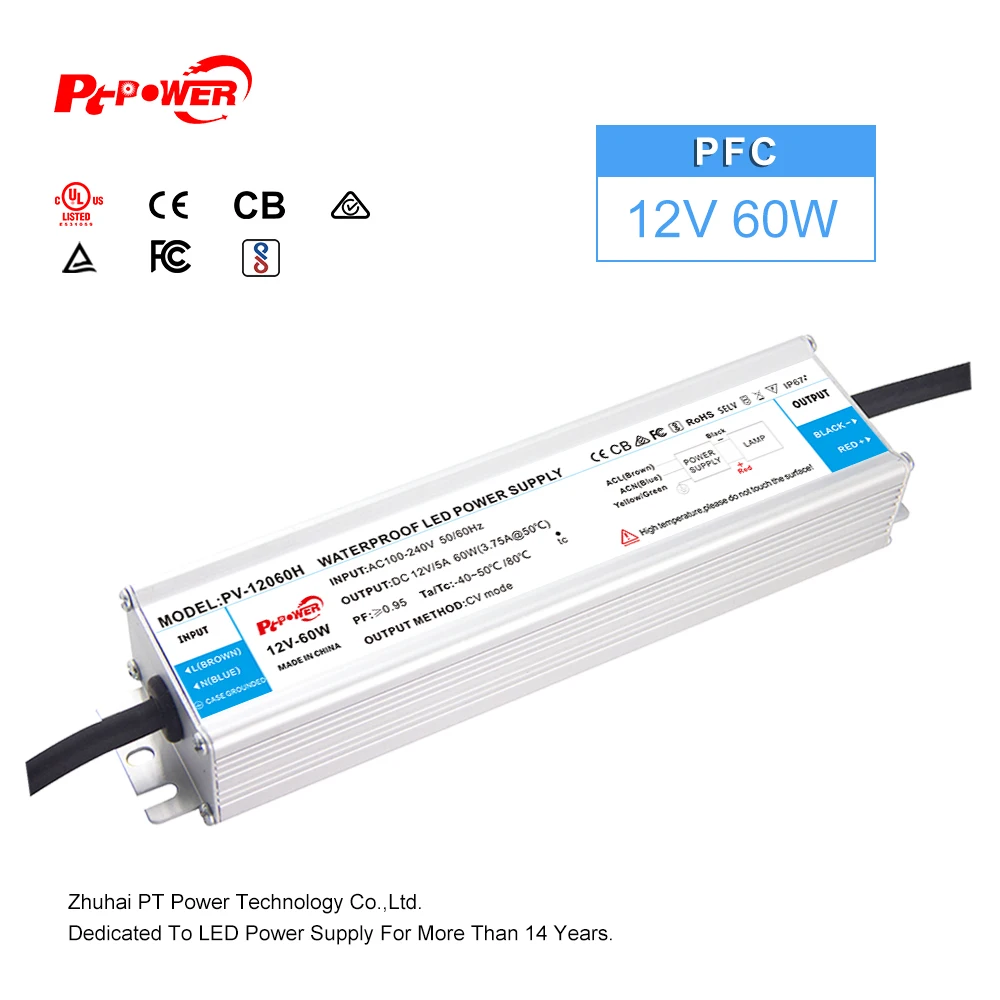

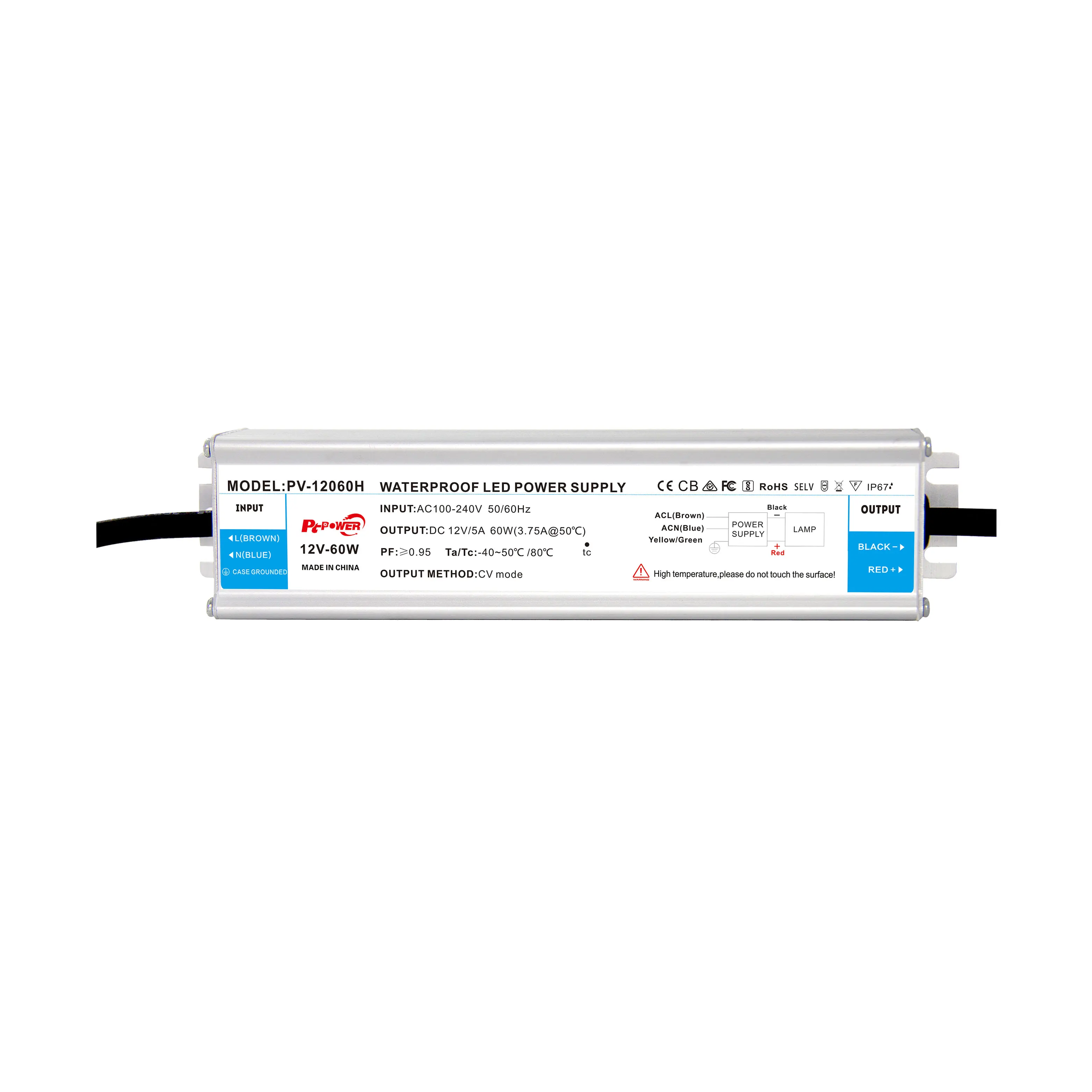

Универсальный Регулируемый входной выходной трансформатор 12 В 60 Вт
- Категория: >>>
- Поставщик: Zhuhai Pt Power Technology Co. Ltd.
Сохранить в закладки 1601281261572:
Описание и отзывы
Характеристики
Product Description
Product Specifications
Model No.： | PV-12060H-P2 | PV-24060H-P2 | ||||||||||
Output | Rated Output Voltage | 12V | 24V | |||||||||
Output current Range | 0-5A | 0-2.5A | ||||||||||
Rated Output Power | 60W | |||||||||||
Output Voltage Precision | ±3% | |||||||||||
Output Ripple and Noise | ＜120mVP-P | ＜240mVP-P | ||||||||||
Load Regulation | ±2% | |||||||||||
Start/Rise Time | <1000ms/230VAC | |||||||||||
Retention Time | 20ms/230VAC | |||||||||||
Input | Input Voltage Range | 100-240VAC | ||||||||||
Input Frequency Range | 50-60HZ | |||||||||||
Power Efficiency | >85% | >87% | ||||||||||
PF | >0.95 | |||||||||||
THD | 115Vac@THD＜10%, 230Vac@THD＜20%, 264Vac@THD＜20% (Full Load) | |||||||||||
Standby Power Consumption | ＜0.5W | |||||||||||
Leak Current | ＜0.7mA/230VAC | |||||||||||
Protection | Overload Protection | When the load current exceeds 110-150% of the output current, the power supply will enter protection state. Protection Mode: Hiccup Mode. | ||||||||||
Short Circuit Protection | Protection mode: Hiccup Mode. When the short-circuit fault is removed, the power supply will automatically resume work. | |||||||||||
Working Environment Protection | Working Temperature | -30℃~65℃ (Please refer to Derating Curve) | ||||||||||
Storage Temperature | -40℃~80℃ | |||||||||||
Ingress Protection Rating | 90%RH non condensing, refer to IP66 | |||||||||||
Shockproof Character | 10-500HZ,2G 10min/1cycle,period for 60min,each along X,Y,Z axes | |||||||||||
Temperature Coefficient | ±0.03%℃ (0-50℃) | |||||||||||
Security Features | Security Standard | IEC 61347-2-13 2014+A1 IEC 61347-1 2015+A1 | ||||||||||
Withstand Voltage | I/P-O/P:3KVAC | |||||||||||
Insulation Resistance | I/P-O/P:>100M Ohms/500VDC/25℃/70% RH | |||||||||||
EMC | EN55015 EN 61000-3-2:2014 EN 61000-3-3:2013 | |||||||||||
Others | Wires | Input：《VDE》 H03VV-F 300/500V 2x0.75mm² L=200mm Output:《VDE》 H03VV-F 300/500V 2x0.75mm² L=200mm | ||||||||||
Outter Size | 162*43*32mm(L*W*H) | |||||||||||
Weight/PCS | 354g | |||||||||||

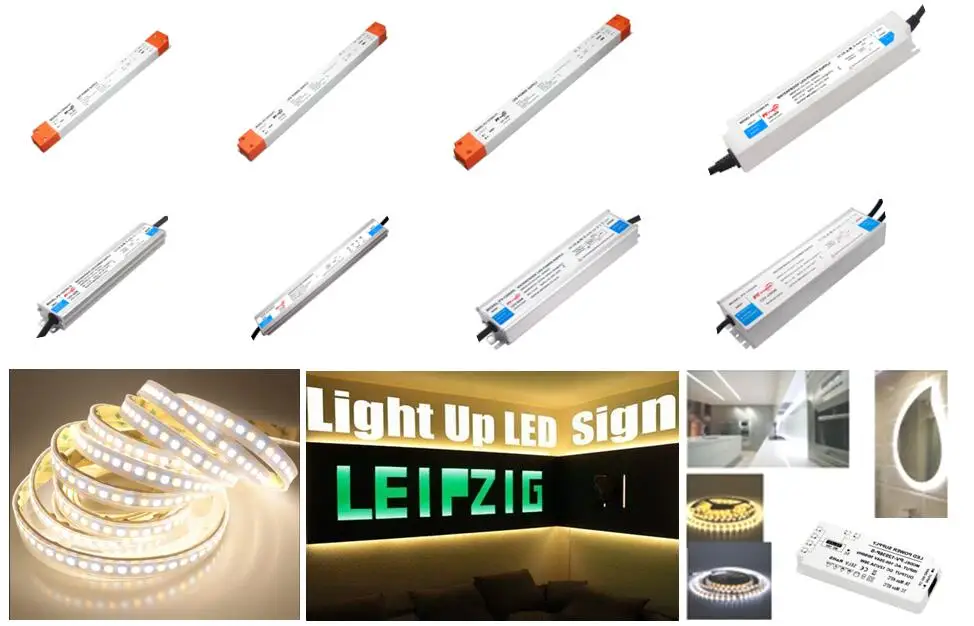

Related Products
Certificate

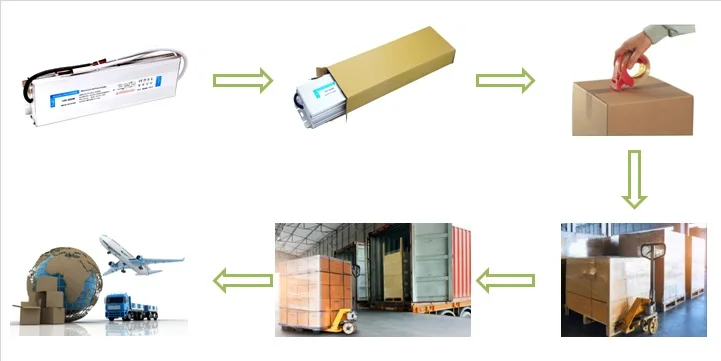

Packing&Shipping

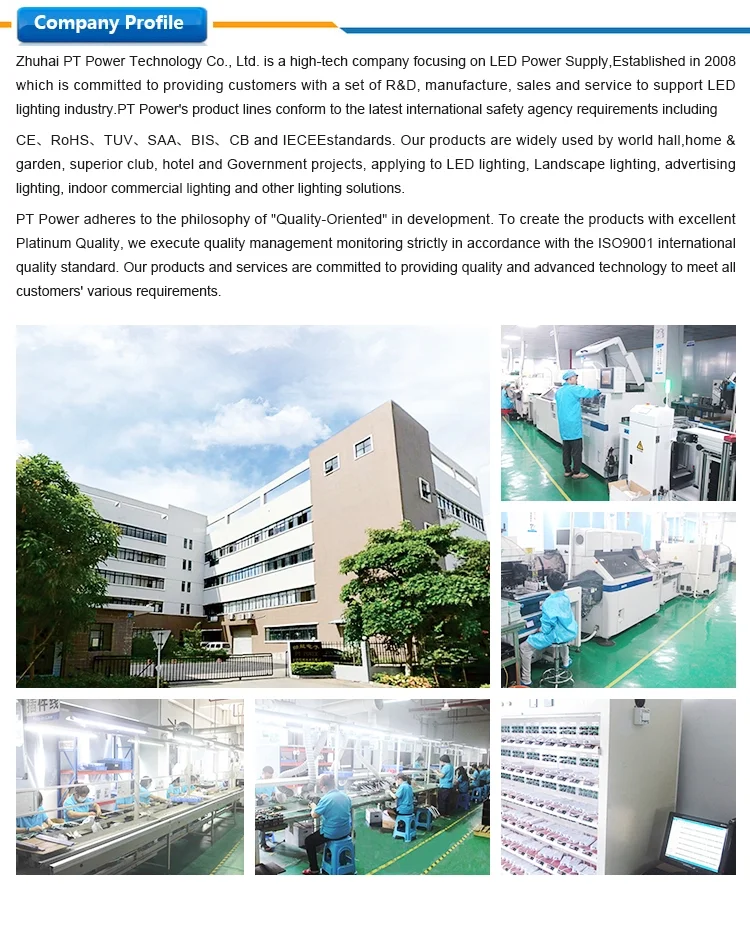

Company Introduction
FAQ
Q1. Are you manufacturer? If yes, in which city?
A1:Yes, Zhuhai Pt Power Technology Co., Ltd. welcome your visiting. Please kindly tell me your schedule before you come here, we will prepare to pick you up.
Q2. What is the warranty for your LED power supplies?
Q2. What is the warranty for your LED power supplies?
A2: We have products with 2 years, 3 years and 5 years warranty to meet various market requests.
Q3. Do you offer free samples?
A3: Yes. Free samples are available, but the shipping cost should be on the buy's side.
Q4. Do your LED power supplies are original?
A4: Yes, all of our power supplies are 100% originally brand new.
Q5. Do you provide high copy LED power supplies?
A5: Yes, we provide all brand original and OEM LED power supplies to meet different requirements from different buyers.
Q6. what is your delivery date?
A6: The product delivery date is about 3~15 days after receipt of payment according to your order quantity.
Q7. Can you help me make my own design? How about the sample fee and sample time?
A7: Sure We have a professional development team to design new projects. We provide many customers with OEM and ODM products. You can tell me your thoughts or provide us with drawings. We develop it for you. As for the sample, the time period is around 15~30 days. The sample fee is charged according to the material and size of the product. If the sample is satisfied from your side, the sample fee can be refunded after regular mass orders.
Q3. Do you offer free samples?
A3: Yes. Free samples are available, but the shipping cost should be on the buy's side.
Q4. Do your LED power supplies are original?
A4: Yes, all of our power supplies are 100% originally brand new.
Q5. Do you provide high copy LED power supplies?
A5: Yes, we provide all brand original and OEM LED power supplies to meet different requirements from different buyers.
Q6. what is your delivery date?
A6: The product delivery date is about 3~15 days after receipt of payment according to your order quantity.
Q7. Can you help me make my own design? How about the sample fee and sample time?
A7: Sure We have a professional development team to design new projects. We provide many customers with OEM and ODM products. You can tell me your thoughts or provide us with drawings. We develop it for you. As for the sample, the time period is around 15~30 days. The sample fee is charged according to the material and size of the product. If the sample is satisfied from your side, the sample fee can be refunded after regular mass orders.
Похожие товары
40 Вт светодиодный драйвер не водонепроницаемый изоляционный широкий высокого качества AC85-265V DC24-40V
12 В 20 Вт 40 светодиодный драйвер постоянного напряжения 18 импульсный источник питания поставщик
Высокоэффективный пластиковый корпус светодиодный продукт 12 В 60 Вт 48 36 24 18 импульсный источник питания SMPS

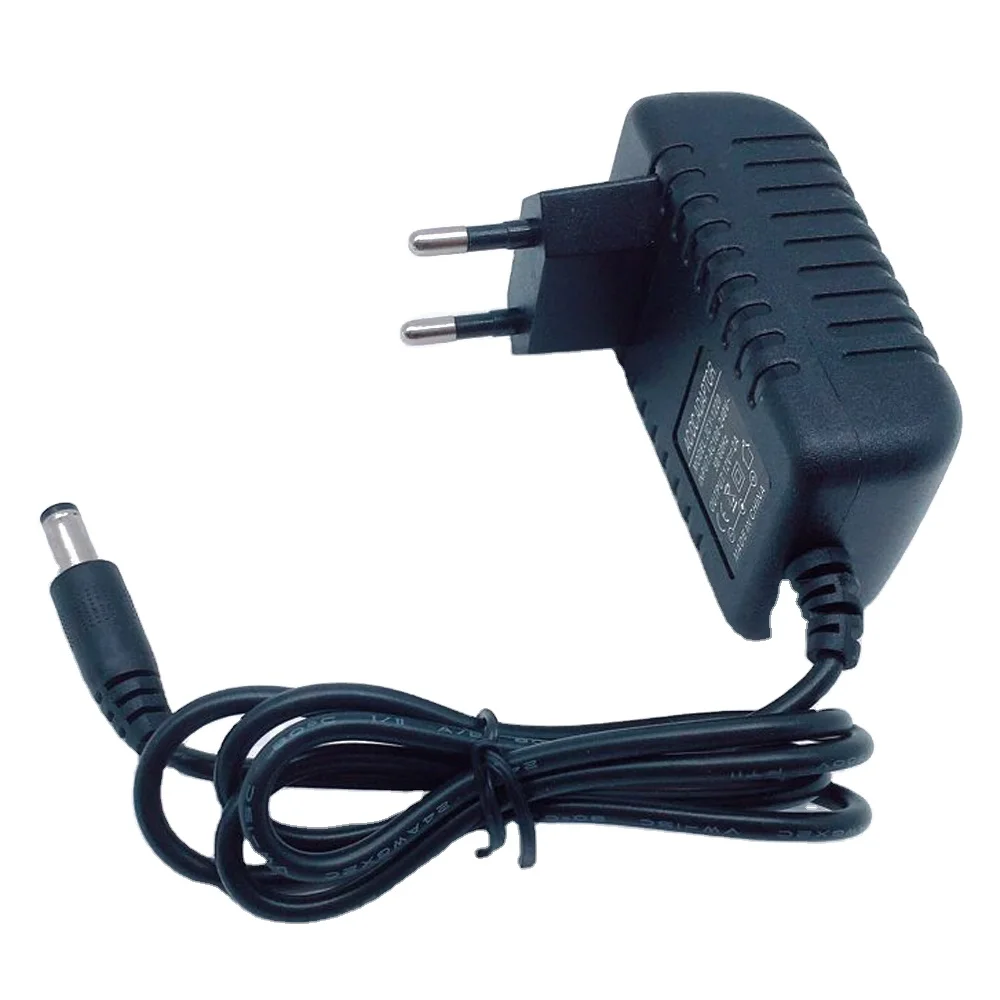

DC 5V 12V 1A 2A 3A 5A 6A 8A 10A трансформаторы Питание адаптер конвертер зарядное устройство
Dali Dimming и изменение цвета входной мощности 200-250 В 3-40 Вт постоянный ток затемнения драйвер
661,32 ₽ - 1 102,94 ₽

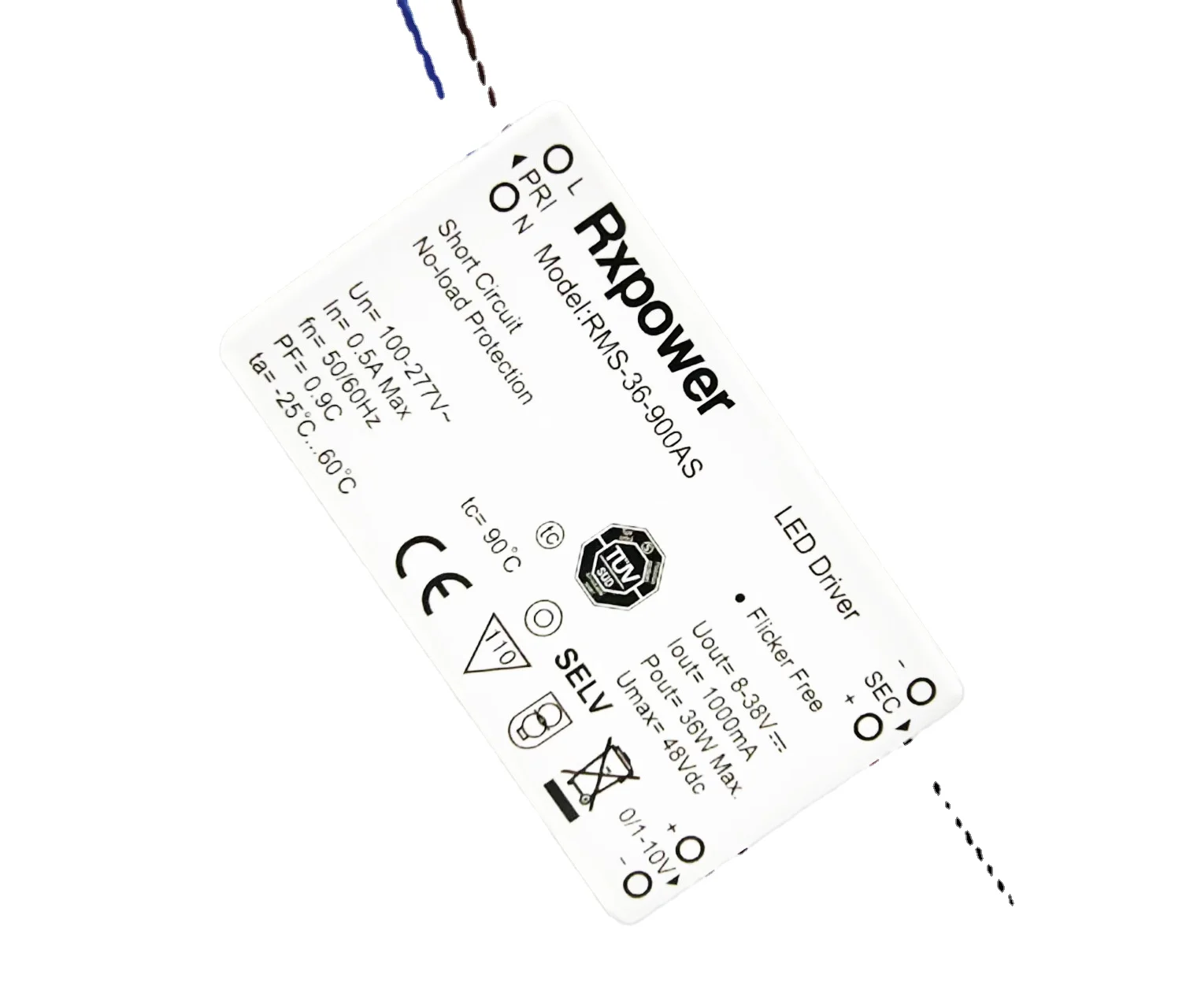

Светодиодный драйвер с постоянным током 1000 мА л светодиодный 8-42VDC
